20GLADR-STG5

Overview

The 20GLADR-STG5 Gladiator Stage 5 All-In-One Audio Kit is a 1,800W Element Ready TM plug and play audio kit that delivers high output with Jeep-specific tuning.

Features

• Up to 4x louder than base audio system
• Integrated OEM style enclosures w/ factory connectors
• High output performance
• Nearly 2x louder than premium audio system
• T-harness integration eliminates cutting or splicing wires
• Direct bolt into vehicle using OEM mounting holes
• Plug-and-Play design for easy installation
• Durable PE (Poly Ethylene) material with friction welded seams
• Minimal cutting (for models that require 12v accessory relocation only)
• Audio integration into OEM CAN-bus system
• DSP recognition with auto-loading Jeep Gladiator specific tune
• Custom bass level control matches OEM dash and controls
• Element Ready TM enclosures designed to withstand heat, water, and UV rays
• Thermal shock and vibration resistant enclosures

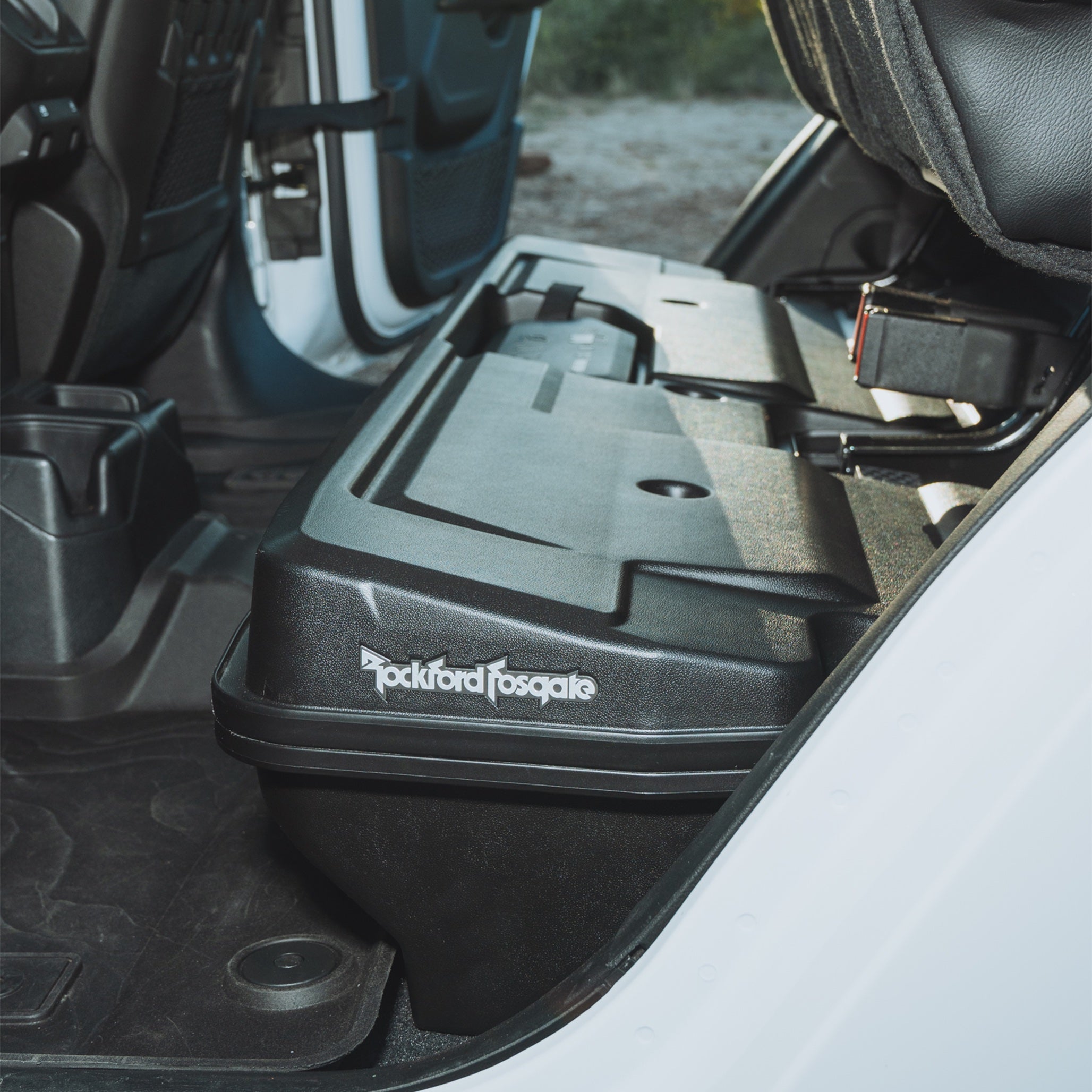

• Slim subwoofer in sealed enclosure retains cargo space
• Custom Rockford Fosgate duck
• Factory jack relocation kit
• 2-Year Warranty

Specifications

• Total Power: 1,800 Watts
• Amplifiers: (1) M5-800X4; (1) M5-1000X1

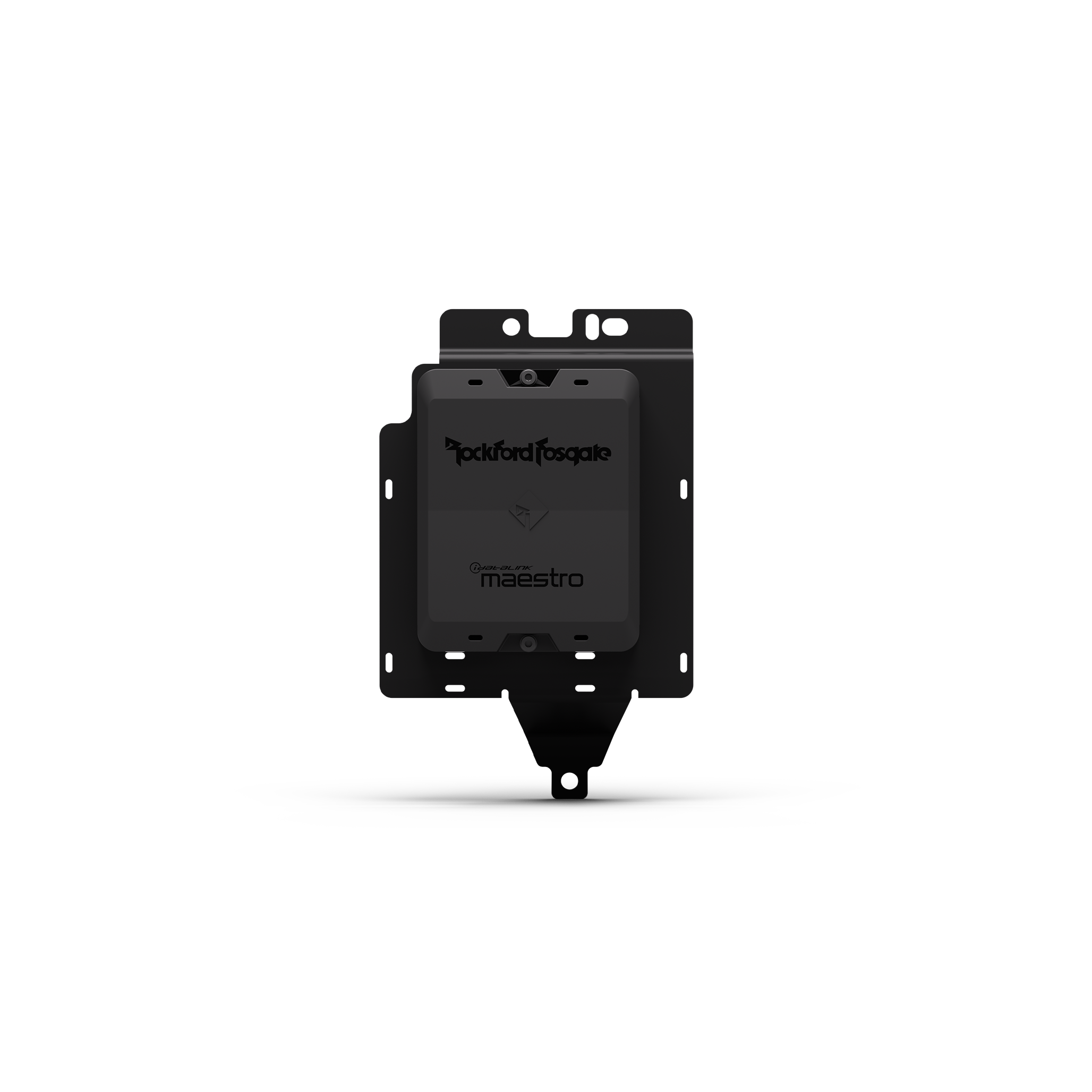

• Digital Signal Processor: (1) DSR1J; (Maestro Jeep Programed)

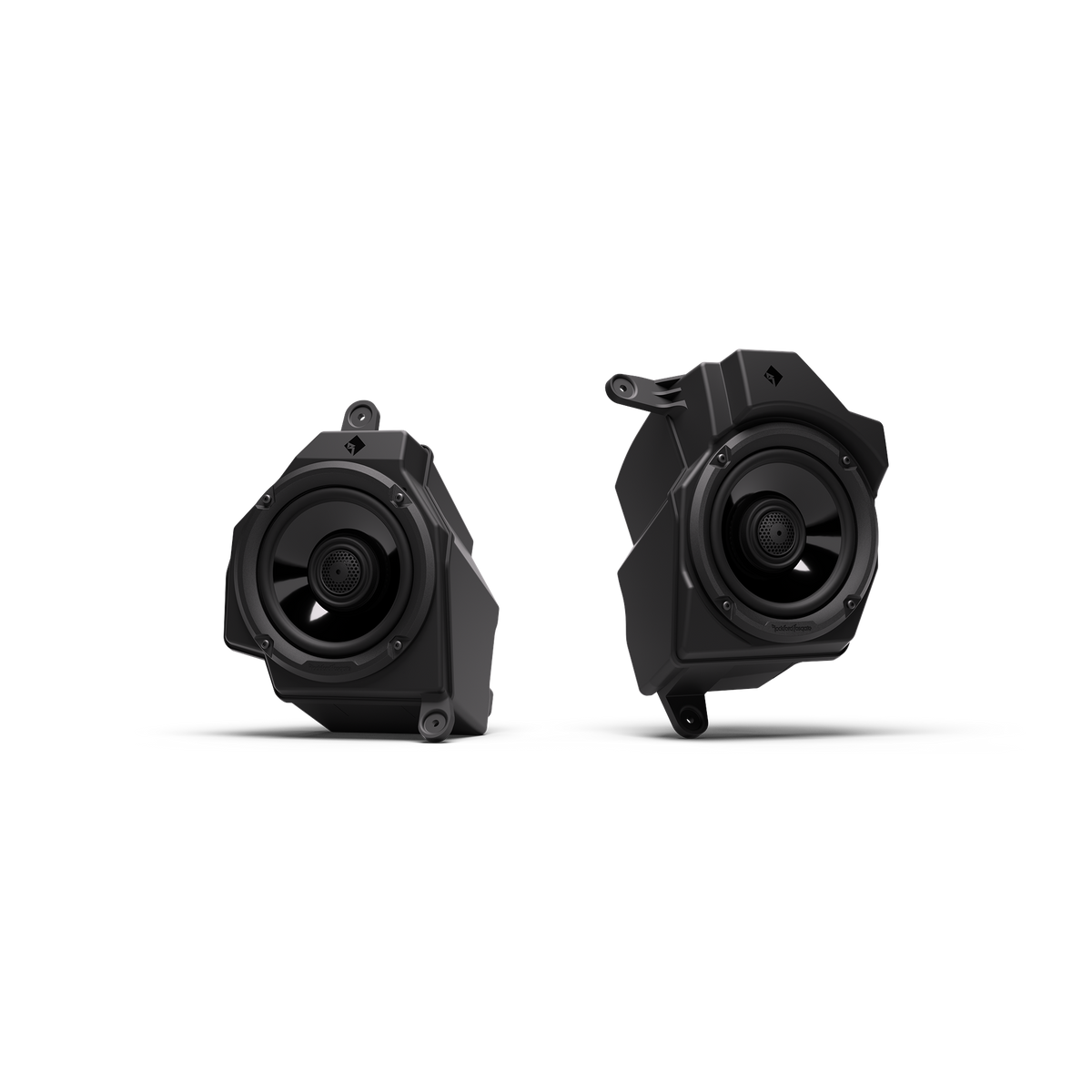

• Front Speakers: (2) M2-TS; (2) TMS65

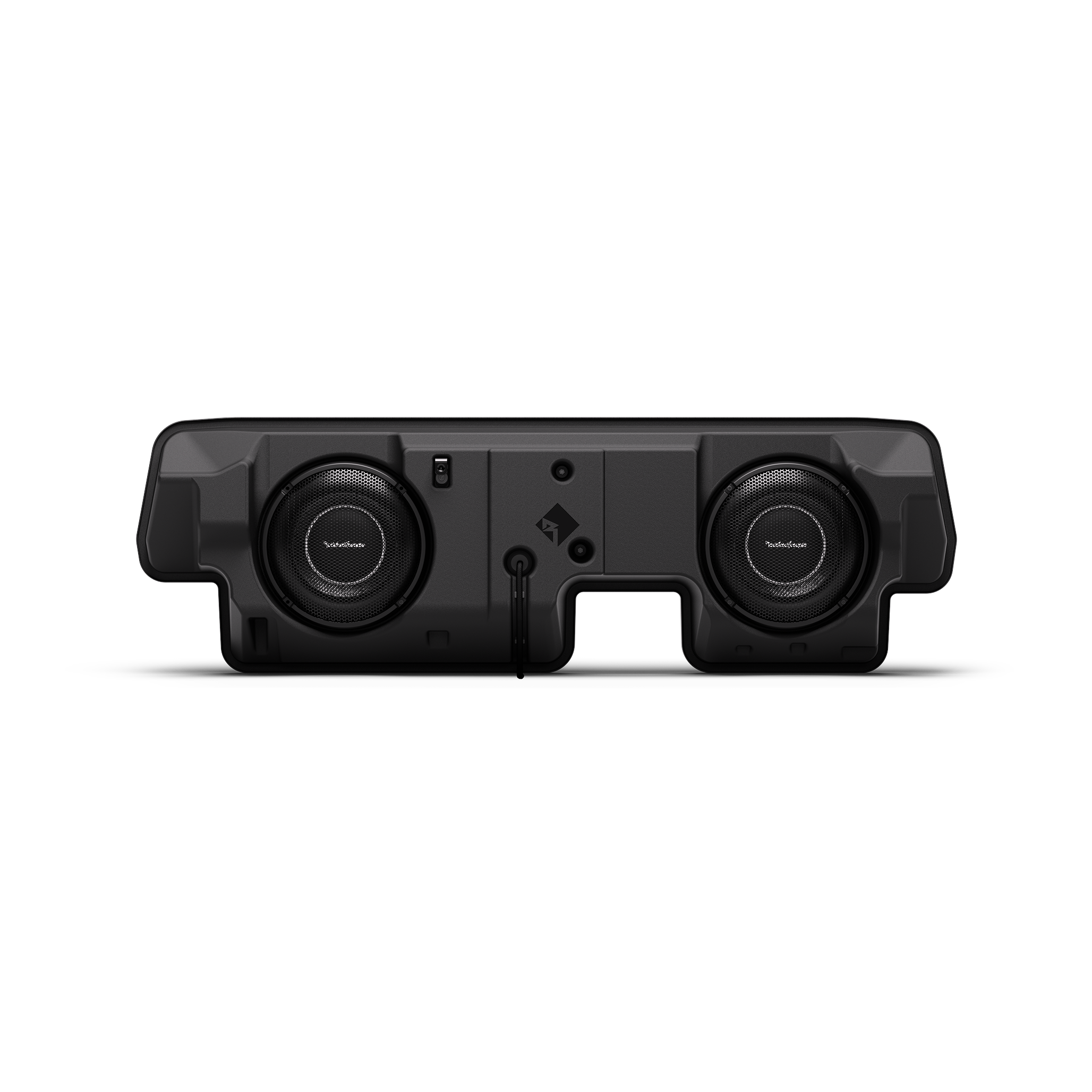

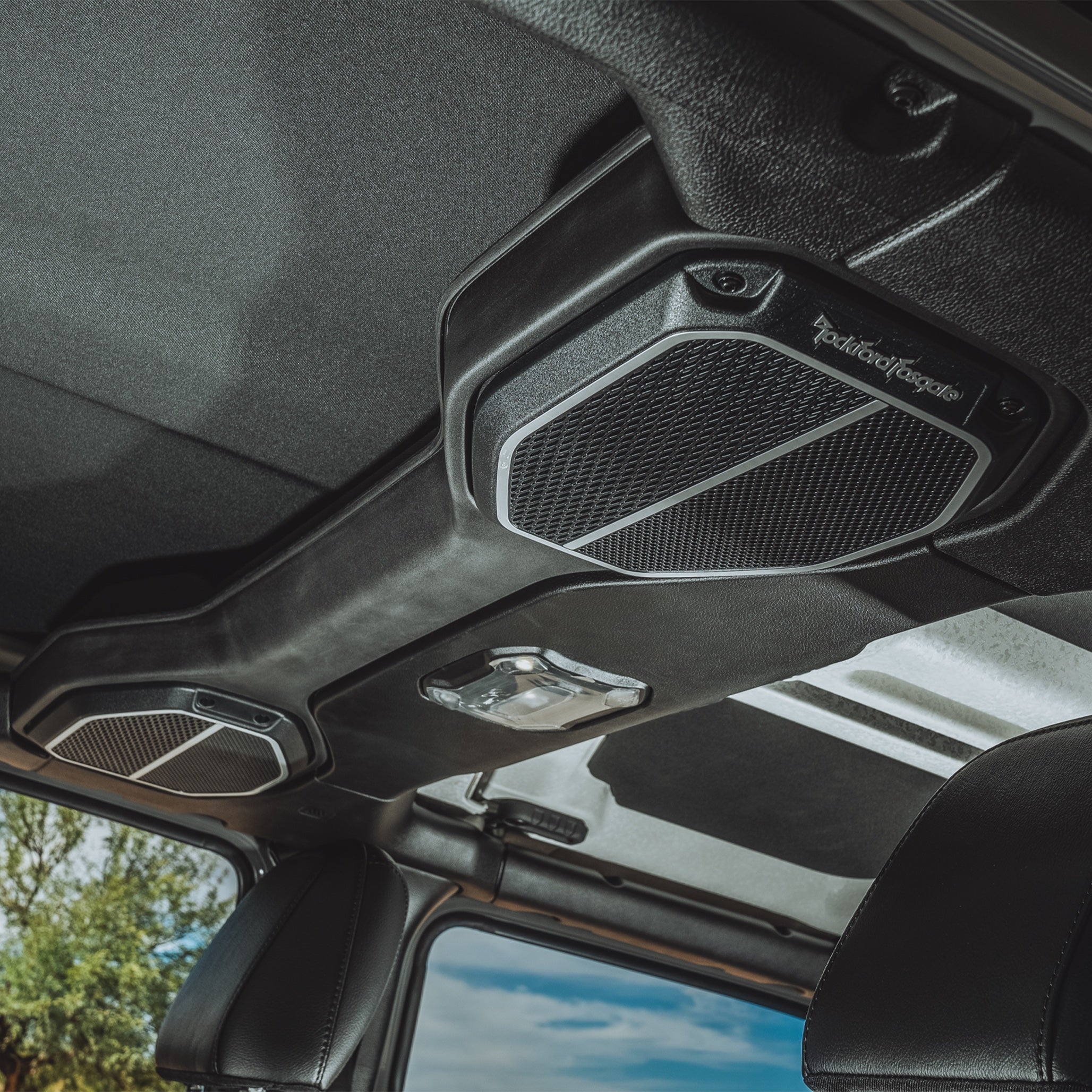

• Soundbar Speakers: (2) TMS65
• Fuse Size: 150 ANL
• Subwoofers: (2) T1S2-10
• Accessory Pack: (1) ABS Drill Template for Jeep; (3) Flat Washer M4-0.7, 9mm OD, 1mm TH; (20) Nylon Cable Tie 0.17 x 8 in.; (3) Stamped Clip; (1) 12V Socket Removal Tool for Jeep Wrangler; (1) Hole Saw with Arbor, 20mm Diameter; (3) Large Screw, M4x0.7, x 8mm; (3) Thread Forming Screw, 1/4-14 THD, 0.75 in L, Hex, 0.375; (1) Drill Bit, 4.76mm Diameter, 89mm L; (2) Flat Flange Washer 2.5mm; (1) Subwoofer Bracket Passenger; (1) Subwoofer Bracket Driver; (1) Machine Screw, M5, 16mm, Hex; (1) SHCS Screw, M5x0.8, 30mm L, Hex, 4mm; (2) Coupling Nut, M6x1, 10mm Diam., 20mm L; (2) SHCS Screw, M6x1, 45mm L, Hex, 5mm; (4) FHCS Screw, M6x1, 10mm L, Hex, 4mm; (1) Nylon Nut, M5x0.8, 8mm Hex, 5mm Tall; (1) Steel-Neoprene Sealing Washer; (2) Clipped Washer, 5.3 ID, 16.0 OD

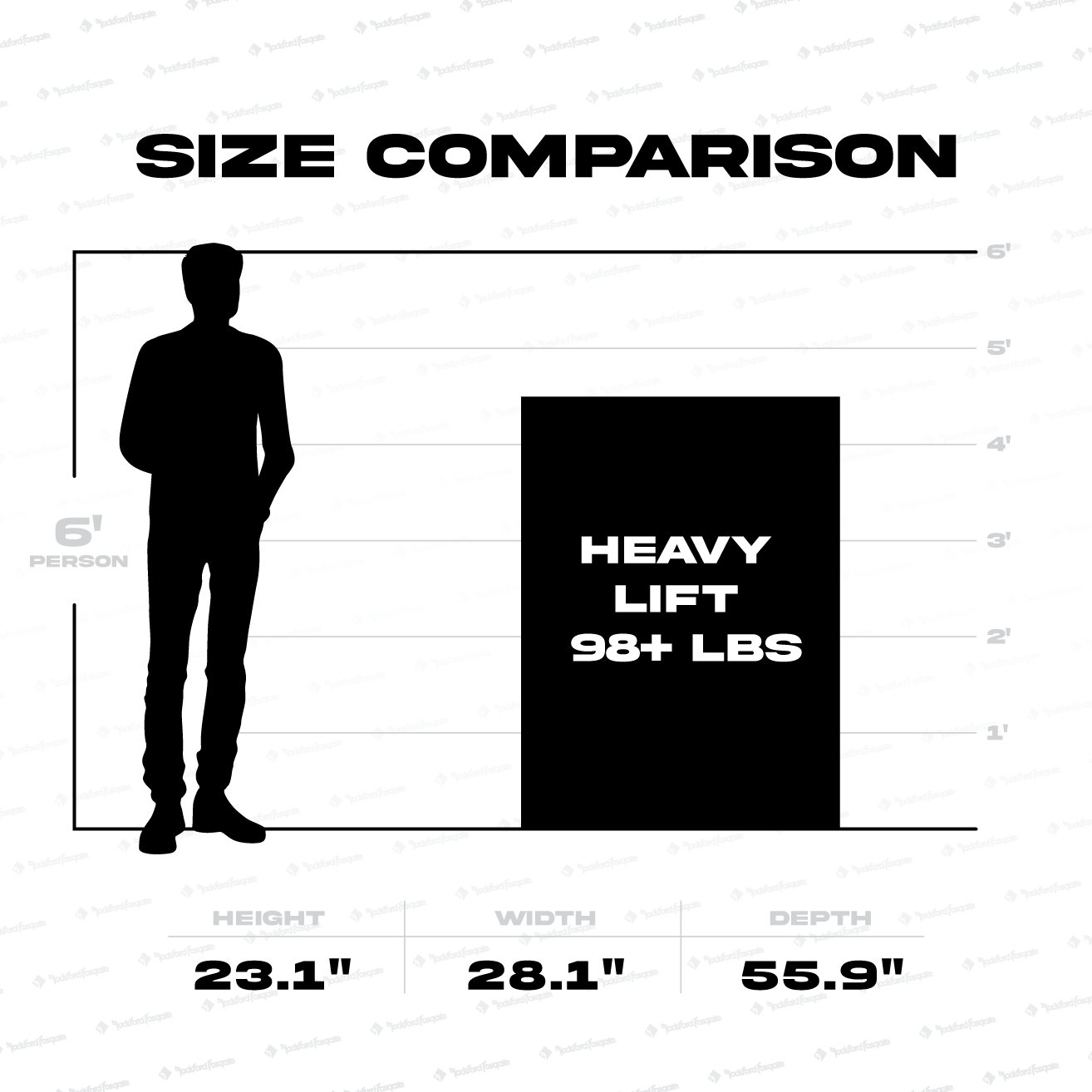

• Shipping Dimensions: 23.1" x 28.1" x 55.9"; 58.7 cm x 71.5 cm x 14.20 cm
• Shipping Weight: 98.1 Lbs (44.5 kg)
