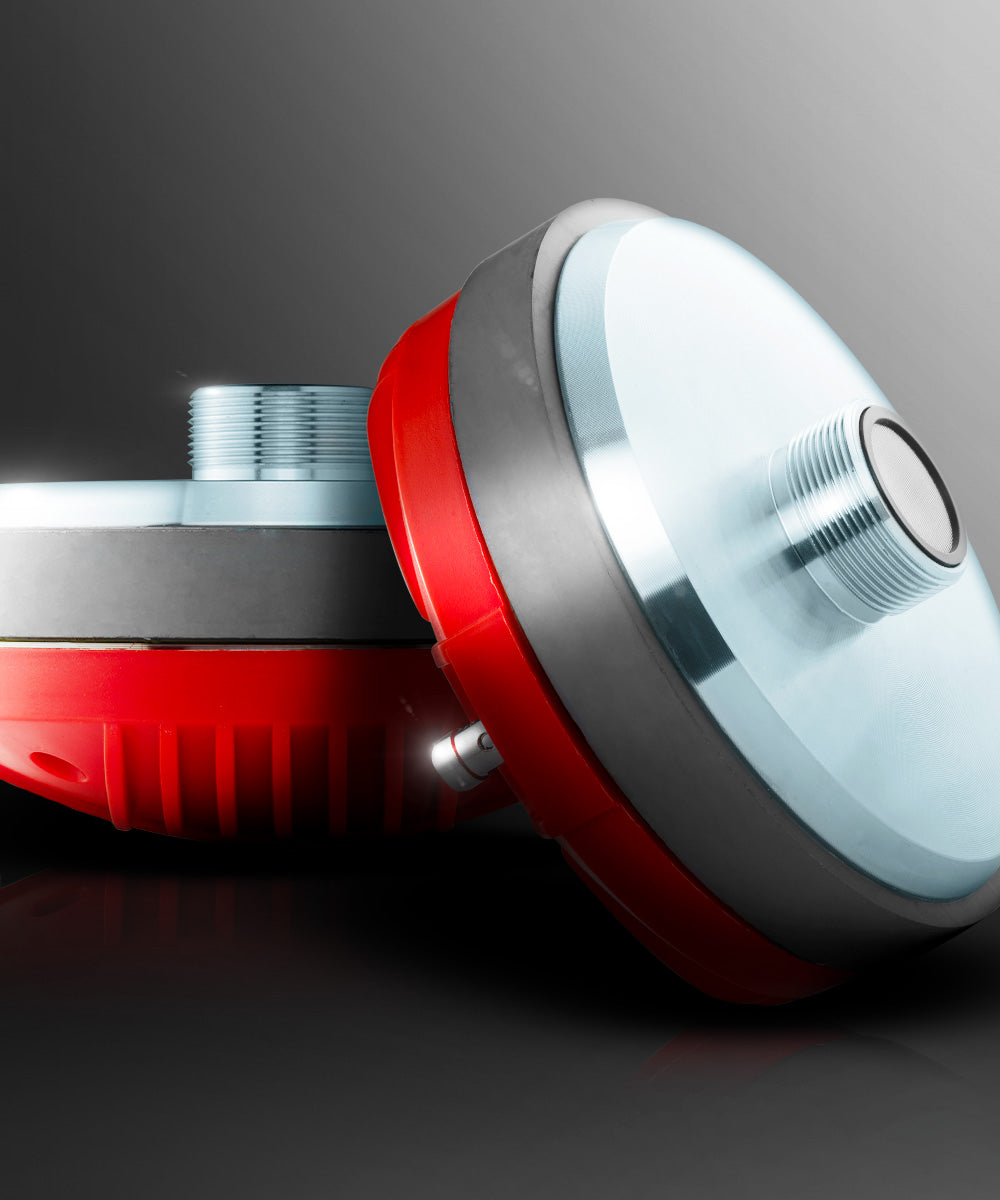

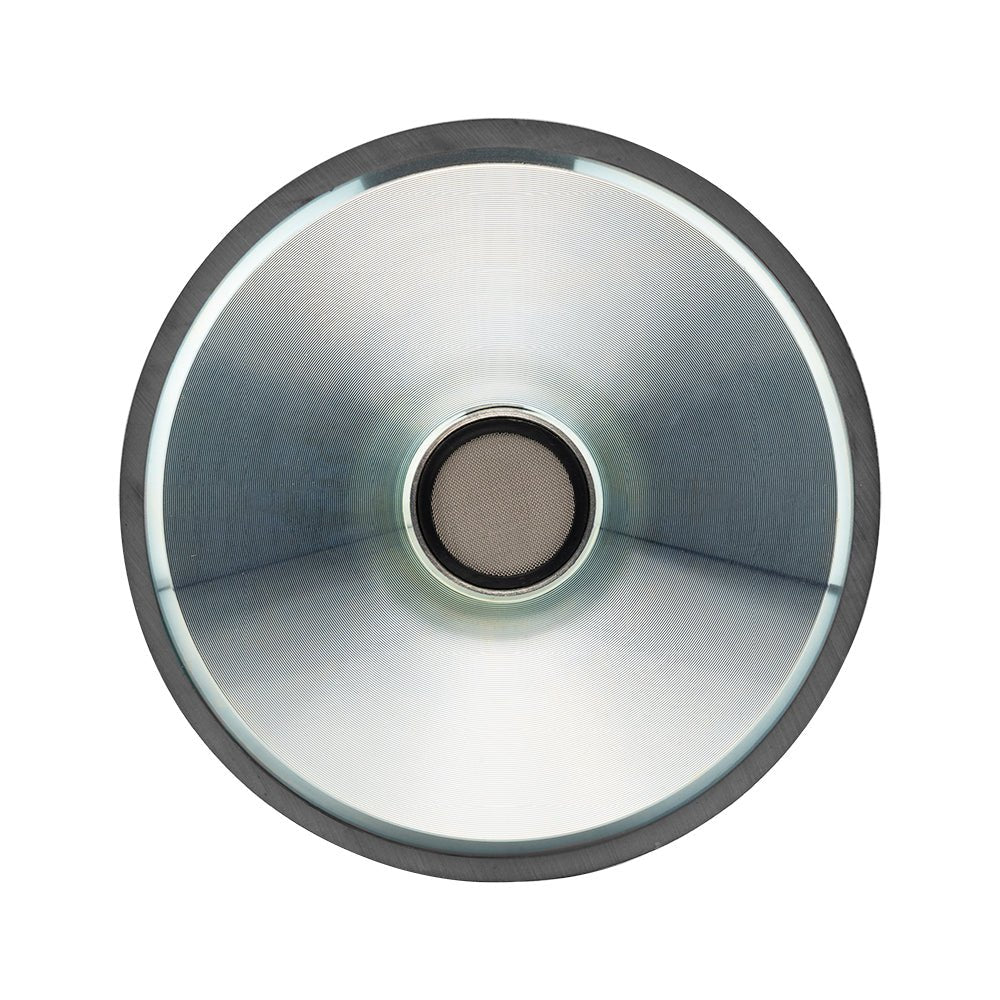

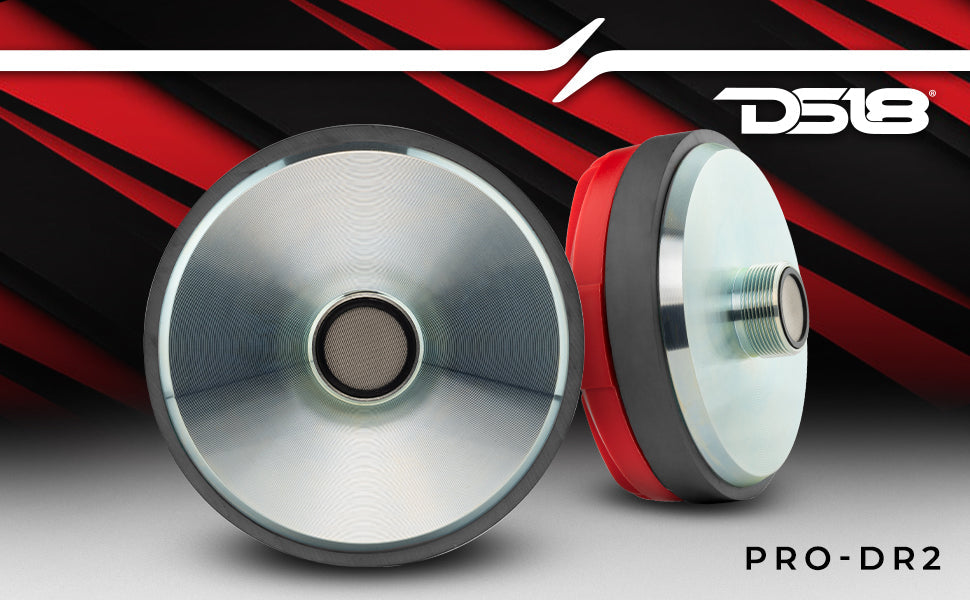

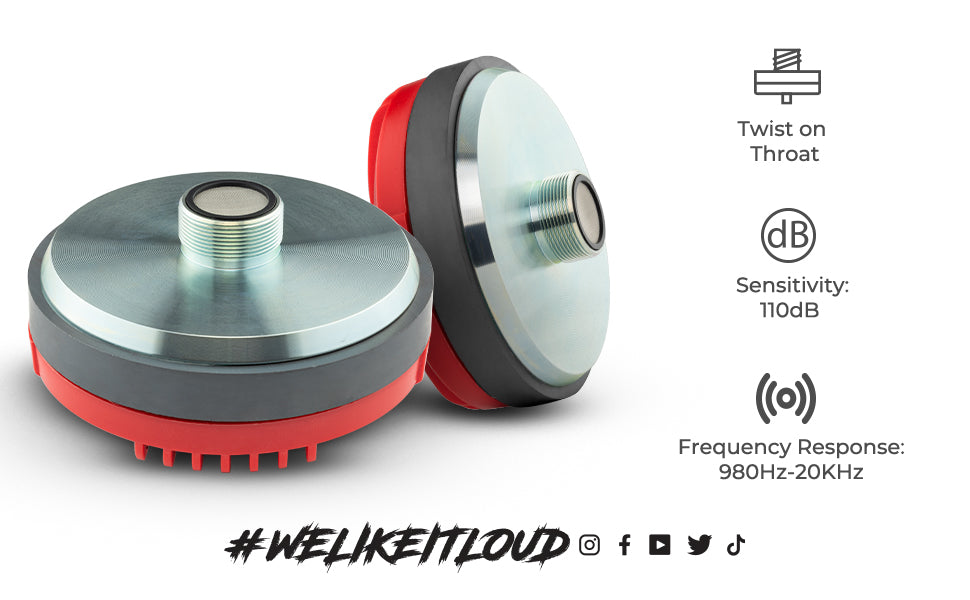

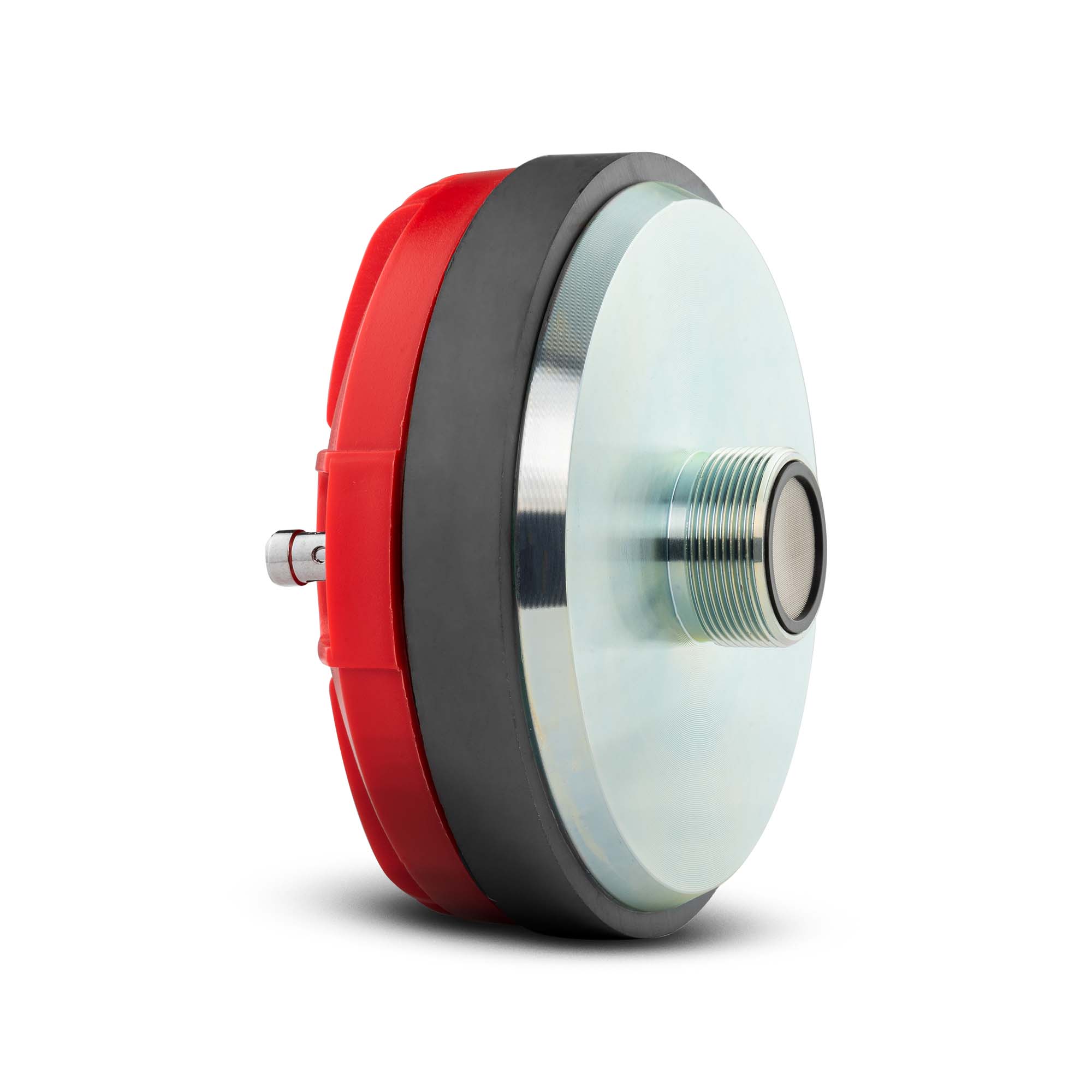

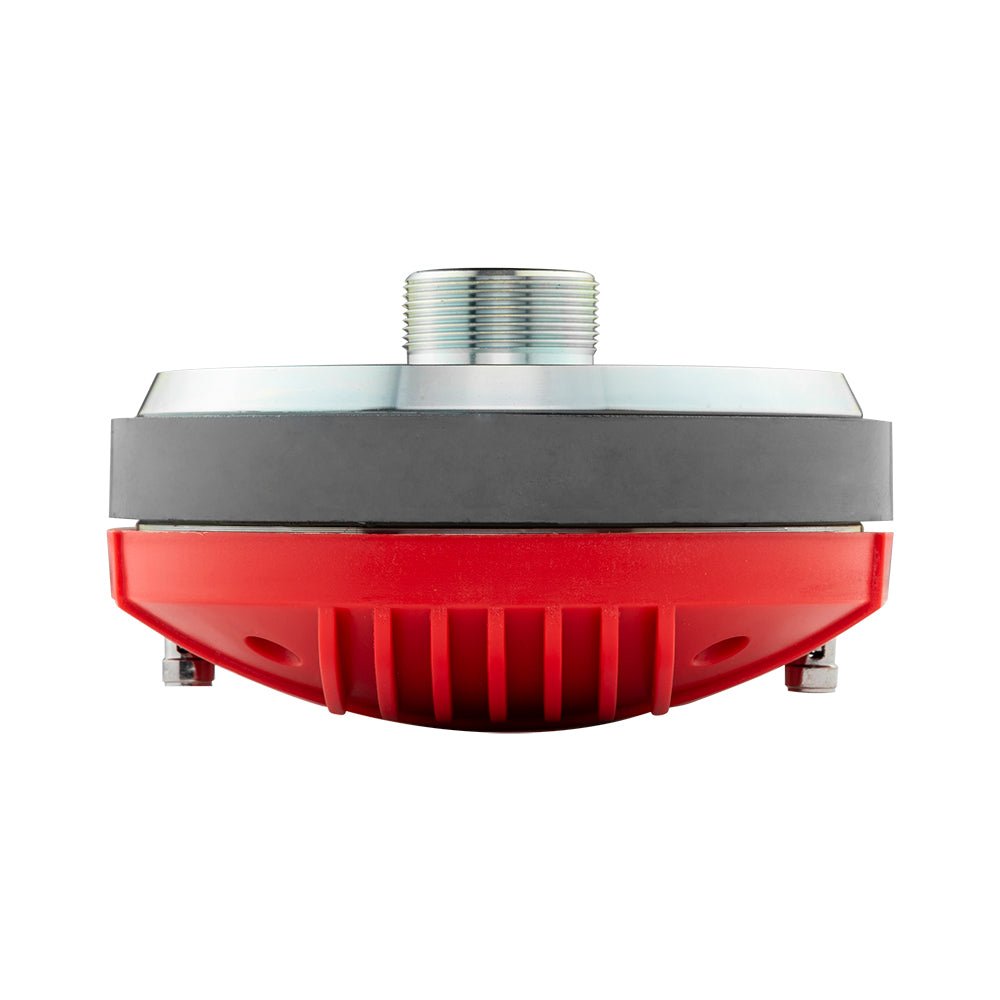

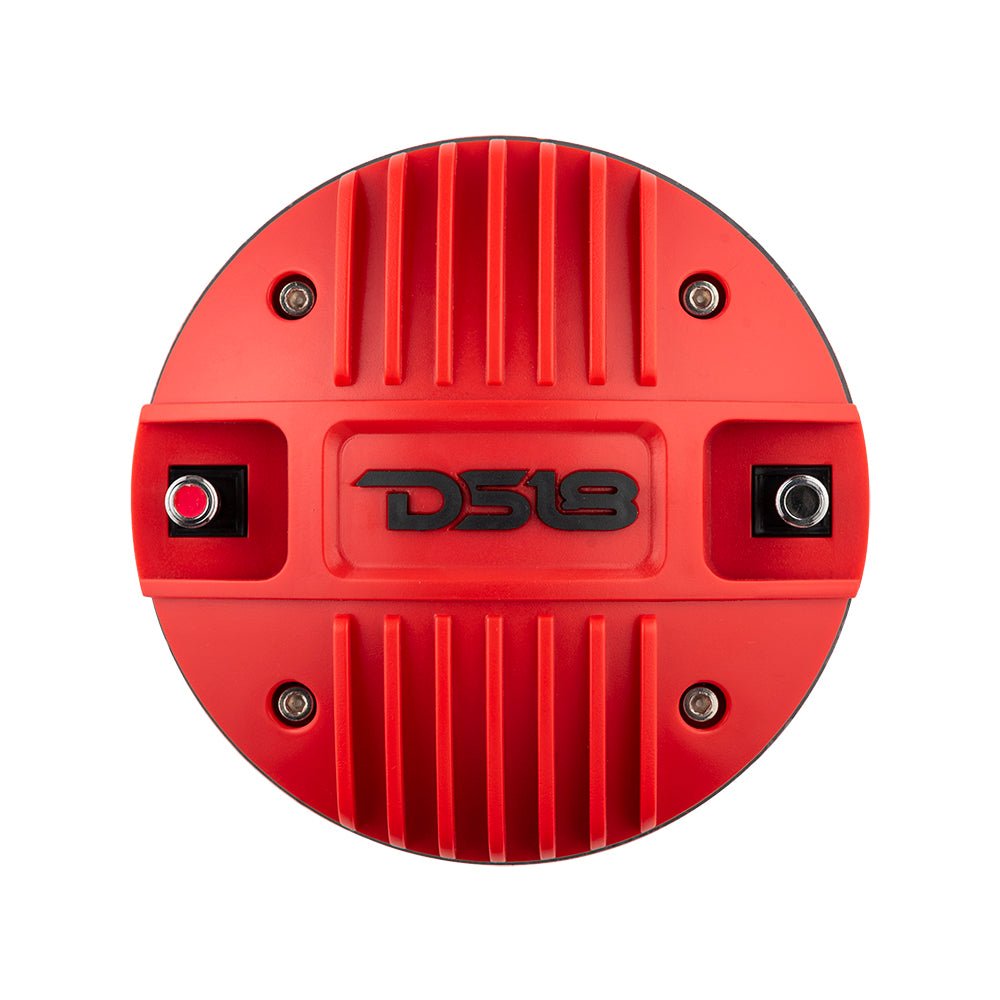

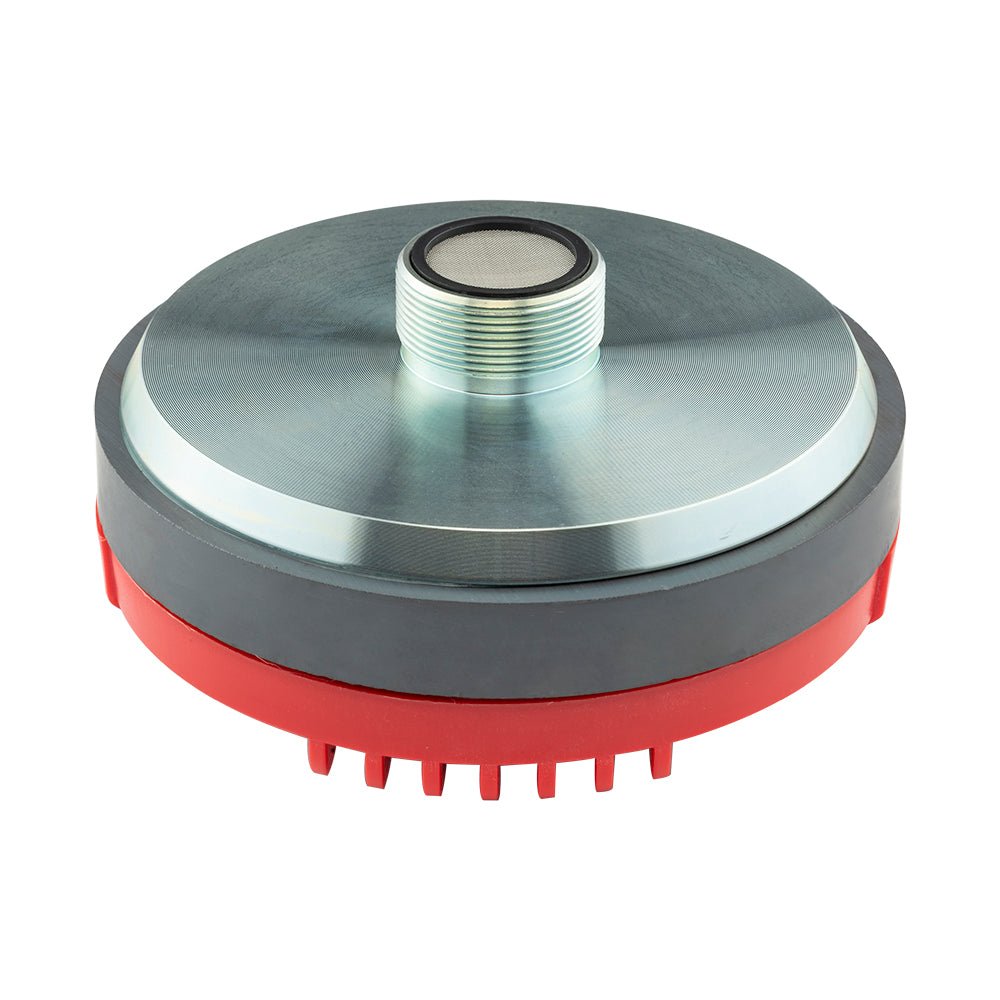

1" Throat Twist on Driver 400 Watts 2" Titanium Vc 8-Ohm
Product Overview DS18 PRO-DR2 1" Twist On Throat Compression Driver with 2" Titanium VC 800 Watts 8...
Vendor:
DS18
Manufacturer SKU
PRO-DR2
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $59.95
- $59.95
- Unit price
- per
Subtotal:
$59.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

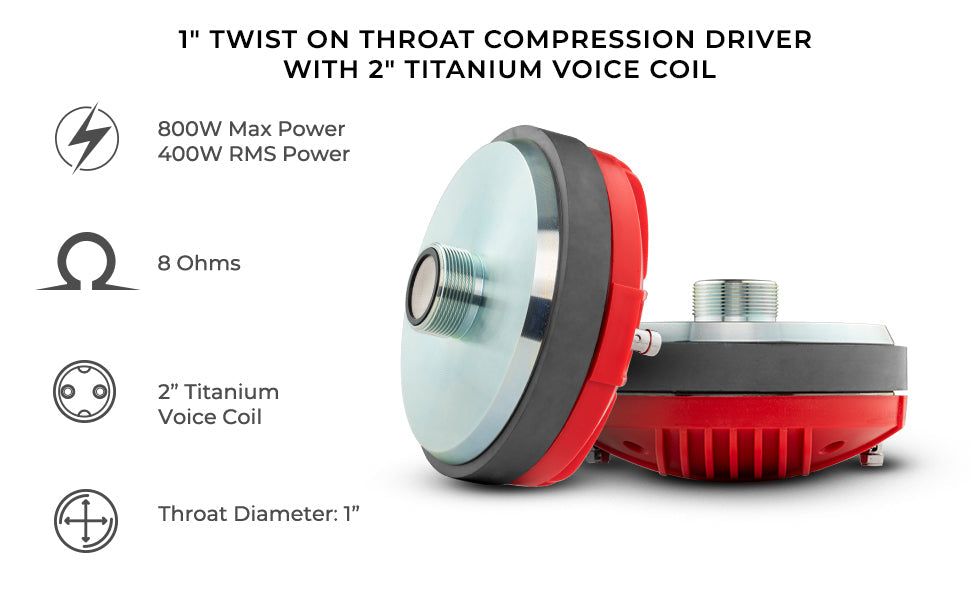

DS18 PRO-DR2 1" Twist On Throat Compression Driver with 2" Titanium VC 800 Watts 8 ohm
The DS18 PRO-DR2 is a new release that is bound to make your ears tingle! This new driver as an impedance of 8 ohms and handles a whopping 400W RMS power and 800W maximum power. With a high sensitivity of 110 dB, it will get extremely loud without having to give it full RMS power. Frequency response is 980Hz to 20KHz so you know these high intensity drivers will scream! The titanium diaphragm will ensure long lasting use with recommended power.
Highlights
- High powered DS18 high frequency driver made to blast the high frequencies for all to be heard.
- Compatible with all DS18 screw on throats of various sizes and colors so you can get the perfect look and fitment for your system.
- High quality terminals making connectivity secure and easy.
- Easily exchange voice coils in minutes.
Technical Details
|
Model: |
PRO-DR2 |
|
Type: |
Compression |
|
RMS Power: |
400W |
|
MAX Power: |
800W |
|
Sensitivity: |
110dB |
|
Voice Coil Size: |
2" |
|
Impedance: |
8 ohms |
|
Frequency Response: |
980Hz-20KHz |
|

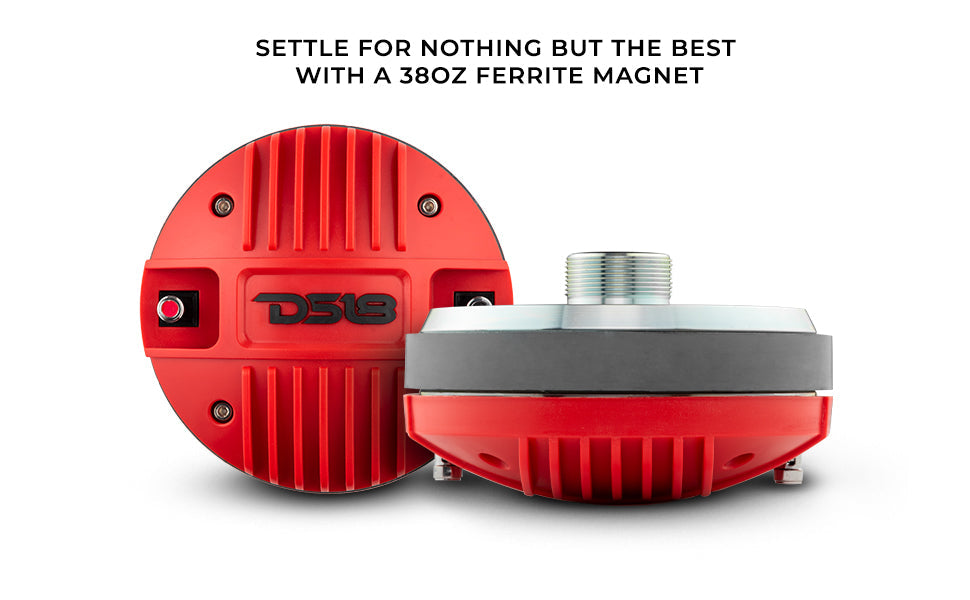

Magnet: |
High Strength Ferrite |
|
Diaphragm Material: |
Titanium |
|
Voice Coil Wire: |
KSV & Flat Wire |
|
Magnet Weight: |
38 oz |
|
Throat Diameter: |
1" |
|
Replacement Diaphragm Model: |
PRO-D2VC |
Key Features
- 1" Compression Driver
- RMS Power: 400 Watts(800 Watts Peak)
- Impedance: 8 Ohm ~ 110dB
- Ferrite Magnet - Titanium Diaphragm
- Twist On
- Easily Repaired With The PRO-DR2VC
Specifications
| SKU | PRO-DR2 |
|---|---|
| Nominal Impedance | 8 ohms |
| Throat Diameter | 1" |
| RMS Power Handling | 400W |
| MAX Power Handling | 800W |
| Sensitivity (1w/1m) | 110dB |
| Frequency Response | 980Hz-20KHz |
| Recommended Hi Pass Crossover | 1.6KHz |
| Voice Coil Diameter | 2" |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 38 oz |
| Bolt Type | Screw Down |
| Overall Diameter | 5.27" / 134mm |
| Overall Depth | 3.07" / 3.83mm |
| Mounting Depth | 64 mm / 2.51" |
| Product Weight | 6 lbs |
| Product Dimensions | 6.25 x 6.25 x 3.875 |
| M/C Weight | 50 lbs |
| M/C Dimensions | 13 x 13 x 4.75 |
| M/C QTY | 12 |
| Sold In | Piece |
