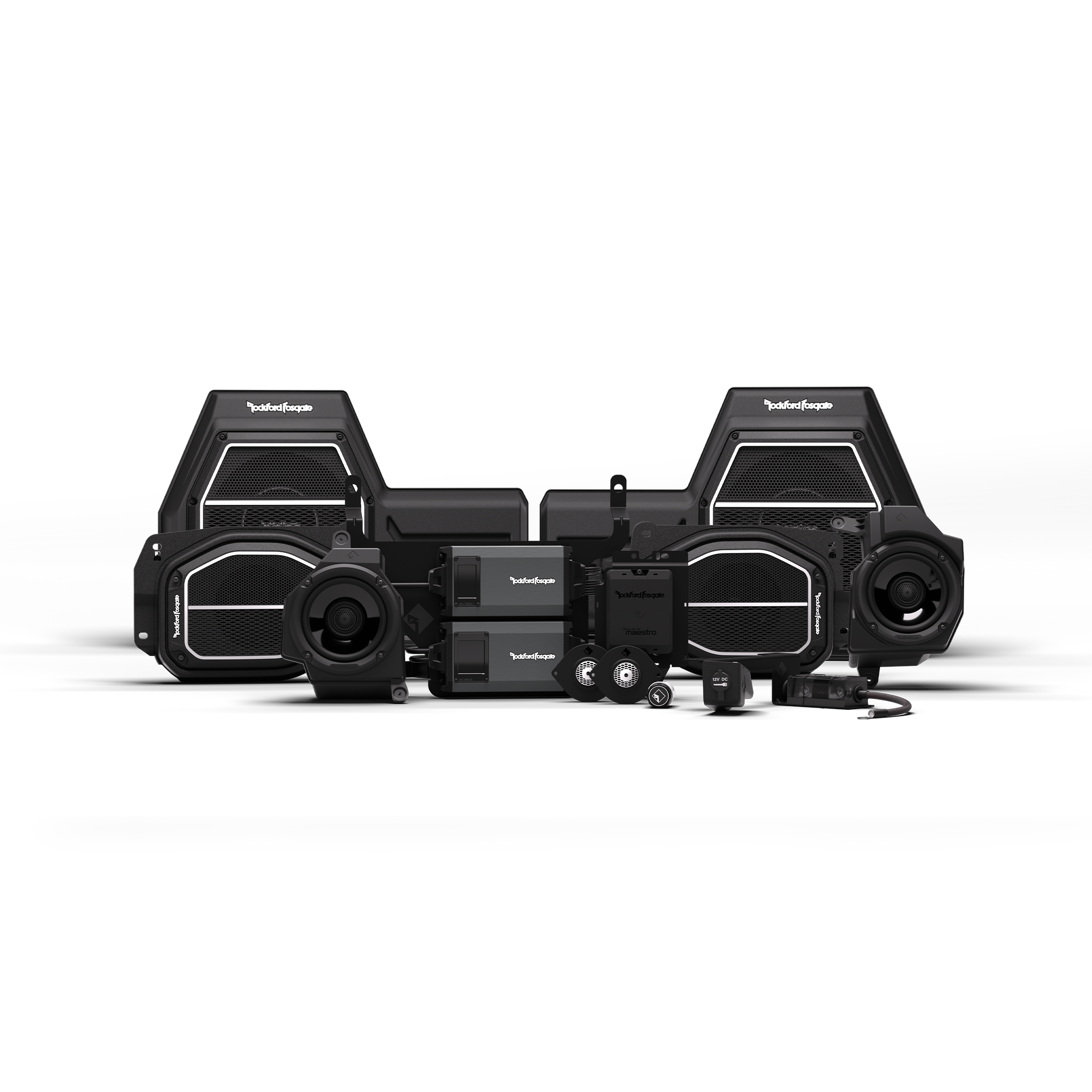

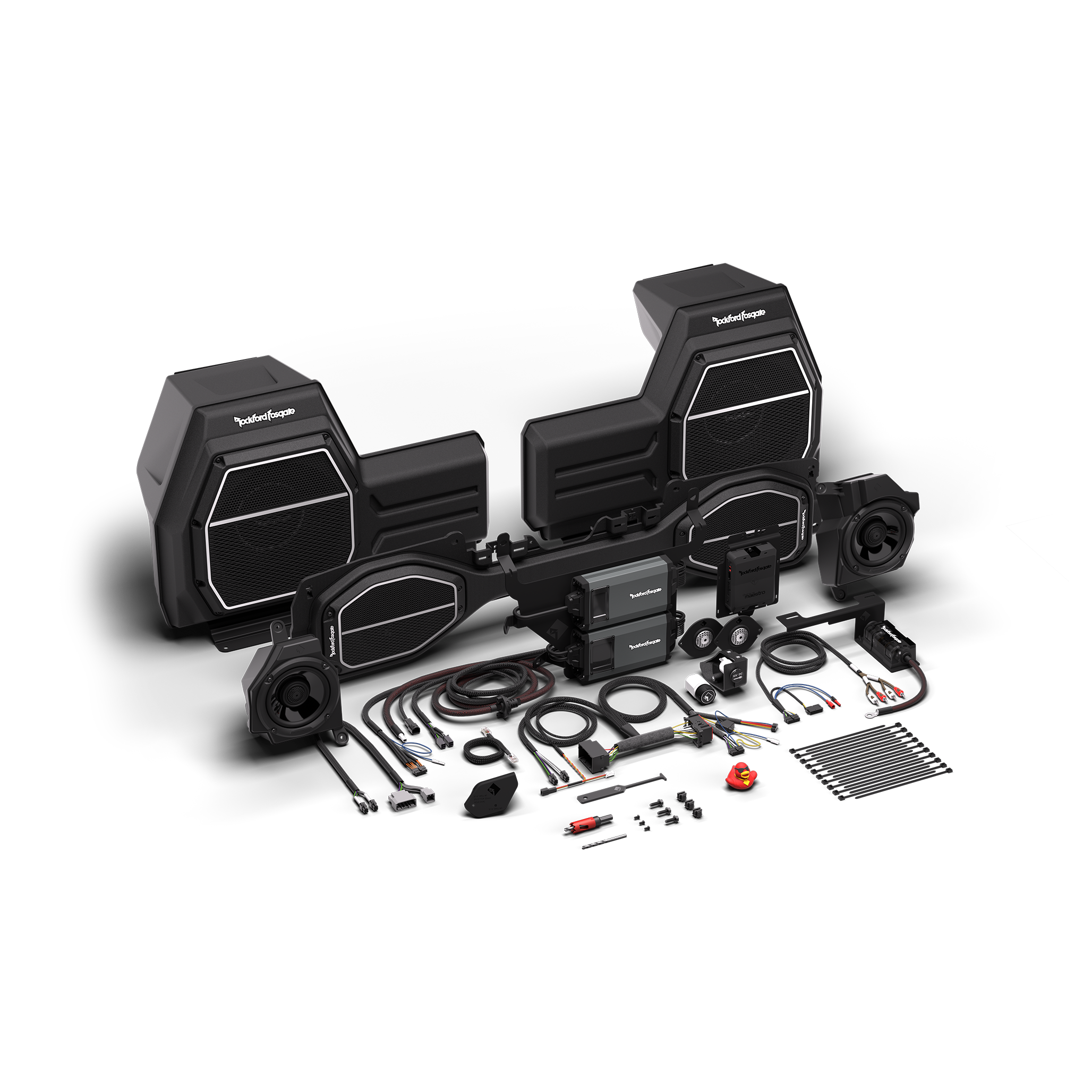

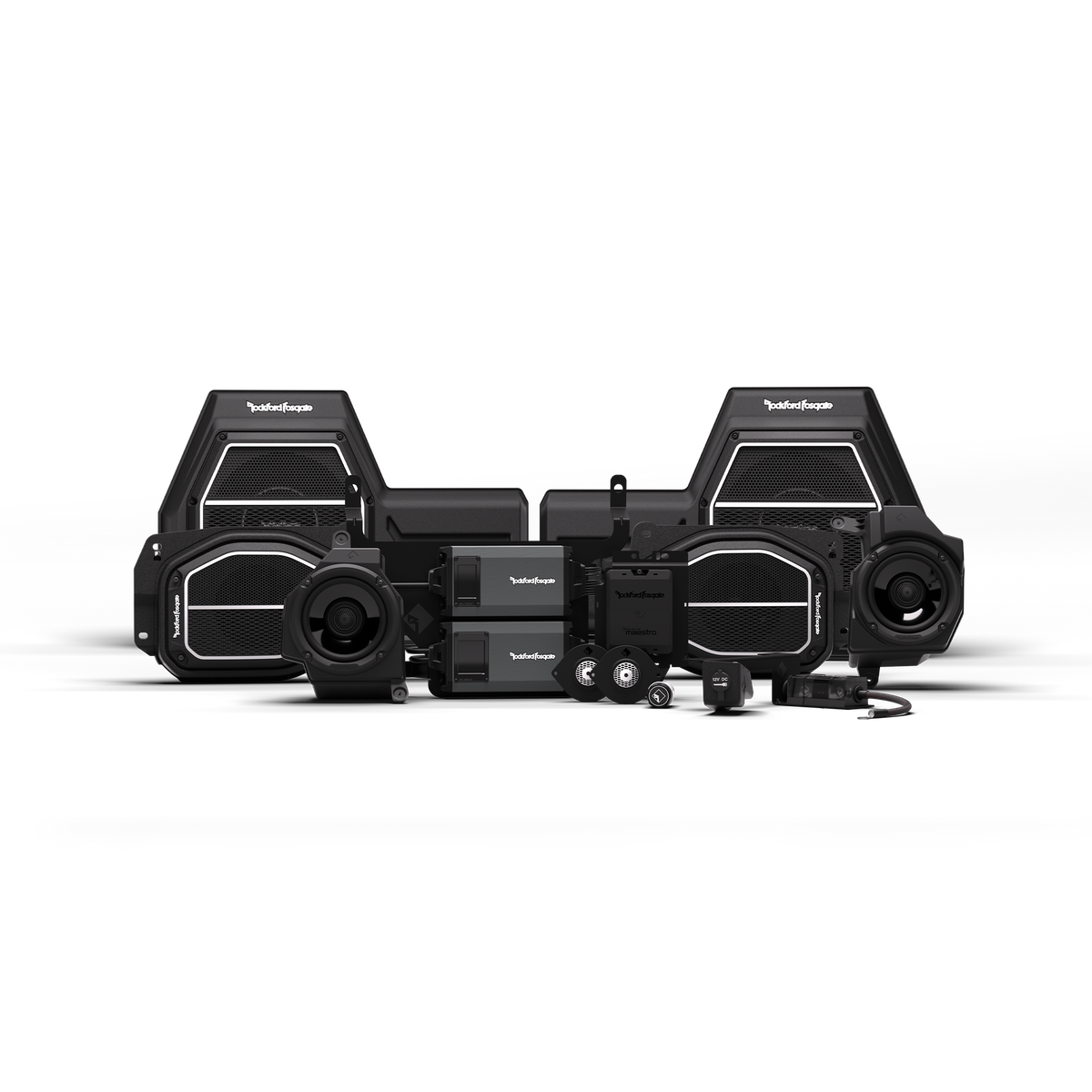

18WRNGLER-STG5

Overview

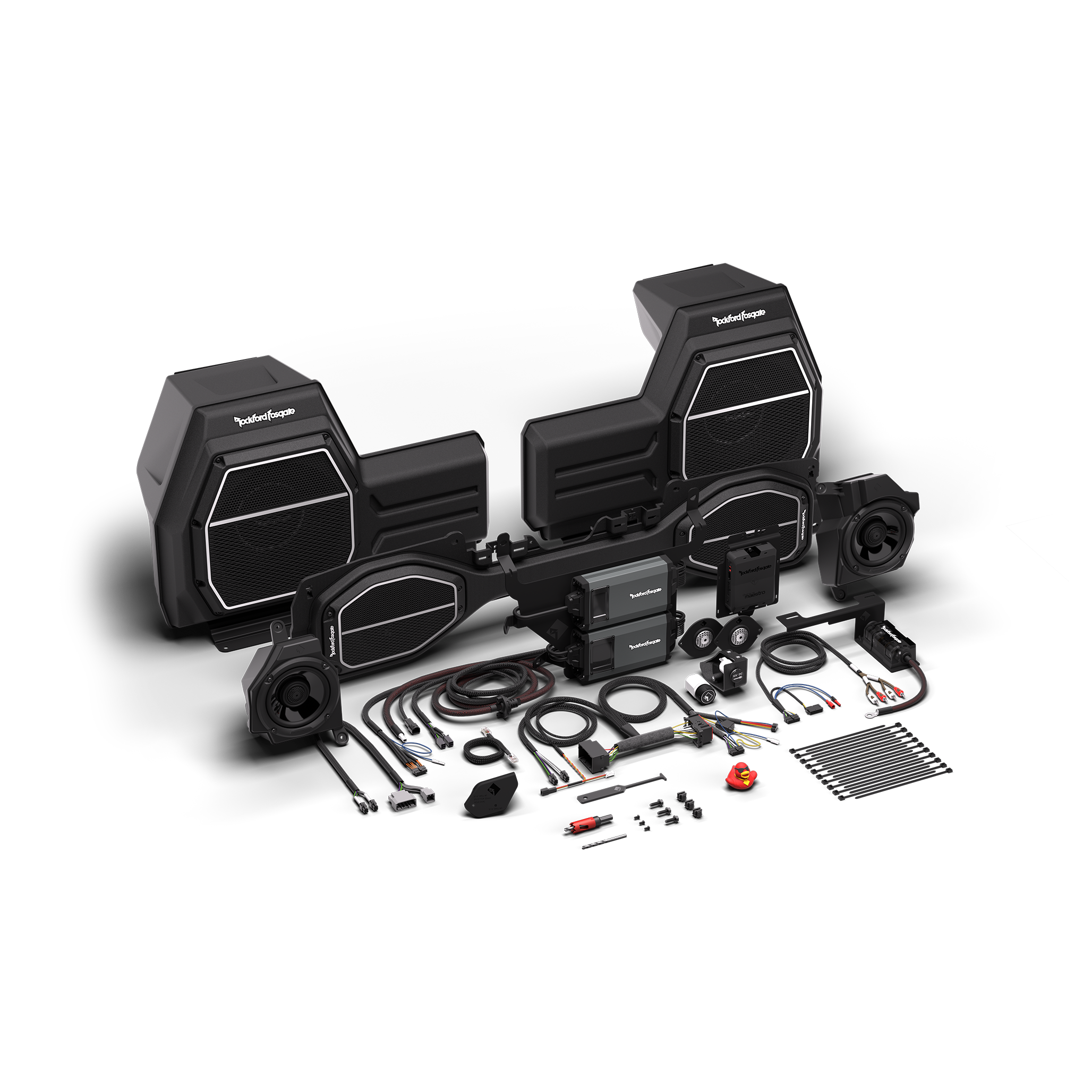

The 18WRNGLER-STG5 Wrangler STG5 All-In-One Audio Kit is the ultimate upgrade to your Jeep's sound system. 1,800W of power to deliver high-output performance.

Features

• High output performance
• Up to 4x louder than base audio system
• Nearly 2x louder than premium audio system
• T-harness integration eliminates cutting or splicing wires
• Plug-and-Play design for easy installation
• Direct bolt into vehicle using OEM mounting holes
• Integrated OEM style enclosures w/ factory connectors
• Durable PE (Poly Ethylene) material with friction welded seams

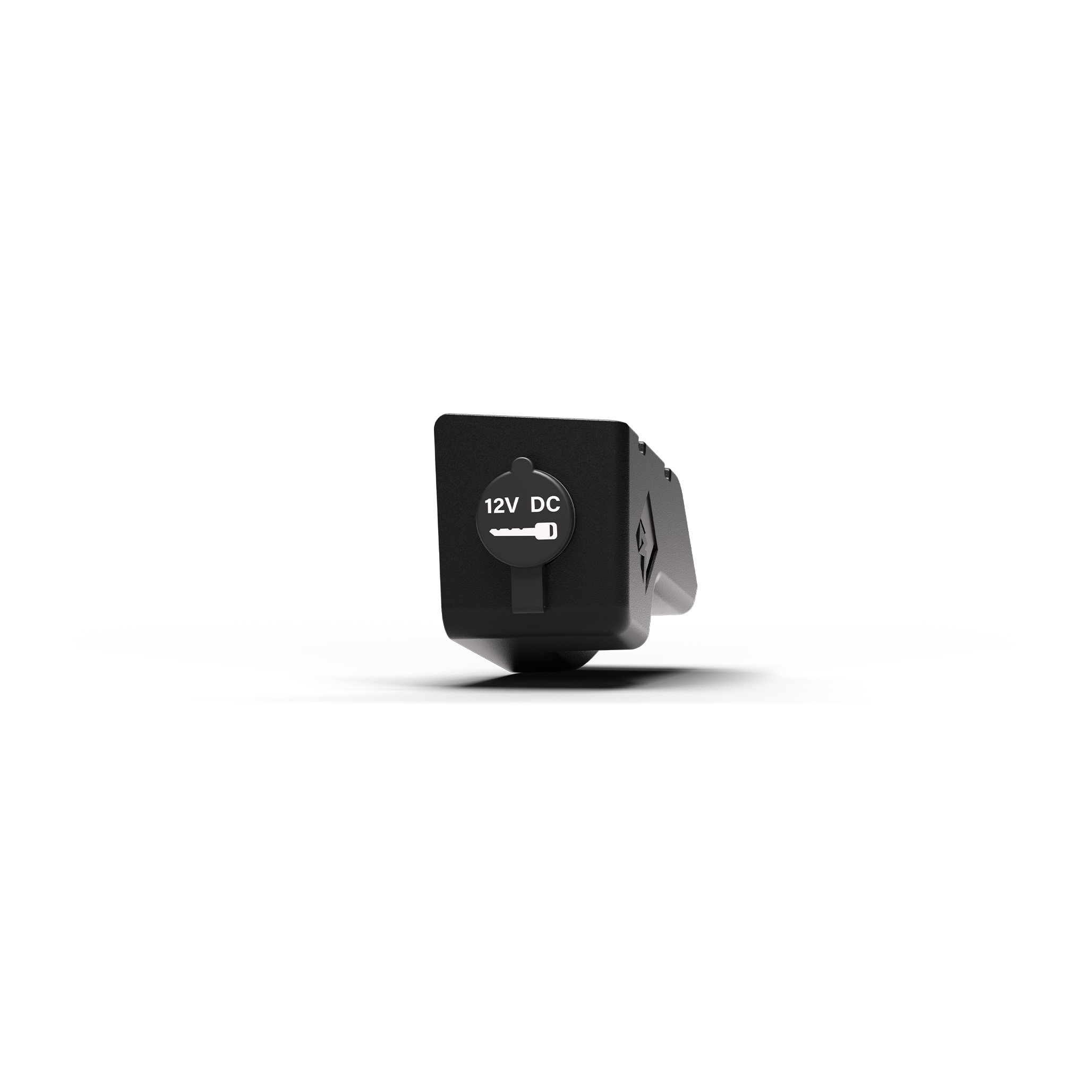

• Minimal cutting (for models that require 12v accessory relocation only)
• Element Ready TM enclosures designed to withstand heat, water, and UV rays

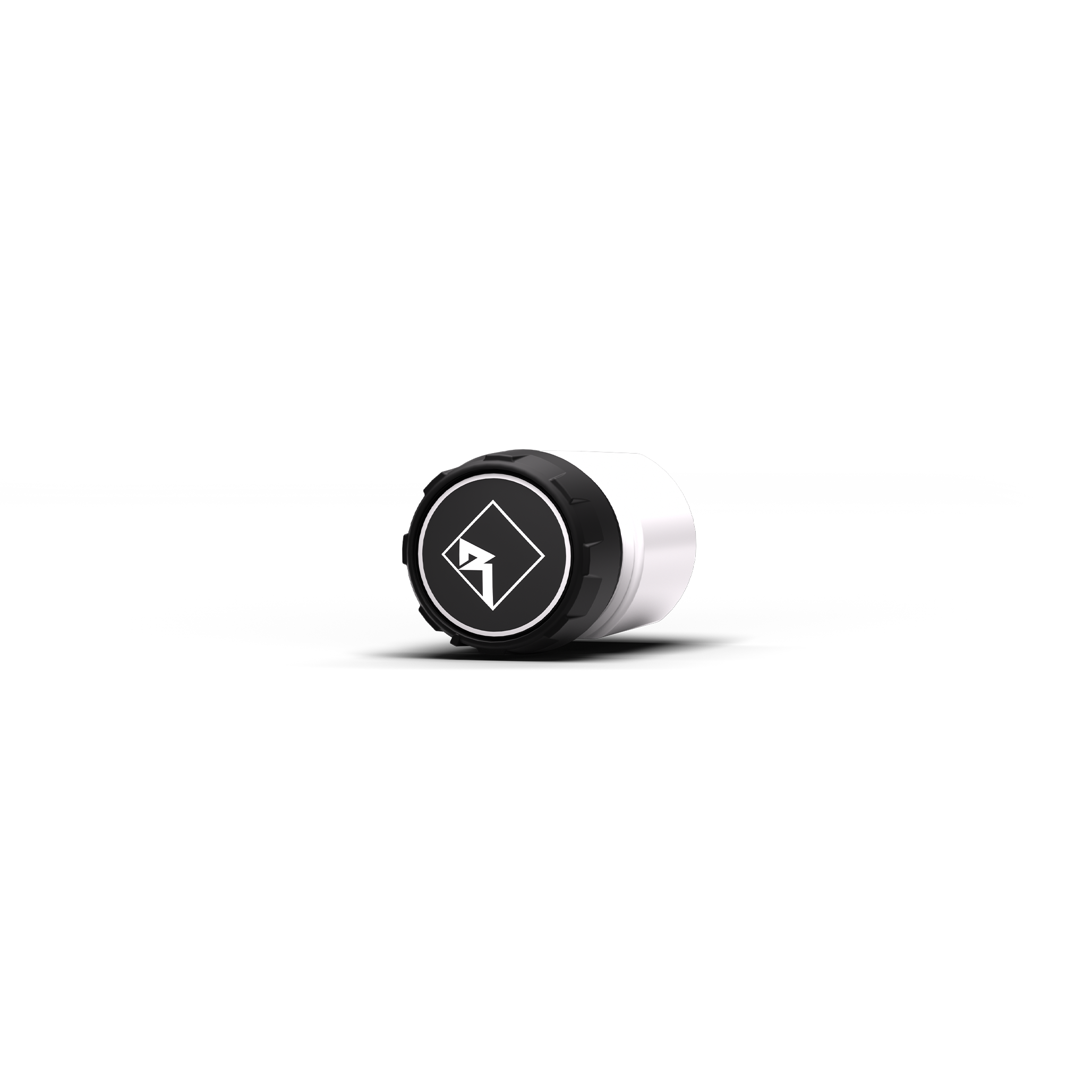

• Custom bass level control matches OEM dash and controls
• DSP recognition with auto-loading Jeep Wrangler specific tune
• Audio integration into OEM CAN-bus system
• Slim subwoofer in sealed enclosure retains cargo space
• Thermal shock and vibration resistant enclosures
• Custom Rockford Fosgate duck
• 2-Year Warranty

Specifications

• Total Power: 1,800 Watts

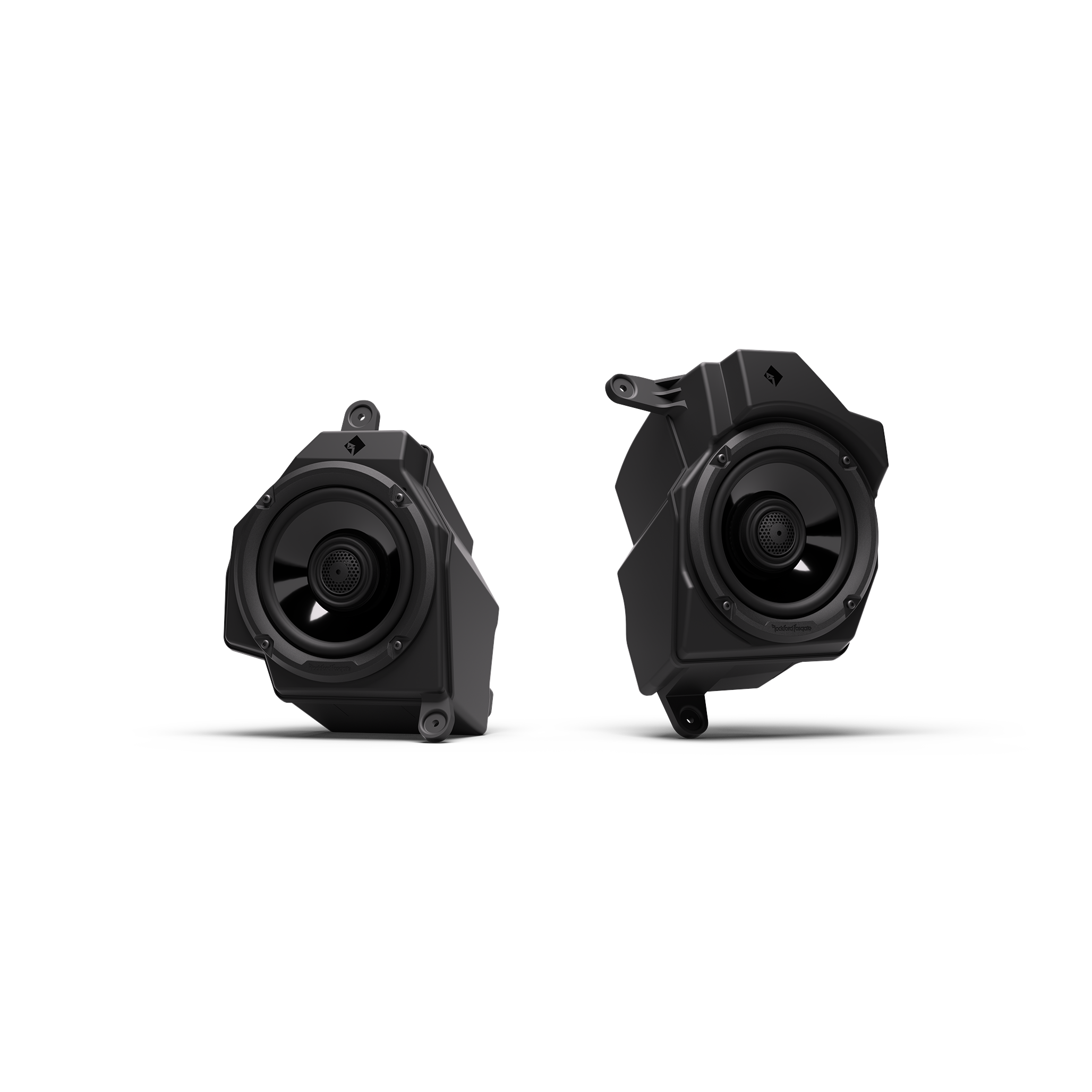

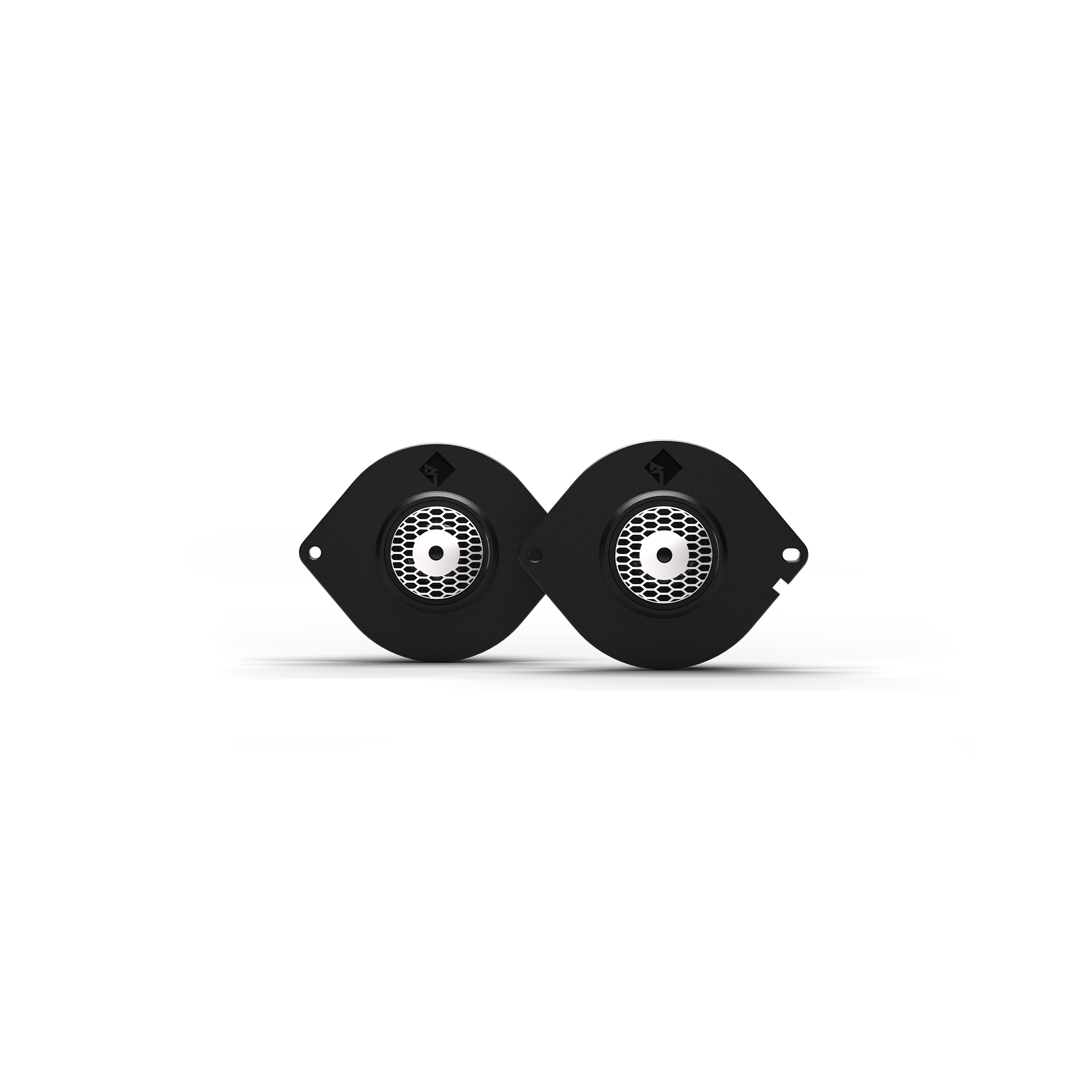

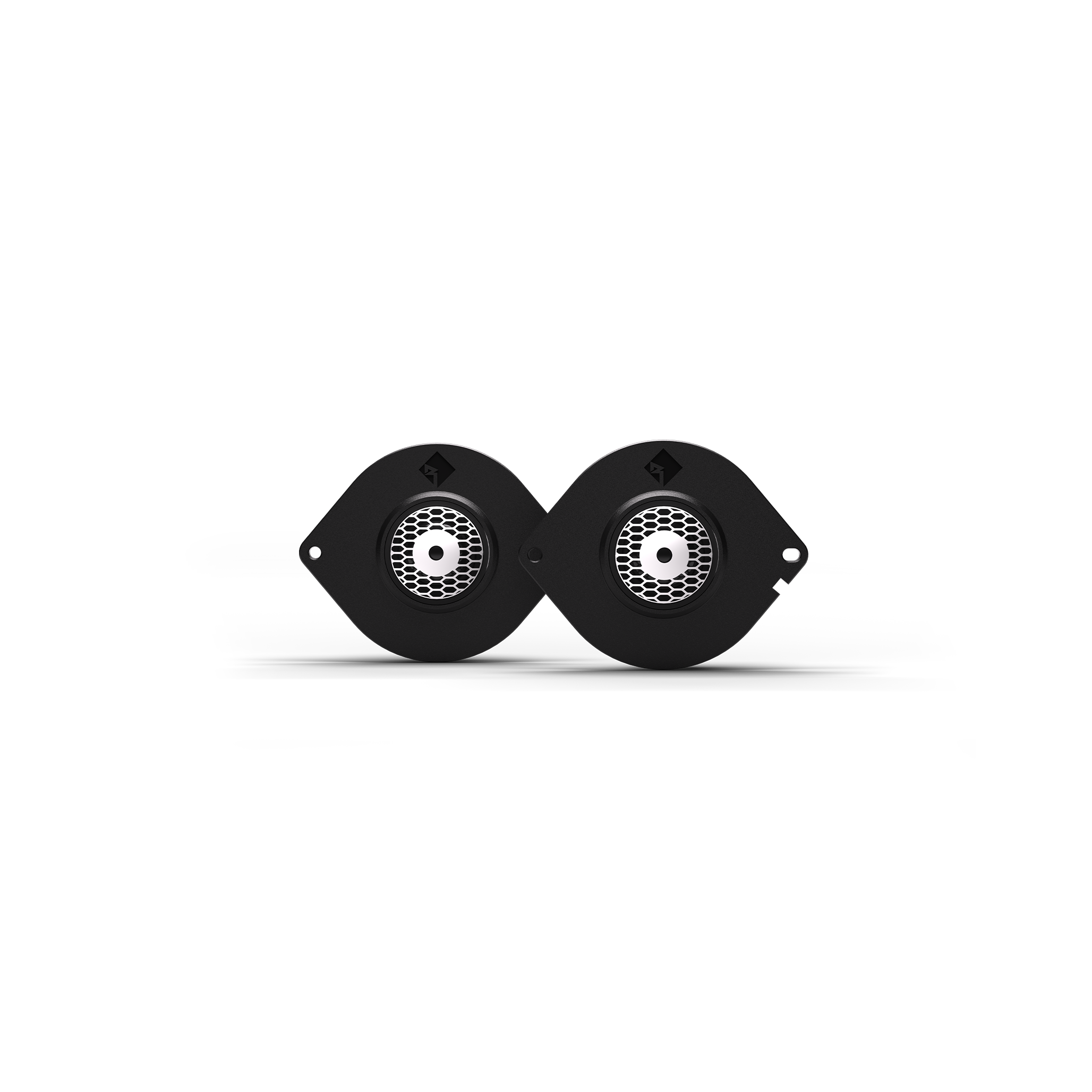

• Front Speakers: (2) M2-TS; (2) TMS65

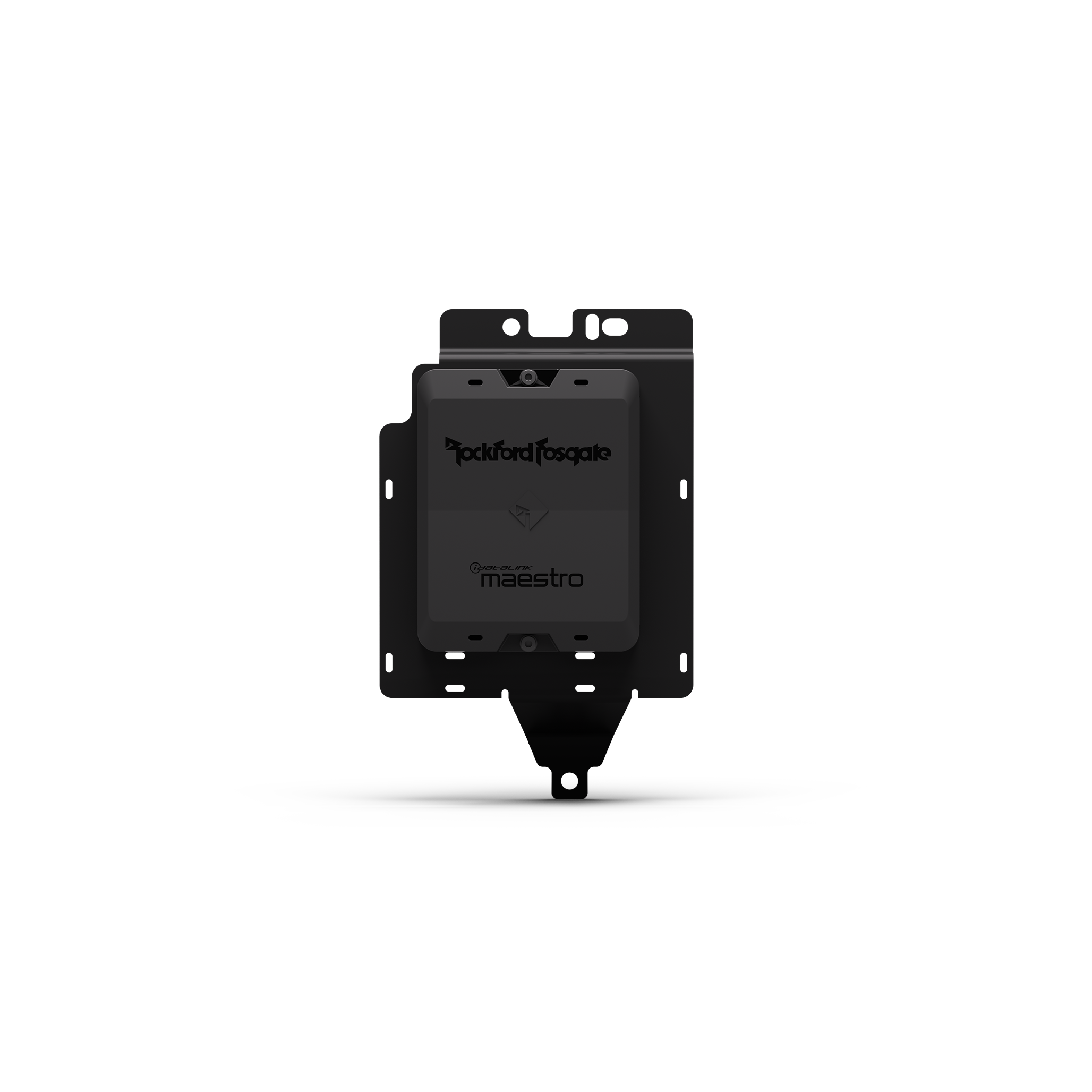

• Digital Signal Processor: (1) DSR1J; (Maestro Jeep Programmed)

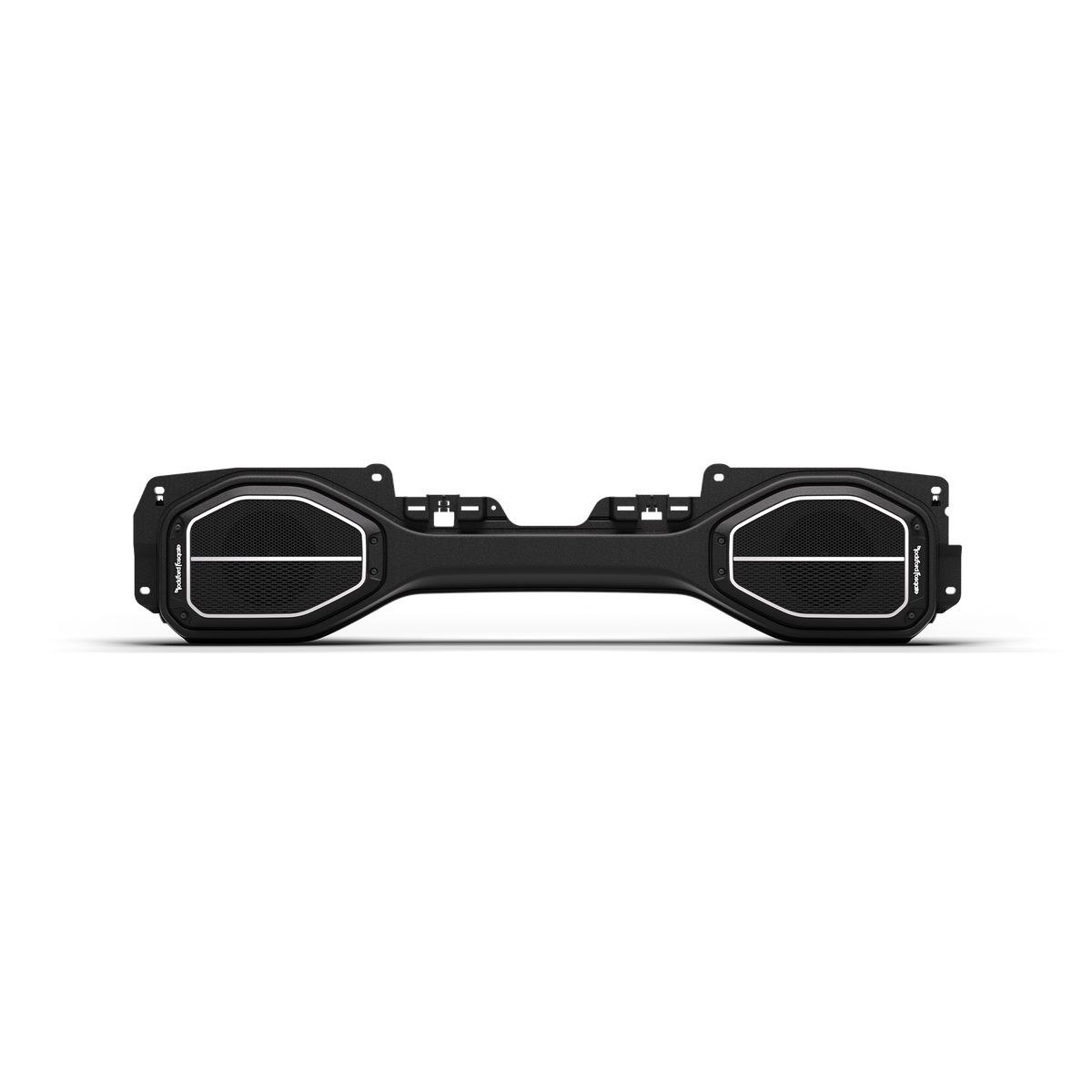

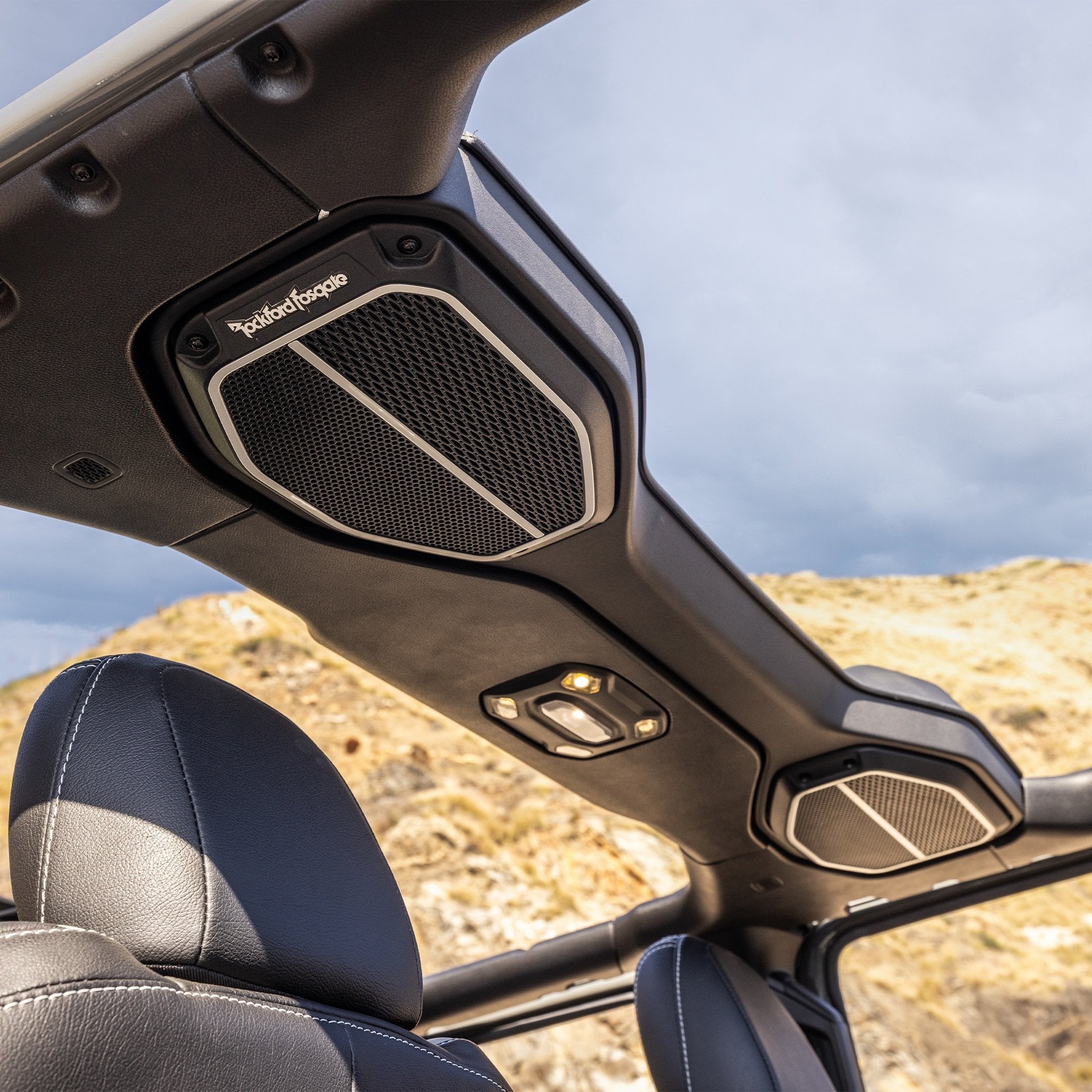

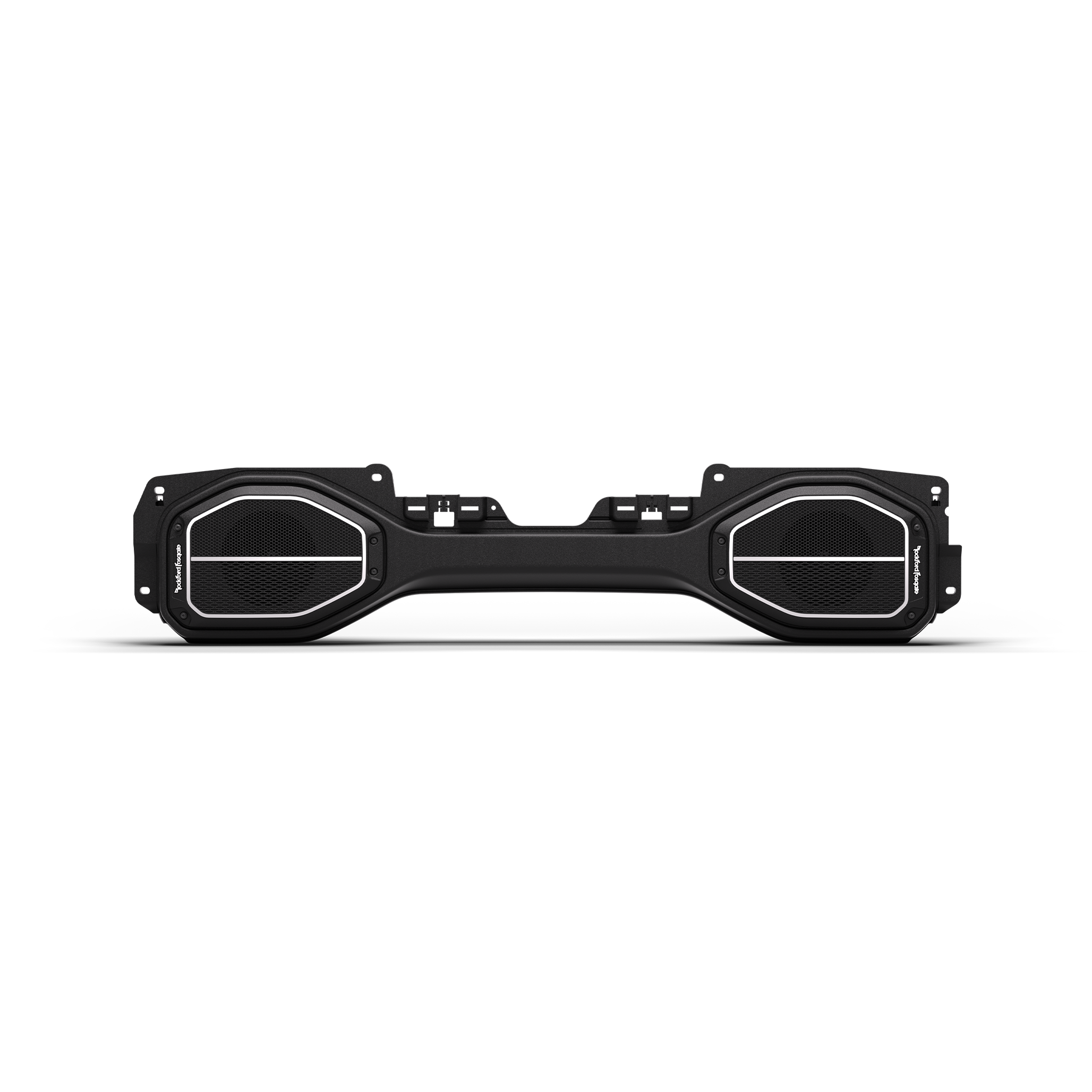

• Soundbar Speakers: (2) TMS65

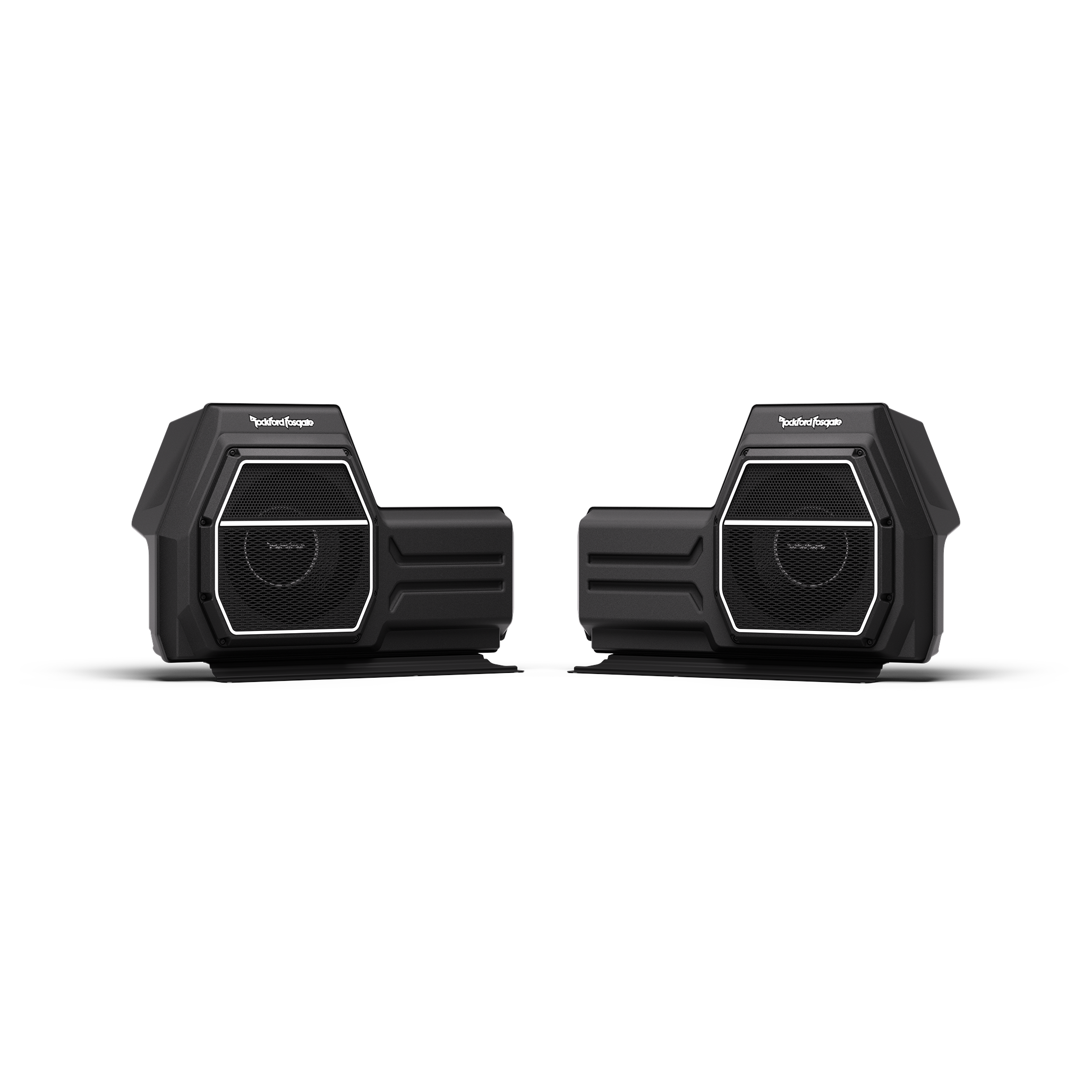

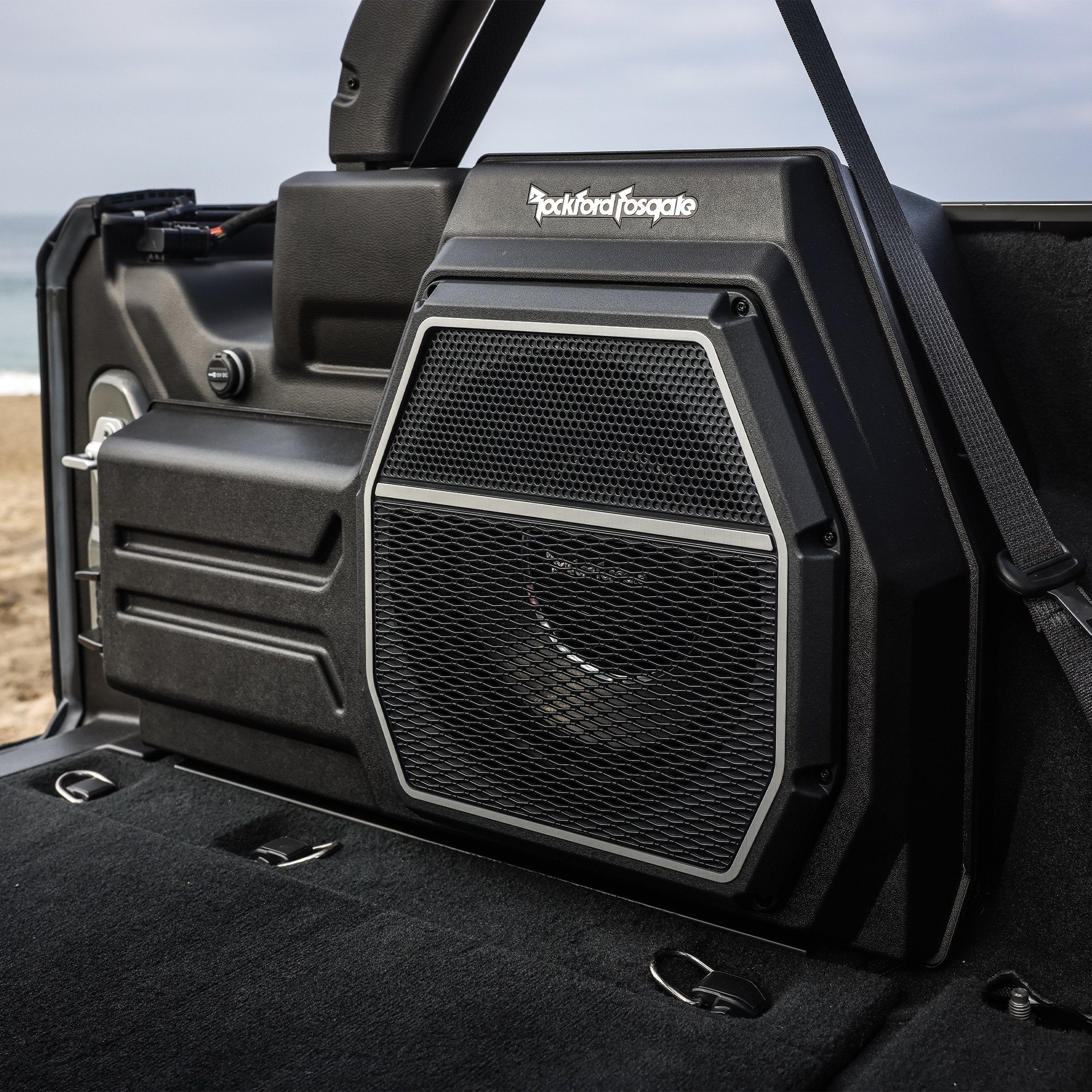

• Subwoofers: (2) T1S2-12

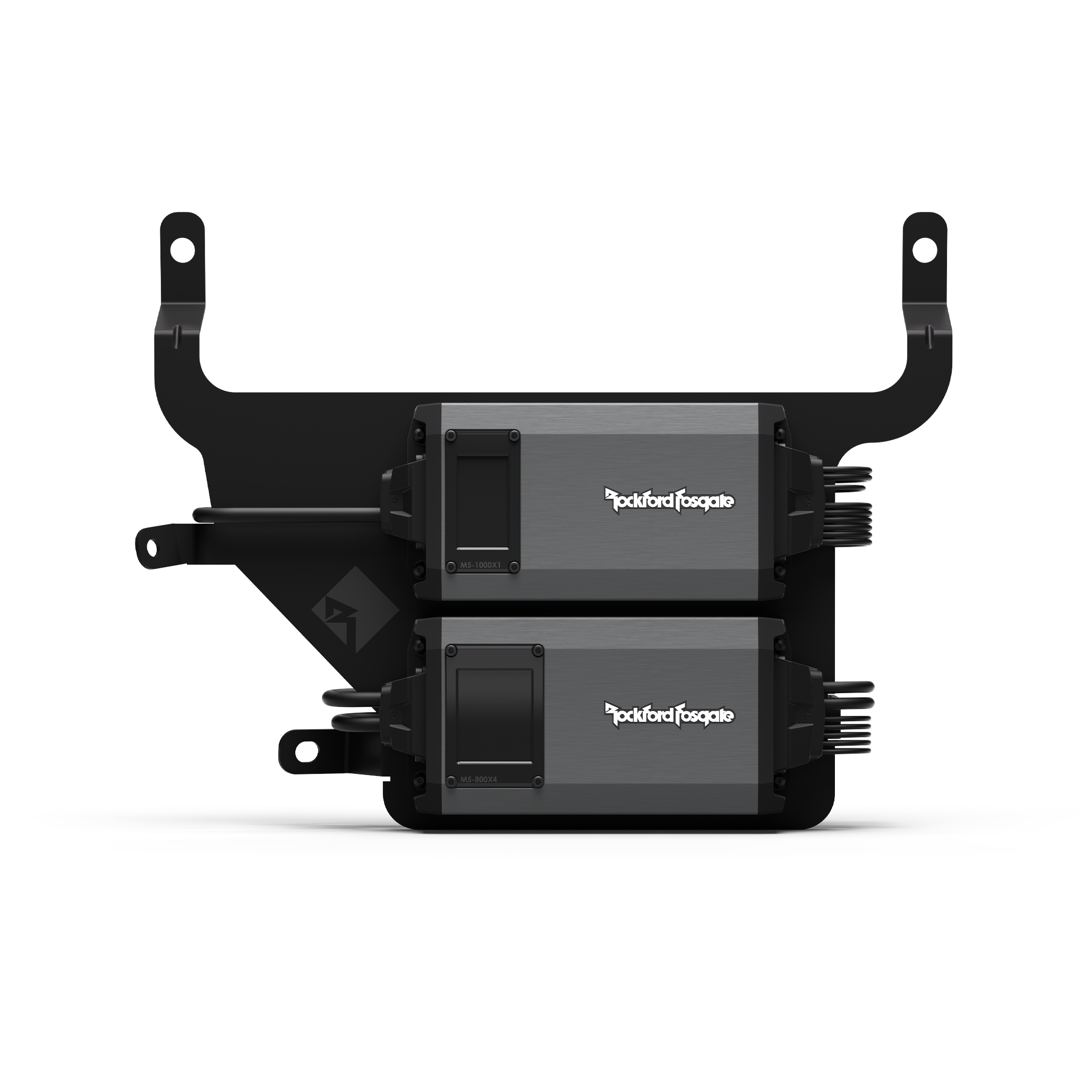

• Amplifiers: (1) M5-800X4; (1) M5-1000X1
• Fuse Size: 150 ANL
• Accessory Pack: 1130-76551-01:; (1) ABS Drill Template for Jeep; (3) Flat Washer M4-0.7, 9mm OD, 1mm TH; (20) Nylon Cable Tie 0.17 x 8 in.; (3) Stamped Clip; (1) 12V Socket Removal Tool for Jeep Wrangler; (1) Hole Saw with Arbor, 20mm Diameter; (3) Large Screw, M4x0.7, x 8mm; (3) Thread Form Screw, 1/4-14, 0.75 in L, Hex, 0.375; (1) Machine Screw, M6x1.0, 12mm, Hex (DSP on 24+); (1) Drill Bit, 4.76mm Diameter, 89mm L

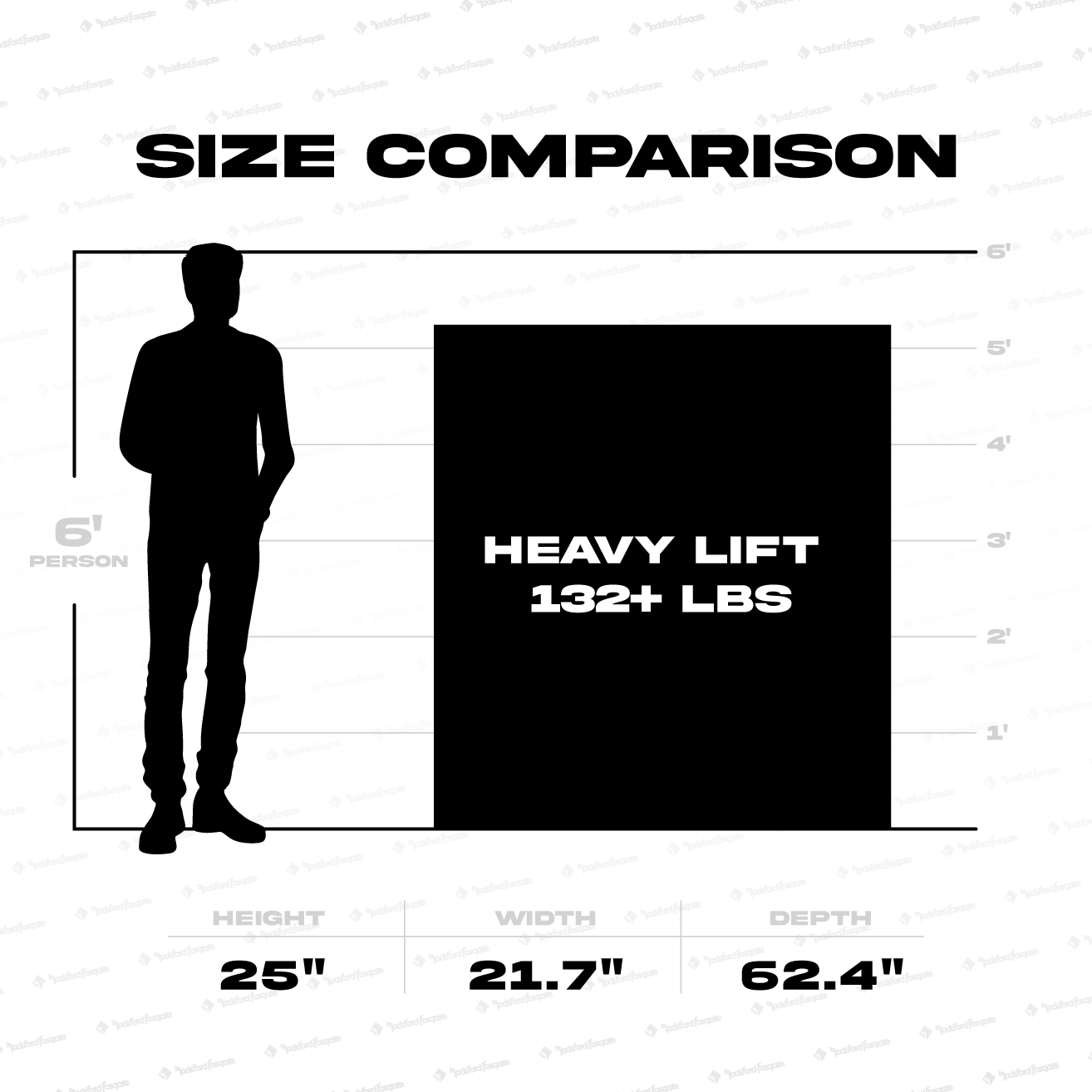

• Shipping Dimensions: 25" x 21.7" x 62.4"; 63.5 cm x 55 cm x 158.5 cm
• Shipping Weight: 132.3 Lbs. (60 kg)
