XL 12" Mid-Range Loudspeaker 8-Ohm with Neodymium Magnet 500 Watts RMS
Product Overview DS18 12XL1000N-8XL 12” Mid-Range Loudspeaker With Neodymium Magnet Hear your audio as intended with DS18’s...
Vendor:
DS18
Manufacturer SKU
12XL1000N-8
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $359.95
- $359.95
- Unit price
- per
Subtotal:
$359.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 12XL1000N-8
XL 12” Mid-Range Loudspeaker With Neodymium Magnet
Hear your audio as intended with DS18’s 12XL1000N-8. This 8-ohm 12-inch mid-range utilizes advanced neodymium drivers for an impressive blend of power and sensitivity that sets new standards in high-powered audio.
Crafted for professional sound systems, the 12XL1000N-8 boasts an RMS power handling of 500W and peaks at a commanding 1000W, ensuring clear, distortion-free sound even at high outputs. Its superb sensitivity of 100dB (1w/1m) allows for remarkable loudness with minimal input power, making it a top choice for audiophiles seeking efficient energy use.
The speaker's robust construction features a non-pressed paper cone for lightness and rigidity, paired with a durable Kapton voice coil known for its high heat resistance. Its neodymium magnet, weighing just 11oz, maximizes magnetic efficiency without adding bulk. This is complemented by an innovative heat management system that includes demodulating rings to maintain consistent performance during intense sessions.
With a frequency response spanning from 80Hz to 5KHz, this mid-range loudspeaker delivers rich tones and detailed highs. The satin black aluminum basket not only provides durability but also enhances aesthetic appeal, making it suitable for any professional setup.
Get DS18’s 12XL1000N-8 for audio excellence and experience why we LIKE IT LOUD!
Key Features
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
Specifications
| SKU | 12XL1000N-8 |
|---|---|
| Nominal Diameter | 12" / 305mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 500 watts |
| MAX Power Handling | 1000 watts |
| Sensitivity (1w/1m) | 100dB |
| Frequency Response | 80Hz-5KHz |
| Recommended High-Pass Crossover | 100Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Interleaved Sandwich Voice coil (ISV) | No |
| Demodulating Rings | Yes |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push 12ga |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Non-pressed Paper |
| Dust Cap Material | Paper |
| Bullet Material | N/A |
| Bullet Color/Finish | N/A |
| Surround Material | Cloth |
| Spider Diameter | 5" / 127mm |
| Leads Type | Direct to Cone |
| Basket Material | Aluminum |
| Basket Color/Finish | Satin Black |
| Magnet Material | Neodymium |
| Magnet Weight | 11 Oz |
| Displacement Volume | 0.07L / 0.00247ft3 |
| Equivalent Volume Vas | 75.12L / 2.65ft3 |
| Excursion (one way) Xmax | 7mm |
| Free Air Resonance Fs | 60Hz |
| Mechanical Factor Qms | 5.8 |
| Electrical Factor Qes | 0.35 |
| Total Factor Qts | 0.33 |
| Mechanical Mass Mms | 44.6g |
| Mechanical Compliance Cms | 0.19mm/N |
| BL Factor BL | 18.7 |
| Voice Coil Inductance Le | 0.25mH |
| Cone Area Sd | 526.85cm2 |
| DC Resistance Re | 5.6 ohm |
| Mechanical Mass w/o air Mmd | 37g |

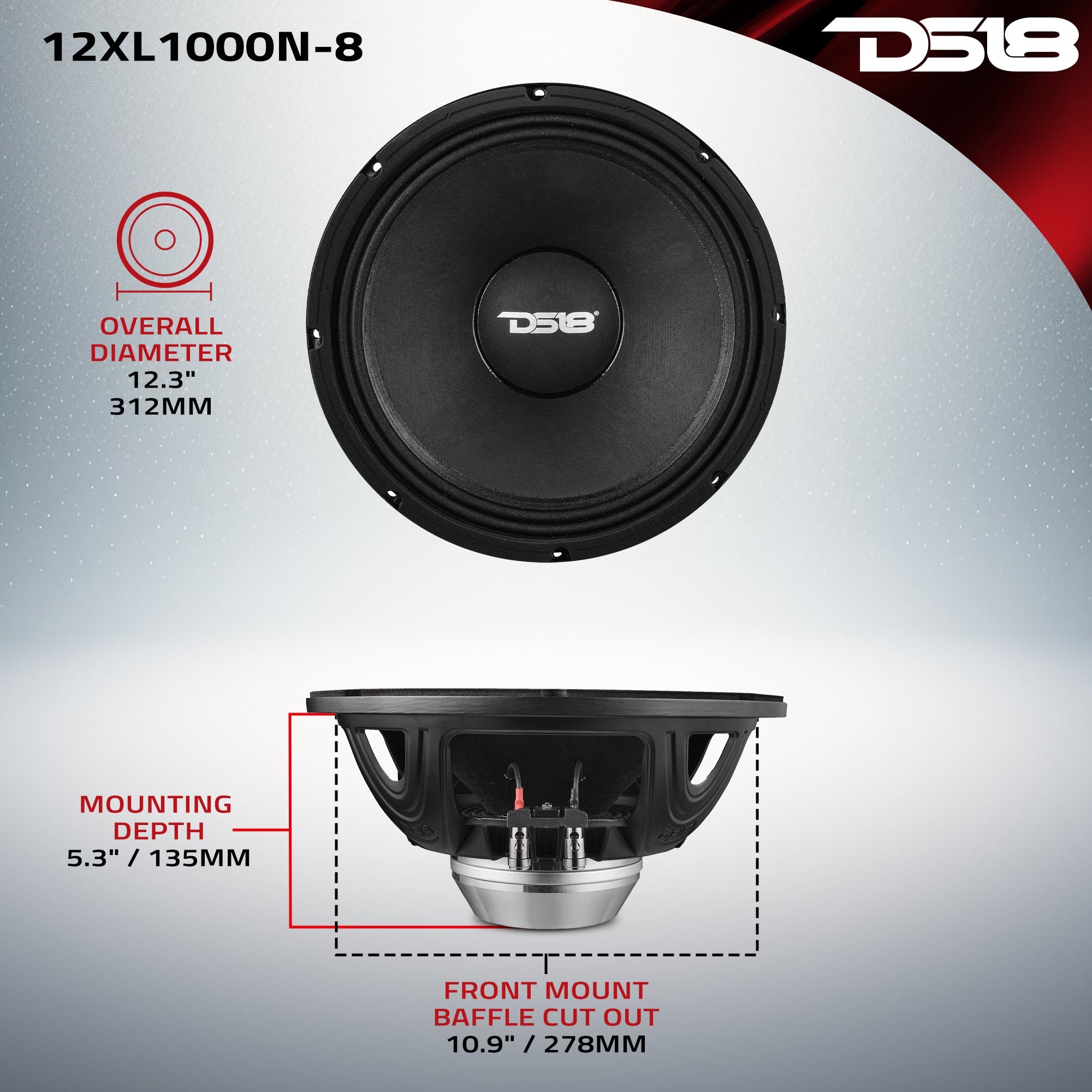

| Overall Diameter | 12.3" / 312mm |
| Overall Depth | 5.8" / 148mm |
| Front Mount Baffle Cutout | 10.9" / 278mm |
| Mounting Depth | 5.3" / 135mm |
| Motor Diameter | 5.16" / 131mm |
