Product Overview

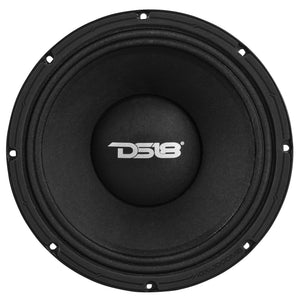

XL 10" Mid-Bass Loudspeaker 500 Watts Rms 8-Ohm

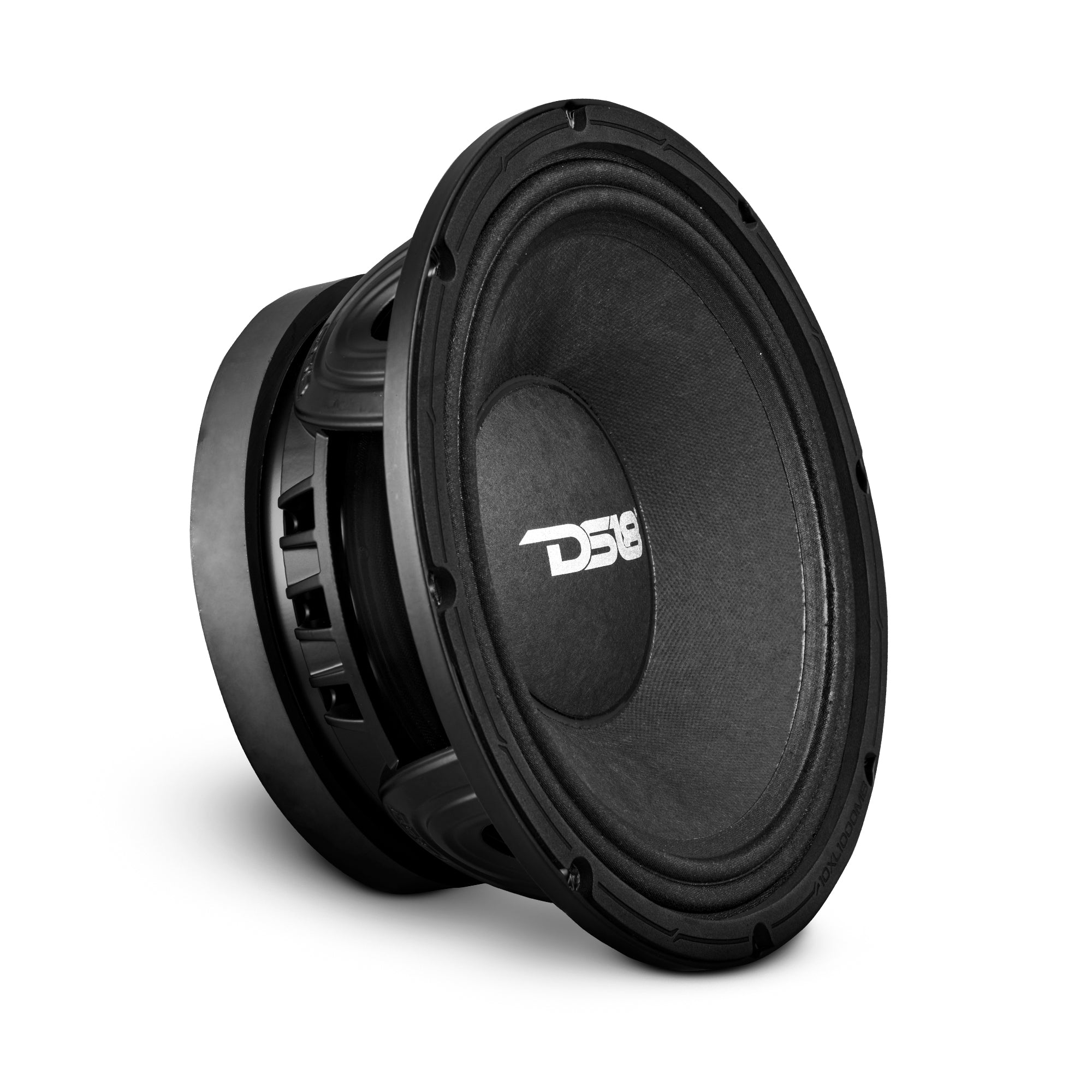

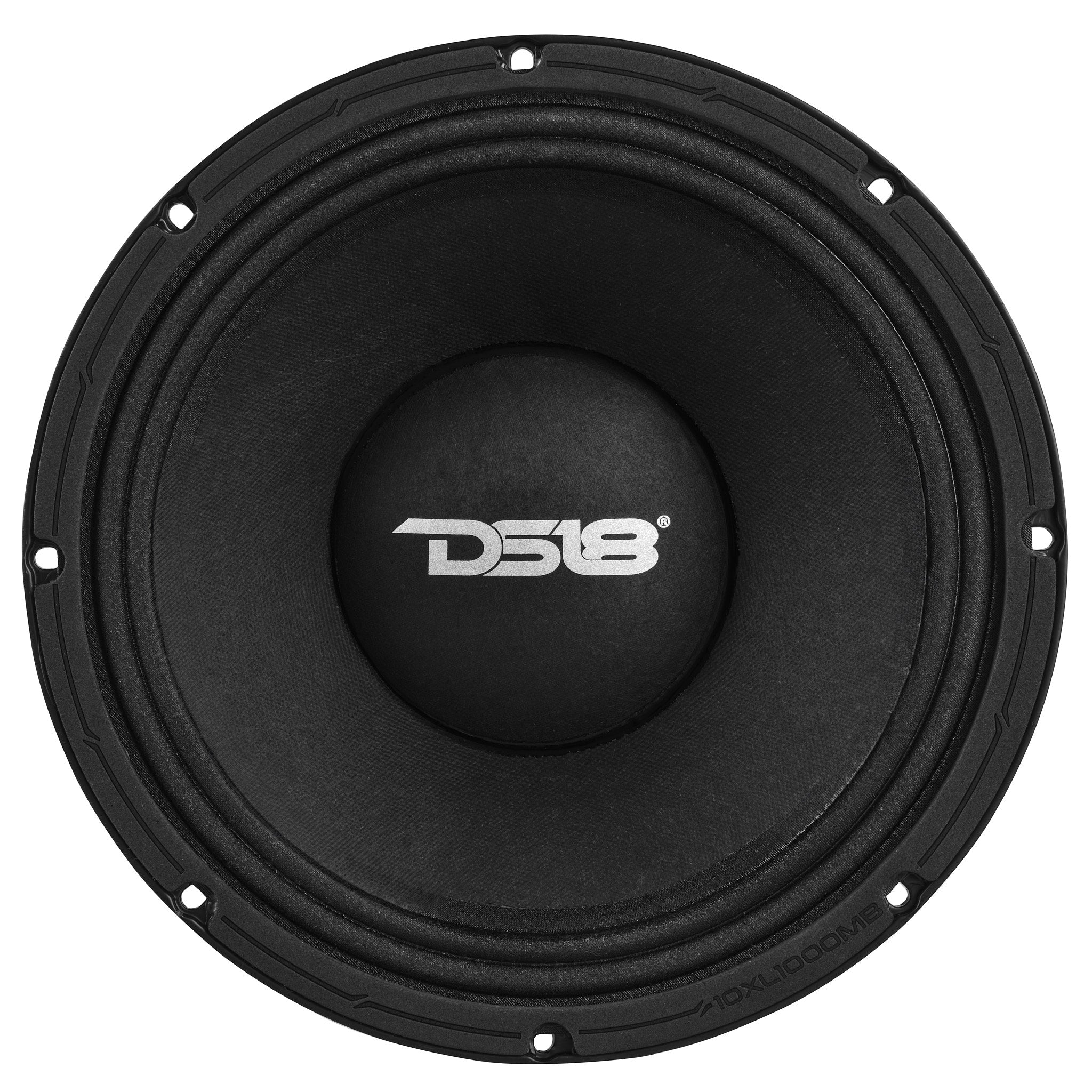

DS18’s 10XL1000MB-8 is a high-performance speaker designed for premium quality audio. This robust mid-bass speaker sets a new standard for car stereo upgrades.
DS18’s 10XL1000MB-8 has an impressive nominal diameter of 10 inches, paired with an 8-ohm nominal impedance guaranteeing compatibility with a variety of car audio systems. The sensitivity of 99.5dB means that even at high volumes, your music will be pure and distortion-free. Featuring an RMS power handling of 500W and a peak at 1000W, this speaker is built to sustain powerful sound without compromising clarity.

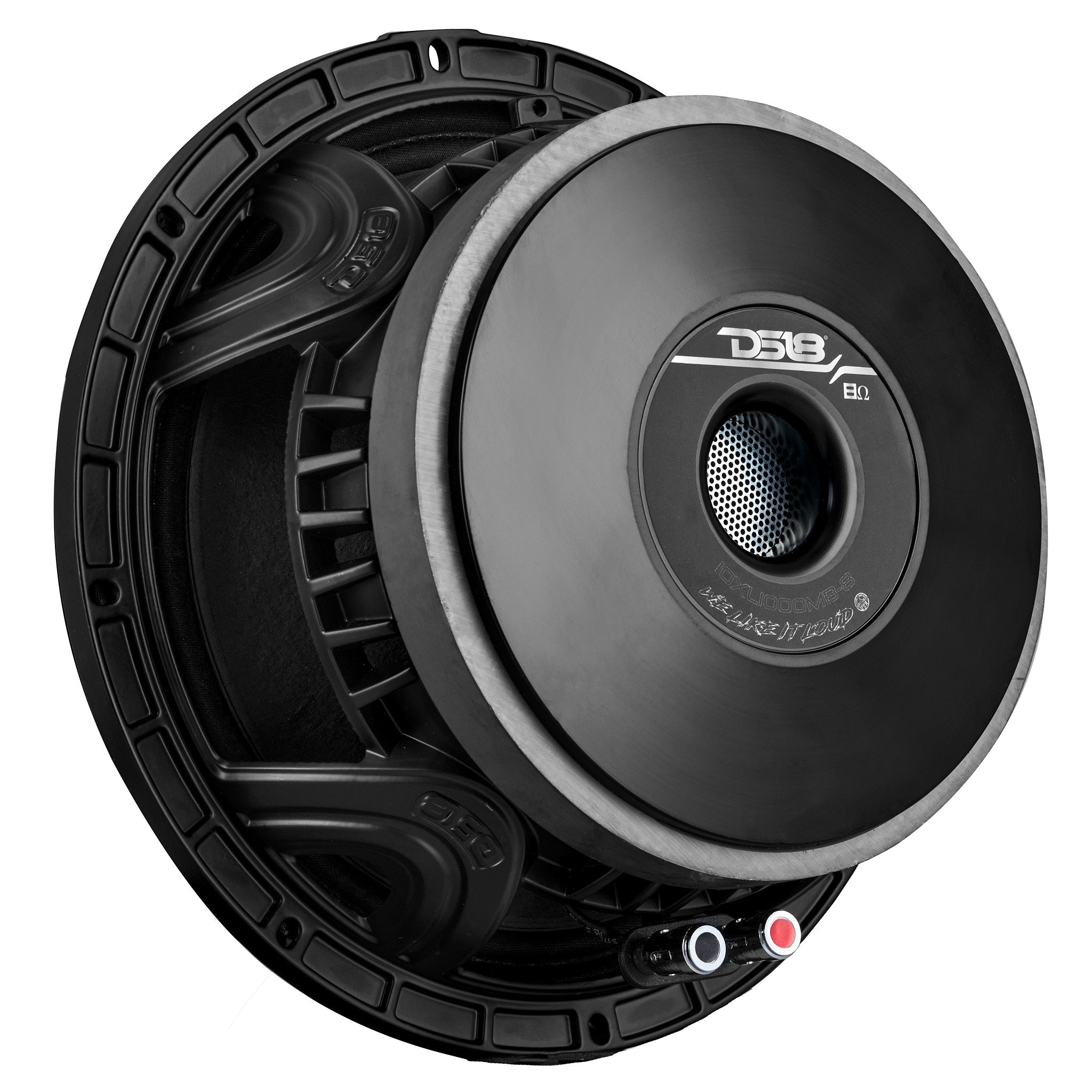

The heart of this beast lies in its motor, featuring a 3" voice coil optimized for thermal resistance and conductivity. One of the most remarkable features of this premium unit is its Interleaved Sandwich Voice Coil (ISV). Combined with demodulating rings, DS18’s 10XL1000MB-8 guarantees precise control and astounding durability. Its aluminum basket, finished in sleek satin black, not only adds to the aesthetic but also provides structural integrity for the powerful ferrite magnet weighing 80 Oz.

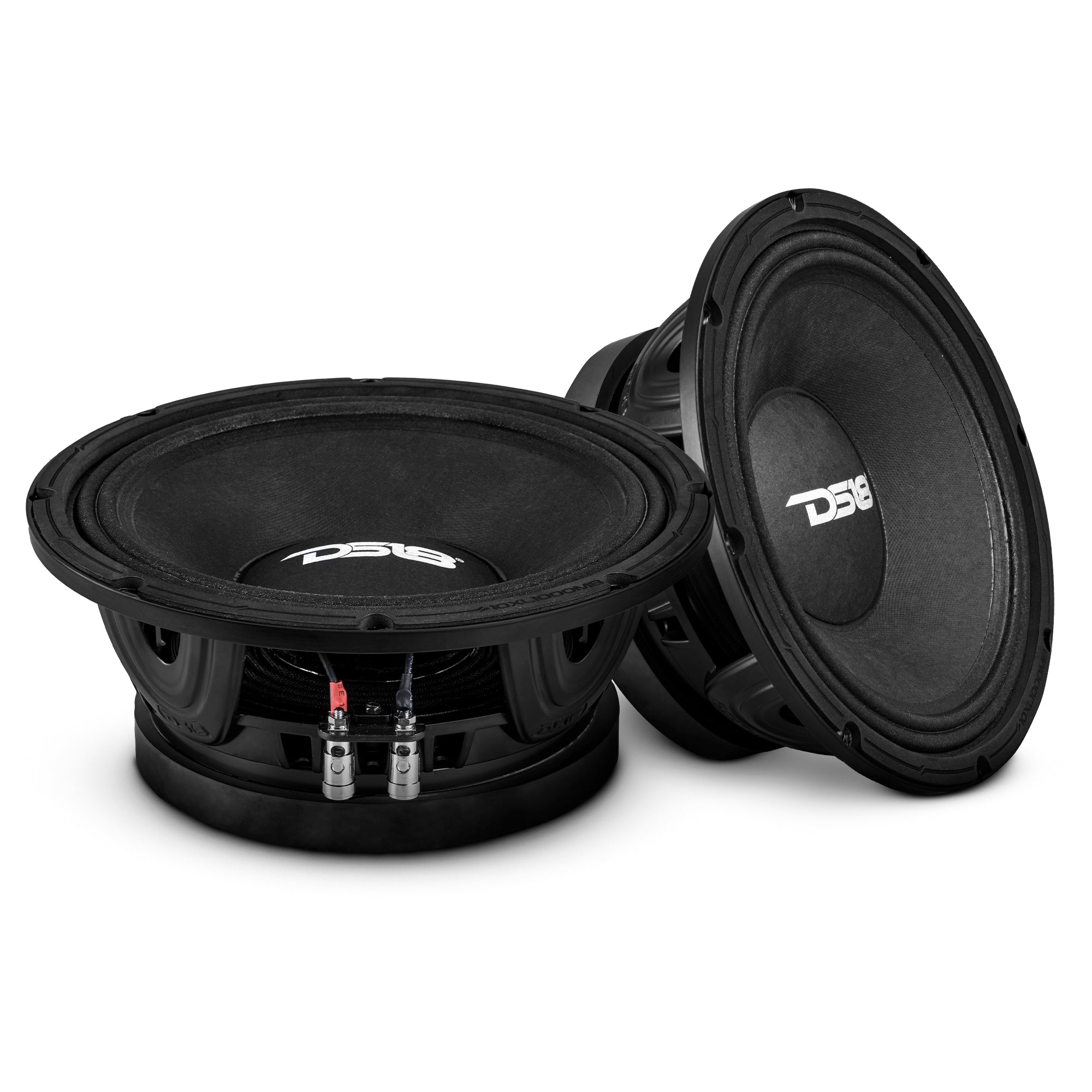

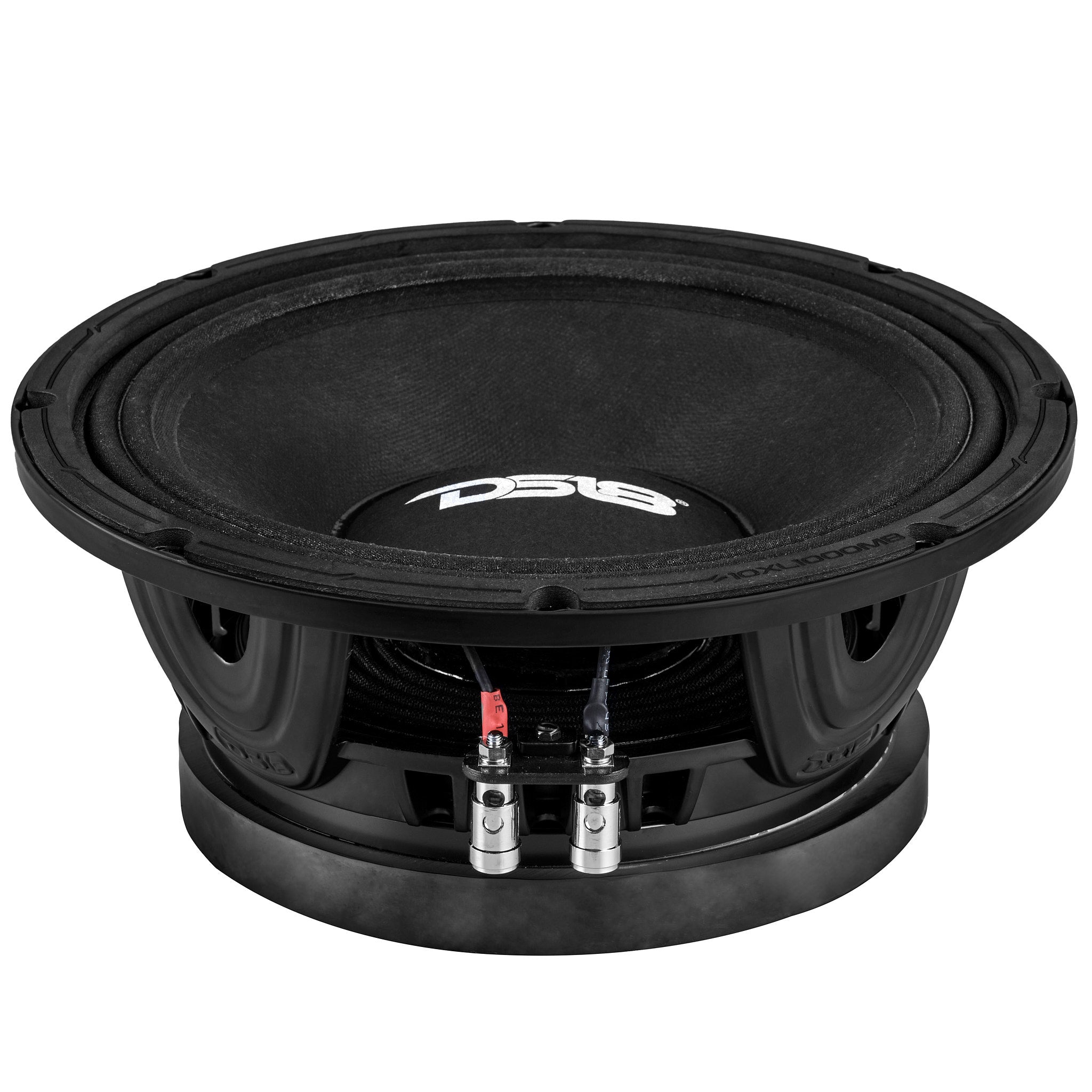

Installation is made straightforward with the 8GA push terminals engineered for secure connections, consistent performance, and a perfect fit into your vehicle.
Key Features
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
Specifications
| SKU | 10XL1000MB-8 |
|---|---|
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 500 Watts |
| MAX Power Handling | 1000 Watts |
| Sensitivity (1w/1m) | 99.5dB |
| Frequency Response | 75Hz-5KHz |
| Recommended HI Pass Crossover | 100Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Interleaved Sandwich Voice coil (ISV) | Yes |
| Demodulating Rings | Yes |
| Improved Heat Dissipation | No |
| Cone Shape | Exponential |

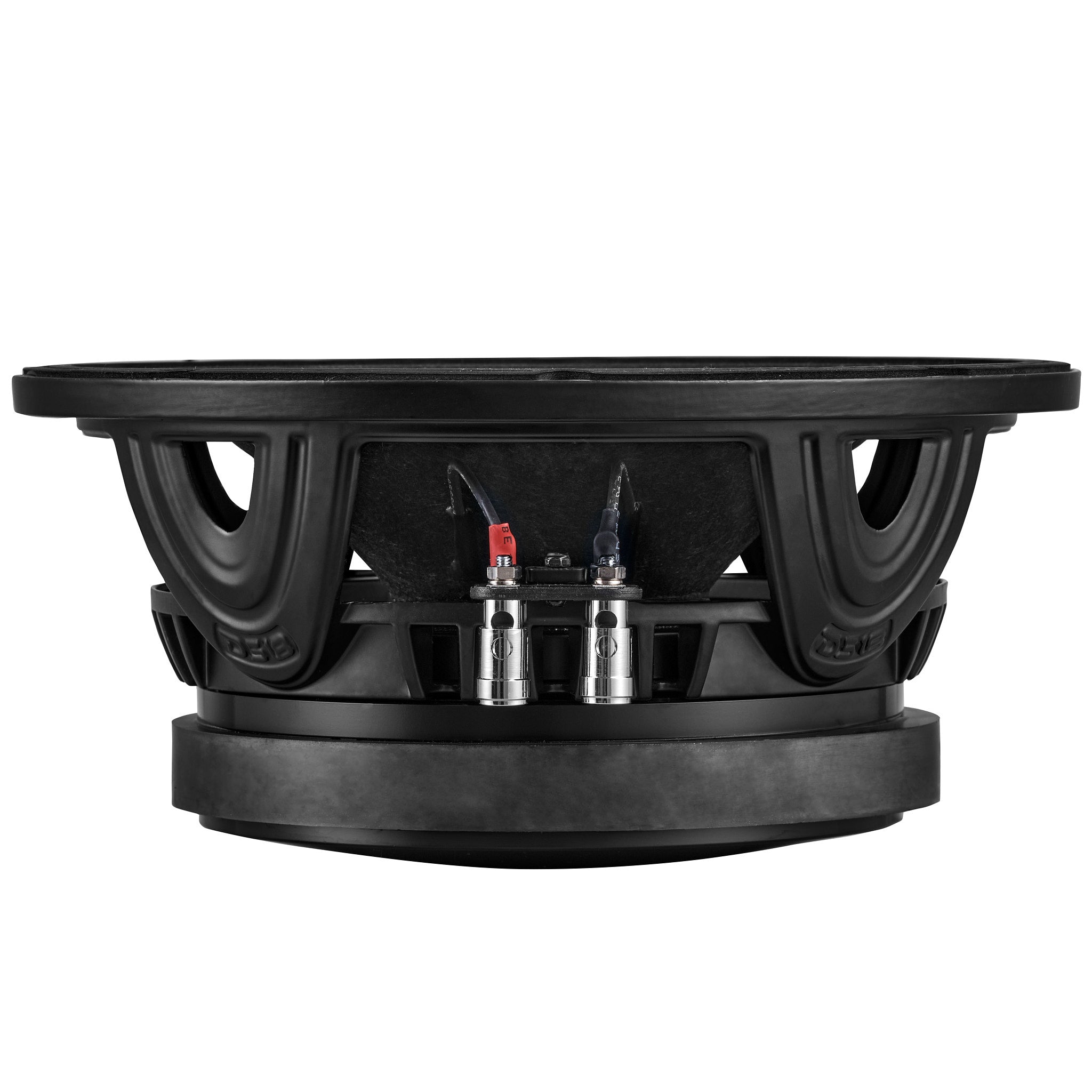

| Speaker Terminals | Push 8ga (4.7mm) |
| Voice Coil Diameter | 3" / 76mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW (2 Layers IN/OUT) |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Spider Diameter | 5.5" / 139.7mm |
| Leads Type | Direct to Cone |
| Basket Material | Aluminum |
| Basket Color/Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 80 Oz |
| Displacement Volume | 0.4L / 0.0141ft3 |
| Voice Coil Inductance VAS | 36.6L / 1.292ft3 |
| Excursion (one way) XMAS | 2mm |
| Free Air Resonance FS | 68Hz |
| Mechanical Factor QMS | 3.69 |
| Electrical Factor QES | 0.18 |
| Total Factor QTS | 0.172 |
| Mechanical Mass MMS | 29.64g |
| Mechanical Compliance CMS | 0.21mm/N |
| BL Factor BL | 14.2 |
| Voice Coil Inductance LE | 0.27mH |
| Cone Area SD | 346.36cm2 |
| DC Resistance RE | 3.2 ohms |
| Mechanical Mass w/o air MMD | 26g |

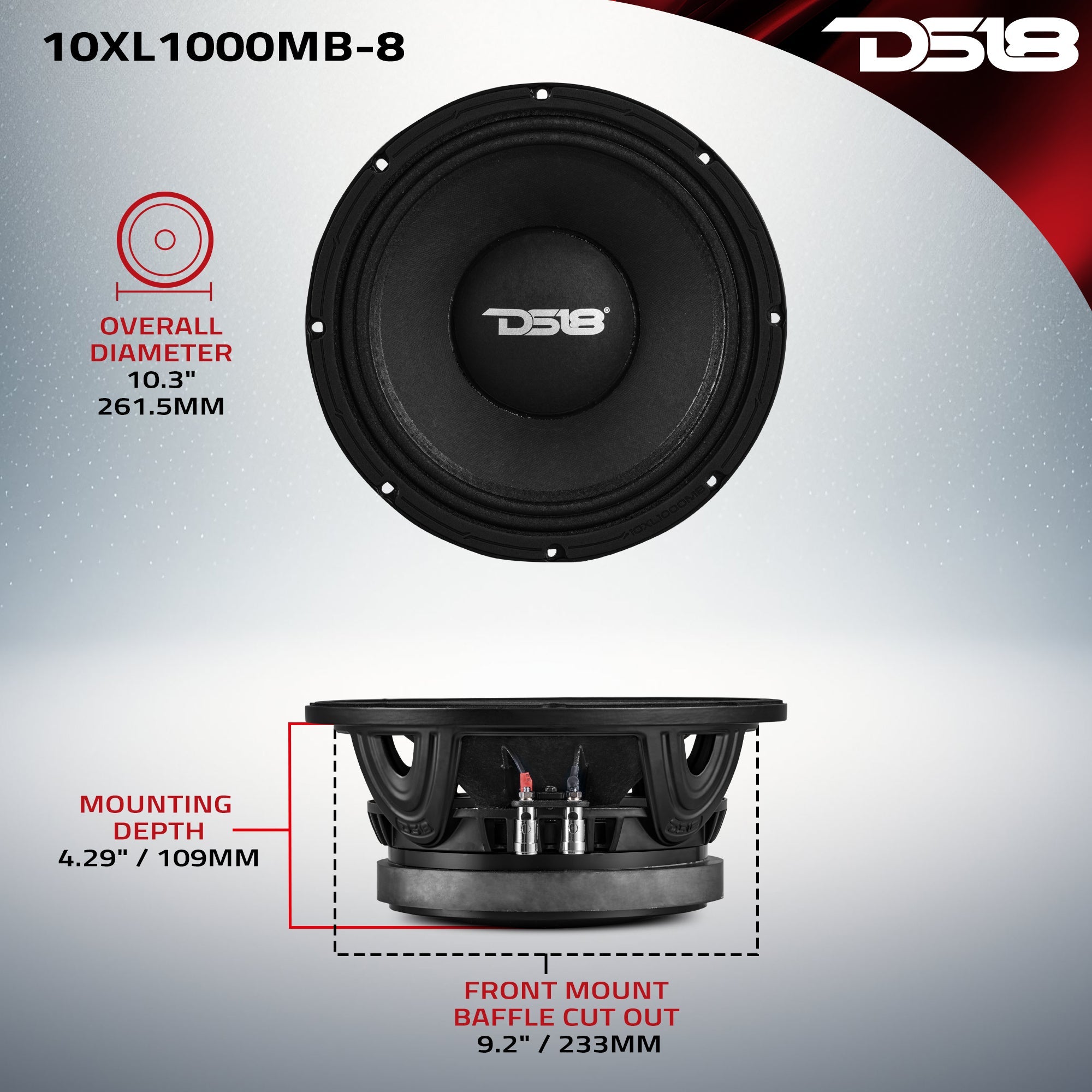

| Overall Diameter | 10.3" / 261.5mm |
| Overall Depth | 4.73" / 120mm |
| Front Mount Baffle Cutout | 9.2" / 233mm |
| Mounting Depth | 4.29" / 109mm |
| Motor Diameter | 7.48" / 190mm |
