Product Overview

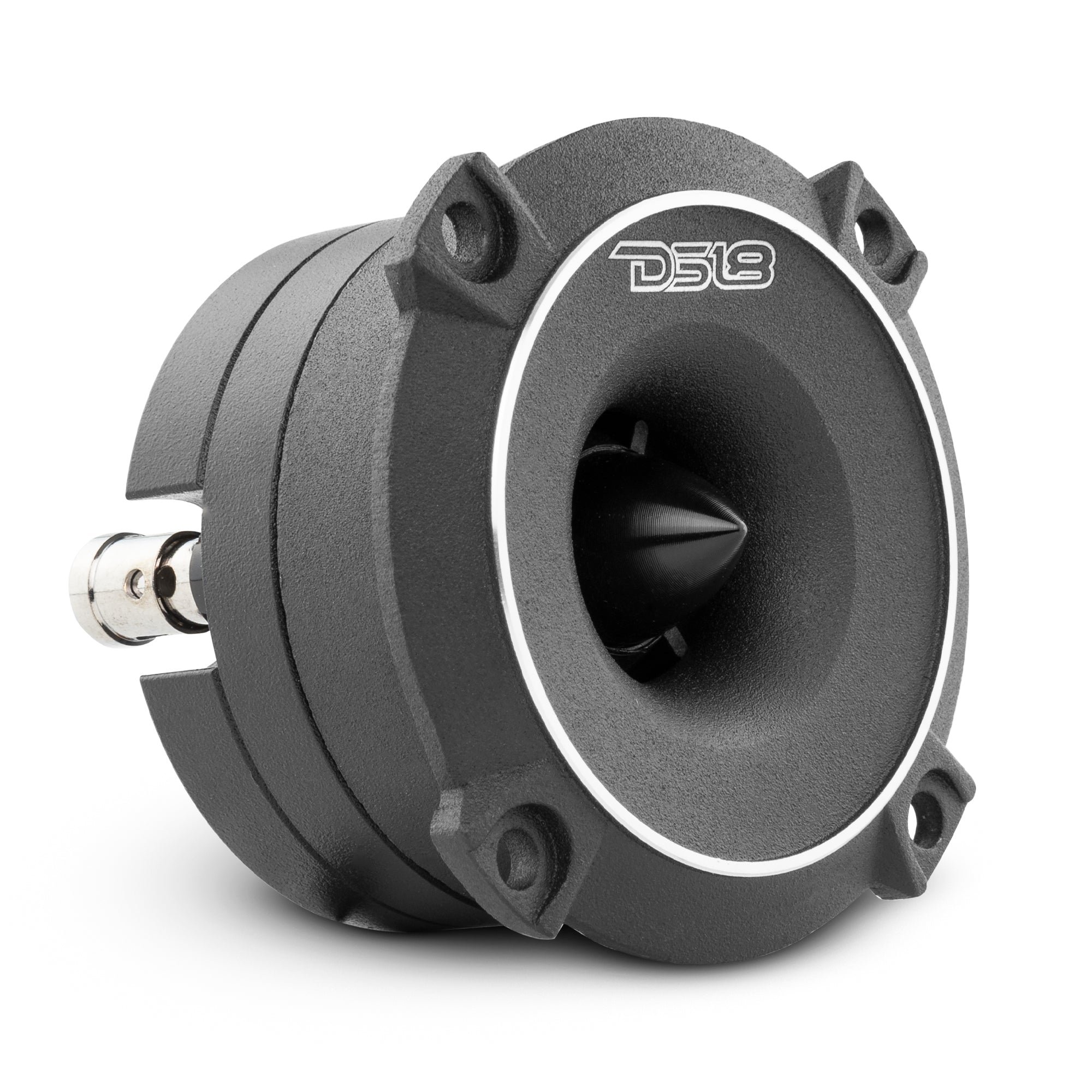

DS18 PRO-TWN1 3" High Compression Neodymium Slim Super Bullet Tweeter 240 Watts 1" Titanium 4-Ohm Vc
PRO-TWN1- Small, sleek, and LOUD are the three words that perfectly describe DS18s newest tweeter, the PRO-TWN1! This compact tweeter is made for loud clear high range frequencies and packs an amazing punch utilizing the Neodymium magnets for the best power handling and highest sensitivity. These tweeters come with 1 inch titanium voice coils that handle 120w RMS with a sensitivity of 104dB. The aluminum frame of the tweeter is highly durable and stamped with DS18's logo. Easily mountable in almost any position, this tweeter is what you need for screaming highs in a tight space, or any space!
Highlights

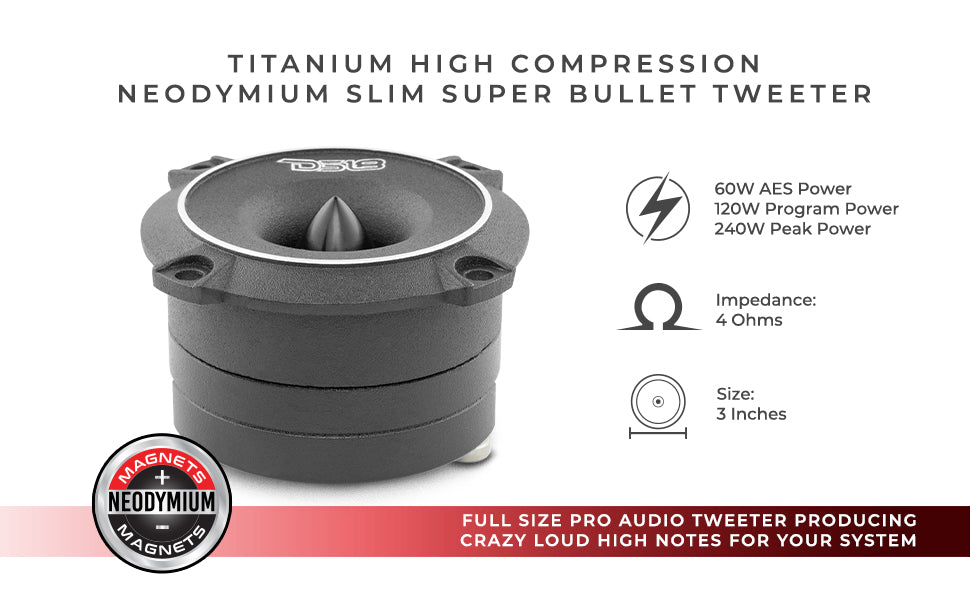

- Full size pro audio super tweeter producing crazy loud high range notes for your system.
- Designed to fit in most spaces with slight modification or fabrication.

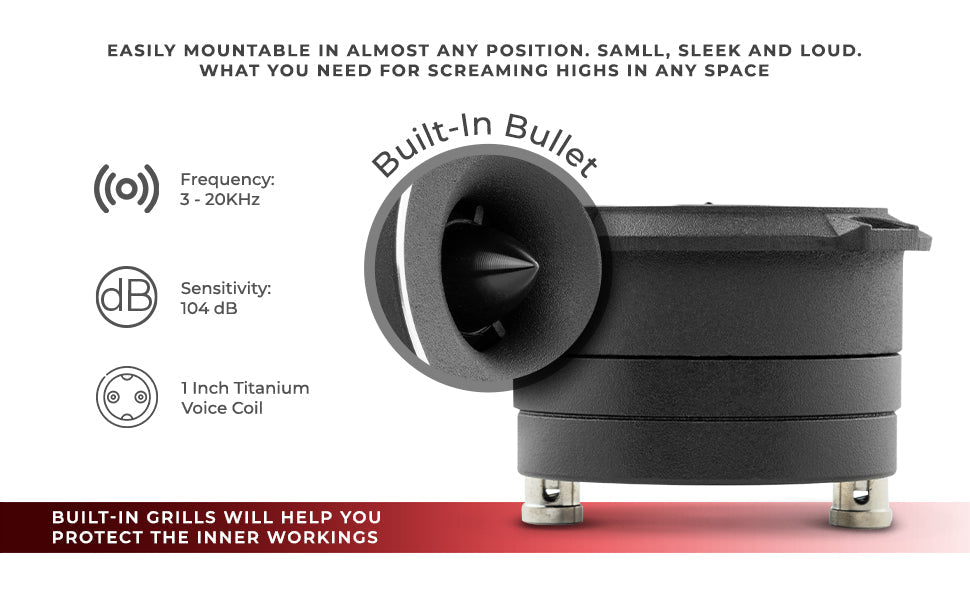

- Built in grills will help you protect the inner workings of your super tweeter.
- Easily repaired in minutes.
Technical Details
| Model: | PRO-TWN1 |
| Peak Power Handling | 240 Watts |
| Program Power Handling | 120 Watts |
| AES Power Handling | 60 Watts |
| Sensitivity: | 104dB |

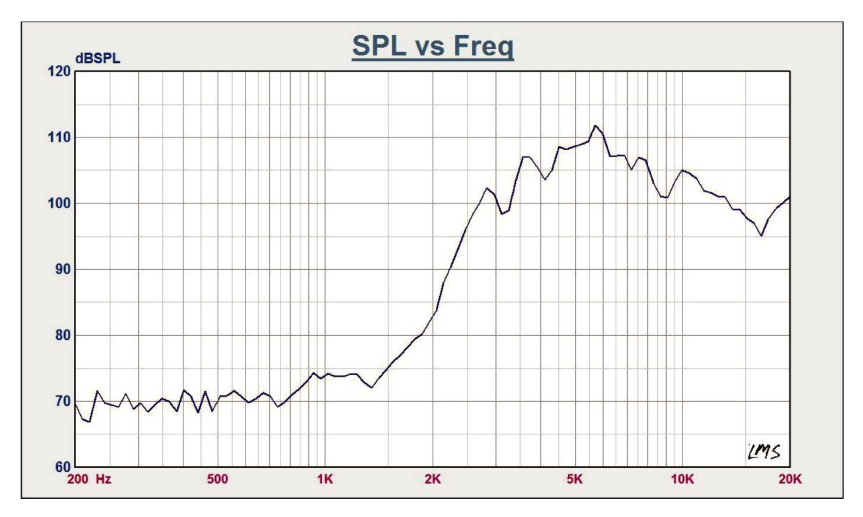

| Frequency Reponse: | 3KHz - 20KHz |
| Impedance: | 4 Ohms |
| Voice Coil Diameter: | 1" (25.4mm) |
| Recommended HI Pass Crossover | 3 KHz |
| Magnet: | Neodynium |
| Package Quantity: | 1 |

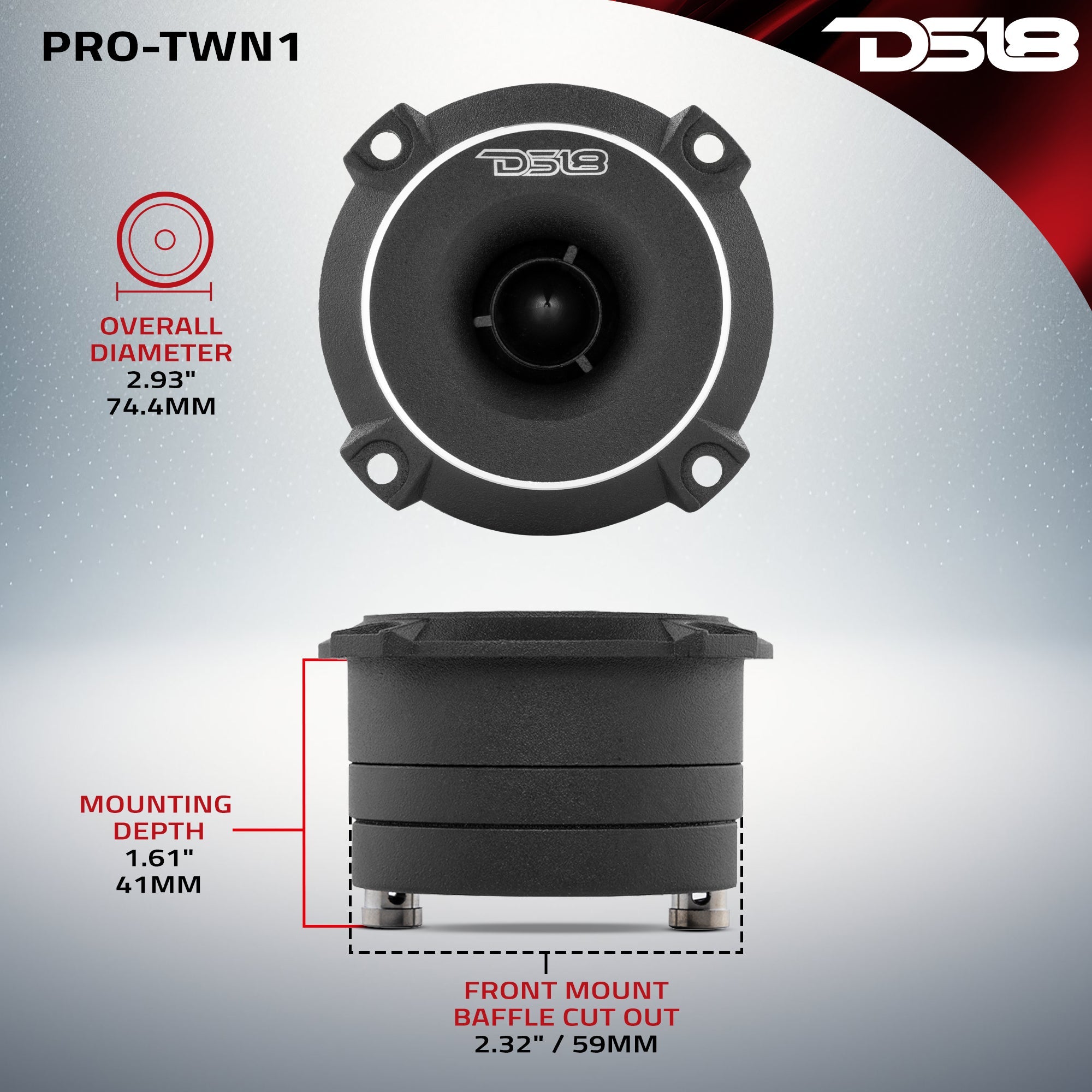

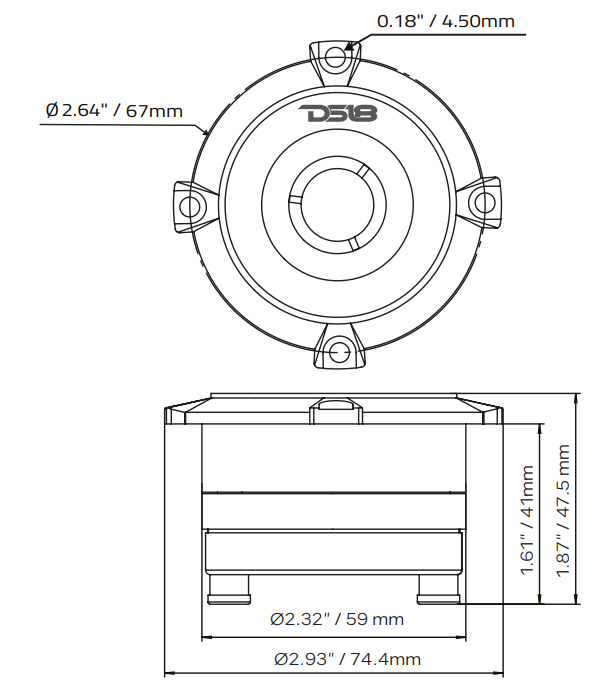

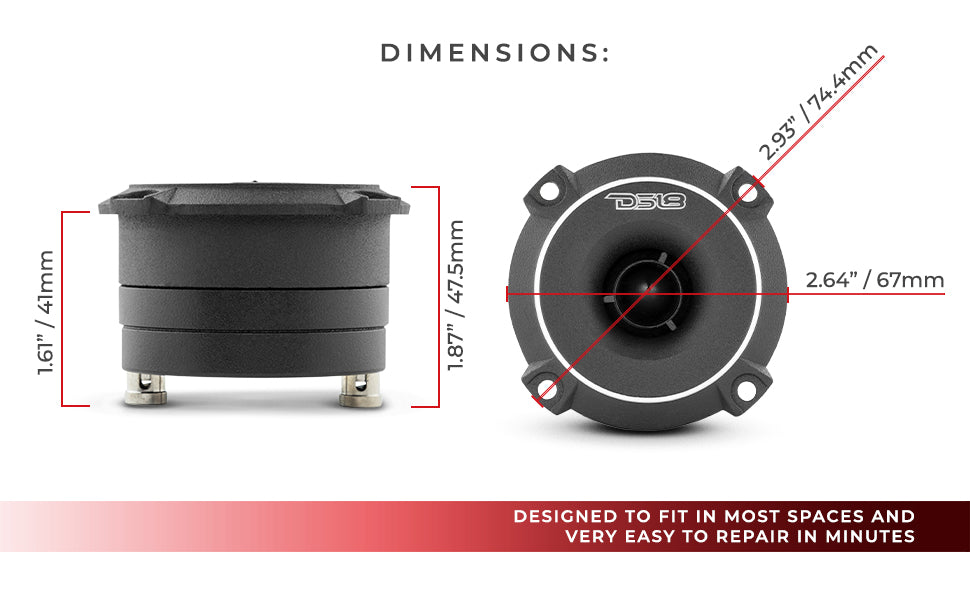

| MEASUREMENTS | |
| Overall Diameter | 1.87" |
| Mounting Depth | 1.61" |
| Overall With | 2.93" |
| Front Mount Baffle Cut Out |
2.32" |
Key Features
- 3" High Compression Slim Bullet Tweeter
- RMS Power: 120 Watts(240 Watts Peak)
- Impedance: 4 Ohm ~ 104dB
- Neodymium Magnet
- Flush Style Mount
- Single
- Easily Repaired With The PRO-TWN1VC
Specifications
| SKU | PRO-TWN1 |
|---|---|
| Nominal Diameter | 3" |
| Nominal Impedance | 4 OHMS |
| AES Power Handling | 60 Watts |
| Program Power Handling | 120 Watts |
| Peak Power Handling | 240 Watts |
| Sensitivity (1w/1m) | 104 dB |
| Frequency Response | 3KHz - 20KHz |
| Recommended Hi Pass Crossover | 3 KHz |
| Voice Coil Diameter | 1" / 25.4 mm |
| Voice Coil Former Material | NSV |
| Winding Material | Pure Aluminum Round Wire |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Magnet Size | 0.96" x 0.27" |
| Body Material | Aluminum |
| Bullet Material | CNC Aluminum |
| Overall Diameter | 2.93" /74.4mm |
| Overall Depth | 1.87" /47.5mm |
| Front Mount Baffle Cutout | 2.32" /59mm |
| Mounting Depth | 1.61" /41mm |
| Product Weight | 1 lbs |
| Product Dimensions | 3.75 x 3.175 x 2.25 |
| M/C Weight | 35.5 lbs |
| M/C Dimensions | 16.5 x 8.25 x 8.25 |
| M/C QTY | 30 |
| Sold In | Piece |
