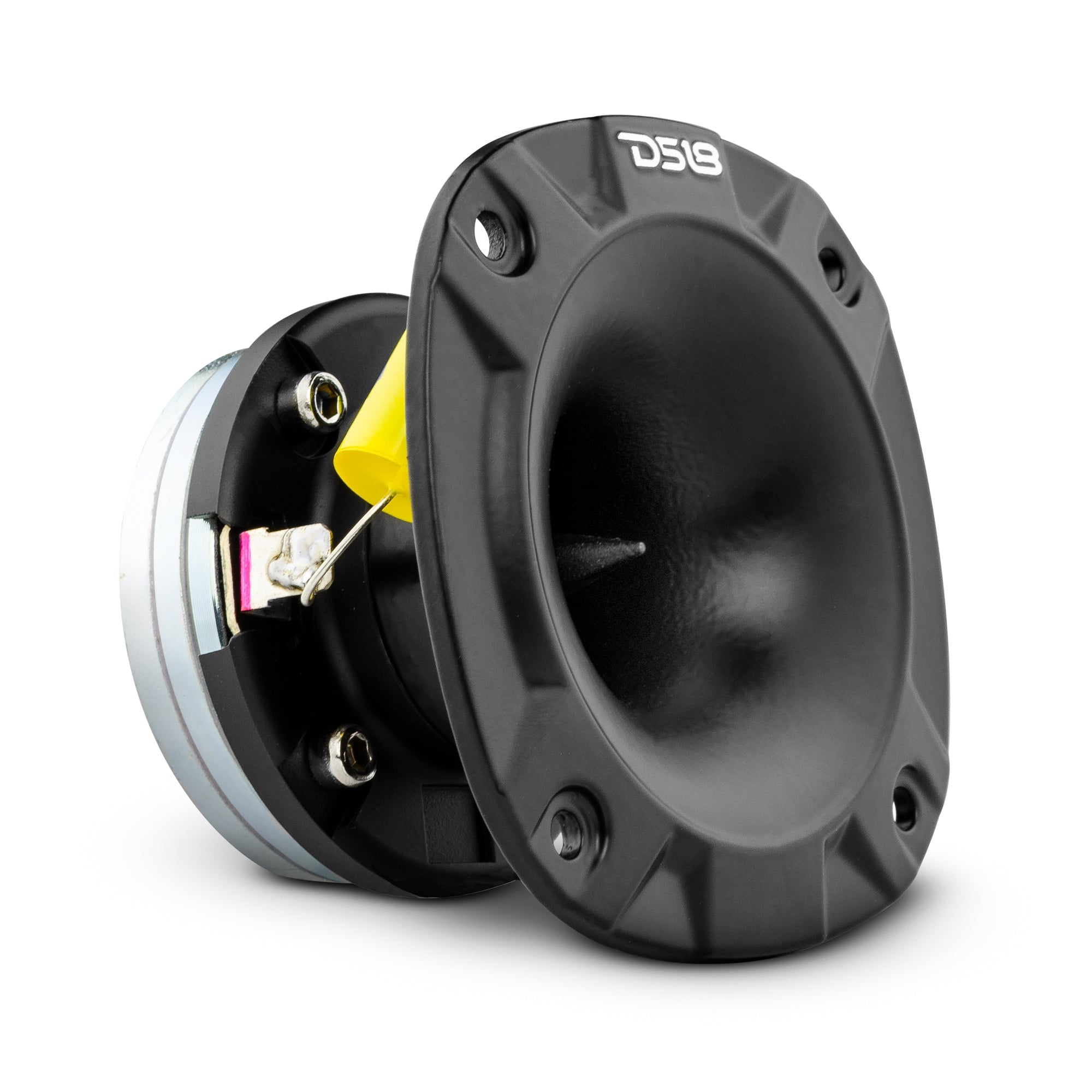

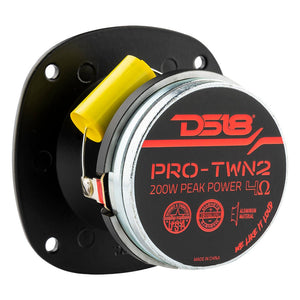

3" High Compression Neodymium Hybrid Driver/Tweeter 100 Watts 1" Polyimide 4-Ohm Vc
Product Overview
DS18 PRO-TWN2 3" High Compression Neodymium Hybrid Driver/Tweeter 200 Watts 1" Phenolic 4-Ohm Vc

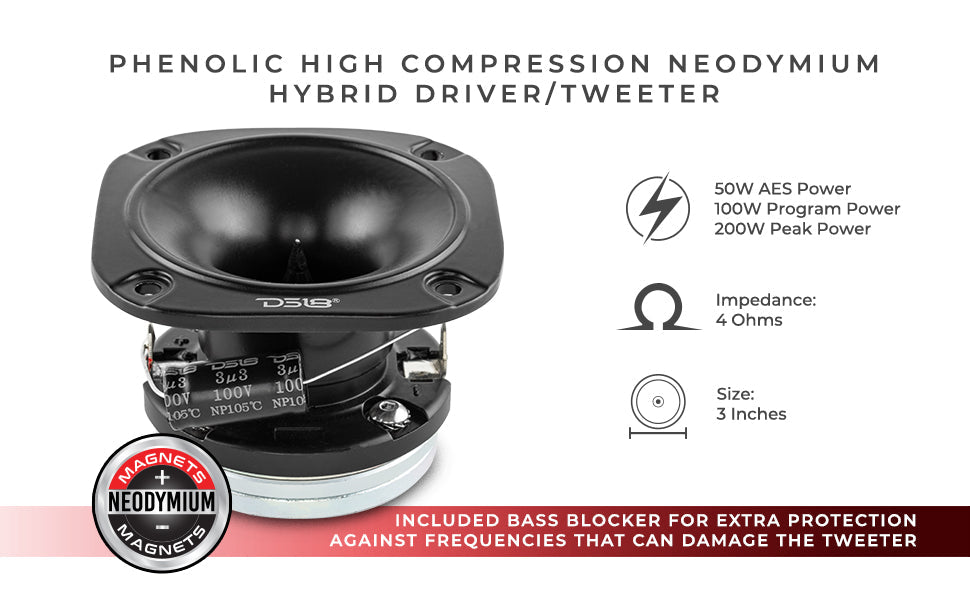

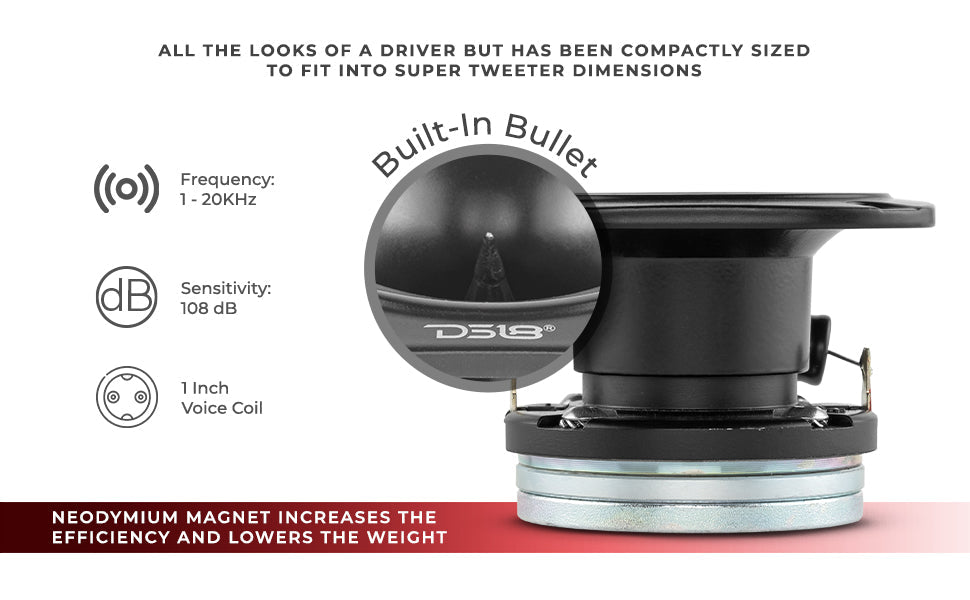

DS18 new PRO-TWN2 has all the looks of a driver but has been compactly sized to fit into super tweeter dimensions. This new super tweeter 1-inch voice coil can handle 100w RMS and 200W Peak and comes with a neodymium magnet which increases the tweeters efficiency and lowers the weight dramatically. Each tweeter comes with an included bass blocker for extra protection against frequencies that would otherwise damage the tweeter so you can feel safe your equipment can play loud and long. These tweeters have a very high sensitivity of 108 dB so the do not require full power to get extremely loud. This opens you up to multiple amp choices for your tweeters and gives you the versatility everyone looks for in powering and using your new tweeters.
Technical Details
| Model: | PRO-TWN2 |
| Type: | Super Bullet Tweeter |
| RMS Power: | 100 Watts |
| MAX Power: | 200 Watts |
| Voice Coil Diameter: | 1" |
| Diaphragm Material: | Composite Polyimide |
| Sensitivity: | 108dB |
| Impedance: | 4 Ohms |
| Frequency Response: | 1KHz - 20KHz |
| Package Quantity: | 1 |
| Replacement Diaphragm: | PRO-TW120VC |
| Magnet | Neodymium |
Key Features
- 3" High Compression Hybrid Driver/Tweeter
- RMS Power: 100 Watts(200 Watts Peak)
- Impedance: 4 Ohm ~ 108dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN2VC
Specifications
| SKU | PRO-TWN2 |
|---|---|
| Nominal Diameter | 3" |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 50W |
| Program Power Handling | 100W |
| Peak Power Handling | 200W |
| Sensitivity (1w/1m) | 108 dB |

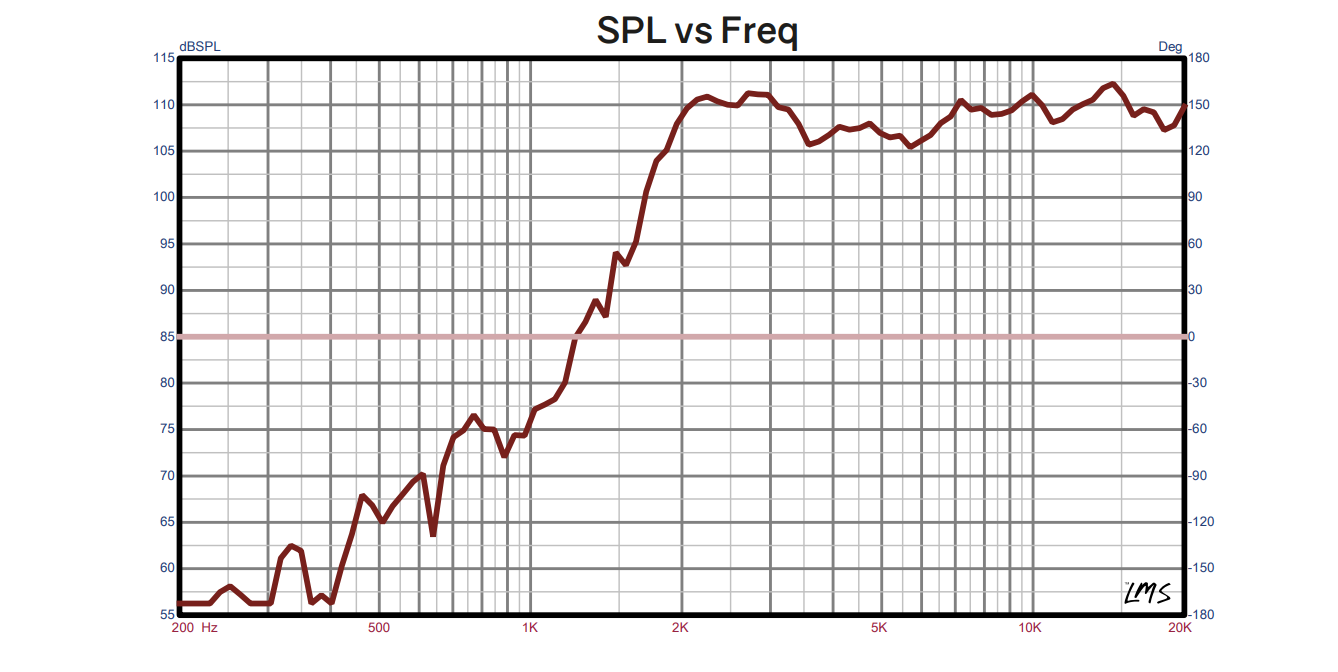

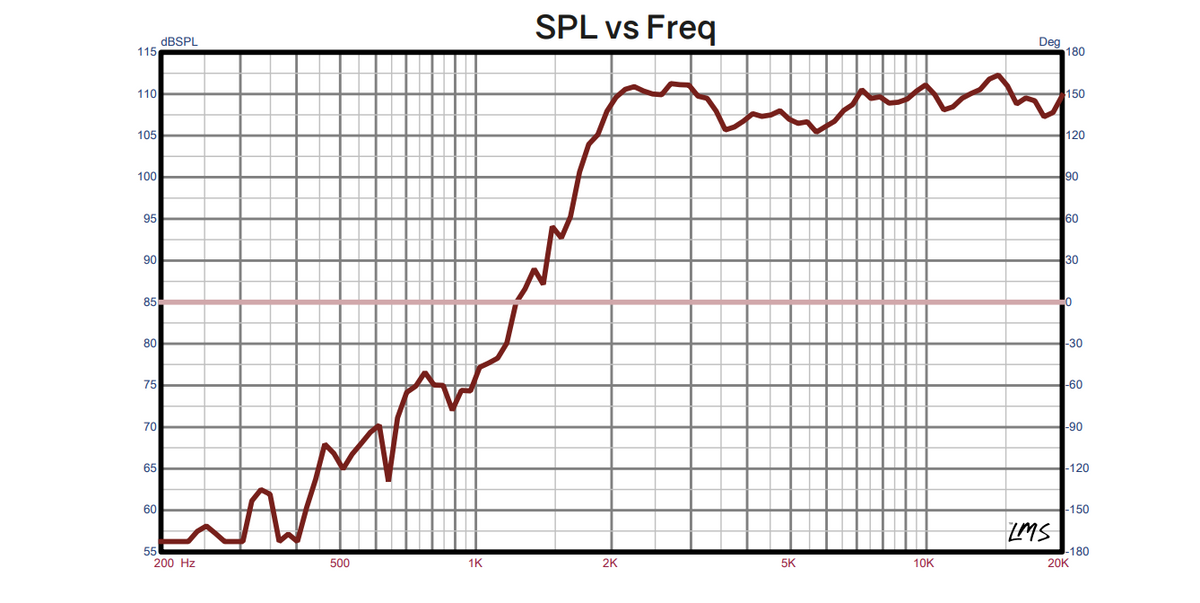

| Frequency Response | 1KHz-20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| Pair or Single | Single |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Composite Polyimide |
| Magnet Material | Neodymium |
| Magnet Size | 2.2x0.15" / 56x4mm |
| Magnet Weight | 1.86 Oz |
| Body Material | Aluminum |

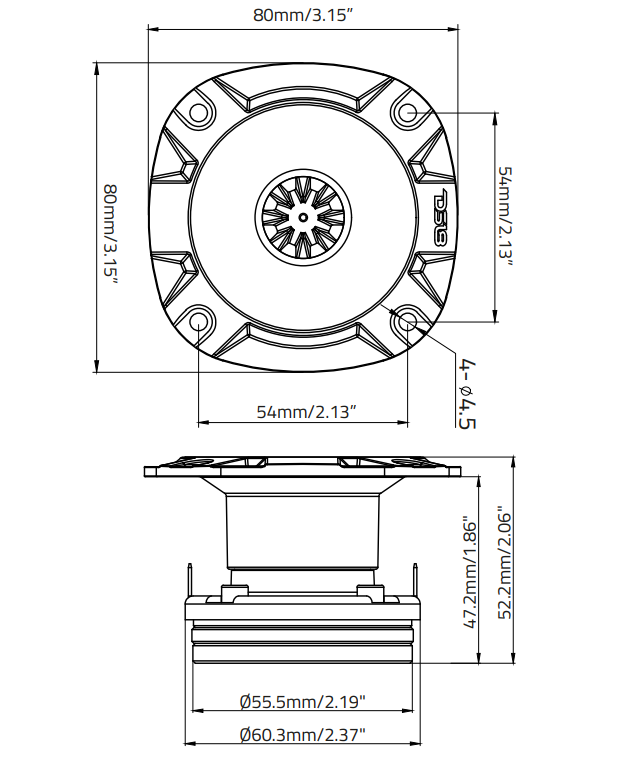

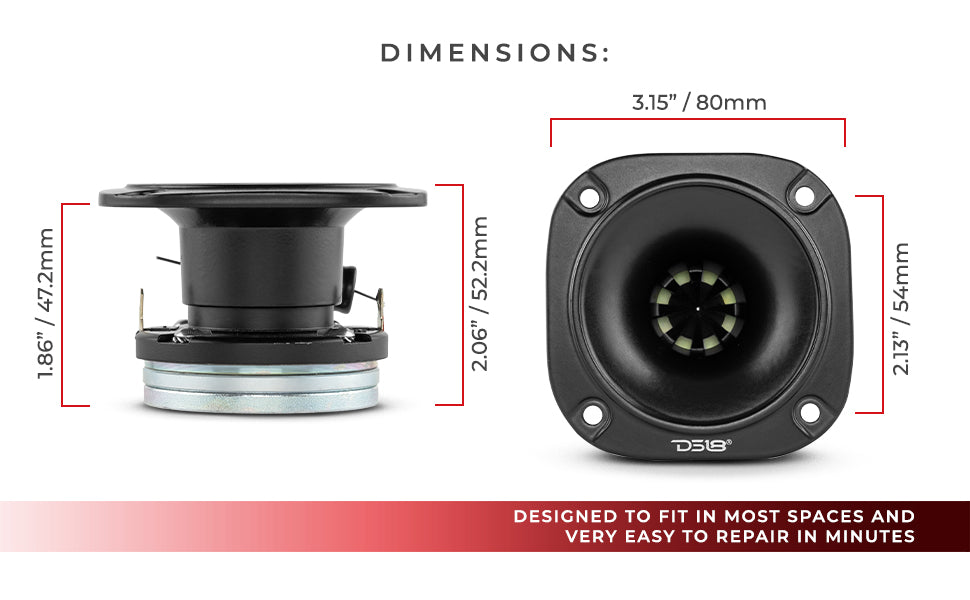

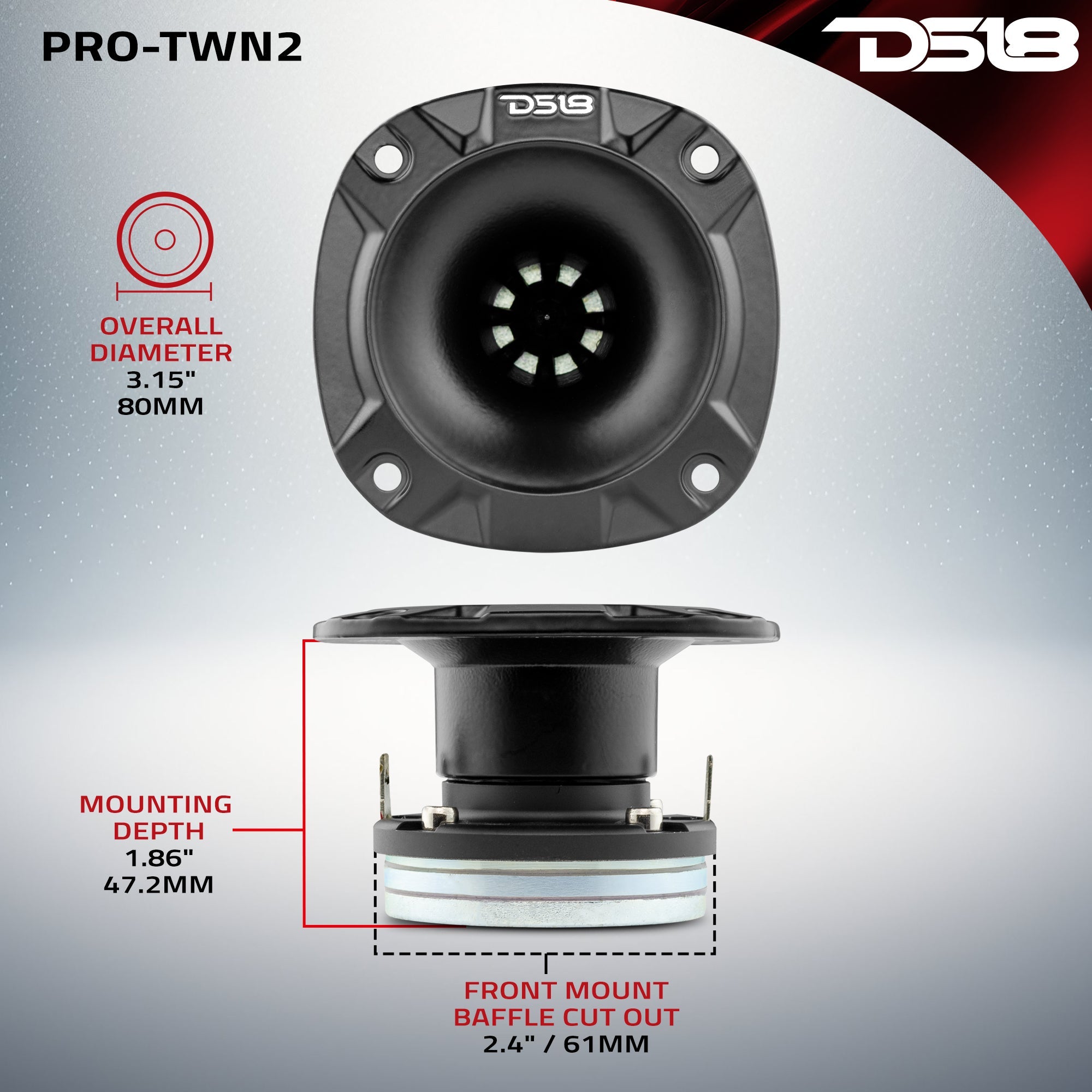

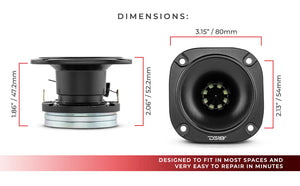

| Overall Diameter | 3.15" /80mm |
| Overall Depth | 2.06" /52.2mm |
| Front Mount Baffle Cutout | 2.4" /61mm |
| Mounting Depth | 2.4" /47.2mm |
| Product Weight | 1 lbs |
| Product Dimensions | 3.25 x 3.25 x 2.5 |
| M/C Weight | 10.5 lbs |
| M/C Dimensions | 10.75 x 7.25 x 6 |
| M/C QTY | 12 |
| Sold In | Piece |
