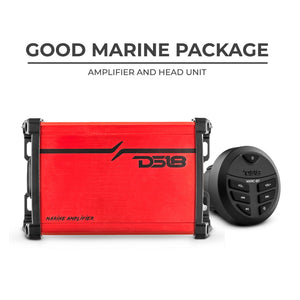

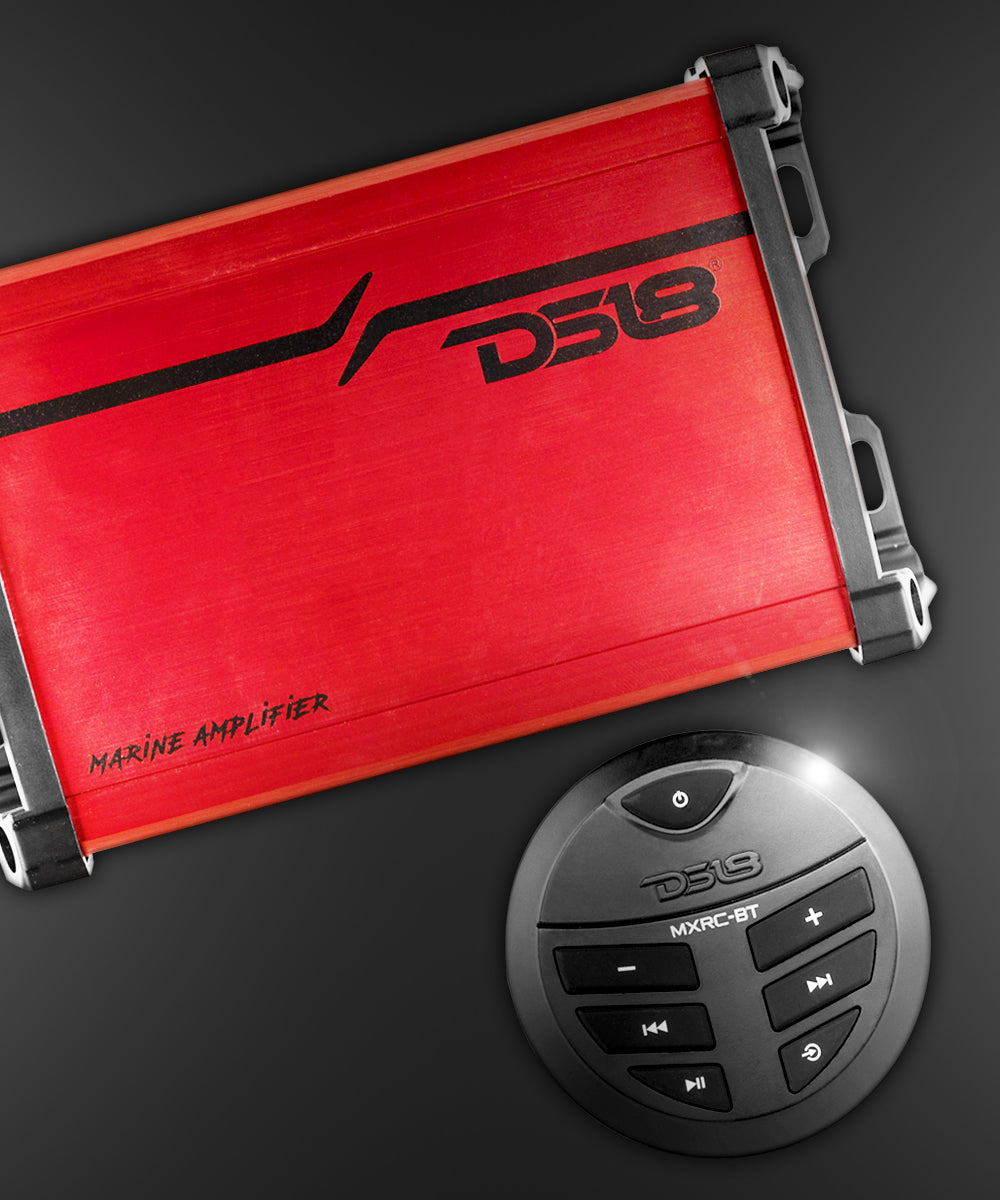

Good Marine Audio Package - Head Unit & 4 Channel Amplifier
Product Overview
DS18 Good Marine Audio Package - Head Unit & 4 Channel Amplifier
Key Features
- Good Marine Audio Package
- 1 X MP.4A
- 1 X MXRC-BT

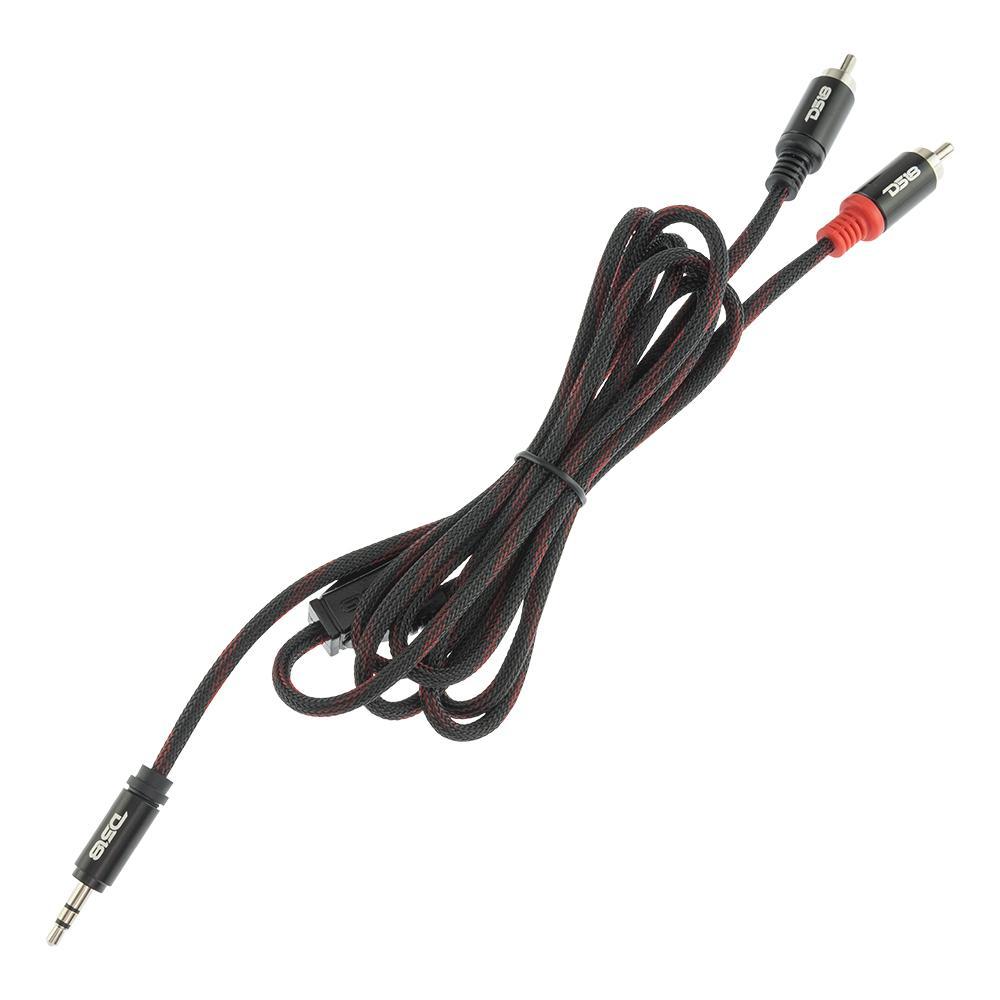

- 1 X HQMP3DUALRCA3FT
- Bluetooth
- Water Resistant
Specifications

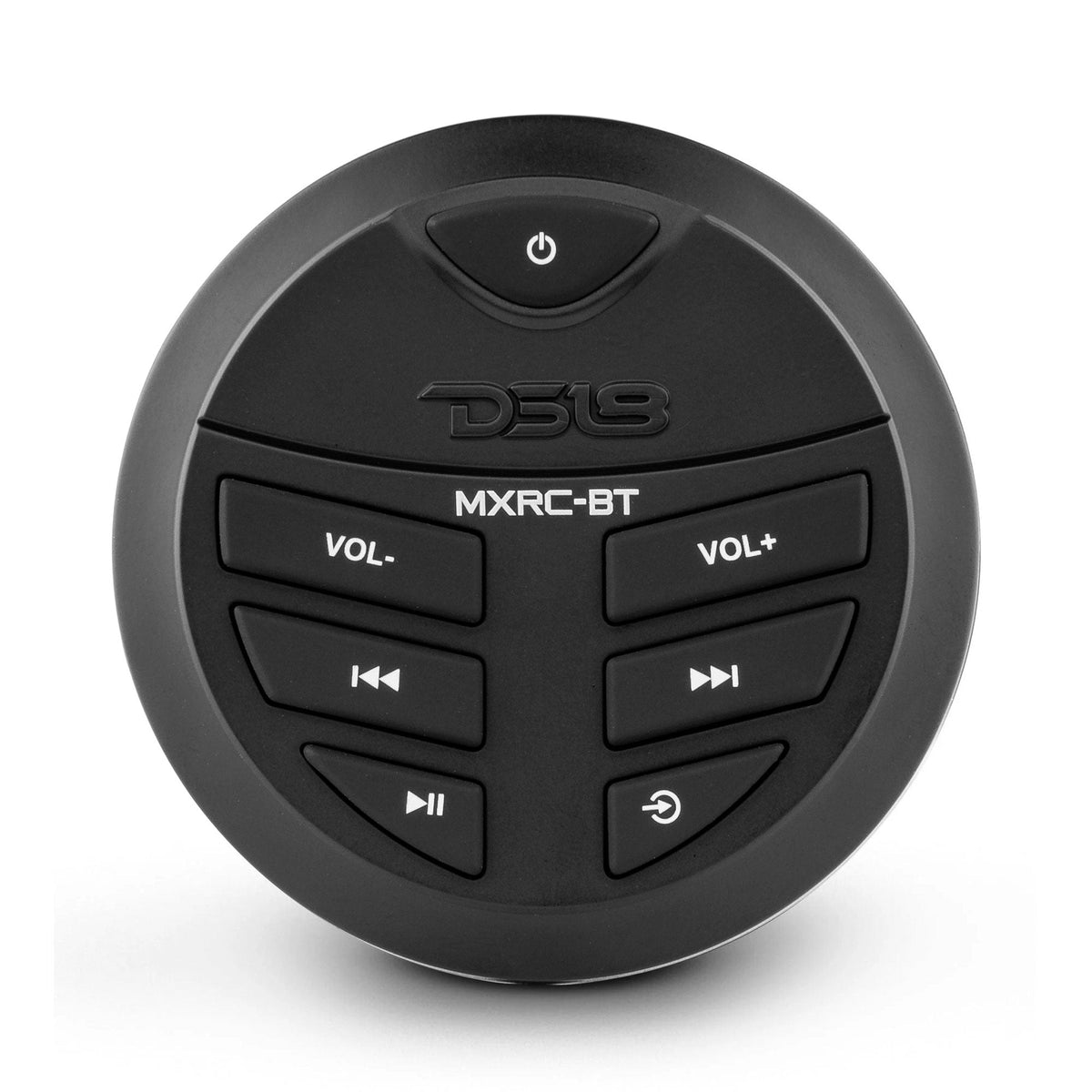

| Marine And Powersports Waterproof Bluetooth Audio Receiver With Controls | MXRC-BT |
|---|---|

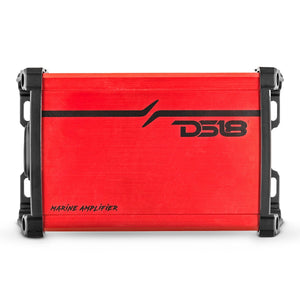

| 4 Channel Marine & Powersports Amplifier | MP.4A |
| Frequency Response | 20Hz - 20KHz / 20Hz-20KHz |
| Signal to Noise Ratio | 80dB / 82dB |
| Total Harmonic Distortion | 0.1% |
| Channel Separation | 60dB |
| Operation Voltage | 10V - 15V DC |
| BT Wireless Audio Version | 5.0 + A2DP |
| RCA Line Out | 1 Pair (Left & Right) 2.5 Volts |
| Remote Output | Up to 200mA |
| Wireless Connection Range | up to 35Ft (conditions may vary) |
| Aux Line Input | Plug 3.5mm |
| USB Player | Up to 32GB |
| Water Resistance Rating | IPX5 |
| UV + Salt Resistance | YES |
| Conformal Coating | YES |
| LED Backlit Push Button | YES (blue) |
| Buttons Material | Rubber |
| Total Watts (Peak) | 480W |
| RMS Power (Continuous Power @ 4 ohm) | 4 x 40W |
| Efficiency @ 4ohm | 80% |
| Damping Factor | 200 |
| Total Harmonic Distortion (THD) | 0.1% |
| Low Level Input Range | 2.5V (Fixed) |
| Selectable X-Over | No |
| Amplifier Class | Digital (D) |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 4 |
| Minimum Impedance | 4 Ohm Stereo (Not Bridgeable) |
| LED Indicator | No |
| Power Input Terminal Size | 16Ga |
| Fuse Size | 20A |
| Voltage Operation | 9-15V DC |
| Thermal Protection | Yes (>75?C / 167?F) |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (<9.2V / >16V) |
| Body Color / Finish | Brushed Red Aluminum |
| Input Audio Connector | 3.5mm jack |
| Audio Output | Yes, RCA left and right |
| Waterproof Rating | IPX5 |
| Salt Fog Protection | Yes |
| Power Direct Harness Design | Yes |
| Surface Mount Component Technology | Yes |
| Marine Grade Fuse Holder | Yes |
| Overall Length | 6" / 153mm |
| Overall Width | 3.66" / 93mm |
| Overall Height | 1.96" / 50mm |
| Heatsink Length | 4.72" / 120mm |
| Gross Single Unit Weight | 1.62 lbs / 735g |
