Product Overview

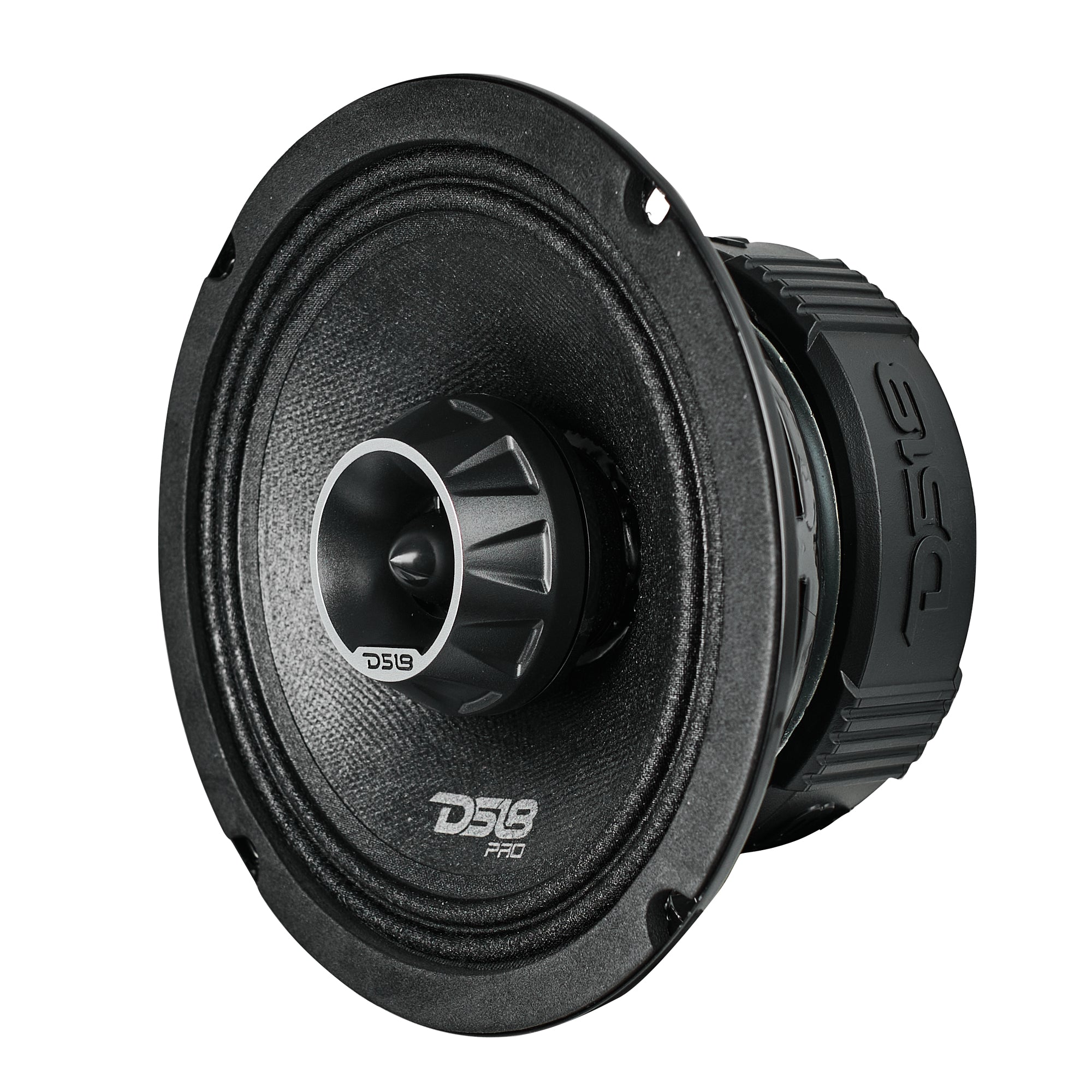

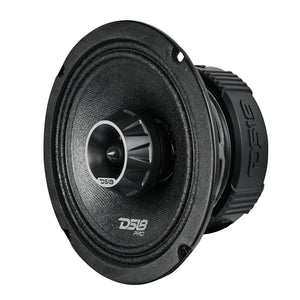

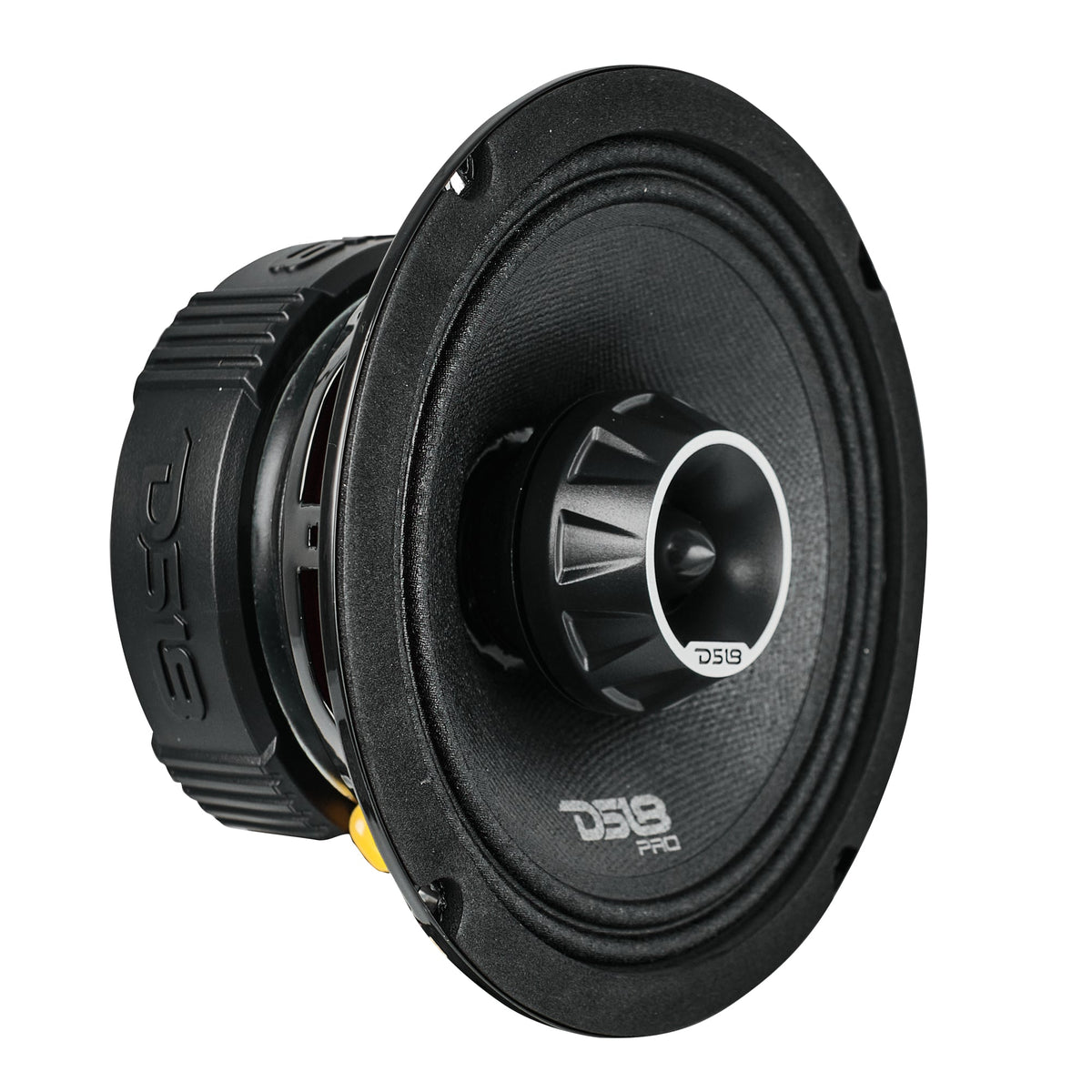

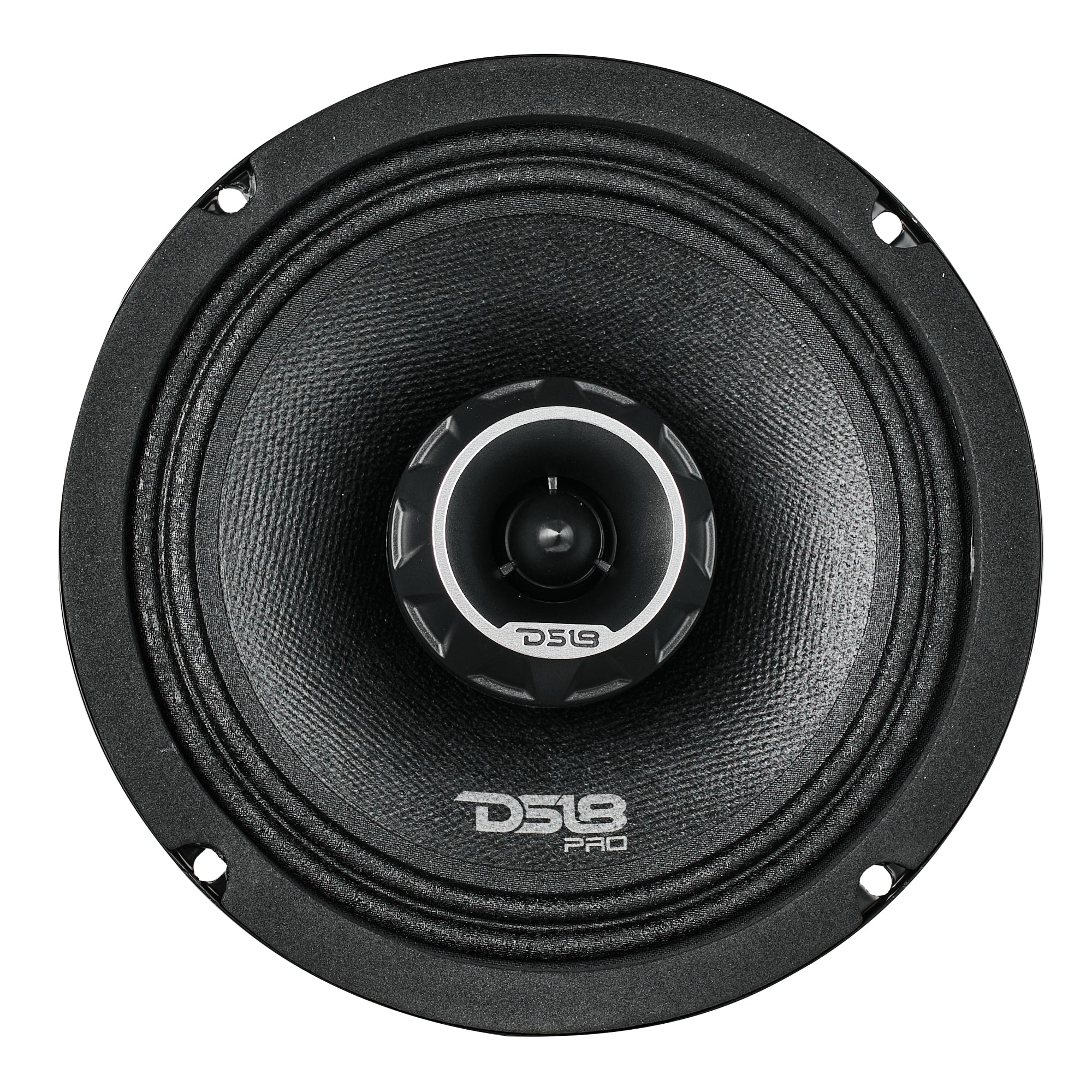

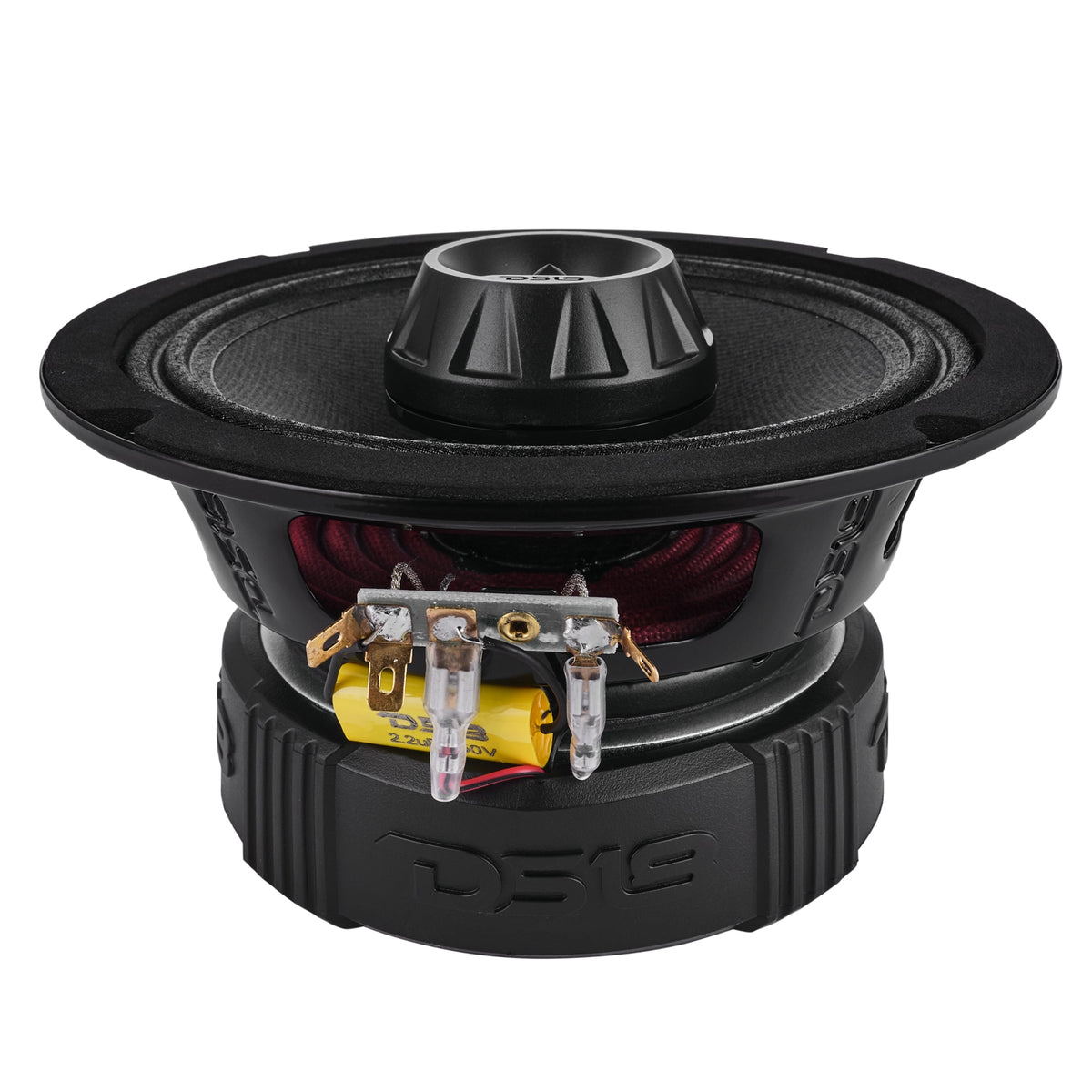

DS18 PRO-ZT6
6.5” Water Resistant Mid-Range Loudspeaker with Built-in Bullet Tweeter and Grill
Experience earth-shaking sound with the PRO-ZT6: a 2-way mid-range built for raw power, and full-range functionality. Packed into a rugged, water-resistant coaxial build.
Insane Power
Handling an RMS power of 225W and a MAX power of 450W, the PRO-ZT6 delivers breathtaking volume and precision. With a 4-Ohm impedance for easy installation and an ultra-high sensitivity rating of 96dB, you’re guaranteed powerful sound output even at lower volumes.
Wide Frequency Range
With an impressive frequency response range of 65Hz - 22KHz, the PRO-ZT6 captures every nuance across the entire audio spectrum. The integrated neodymium tweeter refines the balance between highs and lows, ensuring you hear every detail of your music.
Deep, Impactful Bass

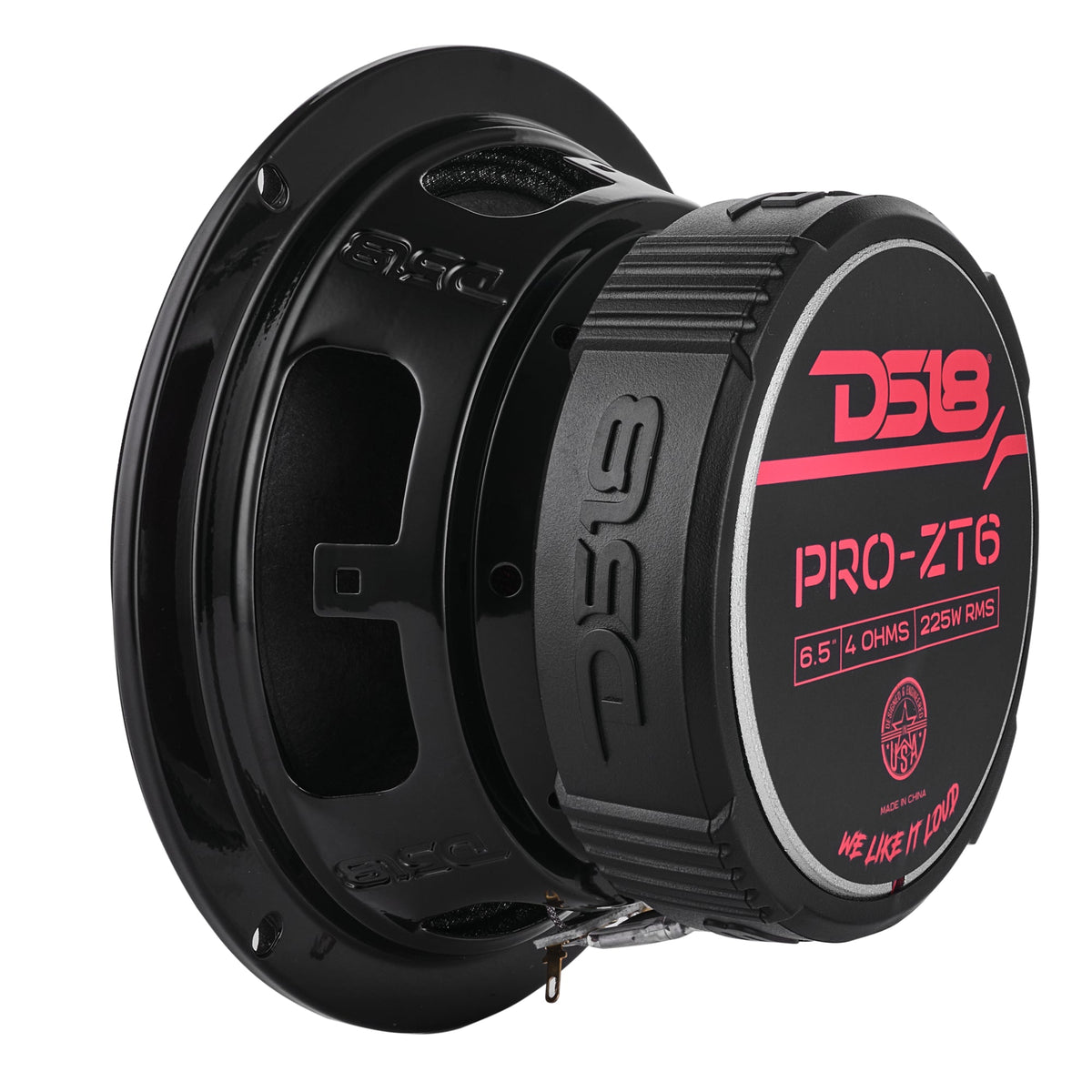

Engineered with a robust ferrite magnet, the 6.5" mid-range woofer generates a deep low-end punch, for immersive bass response. This powerful magnet structure enhances voice coil action for dynamic impact every session.

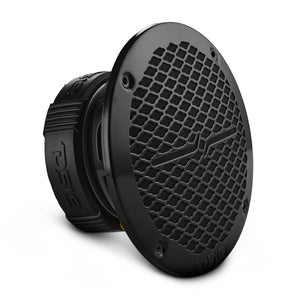

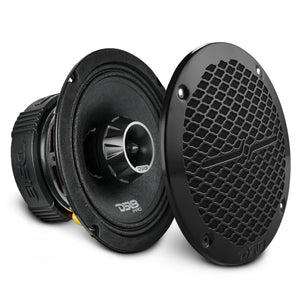

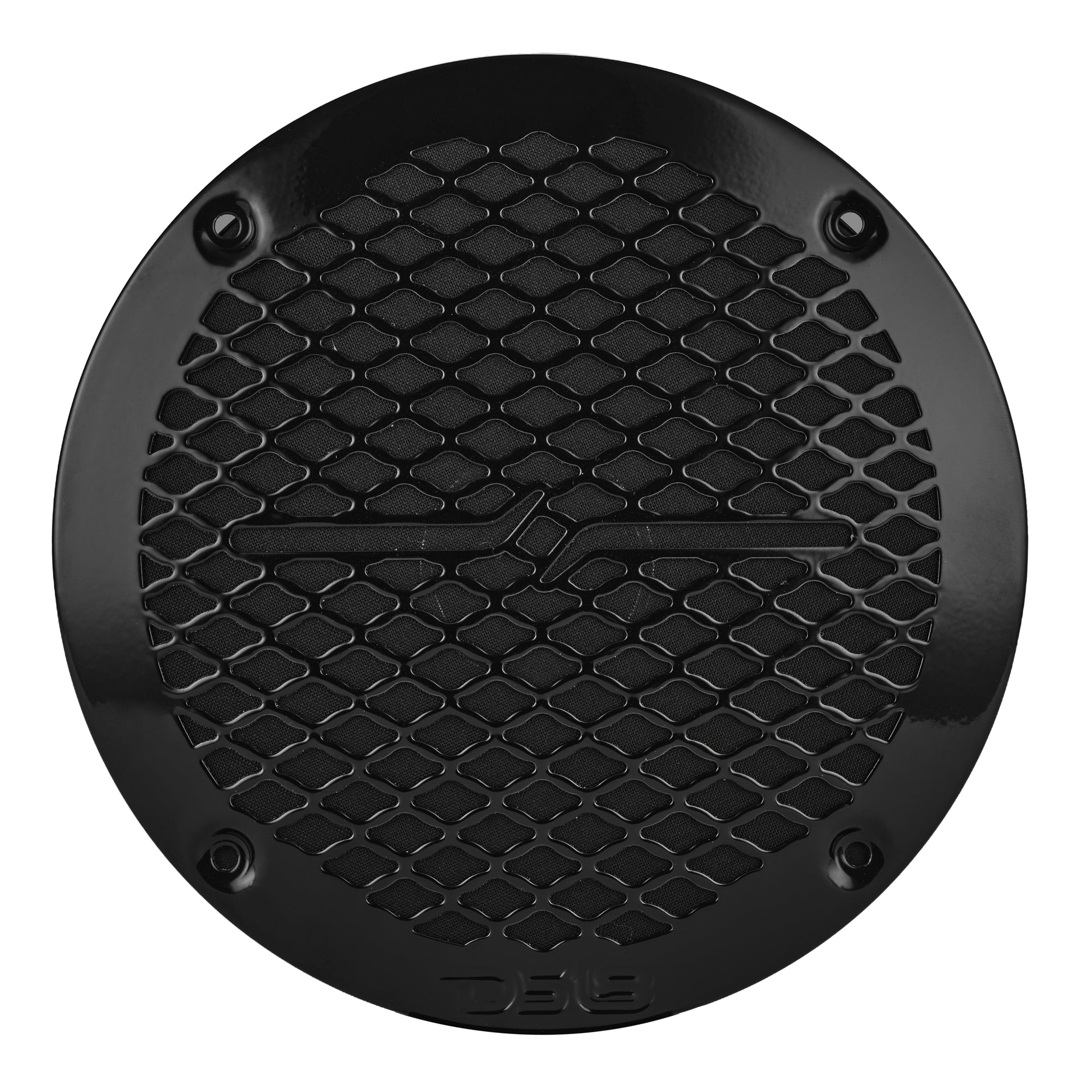

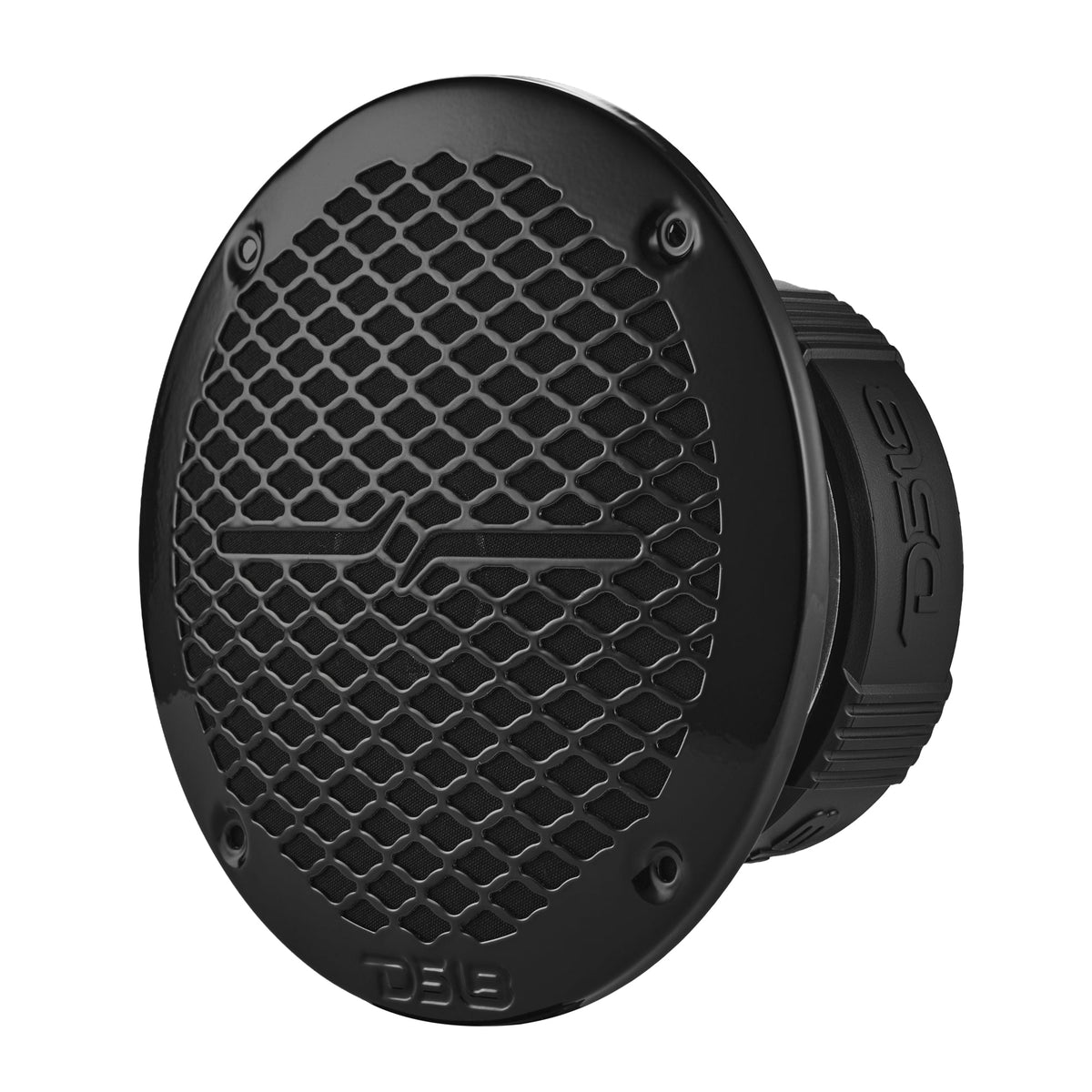

Protective Grill Included
The rugged steel mesh grille now comes with an integrated cloth shade. This added layer helps block dust, water spray, and direct sunlight from reaching the cone, protecting internal components and maintaining performance in any conditions.
Transform your system with the PRO-ZT6 and experience music the way it was meant to be heard!
Key Features
- 6.5" Coaxial Water Resistant Mid-Range
- RMS Power: 225 Watts (450 Watts Peak)
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnets
- Grill with Cloth Shade
- 97dB
Specifications
| SKU | PRO-ZT6 |
|---|---|
| Nominal Diameter | 6.5" (165.1 mm) |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 225 Watts |
| Maximum Power Handing | 450 Watts |
| Sensitivity (1w/1m) | 97dB |
| Frequency Response | 85Hz-20kHz |
| Recommended Hi Pass Crossover | 100 Hz |
| Sold as | Single Unit |
| Voice Coil Diameter | 1.5” (38.1 mm) / 1” |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | 27 oz |
| Magnet Material | Ferrite / Neodymium (N35H) |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Voice Coil Material | KAPTON |
| Diaphragm Material | Aluminum Alloy |

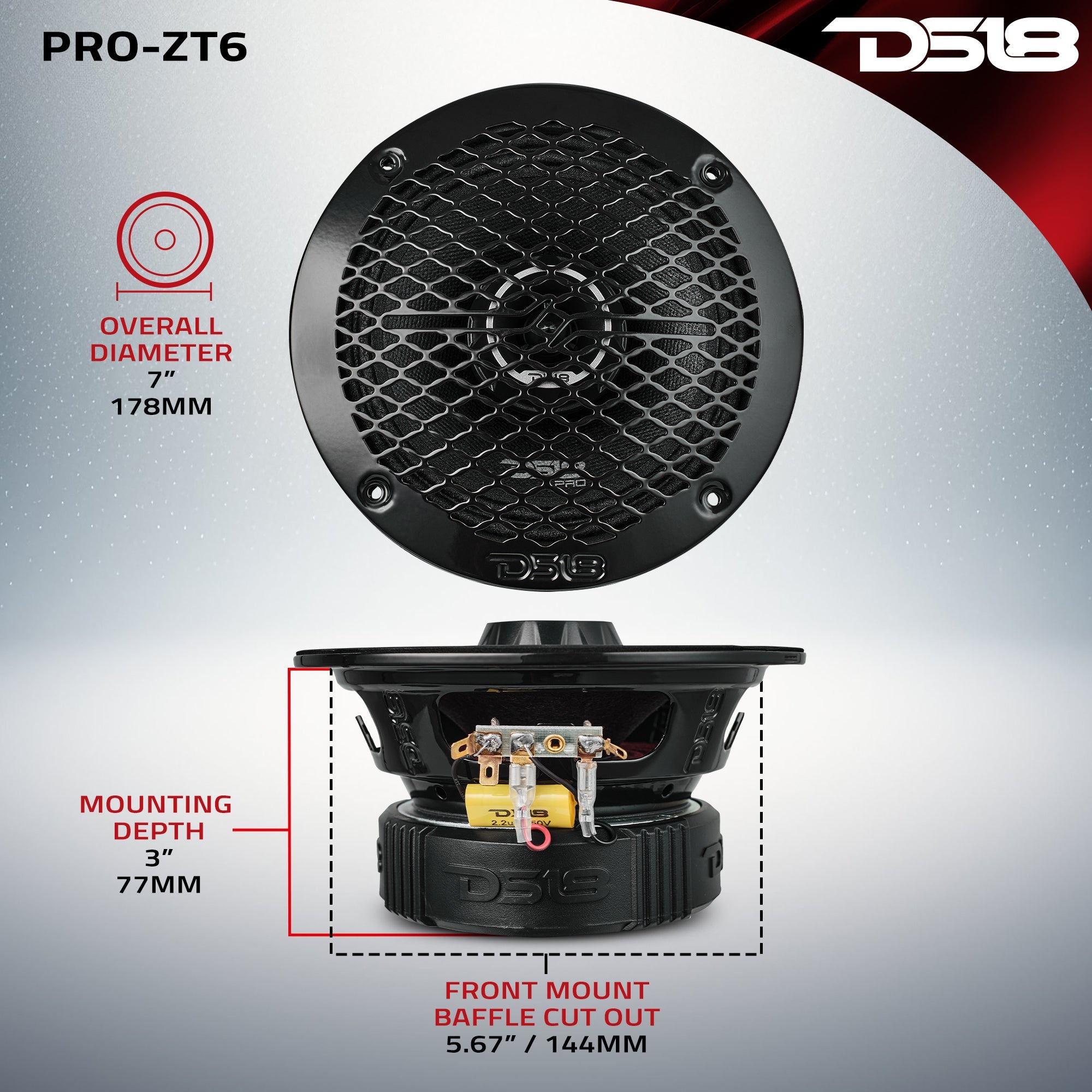

| Overall Diameter | 178 mm (7”) |
| Front Mount Baffle Cutout | 144 mm (5.67”) |
| Mounting Depth | 77 mm (3.03”) |
| Overall Depth | 97mm (3.81”) |
| Vas | 4.72L / 0.16ft3 |
| Xmax | 1.65mm |
| Fs | 120Hz |
| Qms | 5.259 |
| Qes | 0.614 |
| Qts | 0.55 |
| Re | 3.2 Ohms |
