NA4-400.1 Nautic 400 Watt Waterproof Monoblock Amplifier
Description
MB Quart NA4-400.1 Nautic Compact 400 Watt Waterproof Mono Powersports Subwoofer Amplifier.
Features
- Type: Amplifier
- Series: Nautic
- IPX Rating: IP67
- Marine Grade Protection / IPX Rating: Meets or exceeds IP67 standards for waterproof and dustproof. Potted Internals: The potting material seals the components, insulating them and ensuring better durability, especially in harsh environments where exposure to moisture or water might otherwise cause short circuits, corrosion, or other performance issues.
The Kaos Run Down
| Manufacturer | MB Quart |
|---|---|
| Manufacturer SKU | NA4-400.1 |
| Application | Marine & Powersports |
| Weight | 3.4 lbs |
| Dimensions | 9.5 × 6.75 × 3.25 in |
| Item Weight (lbs) | 2.2 |
| Item Length (in) | 6.8 |
| Item Width (in) | 3.94 |
| Item Height (in) | 1.77 |
| Type | Amplifier |
| Brand | MB Quart |
| Series | Nautic |
| Category | Marine, Powersports |
| Condition | New |
| Color | Black |
| Model Replaced | NA2-400.1 |
| Warranty | 1 Year |
| IPX Rating | IP67 |
| Compatible Vehicles | Universal |
| Amp Class | Full Range Class D |
| Amp Total Channels | Mono |
| Amp Max Power (watts) | 400 |
| Amp Power @ 2 Ohms (ch x watts) | 1 x 400 |
| Amp Power @ 4 Ohms (ch x watts) | 1 x 200 |
| Amp Crossover | Electronic |

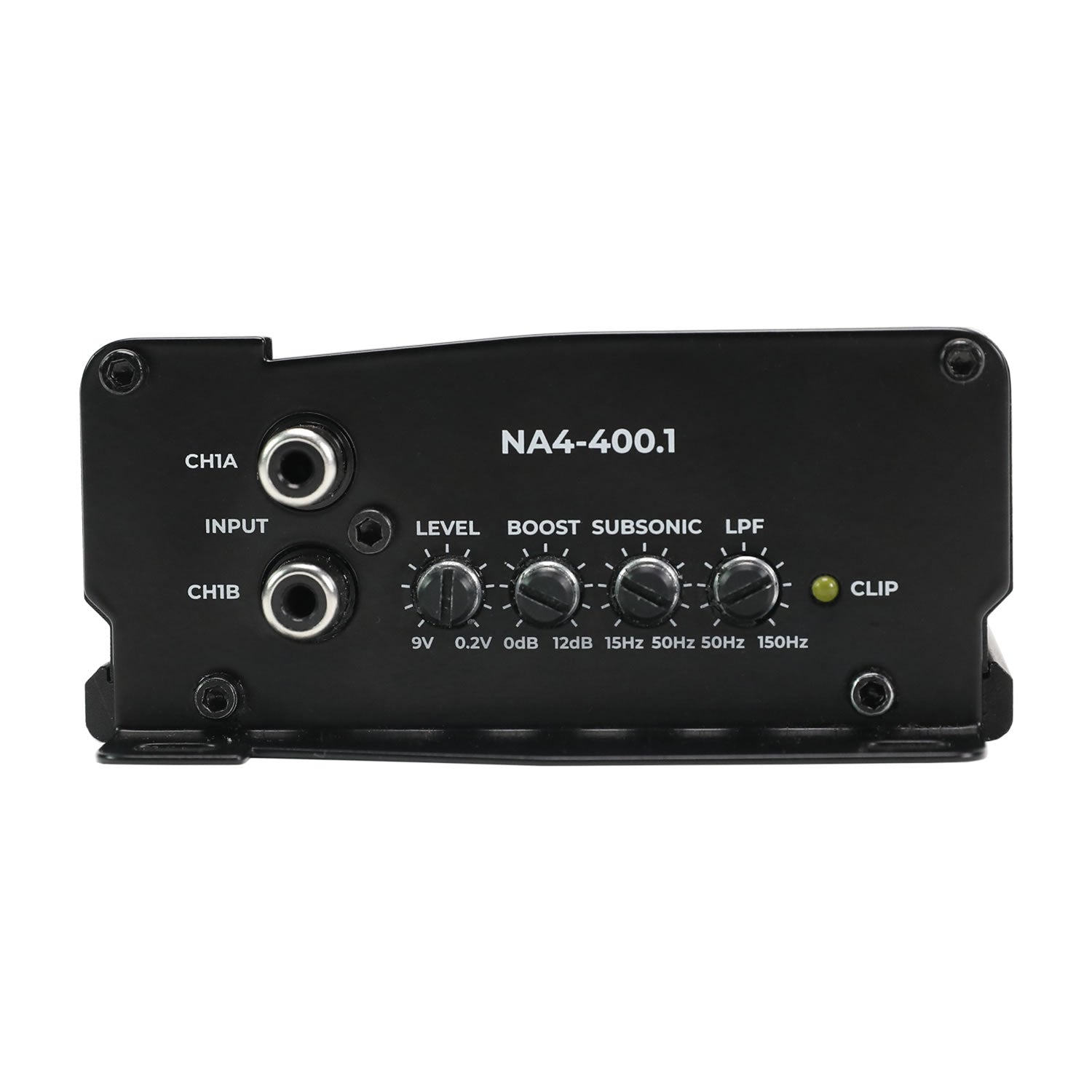

| Amp Variable Low Pass Crossover 12dB per Octave | 50Hz-150Hz |
| Amp Bass Boost | 0-12dB |
| Amp Subsonic Filter | 15Hz-50Hz |
| Amp Variable Voltage | 0.2-9V |
| Amp Signal to Noise | > 100dB |
| Amp Frequency Response | 17Hz-165Hz |
| Amp Total Harmonic Distortion (THD) | 1.0% |
| Amp Speaker Level Audio Inputs | RCA |
| Amp Power Terminal 12v/GND | 12 AWG Quick Connector |
| Amp Speaker Terminal Wire Gauge | Molex Plug Connector |
| Amp Fusing | 30A x 1 |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compatible Vehicle Fitment | Universal |
| Marine Grade Protection / IPX Rating | Meets or exceeds IP67 standards for waterproof and dustproof. Potted Internals: The potting material seals the components, insulating them and ensuring better durability, especially in harsh environments where exposure to moisture or water might otherwise cause short circuits, corrosion, or other performance issues. |
| Low Noise Preamplifier Circuit | The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality. |
| RCA Inputs | 1 pair high temperature impact resistant nickel-plated RCA inputs that allow for secure connections and are corrosion resistant. |
| Operation Mode | Mono operation |
| Crossover Type | Dial LPF: Complete control of amplifier signal, essential when using two or more amplifiers. |
| Class / Topology | Full Range Class D: Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink. |
| Output Device Technology | PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation. |
| Heat Sink | Aluminum: Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration. |
| Power Supply | Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices. |

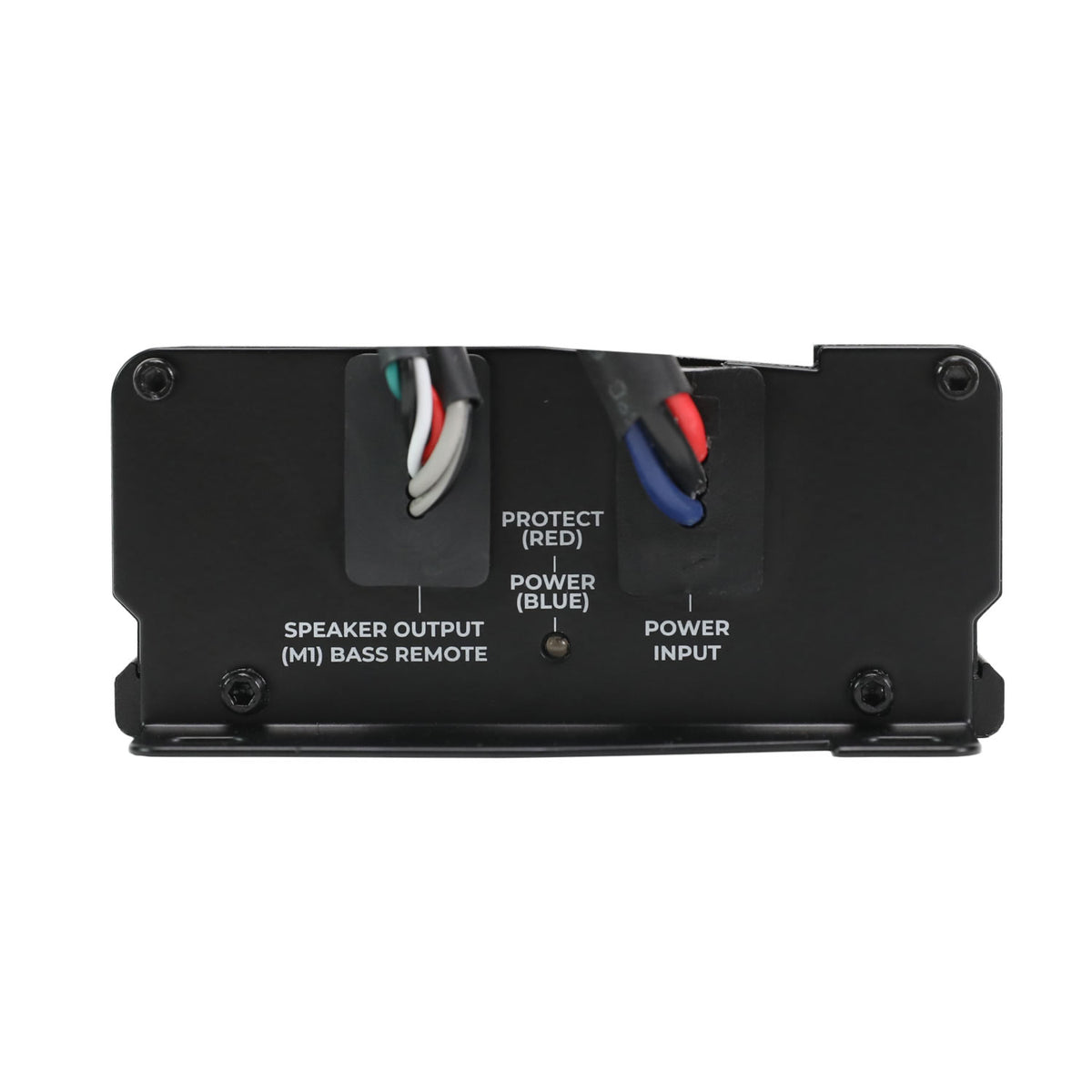

| Output Connections | Quick Connection Power Wires and RCA Connections. |
| Connection Type | Nickel-plated connections: Nickel plated corrosion resistant connections. |

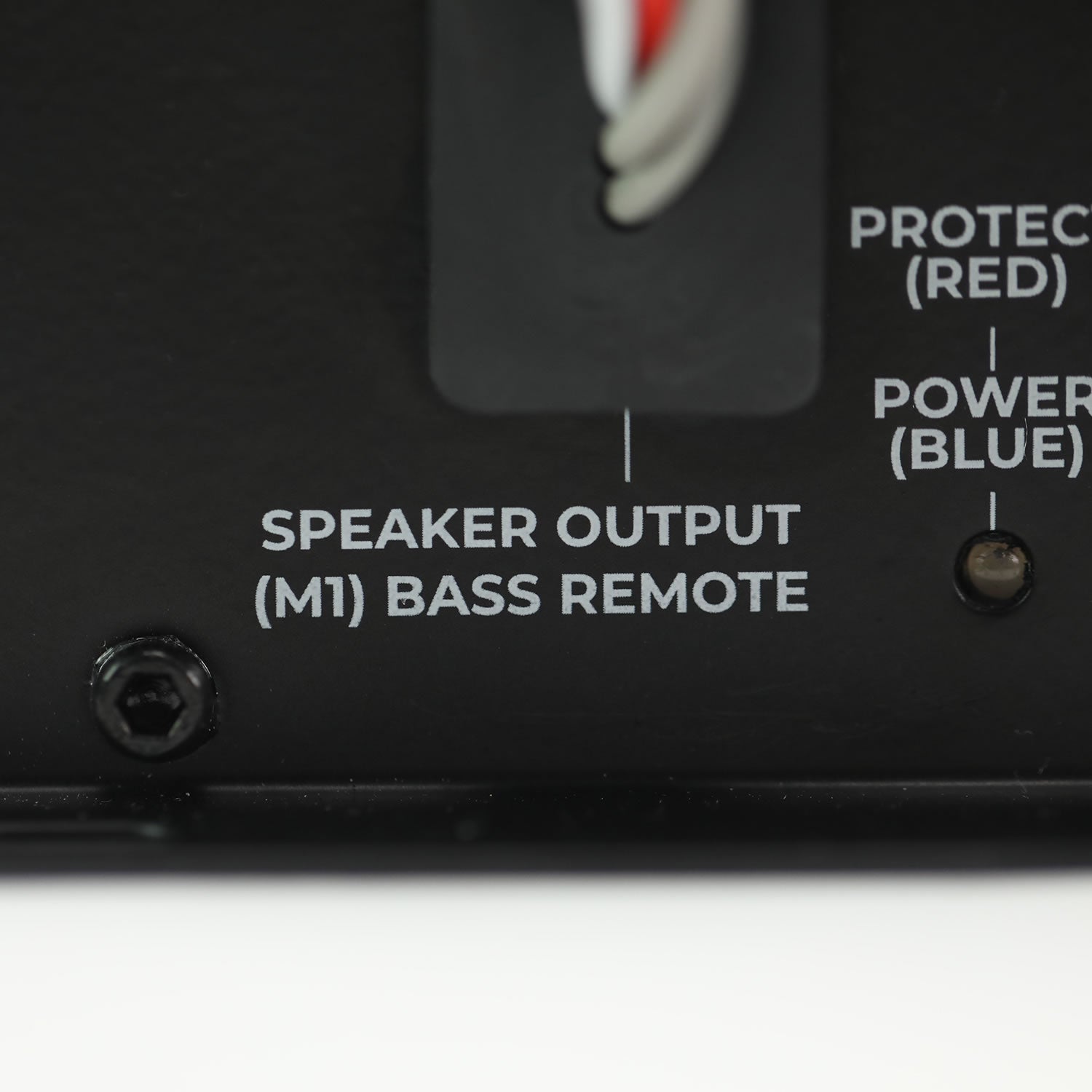

| LED System Protection Circuitry Diagnostics | Protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel. |

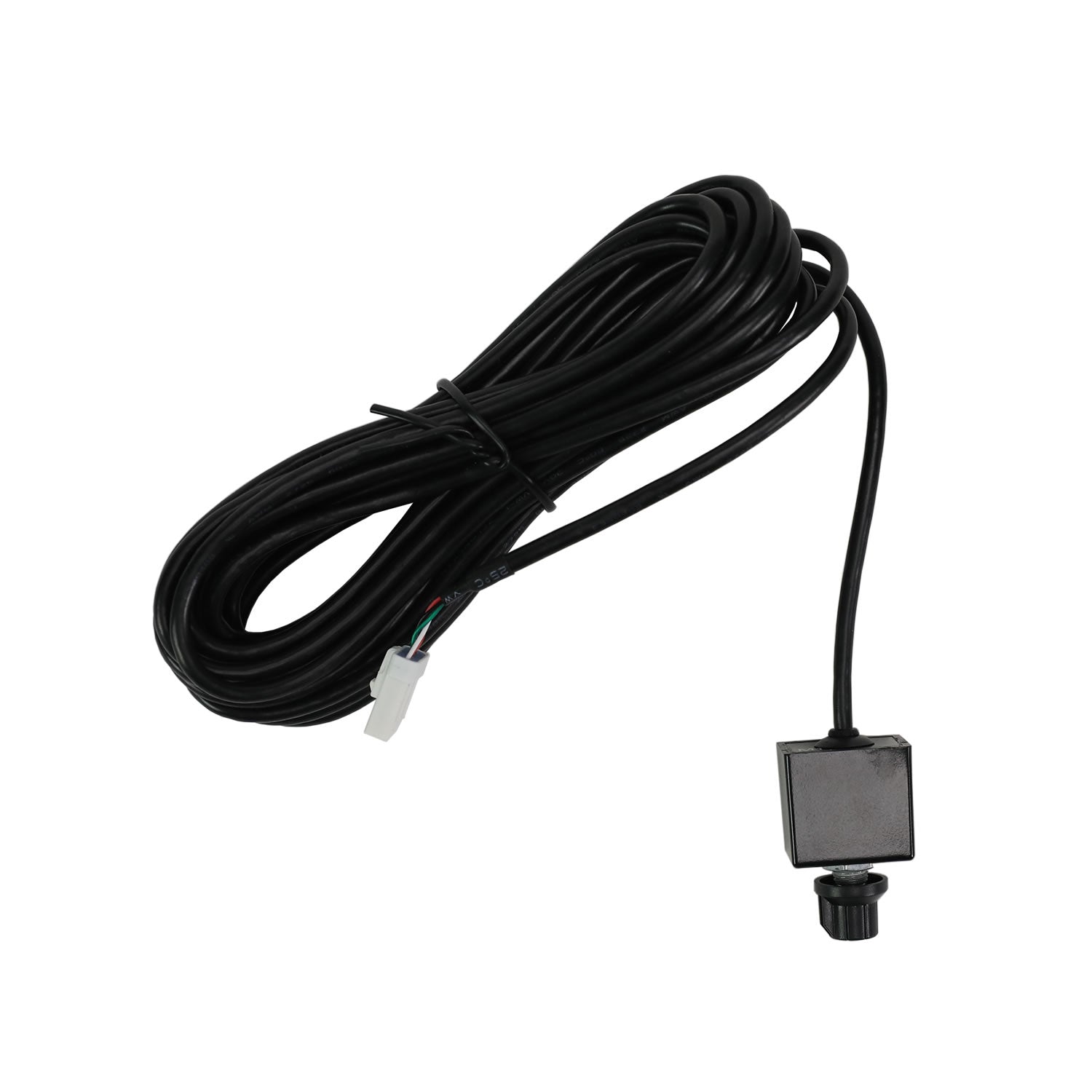

| Bass Remote Included | Included: Wired Bass Remote allows adjustments to gain level to be made from the control mounted anywhere in the vehicle. |
| View/Download (951.9 KB) | MB Quart Nautic Amplifiers (NA4) Quick Start Guide (Rev5) |
