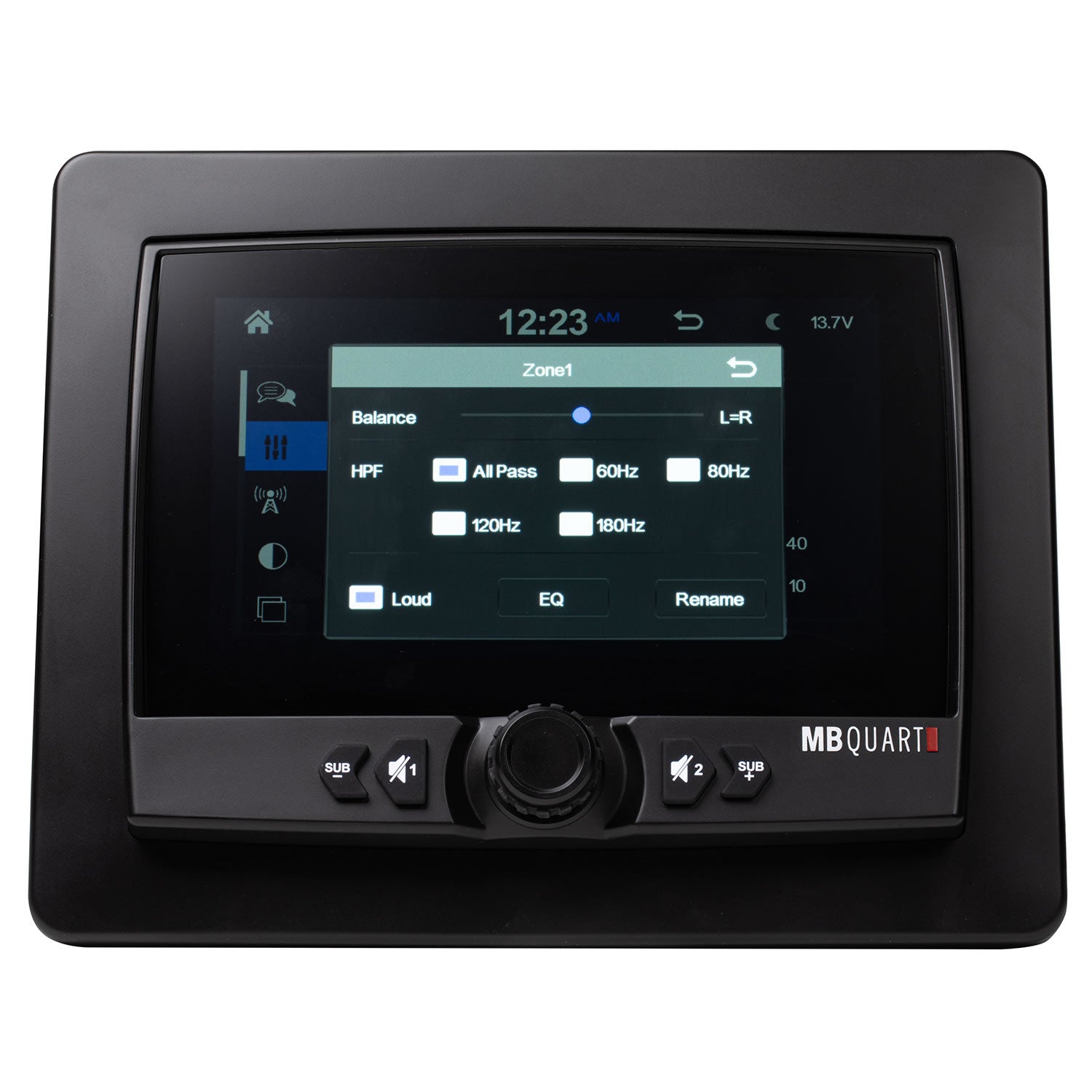

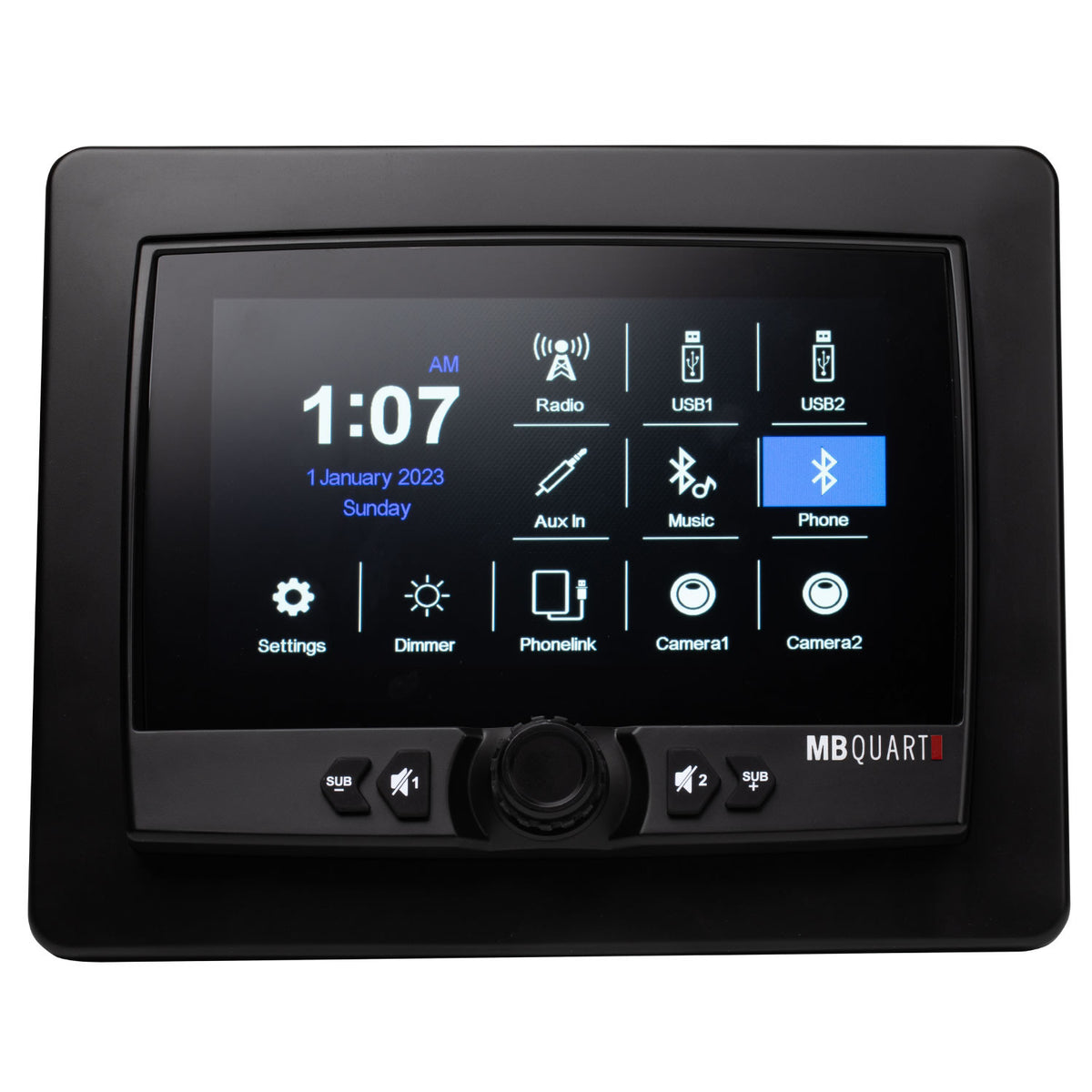

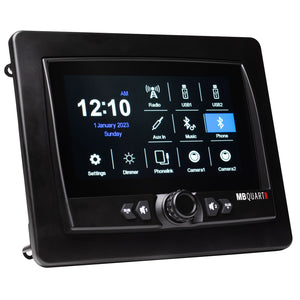

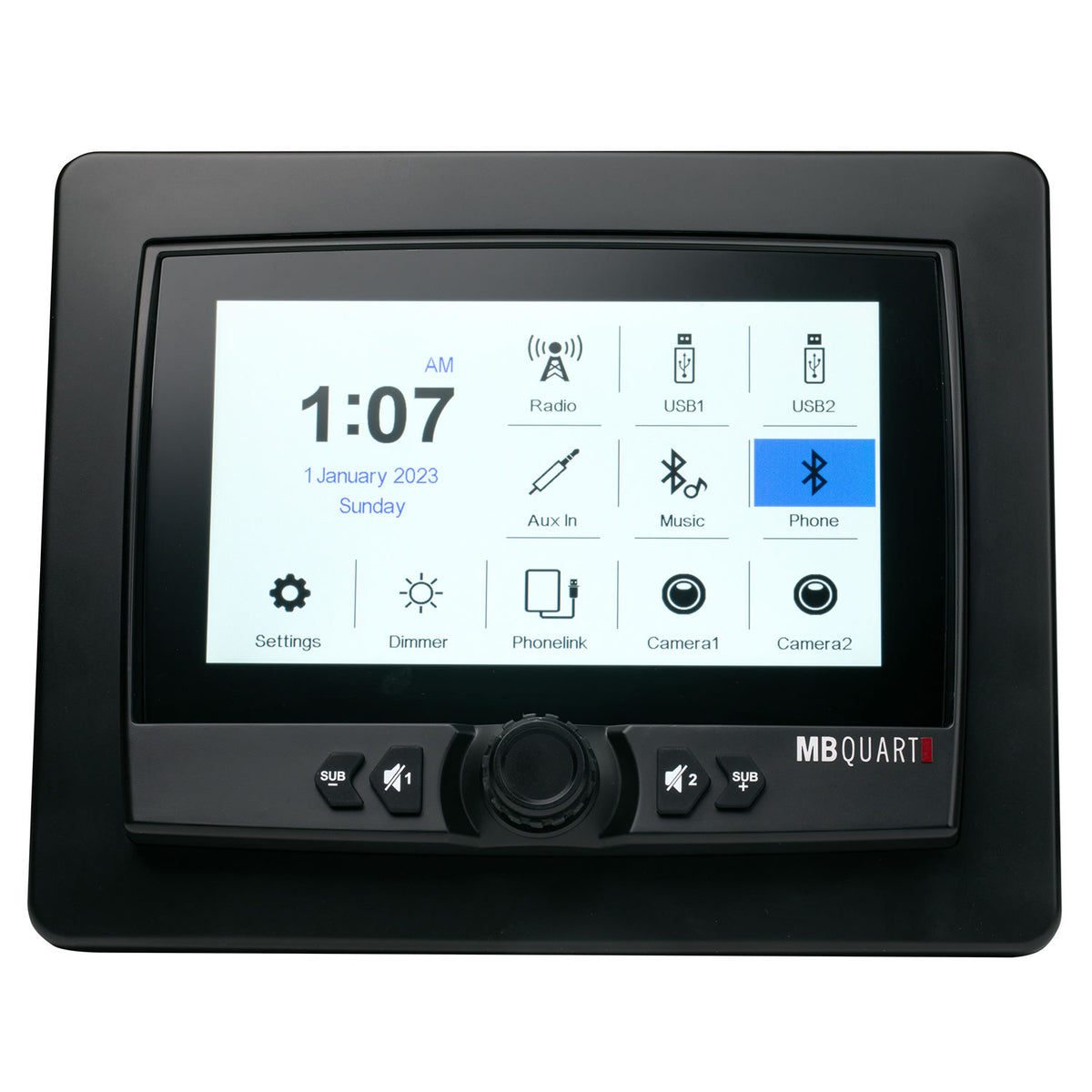

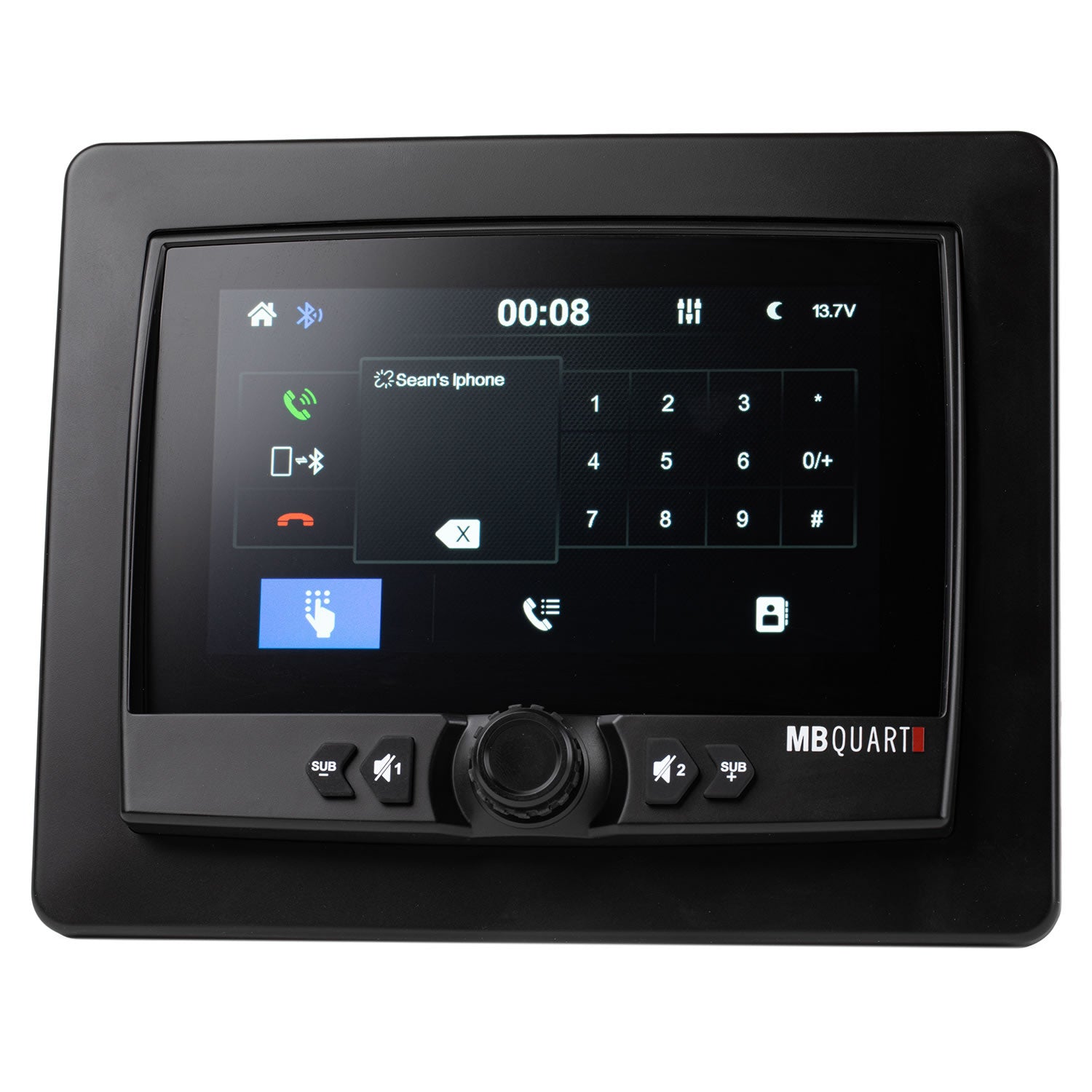

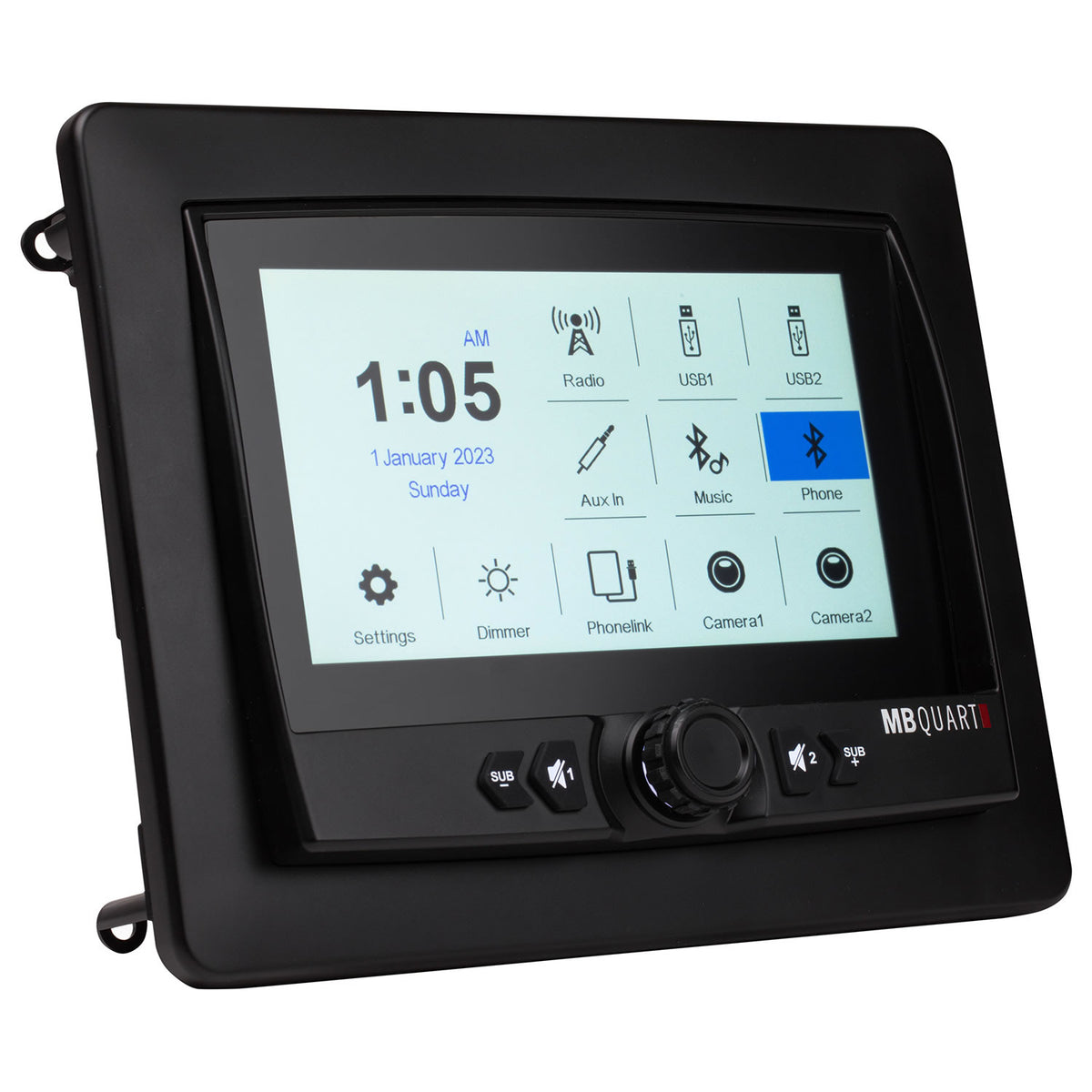

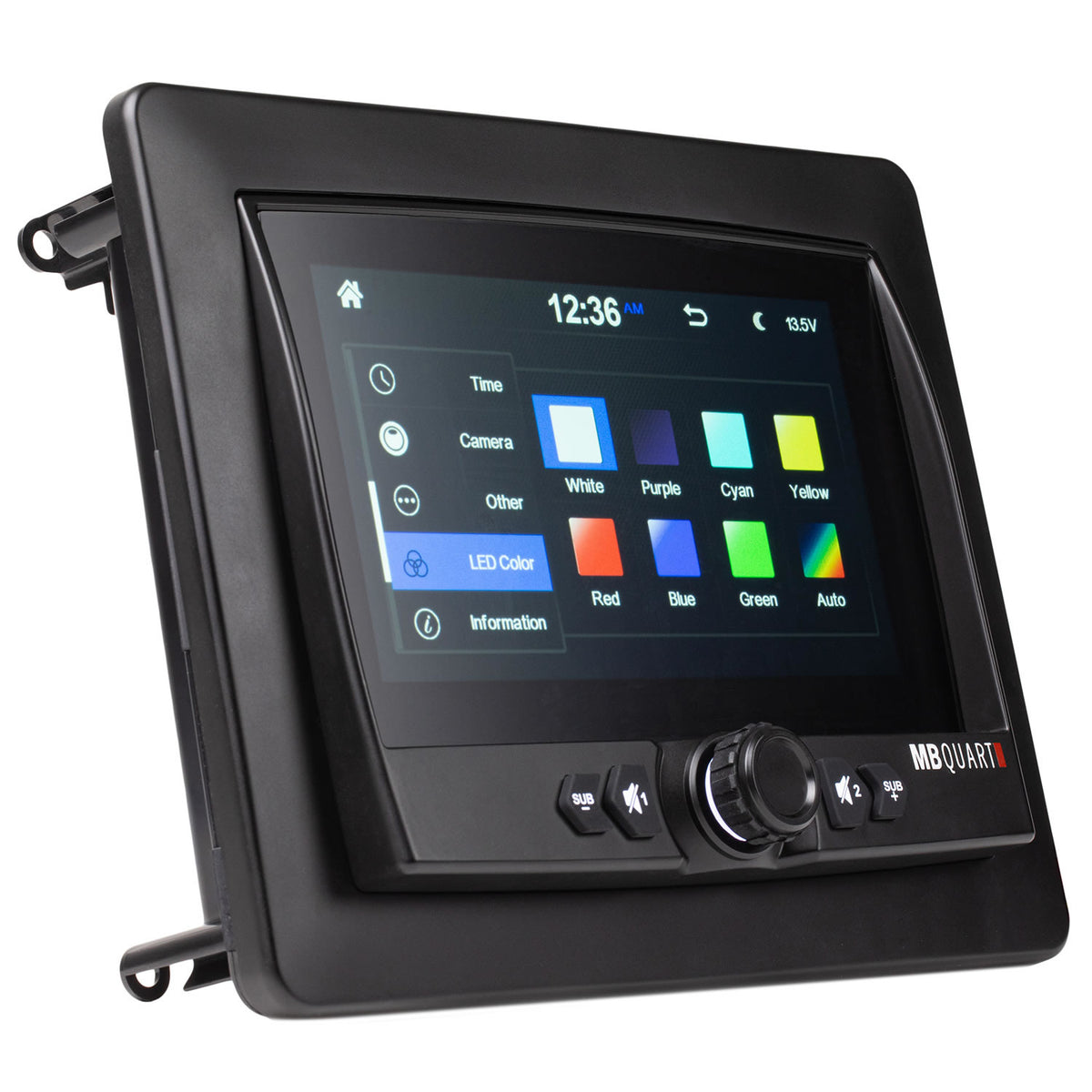

GMR-7V1 7 Inch Waterproof Touchscreen Wired CarPlay Source Unit
GMR-7V1 7 Inch Waterproof Touchscreen Wired CarPlay Source Unit
GMR-7V1 7 Inch Waterproof Touchscreen Wired CarPlay Source Unit
Description
MB Quart GMR-7V1 7-Inch Waterproof Touchscreen Wireless Apple CarPlay and Wireless Android Auto Source Unit.
Features
- Type: Source Unit
- Series: GMR
- IPX Rating: IPX67

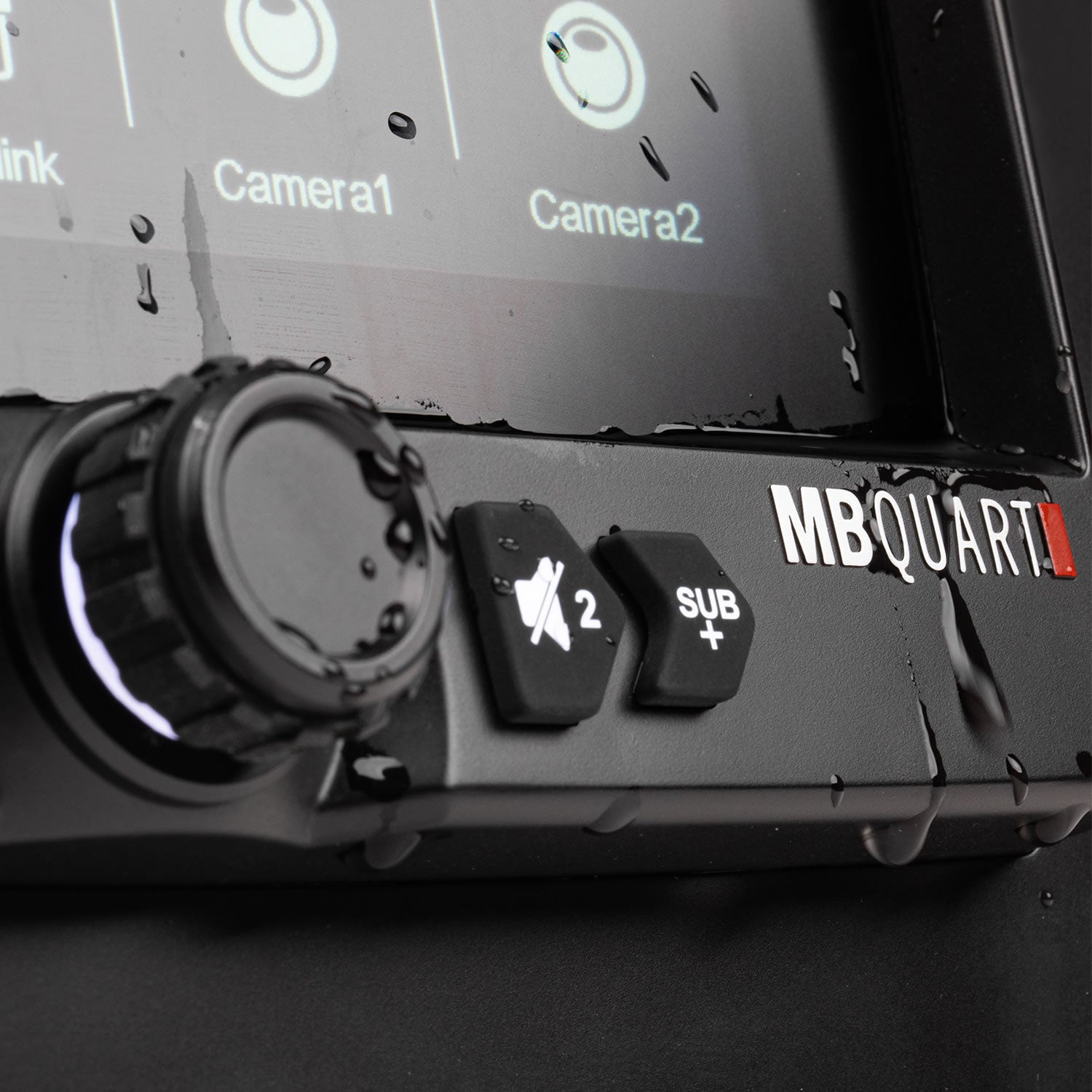

- Marine Grade Protection / IPX Rating: Meets or exceeds IP67 requirments for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors.
The Kaos Run Down
| Manufacturer | MB Quart |
|---|---|
| Manufacturer SKU | GMR-7V1 |
| Application | Marine & Powersports |
| Weight | 4.5 lbs |
| Dimensions | 10.75 × 9.5 × 5.0 in |
| Type | Source Unit |
| Brand | MB Quart |
| Series | GMR |
| Category | Marine, Powersports, RV |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| IPX Rating | IPX67 |
| Compatible Vehicles | Universal |
| Source Unit Tuner Section FM Stereo Frequency Range | 87.5MHz-107.9MHz |
| Source Unit Bluetooth Range (ft) | 32 |
| Source Unit Frequency Response (Aux In) | 20Hz-20kHz |
| Source Unit Pre-amp Outputs (Y/N #) | 3 Pair Front/Rear/Subwoofer, Yes |
| Source Unit Pre-amp Voltage | 4.0V |
| Source Unit Minimum Impedance (ohms) | 150 |
| Source Unit Display Type | 7-Inch Full Color LED Touchscreen Panel |
| Source Unit Dimensions Mounting Hole (in) | 6.5 x 8.25 |

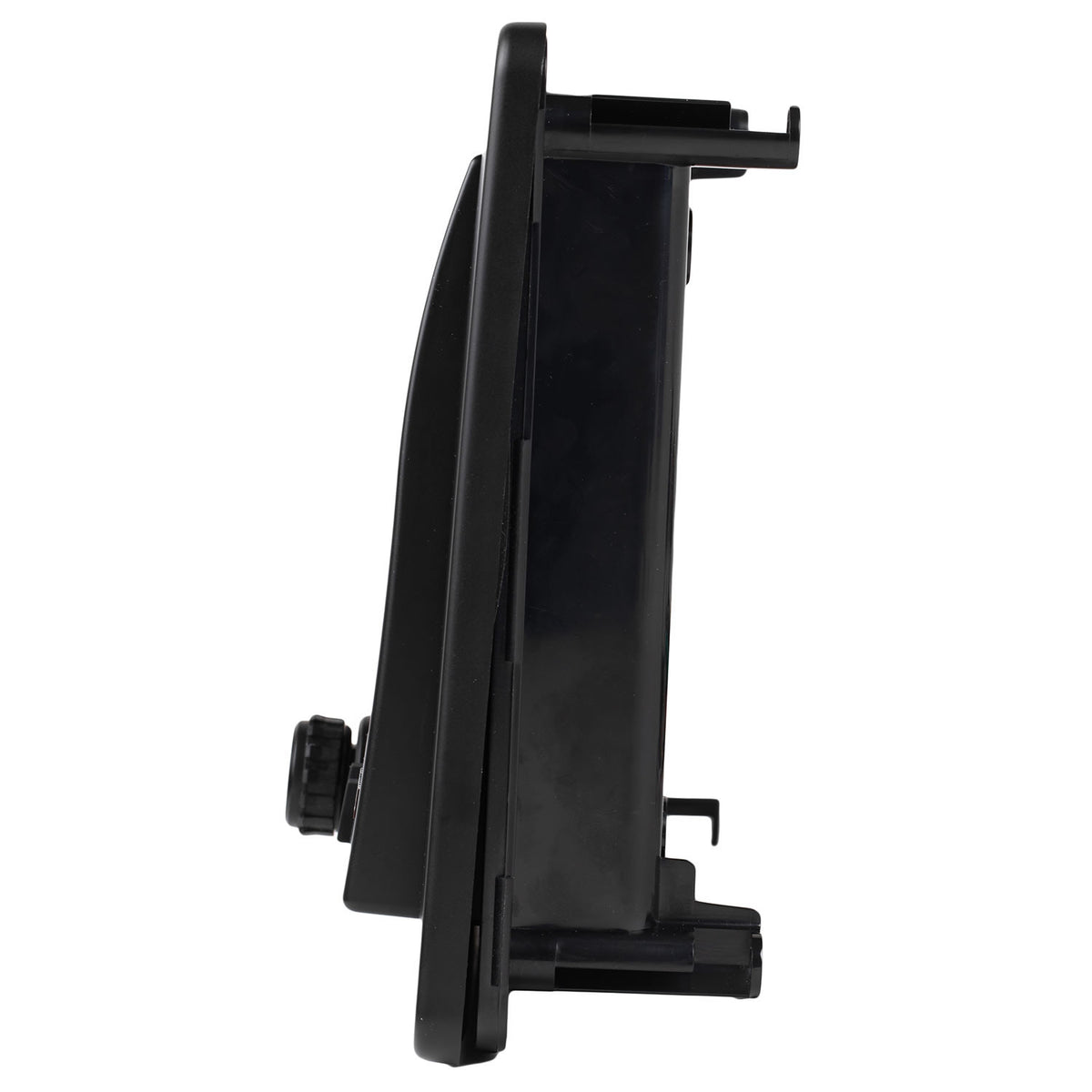

| Source Unit Dimensions Total Mounting Depth (in) | 2.5 |

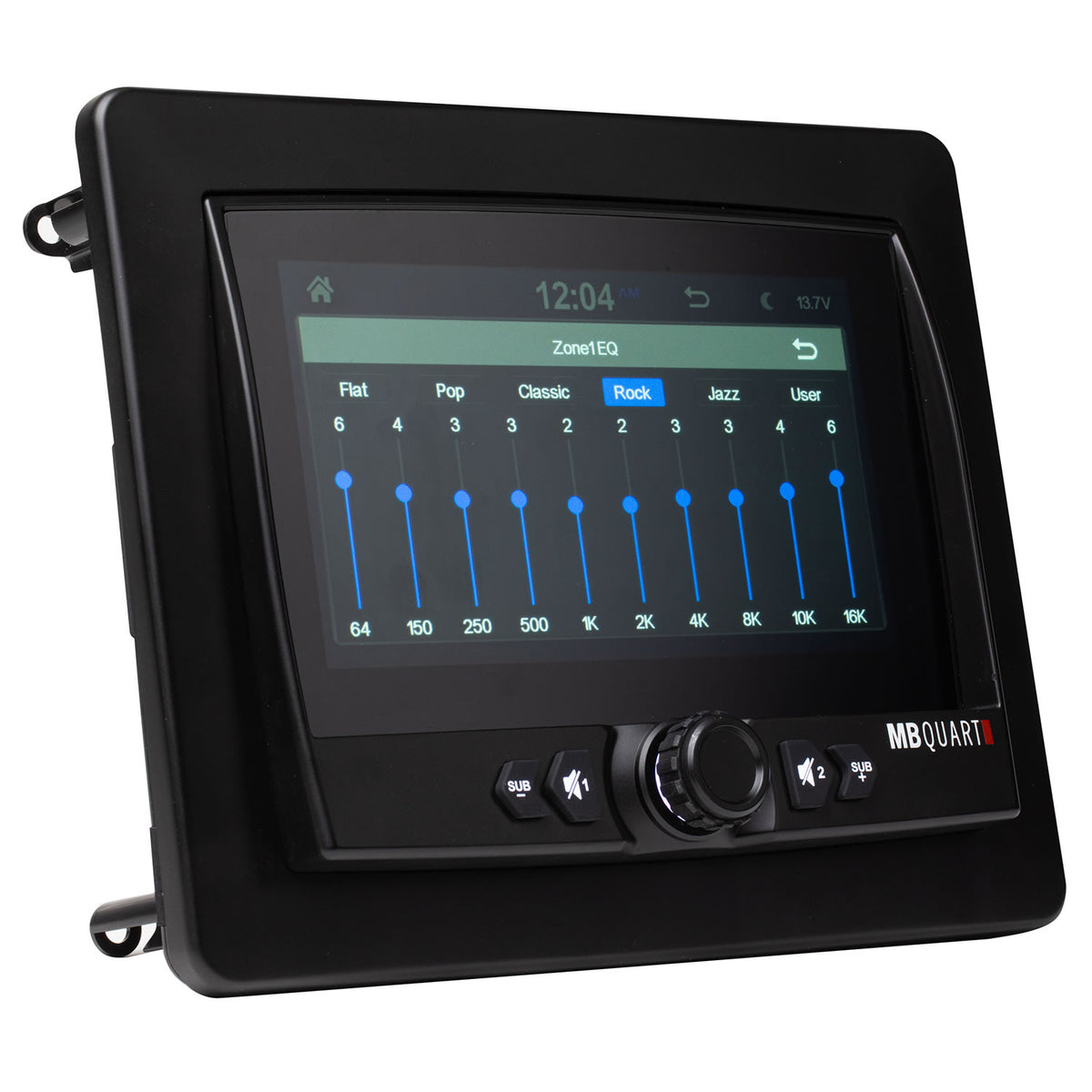

| Additional Details | Preamp Output Voltage: 4 volts; Dual Zone Capability between Preamp Outputs and Built-in Power; Independent Subwoofer Level Control with Selectable Low Pass Filter; 10-Band Graphic EQ (64, 150, 250, 500, 1K, 2K, 4K, 6K, 10K, and 16K) |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compatible Vehicle Fitment | Universal |
| Marine Grade Protection / IPX Rating | Meets or exceeds IP67 requirments for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors. |

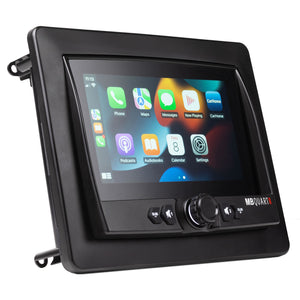

| Apple® Control | Wired Apple® CarPlay® |
| Source Type | AM/FM/WB/Bluetooth® allows all access to radio stations and content from Bluetooth enabled devices. |
| Input Types | Bluetooth, RCA, USB: Nearly nothing the device cannot play. |
| Control Buttons | Unit has a master knob, zone mute buttons, sub level buttons, and a full touchscreen 7-inch display. |
| Bluetooth® Connect | Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the source unit without a complicated pairing process. |
| Secure Simple Pairing™ | Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. |
| Quick-Pair™ | No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "GMR7V1" from your Bluetooth menu and you are connected, QUICKLY. |
| Control Method | Unit is adjusted by a master knob, 4 control buttons, and a 7 inch touchscreen panel. |
| AM/FM Tuner Presets | AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations each. |
| Frequency Range | USA Frequency: FM87.5 – 107.9MHz / AM530 – 1710kHz |
| RDS Information | Yes |
| Weather Band | Includes built-in weather band radio. NOAA NWR Weather Band Frequency: Preset (162.400MHz, 162.425MHz, 162.450MHz, 162.475MHz, 162.500MHz, 162.525MHz, 162.550MHz). |

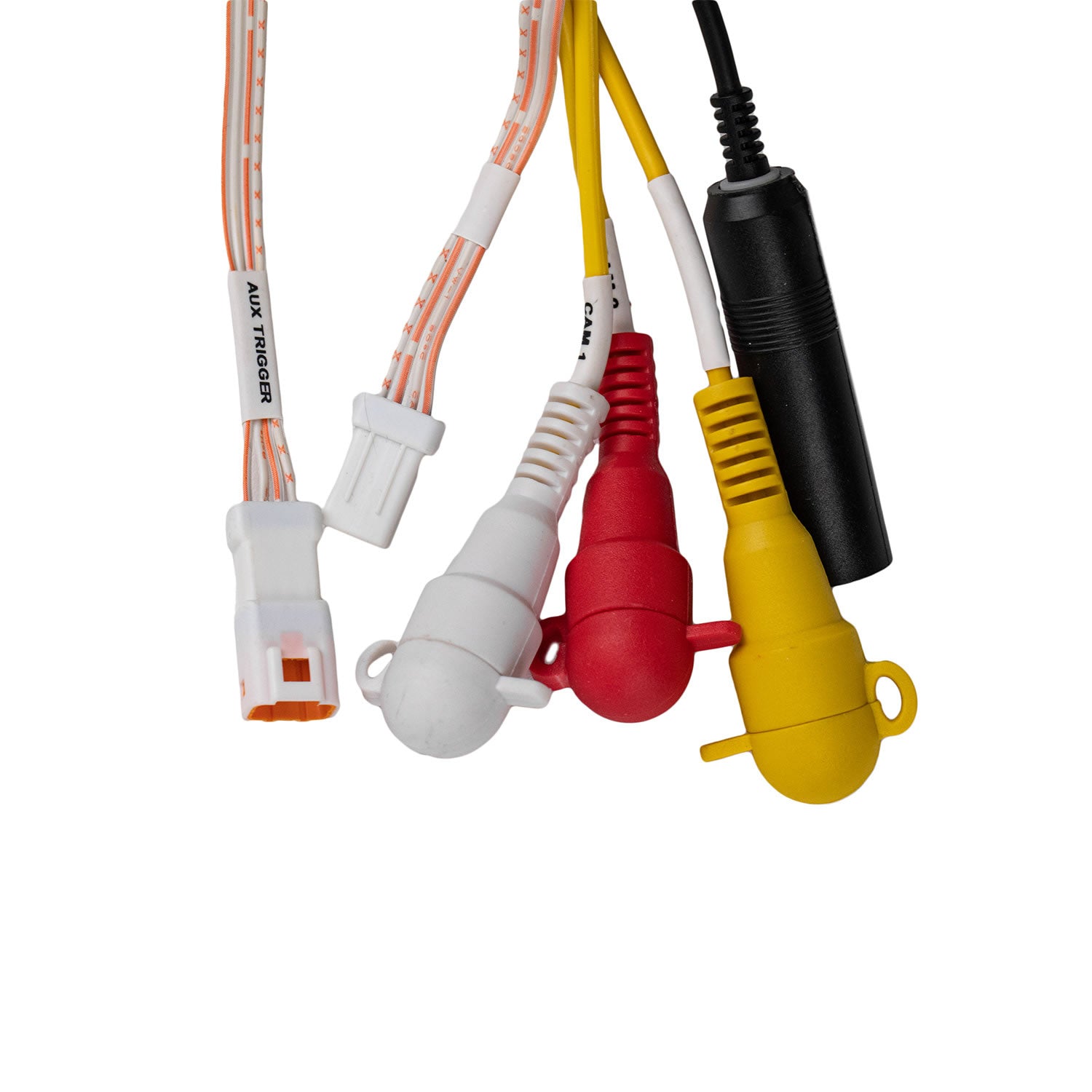

| Video Input | Two video camera inputs via a RCA style connector (No Audio). One video output via a RCA style connector (No Audio). |
| Video Input Trigger | Two ground wire triggers, one for each video input. |

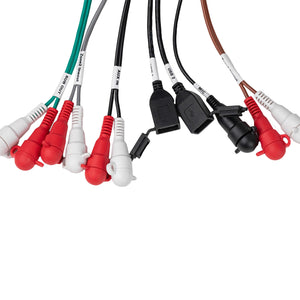

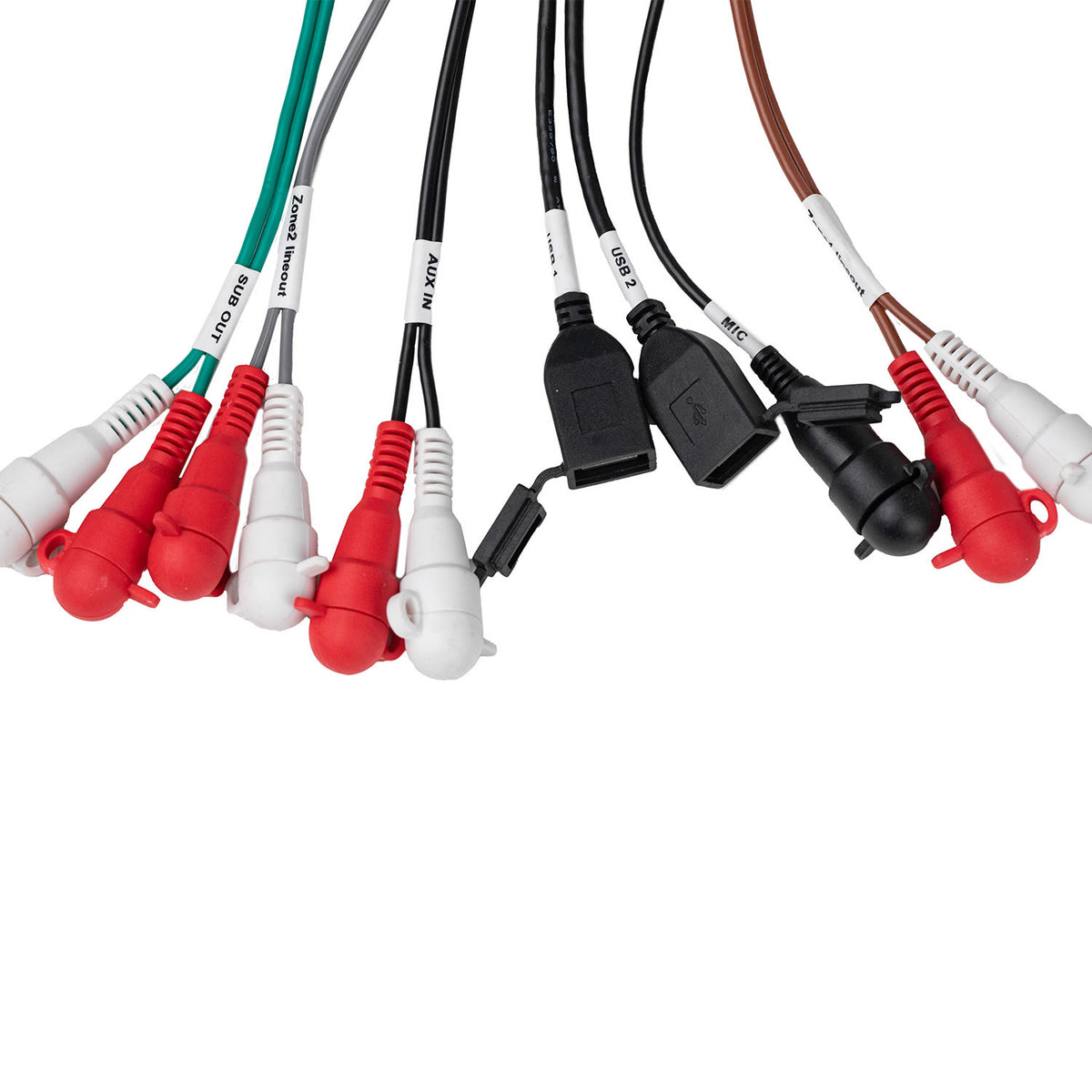

| Additional Inputs | 1 Pair (Aux), 1 Composite Video (Camera), 1 Microphone Input |
| USB / Apple® / Charging Port | Two USB ports - USB 1(Gray) For Music. USB 2(Black) for iPhone. |
| Bluetooth® Version | Version 5.0 |
| Album Art | Yes |

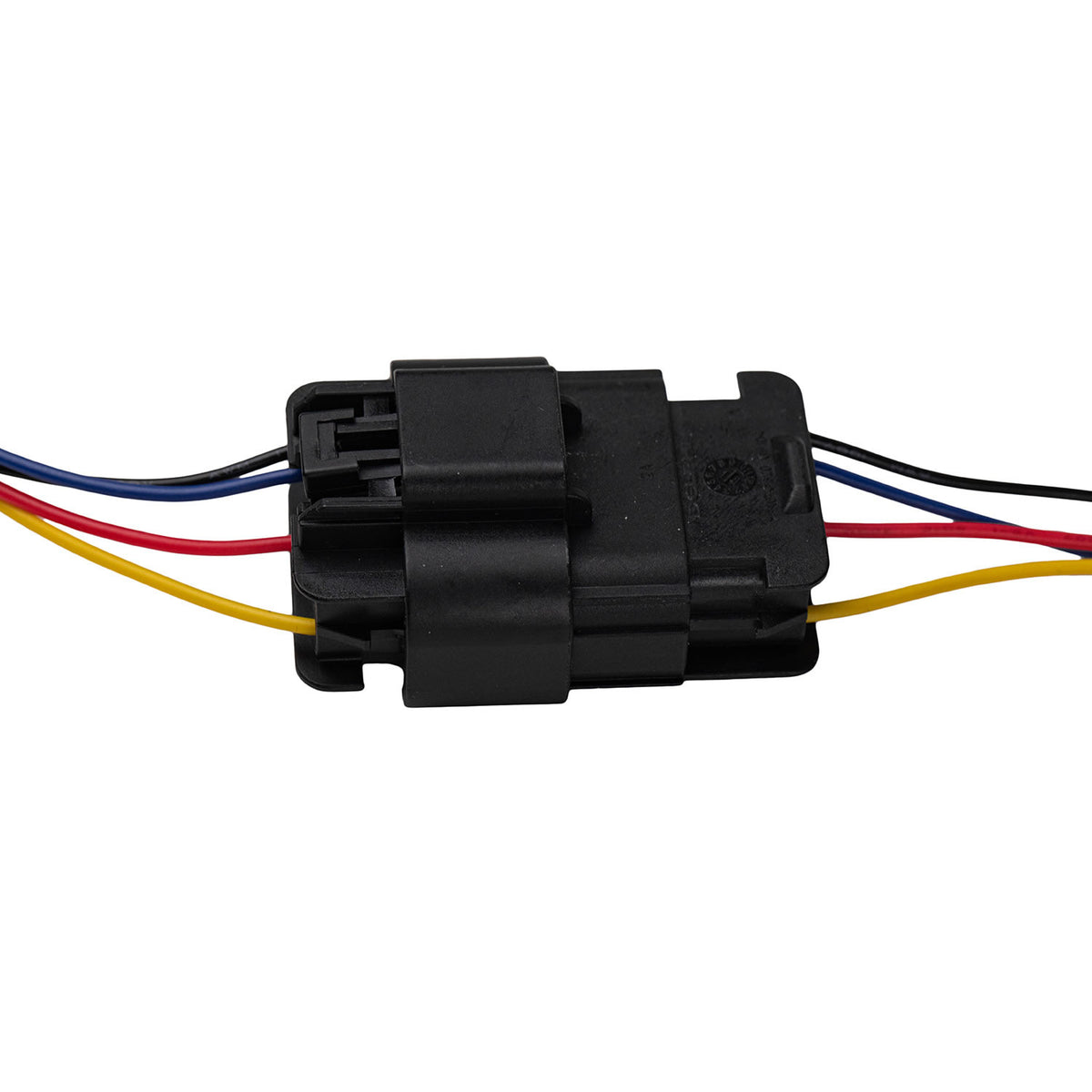

| Main Connector Type | MOLEX connector for simple installation and removal of unit when needed. |

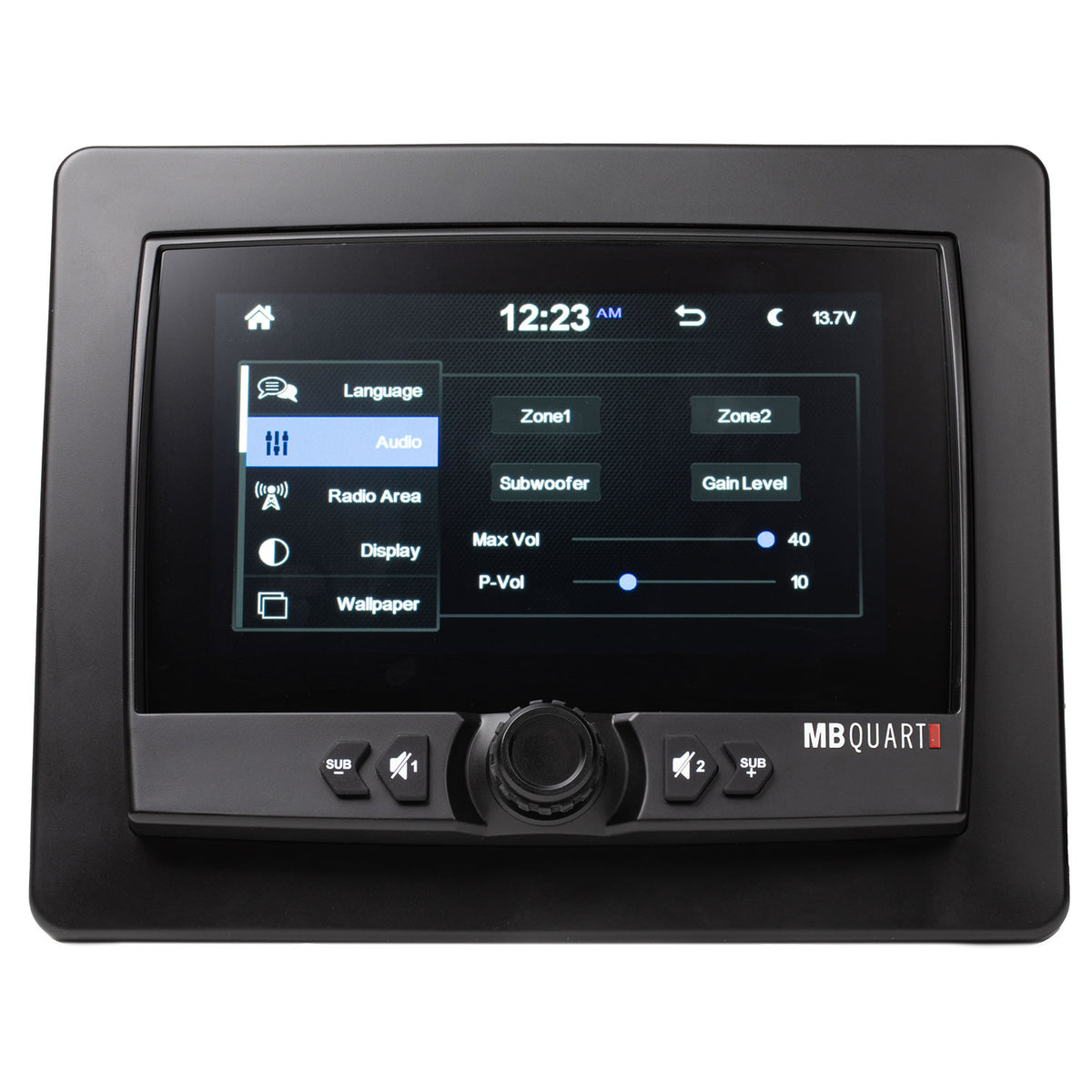

| Dual Audio Zone Capability | Control volume in two different areas independently, such as passenger area and tower speakers. |
| Media Screen | 7-inch high-contrast touchscreen display |

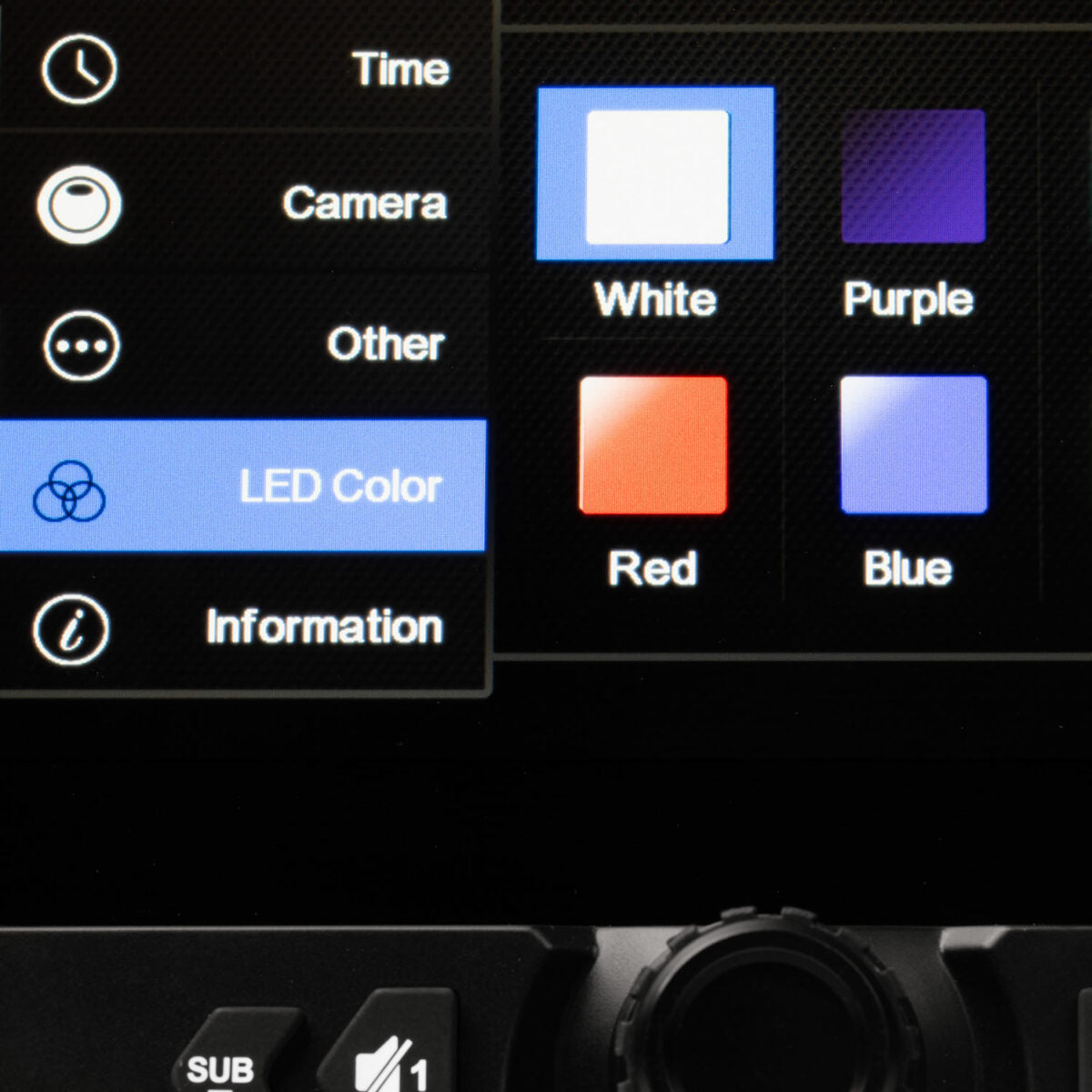

| Additional Features | Built-In Auxiliary Switching System: 4 aux trigger outputs 300mA MAX; Built-In RGB Lighting Controller: 500mA MAXX |
| View/Download (636.8 KB) | Cutout Dimensions Template - MB Quart GMR Source Unit (GMR-7V1) |
| View/Download (19.2 MB) | Installation Manual - MB Quart GMR-7V1 Source Unit (Rev3) |
| View/Download (8.3 MB) | Firmware Update - CFMOTO GMR-7CFM V1.30 |
| View/Download (8.1 MB) | Firmware Update - MB Quart GMR-7V1 [Only for Hardwired Apple CarPlay Version V1.29] This Firmware is only for the Hardwired Apple CarPlay version of the MB Quart GMR-7V1 Source Unit - Will not work with Wireless CarPlay version (late model). |
| Additional Info & Notes | MB Quart GMR-7V1 / GMR-7V1.2 Firmware Update Release Notes: There are two versions of the GMR-7V1 Source Unit that can ONLY be identified via serial or product label on the back of the unit. GMR-7V1.2 Wireless Apple CarPlay version (newest/current): Identified by GMR-7V1.2 on the product label on the back of the unit or by the serial number with the last five digits as: M24AA. GMR-7V1 Hardwired Apple CarPlay version (older): Identified by GMR-7V1 on the product label on the back of the unit or by the serial number with the last five digits as: A24AA through F24AA. |
