Description
MB Quart DA2-500.2D Discus 500 Watt Waterproof Two Channel Amplifier.
Features
- Type: Amplifier
- Series: Discus
- IPX Rating: IP67
- Marine Grade Protection / IPX Rating: Meets or exceeds IP67 standards for waterproof and dustproof.
The Kaos Run Down
| Manufacturer | MB Quart |
|---|---|
| Manufacturer SKU | DA2-500.2D |
| Application | Marine & Powersports |
| Weight | 5.85 lbs |
| Dimensions | 22 × 6 × 4 in |
| Item Weight (lbs) | 4.7 |
| Item Length (in) | 10.625 |
| Item Width (in) | 3.875 |
| Item Height (in) | 1.875 |
| Type | Amplifier |
| Brand | MB Quart |
| Series | Discus |
| Category | Marine, Mobile, Powersports |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| IPX Rating | IP67 |
| Compatible Vehicles | Universal |
| Amp Class | Class D |
| Amp Total Channels | 2 |
| Amp Max Power (watts) | 500 |
| Amp Power @ 2 Ohms (ch x watts) | 2 X 250 |
| Amp Power @ 4 Ohms (ch x watts) | 2 X 150 |
| Amp Mono Bridged @ 4 Ohms (ch x watts) | 1 x 500 |
| Amp Crossover | Electronic |
| Amp Variable High Pass Crossover 12dB per Octave | Switched OFF/HPF/LPF 15Hz-300Hz |
| Amp Variable Low Pass Crossover 12dB per Octave | Switched OFF/HPF/LPF 50Hz-300Hz |
| Amp Variable Voltage | 0.2V-9V |
| Amp Frequency Response | 15Hz-300Hz |
| Amp Power Terminal 12v/GND | 4 AWG |
| Amp Speaker Terminal Wire Gauge | 12 AWG |
| Amp Fusing | 20A External |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compatible Vehicle Fitment | Universal |
| Marine Grade Protection / IPX Rating | Meets or exceeds IP67 standards for waterproof and dustproof. |
| Low Noise Preamplifier Circuit | Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion. |
| RCA Inputs | Prewired to PC Board for additional protection. Leave connector cover closed on RCA jacks that are not used. |
| Crossover Type | Variable electronic crossovers allow for complete control of the sound. |
| Electronic Equalizer | Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier. |
| Class / Topology | Class D: Highly efficient circuit topology which helps the amplifier develop a lot of power in a compact heatsink. |
| Output Device Technology | MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers. |
| Heat Sink | Heavy duty heat-sink efficiently moves heat from the MOSFET where it can be cooled. |
| Power Supply | Robust premium grade MOSFET Pulse Width Modulation power supply allows the amplifier to produce efficient power without taxing the electrical system. |

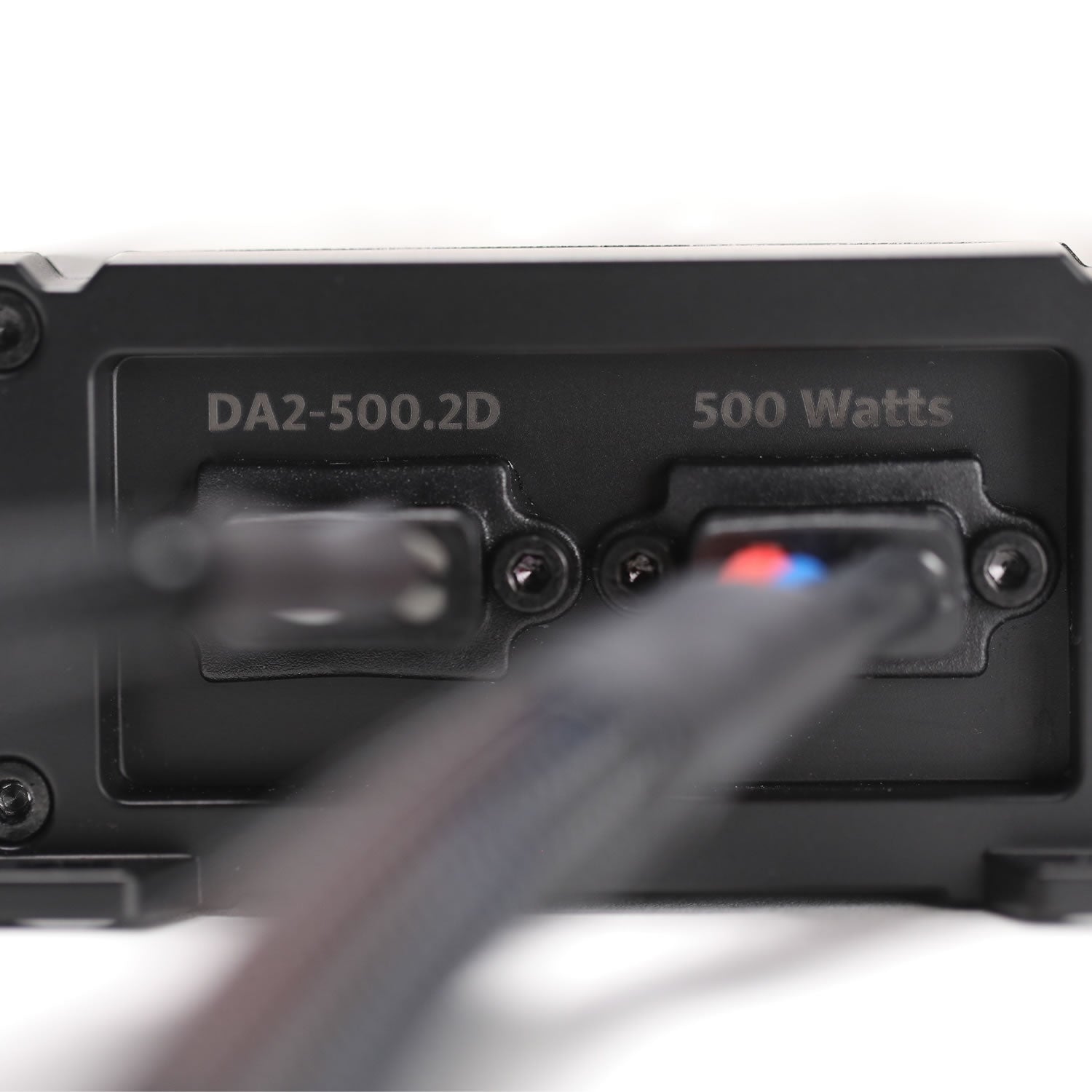

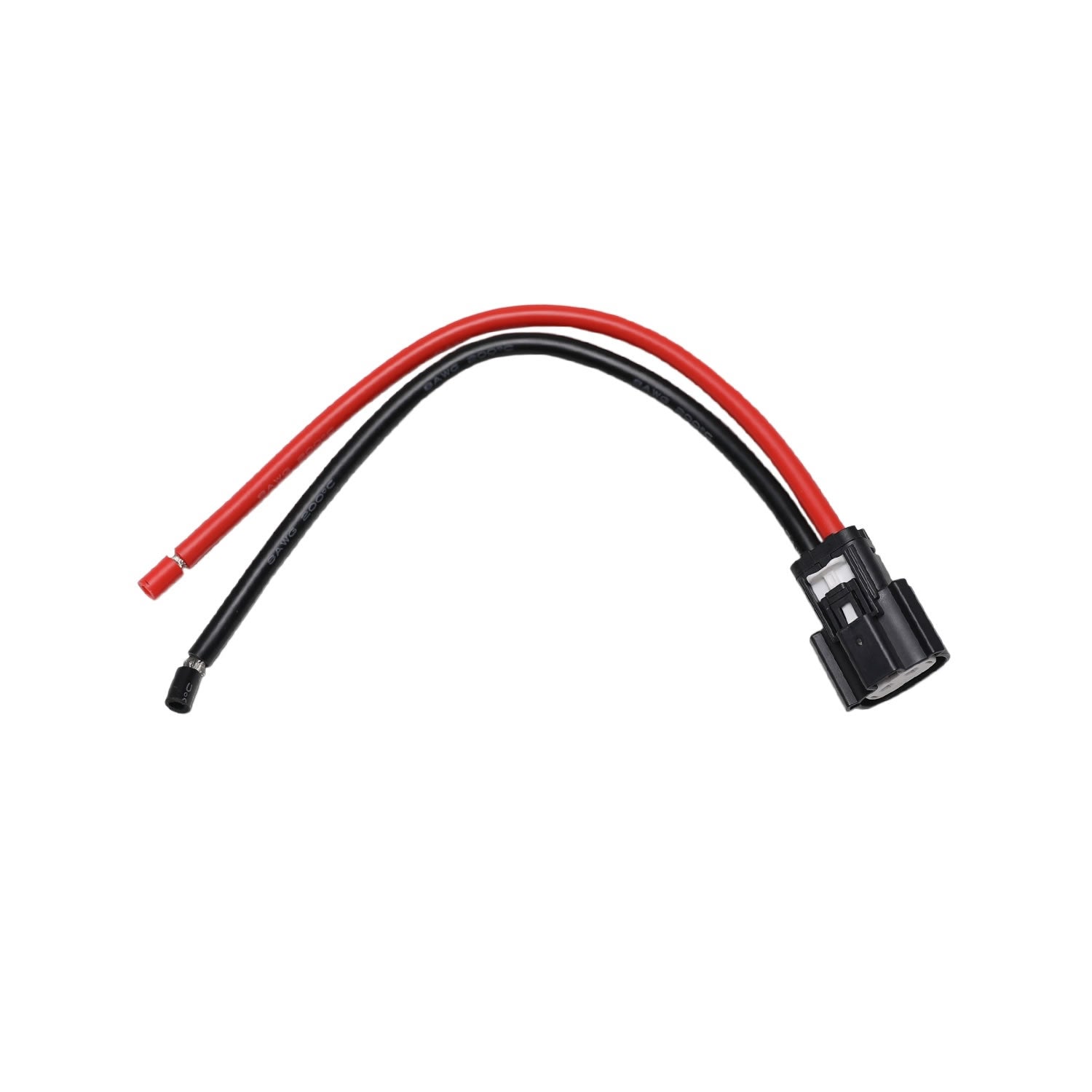

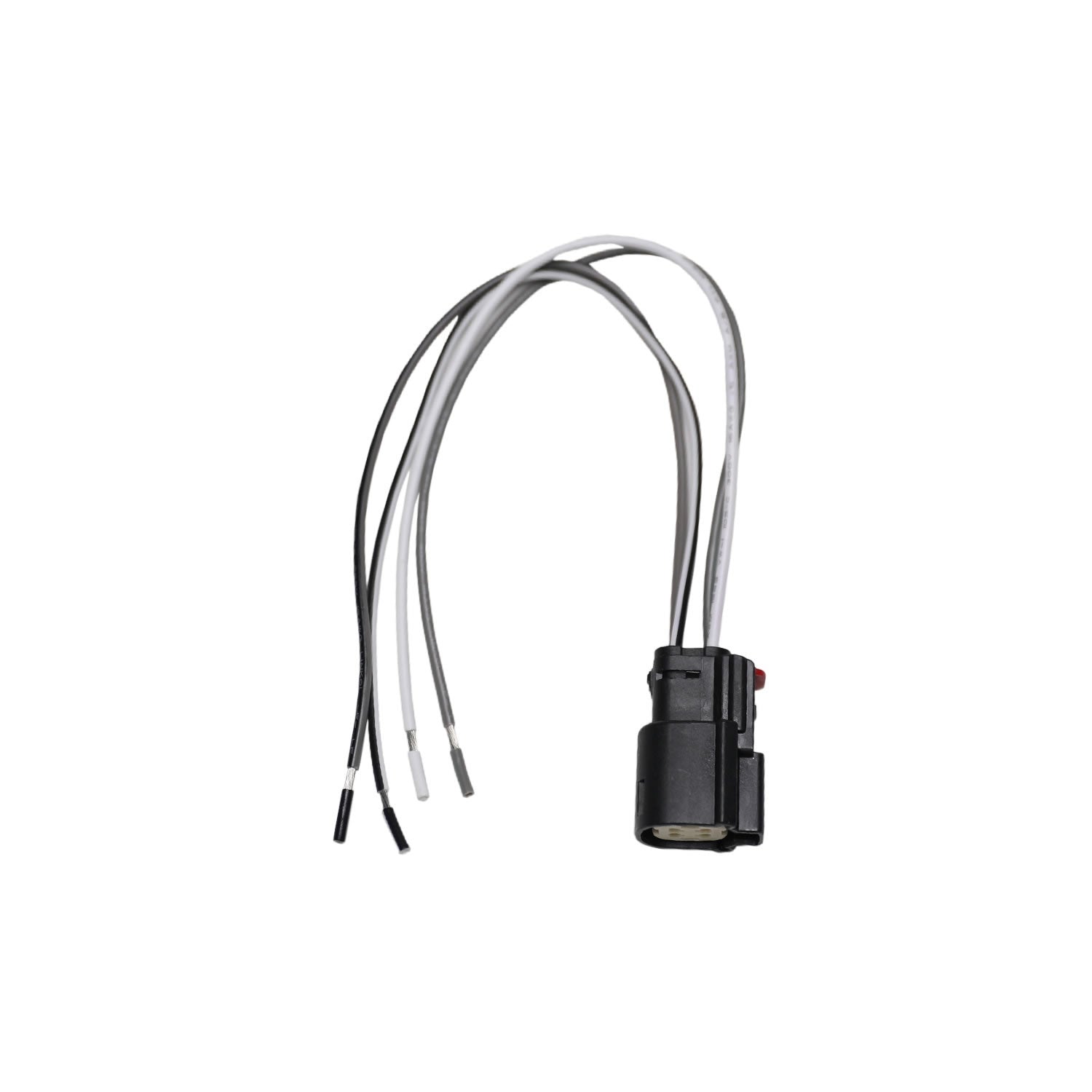

| Output Connections | Waterproof connectors designed to provide a secure moisture-resistant connection, ensuring reliable signal transmission and preventing corrosion or damage in environments exposed to water or humidity. |
| Connection Type | Waterproof connectors designed to provide a secure moisture-resistant connection, ensuring reliable signal transmission and preventing corrosion or damage in environments exposed to water or humidity. |
| LED System Protection Circuitry Diagnostics | Monitor overload and speaker short protection with illuminated indicators on the amplifier top mounted control panel. |

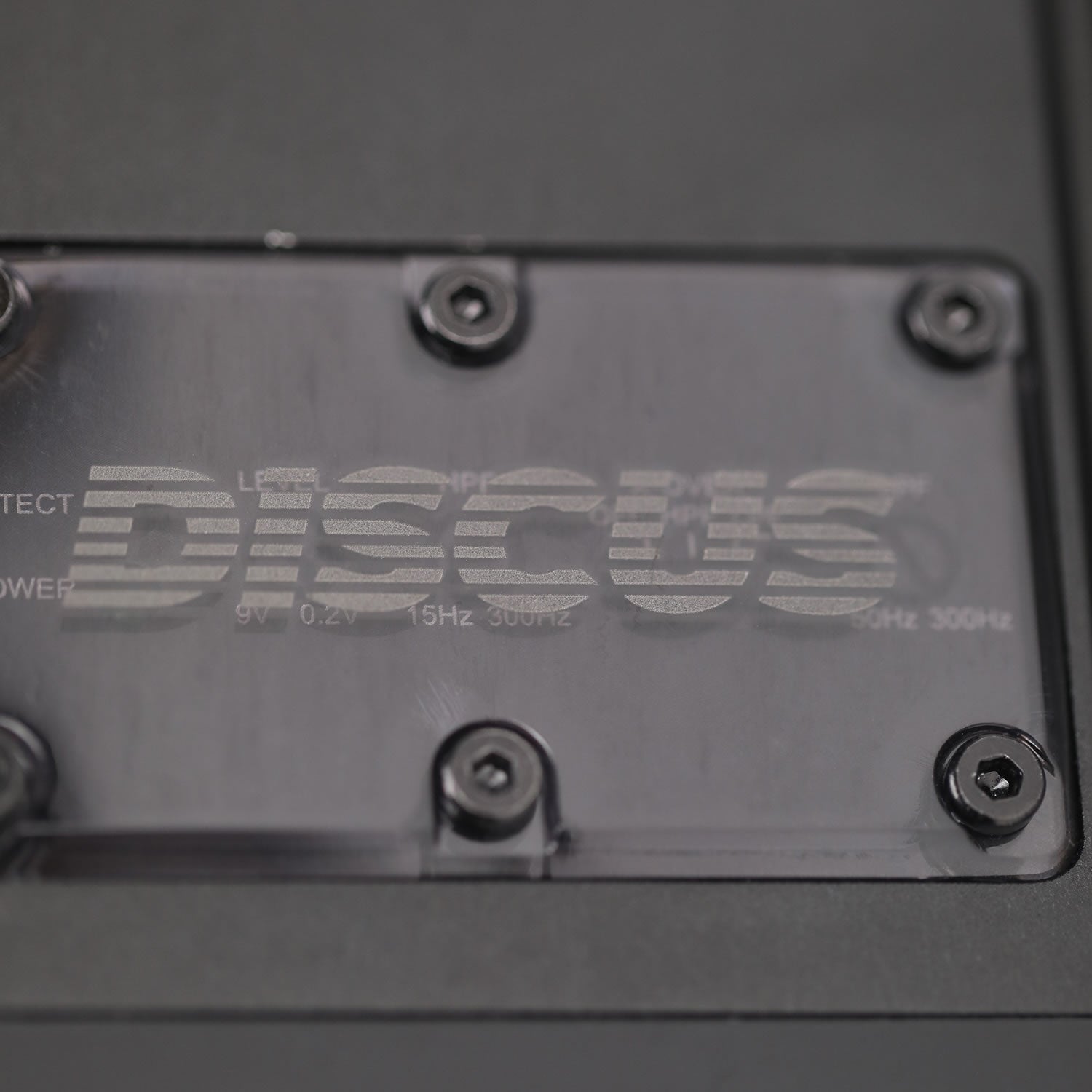

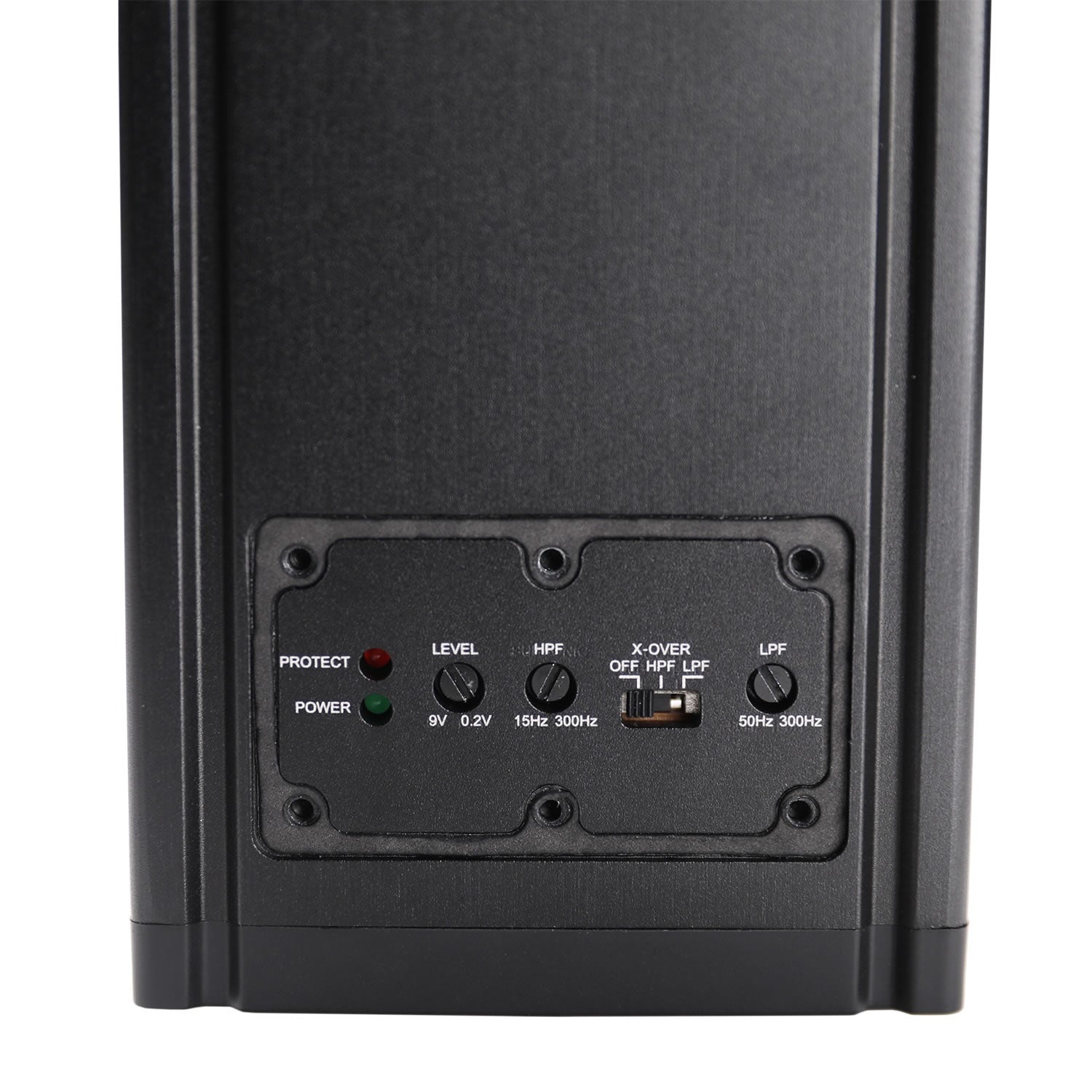

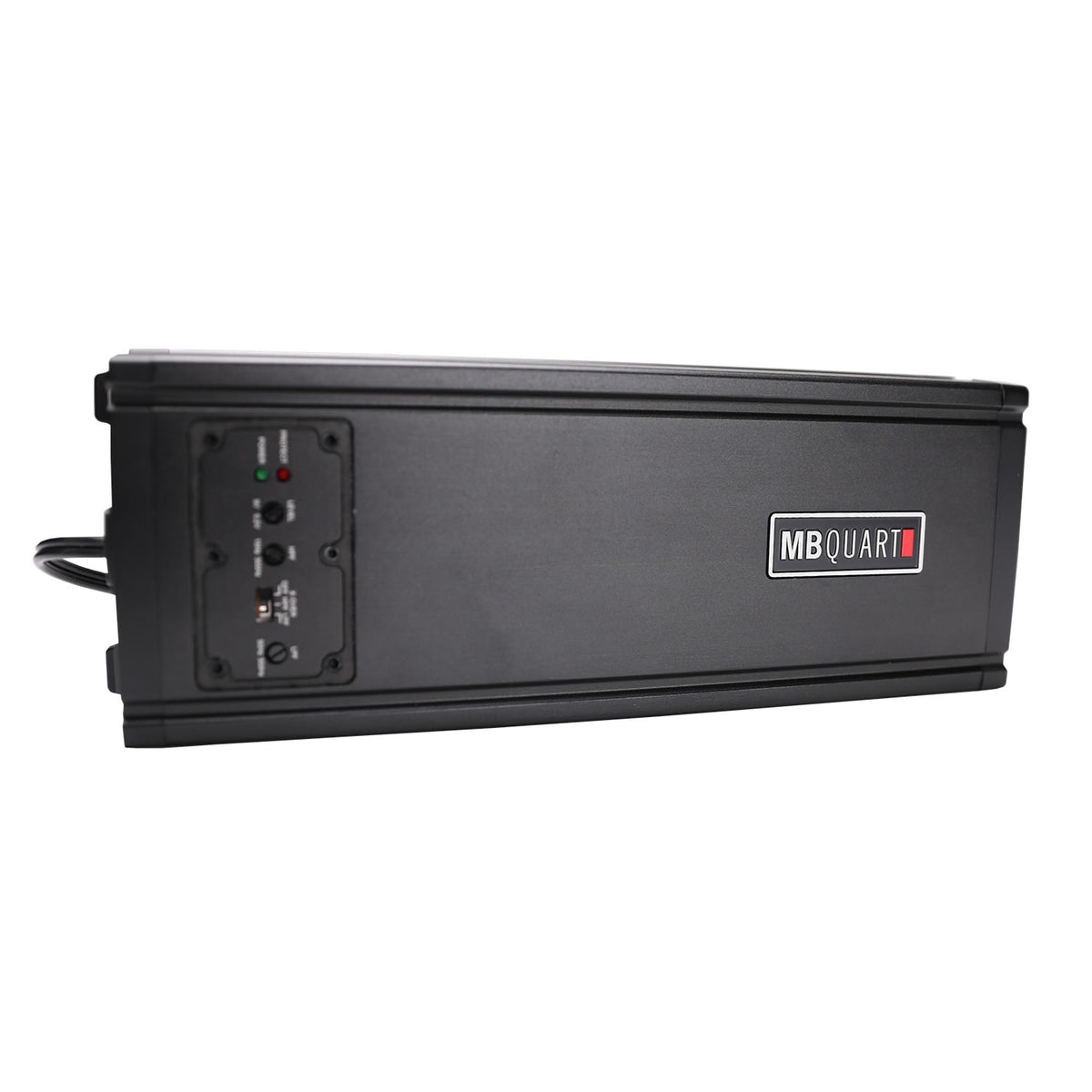

| Additional Features | Top Mounted Controls: Sound contouring with on-board crossover, bass boost, and adjustable input sensitivity are all concealed behind a sealed, top mounted cover. |
| View/Download (1.6 MB) | MB Quart Discus DA2 Amplifiers Quick Start Guide (Rev1) |
