Description

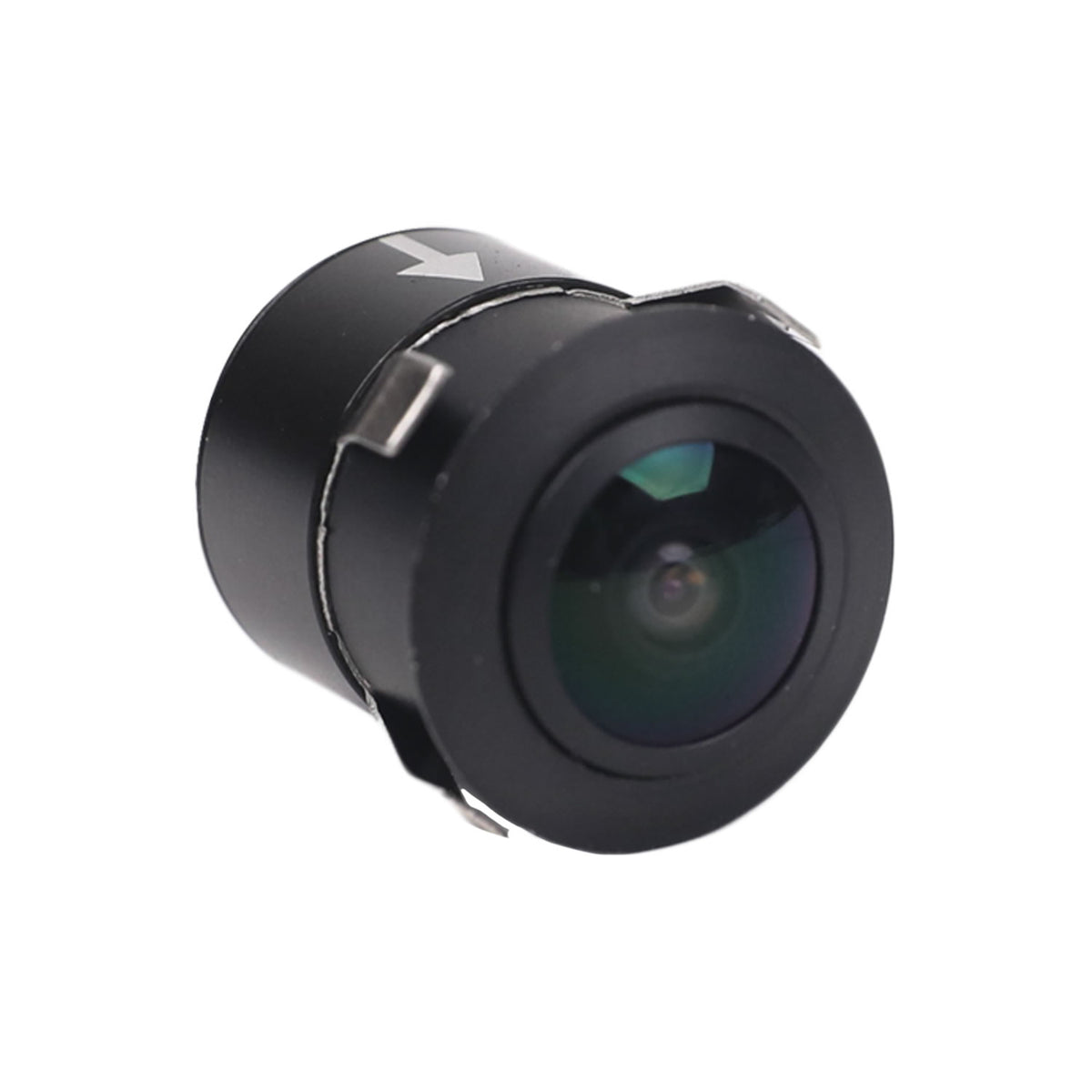

MB Quart MBQ-CAM-1 Auxiliary Camera Kit with 1/3-Inch CMOS Sensor Cam.
Features
- Type: Camera
- Series: MBQ-CAM
- Compatible Product Models: MB Quart and Universal Source Units.
- Marine Grade Protection / IPX Rating: IP67/IP69K
- Installation: Universal installation - flush and stand alone mounts are included to cover all applications.
- Other Features: IPX Rating: IP67/IP69K; Horizontal Angle: 150 degree; Verticle Angle: 170 degree; Image Sensor: 1/3" CMOS; Optical Format: NTSC; Signal to Noise Ratio: >48dB(AOC on); Input Voltage: 12v DC; Mirror or Real Image: Both (cut loop); Parking Lines: None; LED: None; EMC: RE-10
The Kaos Run Down
| Manufacturer | MB Quart |
|---|---|
| Manufacturer SKU | MBQ-CAM-1 |
| Application | Marine & Powersports |
| Weight | 0.8 lbs |
| Dimensions | 6.75 × 5.375 × 2.375 in |
| Item Length (in) | 0.669291 (17mm) Diameter |
| Item Width (in) | 1.06299 (27mm) Depth |
| Item Height (in) | 0.669291 (17mm) Diameter |
| Type | Camera |
| Brand | MB Quart |
| Series | MBQ-CAM |
| Category | Marine, Mobile, Powersports |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| Compatible Vehicles | Universal |
| Accessory Dimensions | Carling Switch Hole Cut Out (in): 0.9 Round, Unit Dimensions (in): 1.4 Round x 1.9 Depth |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compatible Vehicle Fitment | Universal |
| Compatible Product Models | MB Quart and Universal Source Units. |
| Marine Grade Protection / IPX Rating | IP67/IP69K |
| Installation | Universal installation - flush and stand alone mounts are included to cover all applications. |
| Other Features | IPX Rating: IP67/IP69K; Horizontal Angle: 150 degree; Verticle Angle: 170 degree; Image Sensor: 1/3" CMOS; Optical Format: NTSC; Signal to Noise Ratio: >48dB(AOC on); Input Voltage: 12v DC; Mirror or Real Image: Both (cut loop); Parking Lines: None; LED: None; EMC: RE-10 |
| View/Download (979.0 KB) | MB Quart Camera (MBQ-CAM-1) Installation Manual (Rev01) |
| View/Download (5.0 MB) | MB Quart Camera (MBQ-CAM-1) Technical Guide (Rev1) |
