Product Overview

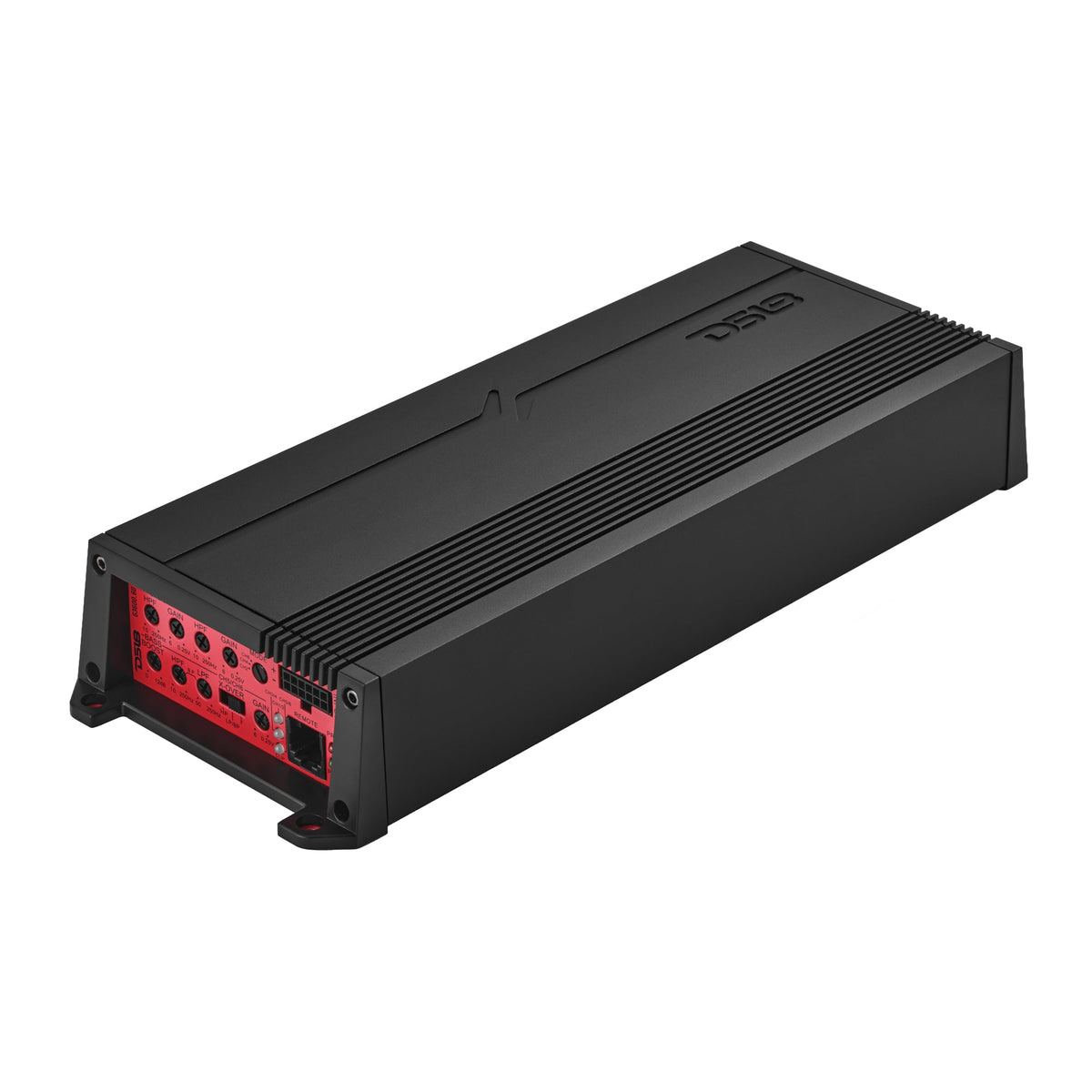

6-Channel Class D Full Range Amplifier
DS18’s G3600.6D delivers 200W RMS per channel at 4 ohms and 250W RMS per channel at 2 ohms, offering powerful sound across six channels. Bridged mode powers 3 channels at 500W RMS at 4 ohms for those heavy subwoofer demands.

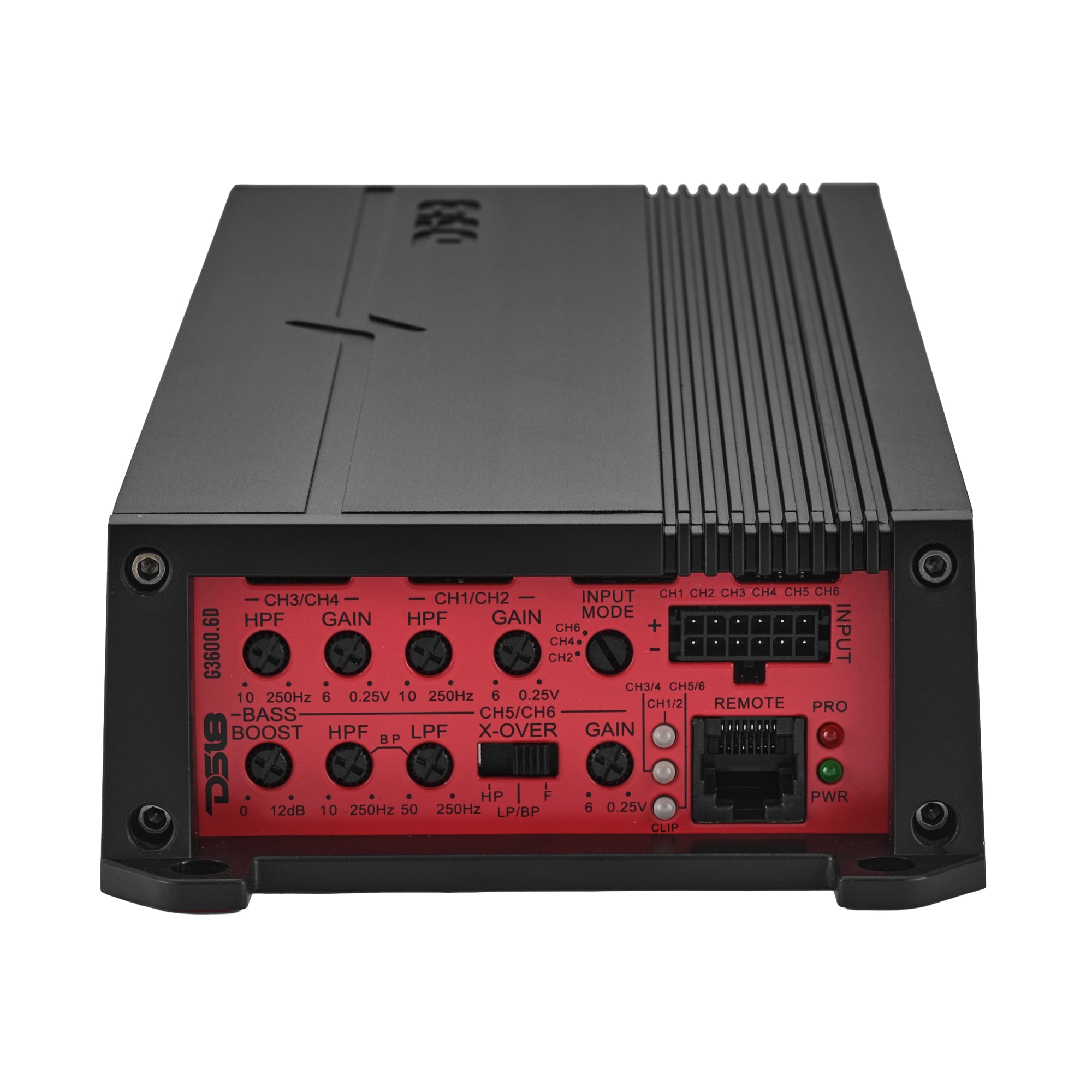

Complete Control
Adjust your system precisely with variable crossover options including high-pass, band-pass, and full-range settings. The bass boost is adjustable up to 12dB at 45Hz, letting you tailor the low-end exactly how you want. Input sensitivity ranges from 0.25V to 6V, enabling perfect matching with your source unit.
Built to Last
Protected by comprehensive safety features, the G3600.6D includes thermal, overload, DC output, short circuit, voltage input, and clipping protections.
Convenience and Compatibility

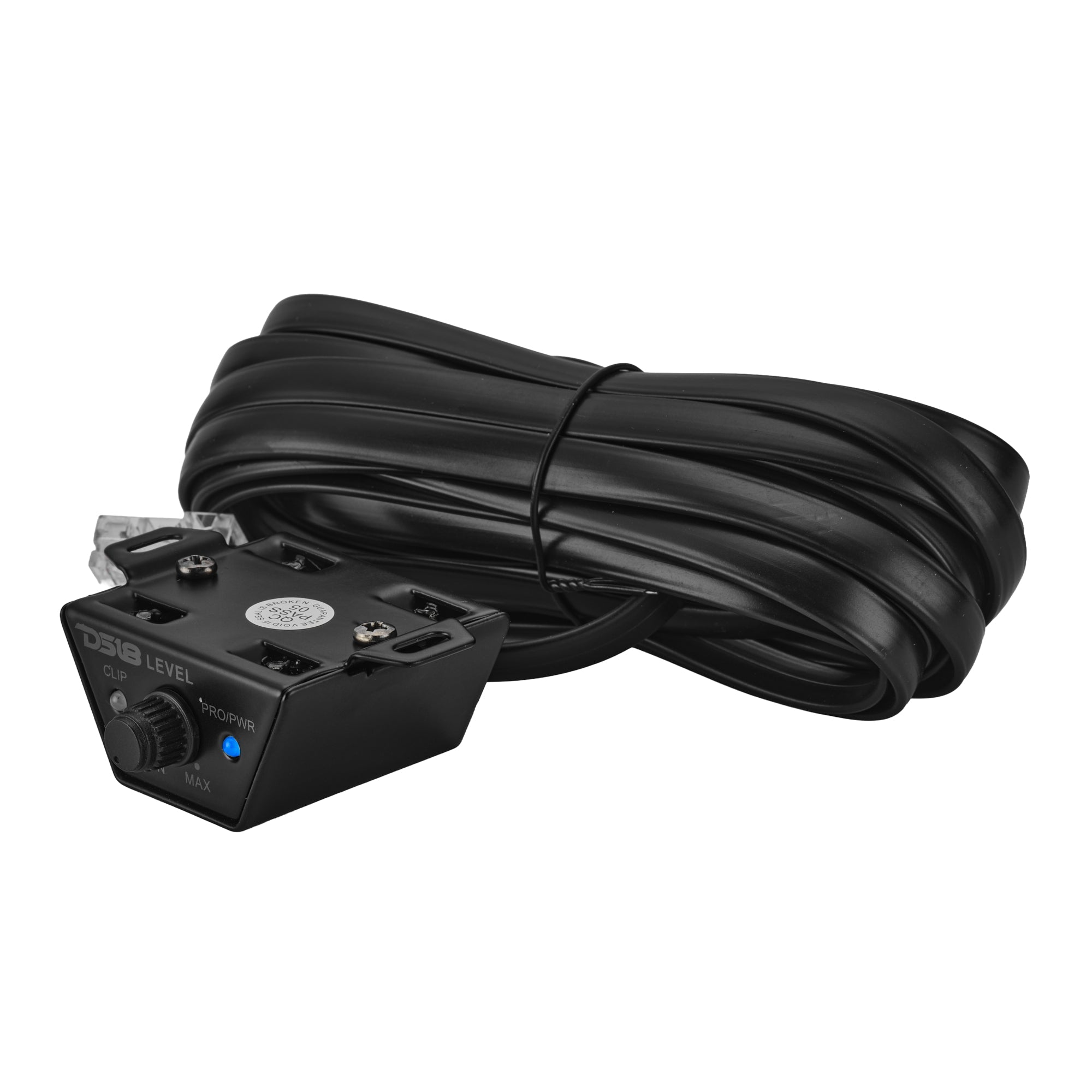

This amplifier features a remote level control for easy subwoofer level adjustment from your driving seat. Its high-level and low-level inputs accommodate a wide range of source units. Switchable input modes allow flexible channel routing between 2, 4, or 6 channel operation.
Ready to transform your vehicle’s sound? The G3600.6D’s power, precision, and protection make it the ultimate amplifier for any true audio enthusiast.
Key Features
- 6 x 200W @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
- Full Range Class D
- Variable Crossover
- 2 St- 4-Ohm Bridge
- Power/Protection/Clip Indicator/Remote Level Control
Specifications
| Total Watts (Peak) | 3600W |
|---|---|
| RMS Power @ 4 ohm | 6 x 200W |
| RMS Power @ 2 ohm | 6 x 250W |
| RMS Power @ 1 ohm | - |
| RMS Power @ 4 ohm Bridge | 3 x 500W |
| Frequency Response | 20Hz-20KHz |
| Signal to Noise Ratio | >90dB |
| Efficiency @ 4ohm | 75% |
| Damping Factor | 75 |
| Input Impedance | 22K |
| Channel Separation | 57dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.25-6V |
| High Level Input | No |
| Selectable X-Over | Variable HPF / HPF-BPF-FULL (5/6CH) |
| X-Over Filter Range | HPF:10-250Hz / LPF:50-250Hz |
| Bass Boost Range | 0-12dB |
| Bass Boost Frequency | Fixed @ 45Hz |
| Infrasonic Filter | N/A |
| Phase Selector | No |
| Amplifier Class | Digital (D) |
| Amplifier Type | Full Range |
| Number of Channels | 6CH |
| Minimum Impedance | 2ohm St / 4ohm Bridge |
| Led Indicator | Power / Protection / Clip |

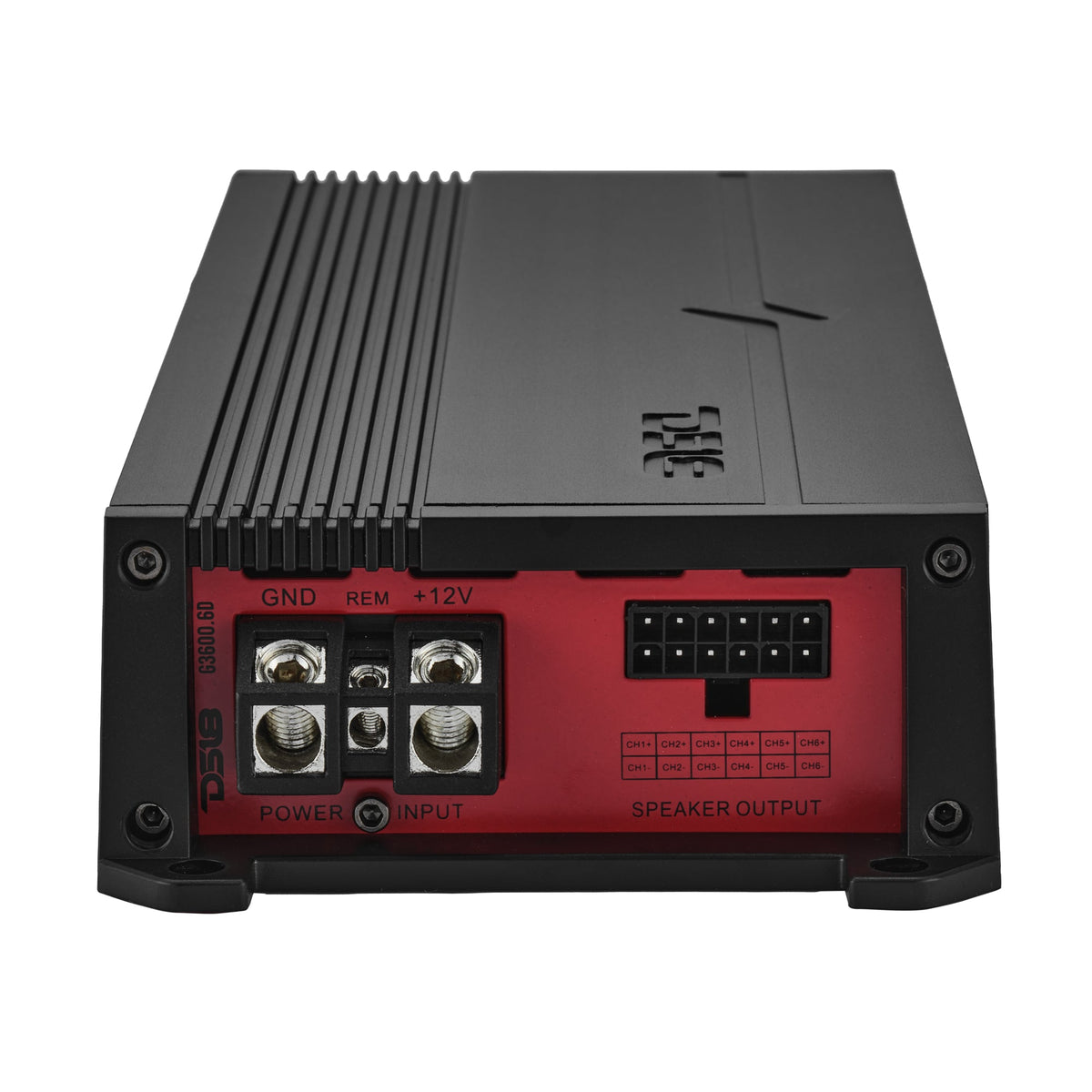

| Power Input Terminal Size | 4ga |

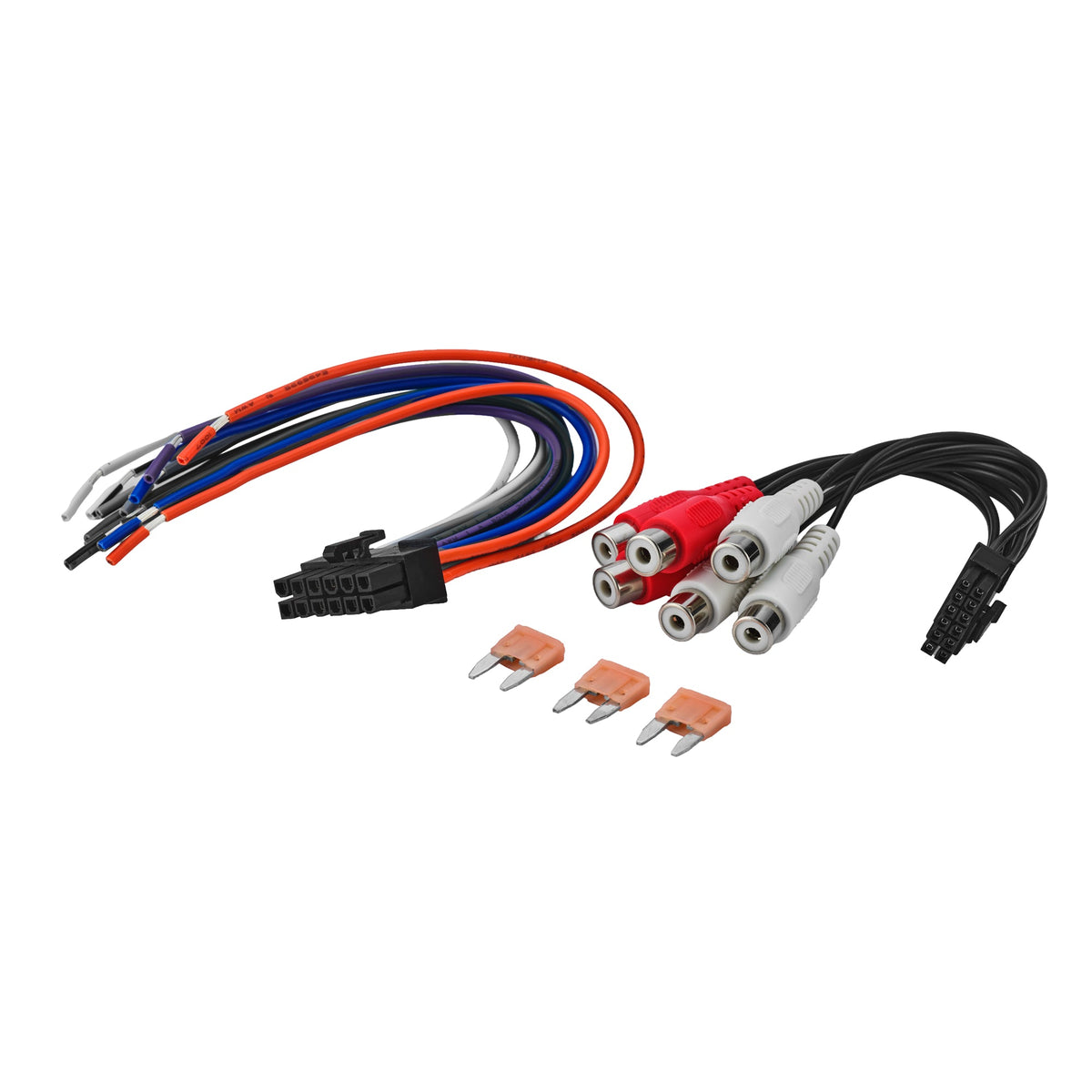

| Fuse Size | 3 x 40A |
| Remote Level Control | Yes |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Matte black |
| Overall Length | 12.8" / 325mm |
| Overall Wide | 4.72" / 120mm |
| Overall Height | 1.96" / 50mm |
| Heatsink Length | 10.9" / 278mm |
| Gross Single Unit Weight | 2.2KG |
| Input Selector | Yes (2ch/4ch/6ch) |
| Compact Size for Easy Installation | Yes |

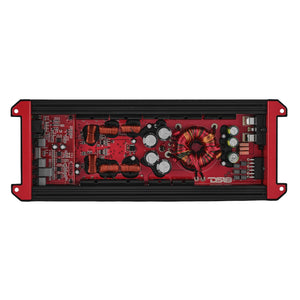

| Stable/Reliable Two or Four Layers Traces PCB Design | Yes |
| Surface Mount Component Technology | Yes |
| Quality Control Verification using Audio Precision Instruments | Yes |
