Product Overview
DS18 ELITE ZXI.4 Full-Range 4-Channel Class D Amplifier 125 Watts x 4 @ 4-Ohm RMS
Over time evolution is inevitable. The same can be said for DS18's new Z series model of amplifiers! We took one of our best selling lines and upgraded every aspect of it. They now put out even more power, have more top of the line components, and are guaranteed to deliver amazing quantities of RMS power on demand. The previous Z series was very powerful to begin with and we packed all new DS18 branded boards with much more efficient electronics, and with all new heat sync casings to make an amazing amp line even more perfect for your needs. You have your pick of multiple 2 channel, 4 channel, and Monoblock amps in this line to power every aspect of your DS18 audio system.
Highlights

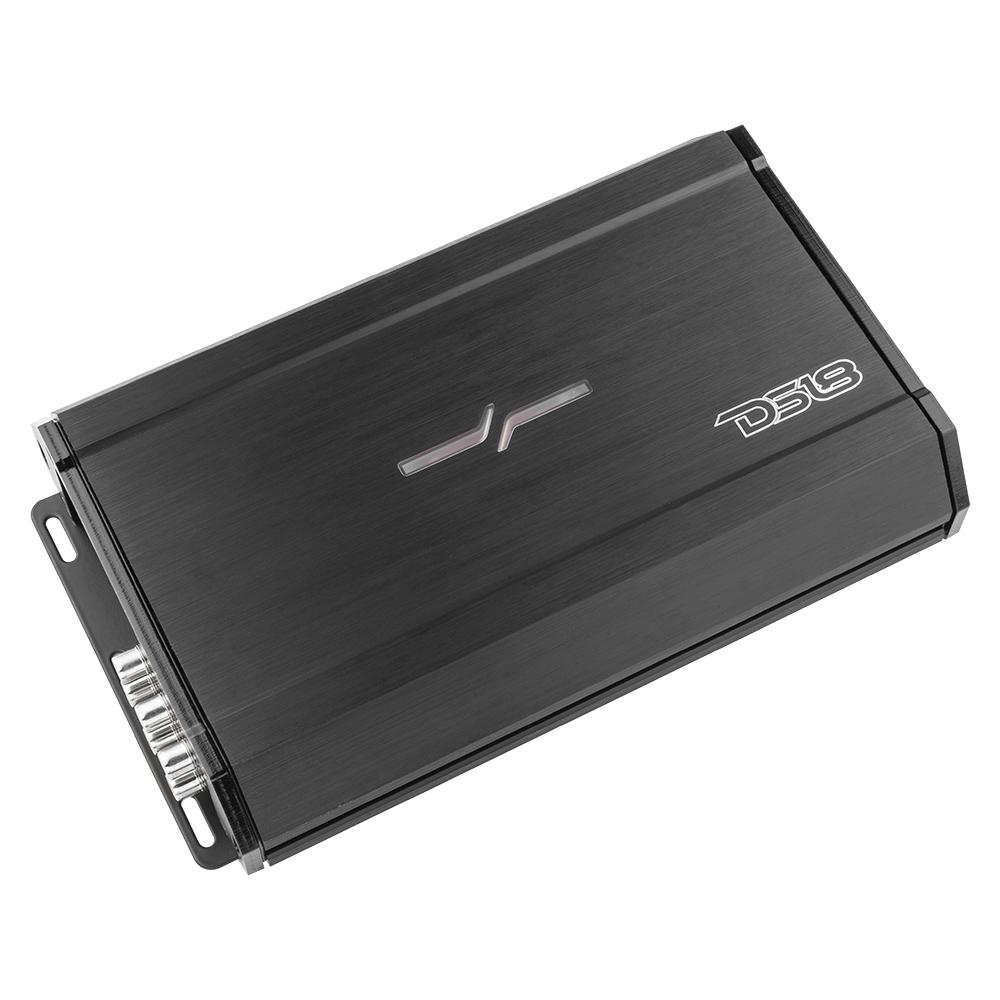

- Elegant design that retains very high durability with incorporated high efficiency heat sync.

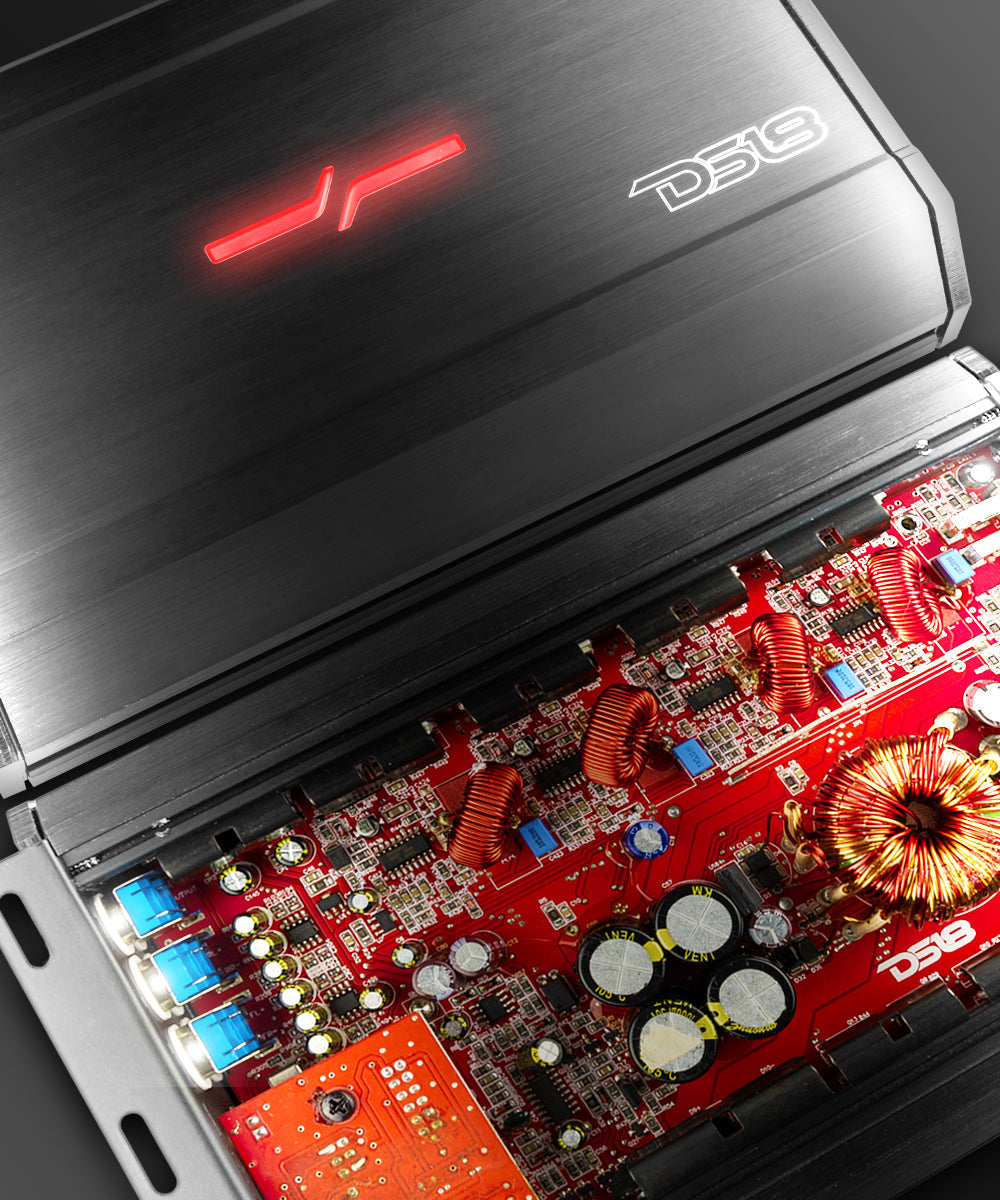

- High quality circuit board to give the most power with the highest efficiency rate providing high power on demand.
- Easily tuned crossover and gain controls for the perfect sound settings in your vehicle.
Technical Details
| Model | ZXI.4 |
| Class | D |
| Channels | 4 |
| RMS POWER @ 4 OHMS | 125W x 4CH |
| RMS POWER @ 2 OHMS | 185W x 4CH |
| RMS POWER @ 4 OHMS BRIDGE | 370W x 2CH |
| PEAK POWER @ 4 OHMS | 200W x 4CH |
| PEAK POWER @ 2 OHMS | 300W x 4CH |
| PEAK POWER @ 4 OHMS BRIDGE | 600W x 2CH |
| MINIMUM IMPEDANCE | 2 OHMS |
| FREQUENCY RESPONSE | 20Hz - 20KHz |
| THD % | 0.10% |
| INPUT SENSITIVITY | 0.2-6V |
| SIGNAL/NOISE RATIO | >90dB |
| CROSSOVER HIGH PASS | 40 - 4KHz |
| CROSSOVER LOW PASS | 40 KHz |

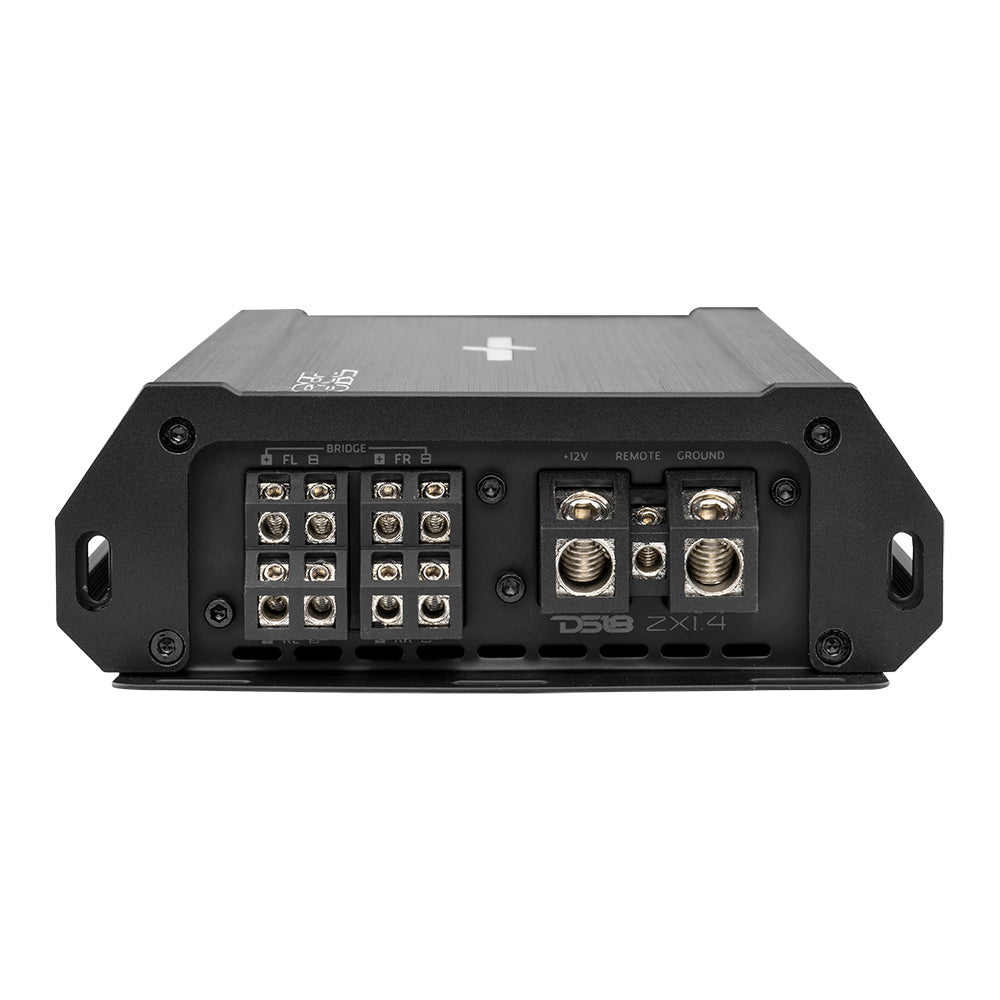

| POWER INPUT SIZE | 4GA |
| DIMENSIONS LxDxH (INCHES) | 9.5x5.7x1.9 |
Key Features
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 125 Watts @ 4 Ohm
- Clip Indicator
- Built in Crossover
Specifications
| SKU | ZXI.4 |
|---|---|
| Total Watts (Peak) | 2200W |
| RMS Power @ 4 Ohm | 4 x 125W |
| RMS Power @ 2 Ohm | 4 x 185W |
| RMS Power @ 1 Ohm | N/A |
| RMS Power @ 4 Ohm Bridge | 2 x 370W |
| Frequency Response | 20Hz-20KHz |
| Signal to Noise Ratio | >90dB |
| Efficiency @ 4 Ohm | >85% |
| Damping Factor | >200 |
| Total Harmonic Distortion (THD) | <0.1% |
| Low Level Input Range | 0.2 - 6v |
| High Level Input | No |

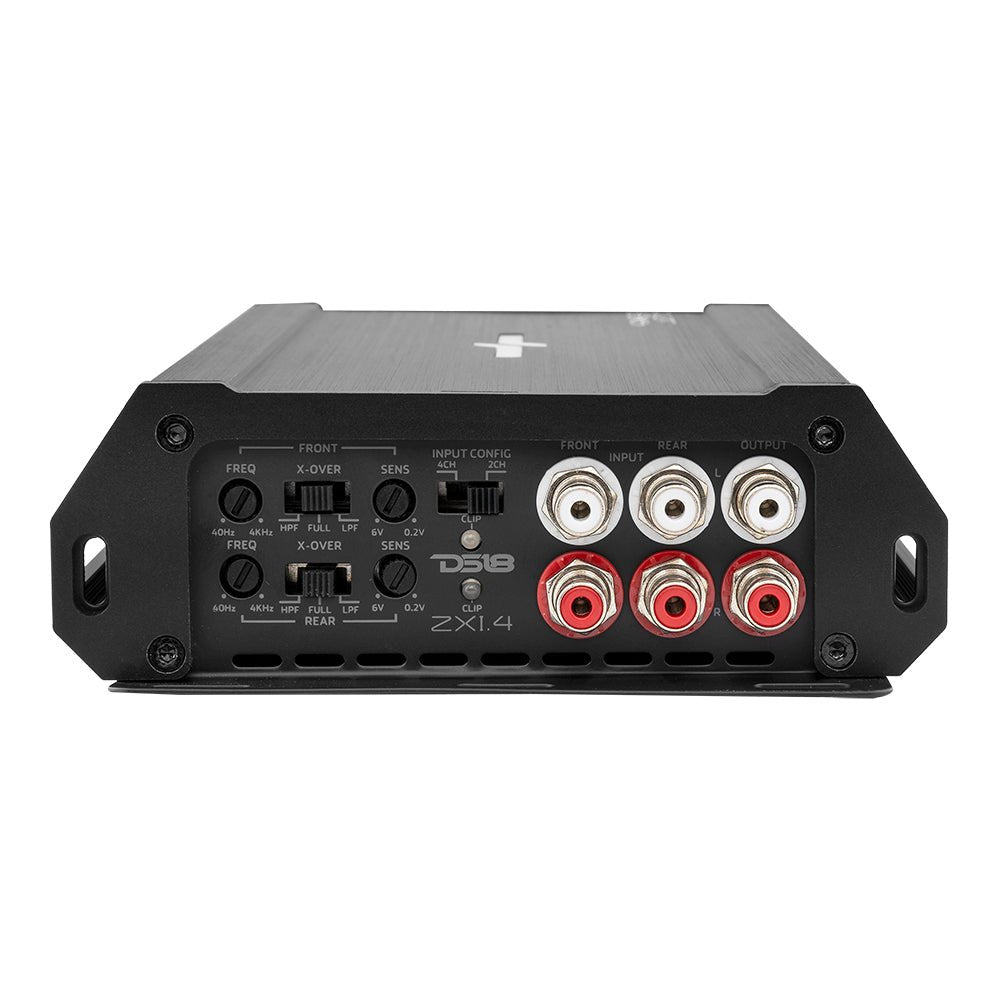

| Selectable X-Over | LPF/FULL/HPF |
| X-Over Filter Range | 40Hz-4KHz |
| Bass Boost Range | No |
| Bass Boost Frequency | No |
| Infrasonic Filter | No |
| Phase Selector | No |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 4 |
| Minimum Impedance | 2 ohm (Stereo) / 4 ohm (Bridge) |
| Led Indicator | Power/Protection/Clip |
| Power Input Terminal Size | 4ga |
| Fuse Size | 2 x 40A |
| Remote Level Control | No |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes (>160?F / 71?C) |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (8.5-16.8V) |
| Cliping Protection | Yes |
| Body Color / Finish | Black Aluminum Brush |
| Tiffany RCA connectors | Yes |
| Input Selector | Yes (2ch/4ch) |
| Compact Size to easy Installation for Any Applications | Yes |

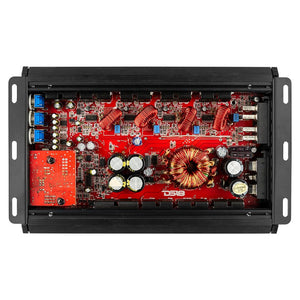

| Stable/Reliable Two Layers Traces PCB Design | Yes |
| Quality Control Verification using Audio Precision Instruments | Yes |
| Overall Length | 9.5" / 241.3mm |
| Overall Width | 5.66" / 144mm |
| Overall Height | 1.9" / 48.5mm |
| Heatsink Length | 8.7" / 221.3mm |
| Gross Single Unit Weight (Lb) | 5 |
