PRO 10" Neodymium Water Resistant Woofer 400 Watts Rms 2-Ohm SVC

Availability: In stock SKU: PRO-W10.2SNEO
Sale price $214.95

PRO 10" Neodymium Water Resistant Woofer 400 Watts Rms 2-Ohm SVC - DS18

PRO 10" Neodymium Water Resistant Woofer 400 Watts Rms 2-Ohm SVC

$214.95

Product Overview

DS18 PRO-W10.2SNEO 10" Water Resistant Neodymium Motorcycle & Powersports Woofer 800 Watts 2-Ohm Svc

DS18 is proud to present you with a woofer long awaited by all bikers and powersports enthusiast alike! The DS18 PRO-W10.2SNEO is a full size water resistant loudspeaker woofer made to withstand harsh elements all while not sacrificing any build quality that normally comes with marine speakers. This hybrid both comes with a standard subwoofer basket, coil, and Neodymium motor structure all while the cone of the woofer is water tight and made so it can take any water without risking corrosion and deformation that water naturally causes.

The basket has also been coated to withstand corrosion. The cone is made of durable light weight plastic with the rubber surround to make sure things stay tight. This combo allows zero water to penetrate into the inner workings of the woofer to ensure long life and loudness. This woofer is offered in single 2 ohms and 4 ohms configurations and handle 400w RMS and 800w Peak power and works very well with both sealed and ported boxes.

Highlights

  • Woofer made especially for motorcycles but can be used in all applications that need a water resistant solution.
  • Don't sacrifice any loudness that you normally loose with IPX rated subs.
  • Coated basket to help reduce the chances of corrosion.
  • We have released single voice coil 4 ohms and 2 ohms versions so you can optimally set your ohm load with the amplifier of your choice.
  • Durable lightweight plastic cone and rubber surround to prevent any water perturbing down into the working parts and motor of the woofer.
  • Made to be loud and clear so you can feel and hear the thump at 70+ MPH highway speed as long as the appropriate power is supplied.

Technical Details
Nominal Diameter 10"
Nominal Impedance 2 Ohms SVC
Maximum Power Handing 800 watts
RMS Power Handing 400 watts
Sensitivity (1w/1m) 91dB
Frequency Response 40Hz - 5KHz
Recommended Lo Pass Crossover 180Hz
Motor
Voice Coil Diameter 2.5"
Voice Coil Former Material 12.2L
Winding Materia SV
Cone Material Water resistant paper
Dust Cap Material Water resistant paper
Surround Material Rubber
Basket Material Steel
Magnet Material Neodymium
Magnet Weight 8.8 oz
Displacement Volume 1.79L

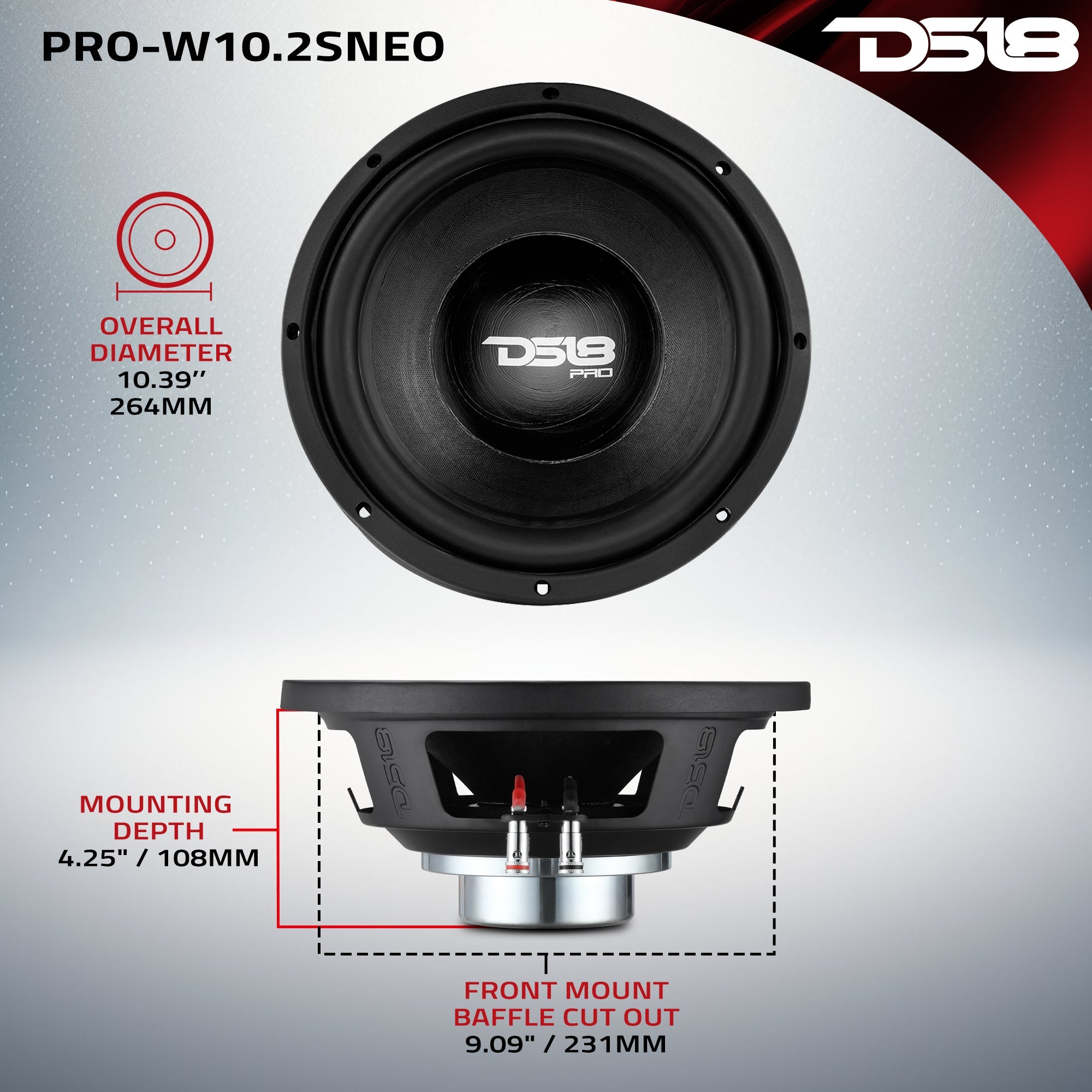

Measurements
Overall Diameter 10.39"
Overall Depth 4.80"
Front Mount Baffle Cutout 9.09"

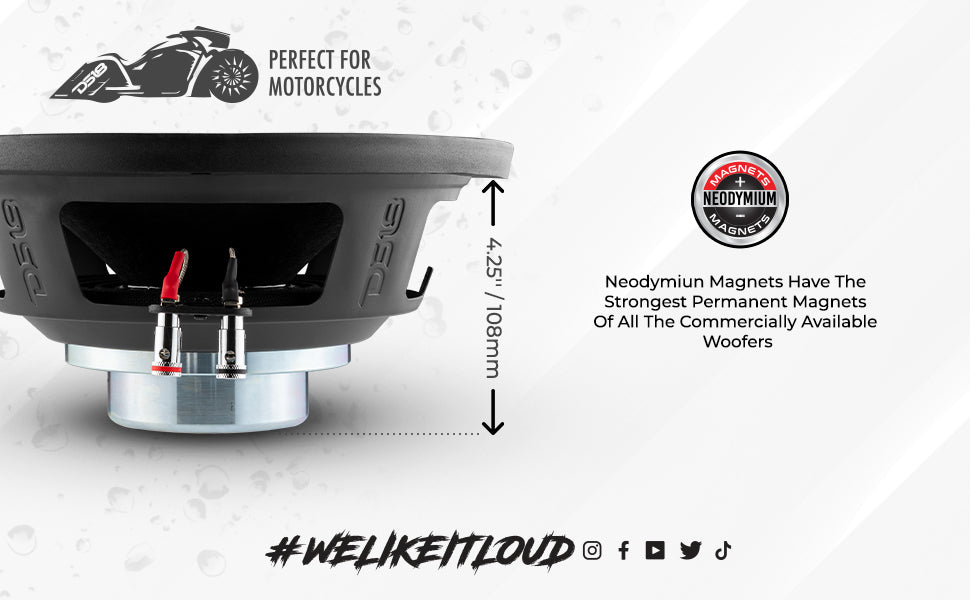

Mounting Depth 4.25"
Motor Diameter 3.42"

Key Features

  • 10" Woofer
  • MAX Power: 800 Watts
  • RMS Power: 400 Watts
  • Impedance: 2-Ohm 2.5" SVC
  • Neodymium Magnet ~ 91dB
  • Water Resistant

Specifications

SKU PRO-W10.2SNEO
Nominal Diameter 10’’ / 254mm
Nominal Impedance 2 Ohm
RMS Power Handling 400W
MAX Power Handling 800W
Sensitivity (1w/1m) 91 dB
Frequency Response 40Hz-5KHz
Recommended Lo Pass Crossover 180hz
Voice Coil Diameter 2.5’’ / 65.5mm
Voice Coil Former Material Til
Winding Material SV
Cone Material Water resistant paper
Dust Cap Material Water resistant paper
Surround Material Rubber
Basket Material Steel
Basket Color/Finish Matte Black
Magnet Material Ferrite
Magnet Weight 8.8 oz
Displacement Volume 1.8L / 0.0635ft3
Equivalent Volume VAS 22.5L / 0.79ft3
Free Air Resonance FS 40 Hz
Mechanical Factor QMS 5.846
Electrical Factor QES 0.452
Total Factor QTS 0.397
Moving Mass MMS 91.85g
Compliance CMS 0.16mm/N
Bl Factor Bl 12.95
Voice Coil Inductance LE 0.4578mH
Diaphragm Area SD 352.99 cm2
Dc Resistance RE 2.0 ohms
Efficiency Bandwidth Product EBP 88.4
Sealed Internal Volume 1.4ft3
Sealed Box Output Response F3 53Hz
Ported Internal Volume 1.5ft3
Port Size *Square (W x H x Long) 3" x 3" x 5.6" / 76 x 76 x 142 mm
Port Tunning Frequency FB 45Hz
Ported Box Output Response F3 38Hz
Dimensions L x W x H (Inches) 10.87 x 10.87 x 5.5
Overall Depth 4.8" / 122mm
Front Mount Baffle Cutout 9.1" / 231 mm
Mounting Depth 4.25" / 108mm
Motor Diameter 3.42" / 87mm
Weight (lb) 7
M/C Dimensions L x W x H (Inches) 29.5 x 22.5 x 12
M/C Weight (lb) 29.5
M/C Qty 4
Sold in Single
