PRO 10" Water Resistant Woofer 350 Watts Rms 2-Ohm SVC

Availability: Out of stock SKU: PRO-W10.2S
Sale price $119.95

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

Product Overview

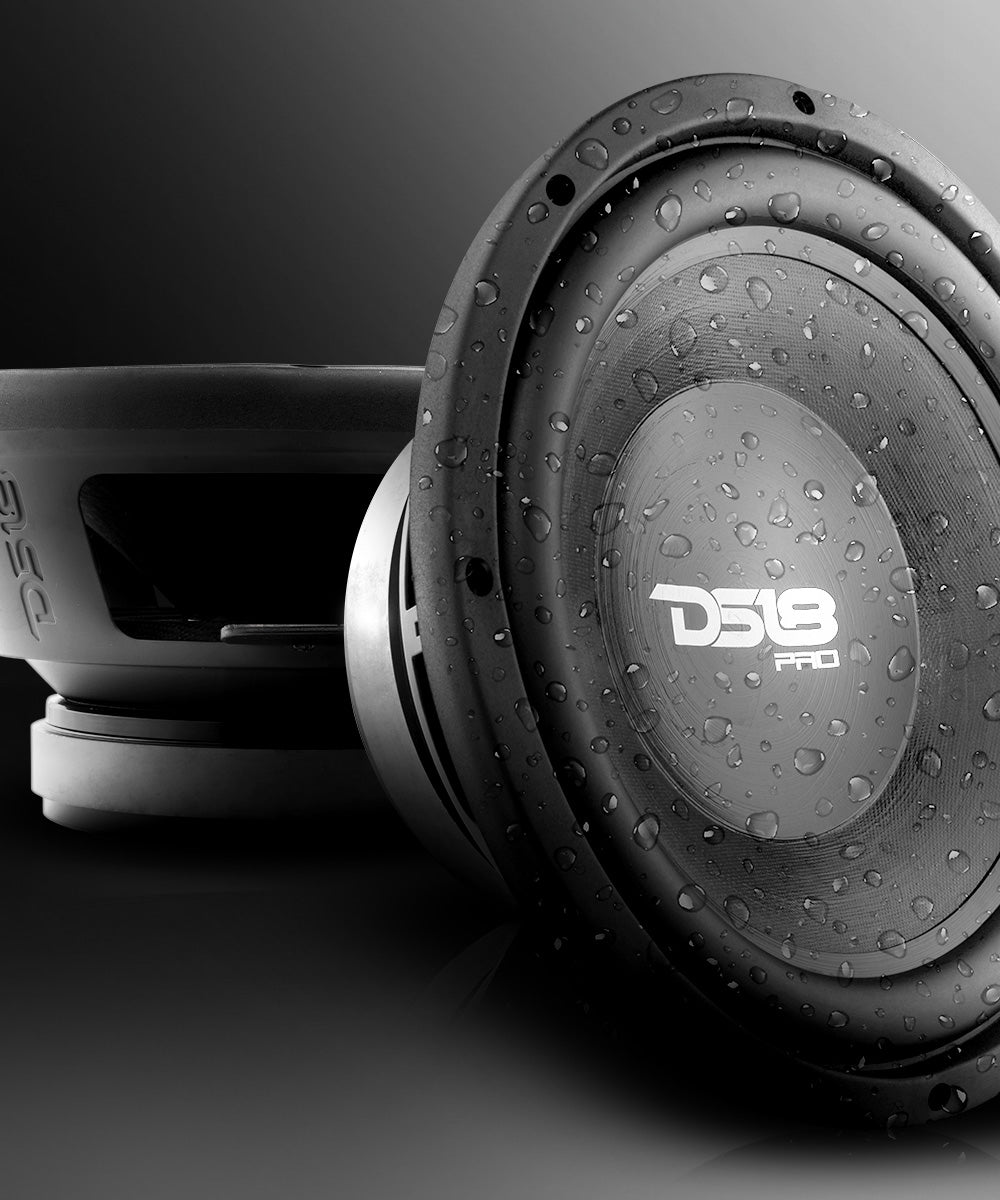

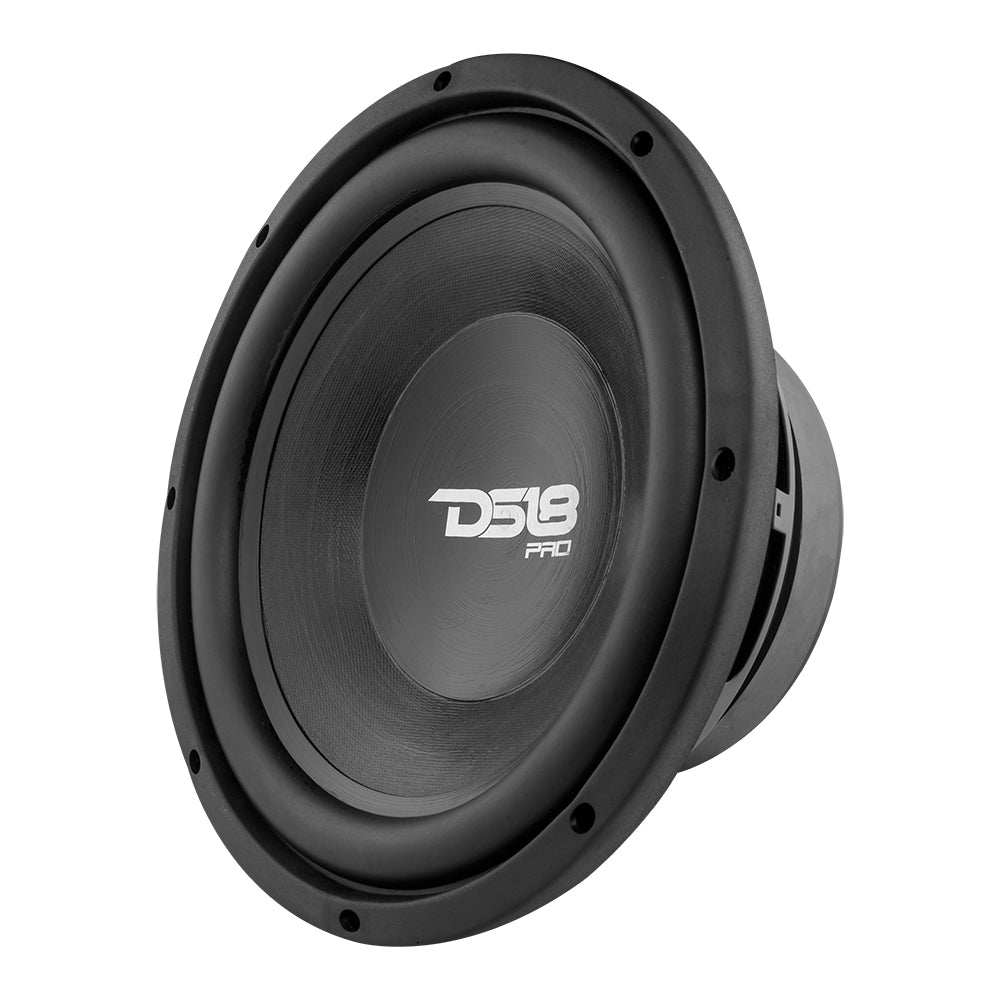

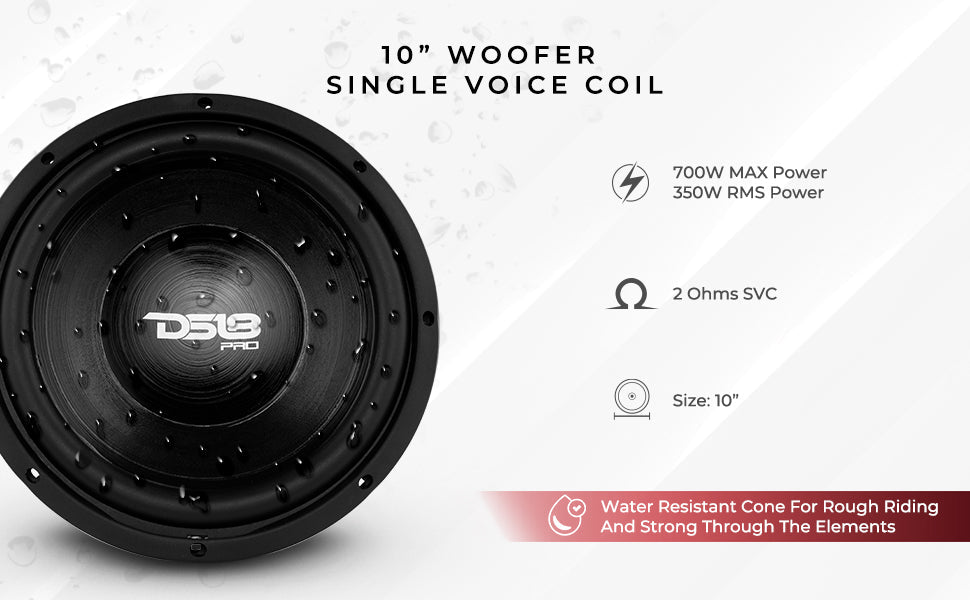

DS18 PRO-W10.2S 10" Water Resistant Motorcycle & Powersports Woofer 700 Watts 2-Ohm Svc

DS18 is proud to present you with a subwoofer long awaited by all bikers and powersports enthusiast alike! The DS18 PRO-W10.2S is a full size water resistant woofer made to withstand harsh elements all while not sacrificing any build quality that normally comes with marine speakers. This hybrid both comes with a standard woofer basket, coil, and motor structure all while the cone of the woofer is water tight and made so it can take any water without risking corrosion and deformation that water naturally causes.

The magnet and basket have also been coated to withstand corrosion. The cone is made of durable light weight plastic with the rubber surround there to make sure things stay tight. This combo allows zero water to penetrate into the inner workings of the subwoofer to ensure long life and loudness. This woofer is offered in single 2 ohms and 4 ohms configurations and handle 350w RMS and 700w Peak power and works very well with both sealed and ported boxes.

Highlights

  • Woofer made especially for motorcycles but can be used in all applications that need a water resistant solution.
  • Don't sacrifice any loudness that you normally loose with IPX rated subs.
  • Coated magnet and basket to help reduce the chances of corrosion.
  • We have released single voice coil 4 ohms and 2 ohms versions so you can optimally set your ohm load with the amplifier of your choice.
  • Durable lightweight plastic cone and rubber surround to prevent any water perturbing down into the working parts and motor of the subwoofer.
  • Made to be loud and clear so you can feel and hear the thump at 70+ MPH highway speed as long as the appropriate power is supplied.

Technical Details
Nominal Diameter 10" (254mm)
Nominal Impedance 2 Ohms SVC
Maximum Power Handing 700 watts
RMS Power Handing 350 watts

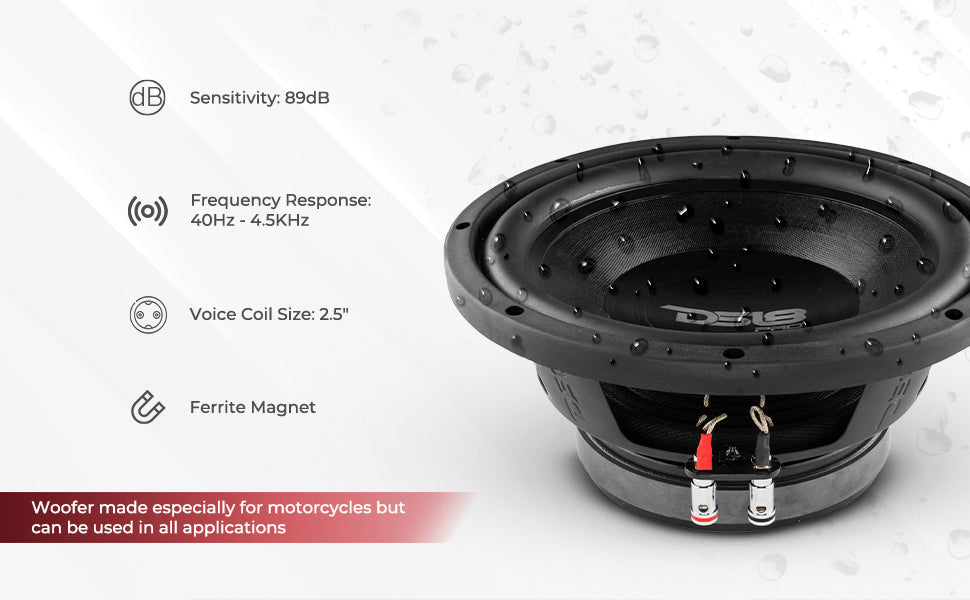

Sensitivity (1w/1m) 89dB
Frequency Response 40Hz - 4.5KHz
Recommended Lo Pass Crossover 180hz
Motor:
Voice Coil Diameter 2.5" (65.5mm)
Voice Coil Former Material 2.12L
Winding Material SV
Cone Material Water resistant paper
Dust Cap Material Water resistant paper
Surround Material Rubber
Basket Material Steel
Magnet Material Ferrite
Magnet Weight 46 oz.
Displacement Volume 2.12L
Thiele & Small Parameters:
Equivalent Volume Vas 18.415 LTR
Excursion (one way) Xmax 12.2 mm
Free Air Resonance Fs 38.8 Hz
Mechanical Factor qms 5.845
Electrical Factor Qes 0.561
Total Factor Qts 0.492
Moving Mass Mms 67.313g
Compliance Cms 0.221mm/N
BI Factor BI 9.81
Voice Coil Inductance Le 1.155mH
Diaphragm Area sd 0.035299sq/m
Dc Resistance 2.0 ohms
Efficiency Band with Product 69.16

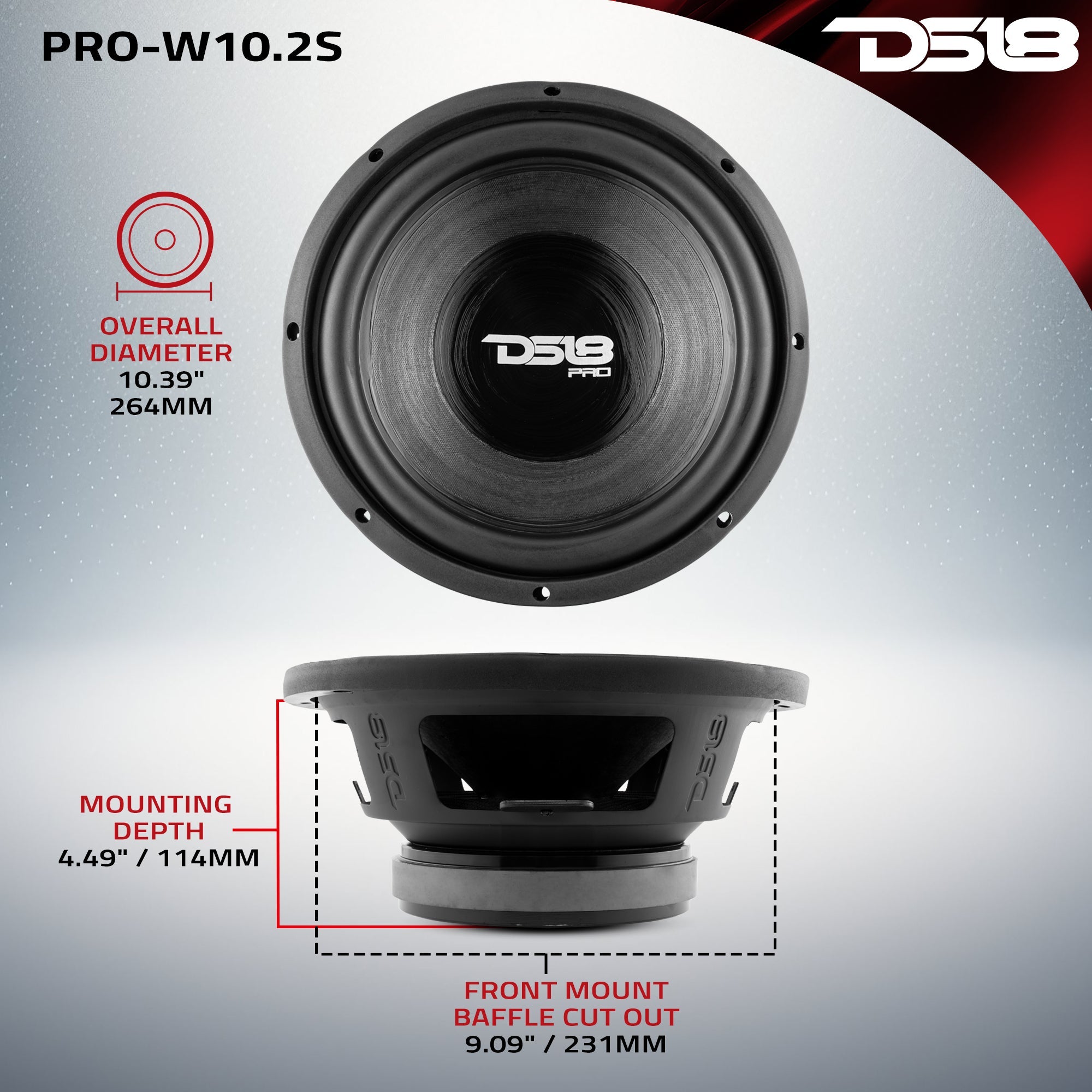

Measurements:
Overall Diameter 264 mm (10.39")
Overall Depth 128 mm (5.04")
Front Mount Baffle Cutout 231 mm (9.09")
Mounting Depth 114 mm (4.49")
Motor Diameter 156 mm (6.14")

Key Features

  • 10" Woofer
  • MAX Power: 700 Watts
  • RMS Power: 350 Watts
  • Impedance: 2-Ohm 2.5" SVC
  • Ferrite Magnet ~ 89dB
  • Water Resistant

Specifications

SKU PRO-W10.2S
Nominal Diameter 10’’ / 254mm
Nominal Impedance 2 Ohm
RMS Power Handling 350W
MAX Power Handling 700W
Sensitivity (1w/1m) 89 dB
Frequency Response 40Hz-5KHz
Recommended Lo Pass Crossover 180hz
Voice Coil Diameter 2.5’’ / 65.5mm
Voice Coil Former Material Til
Winding Material SV
Cone Material Water resistant paper
Dust Cap Material Water resistant paper
Surround Material Rubber
Basket Material Steel
Basket Color/Finish Matte Black
Magnet Material Ferrite
Magnet Weight 46 oz
Displacement Volume 2.12L / 0.075ft3
Equivalent Volume VAS 18.4L / 0.65ft3
Free Air Resonance FS 40 Hz
Mechanical Factor QMS 5.845
Electrical Factor QES 0.561
Total Factor QTS 0.492
Moving Mass MMS 67.313g
Compliance CMS 0.221mm/N
Bl Factor BI 9.81
Voice Coil Inductance LE 1.155mH
Diaphragm Area SD 352.99 cm2
Dc Resistance RE 2.0 Ohm
Efficiency Bandwidth Product EBP 71.3
Sealed Internal Volume 1.4ft3
Sealed Box Output Response F3 53Hz
Ported Internal Volume 1.5ft3
Port Size *Square (W x H x Long) 3" x 3 "x 5.6" / 76 x 76 x 142 mm
Port Tunning Frequency FB 45Hz
Ported Box Output Response F3 38Hz
Dimensions L x W x H (Inches) 11 x 11 x 6
Overall Diameter 10.4" / 264 mm
Overall Depth 5" / 128 mm
Front Mount Baffle Cutout 9.1" / 231 mm
Mounting Depth 4.5" / 114 mm
Motor Diameter 6.14" / 156 mm
Weight (lb) 11.5
M/C Dimensions L x W x H (Inches) 22.5 x 12 x 12.25
M/C Weight (lb) 48
Sold in Single
