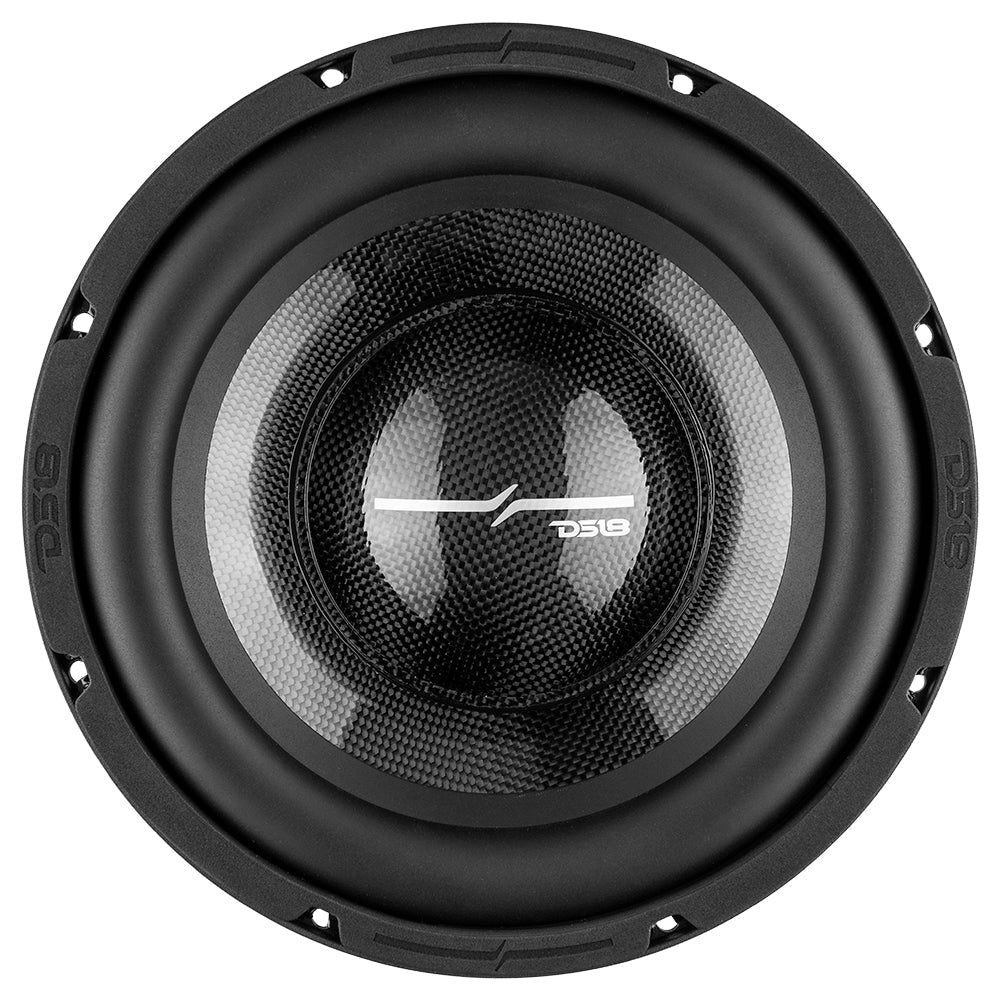

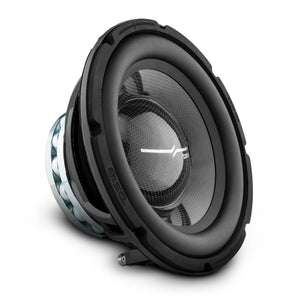

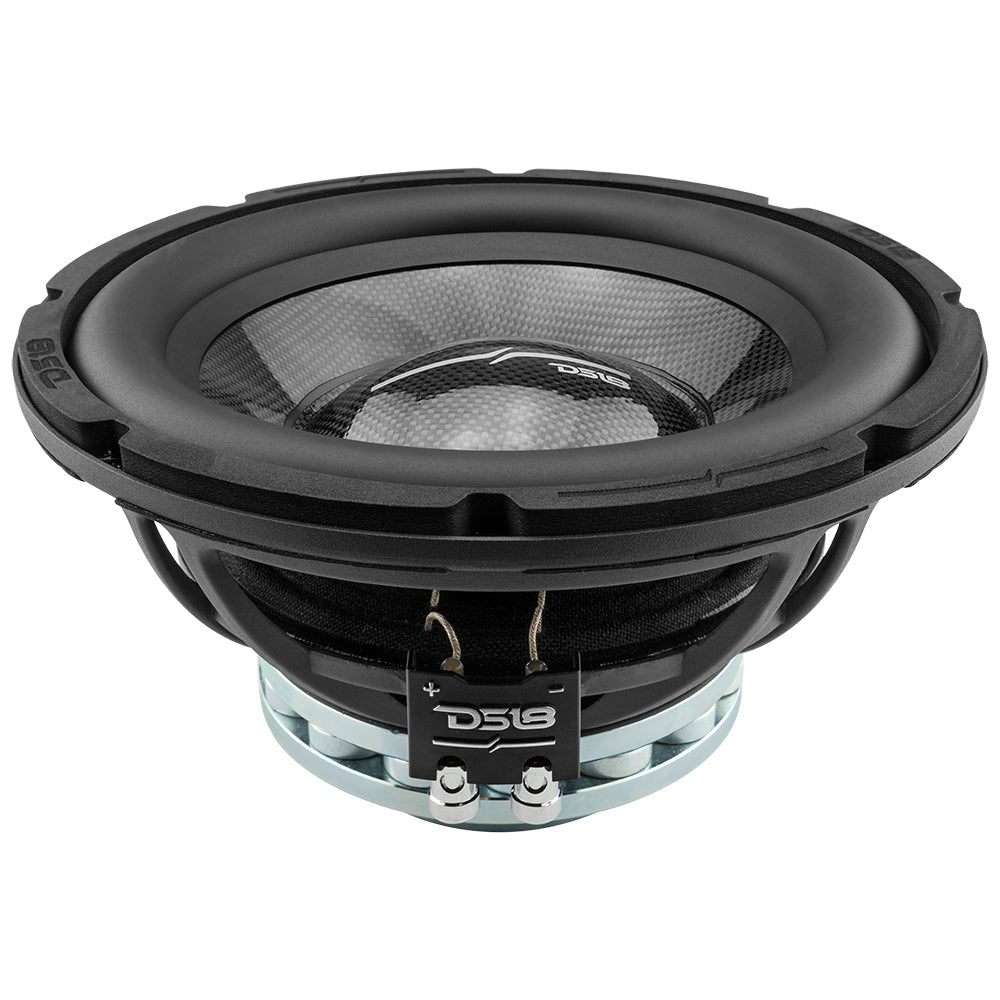

PRO 10" Neodymium Water resistant Carbon Fiber Cone Mid-Bass Woofer 450 Watts Rms 4-Ohm
Product Overview

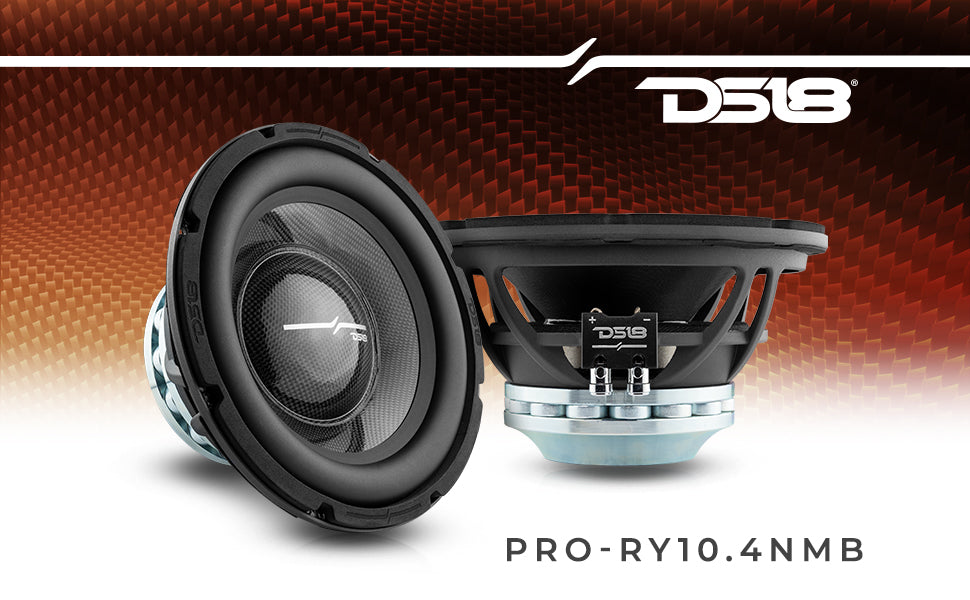

DS18 PRO-RY10.4NMB 10" Mid-Bass /Woofer Carbon Fiber Water Resistant Neodymium Magnet 900 Watts Max 4-ohm
The PRO-RY10.4NMB is here to bring an intense kick to your motorcycle!
The PRO-RY10.4NMB’s neodymium motor promotes higher sensitivity and extreme power handling for professional quality reproduction for casuals, audiophiles, and competitors alike.
This speakers power ratings comes in at an unparalleled 450W RMS and 900W MAX power, helping push this speaker’s ability to deliver raw vocal power that brings your music to life!
With frequency responses as high as 6.3KHZ and as low as 30Hz the PRO-RY10.4NMB has the perfect frequency bandwidth to bring out the best in your music during every session.
The temperature tested 3” TIL Voice Coil utilized by the PRO-RY10.4NMB encourages users to play their music when they want and as long as they want!
The PRO-RY10.4NMB’s cone is made from a carbon fiber and resin mix reinforced by rubber surrounds for extra protection. Never worry about getting caught in the rain again! Every part used in the construction of this speaker has been coated to withstand the effects of corrosion caused by environmental damage. This ensures your speaker will play and last as long as you want!
The PRO-RY10.4NMB is applicable in builds of any kind (Car and Powersports Builds) due to its resistance to water and intense reproduction capabilities!
Order your PRO-RY10.4NMB today to get LOUD and stay there!
Highlights
- Water Resistant Mid Bass Woofer designed especially for motorcycles but applicable in many builds
- Durable Aluminum Basket with Carbon Fiber and Resin Cone for maximum resistance against environmental damage
- 6mm Xmax one way for fuller deeper mid bass frequency responses

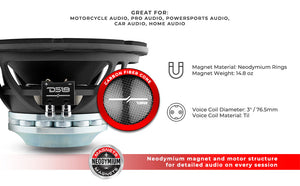

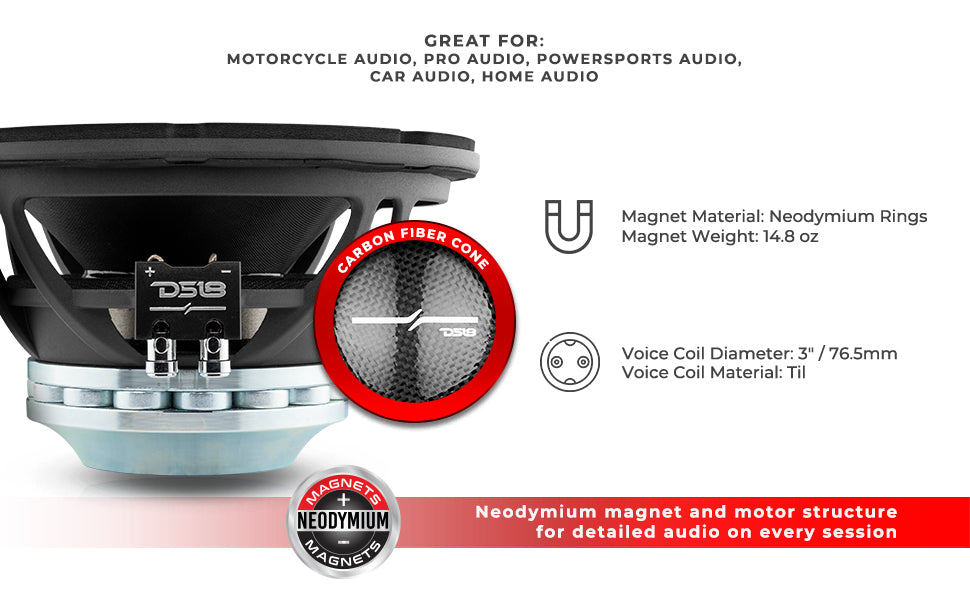

- Neodymium magnet and motor structure for detailed audio on every session

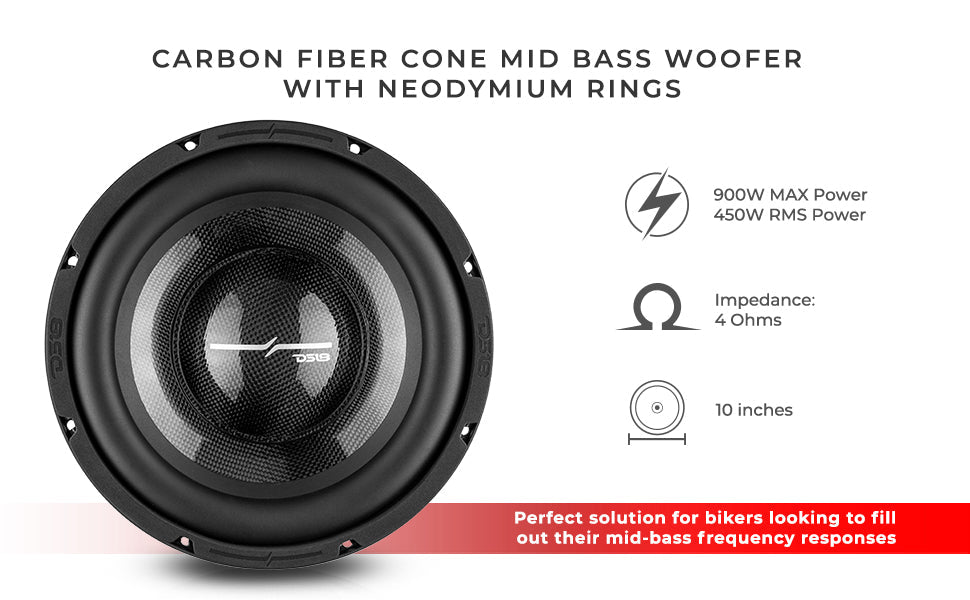

- Perfect solution for bikers looking to fill out their mid-bass frequency responses

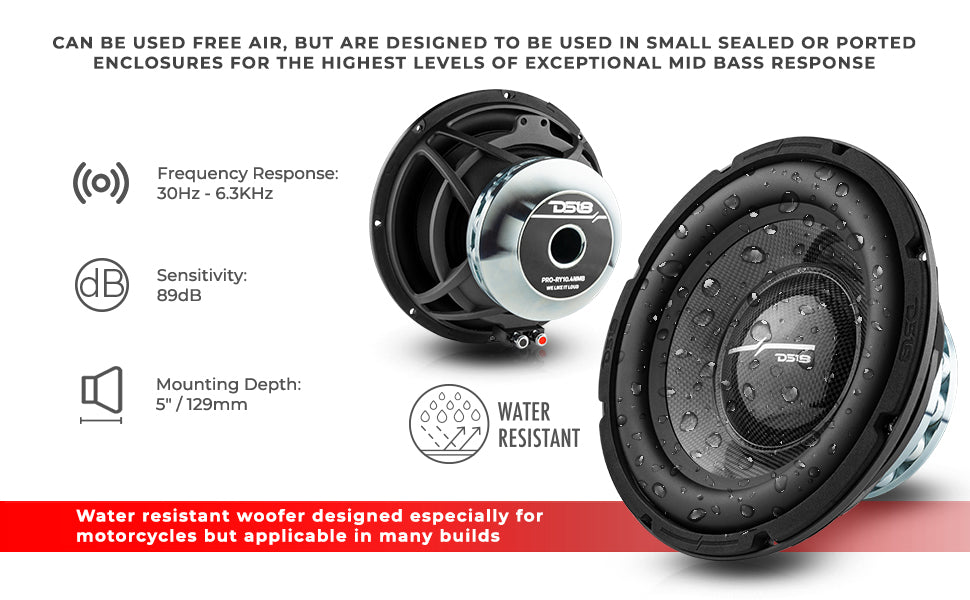

- Can be used free air, but are designed to be used in small sealed or ported enclosures for the highest levels of exceptional mid bass response
Great For
- Motorcycle Audio
- Pro Audio
- Powersports Audio
- Car Audio
- Home Audio
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 10" / 254 mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 450 W |
| MAX Power Handling | 900 W |
| Sensitivity (1w/1m) | 89 dB |
| Frequency Response | 30Hz - 6.3KHz |
| Recommended HI Pass Crossover | 300 Hz |
| Pair or Single | Single |
| MOTOR | |
| Voice Coil Diameter | 3" / 76.5mm |
| Voice Coil Former Material | TIL |
| Winding Material | CCAW |
| Cone Material | Carbon Fiber + Resin |
| Dust Cap Material | Carbon Fiber + Resin |
| Surround Material | Rubber |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Neodymium Rings |
| Magnet Weight | 14.8 oz |
| Displacement Volume | 0.84L / 0.03ft3 |

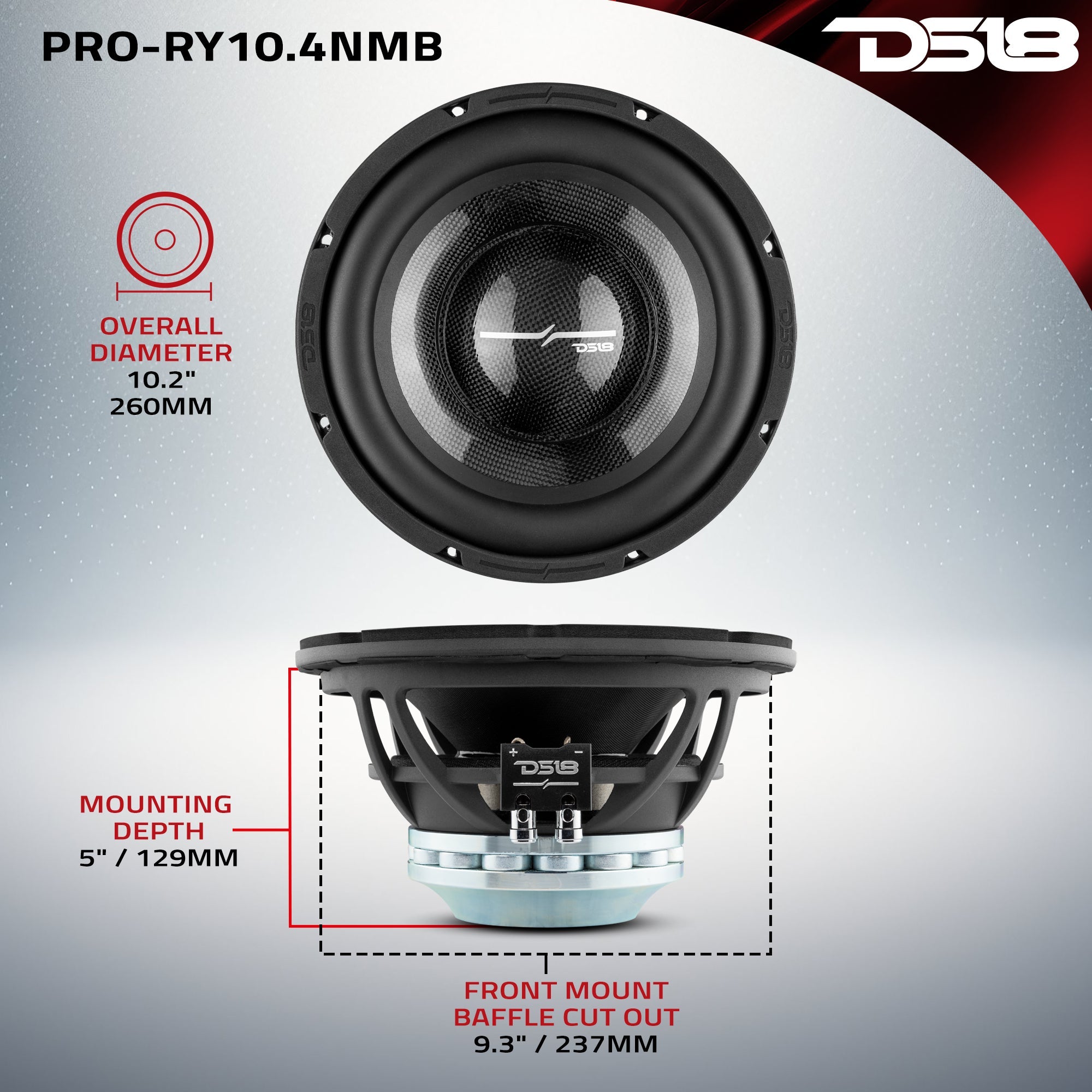

| MEASUREMENT | |
| Overall Diameter | 10.2" / 260mm |
| Overall Depth | 5.6" / 143mm |
| Front Mount Baffle Cutout | 9.3" / 237mm |
| Mounting Depth | 5" / 129mm |
| Motor Diameter | 5.7" / 145mm |
Key Features
- 10" Mid-Bass Woofer
- Water Resistant Carbon Fiber Cone
- MAX Power: 900 Watts
- RMS Power: 450 Watts
- Impedance: 4-Ohm 3" SVC
- Neodymium Magnet ~ 89dB
Specifications
| SKU | PRO-RY10.4NMB |
|---|---|
| Nominal Diameter | 10" / 254 mm |
| Nominal Impedance | 4 OHMS |
| RMS Power Handing | 450 Watts |
| Maximum Power Handing | 900 Watts |
| Sensitivity (1w/1m) | 89 dB |
| Frequency Response | 30Hz-6.3KHz |
| Recommended Hi Pass Crossover | 300 Hz |
| Voice Coil Diameter | 3" / 76.5 mm |
| Voice Coil Former Material | Til |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 14.8 Oz |
| Vas | 16.7 L / 0.59 ft3 |
| Fs | 47.7 Hz |
| Qms | 6.4 |
| Qes | 0.93 |
| Qts | 0.81 |
| Re | 3.51 OHMS |
| Overall Diameter | 10.2" / 260 mm |
| Front Mount Baffle Cutout | 9.3" / 237 mm |
| Mounting Depth | 5" / 129 mm |
| Overall Depth | 5.6" / 143 mm |
| Product Weight | 12.5 lbs |
| Product Dimensions | 11.25 x 11.25 x 7.25 |
| M/C Weight | 26.5 lbs |
| M/C Dimensions | 12 x 12 x 15.5 |
| M/C QTY | 2 |
| Sold In | Piece |
