Product Overview
DS18 PRO-HY8MSL

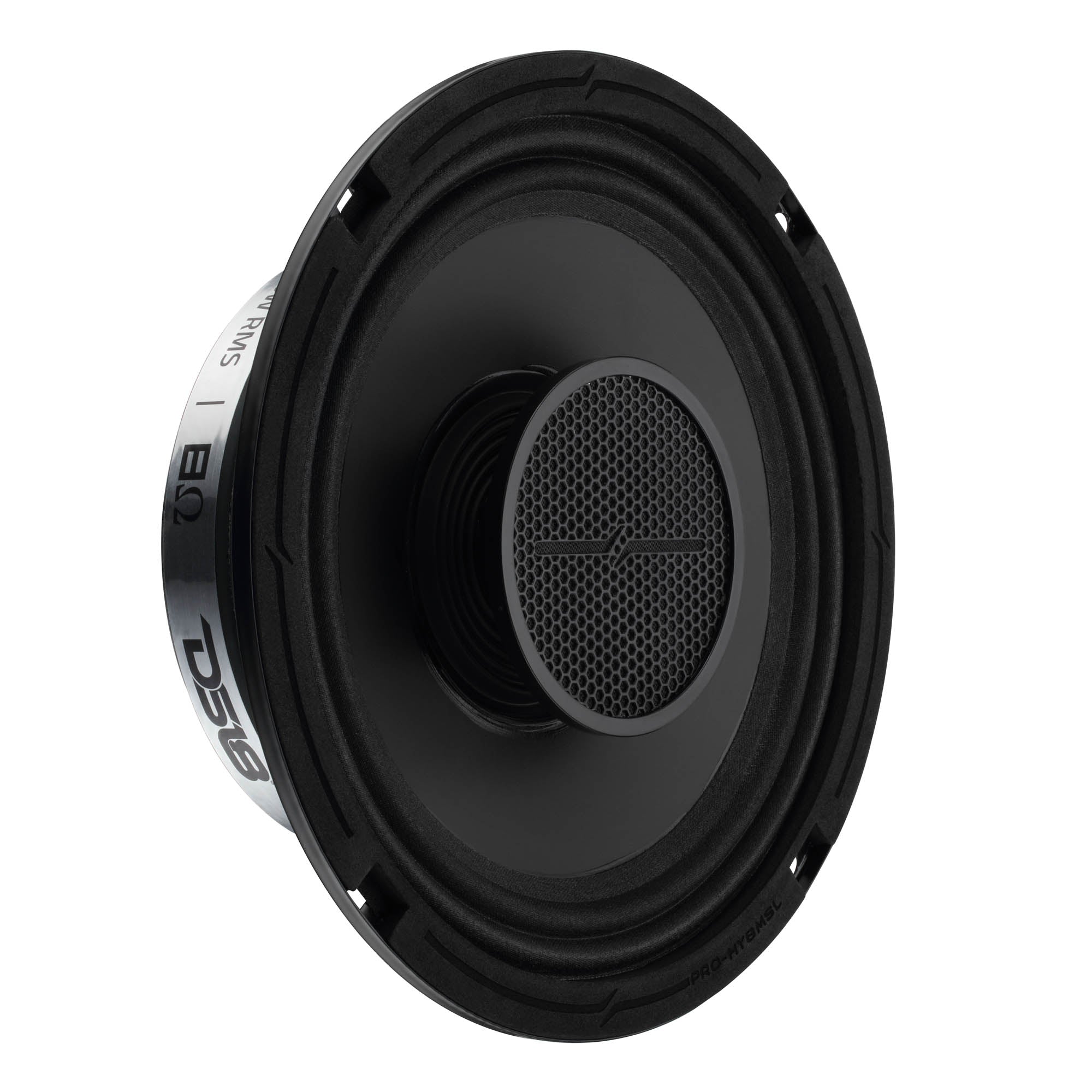

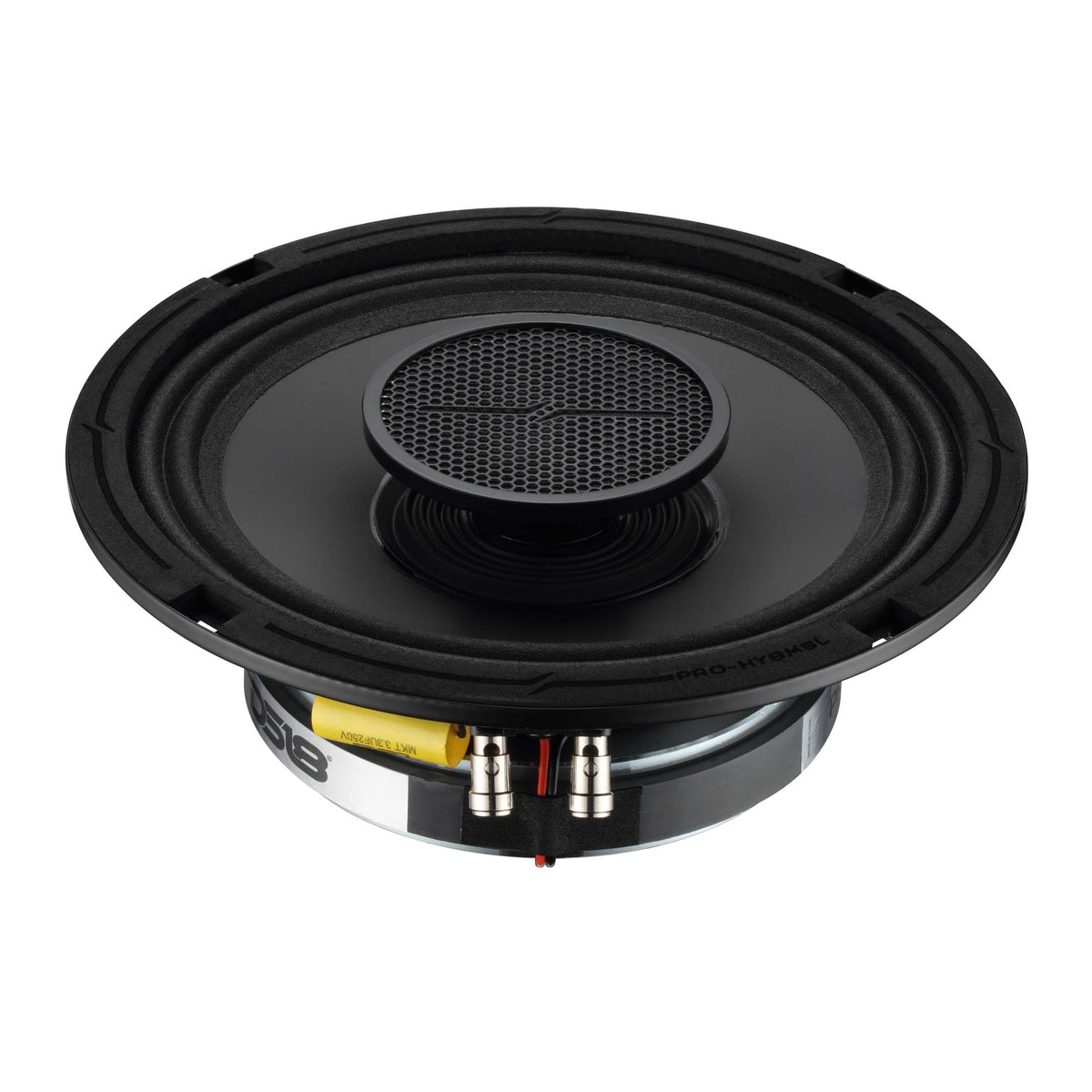

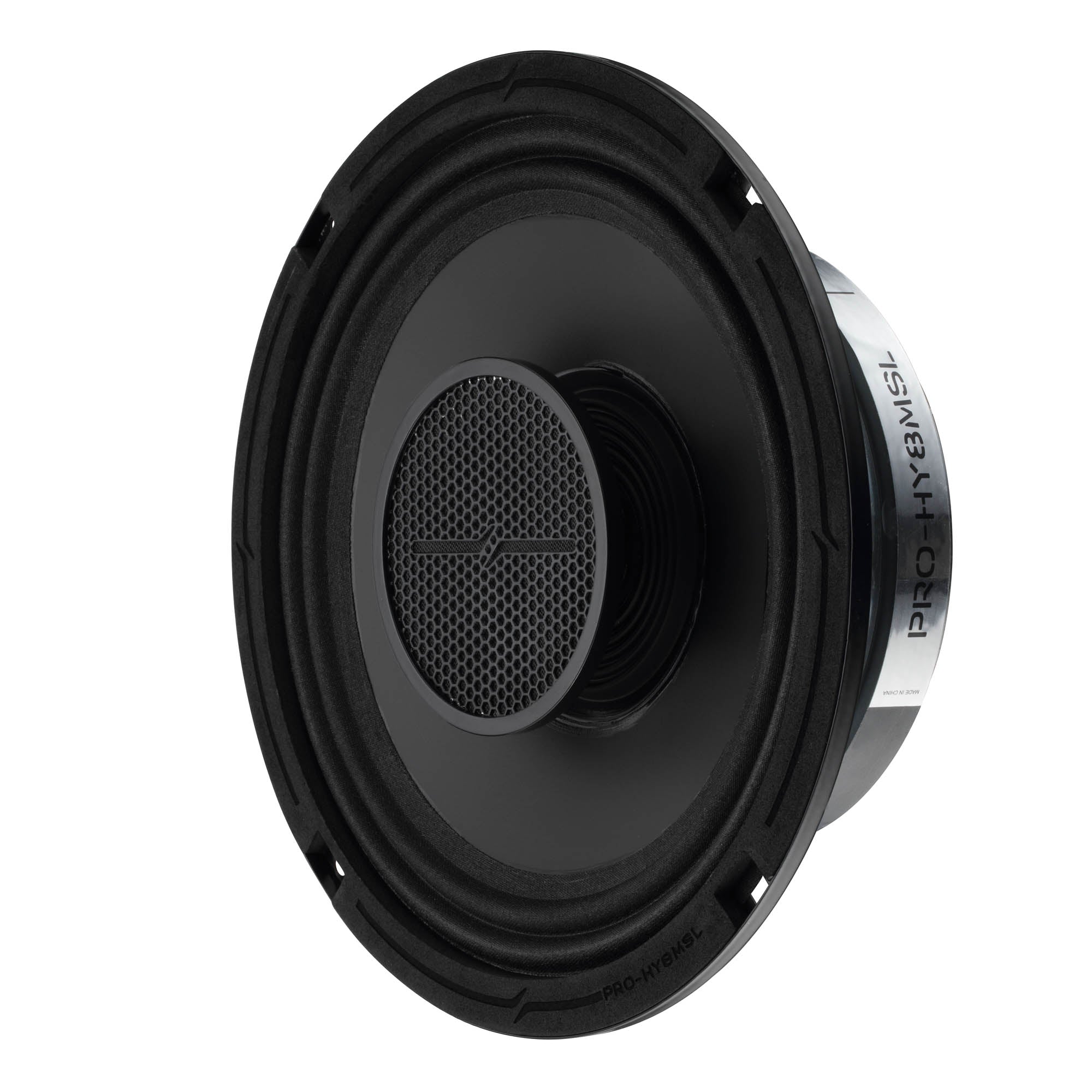

8” Hybrid Slim Loudspeaker With 1” Compression Driver Horn
The PRO-HY8MSL brings full-range power to tight installs. We’ve given you the best of both worlds: a high-output midrange AND compression driver, packed into a water-resistant, off-road–ready design that fits where others can’t.
HYBRID DESIGN FOR FULL-RANGE SOUND

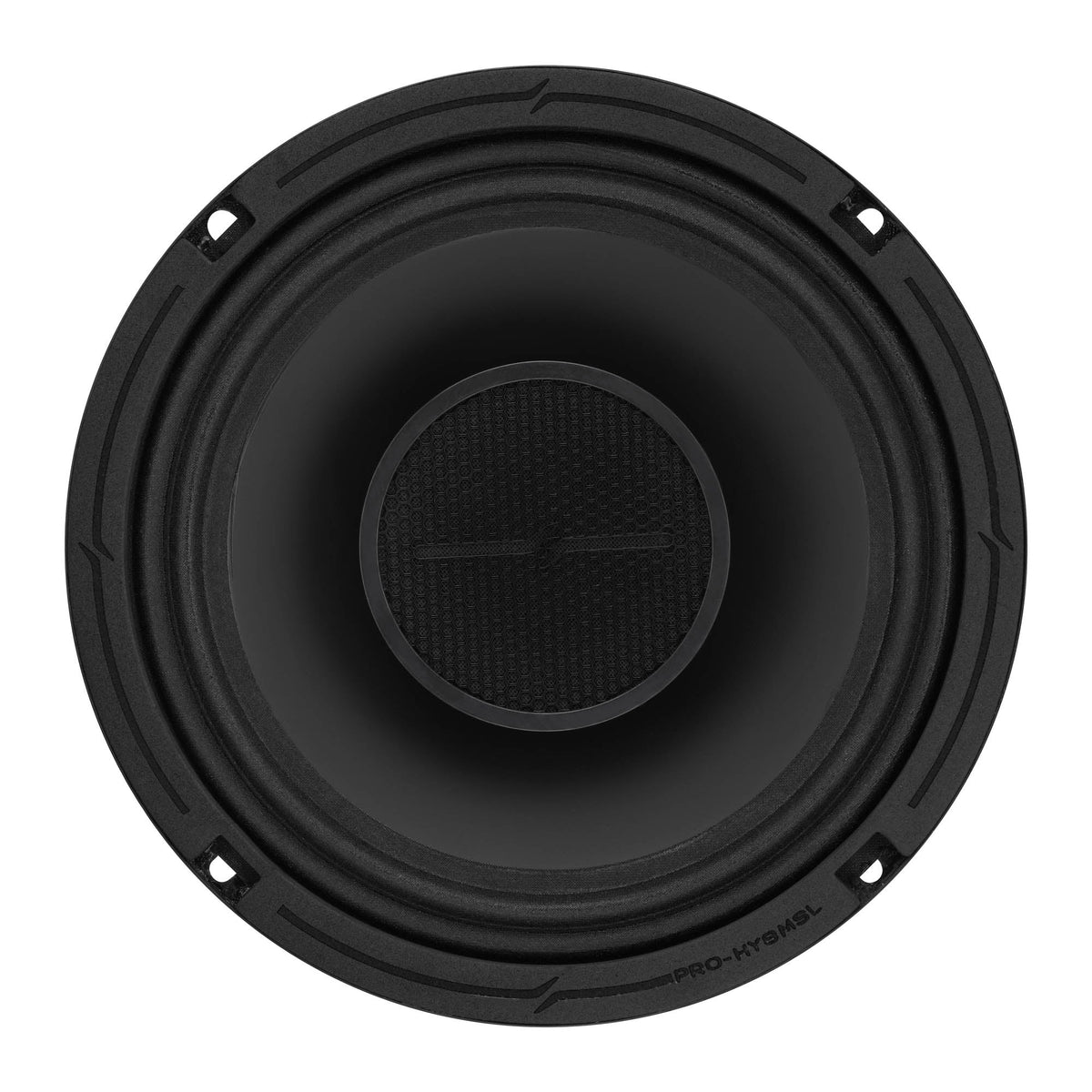

This speaker pairs a treated cloth surround + water-resistant paper cone midrange with a titanium compression driver for powerful highs and rich mid clarity. Rated at 200W RMS with a 100Hz–20kHz response range, you get high SPL output across a wide bandwidth.
SHALLOW MOUNT. BIG SOUND.
With a mounting depth of only 3.15”, the PRO-HY8MSL is perfect for motorcycles, UTVs, SXS, Slingshots, and Jeep pods. It fits in tight panels and fairings while still delivering 97dB sensitivity for serious volume at any power level.
IP65 WATER-RESISTANT + SUN PROTECTED

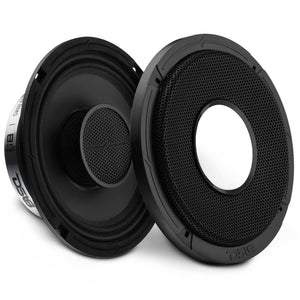

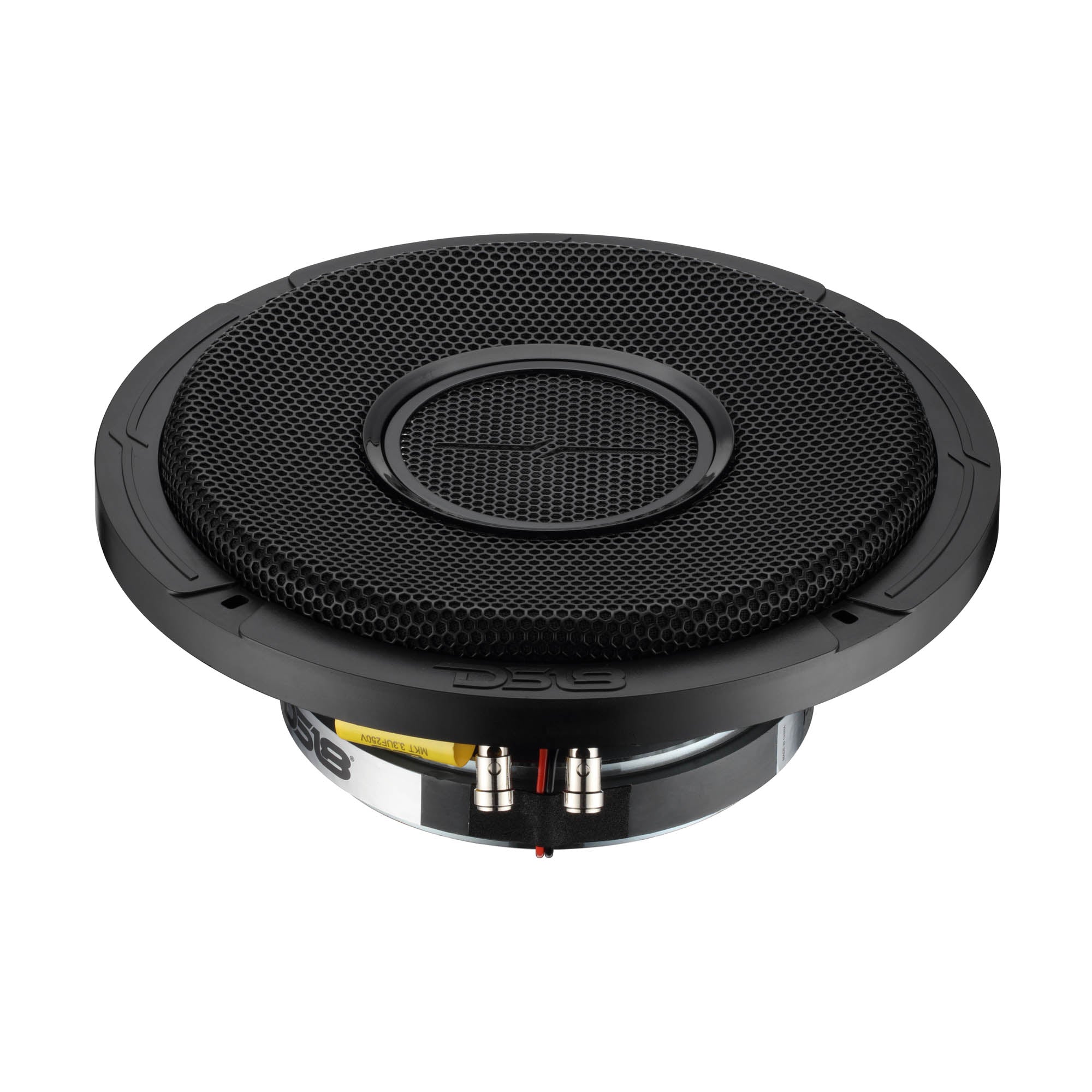

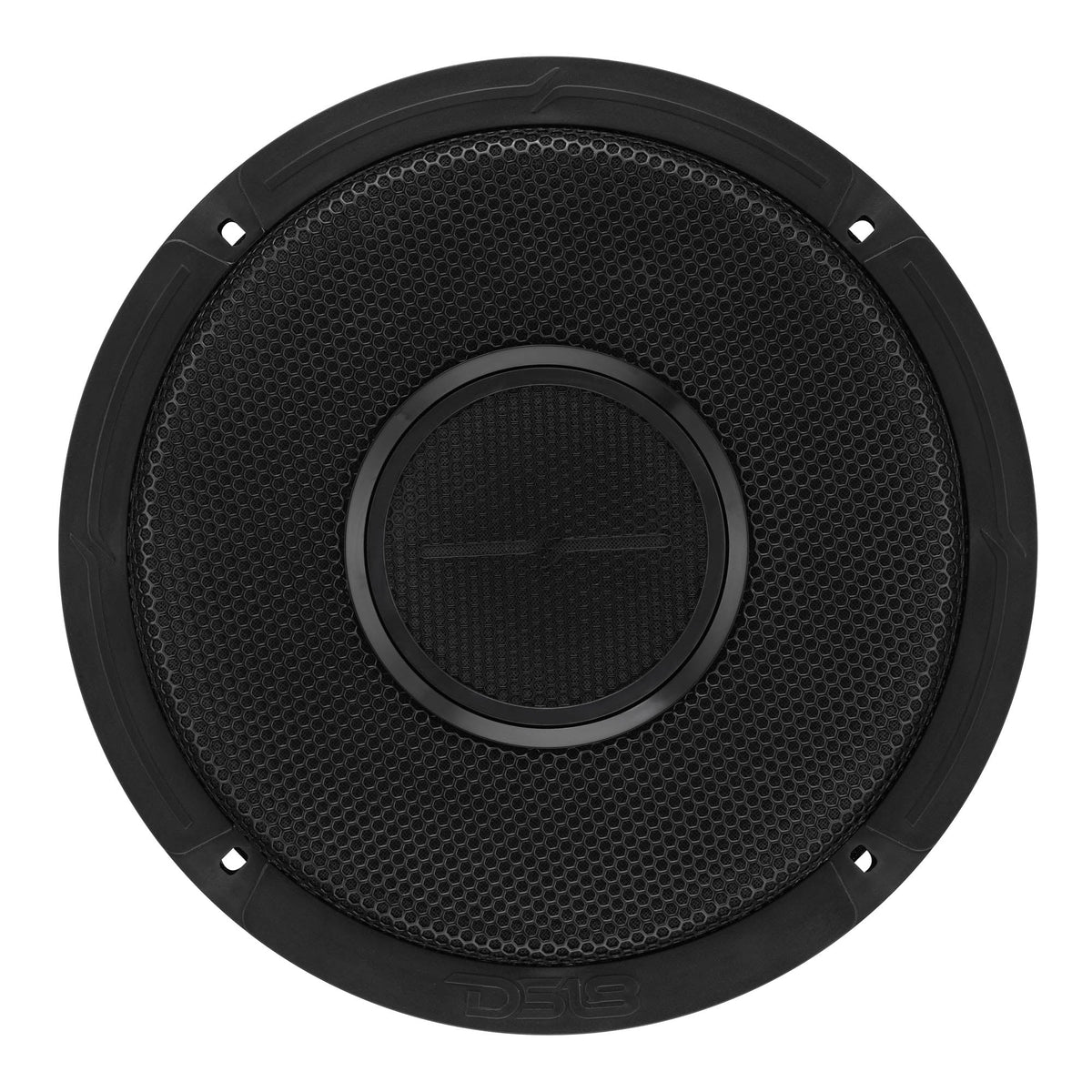

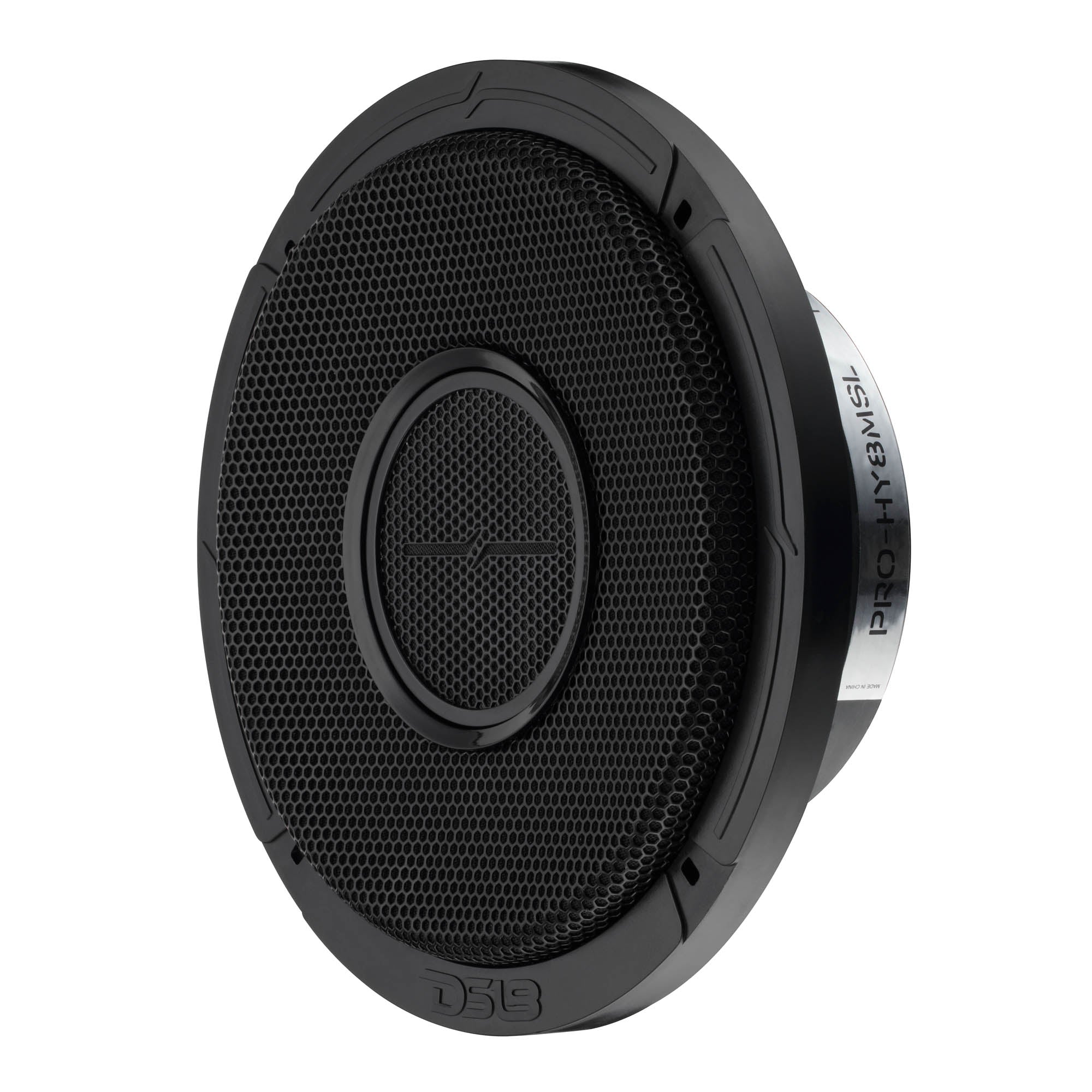

The PRO-HY8MSL features upgraded treated cloth surrounds and a water-resistant cone. The included grille now has a sun- and water-protective cloth backing, and the entire speaker is IP65 rated to withstand anything you run into on- or off-road.

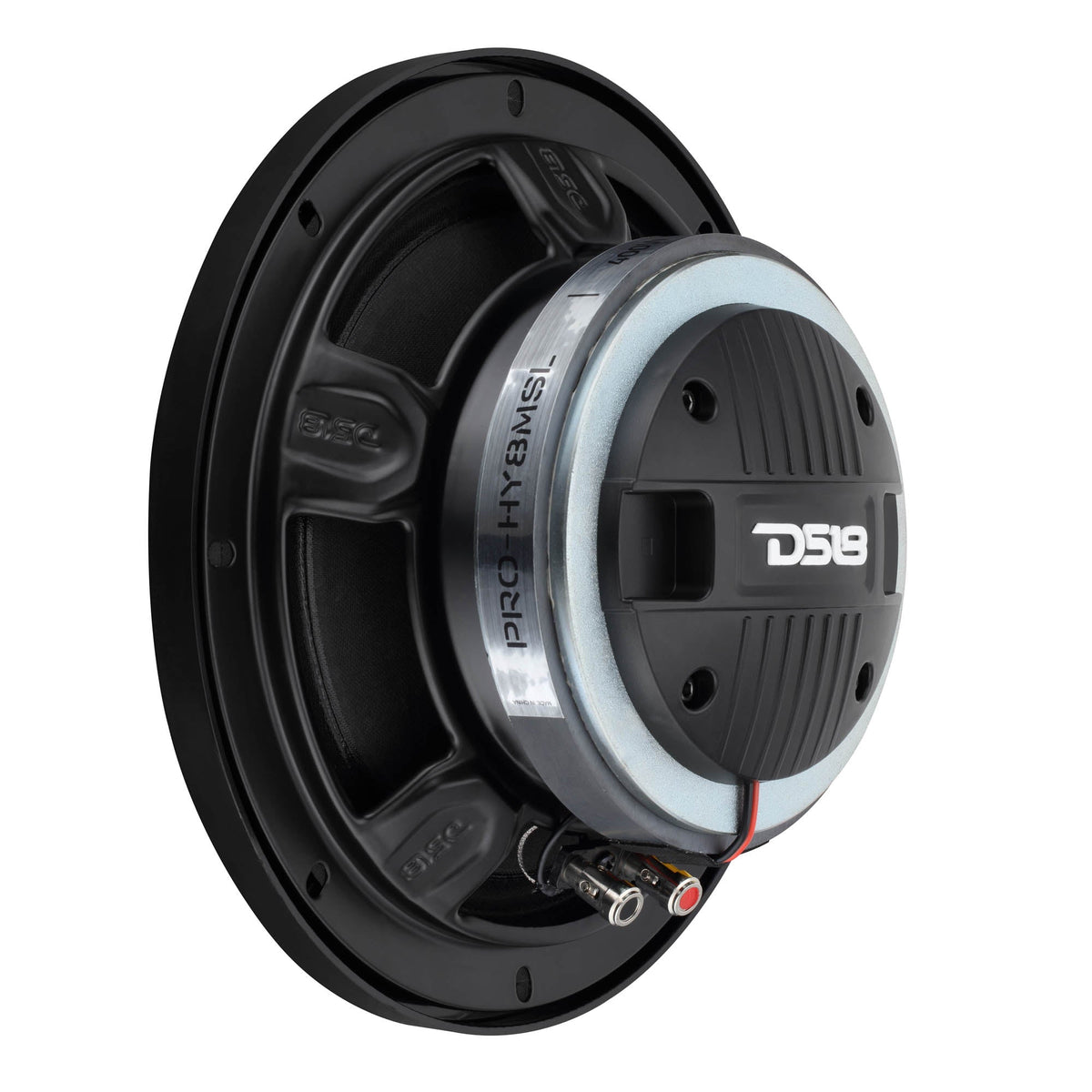

NEODYMIUM DRIVER + 3” HORN FOR MAX OUTPUT
Inside the 1” titanium compression driver is a neodymium motor, giving you fast, accurate highs in a compact form. The 3” horn helps project sound clearly through wind and road noise so your music cuts through—on the move or at full throttle.
8Ω COMPATIBILITY FOR EASY SYSTEM MATCHING
With a 8Ω impedance, the PRO-HY8MSL is easy to pair with aftermarket amps and crossovers. Upgrading your factory pods or building a custom system? It’s ready to get loud!
The PRO-HY8MSL is slim enough to fit anywhere, loud enough to lead, and built tough enough to survive your wildest rides.
Key Features
- 8” Slim Hybrid Loudspeaker
- 200W RMS / 400W MAX
- 1” Titanium Compression Driver
- IP65 Rated + Grille w/ Water/Sun Protection Cloth
- Neodymium Driver Magnet / Ferrite Woofer Magnet
- Mounting Depth: 3.15”
Specifications
| SKU | PRO-HY8MSL |
|---|---|
| Nominal Diameter | 8" / 203.2mm |
| Nominal Impedance | 8 Ohm |
| RMS Power Handling | 200W |
| MAX Power Handling | 400W |
| Sensitivity (1w/1m) | 98dB |
| Frequency Response | 100Hz - 20Khz |
| Recommended HI Pass Crossover | 120Hz |
| Number of ways | 2 ways |
| Pair or Single | Single |

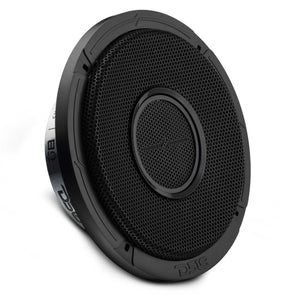

| Grill Included | Yes |
| Voice Coil Diameter | 2" / 50.8mm / 1" / 25.4mm |
| Voice Coil Former Material | KSV / Kapton |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite / Neodymium |
| Magnet Weight | 29.5 Oz |
| Equivalent Volume Vas | 7.85L / 0.277ft3 |
| Excursion (one way) Xmax | 2mm |
| Free Air Resonance Fs | 114Hz |
| Mechanical Factor Qms | 6.282 |
| Electrical Factor Qes | 0.984 |
| Total Factor Qts | 0.851 |
| Mechanical Mass Mms | 16.357g |
| Mechanical Compliance Cms | 118.033 mm/N |
| BL Factor BL | 8.817 |
| Voice Coil Inductance Le | 12.06mH |
| Cone Area Sd | 216.424 Cm2 |
| DC Resistance Re | 6.5 ohm |
| Mechanical Mass w/o air Mmd | 14.527g |
| Diaphragm Material | Titanium |
| Horn Diameter | 3" / 76.2mm |
| Overall Diameter | 8.2" / 209mm |
| Overall Depth | 4" / 102.5mm |

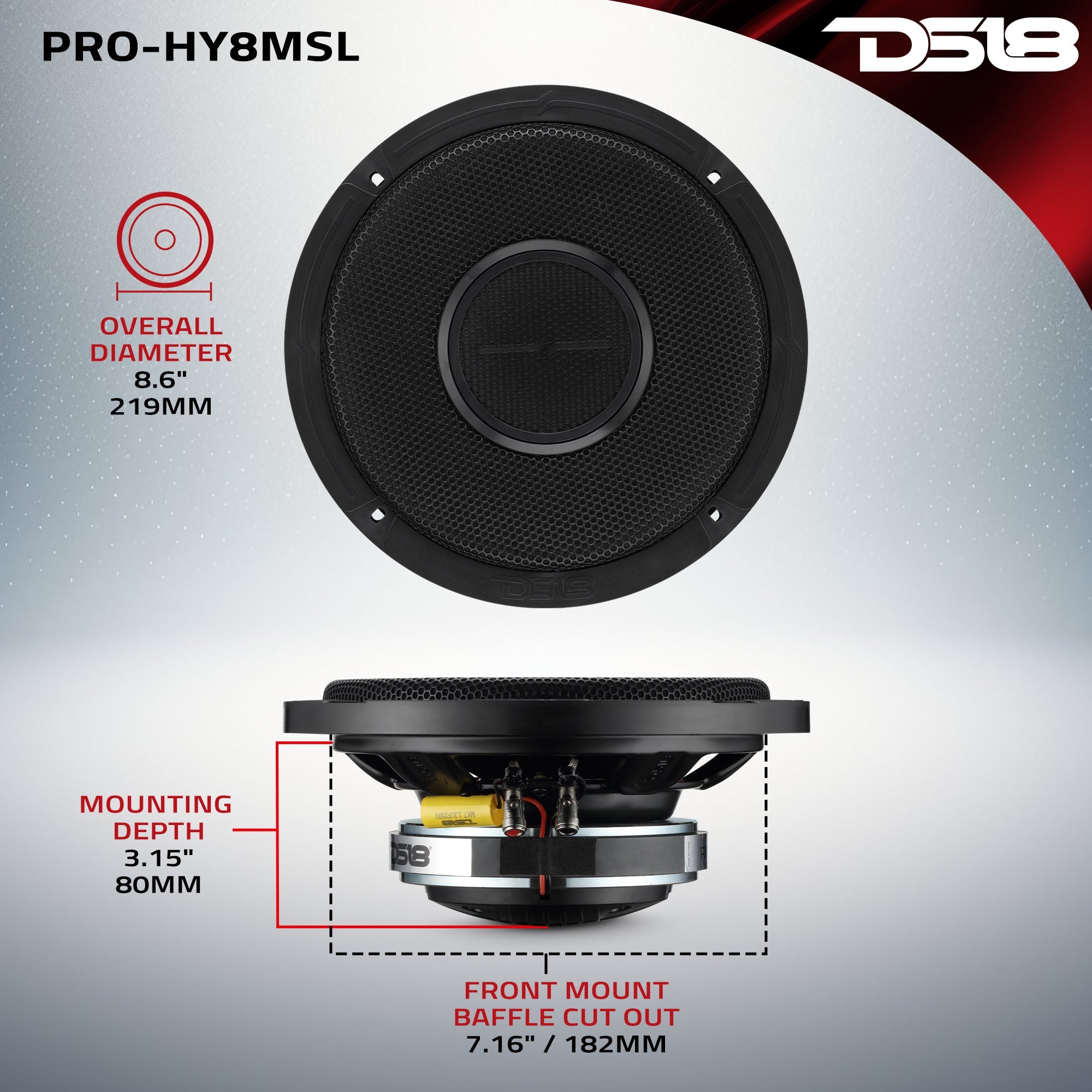

| Front Mount Baffle Cutout | 7.16" / 182mm |

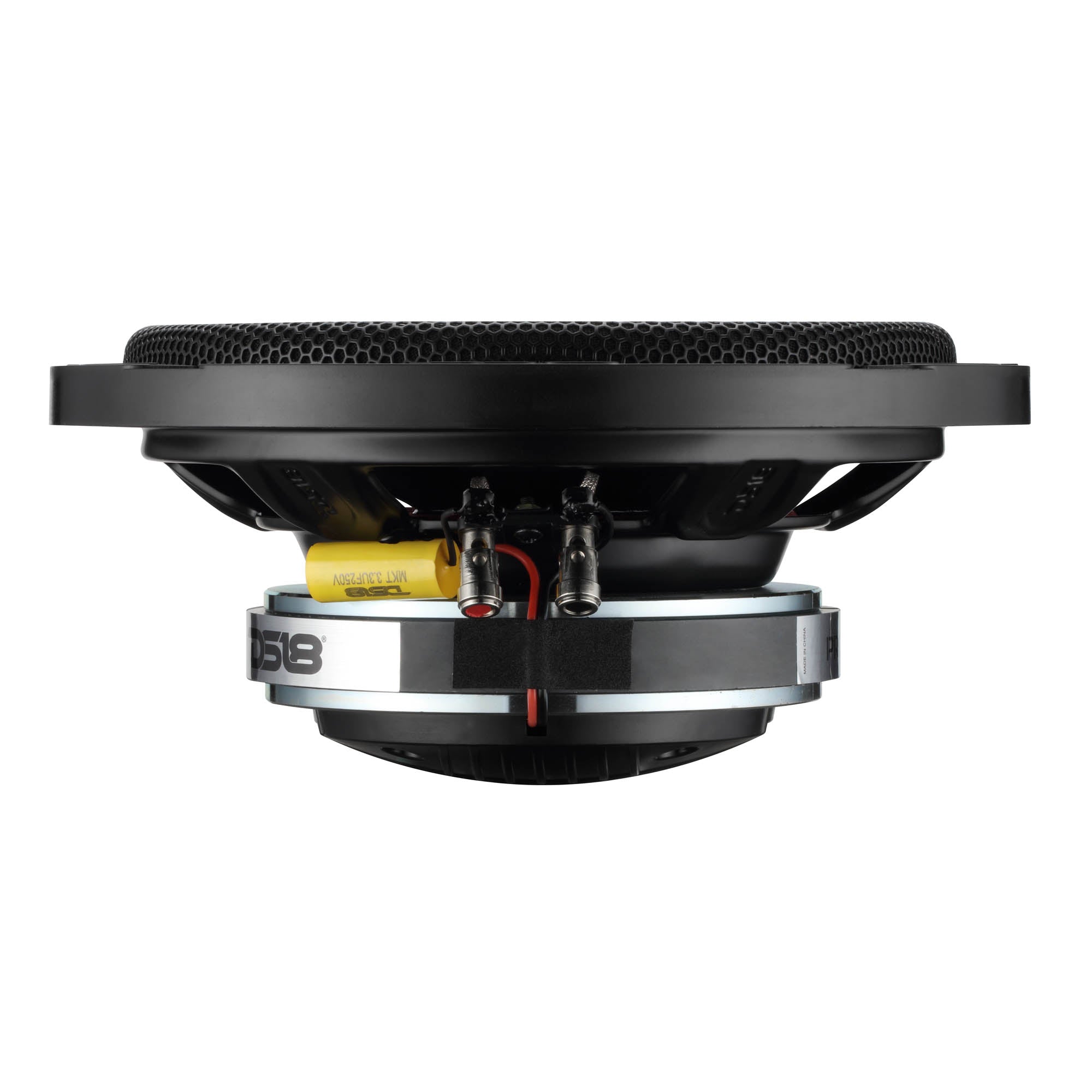

| Mounting Depth | 3.15" / 80mm |
| Motor Diameter | 5.27" / 134mm |
| Gross Single Unit Weight | 5.75 |
| Single Unit Box Dimensions L x W x H (Inches) | 9 x 9 x 4.75 |
| Quantity of Units in Master Carton | 8 |
| Gross Master Carton Weight | 49 |
| Master Carton Dimensions L x W x H (Inches) | 18.5 x 18.5 x 10.25 |
