Product Overview
DS18 CANDY-X2B
Compact Full-Range Class D 2-Channel Car Amplifier 800W
DS18’s CANDY-X2B is a compact 2-channel amplifier that delivers serious output in the tightest spaces. You can upgrade your OEM system, build a stealth install, or get sweet stereo power with deep tuning control — the CANDY-X2B does it all!
Big Power
With 200W RMS @ 2Ω, 120W RMS @ 4Ω, and 350W RMS bridged @ 4Ω, the CANDY-X2B powers mids, highs, or subs with ease. Run it in stereo or bridged — you get full-system flexibility in a 6.5" chassis.
Tuned Your Way

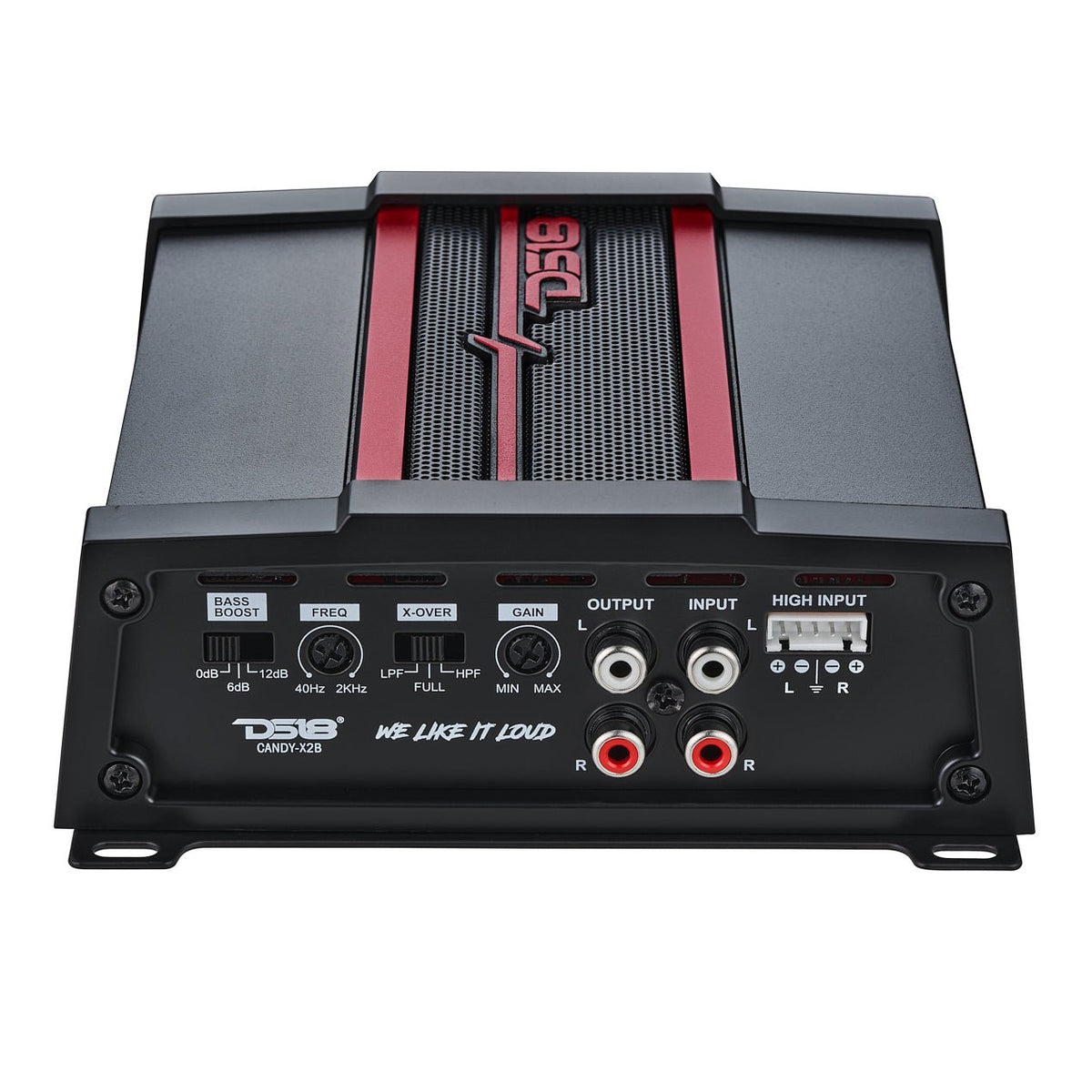

Adjust your crossover filters (LPF/FULL/HPF) from 40Hz–2kHz and use the Bass Boost selector (0/6/12dB) to dial in the perfect sound. Get crystal-clear clarity or pro-level punch, the CANDY-X2B gives you full control.
Ready For Your System
Thanks to its Hi-Level Inputs and Auto Turn-On, this amp integrates cleanly into factory audio systems — no remote wire needed. It’s installer-friendly and ready for your system.
Clean Power
Enjoy a 20Hz–20kHz frequency response, 0.5% THD, and >75% efficiency for crisp, distortion-free sound. Built-in protection keeps you covered from thermal overload, shorts, and voltage swings (9V–16V).
Go LOUD with the CANDY-X2B and bring full-size performance to compact, custom, or OEM setups!
Key Features
- 200W x 2 @ 2 Ohm | 120W x 2 @ 4 Ohm | 350W @ 4 Ohm Bridged
- Selectable Crossover + 0/6/12dB Bass Boost
- 40Hz–2kHz Filter Range
- Auto Turn-On Ready
Specifications
| SKU | CANDY-X2B |
|---|---|
| Total Watts (Peak) | 800W |
| RMS Power @ 4 Ohm | 120W x 2 |
| RMS Power @ 2 Ohm | 200W x 2 |
| RMS Power @ 1 Ohm | - |
| RMS Power @ 4 Ohm Bridge | 350W |
| Frequency Response | 20Hz~20KHz |
| Signal to Noise Ratio | 70dB |
| Efficiency @ 4ohm | >75% |
| Damping Factor | 26 |
| Input Impedance | 10K ohm |
| Channel Separation | 50dB |
| Total Harmonic Distortion (THD) | 0.50% |
| Low Level Input Range | 0.2~6V |
| High Level Input | Yes, 2~10V |
| Selectable X-Over | LPF/FULL/HPF |
| X-Over Filter Range | 40Hz~2kHz |
| Bass Boost Range | 0/6/12dB |
| Bass Boost Frequency | 50Hz |
| Infrasonic Filter | No |
| Phase Selector | No |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 2 |
| Minimum Impedance | 2 ohm St / 4 ohm Bridge |
| Led Indicator | Power / Protection |
| Power Input Terminal Size | 4Ga |
| Fuse Size | 25A |
| Remote Level Control | No |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes (>158F) |
| Over-Load Protection | Yes |
| DC Output Protection | No |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (9-16v) |
| Clipping Protection | No |
| Body Color / Finish | Matte Black |
| Hi-Level Input With Auto Turn-On | Yes |
| Input Selector | No |
| Compact Size to easy Installation for Any Applications | Yes |

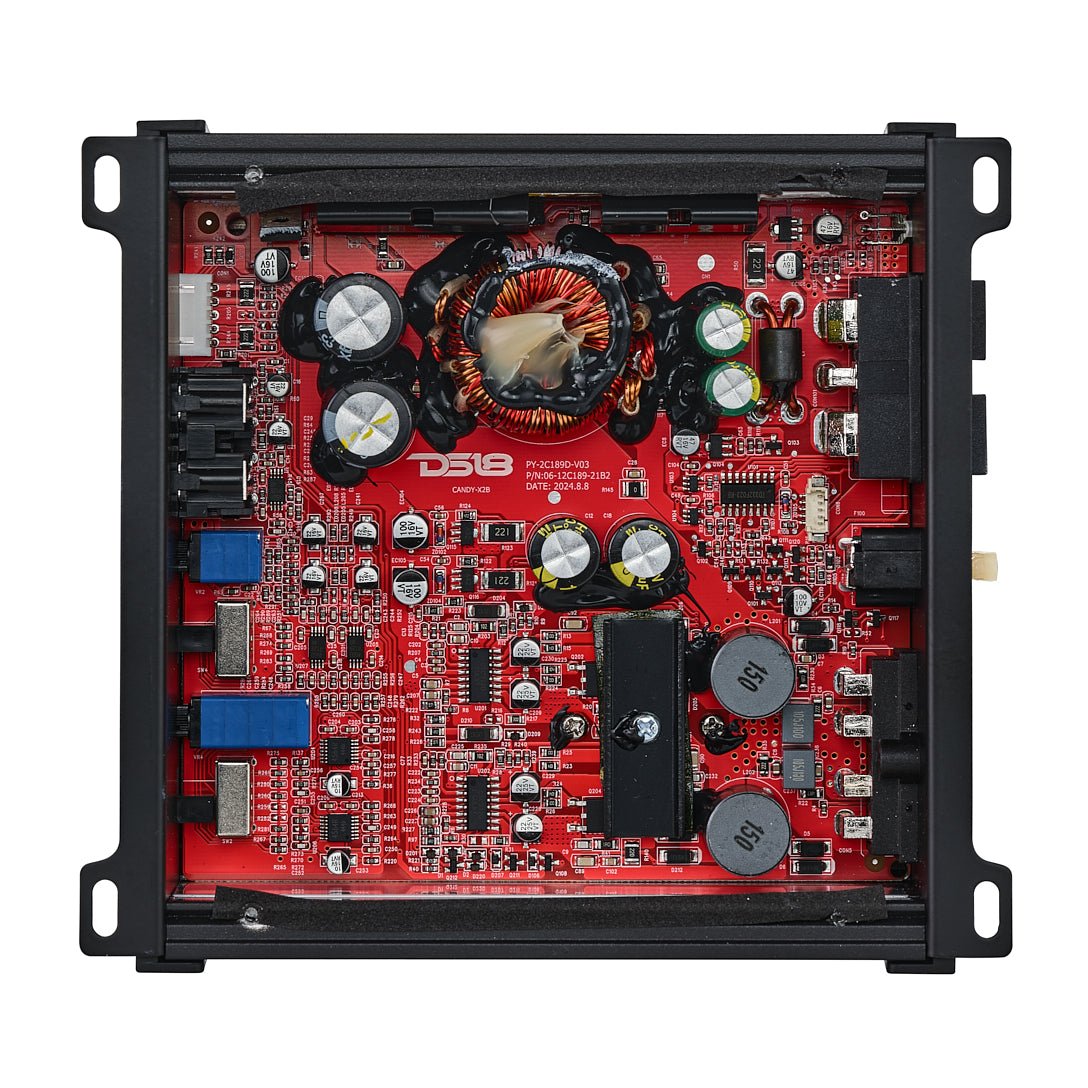

| Surface Mount Component Technology | Yes |
| Quality Control Verification using Audio Precision Instruments | Yes |
| Overall Length | 6.5" / 165mm |
| Overall Width | 5.9" / 150mm |
| Overall Height | 2.16" / 55mm |
| Heatsink Length | 5.27" / 134mm |
| Gross Single Unit Weight | 1.7Kg |
