Product Overview
Monoblock Subwoofer Amplifier | 1000W RMS @ 1 Ohm
The XXL1B is the muscle of the CANDY series. Delivering up to 1000W RMS at 1 ohm, this amp turns your substage into a thunderous bass machine—without hogging all your system space.
Pure Output, Fully Protected
Class D architecture gives you stable output with low heat. Featuring smart thermal, overload, and voltage protections: the XXL1B stays cool and safe no matter how hard you push it.
Full Bass Control

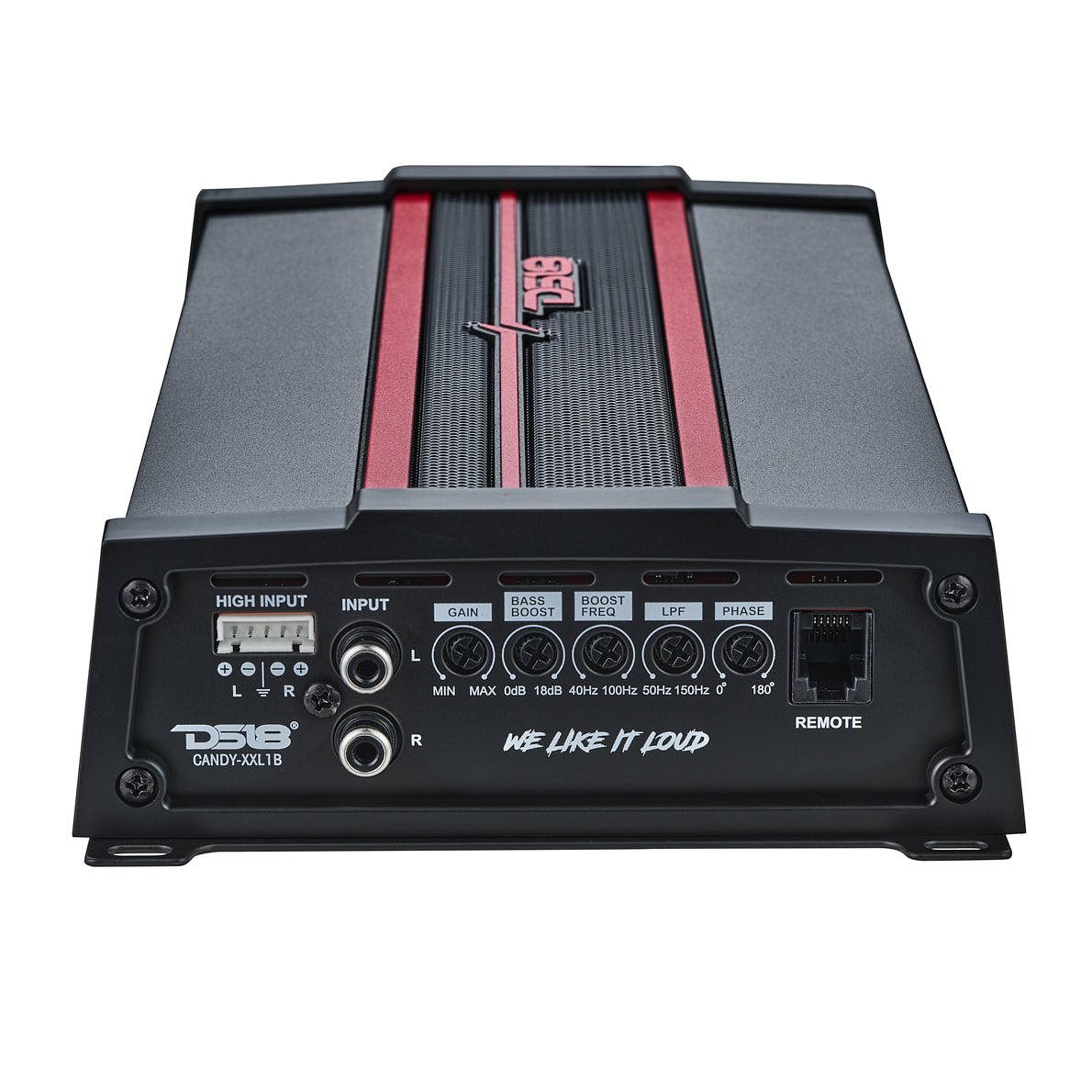

Fine-tune your setup with variable LPF (50–150Hz), bass boost (0–18dB), and a 0–180° phase switch. Remote gain control adds quick access when you need to crank the lows.
Get LOUD with DS18’s XXL1B for all-out power, without losing space in your vehicle!
Key Features
- Compact Class D Monoblock Design
- 1000W RMS @ 1 Ohm | 700W @ 2 Ohm | 400W @ 4 Ohm
- Full Bass Tuning Suite: LPF, Boost, Phase
- Auto Turn-On + Compact Chassis
Specifications
| SKU | CANDY-XXL1B |
|---|---|
| Total Watts (Peak) | 3000W |
| RMS Power @ 4 Ohm | 400W |
| RMS Power @ 2 Ohm | 700W |
| RMS Power @ 1 Ohm | 1000W |
| Frequency Response | 20-250Hz |
| Signal to Noise Ratio | 70 dB |
| Efficiency @ 4ohm | N/A |
| Damping Factor | N/A |
| Input Impedance | 10K ohm |
| Channel Separation | N/A |
| Total Harmonic Distortion (THD) | 0.05% |
| Low Level Input Range | 0.2-6V |
| High Level Input | Yes |
| Selectable X-Over | Fixed LPF |
| X-Over Filter Range | 50-150Hz |
| Bass Boost Range | 0dB~18dB |
| Bass Boost Frequency | 40~100Hz |
| Infrasonic Filter | No |
| Phase Selector | 0~180 |
| Amplifier Class | Digital |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 |
| Minimum Impedance | 1 ohm |
| Led Indicator | Power/Protect |
| Power Input Terminal Size | 4Ga |
| Fuse Size | 40A x 3 |

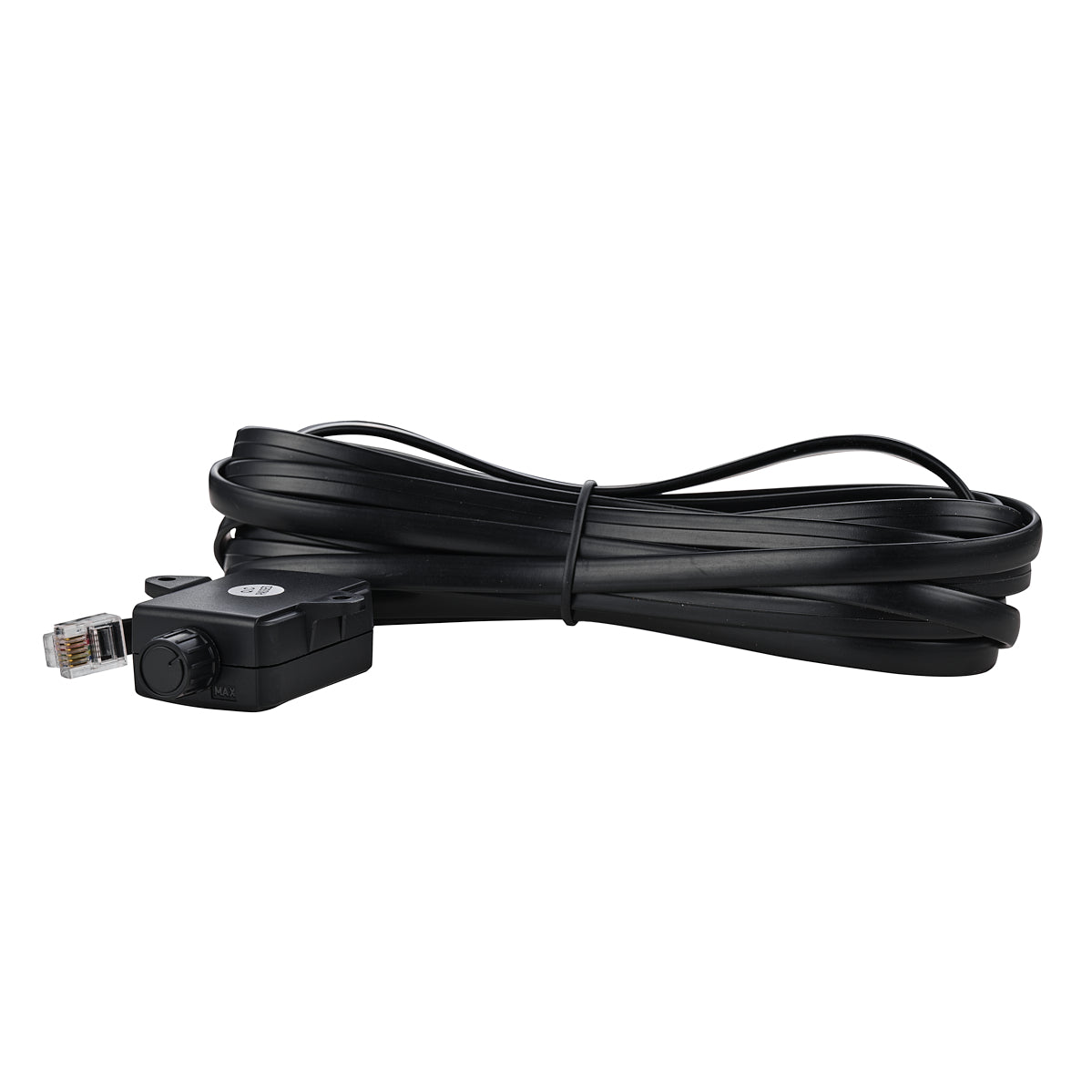

| Remote Level Control | Yes / Remote Dash Mount |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes (>158F) |
| Over-Load Protection | Yes |
| DC Output Protection | No |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (9-16v) |
| Clipping Protection | No |
| Body Color / Finish | Black Matte |
| Overall Length | 11" / 280mm |
| Overall Width | 5.9" / 150mm |
| Overall Height | 2.16" / 55mm |
| Heatsink Length | 9.8" / 250mm |
| Gross Single Unit Weight | 5.5 |
