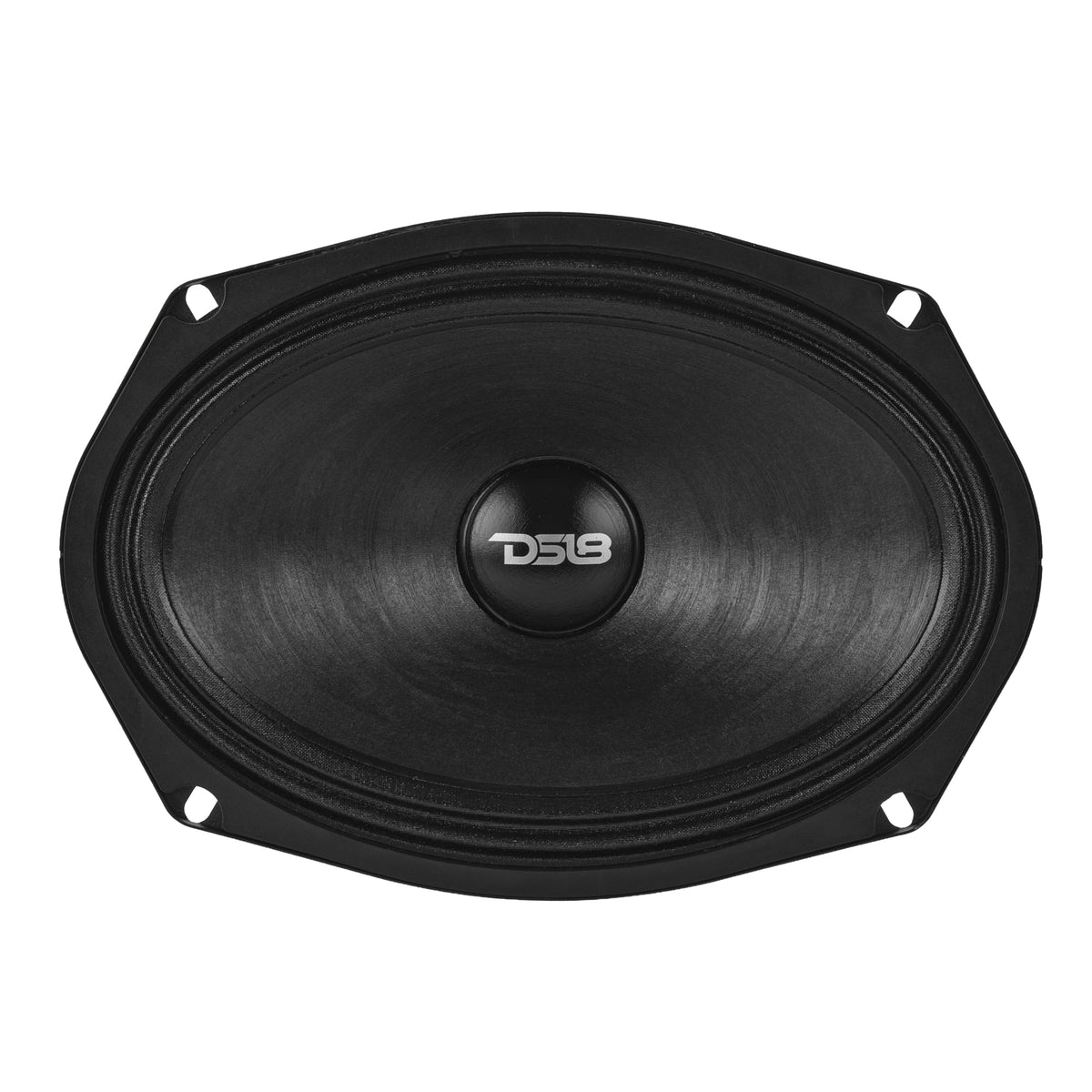

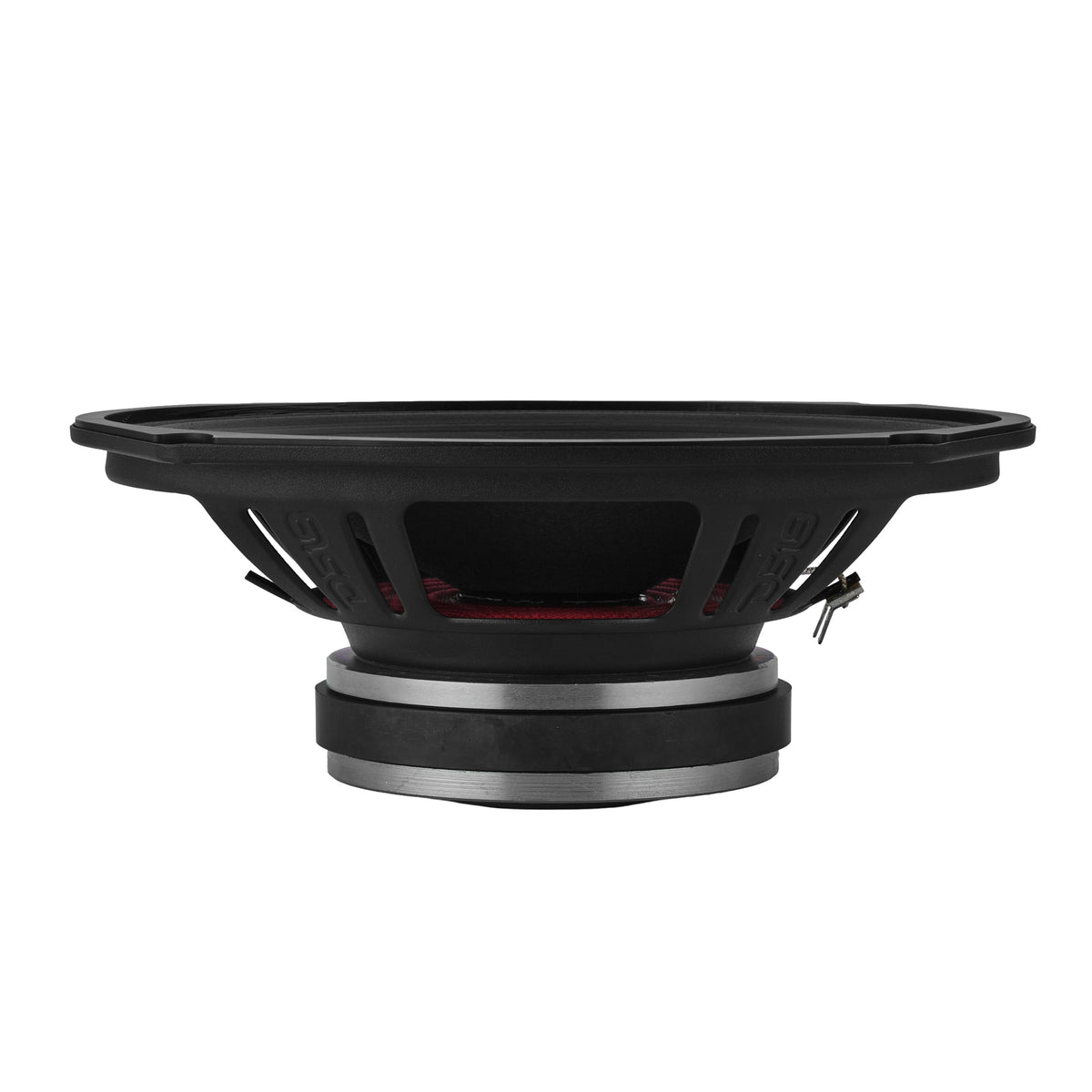

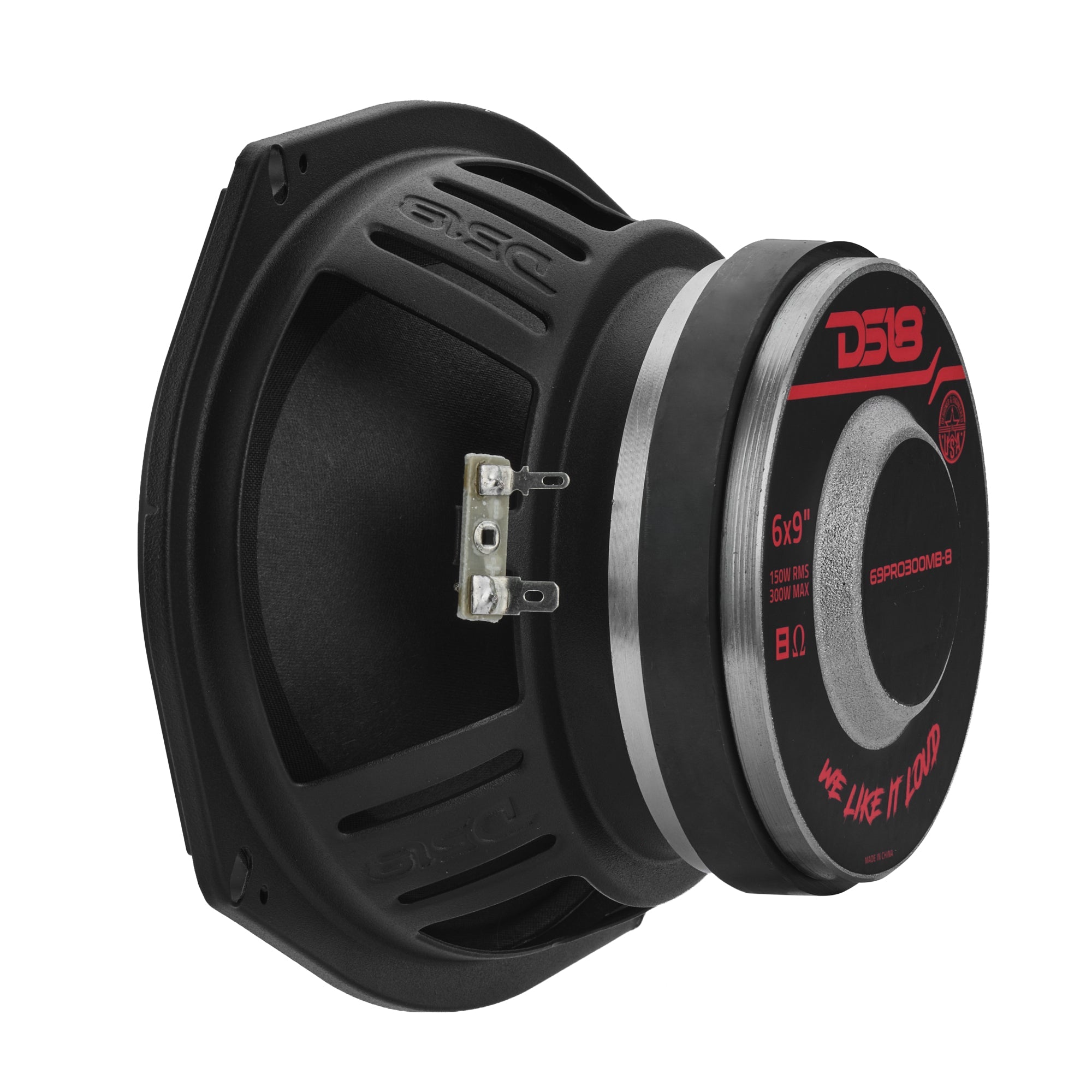

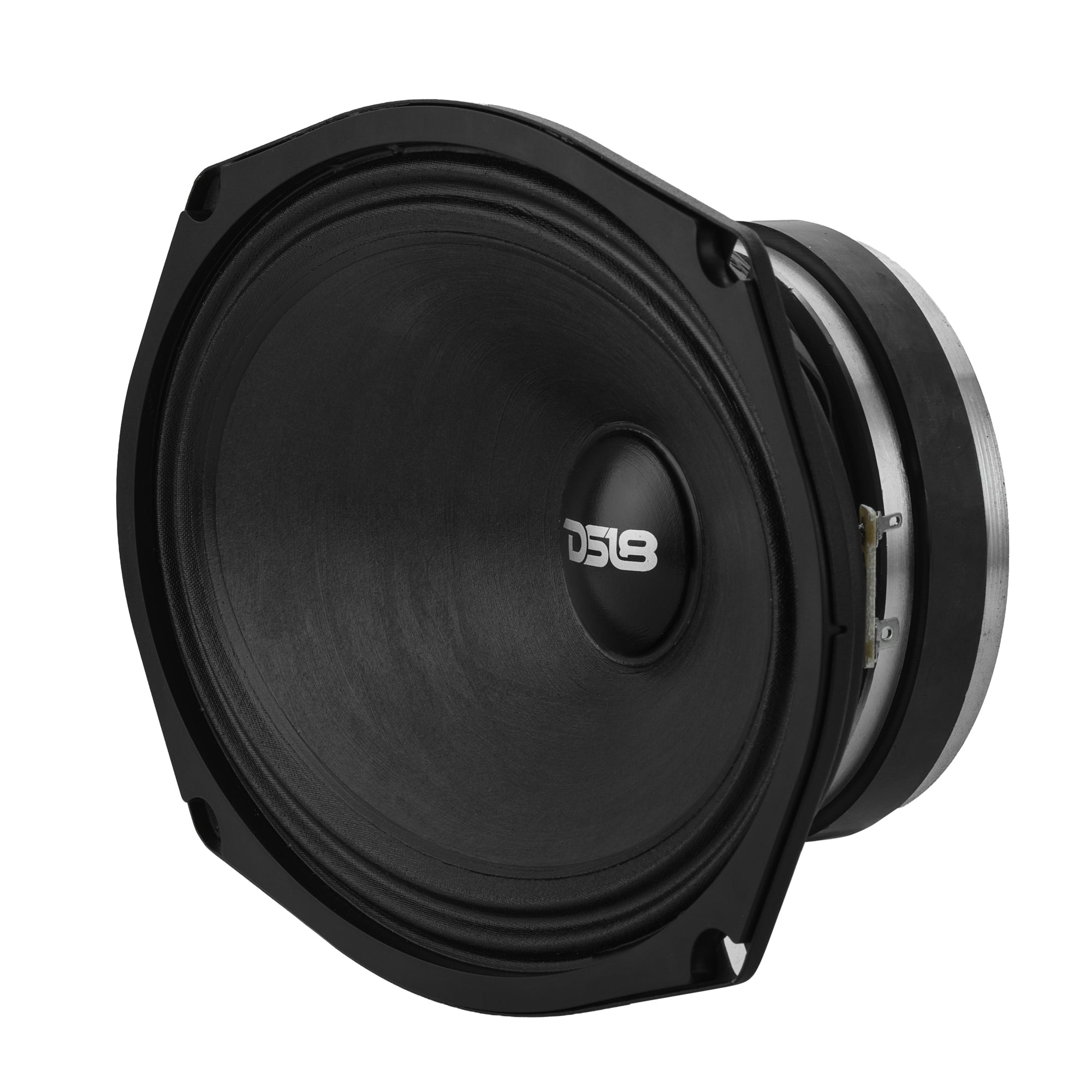

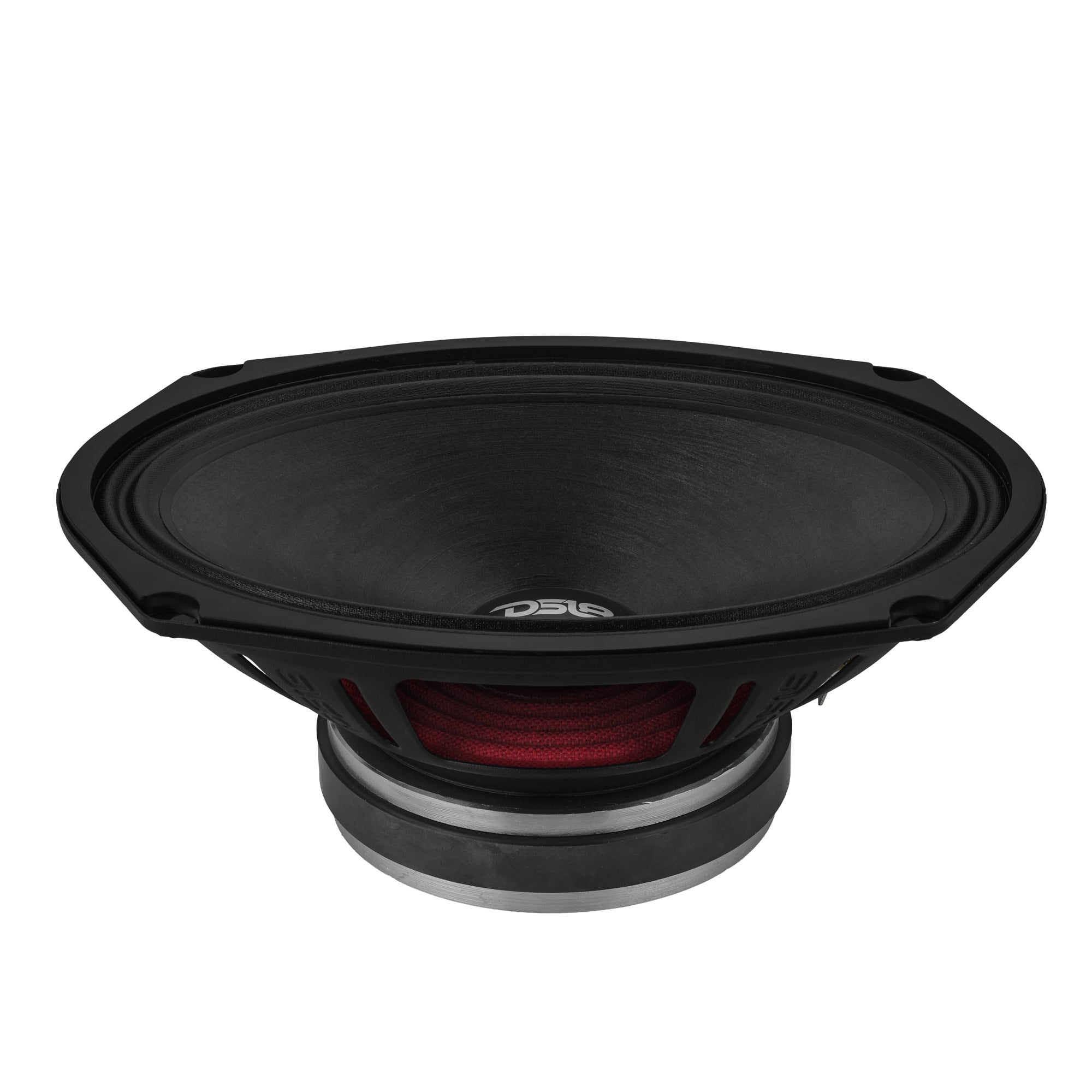

6x9” Water-Resistant Mid-Bass Loudspeaker | 150W RMS 8-Ohm
6x9” Water-Resistant Mid-Bass Loudspeaker | 150W RMS 8-Ohm
Product Overview
DS18 69PRO300MB-8
6x9” Water-Resistant Mid-Bass Loudspeaker – 8-Ohm
DS18’s 69PRO300MB-8 is designed to outperform ordinary motorcycle speakers, bringing your mid-bass to life with force.
Engineered for Superior Efficiency
With an ultra-high sensitivity of 98dB, this driver gets LOUD with less power, making it an easy upgrade for riders and installers who want MAX output over road and wind noise, without straining their amplifier.
Built for Harsh Environments
A water-resistant coated paper cone and dust cap keep performance strong in any conditions. The 69PRO300MB-8 delivers strength where it counts, while its sealed-back design protects the motor assembly in tight or exposed installs.
Precision Performance with Lower Distortion
Equipped with a demodulating copper ring, the 69PRO300MB-8 maintains a wider, more stable magnetic field for smoother coil movement and significantly reduced distortion. The result is mid-bass response that stays clean and aggressive from 50Hz to 12.5kHz.
Perfect for High-Impact Builds

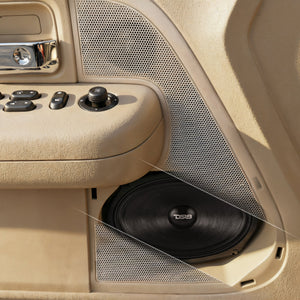

This speaker thrives in motorcycle fairings and car door panels where strong mid-bass is essential for a balanced sound system.
Want a speaker that hits harder, lasts longer, and sounds better than any regular mid-bass? The 69PRO300MB-8 is the most reliable upgrade you can make!
Key Features
- Durable 6x9” 8-Ohm Build for efficient, long-lasting performance
- 98dB High Sensitivity for big volume with less power
- Water-Resistant Cone for reliable use in harsh conditions
- Copper Demodulating Ring for reduced distortion and cleaner mid-bass
- High-Impact Mid-Bass ideal for motorcycle fairings and cars
Specifications
| Nominal Diameter | 6x9" / 152x228mm |
|---|---|
| Nominal Impedance | 8 Ohms |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 98dB |
| Frequency Response | 50Hz-12.5kHz |
| Recommended HI Pass Crossover | 80Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Demodulating Rings | Copper Ring |
| Cone Shape | Curvilinear |
| Speaker Terminals | Spade |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper With Water Resistant Coat |
| Dust Cap Material | Paper With Water Resistant Coat |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 20 Oz |
| Displacement Volume | 0.48L / 0.016ft3 |
| Equivalent Volume | 11.61L / 0.41ft3 |
| Excursion (one way) | 1.6mm |
| Free Air Resonance | 100Hz |
| Mechanical Factor | 2.160 |
| Electrical Factor | 1.11 |
| Total Factor | 0.698 |
| Mechanical Mass | 12g |
| Mechanical Compliance | 0.17mm/N |
| BL Factor | 7 |
| Voice Coil Inductance | 0.31mH |
| Cone Area | 213.82 cm2 |
| DC Resistance | 5.2 Ohms |

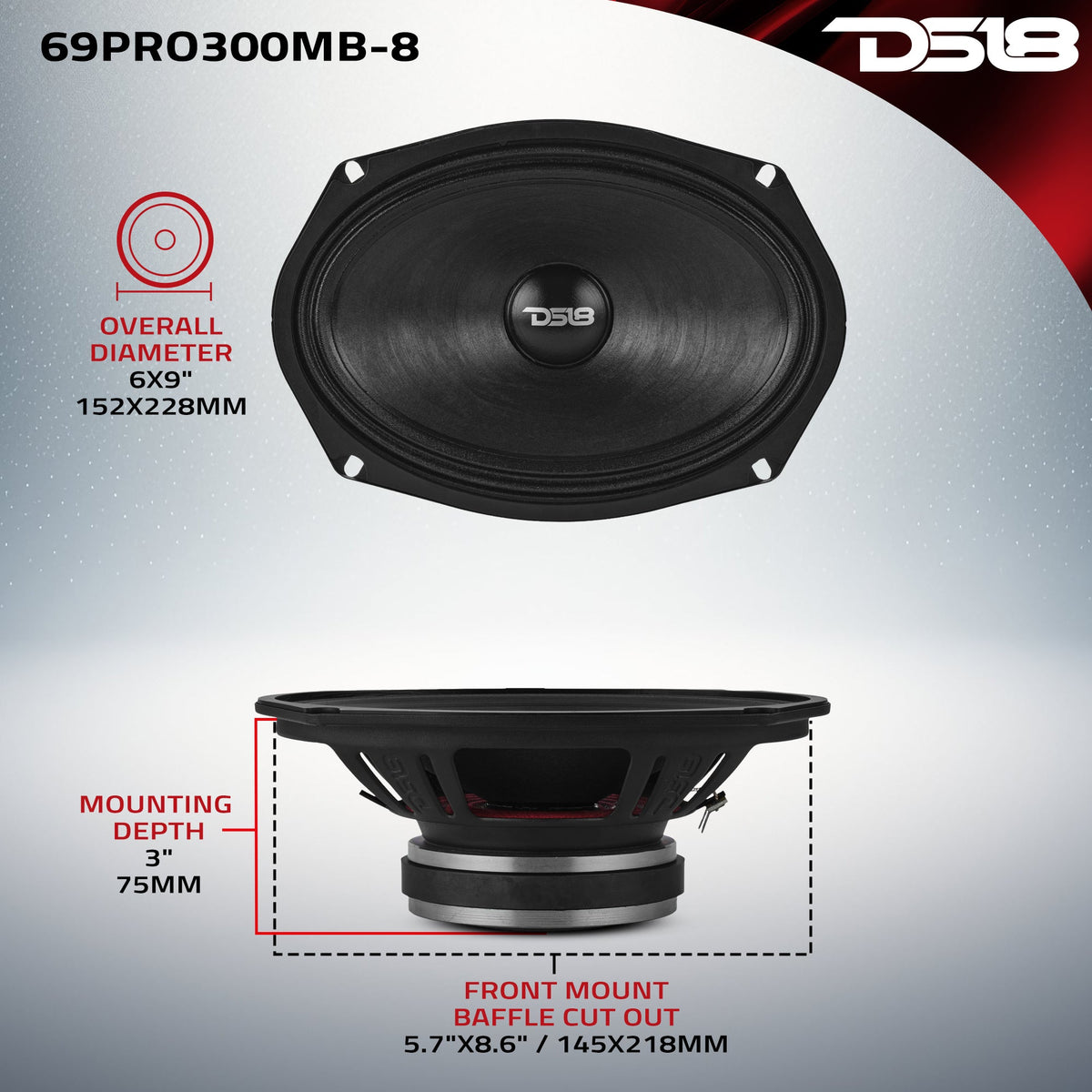

| Overall Diameter | 6.4"x9.2" / 164x234mm |
| Overall Depth | 3.1" / 79mm |
| Front Mount Baffle Cutout | 5.7"x8.6" / 145x218mm |
| Mounting Depth | 3" / 75mm |
| Motor Diameter | 4.5" / 115mm |
