Product Overview

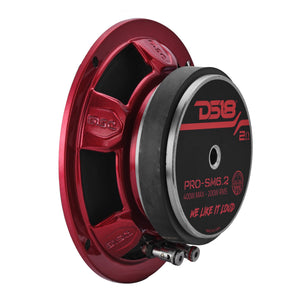

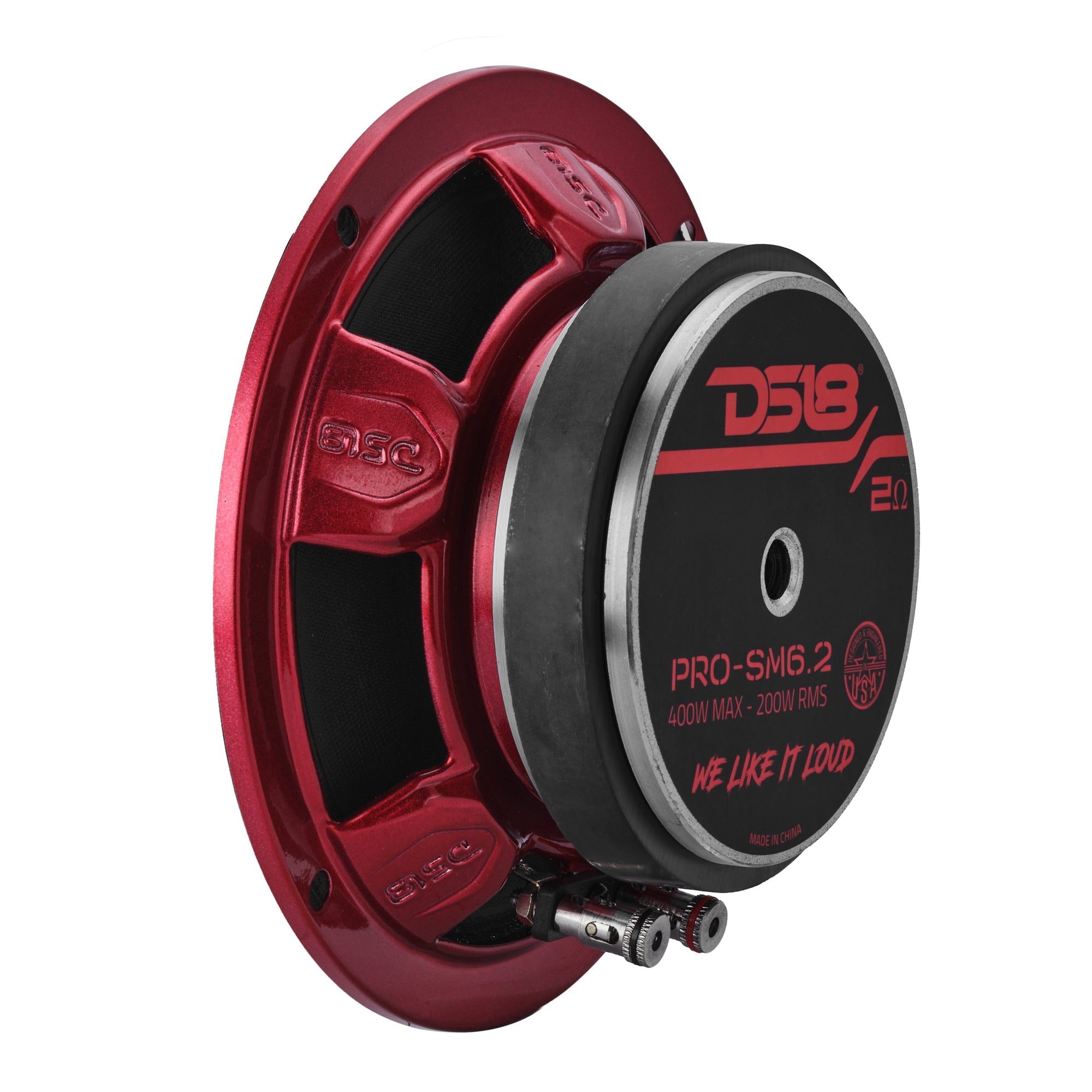

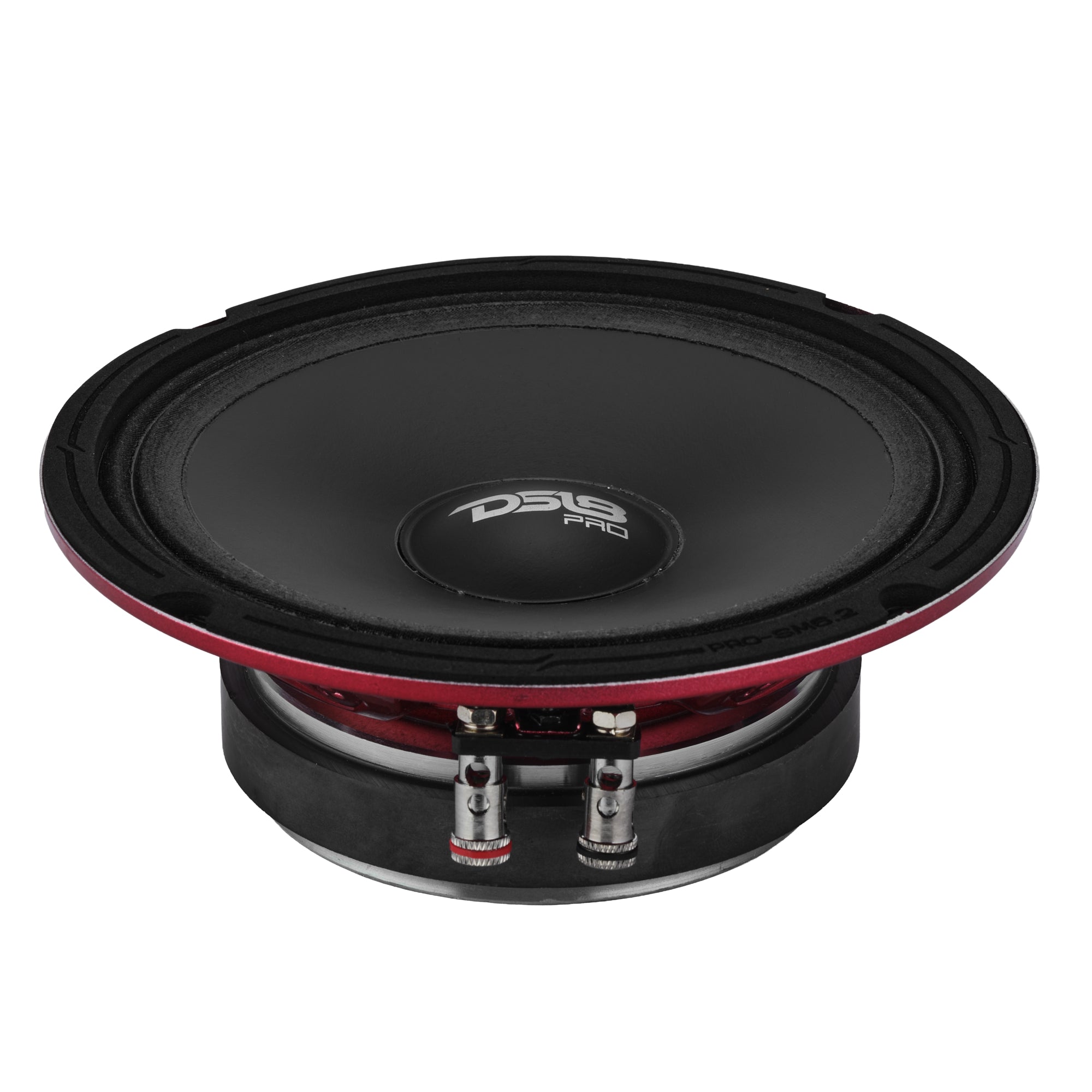

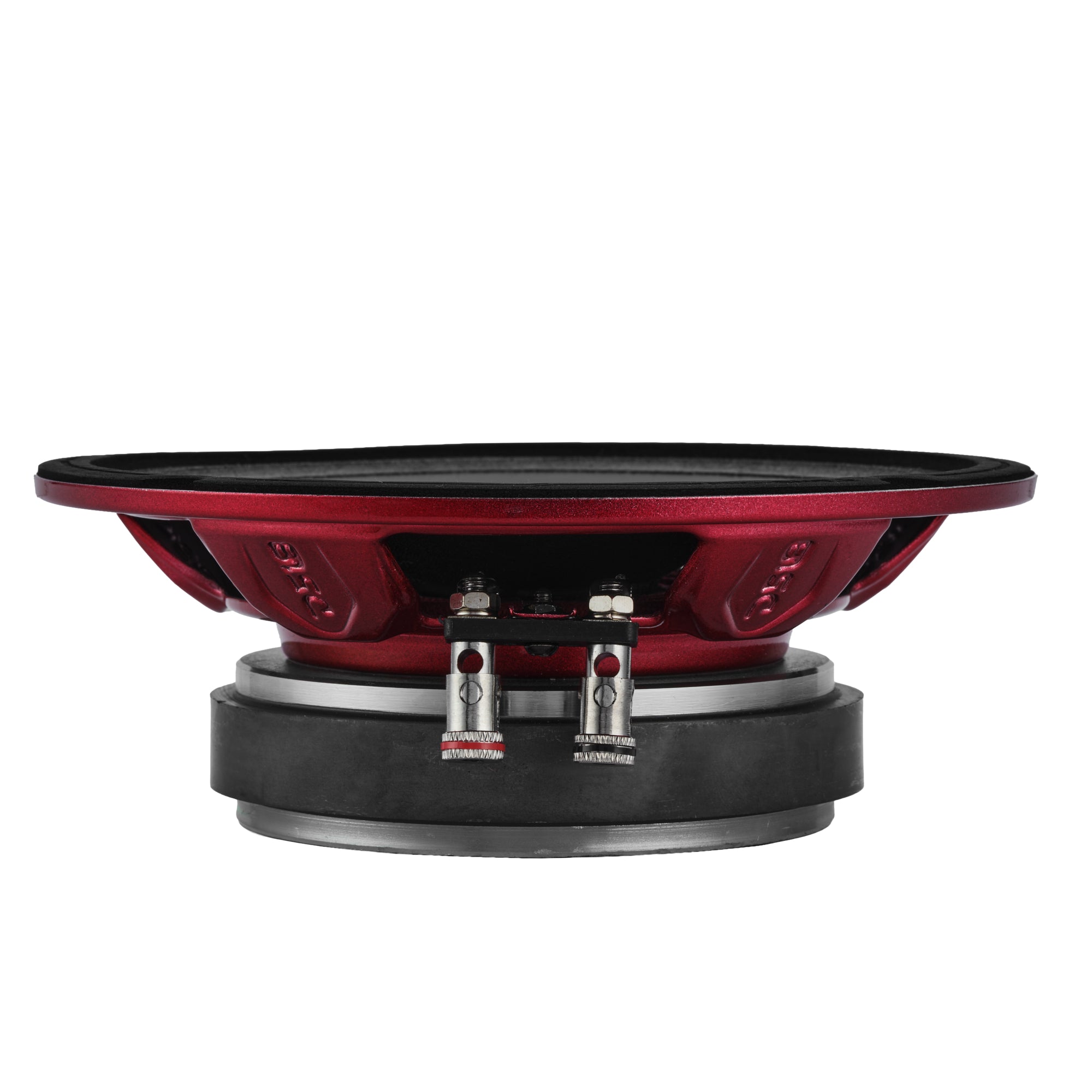

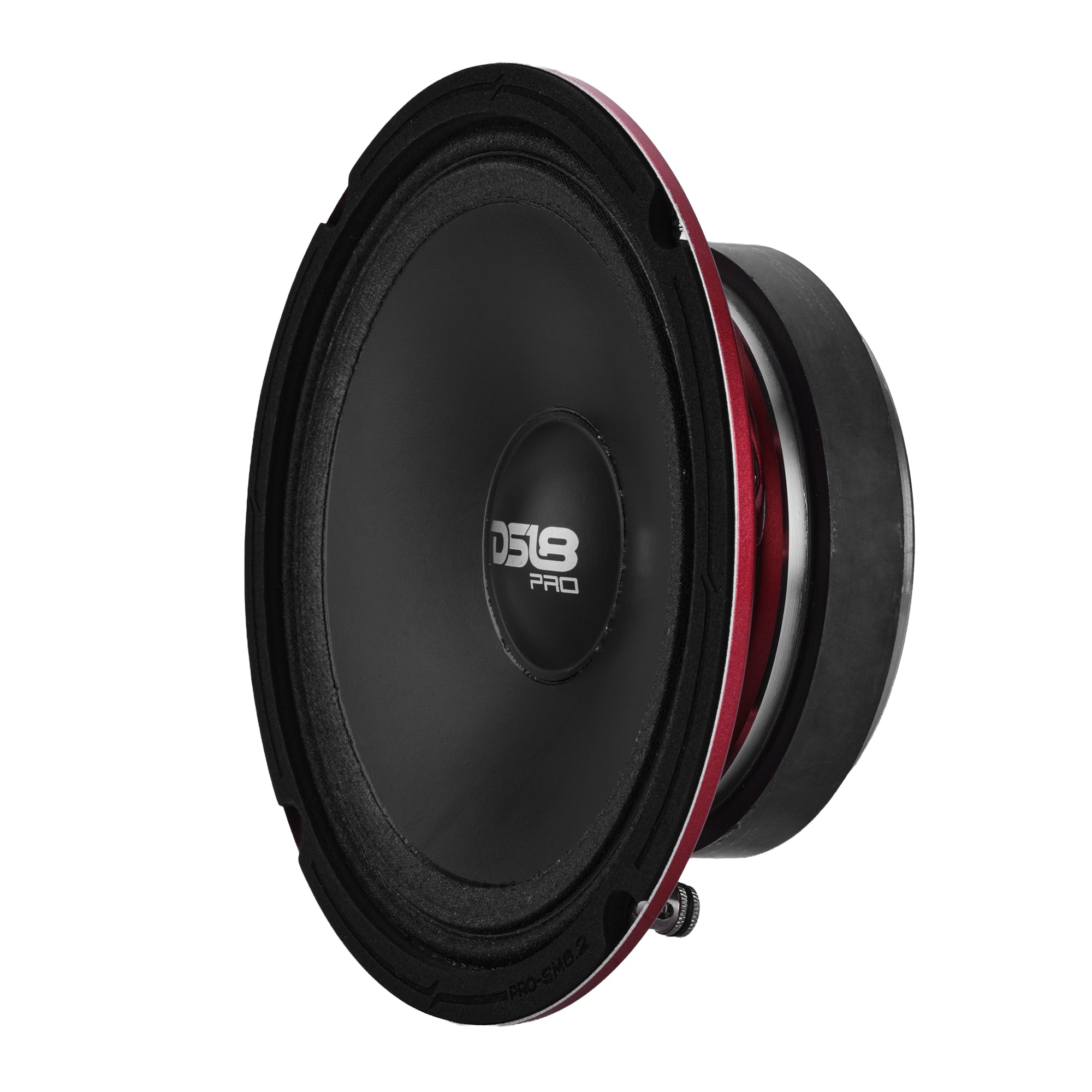

DS18 PRO-SM6.2
6.5" Shallow Water-Resistant Midrange Loudspeaker | 400W | 2Ω
Our PRO-SM6.2 delivers LOUD, clear midrange in open-air motorcycle or powersports applications! This shallow-mount 6.5" midrange brings volume, clarity, and durability: all in one tight package.
Designed to Cut Through ALL Noise
With a 200W RMS / 400W MAX power rating and high 95dB sensitivity, this speaker punches way above its size. The 2-ohm impedance gets full output from your amplifier without requiring bridged channels or multiple amps. Its wide 80Hz–14KHz response captures everything from deep midbass to sharp vocal clarity.
Built for the Road
The PRO-SM6.2 features a water-resistant paper cone, cloth edge surround, and coated dust cap for true weather-resistant performance. A red steel basket provides strength and style, while a 1.5” Kapton voice coil and 20oz ferrite magnet keep everything running cool and consistent.
Easy Fit, Universal Appeal
At just 2.18" mounting depth and a 5.67" cutout diameter, the PRO-SM6.2 easily integrates into most motorcycle and side-by-side speaker locations!
Don’t let road noise kill your vibe—get LOUD with DS18’s PRO-SM6.2!
Key Features:
• 6.5” Shallow Midrange Speaker Rated at 400W MAX / 200W RMS
• 2-Ohm Impedance for Maximum Power Extraction
• Water-Resistant Cone & Dust Cap Built for Outdoor Use
• 95dB Sensitivity for LOUD, Clear Sound on the Road
• 1.5” Kapton Voice Coil with 20oz Ferrite Magnet
• Slim 2.18” Mounting Depth for Tight Installs
Key Features
- 6.5” Shallow Midrange Speaker (400W MAX / 200W RMS)
- Water-Resistant Cone & Dust Cap
- 2-Ohm Impedance
- 95dB Sensitivity
- Slim 2.18” Mounting Depth
- 1.5” Kapton Voice Coil with 20oz Ferrite Magnet
Specifications
| SKU | PRO-SM6.2 |
|---|---|
| Nominal Diameter | 6.5” / 165.1mm |
| Nominal Impedance | 2-Ohm |
| RMS Power Handling | 200 Watts |
| MAX Power Handling | 400 Watts |
| Sensitivity (1w/1m) | 95 dB |
| Frequency Response | 80Hz-14KHz |
| Recommended Hi Pass Crossover | 180 Hz |
| Voice Coil Diameter | 1.5” / 38.1 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Water Resistant Paper |
| Dust Cap Material | Water Resistant |
| Surround Material | Coated Cloth |
| Basket Material | Steel |
| Basket Color | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 20 Oz |
| Equivalent Volume | 4.7L / 0.165ft3 |
| Excursion (one way) | 8 mm |
| Free Air Resonance | 188 Hz |
| Mechanical Factor | 6.869 |
| Electrical Factor | 1.522 |
| Total Factor | 1.246 |
| Mechanical Mass | 5.082 g |
| Mechanical Compliance | 0.142 m/N |
| BL Factor | 2.811 |
| Voice Coil Inductance | 0.289mH |
| Cone Area | 153.94 cm2 |
| DC Resistance | 2-Ohm |

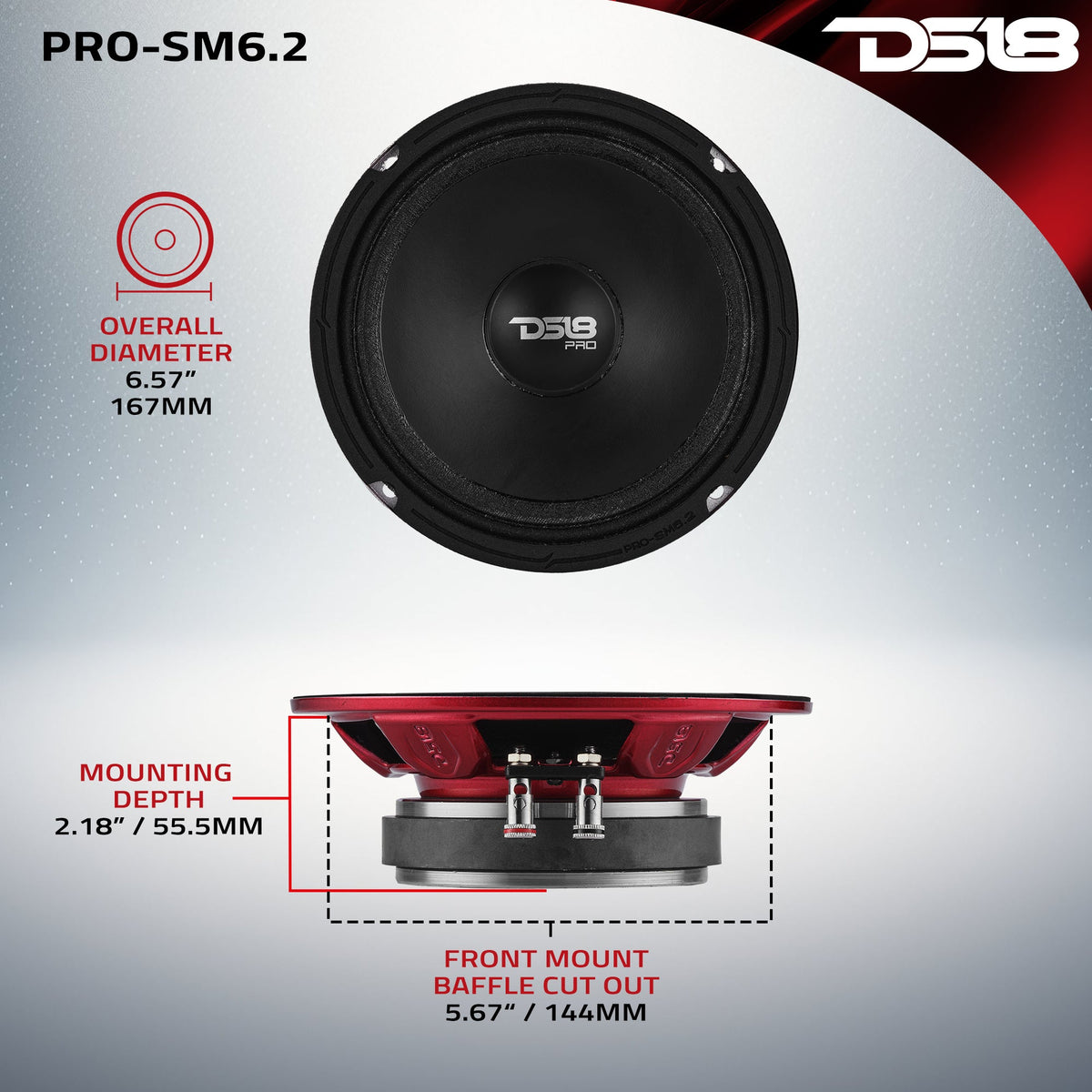

| Overall Diameter | 6.5” / 165mm |
| Overall Depth | 2.32” / 59 mm |
| Front Mount Baffle Cutout | 5.67“ / 144 mm |
| Mounting Depth | 2.18” / 56 mm |
| Motor Diameter | 4.33" / 110 mm |
