Product Overview

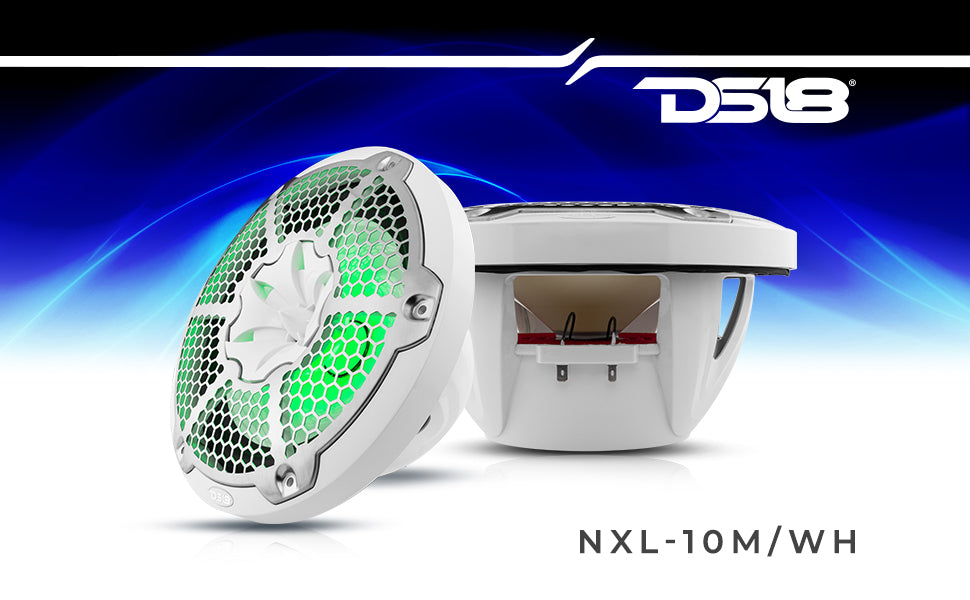

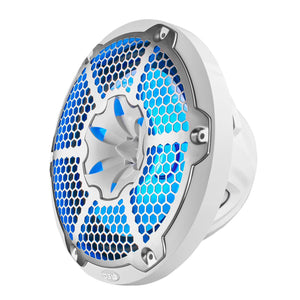

DS18 HYDRO NXL-10M/WH 10" 2-Way Marine Water Resistant Speakers with Integrated RGB LED Lights 600 Watts - White
DS18 continues to dominate the marine scene with our innovative brand of marine speaker, the NXL series. The NXL line of marine speakers is a true sight to see! They come in 2-way configurations and carry an IP65 waterproof rating, so you know they are durable for the elements. Each speaker comes in white or black to help you complete your accents on your vehicle.

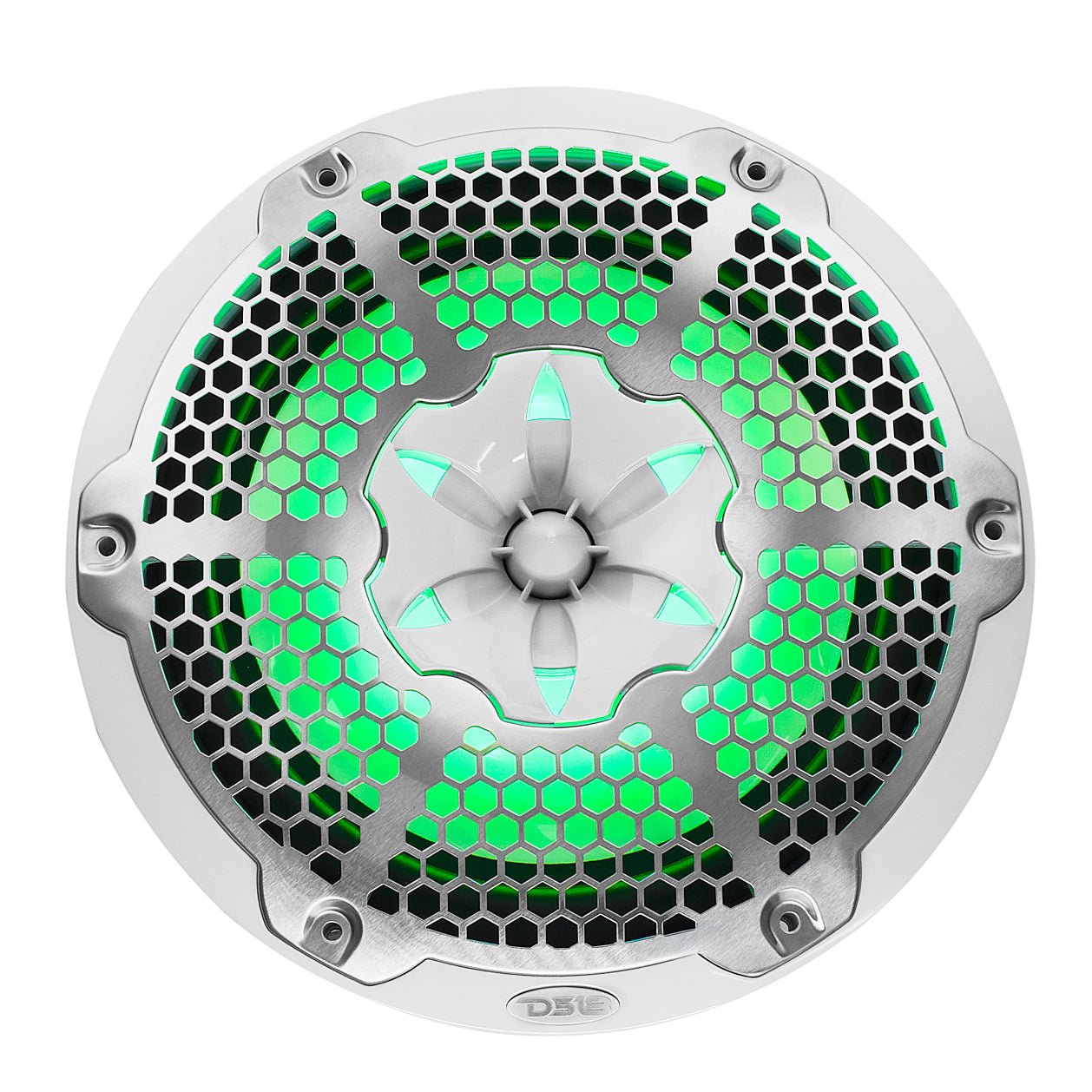

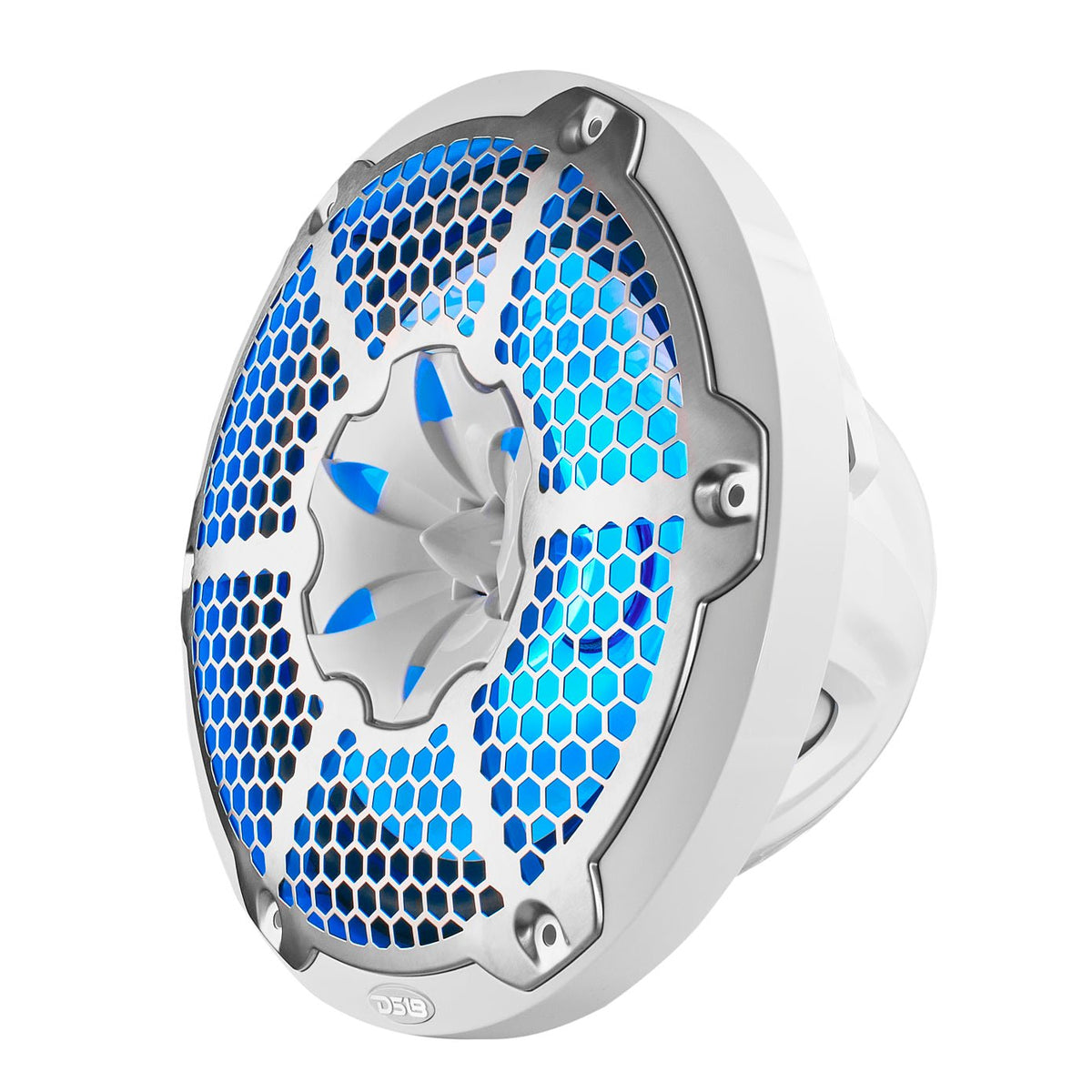

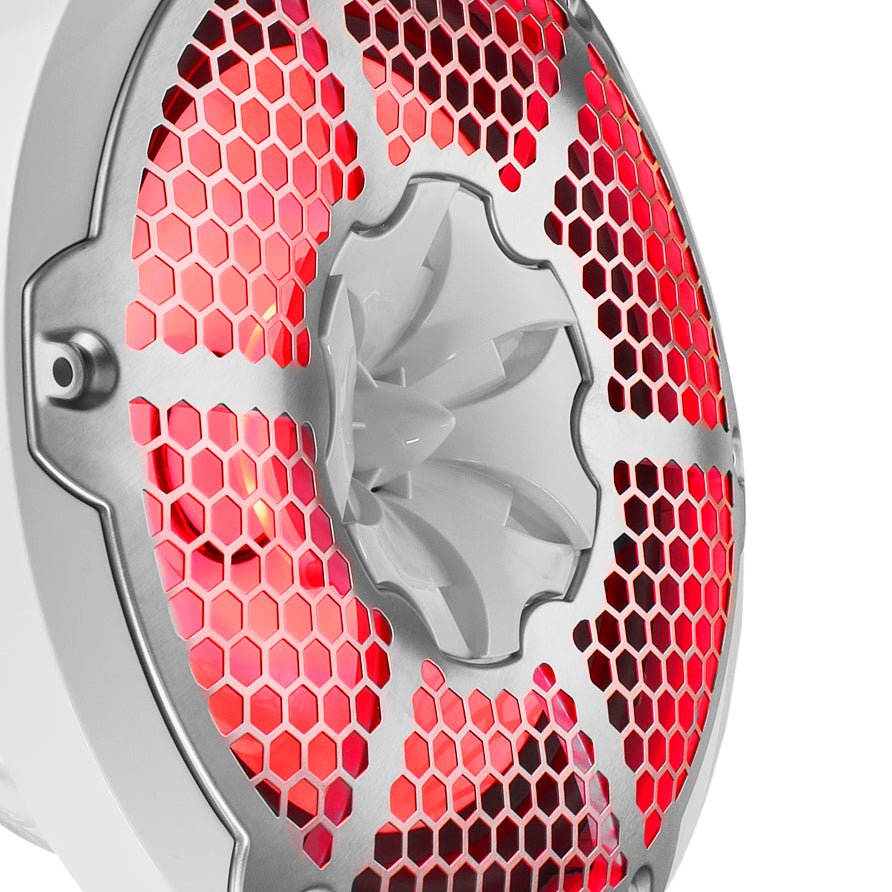

They come with their own integrated RGB lighting on the grill that shines down on the waterproof cones to complete your color scheme perfectly. These speakers produce a very full and rich sound that is very hard to replicate in open air environments like out on the water, but DS18 does it flawlessly. With these 10 inch speakers, you can make sure you get the complete sound you crave and have perfect acoustical music on your command.
Highlights
- DS18 Hydro design to withstand extreme elements and keep you playing.

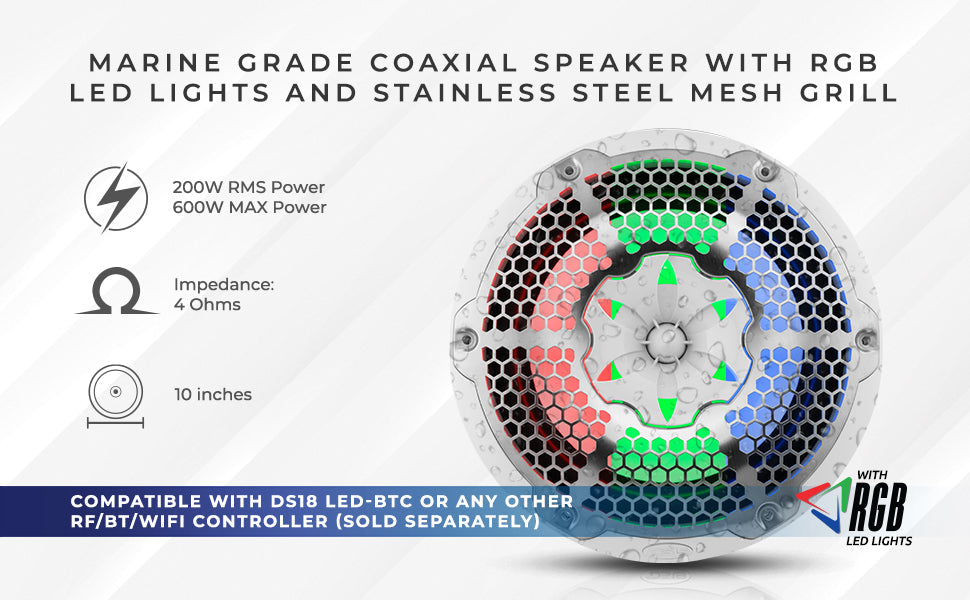

- RGB LED design to brighten up your system through the night all while displaying whatever color you want with our (sold separately) LED BTC.

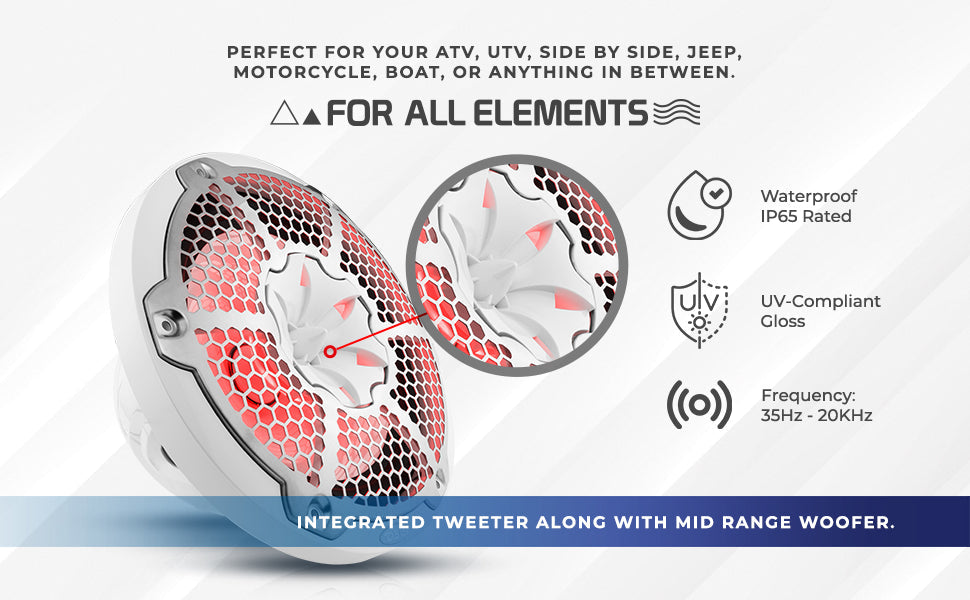

- Integrated tweeter along with mid range woofer so you get an amazing range of frequencies and very high sound quality.

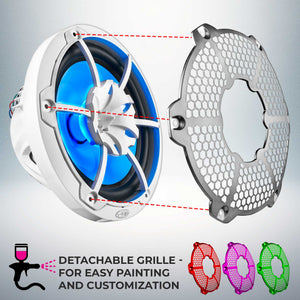

- Exclusive metal mesh grill design for perfect protection
Technical Details
| Specifications | |
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 200W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 94.3dB |
| Frequency Response | 35Hz-20Khz |
| Recommended HI Pass Crossover | 50Hz |
| Body / Features | |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, RGB integrated |
| Grill Type | Injection Molded Composite with 316 Stainless Steel mesh |
| Sold in Pair | Yes |
| Color / Finish | Carbon Fiber Texture / Gloss |
| Woofer Specifications | |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite with UV Protection coating |
| Magnet Material | Ferrite (Y35) + Neodymium (N35) |
| Magnet Weight | 50oz + 0.56oz |
| Tweeter Specifications | |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 0.51oz |

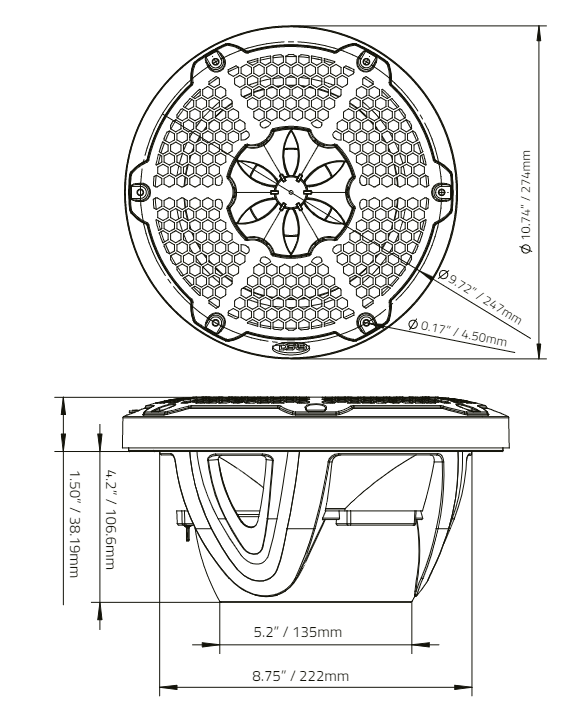

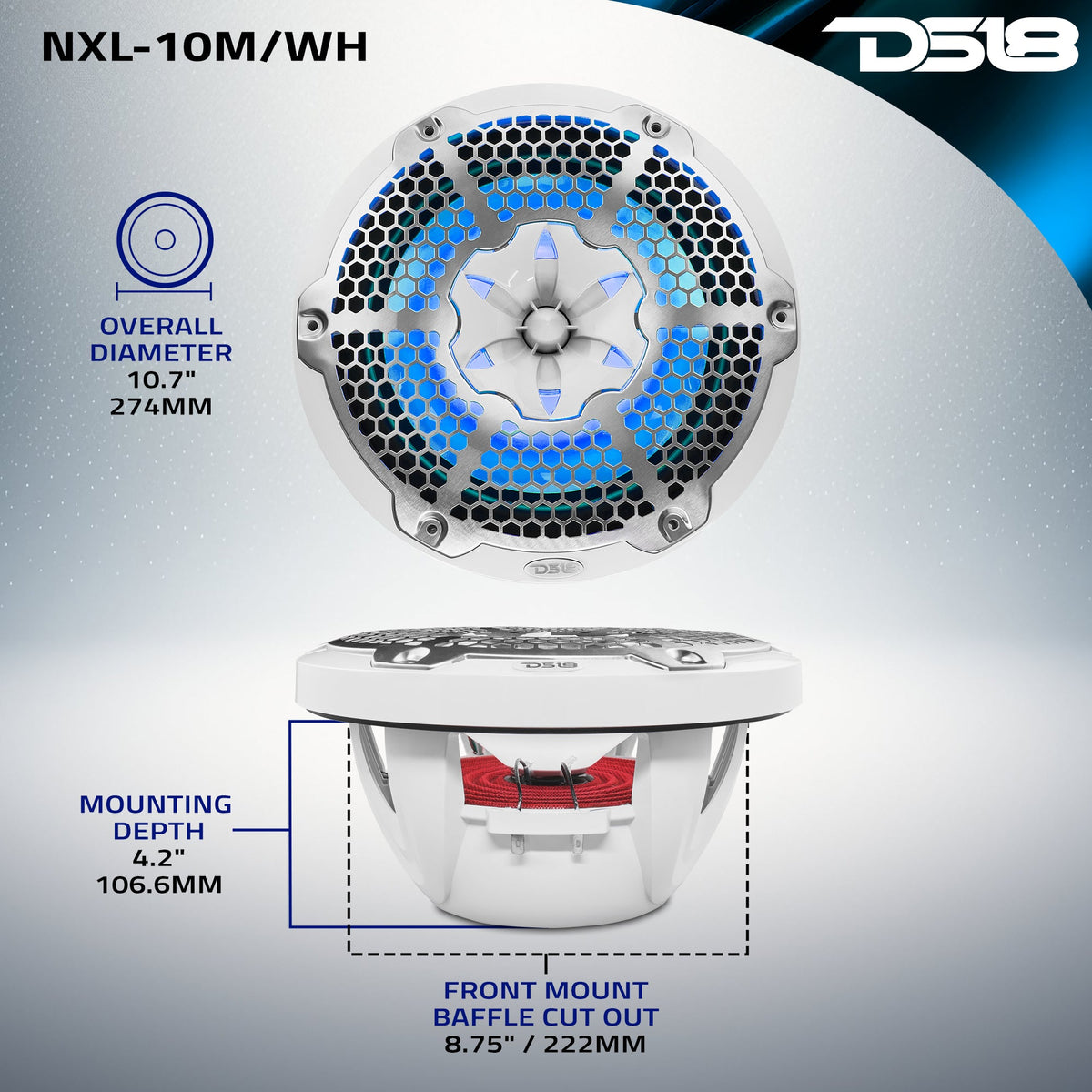

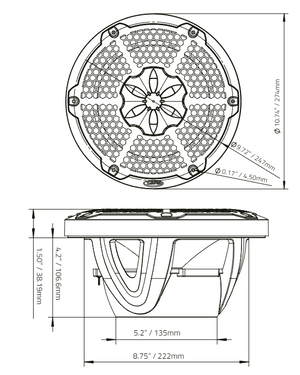

| Speaker Measurement | |
| Overall Diameter | 10.7” / 274mm |
| Overall Depth | 5.7” / 144.7mm |
| Front Mount Baffle Cutout | 8.75" / 222mm |
| Mounting Depth | 4.2″ / 106.6mm |
| Motor Diameter | 5.3” / 135mm |
Key Features
- 10” 2-Way Coaxial Marine Speaker with Integrated RGB Lighting
- Rated 200W RMS / 600W MAX Power @ 4 Ohm
- IP65 Marine Grade & 100% UV Stable for Harsh Environments
- Wide 35Hz–20KHz Frequency Response with 94.3dB Sensitivity

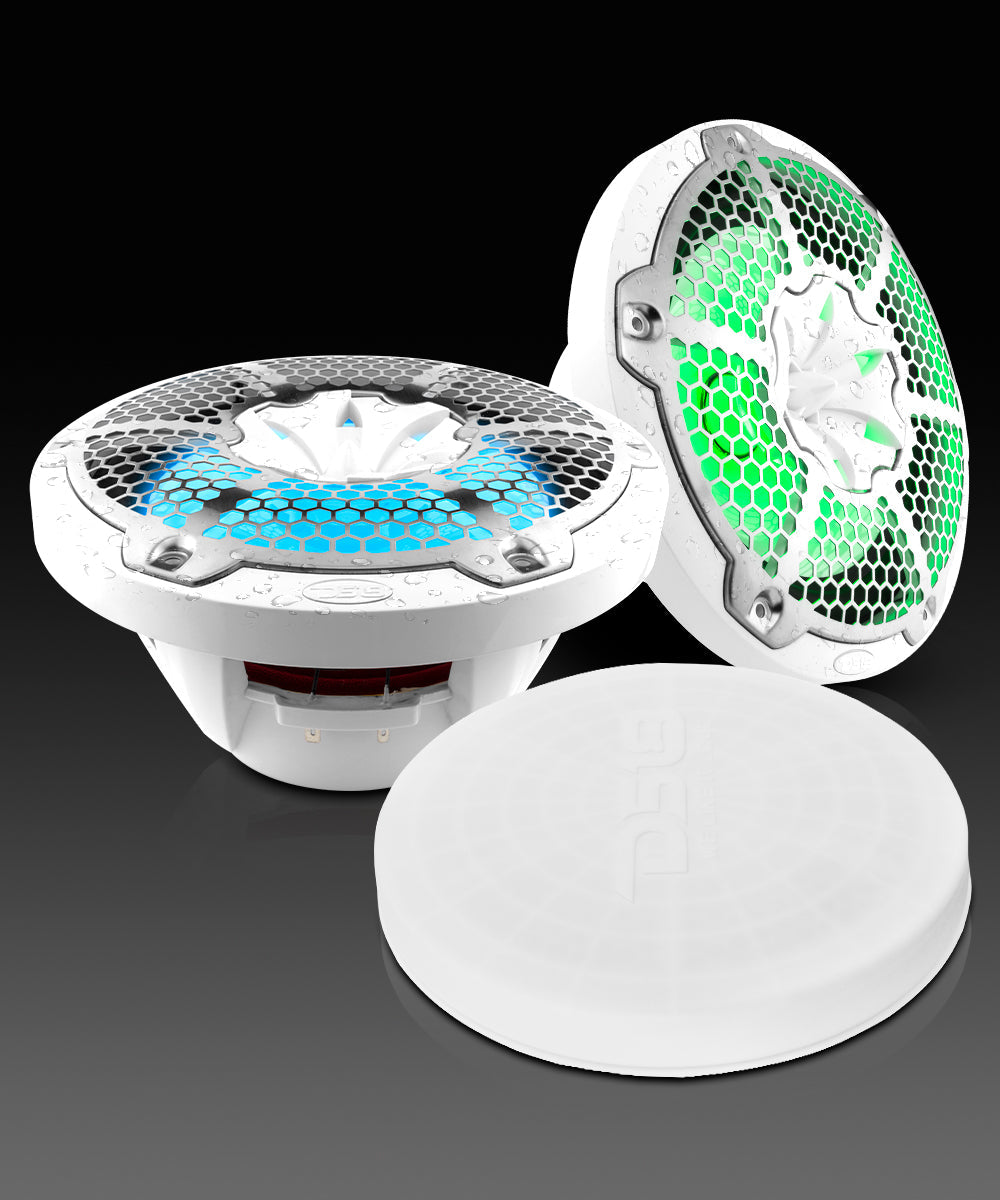

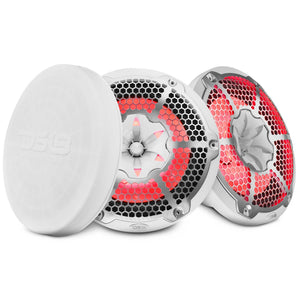

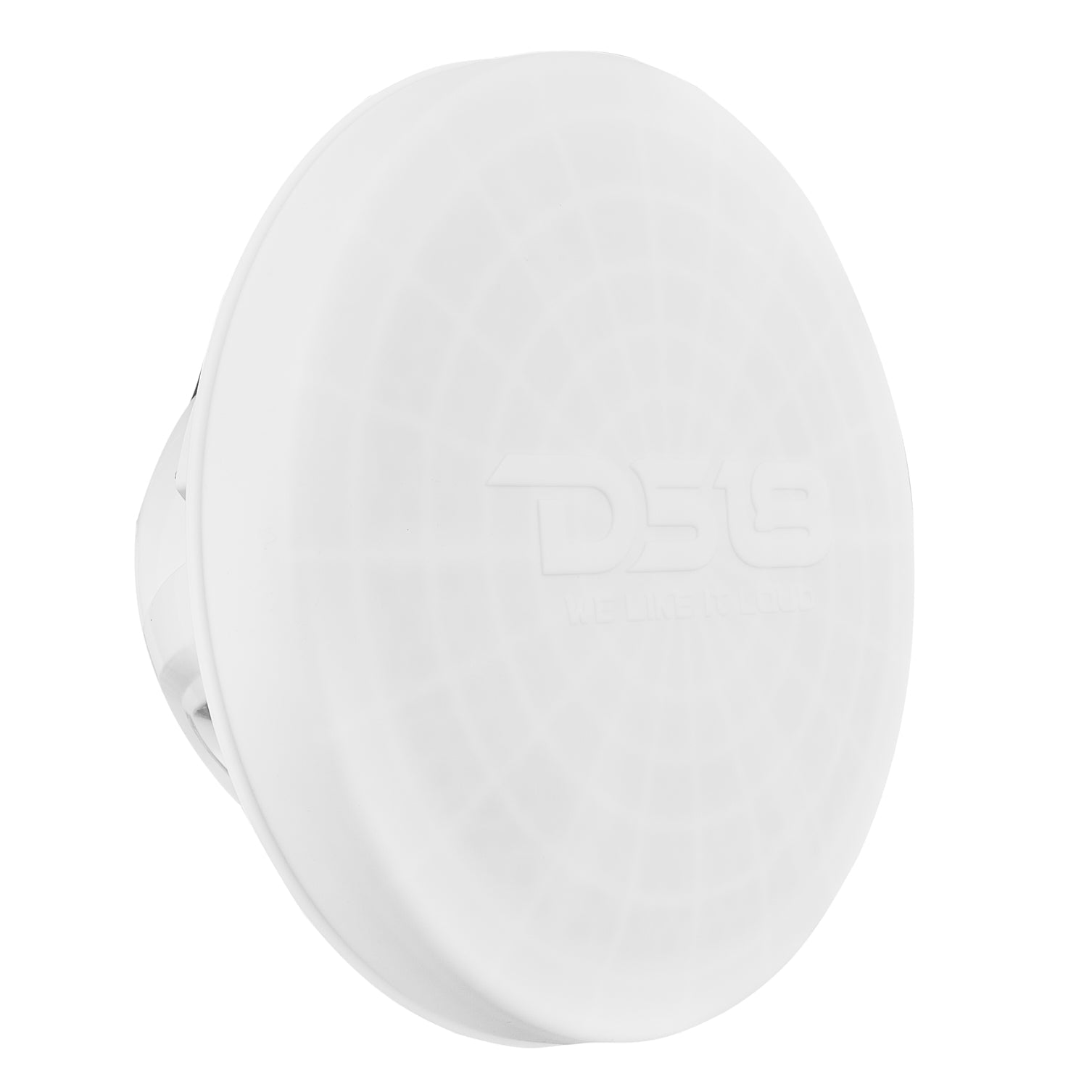

- Includes Stainless Steel Mesh Grille & Silicone Cover for Extra Protection
- LED-BTC Module Compatible (Sold Separately) for RGB Control via App
Specifications
| SKU | NXL-10M/WH |
|---|---|
| Nominal Diameter | 10" / 254mm / 1" / 25.4mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 200W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 94.3dB |
| Frequency Response | 35Hz-20Khz |
| Recommended HI Pass Crossover | 50Hz |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED Lights | Yes |

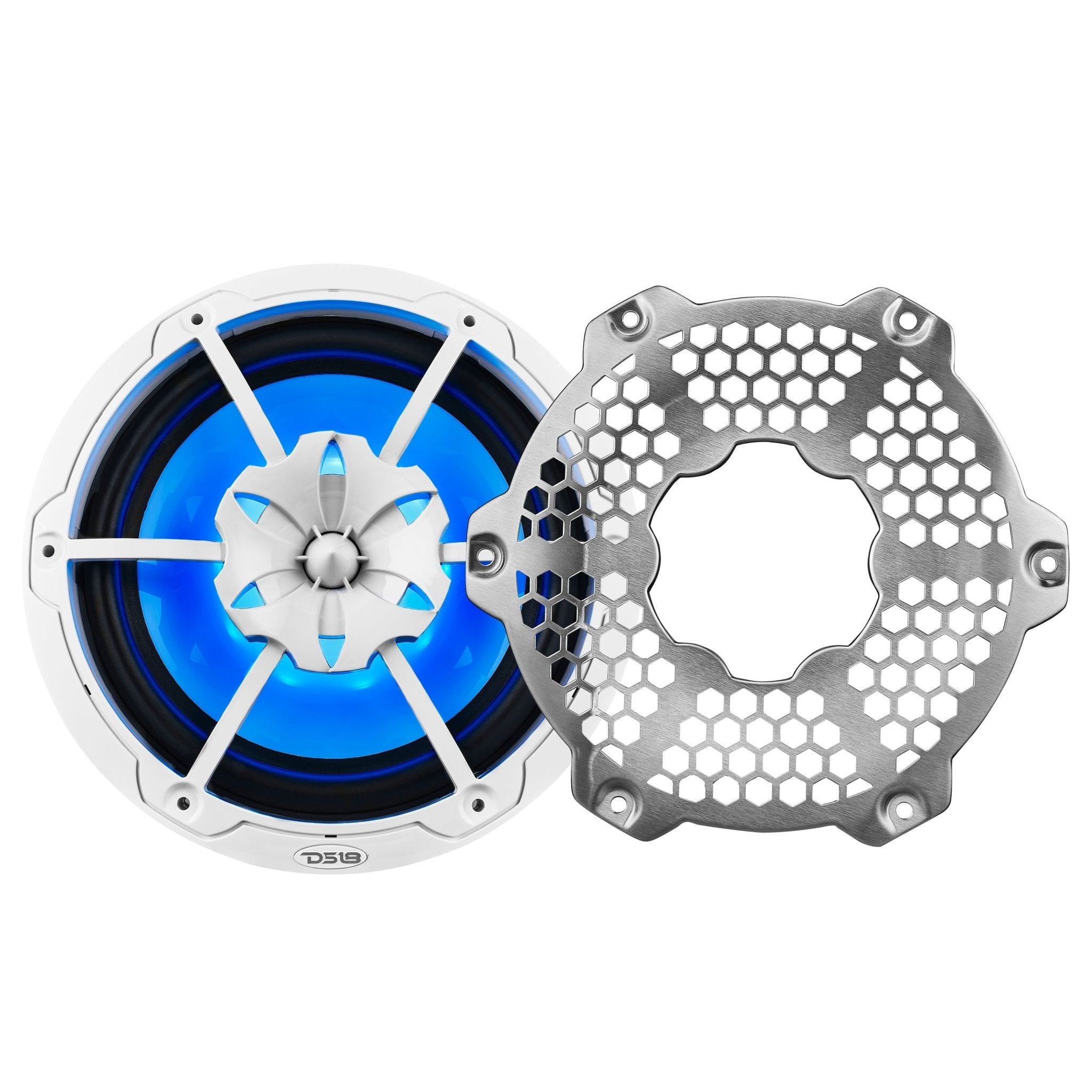

| Detachable Grill | Yes |
| Silicone Cover Included | Yes |
| Pair | Yes |
| Color / Finish | White / Gloss |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite ASA with UV Protection coating |
| Magnet Material | Ferrite (Y35) + Neodymium (N35) / Neodymium (N38H) |
| Magnet Weight | 50oz + 0.56oz / 0.51oz |
| Diaphragm Material | PEN |
| Equivalent Volume Vas | 197.13L / 6.96ft3 |
| Excursion (one way) Xmax | 6mm |
| Free Air Resonance Fs | 42Hz |
| Mechanical Factor Qms | 6.874 |
| Electrical Factor Qes | 0.838 |
| Total Factor Qts | 0.747 |
| Moving Mass Mms | 11.37g |
| Compliance Cms | 1.264mm/N |
| Bl Factor Bl | 3.4 |
| Voice Coil Inductance Le | 0.60712mH |
| Cone Area Sd | 333.29 cm2 |
| DC Resistance Re | 3.2ohms |
| Efficiency Bandwidth Product EBP | 50.12 |
| Overall Diameter | 10.7" / 274mm |
| Overall Depth | 5.7" / 144.7mm |
| Front Mount Baffle Cutout | 8.75" / 222mm |
| Mounting Depth | 4.2" / 106.6mm |
| Motor Diameter | 5.3" / 135mm |
| Gross Single Unit Weight (lb) | 20 |
| Single Unit Box Dimensions W x L x H (Inches) | 23 x 12.75 x 7.5 |
| Quantity of Units in Master Carton | 20 |
| Gross Master Carton Weight (lb) | 41.5 |
| Master Carton Dimensions W x L x H (Inches) | 23.5 x 14 x 16 |
