Marine And Powersports Waterproof Bluetooth Audio Receiver With Controls and Microphone
Marine And Powersports Waterproof Bluetooth Audio Receiver With Controls and Microphone
Product Overview

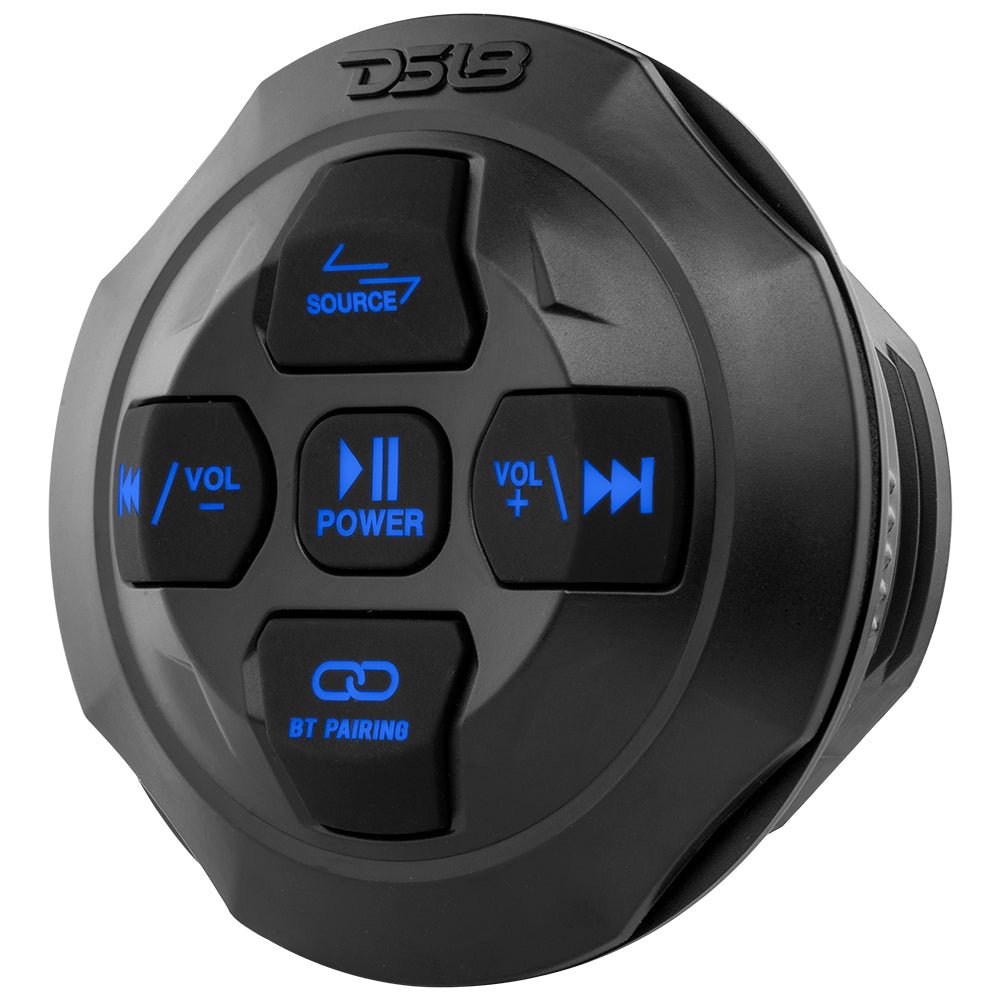

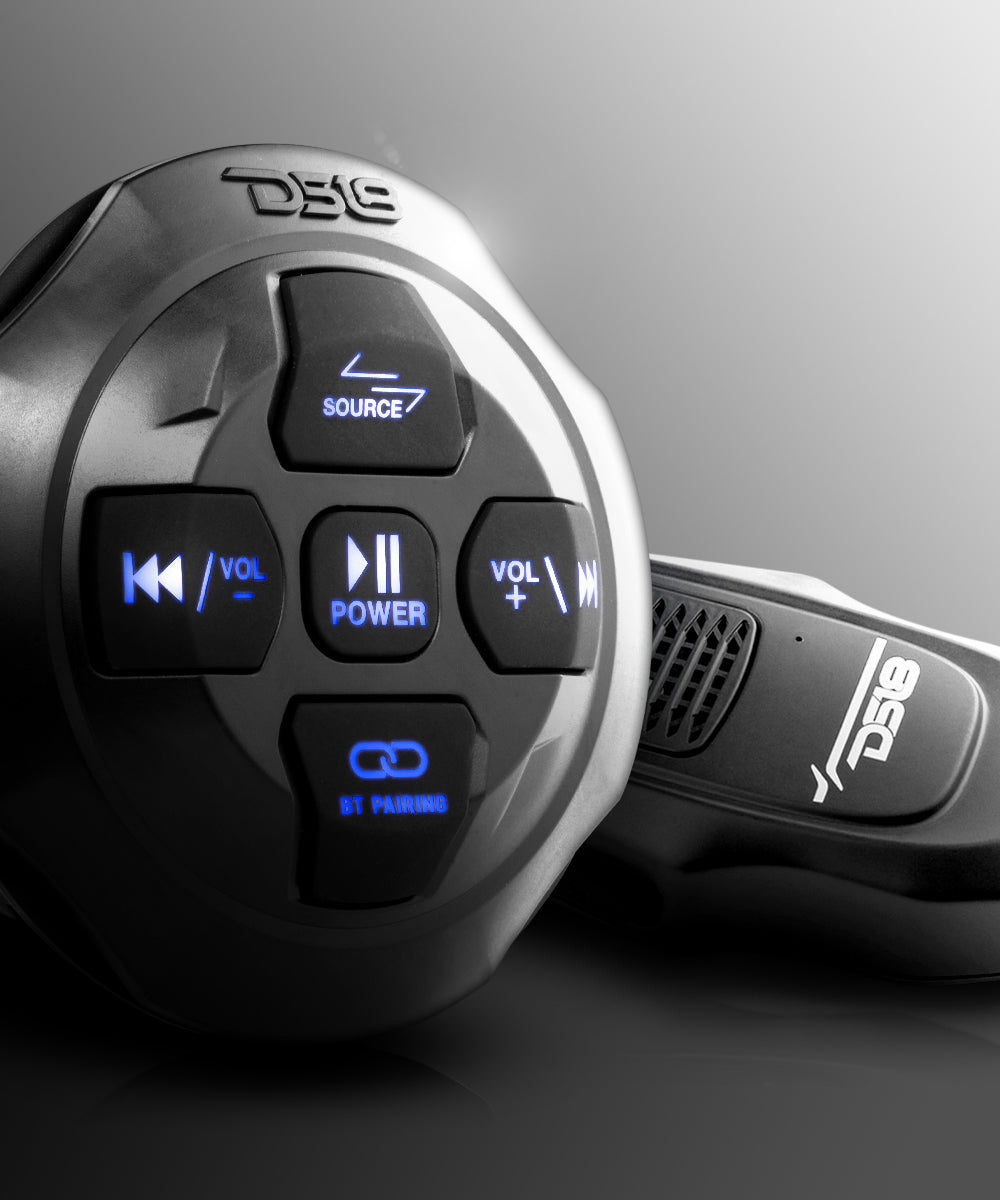

DS18 BTRCRMIC Marine And Powersports Waterproof Universal Bluetooth Digital Media Receiver With Microphone.
Take your marine audio experience to the next level with DS18’s BTRCRMIC – an audio streamer designed to provide crystal-clear sound, no matter what the weather conditions may be!

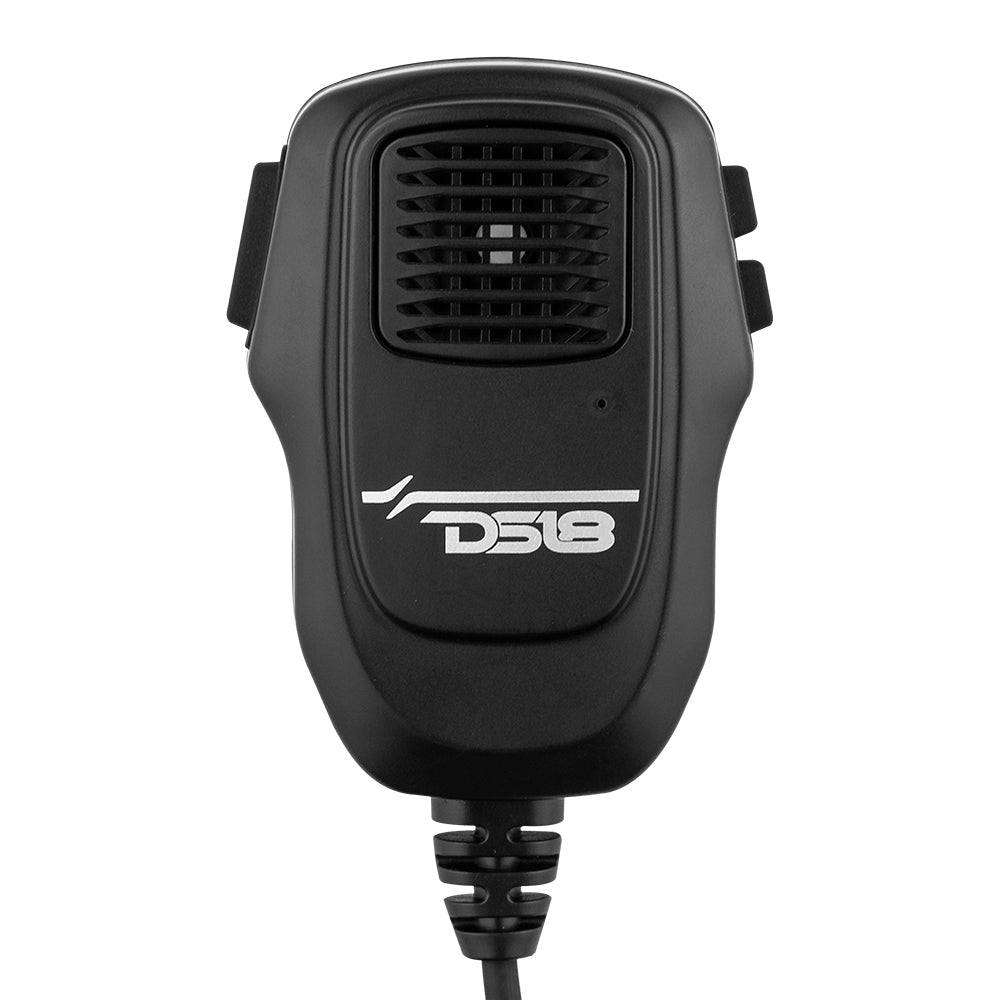

Featuring a CB radio style microphone with controls, the BTRCRMIC allows you to communicate through your audio system. The CB Radio Style Mic is plugged in via the included quick-detach cable. While using the mix, you can control your background audio’s volume with a few easy clicks. The red LED on the microphone also aids in understanding the available functions.
The BTRCRMIC’s easy-to-use blue back-lit silicon buttons make it effortless to operate. It's also built with a wireless BT audio receiver with BT 5.0v for long-range streaming up to 130ft*, allowing you to listen to your favorite tunes with ease. DS18’s BTRCRMIC also comes with a stereo 2.5v pre-out RCA, remote output to control external amplifier, and can be used as a stand-alone source unit/receiver.

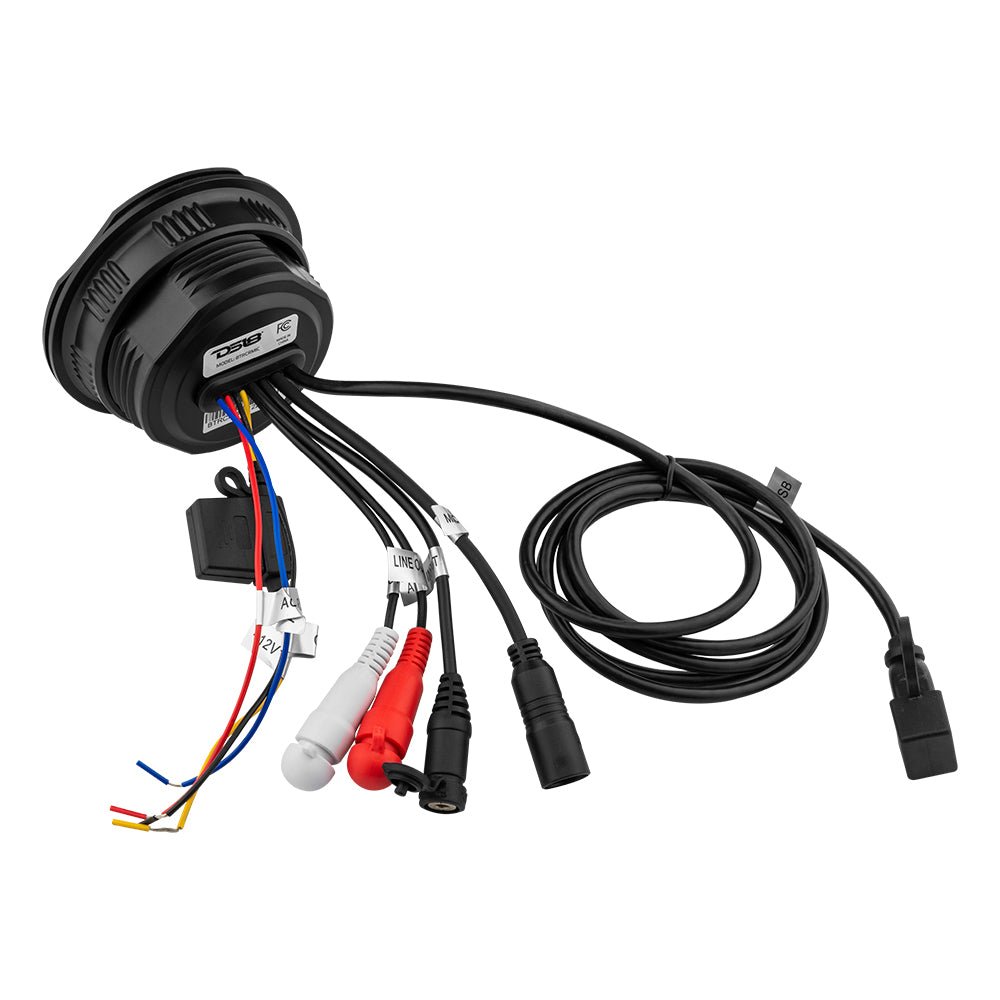

Its USB port for music and charging (1A), an aux audio input using a 3.5mm jack, mic/handset controller input, RCA line output for external amplifier, and remote output for external amplifier, makes this product applicable in any build.

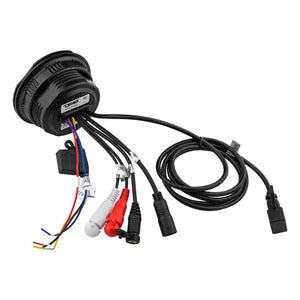

The integrated power wiring harness ensures that your device is always protected with overload and power protection circuitry, while the IPX6 water resistance rating ensures that your device is protected from water damage, making it perfect for all elements.
Whether you're cruising on the open road or exploring the open sea, DS18’s BTRCRMIC has got you covered!
Highlights
- One hole design for easy installation
- CB Radio style Microphone with controls
- IPX6 Water resistance rating
- USB port to Play your favorite music or re-charge your devices
- Built-in Wireless BT Audio Receiver
- BT 5.0v for long range up to 130ft*
- 5mm jack auxiliary audio input
- Stereo 2.5v Pre-out RCA
- Remote output to control external amplifier
- Use it as stand-alone source unit/receiver

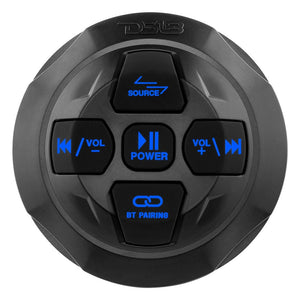

- Easy to use blue back-lit silicon buttons
- Integrated Power Wiring Harness
- Overload & Power Protection Circuitry
Great For
- Car Audio
- Truck Audio
- ATV Audio
- UTV Audio
- 4x4 Audio
- Boat Audio
- Marine Audio
- Powersports Audio
Technical Details
| SPECIFICATIONS | |
| Frequency Response | 20Hz-20KHz |
| Signal to Noise Ratio | >80dB |
| T.H.D: | <0.1% |
| Channel Separation | >60dB |
| Voltage Operation | DC 10-15V |
| Fuse Size | 5 Amp |
| BT Version | 5.0 |
| Wireless Range | >130 ft (conditions may vary) |
| USB Charging Capacity | 1 Amp with 4ft extension cord |
| USB Files Format Compatible | MP3 / WMA |
| USB Player Capacity | < 32GB |
| Remote Out | < 200mA |
| RCA Line Out (Pre-Amp) | 1 pair (Left & Right) 2.5V |
| MEASUREMENT | |
| UNIT | |
| Overall Diameter | 3.7" / 96mm |
| Overall Depth | 2.44" / 62mm |
| Mounting Depth | 1.85" / 47mm |
| Mounting Hole Size | 2.87" / 73mm |
| MICROPHONE | |
| Overall Width | 2.6" / 66.6mm |
| Overall Height | 4.3" / 110mm |
| Overall Depth | 1.2" / 31.3mm |
| Overall Depth (with Clamp) | 1.5" / 40.5mm |
Key Features
- Marine and Powersports Audio Receiver
- Gauge Mount
- Bluetooth
- With Microphone
- USB Port
- Water Resistant IP65
Specifications
| SKU | BTRCRMIC |
|---|---|
| Frequency Response | 20Hz-20KHz |
| Signal to Noise Ratio | >80dB |
| T.H.D | <0.1% |
| Channel Separation | >60dB |
| Voltage Operation | DC 10-15V |
| Fuse Size | 5 Amp |
| BT Version | 5.0 |
| Wireless Range | >130 ft (conditions may vary) |
| USB Charging Capacity | 1 Amp with 4ft extension cord |
| USB Files Format Compatible | MP3 / WMA |
| USB Player Capacity | < 32GB |
| Remote Out | < 200mA |
| RCA Line Out (Pre-Amp) | 1 pair (Left & Right) 2.5V |
| Aux Line Input | Plug 3.5mm |
| Buttons / Controls (Unit) | Power/Source/Play/Pause/Next/Prev/Vol+/Vol-/BT Pairing |
| Buttons / Controls (Microphone) | CB style Talk on/off / Mic Vol+/Vol- |
| Illumination (unit) | Blue backlit |
| Body Material / Color / Finish (Unit) | ABS Black housing / Rubber Buttons |
| Body Material / Color / Finish (Microphone) | ABS Black housing / Rubber Buttons |
| Waterproof Rating | IP65 |
| Overall Diameter | 3.7" / 96mm |
| Overall Depth | 2.44" / 62mm / 1.2" / 31.3mm |
| Mounting Depth | 1.85" / 47mm |
| Mounting Hole Size | 2.87" / 73mm |
| Overall Width | 2.6" / 66.6mm |
| Overall Height | 4.3" / 110mm |
| Overall Depth (with Clamp) | 1.5" / 40.5mm |
| Gross Single Unit Weight | 1.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 6.75 x 6.75 x 5.25 |
| Quantity of Units in Master Carton | 12 |
| Gross Master Carton Weight | 19.5 |
| Master Carton Dimensions W x L x H (Inches) | 14.25 x 14.25 x 16.5 |
