8” Marine 2-Way Hybrid Speaker with RGB LED, Compression Driver and Neodymium Magnet | 350W RMS 4-Ohm
8” Marine 2-Way Hybrid Speaker with RGB LED, Compression Driver and Neodymium Magnet | 350W RMS 4-Ohm
Product Overview

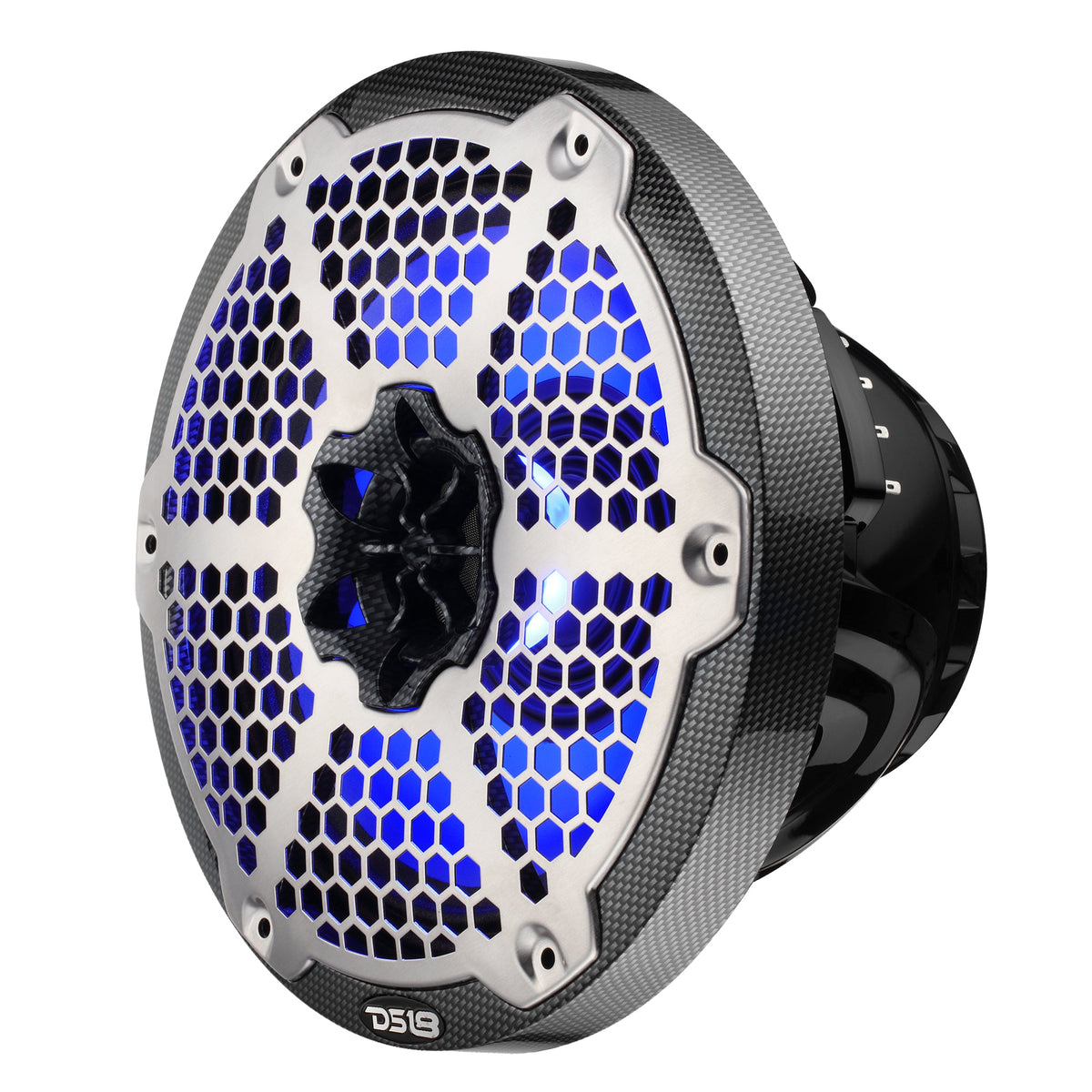

8” Marine Grade Hybrid Speaker with RGB LED, Compression Driver, Neodymium Magnet, Carbon Fiber Texture
Experience the punch of DS18’s CF-8MD, rated at 350W RMS and designed for marine and powersports enthusiasts who like it LOUD!
Advanced Hybrid 2-Way Design
Featuring a high-performance 2” voice coil woofer with treated paper cone, the NXL-8MD is paired with a 1” neodymium compression driver and CNC aluminum horn reproducing audio from 50Hz up to 20kHz.
Marine-Grade Construction & Lighting

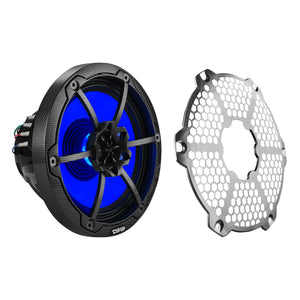

The IP65 rated speaker is housed in a UV-protected injection-molded ASA basket. A removable stainless steel grill guards against corrosion. Integrated 12V RGB LED lighting adds customizable flair to your audio system.
Installation Made Easy
The NXL-8MD fits standard 8.6” diameter openings with a 3.8” mounting depth, and is sold in pairs for balanced stereo sound.
Upgrade your marine or off-road ride with DS18’s CF-8MD and enjoy show-stopping sound that stands up to sun, salt, and spray!
Key Features
- Neodymium compression driver with CNC aluminum horn for crisp highs
- Waterproof and UV-protected for all-weather durability IP65

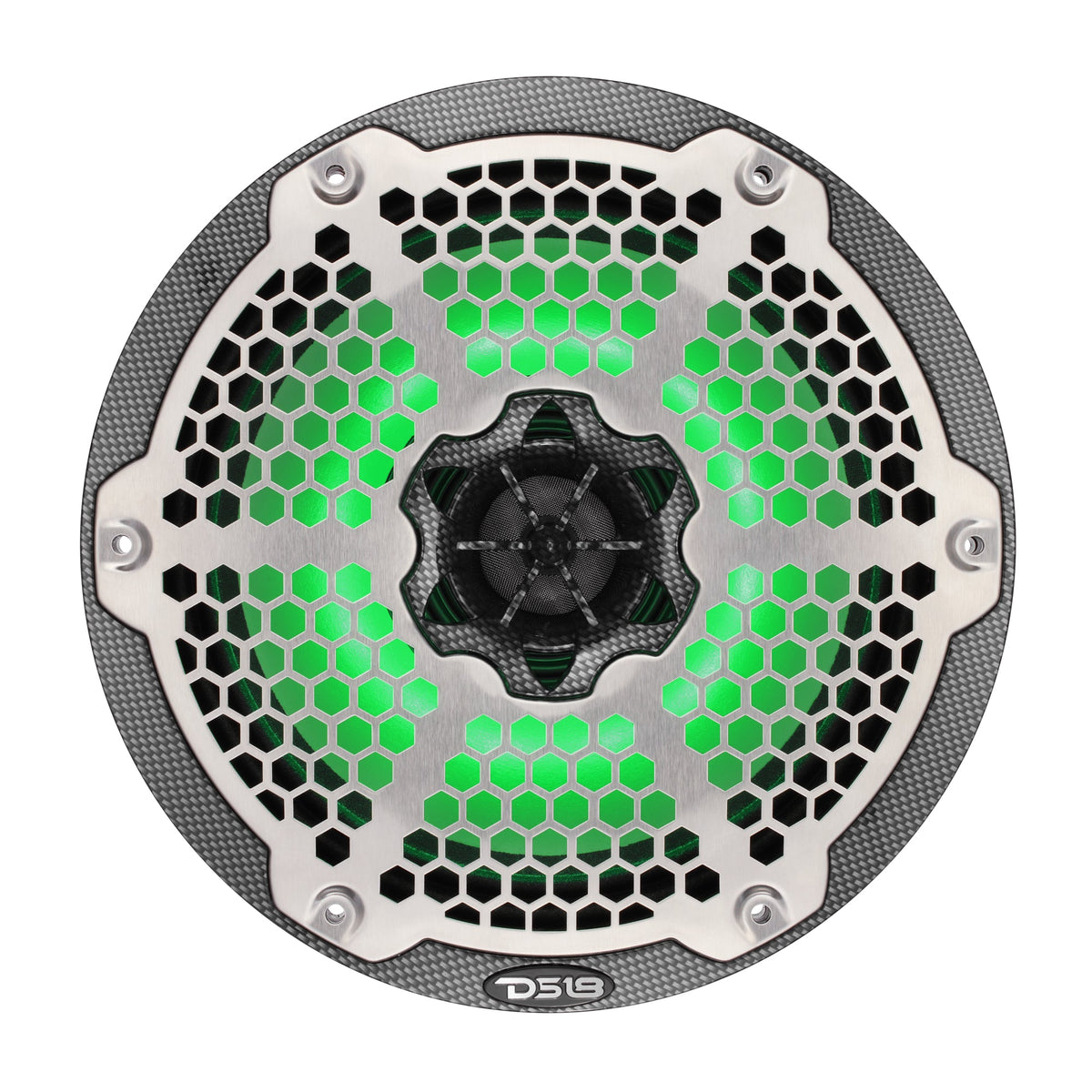

- Removable Stainless Steel Grill

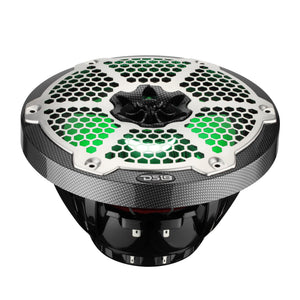

- Vibrant RGB Lighting

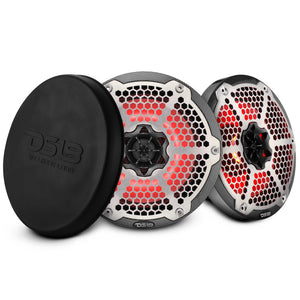

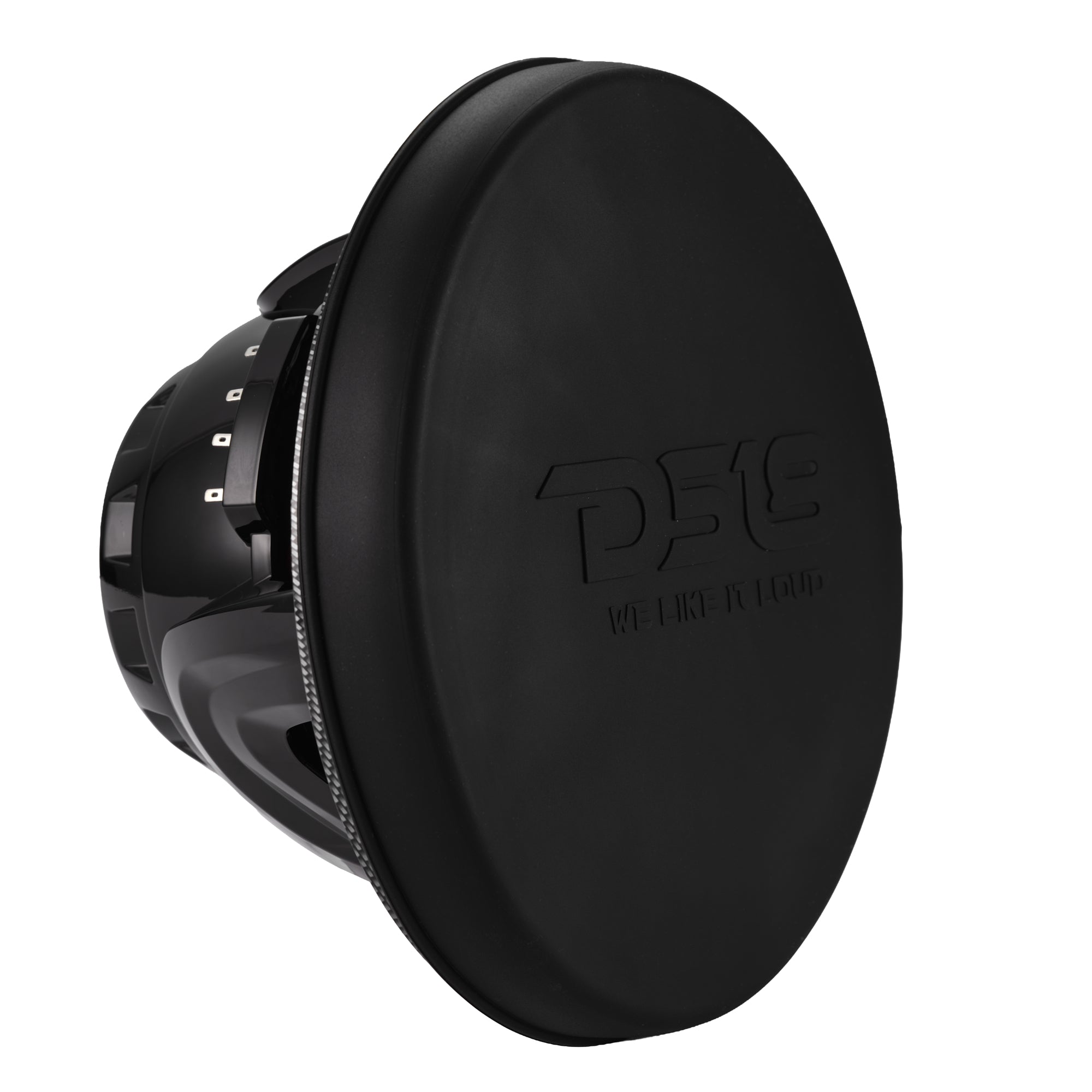

- Speaker covers included
Specifications
| Nominal Diameter | 8" / 203mm |
|---|---|
| RMS Power Handling (Combined) | 350W |
| MAX Power Handling (Combined) | 700W |
| Sensitivity (1w/1m) (Combined) | 108dB |
| Frequency Response (Combined) | 50Hz-20kHz |
| Number of Ways | 2-Ways |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, 12VDC LED integrated |
| Grill Type | Injection Molded Composite ASA with UV Protection coating + Removable 316 Stainless Steel metal mesh |
| Sold in Pair | Yes |
| Color / Finish | Carbon Fiber |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 300W / 50W |
| MAX Power Handling | 600W / 100W |
| Sensitivity (1w/1m) | 96dB / 108dB |
| Frequency Response | 50Hz-7kHz / 1kHz-20kHz |
| Recommended Band-Pass Crossover | 80Hz-2.5kHz |
| Voice Coil Diameter | 2" / 50.8mm / 1" / 25.4mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Injection Molded PC with UV Protection coating |
| Magnet Material | Neodymium (N40H) / Neodymium (N38H) |
| Magnet Weight | 8 oz / 0.61 oz |
| Type | Compression driver with CNC solid aluminum horn |
| Crossover | Built-In 12dB/Oct with overload protection |
| Recommended High-Pass Crossover | 2.5kHz |
| Diaphragm Material | PEN |
| Equivalent Volume | 13.25L / 0.468ft3 |
| Excursion (one way) | 2.75mm |
| Free Air Resonance | 86Hz |
| Mechanical Factor | 4.481 |
| Electrical Factor | 0.685 |
| Total Factor | 0.594 |
| Moving Mass | 16.637g |
| Compliance | 204.640uM/N |
| Bl Factor | 6.069 |
| Voice Coil Inductance | 0.17mH |
| Cone Area | 213.8CM2 |
| DC Resistance | 2.9 Ohms |
| Efficiency Bandwidth Product | 125 |

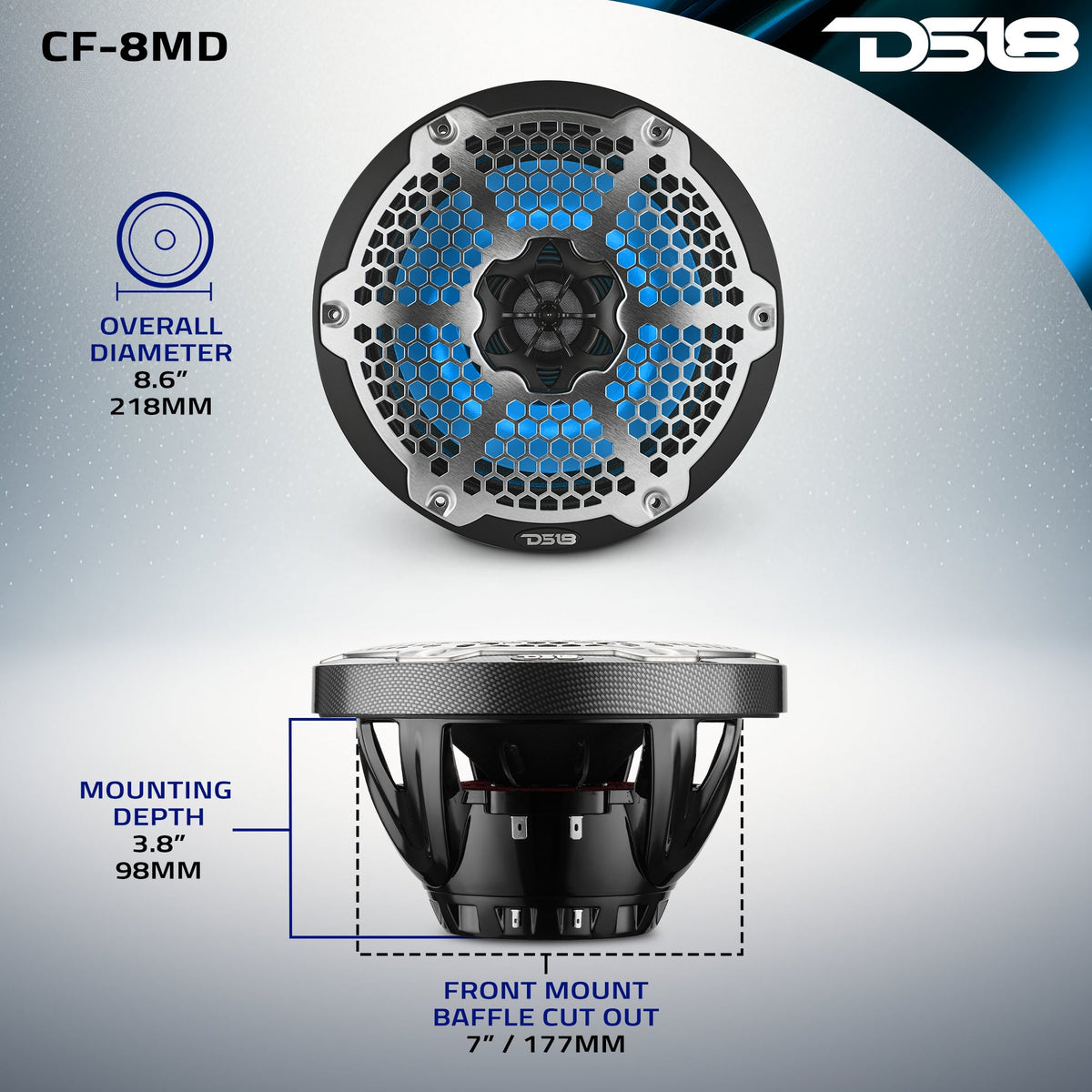

| Overall Diameter | 8.6" / 218mm |
| Overall Depth | 5.2" / 132mm |
| Front Mount Baffle Cutout | 7" / 177mm |
| Mounting Depth | 3.8" / 98mm |
| Motor Diameter | 3.9" / 100mm |
