Product Overview

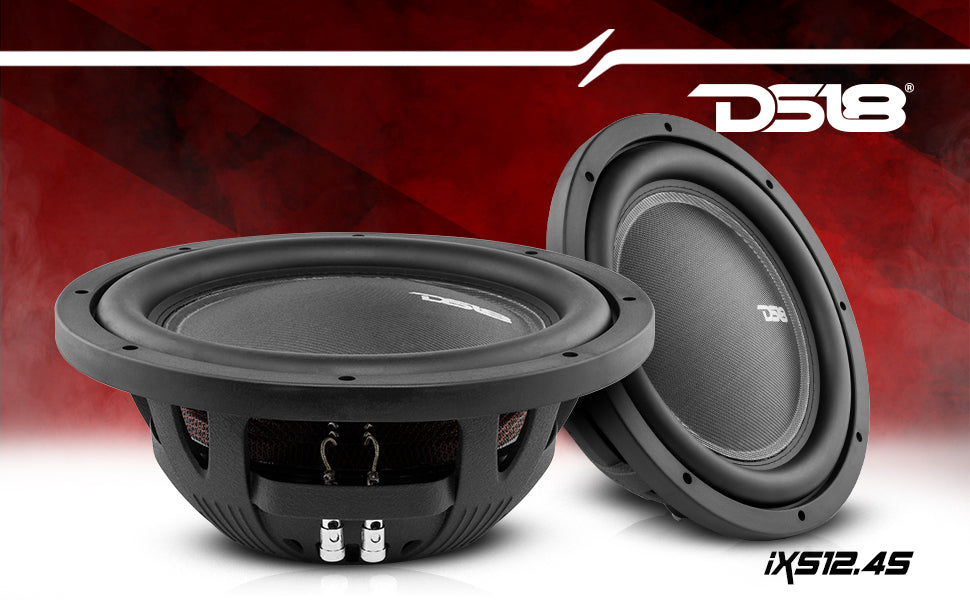

DS18 IXS12.4S 12" Car Subwoofer 1600 Watts 4-Ohm SVC Shallow Mount
Continuing the tradition of our very popular shallow mount subwoofers, we now have the IXS line which is the successor to our best selling SW slim subwoofer line. We took the SW line and made it even beefier for more bass. The IXS comes in both 10 and 12 inch. Also they both have multiple voice coil options to get the most from your amplifier. These subs are perfect for the audiophile that wants a lot of bass but does not have much space for a full sized subwoofer. With these you can get that loud thump without having to sacrifice a lot of room.
Highlights
- IXS series was made to produce more bass than other shallow mount subs of it rating in ported or sealed boxes.
- Large surround with flexible spider packs will help the CCA voice coil teach maximum xmax producing full and deep bass with a up to spec box.
- Shallow mount size will let you fit this sub in compact places and requires less box space than other subs its size giving you many options in which to place it.
Technical Details
| Model: | IXS12.4S |
| Type: | Shallow Subwoofer |
| Size: | 12" |
| RMS Power: | 800W |
| MAX Power: | 1600W |
| Impedance: | 4 Ohms |
| Voice coil size: | 2.5" |
| Magnet: | Ferrite |
| Magnet Size: | 62 oz |
| Frequency Response: | 20Hz - 600Hz |
| Materials | |
| Frame: | Aluminum |
| Cone: | Paper |
| Dust Cap Material | Fiberglass |
| Surround: | Stitched Rubber |
| Voice Coil Former Material: | Aluminum |

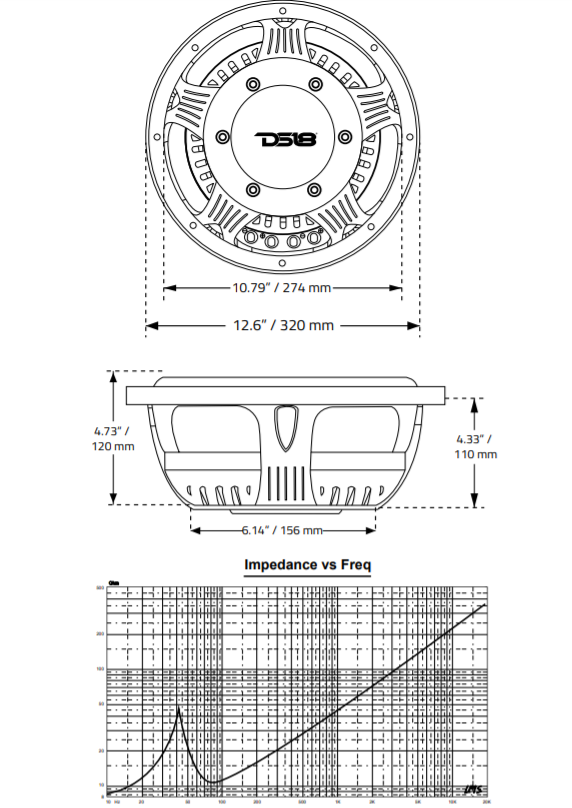

| Measurements | |
| Overall Diameter: | 12.6" |

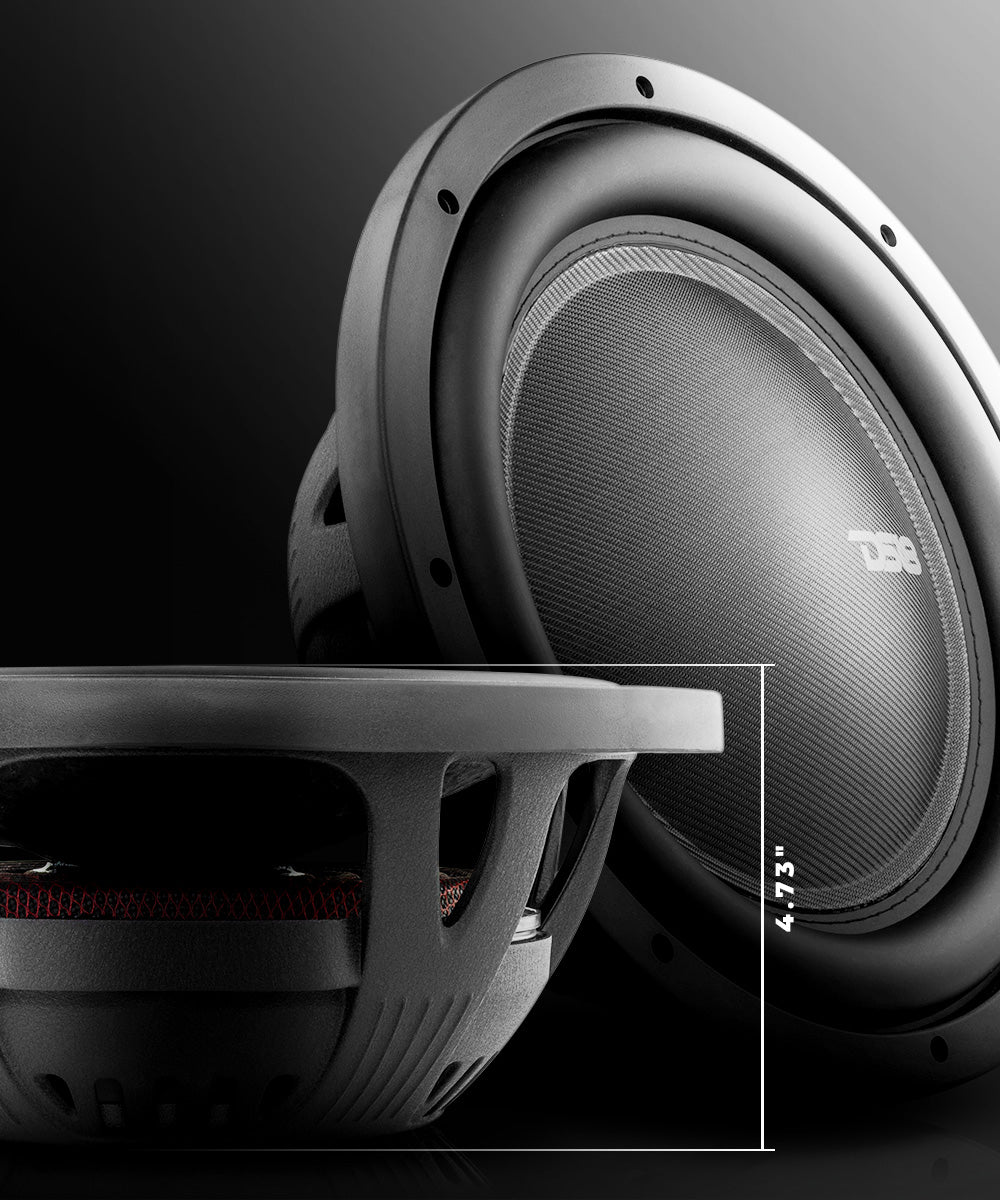

| Overall Depth | 4.73" |

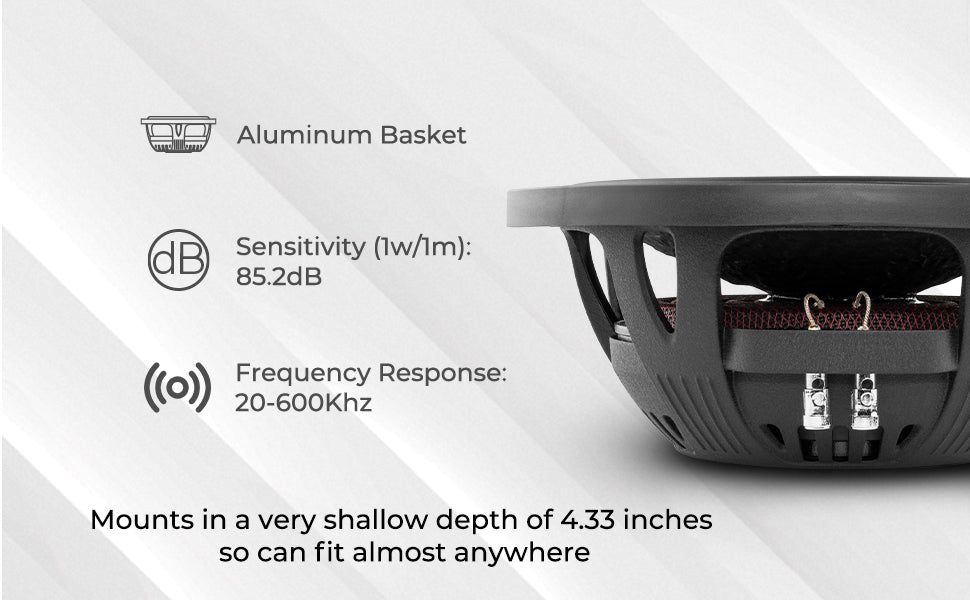

| Mounting Depth | 4.33" |
| Front Mount Baffle Cutout | 10.79" |

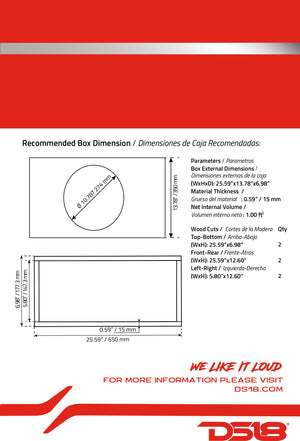

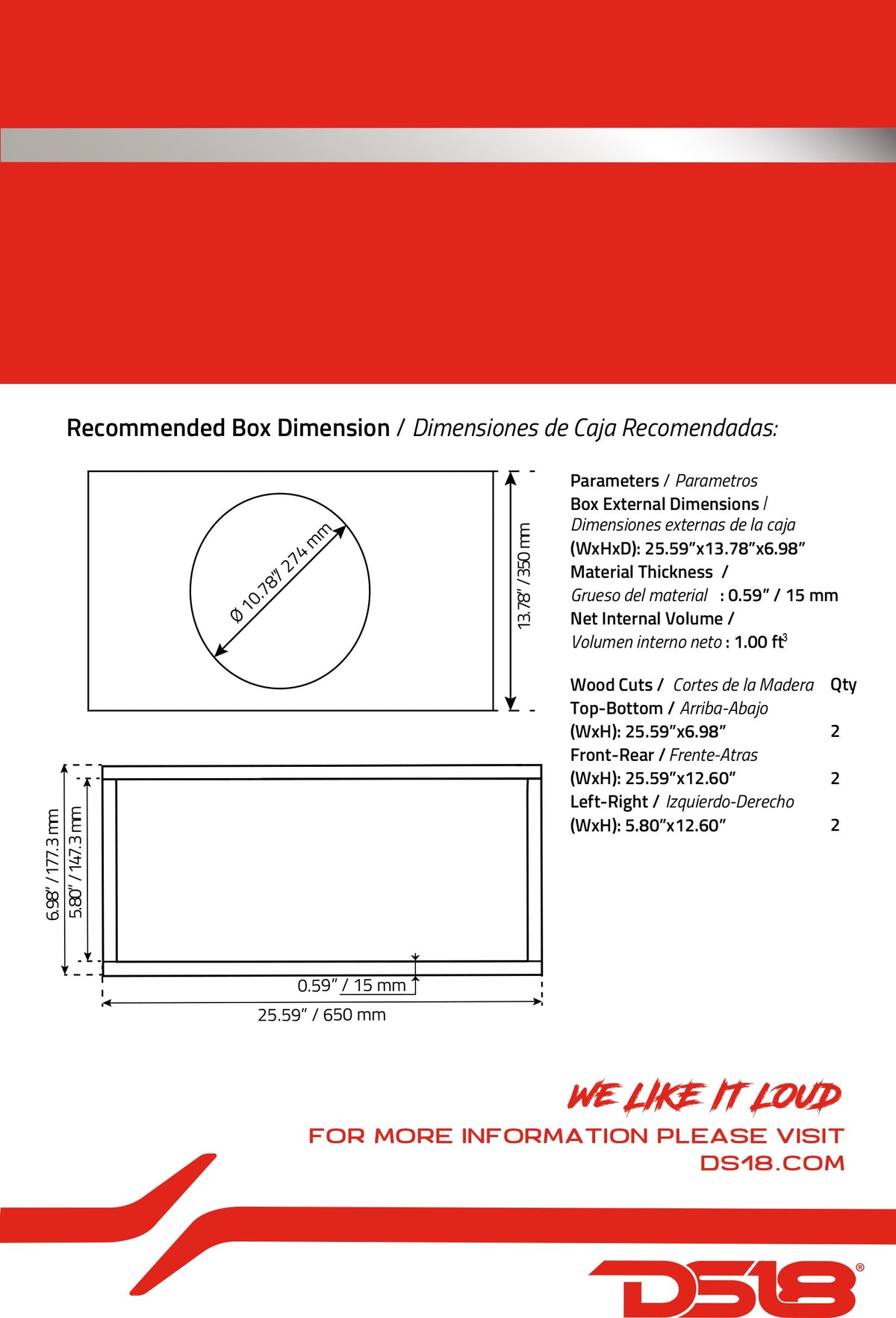

Box Info
Key Features

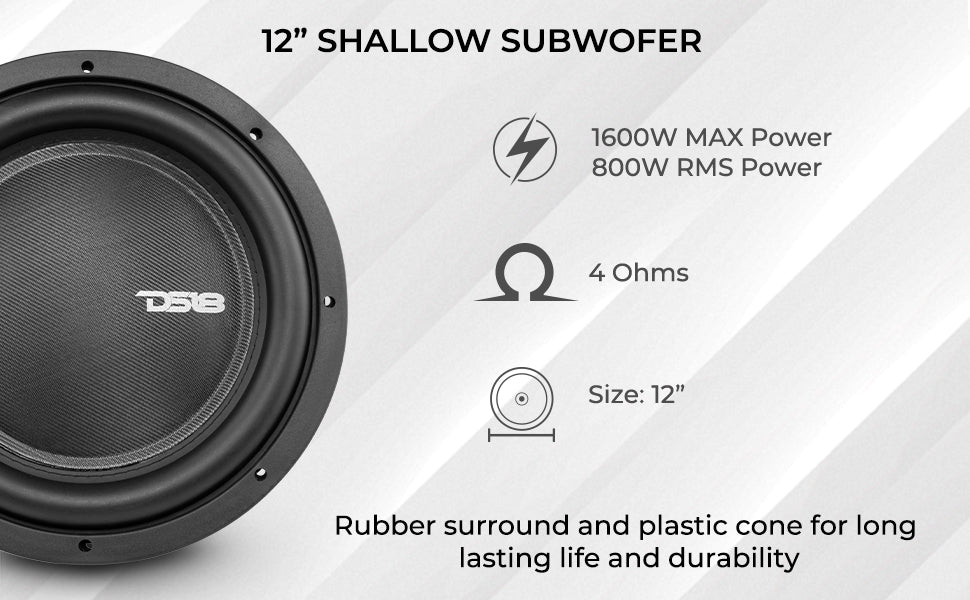

- 12" Shallow Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 4-Ohm 2.5" SVC

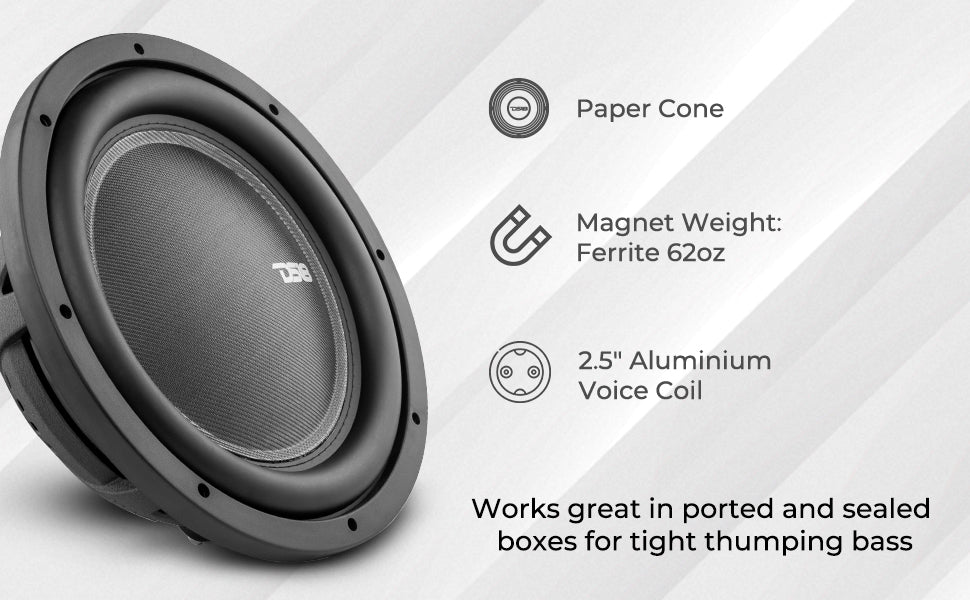

- Ferrite Magnet
- 85dB
Specifications
| SKU | IXS12.4S |
|---|---|
| Nominal Diameter | 12" / 304.8mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 800W |
| Maximum Power Handling | 1600W |
| Sensitivity (1w/1m) | 85 dB |
| Frequency Response | 20 - 600 Hz |
| Recommended Lo Pass Crossover | 80 Hz |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Paper |
| Dust Cap Material | Fiberglass |
| Surround Material | Stitched rubber |
| Basket Material | Aluminum |
| Basket Color/Finish | Corrugated Black |
| Magnet Material | Ferrite |
| Magnet Weight | 62 Oz |
| Displacement Volume | 0.93L / 0.033ft3 |
| Equivalent Volume Vas | 42.4L / 1.49ft3 |
| Free Air Resonance Fs | 33 Hz |
| Mechanical Factor Qms | 4.844 |
| Electrical Factor Qes | 0.996 |
| Total Factor Qts | 0.826 |
| Moving Mass Mms | 184.35 g |
| Compliance Cms | 0.123 mm/N |
| Bl Factor BI | 12.36 |
| Voice Coil Inductance Le | 3.989 mH |
| Diaphragm Area Sd | 494.81 cm2 |
| DC Resistance Re | 3.9 ohms |
| Efficiency Bandwidth Product EBP | 33.1 |
| Sealed Internal Volume (minimum) | 28L / 1ft3 |
| Sealed Box Output Response F3 | 40Hz |

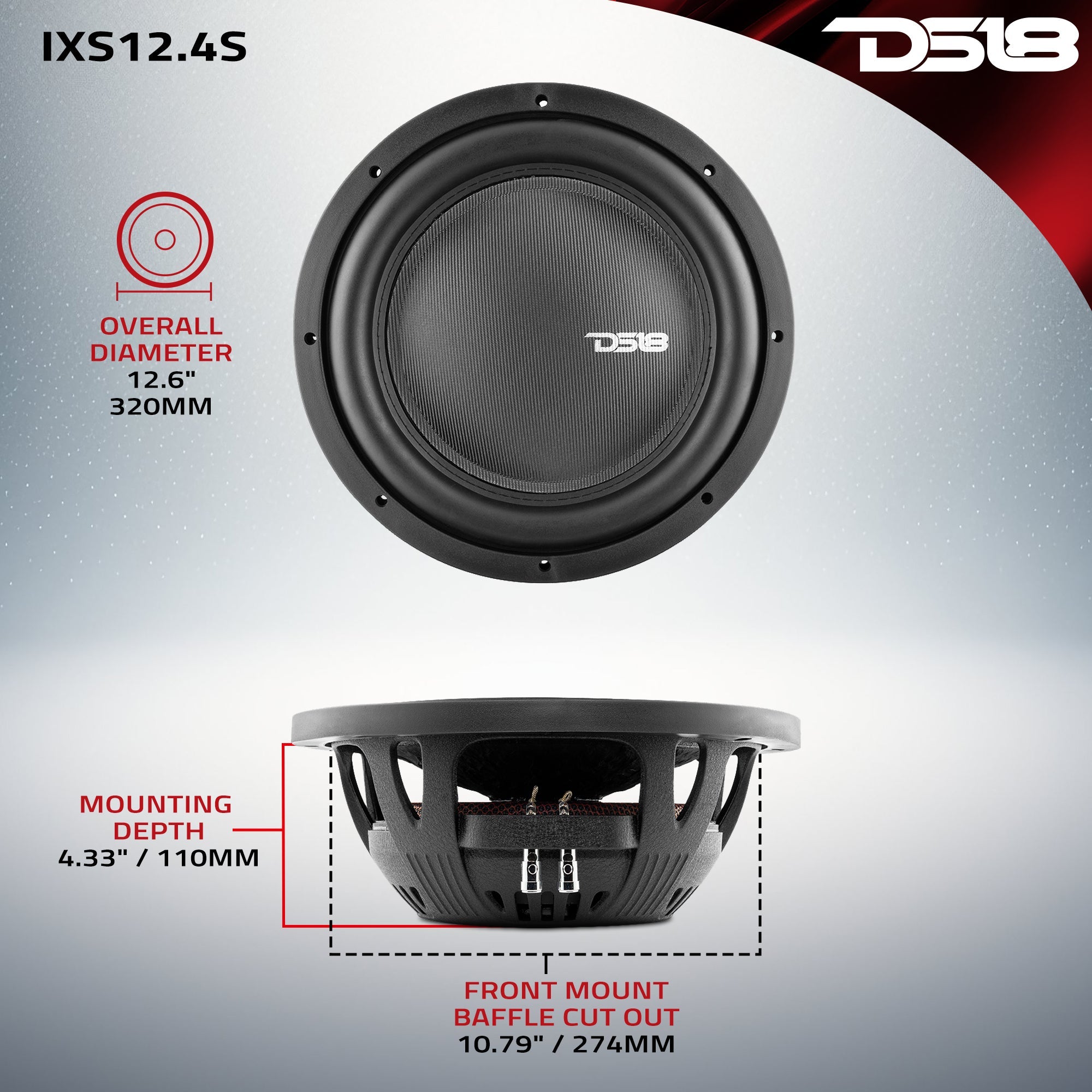

| Overall Diameter | 12.6" / 320 mm |
| Overall Depth | 5" / 129 mm |
| Front Mount Baffle Cutout | 10.79" / 274 mm |
| Mounting Depth | 4.33" / 110 mm |
| Motor Diameter | 6.3" / 160 mm |
| Gross Single Unit Weight (lb) | 16.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 13.25 x 13.5 x 6.5 |
| Quantity of Units in Master Carton | 2 |
| Gross Master Carton Weight (lb) | 34 |
| Master Carton Dimensions W x L x H (Inches) | 14 x 14 x 14 |
