Product Overview
DS18 H-KO5 HOOLIGAN SPL 1-Channel Subwoofer Monoblock Car Amplifier, Voltmeter, Clip Indicator 5000 Watts RMS 1-Ohm Made In Korea
DS18's new Korean Half Bridge amps are here with MORE power, MORE options, all while coming in a smaller frame. These amps are designed for serious audiophiles that demand the most wattage for window breaking bass. These competition amps are designed to uphold the highest efficiency all while producing obscene amounts of pure power for your subs.
The H-KO5 is a new offering from DS18 to push a multitude or larger subwoofers to the maximum all while using half-bridge Korean Monoblock power. Korean amps are traditionally known to be beefier and use the highest quality components compared to their Brazilian full-bridge competitors. Korean amps are known to have the highest signal to noise ratio of all amplifiers available and have been proven through the ages to perform the best for SPL and loud bass in general.
Highlights

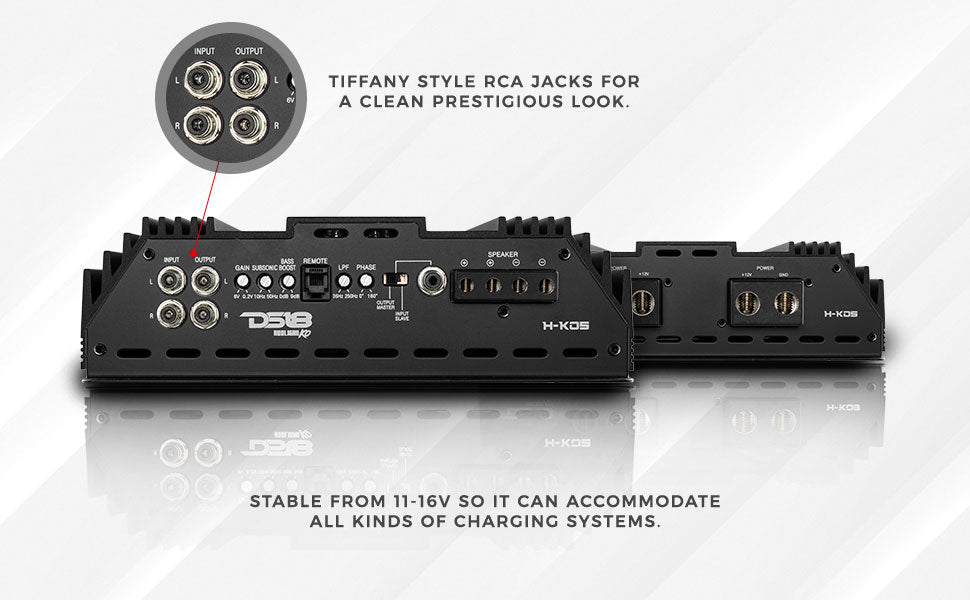

- Tiffany style RCA jacks for a clean prestigious look.
- Stable from 11-16v so it can accommodate all kinds of charging systems.

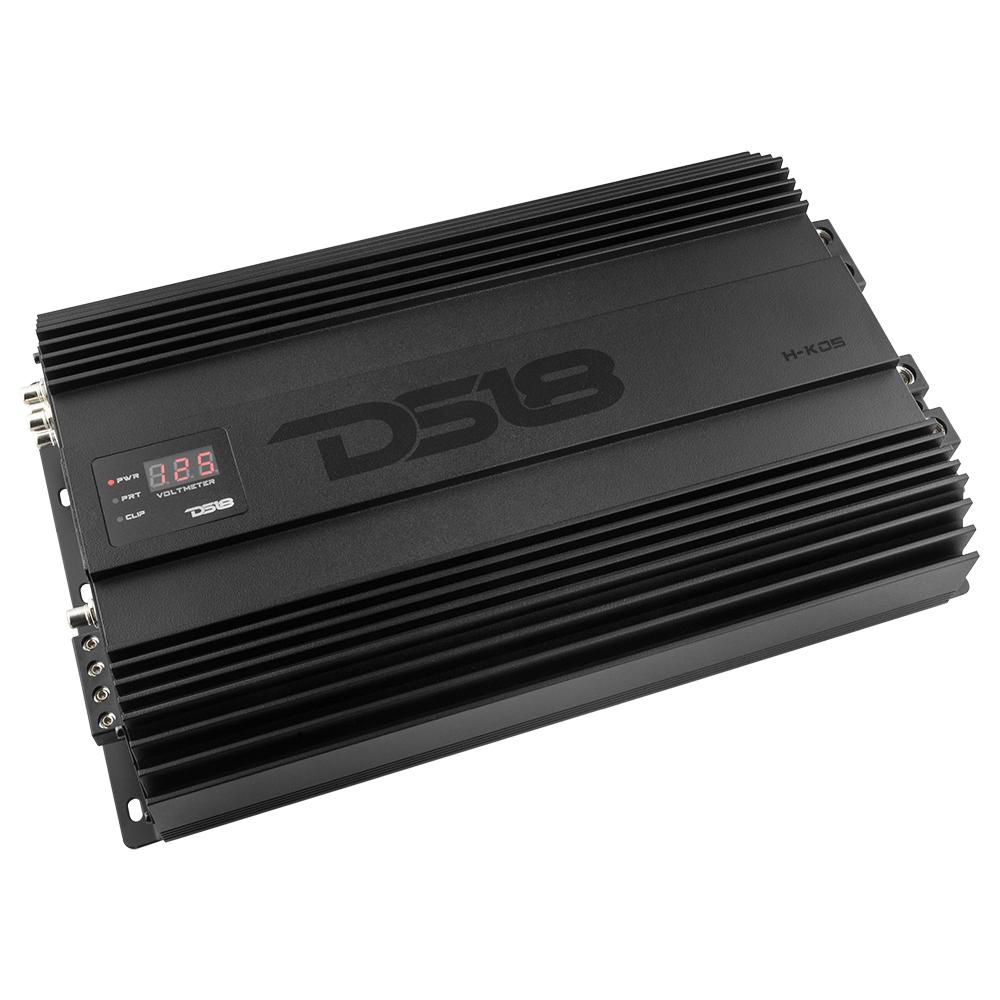

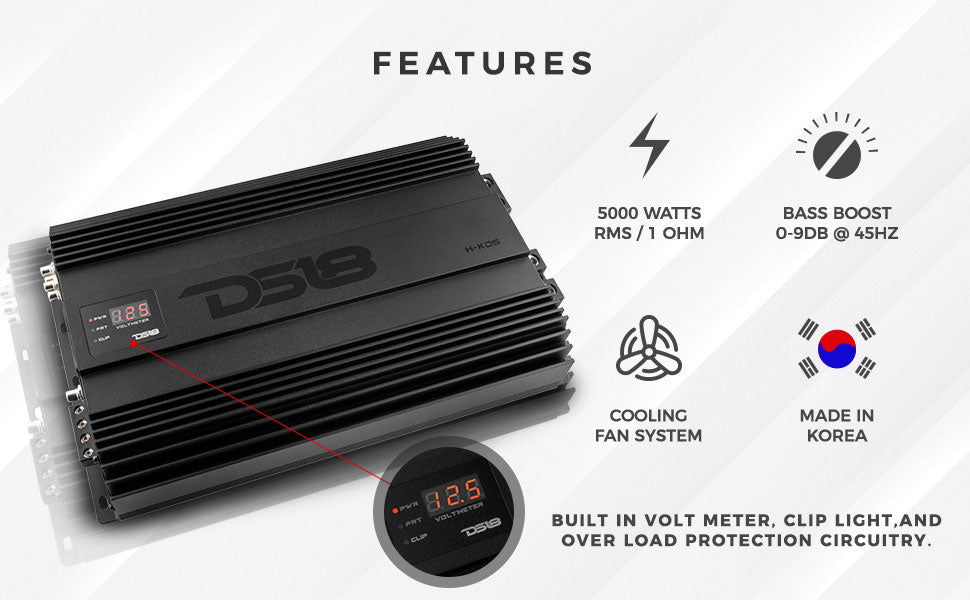

- Built in Volt meter, clip light, and over load protection circuitry.

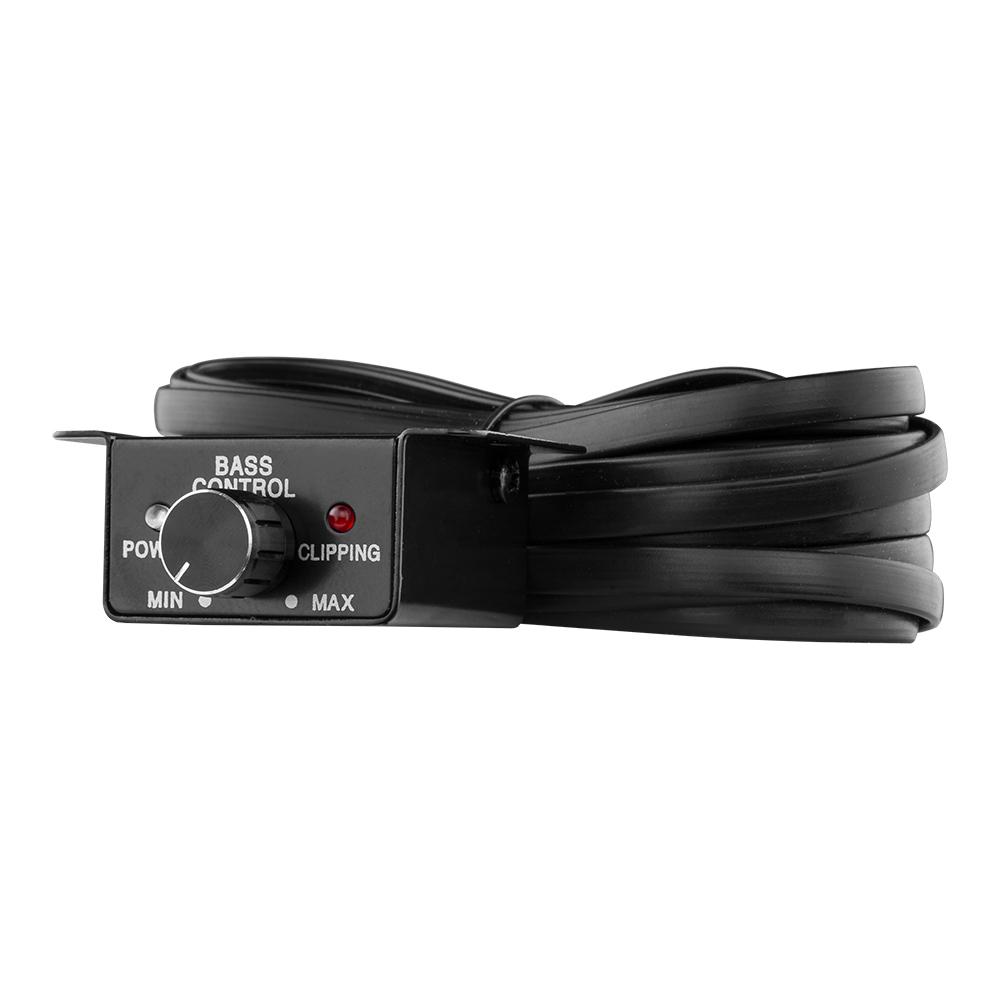

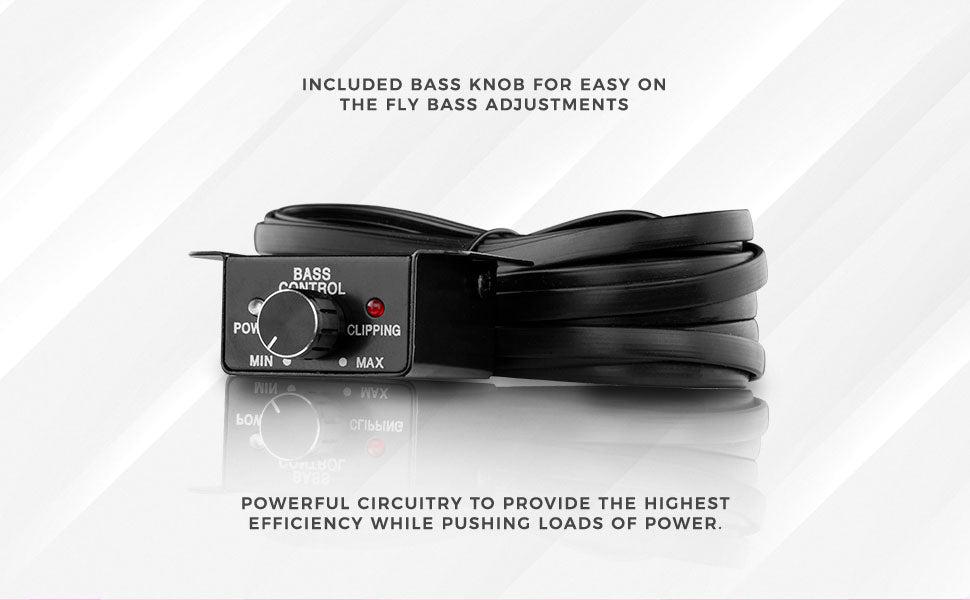

- Included Bass knob for easy on the fly bass adjustments.
- Powerful circuitry to provide the highest efficiency while pushing loads of power.

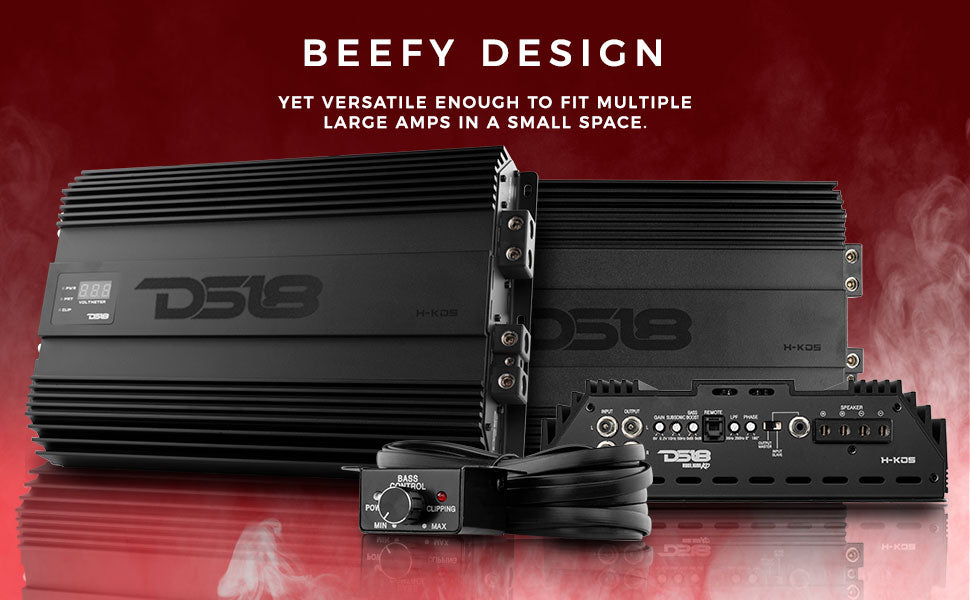

- Beefy design yet versatile enough to fit multiple large amps in a small space.
Technical Details
| POWER | |
| RMS Power @ 4 ohms | 2200W |
| RMS Power @ 2 ohms | 3500W |
| RMS Power @ 1 ohm | 5000W |
| RMS Power @ 0.5 ohm | 9200W (Burst) |
| AUDIO | |
| Frequency Response | 13-300Hz |
| Signal To Noise Ratio | >96dB |
| Efficiency @ 4ohm | 96% |
| Damping Factor | 400 |
| Total Harmonic Distortion (THD) | Less Than 0.2% |

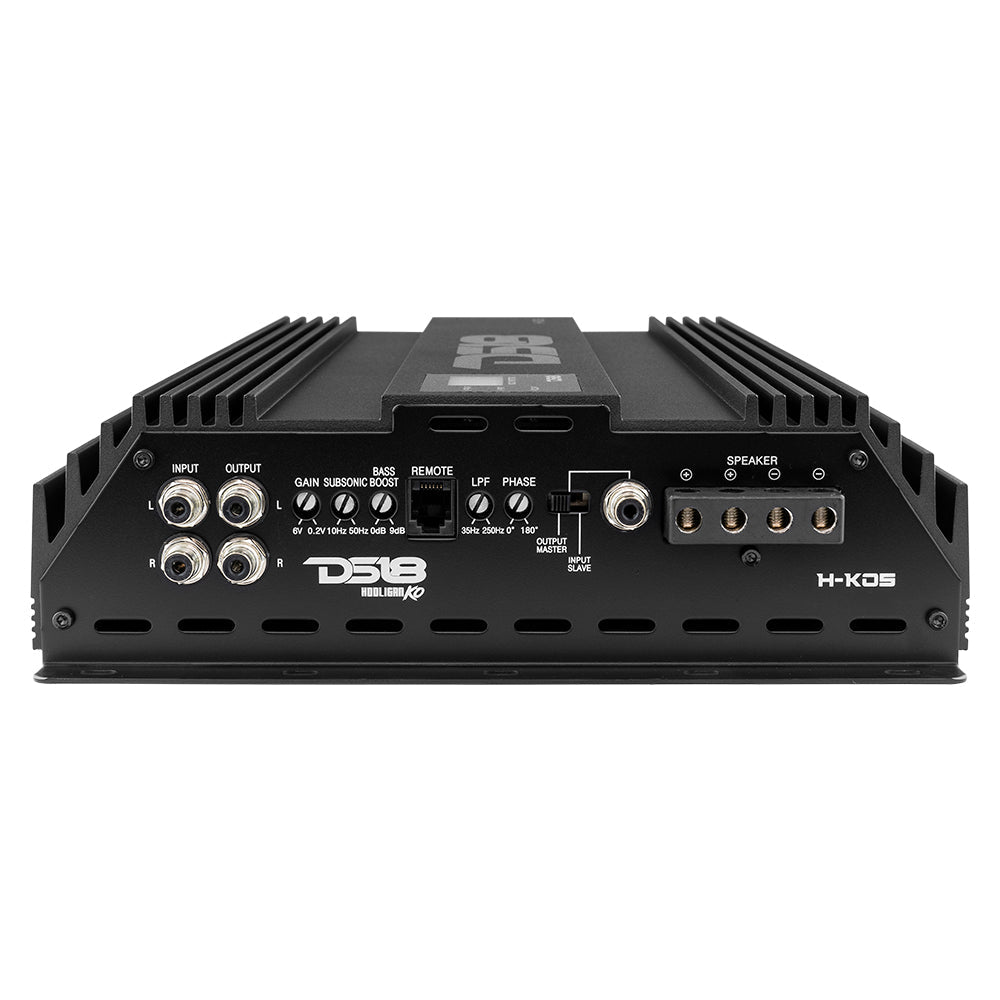

| Low Level Input Range | 0.2-6V |
| Selectable X-Over | Fixed LPF |
| X-Over filter Range | 35-250Hz |
| Bass Boost Range | 0-9dB |
| Bass Boost Frequency | 45Hz |
| Infrasonic Filter | 10-50Hz |
| Phase | 0-180° |

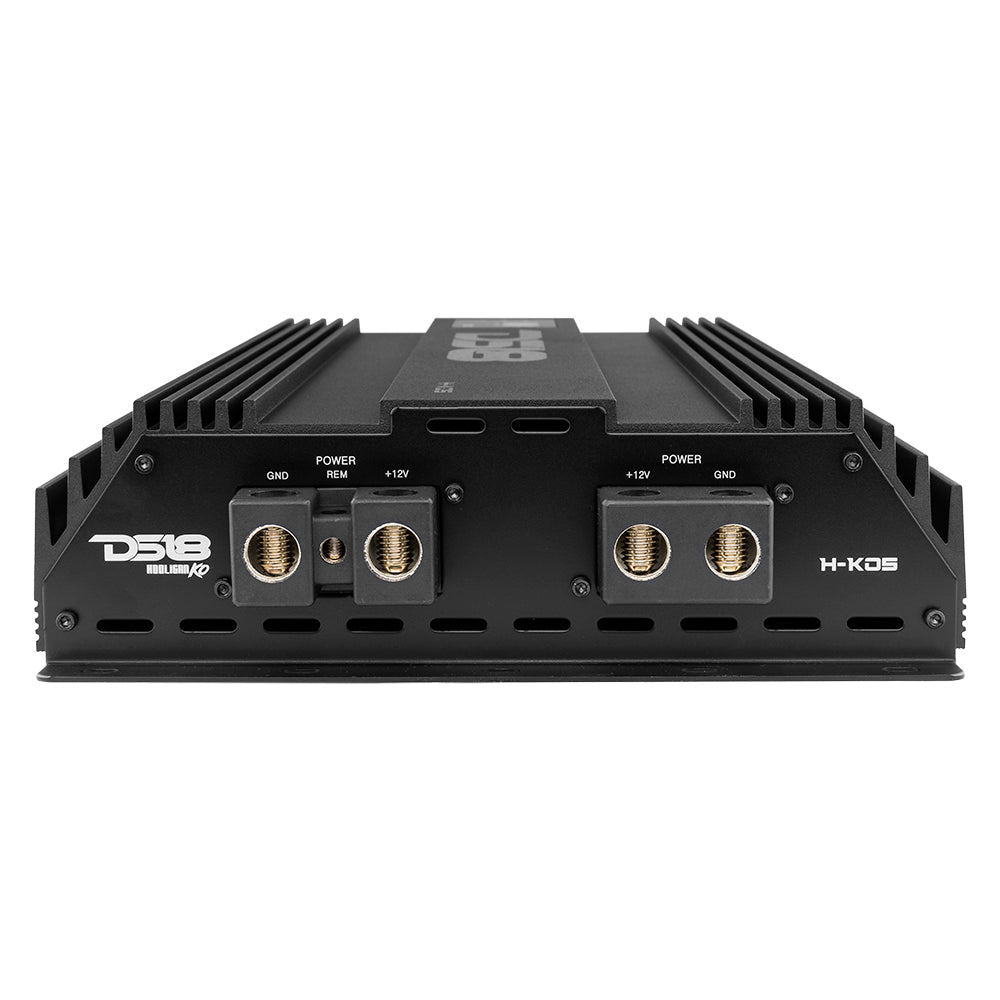

| Power Input Terminal Size | 0GA x 2 |
| Fuse Size (recommended) | 420A |
Key Features
- 1 Channel Subwoofer Monoblock
- Class D
- 0.5 ~ 4 Ohm Stable
- 1 x 5000 Watts @ 1 Ohm
- Bass Knob/Voltmeter/Clip Indicator
- Made In Korea
Specifications
| SKU | H-KO5 |
|---|---|
| RMS Power @ 4 ohm | 2200W |
| RMS Power @ 2 ohm | 3500W |
| RMS Power @ 1 ohm | 5000W |
| RMS Power @ 0.5 ohm | 9200W (burst only) |
| RMS Power @ 4 ohm Bridge | N/A |
| Frequency Response | 13Hz-300Hz |
| Signal to Noise Ratio | >96dB |
| Efficiency @ 4ohm | 96% |
| Damping Factor | 400 |
| Total Harmonic Distortion (THD) | <0.2% |
| Low Level input Range | 0.2-6V |
| Selectable X-Over | Fixed LPF |
| X-Over Filter Range | 35-250Hz |
| Bass Boost Range | 0-9dB |
| Bass Boost Frequency | 45Hz |
| Infrasonic Filter | 10-50Hz |
| Phase | 0-180° |
| Amplifier Class | Digital (D) |
| Amplifier Type | Monoblock / Subwoofer |
| Number of Channels | 1 |
| Minimum Impedance | 1 Ohm |
| Led Indicator | Power / Protect / Clip |
| Power Input Terminal Size | 2 x 1/0Ga |
| Fuse Size | 420A |
| Remote Level Control | Yes (Metal Case) |
| Cooling Fan | Yes |
| Voltmeter | Yes |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Cliping Protection | Yes |
| Body Color / Finish | Red / Black / Titanium |
| X-Over Frequency Multiplier | No |
| Input Mode Selectable | No |
| LED Clipping indicator | Yes |
| Professional Tiffany RCA Connectors | Yes |
| Remote Level Knob with Clip indicator | Yes |
| Linkable (Strap mode) Amplifier | Yes |

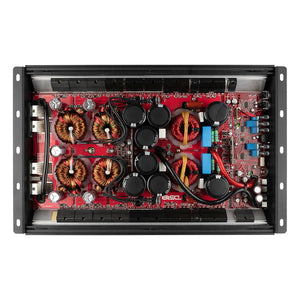

| Reliable Heavy Duty Korean Board Design | Yes |
| Very High Efficiency Digital Circuit Design | Yes |
| Overall Lengh ( with end plate ) | 15.35" / 390mm |
| Overall Wide | 9.68" / 246mm |
| Overall Height ( with end plate ) | 2.85" / 72.5mm |
| Heatsink Length | 14.17" / 360mm |
| Gross Single Unit Weight | 7.06kgs |
