EXL-X 8" Subwoofer 600 Watts Rms DVC 2-Ohms
Product Overview
DS18 EXL-X8.2D 8" Car Subwoofer 1200 Watts 2-Ohm DVC
EXL X (Extremely loud) competition grade subwoofers features DS18 private red aluminum basket, fiber glass dust cap, 2.5" voice coils and 1200 watts of power, with the combination of modern technologies and unique engineering solutions this subwoofer is the evidence of DS18 technological and methodical dominance, EXL X is the best choice to enter the bass head world in the lanes or to play daily music.
Highlights
- Big bass in a small package. Small sized sub with full size ferrite magnet and lots of Xmax.
- High strength foam surround holding a durable pressed cone with fiberglass
- DS18 dustpan will not only give you DS18 flare but is strong enough to force great bass out even with a small cone area size.
- Works great in ported and sealed boxes in all vehicles shapes and sizes!
Technical Details
| Model: | EXL-X8.2D |
| Type: | Subwoofer |
| Size: | 8" |
| RMS Power: | 600W |
| MAX Power: | 1200W |
| Impedance: | 2 + 2 Ohms |
| Voice Coil Size: | 2.5" |
| Magnet: | Ferrite |
| Magnet Weight: | 130oz |
| Frequency Response: | 38Hz - 1.0KHz |
| Materials | |
| Frame: | DS18 Private Red Aluminum |
| Surround: | Foam Edge |
| Dust Cap: | Glass Fiber |
| Voice Coil Former Material: | Black Aluminum |
| Measurements | |
| Mounting Cut-Out: | 7.36" |
| Mounting Depth: | 5.51" |
| Overall Diameter: | 8.58" |
| Optimum Sealed ft3 | 0.417 |
| Optimum Ported ft3 | 1.0 |
| Port Tune | 43Hz |
Key Features
- 8" Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2.5" DVC
- Ferrite Magnet
- 89dB
Specifications
| SKU | EXL-X8.2D |
|---|---|
| Nominal Diameter | 8" / 203.2mm |
| Nominal Impedance | 2+2 ohms |
| RMS Power Handling | 600W |
| Maximum Power Handling | 1200W |
| Sensitivity (1w/1m) | 89dB |
| Frequency Response | 38Hz-1KHz |
| Recommended Lo Pass Crossover | 100Hz |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Non Pressed Paper + Glass fiber |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 130 oz |
| Displacement Volume | N/A |
| Equivalent Volume | 2.5L / 0.088ft3 |
| Free Air Resonance | 70Hz |
| Mechanical Factor | 6.852 |
| Electrical Factor | 0.987 |
| Total Factor | 0.993 |
| Moving Mass | 163.24g |
| Compliance | 0.025mm/N |
| Bl Factor | 21.4 |
| Voice Coil Inductance | 11.21mH |
| Diaphragm Area | 193.59cm2 |
| DC Resistance | 2+2 ohm |
| Efficiency Bandwidth Product | 70.9 |
| Sealed Internal Volume | 0.3ft3 |
| Sealed Box Output Response | 60Hz |
| Ported Internal Volume | 0.5ft3 |
| Port Size *Square (W x H x Long) | 1" x 8" x 10.56" / 25 x 203 x 268mm |
| Port Tuning Frequency | 55Hz |
| Ported Box Output Response | 42Hz |

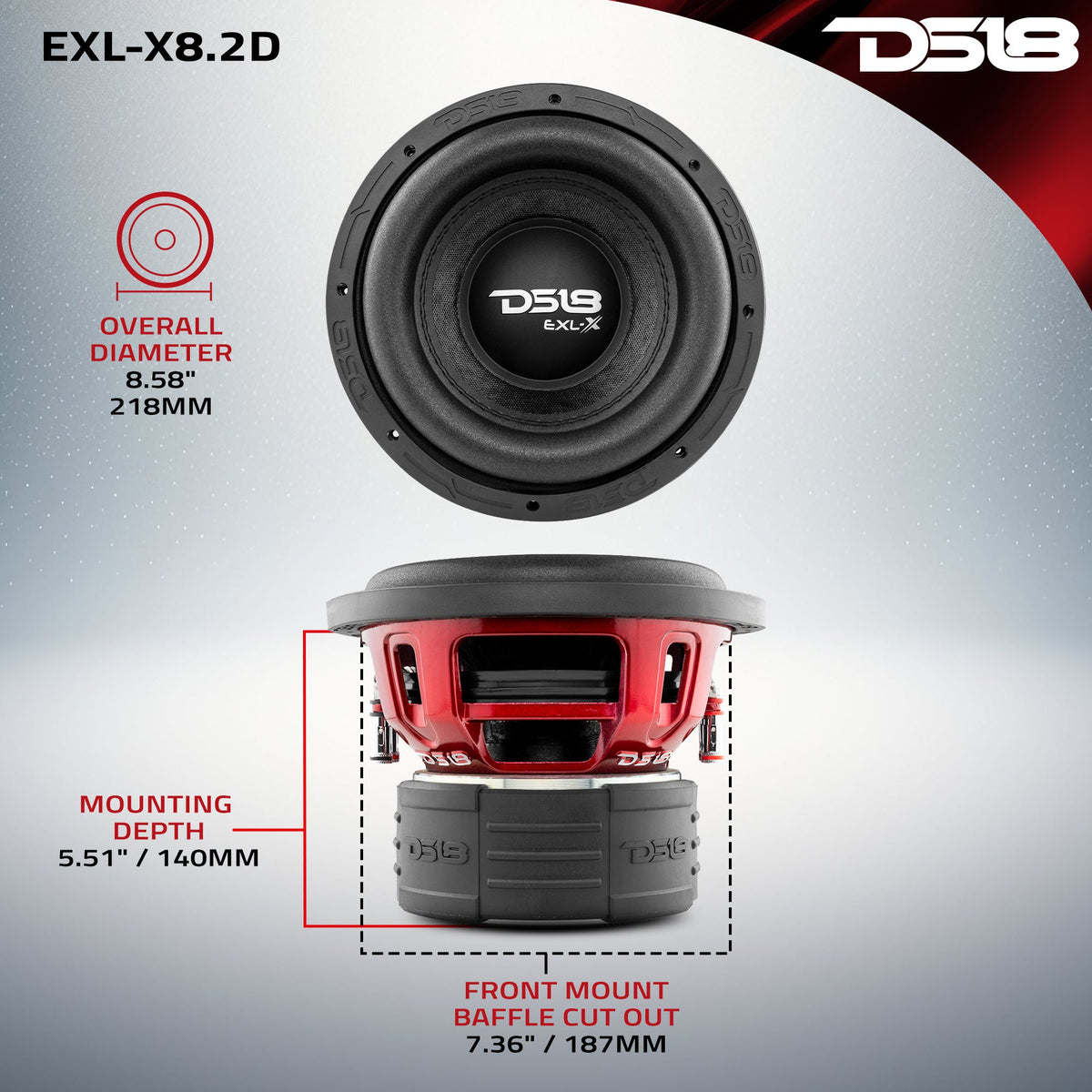

| Overall Diameter | 8.58" / 218mm |
| Overall Depth | 6.61" / 168mm |
| Front Mount Baffle Cutout | 7.36" / 187mm |
| Mounting Depth | 5.51" / 140mm |
| Motor Diameter | 6.1" / 155mm |
| Gross Single Unit Weight (lb) | 16.5 |
| Dimensions W x L x H (Inches) | 9.25 x 9.25 x 7.5 |
| Quantity of Units in Master Carton | 2 |
| Gross Master Carton Weight (lb) | 33.5 |
| M/C Dimensions W x L x H (Inches) | 19.25 x 10.25 x 8.5 |
