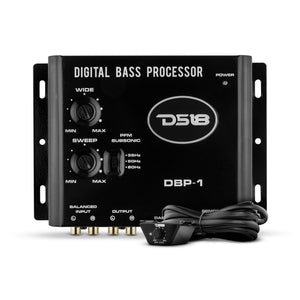

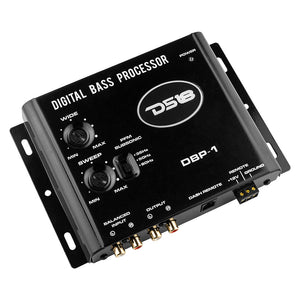

DS18 DBP-1 Digital Bass Processor
Product Overview
DS18 DBP-1 Digital Bass Processor
Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our accessories are designed to provide the perfect and cleanest frequency distribution throughout your system to ensure the clarity and peak efficiency for your acoustic.
Highlights

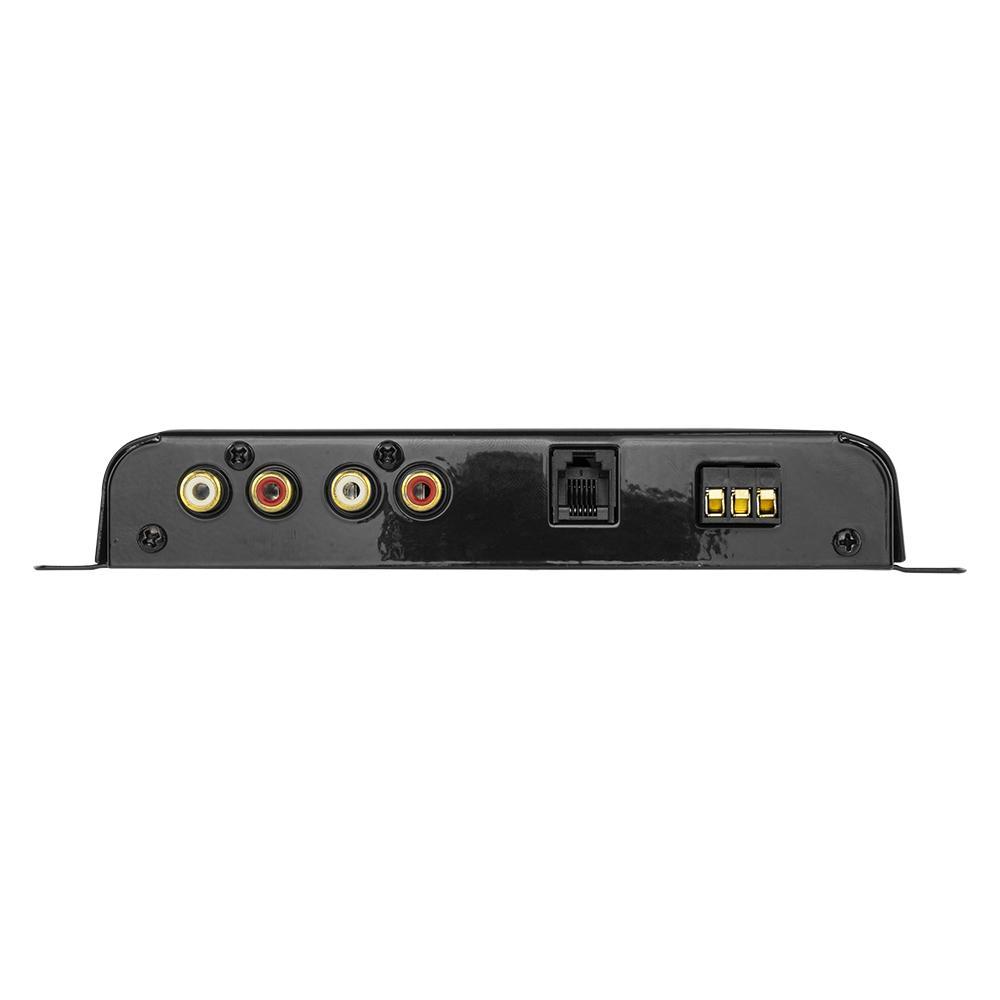

- Two channel level RCA input signal from your radio to your amp enhancing your bass output with an external subs.

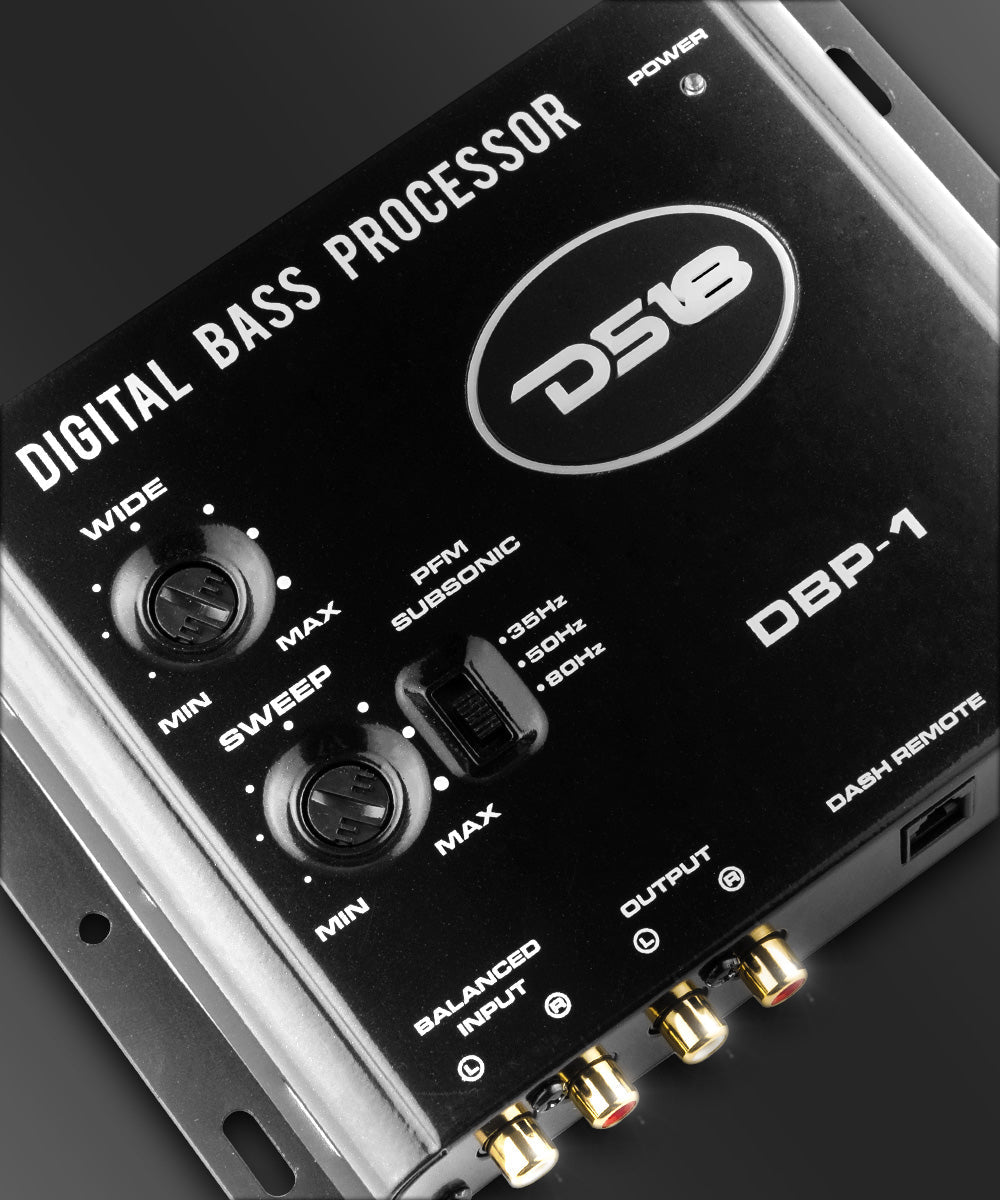

- Easy to tune with main level, bass, and bass enhancer knobs to reach your perfect bass frequencies that you are targeting.
- Bass enhancer that brings out even more bass where there once was very little, you will get more output.
Technical Details
| Maximum Input Level: | 15V |
| Maximum Output Level: | 13.5 V Peak |
| Frequency Response: | 10 Hz - 100KHx ; +/- 1 |
| Total Harmonic Distortion: | 0.003% |
| Signal to Noise Ratio: | >130dB |
| Balanced Input Noise Rejection: | >60dB |
| Input Impedance: | 10K ohms |
| RCA Output Impedance: | 150 ohms |
| Power Supply: | High Headroom PWM |
| Power Draw: | 150mA |
| Recommended Fuse Rating: | 1 Amp |
Specifications
| SKU | DBP-1 |
|---|---|
| Maximum Input Level | 15V |
| Maximum Output Level | 13.5 V Peak |
| Frequency Response | 10 Hz - 100kHz ; +/- 1 |
| Total Harmonic Distortion | 0.003% |
| Signal to Noise Ratio | >130dB |
| Balanced Input Noise Rejection | >60dB |
| Input Impedance | 10K ohms |
| RCA Output Impedance | 150 ohms |
| Power Supply | High Headroom PWM |
| Power Draw | 150mA |
| Recommended Fuse Rating | 1 Amp |
| Dimension L x W x H (Inches) | 10.5 x 8.75 x 2.25 |
| Weight (lb) | 2.1 |
| M/C Dimension L x W x H (Inches) | 23.25 x 11.25 x 9.75 |
| M/C Weight (lb) | 21.5 |
| M/C Qty | 10 pcs |
