4 Channel Line Output Converter with Auto Turn-On and Speaker Emulator
4 Channel Line Output Converter with Auto Turn-On and Speaker Emulator
Product Overview

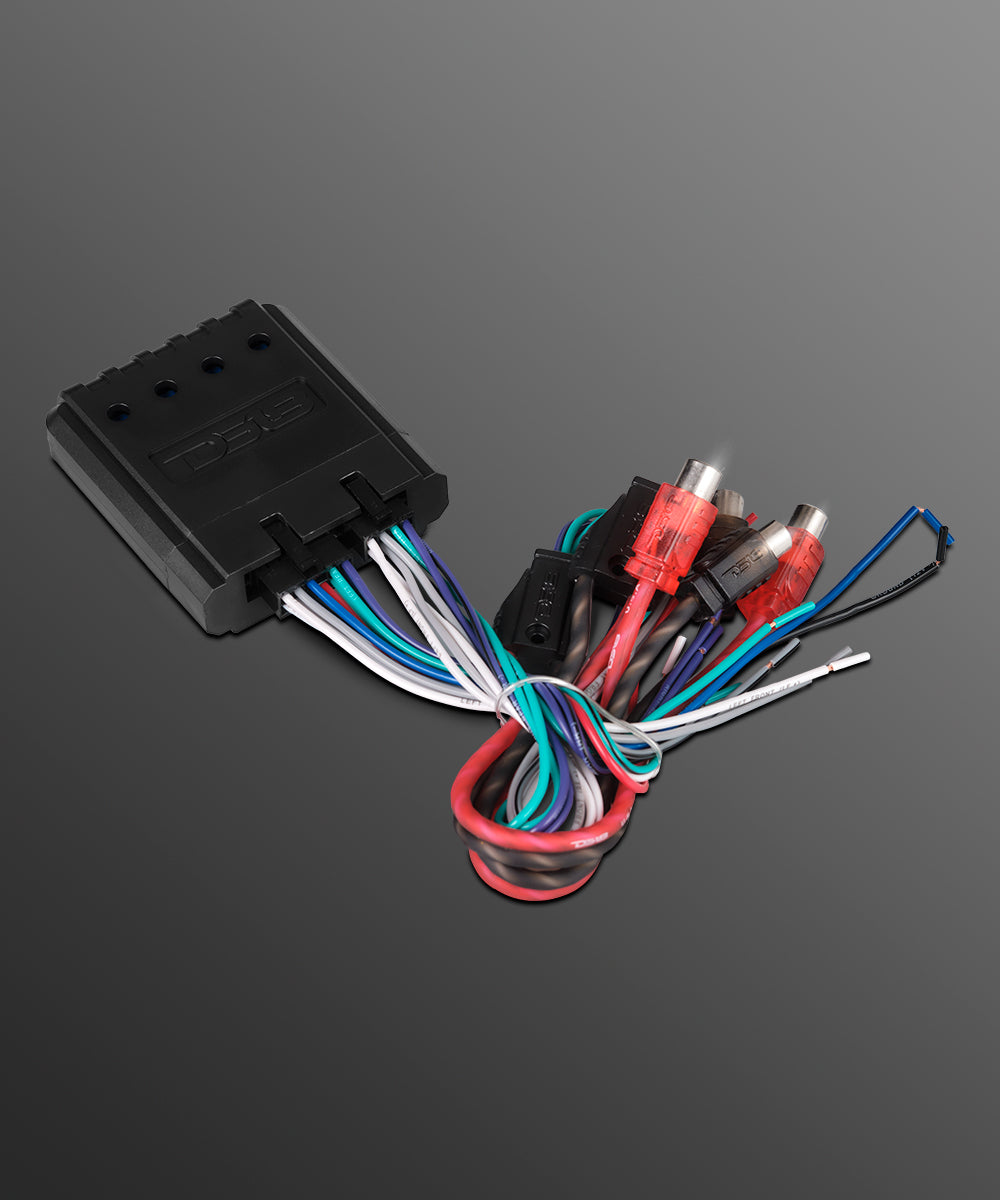

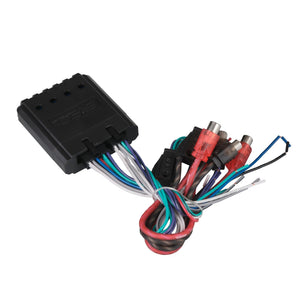

DS18 VX4HL
4 Channel Line Output Converter With Auto Turn-On and Speaker Emulator
Unlock the perfect audio experience with DS18’s VX4HL – the ultimate 4-channel line output converter!
DS18’s VX4HL offers four-channel speaker level inputs and RCA amplifier outputs unparalleled clarity and precision during listening sessions. Its built-in speaker emulator is a game-changer, allowing seamless integration with modern vehicle systems. This feature prevents common issues when disconnecting speaker wires—ensuring error-free installation and operation.
Thanks to the VX4HL’s advanced noise rejection technology, unwanted interference is a thing of the past, allowing you to enjoy pure, uninterrupted sound. With a frequency response ranging from 10Hz to 30KHz and a total harmonic distortion of just 0.02% at 1KHz, every beat resonates with precision.
This converter also has an auto turn-on feature, powered by a 3V DC trigger, ensuring that your system powers up automatically without hassle. Its durable ABS black housing ensures longevity, while the compact design makes installation a breeze. This device includes short circuit protection and level matching controls, adding layers of safety and customization to your setup.
Choose DS18’s VX4HL for its superior performance and innovative, user-focused design. Whether upgrading your current setup or starting fresh, this four-channel audio converter guarantees unmatched sound quality and noise-free excellence.
Key Features
- Line Output Converter
- 4 Channel
- Level Matching Controls(FL,FR,RL,RR)
- Remote Out ~ Auto Turn On
- Speaker Emulator ~ Compact
- Step-Down Method: Electronic / SMC
Specifications
| SKU | VX4HL |
|---|---|
| Speaker Level Input Channels | 4 Channels (FL/FR/RL/RR) |
| Auto Turn-On | Yes, DC (3V) |
| Remote Output | Yes, 12v DC 100mA max |
| Remote Output Short Circuit Protection | Yes, <10 Seconds |
| Amplifier Outputs | 4 Channels RCA (FL/FR/RL/RR) |
| Level Matching Controls | Yes, (FL/FR/RL/RR) |
| LED Indicators | No |

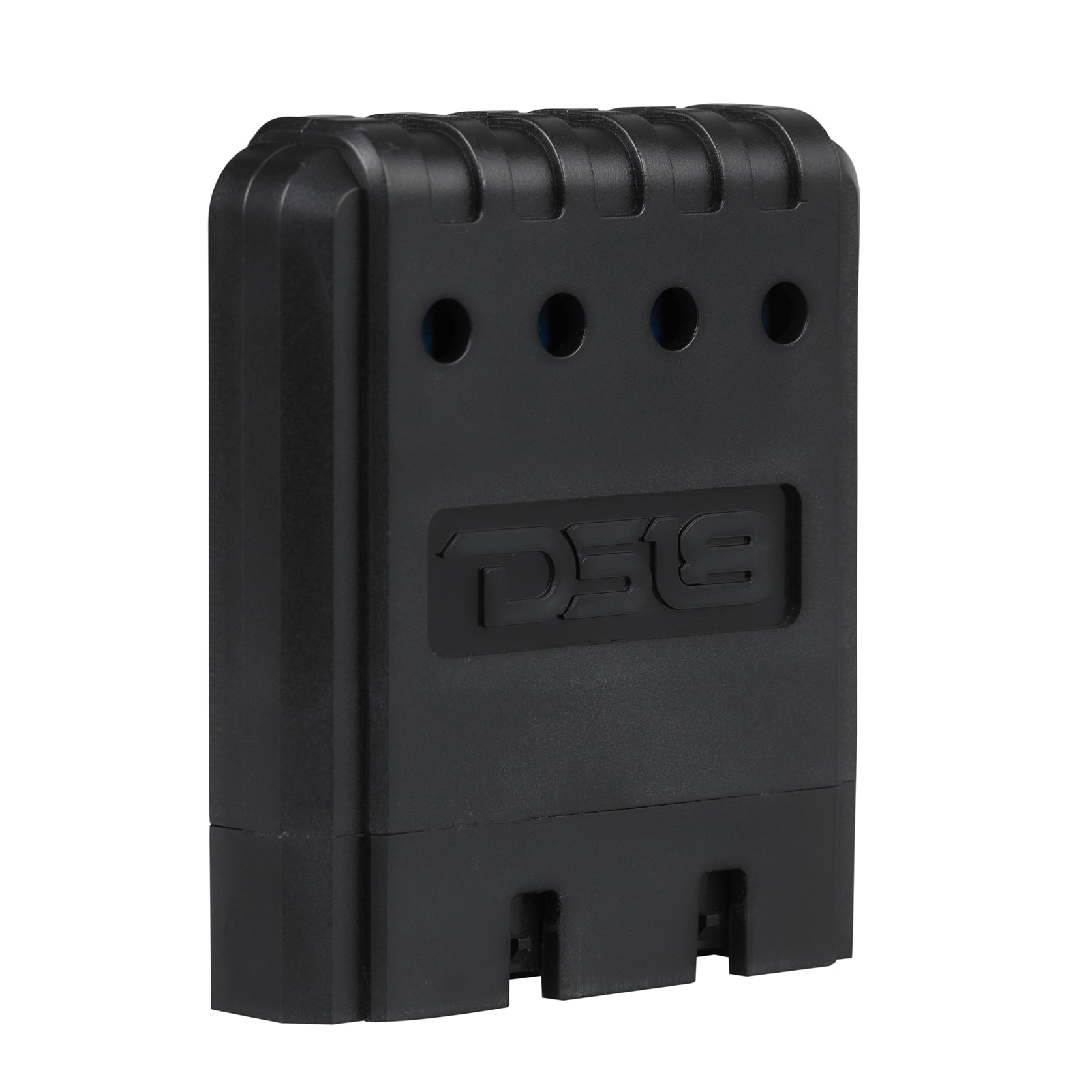

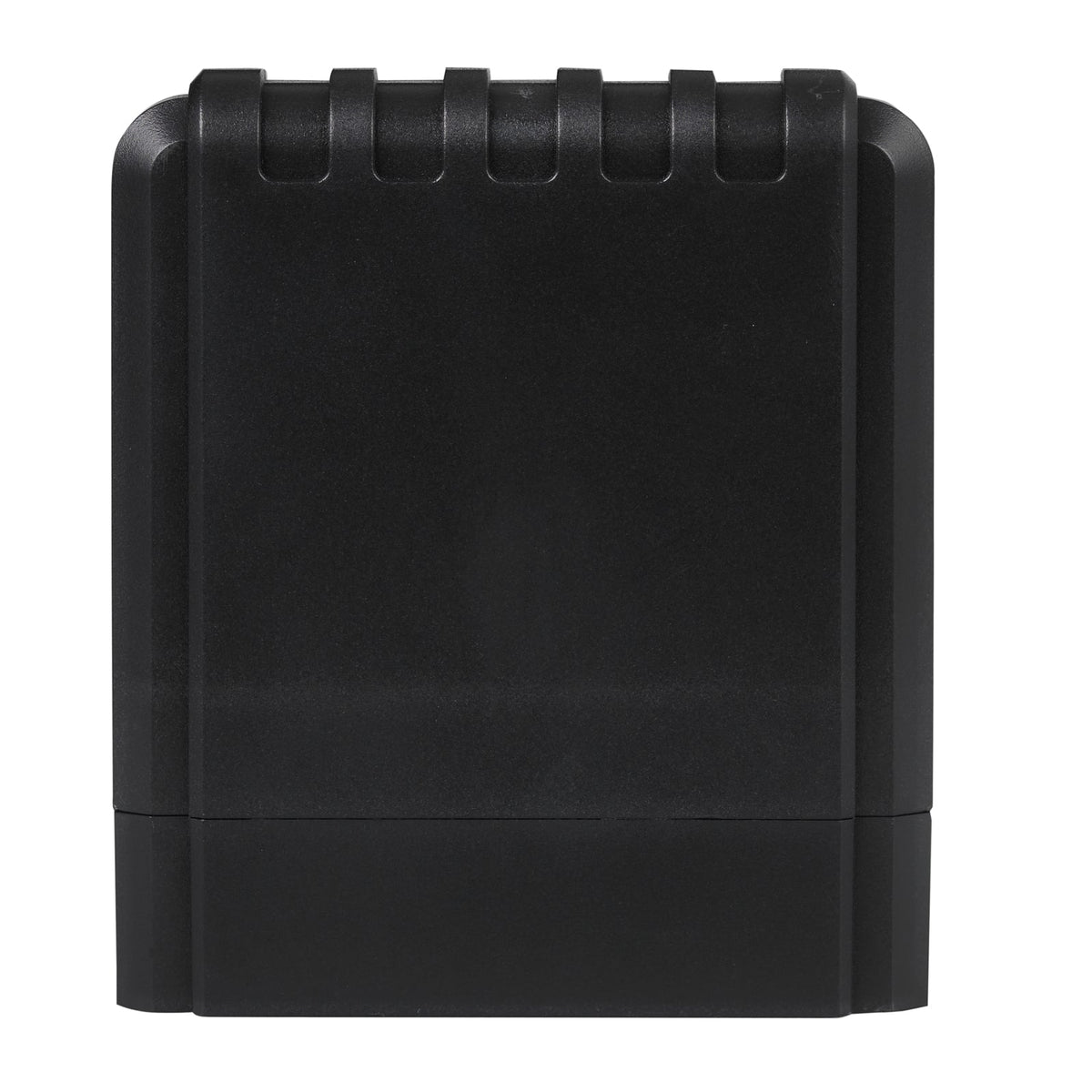

| Housing Material / Color | ABS / Black |

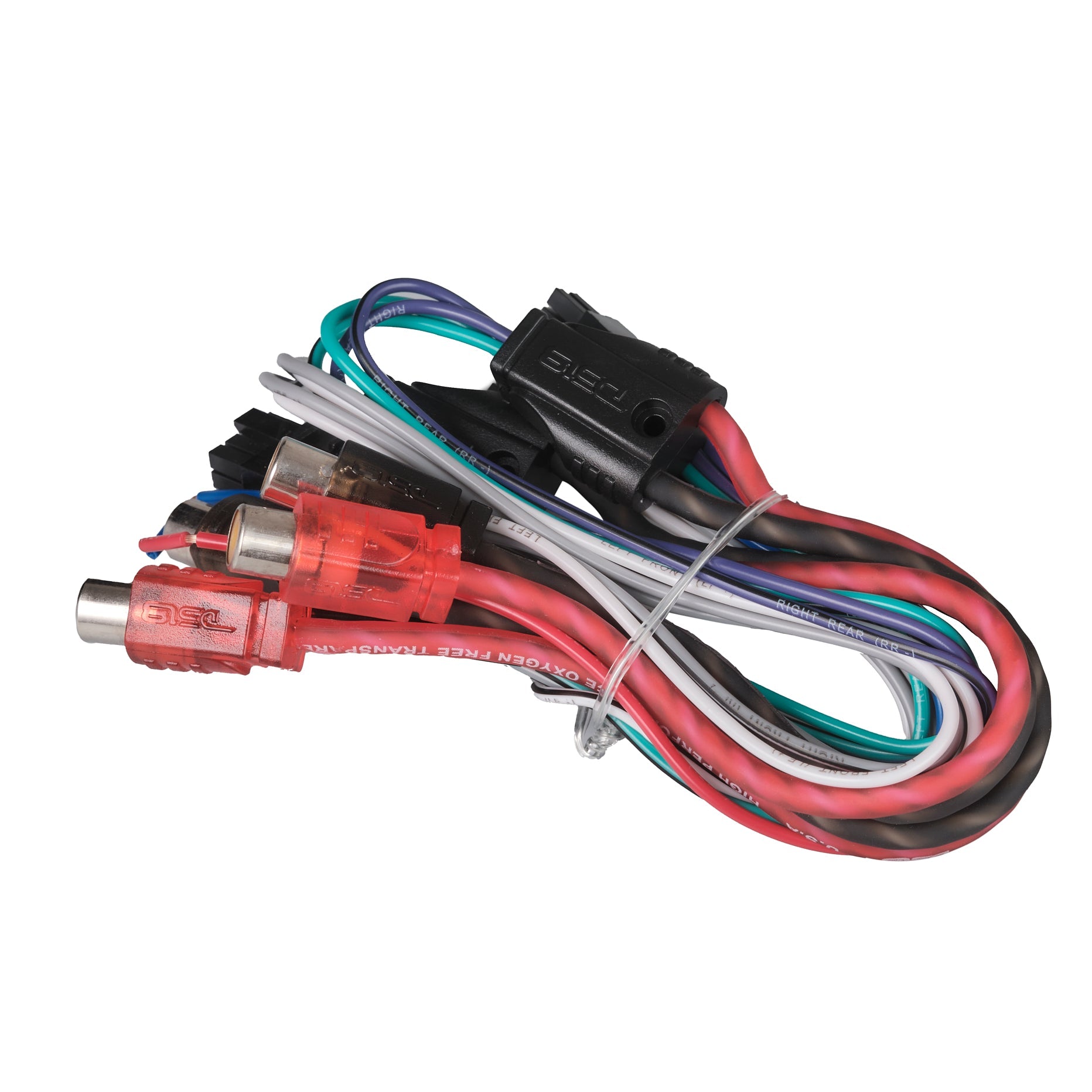

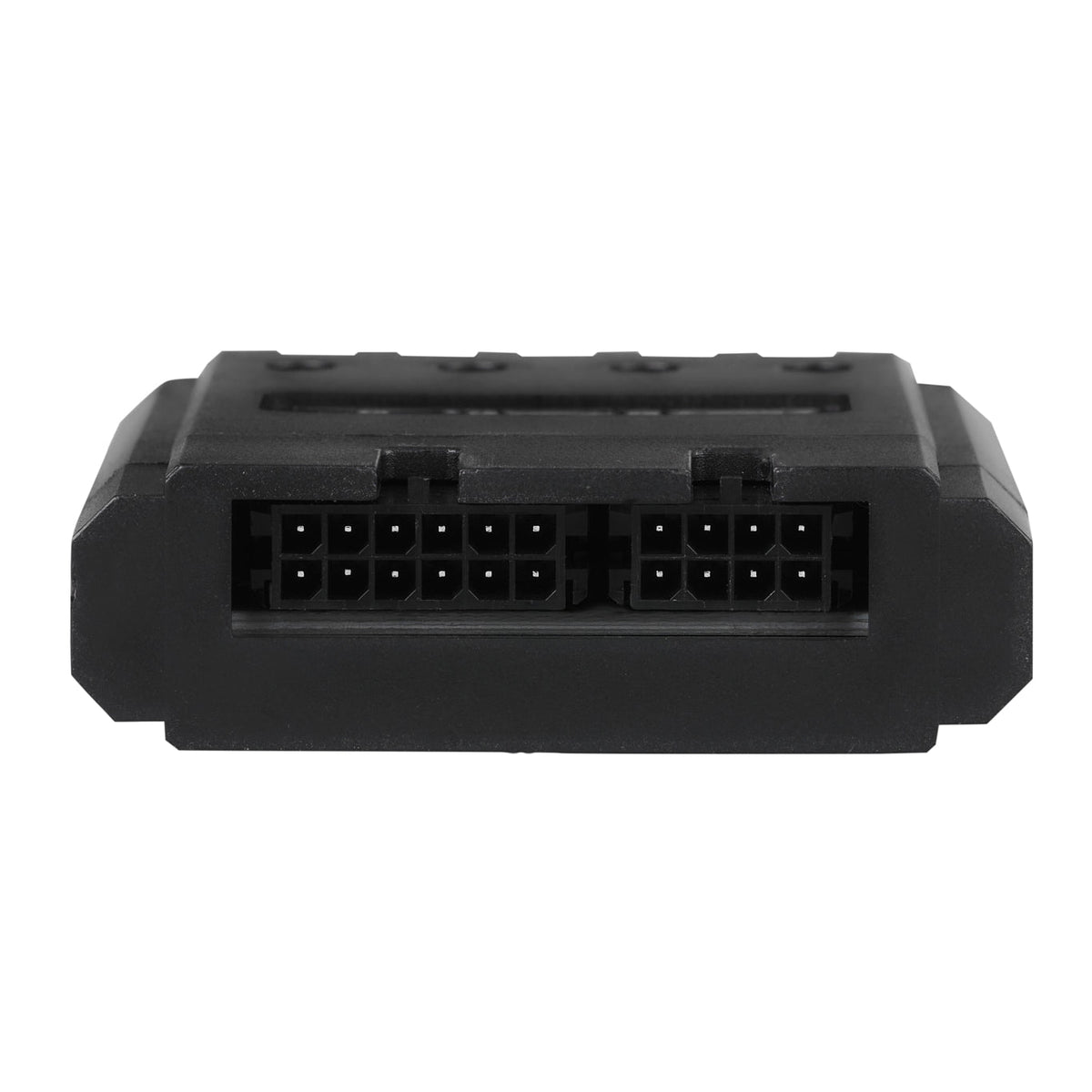

| Wiring Connector | Dual Molex (12/8pins) |
| Step-Down Method | Electronic / SMC |
| Maximum Speaker Level Input | 50W RMS |
| Maximum Preamp Output | 3.2V |
| Nominal Conversion Ratio | 4:1 |
| Frequency Response | 10Hz-30kHz |
| Total Harmonic Distortion | 0.02% (1kHz) |
| Input Impedance | 45 ohms (Speaker Emulator) |
| Output Impedance | 2K-ohms |
| S/N Ratio | >100dB |
| Channel Separation | >60dB |
| Noise Rejection | >60dB |
