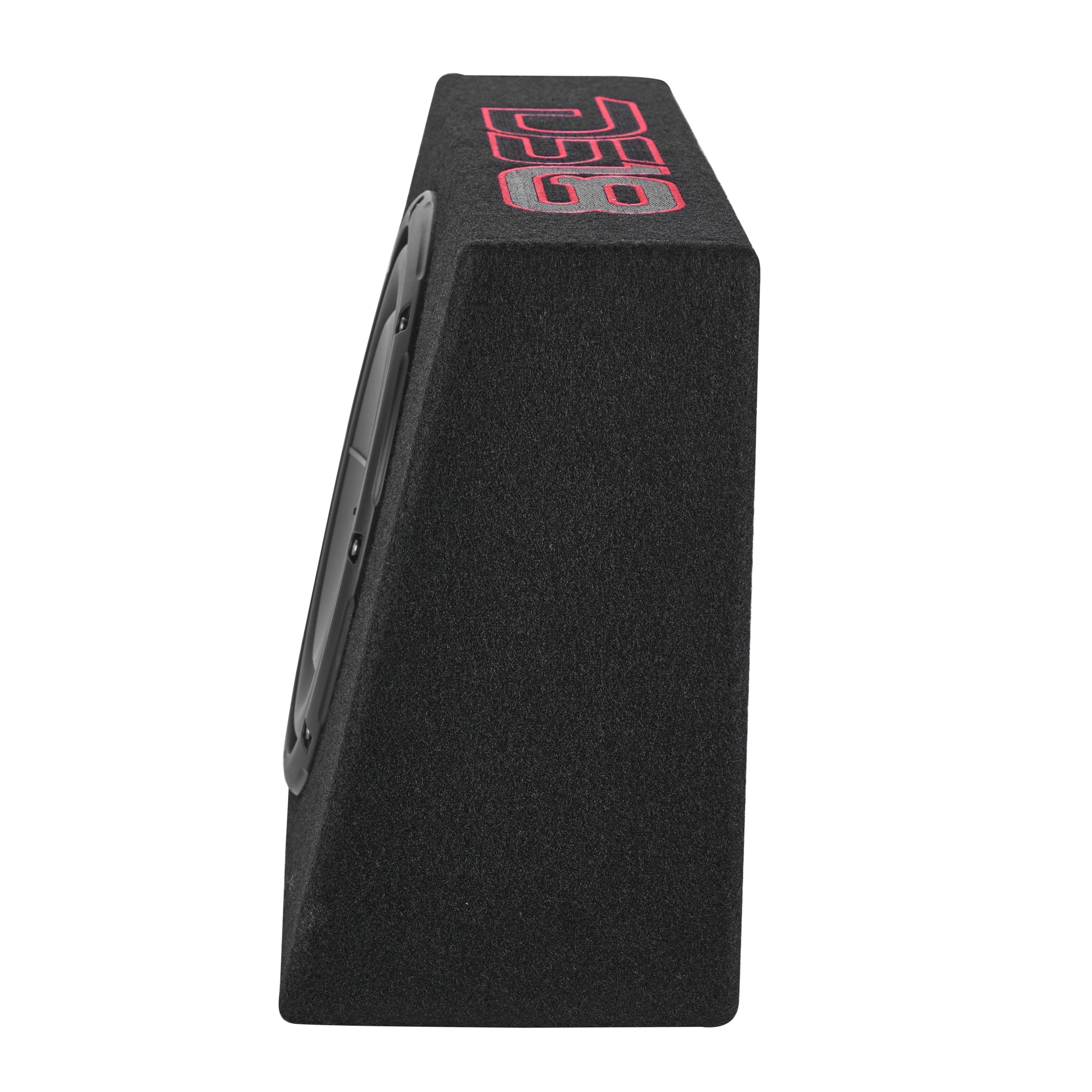

10” Shallow Subwoofer Enclosure for Pickup Trucks
10” Shallow Subwoofer Enclosure for Pickup Trucks
Product Overview
DS18 PU110
10” Shallow Subwoofer Enclosure for Pickup Trucks
Bring powerful bass to your truck without sacrificing valuable cabin space!

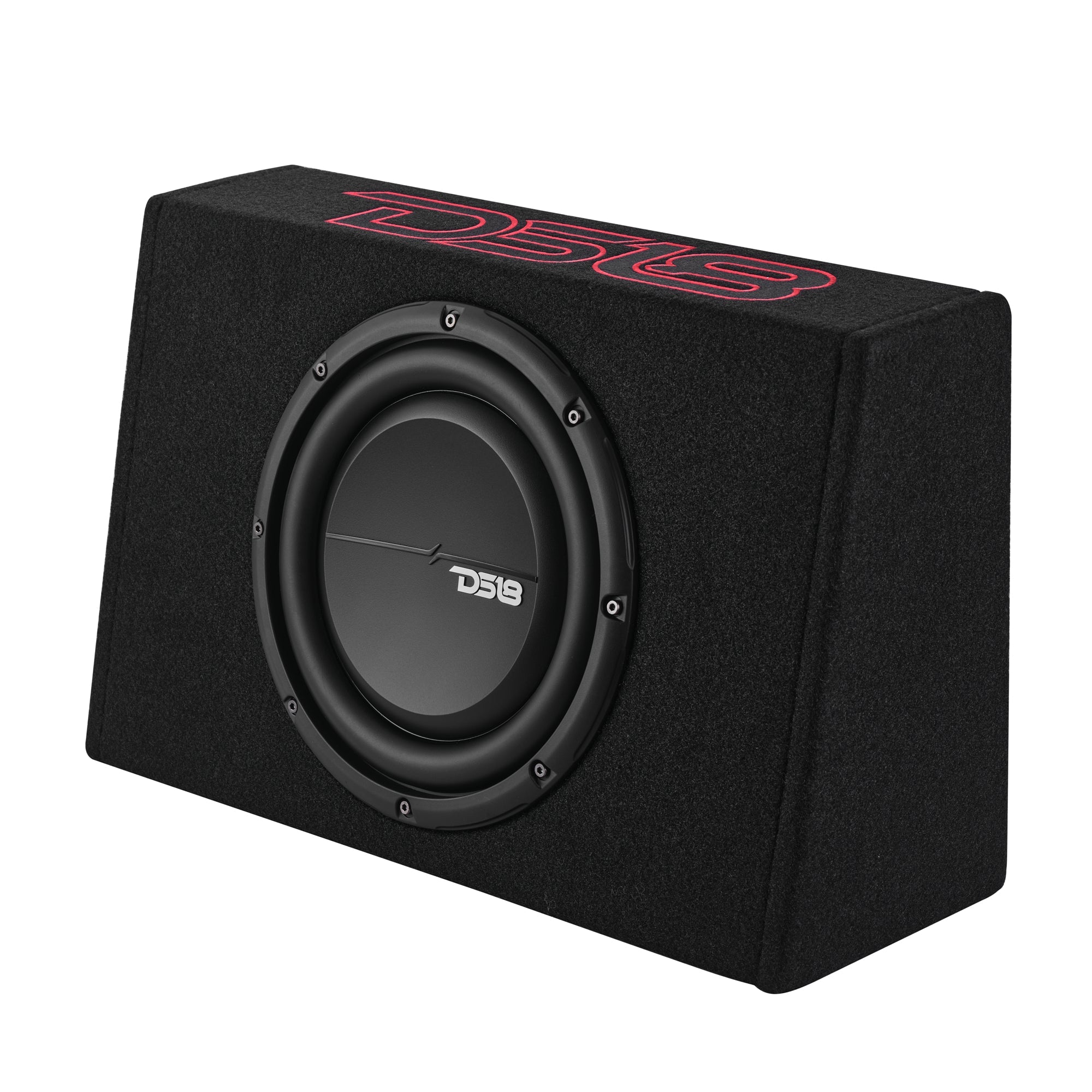

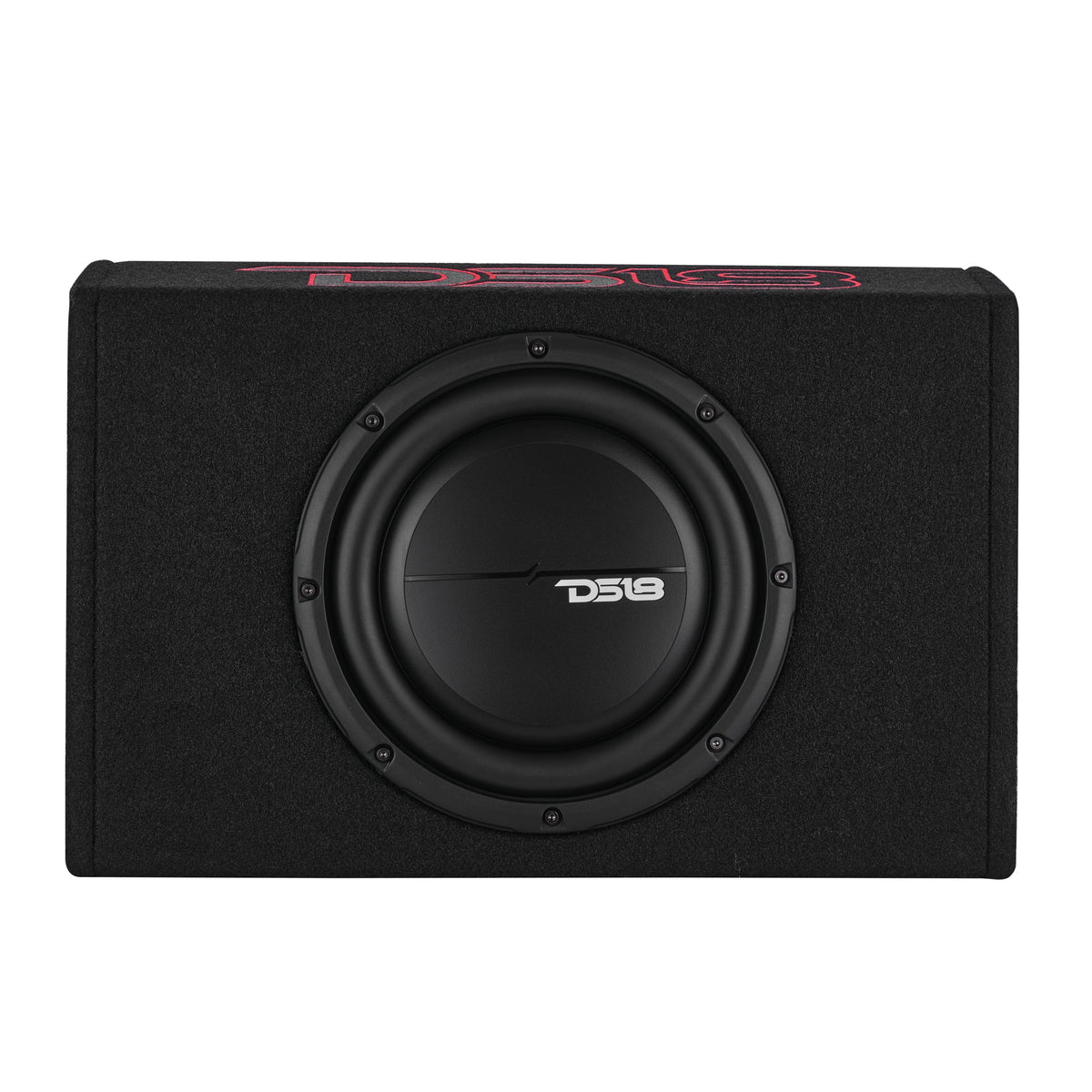

DS18’s PU110 is a sealed, low-profile subwoofer enclosure pre-loaded with a high-output 10” subwoofer built for deep bass in a compact package. Built for daily use and easy integration, the PU110 is a perfect match for any truck where space is tight.
Deep Bass

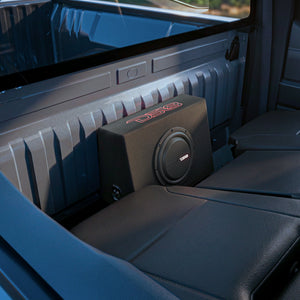

The PU110 is engineered with a sealed box design that fits under or behind seats in most trucks. With 350W RMS (700W MAX) power handling and a frequency response of 30–250Hz, it hits subsonic levels with clarity and a clean, distortion-free punch.
Tuned for Tight Response
This loaded enclosure features a 2-ohm load, ideal for mono amplifier configurations. Its 1.5” voice coil, ferrite magnet, IPP cone, and rubber surround work together to deliver defined basslines and drops. With an internal volume of 13L (0.48 ft³), the PU110 is tuned for a -3dB drop-off around 45Hz.
Built Tough for the Road

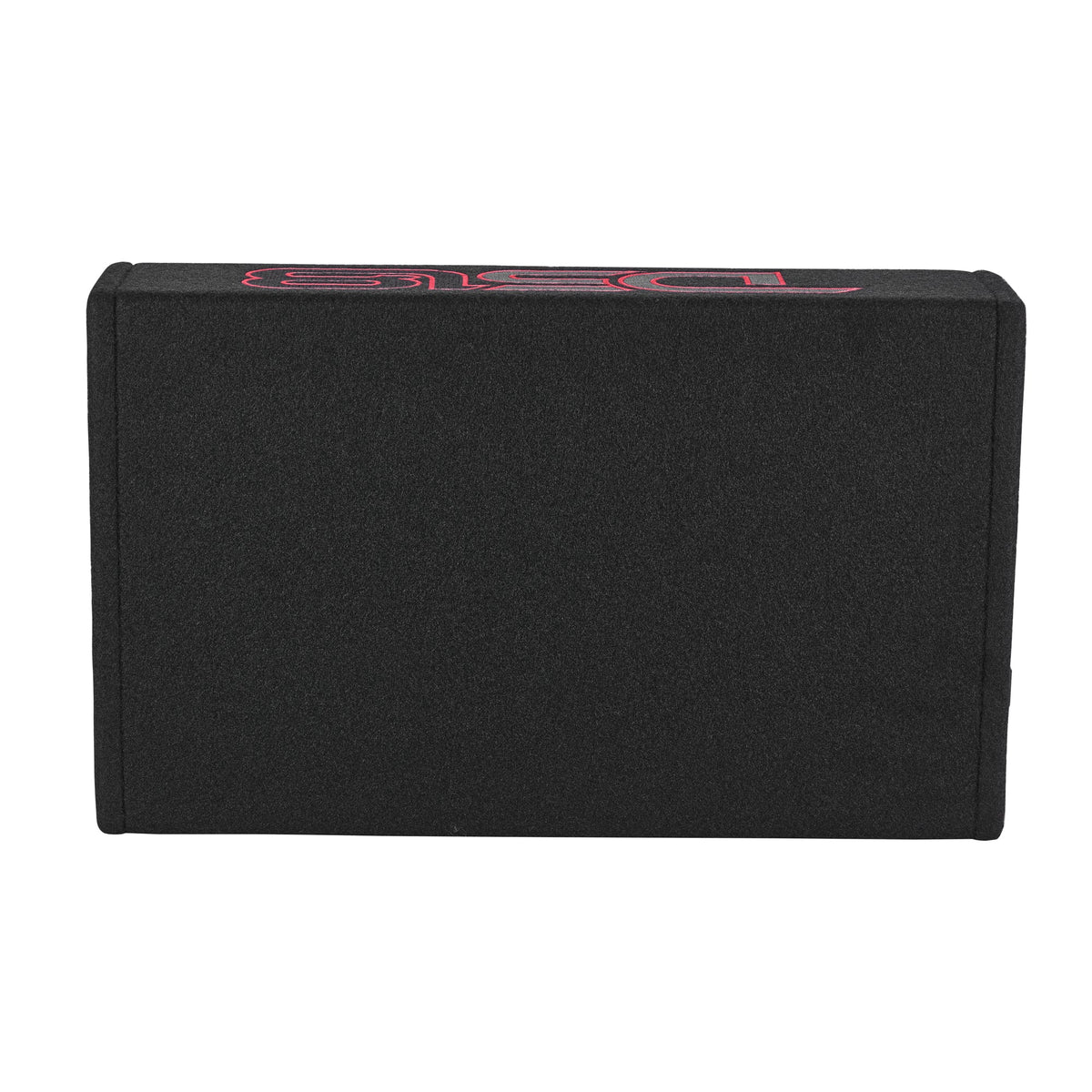

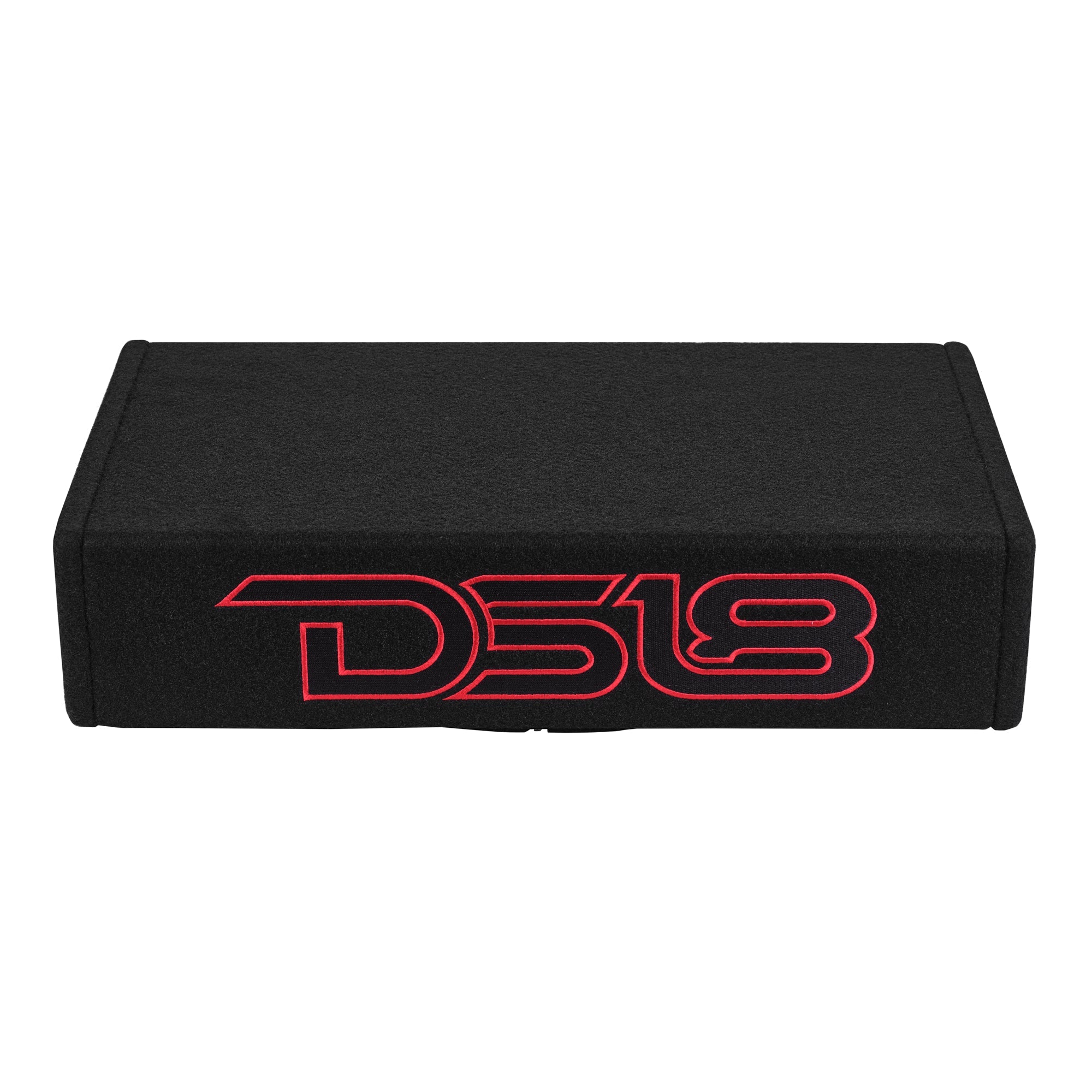

Constructed from 5/8” MDF and wrapped in black carpet for a sleek finish, the PU110 is made to last.
Get LOUD easy with DS18’s PU110!
Key Features
- 10” Sealed Subwoofer Enclosure for Pickup Trucks
- 350W RMS / 700W MAX Power Handling
- Frequency Response: 30–250Hz
- Impedance 2-Ohm
- Compact Sealed Box: 13L / 0.48ft³ Internal Volume
- Built with 5/8” MDF and Black Carpet Finish
Specifications
| Speaker Type / Size | 10" / 261mm |
|---|---|
| RMS Power Handling (14.4V) | 350W |
| MAX Power Handling (14.4V) | 700W |
| Sensitivity (1w/1m) | 85dB |
| Frequency Response | 30-250Hz |
| Nominal Impedance | 2 Ohms |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | IPP |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 40 Oz |
| Internal Volume | 13L / 0.48ft3 |
| Load Configuration | Single 2-Ohms |
| Box Type | Sealed Box |
| Box Material | 5/8" / 15mm MDF |
| Finish Material | Black Carpet |
| -3Db Dropping Point | 45Hz |

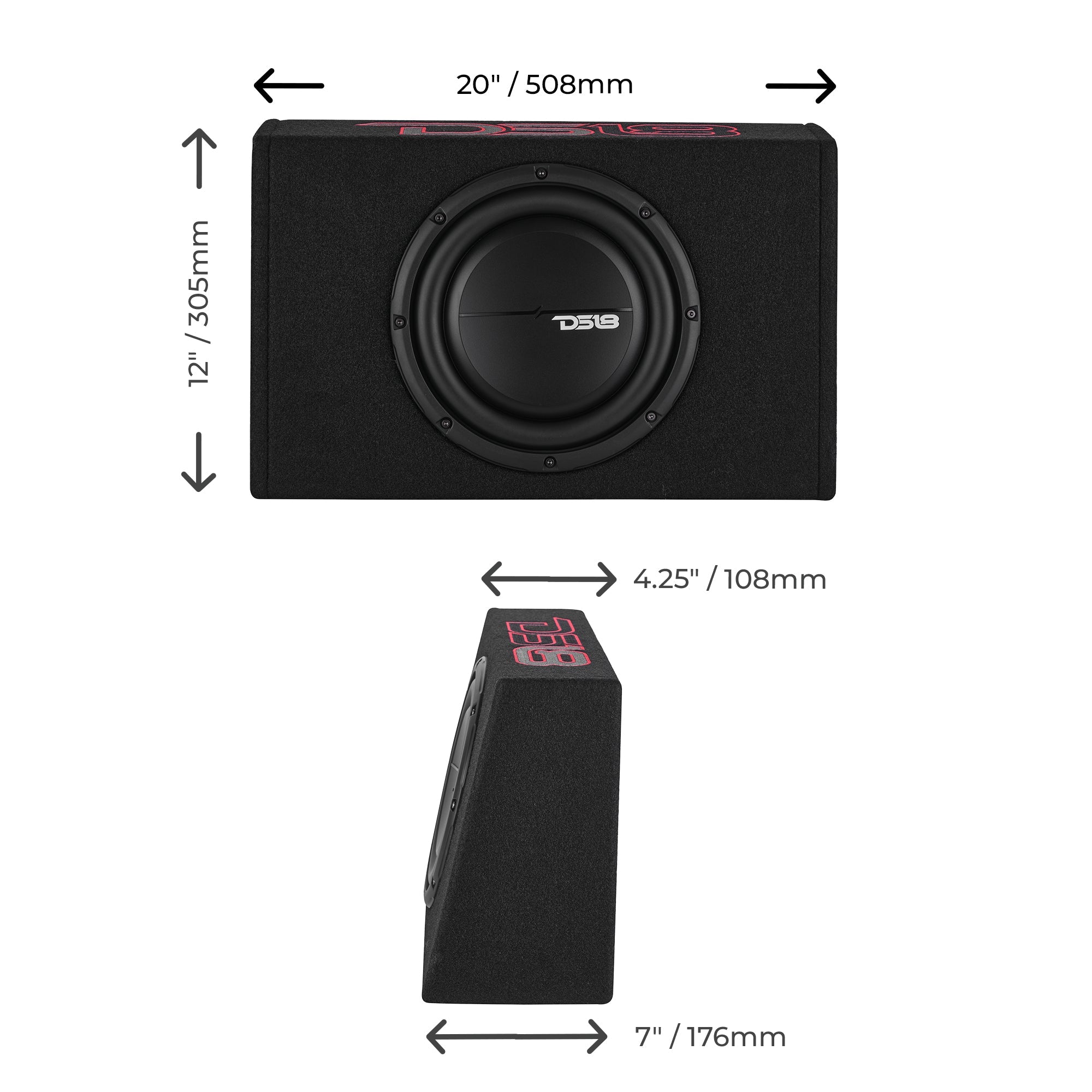

| Height | 12" / 305mm |
| Width | 20" / 508mm |
| Depth 1 (Top) | 4.25" / 108mm |
| Depth 2 (Bottom) | 7" / 176 mm |
