Product Overview
DS18 PRO-ZT10
10” Coaxial Midrange Loudspeaker with Bullet Tweeter | 600W | 4Ω
The PRO-ZT10 does it all! Get full spectrum performance in one compact coaxial!
Rated at 300W RMS and 600W MAX with a wide 45Hz – 20KHz response range, this 10" speaker is a beast. Its highly impressive 100.3dB sensitivity and two-way design (integrated 1.5" bullet tweeter), you get high-output performance from one source!
Built Tough for Harsh Environments
Made with a water-resistant paper cone and treated cloth surround, the PRO-ZT10 is ready to take on any road or trail. Its IP32 rating protects it against light water intrusion, making it ideal for motorcycles, powersports, or car audio applications!
Clean Design, Easy Fit
The neodymium-powered bullet tweeter handles highs easily without taking up too much space, keeping the shallow 4" mounting depth and 9" baffle cutout intact.
If you want power, simplicity, and durability: all in one speaker, there’s nothing like the PRO-ZT10.
Key Features
- 10" Coaxial Midrange (300W RMS / 600W MAX)
- Water-Resistant Cone with Treated Cloth Surround (IP32 Rated)
- 2" Kapton Voice Coil + 1.5” Aluminum Bullet Tweeter
- Wide Frequency Response: 45Hz–20KHz
- High Sensitivity: 100.3dB
Specifications
| Nominal Diameter | 10" / 254mm |
|---|---|
| Nominal Impedance | 4-Ohm |
| RMS Power Handling | 300W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 100.3 dB |
| Frequency Response | 45Hz-20kHz |
| Recommended HI Pass Crossover | 60Hz |
| Pair or Single | Single |
| Grill Included | No |
| Voice Coil Water Protection | No |
| Water-Resistant Rating | N/A |
| Sold as | Single Unit |
| Voice Coil Diameter | 2" / 50.6mm / 1.5" / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Glossy Black |
| Magnet Material | Ferrite / Neodymium (N38H) |
| Magnet Weight | 40 Oz / 1.3 Oz |
| Diaphragm Material | Aluminum Alloy |
| Equivalent Volume | 21.6L / 0.762ft3 |
| Excursion (one way) | 1.7mm |
| Free Air Resonance | 76Hz |
| Mechanical Factor (Qms) | 3.92 |
| Electrical Factor (Qes) | 0.65 |
| Total Factor (Qts) | 0.56 |
| Mechanical Mass | 35.5g |
| Mechanical Compliance | 0.122 mm/N |
| BL Factor | 8.98 |
| Voice Coil Inductance | 0.23 mH |
| Cone Area | 352.99 cm2 |
| DC Resistance | 3.2 ohms |
| Mechanical Mass w/o Air | 18.346g |

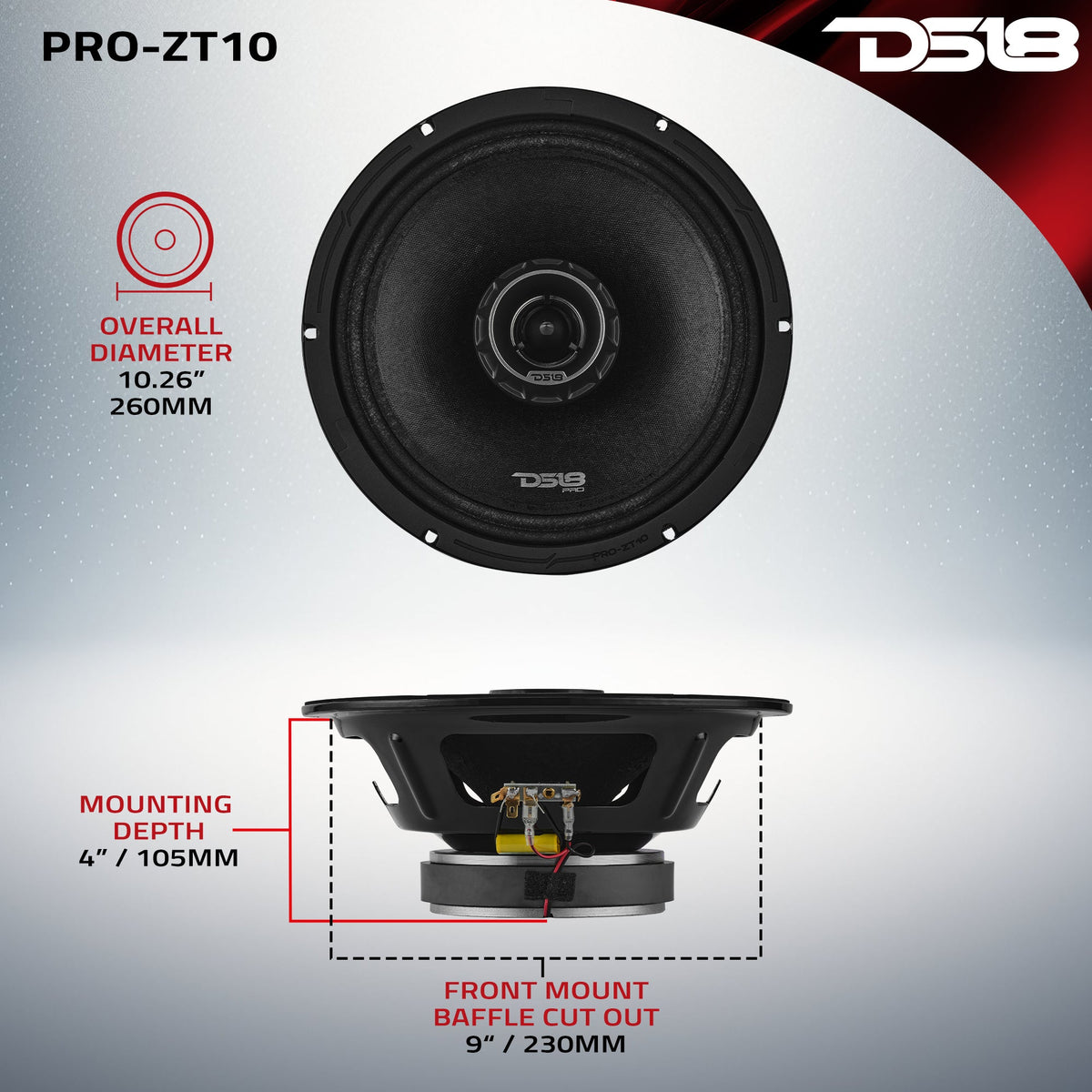

| Overall Diameter | 10.26" / 260mm |
| Overall Depth | 4.62" / 117mm |
| Front Mount Baffle Cutout | 9" / 230mm |
| Mounting Depth | 4" / 105mm |
| Motor Diameter | 5.28" / 134mm |
