Product Overview

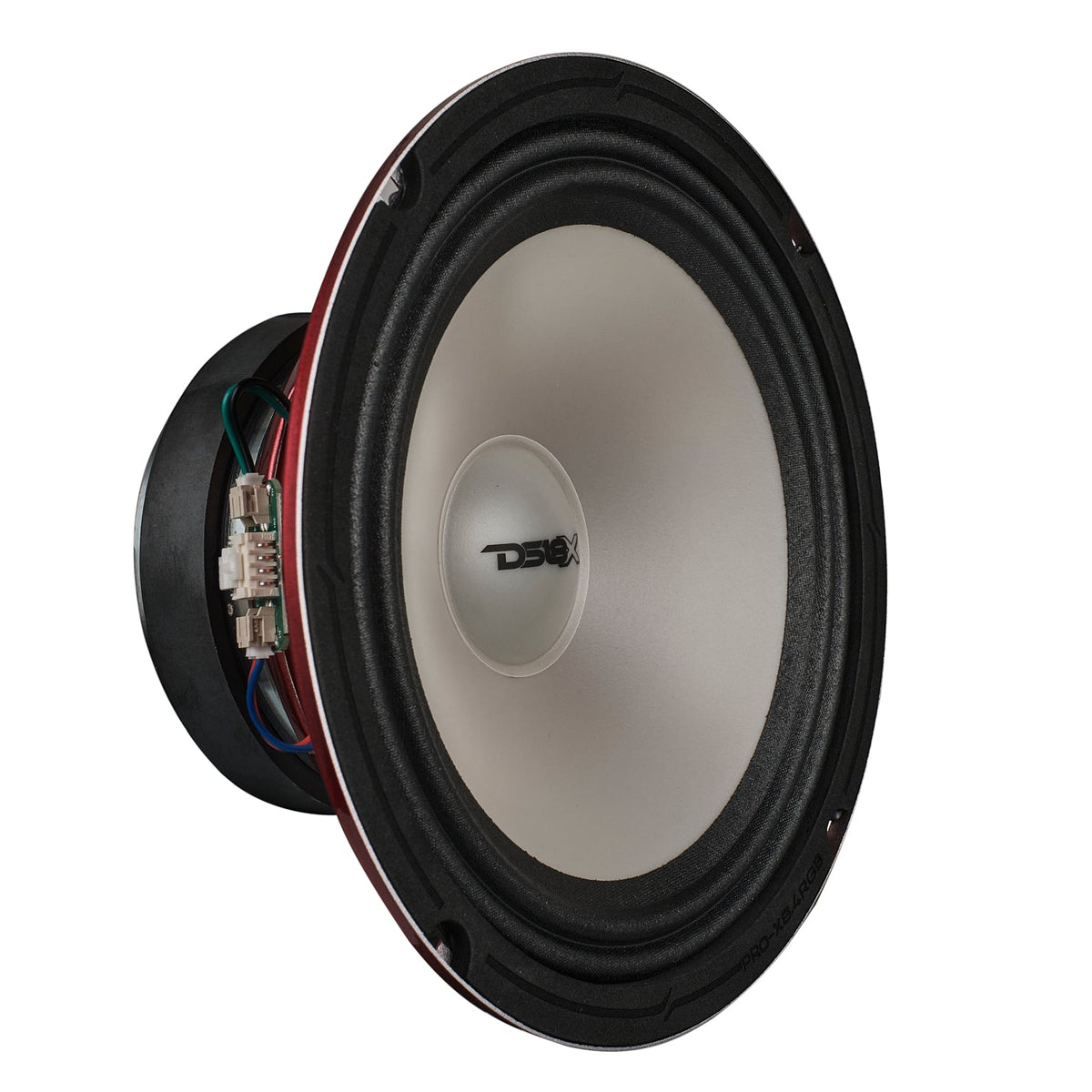

DS18 PRO-X8.4RGB
8" Mid-Range Loudspeaker With Dual RGB LED For Cone & Dust cap
Get LOUD with DS18’s PRO-X8.4RGB, an 8-inch loudspeaker engineered for excellence. This loudspeaker combines high-power audio with a striking visual flair, making it the perfect upgrade for competitive and casual systems.
The PRO-X8.4RGB handles up to 275W RMS and peaks at 550W, guaranteeing distortion-free sound even at high volumes. Its wide frequency response from 80Hz to 5kHz captures rich mid-range tones, while the exceptional sensitivity of 95 dB guarantees loud, detailed audio with minimal power input.

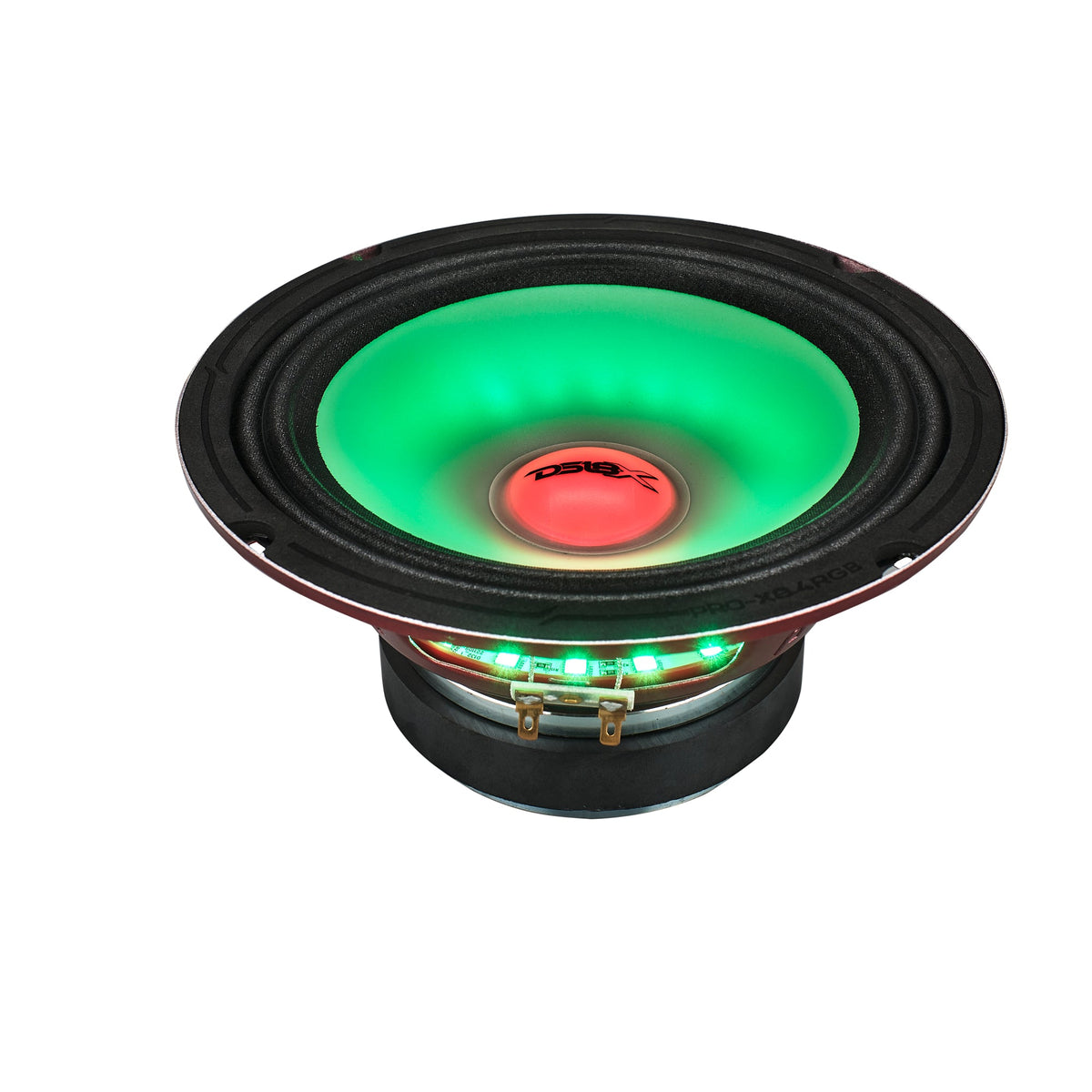

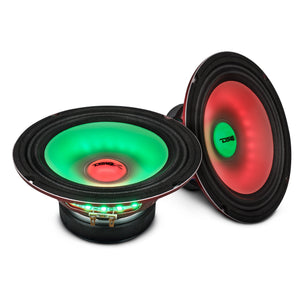

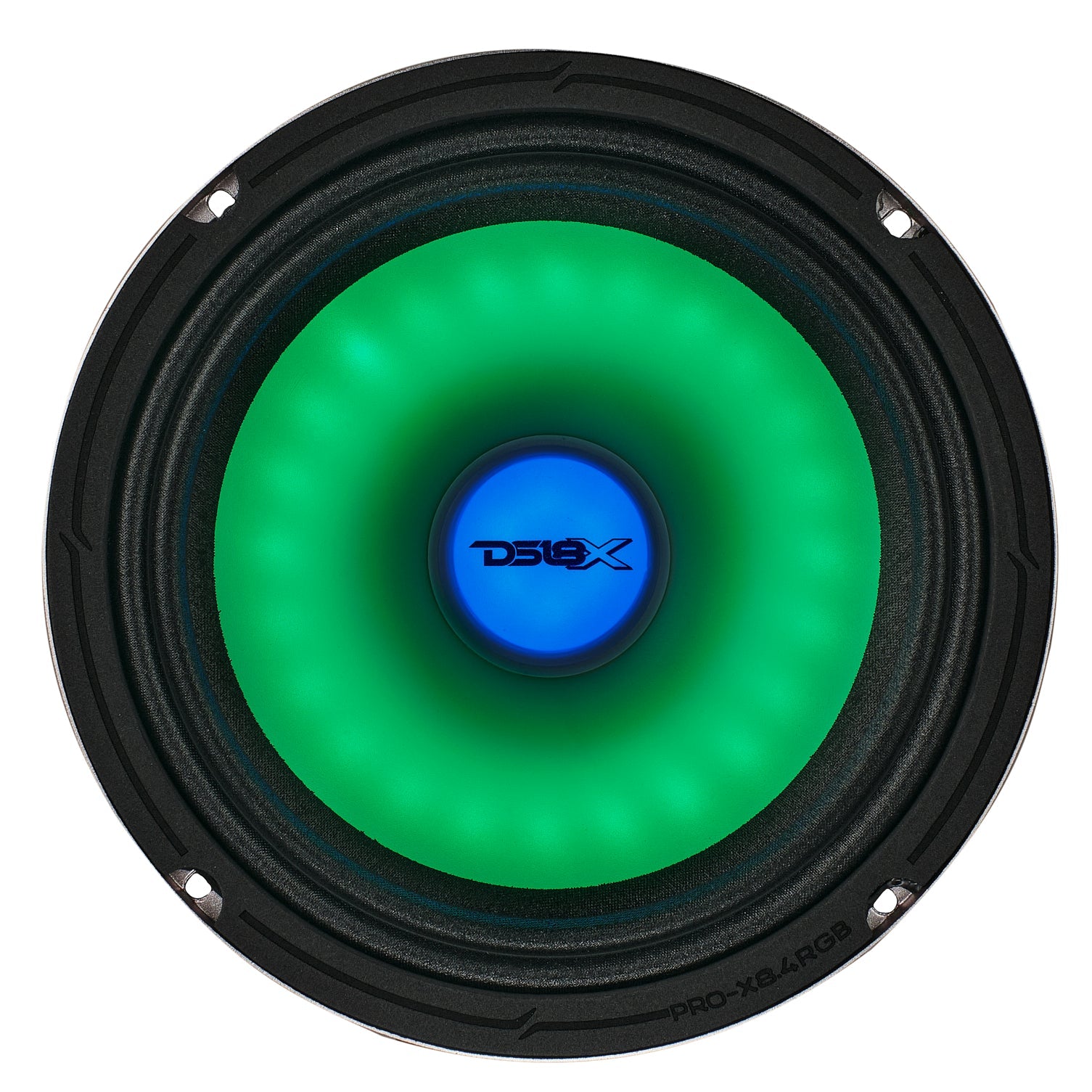

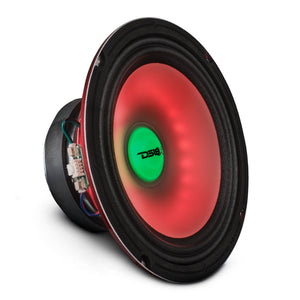

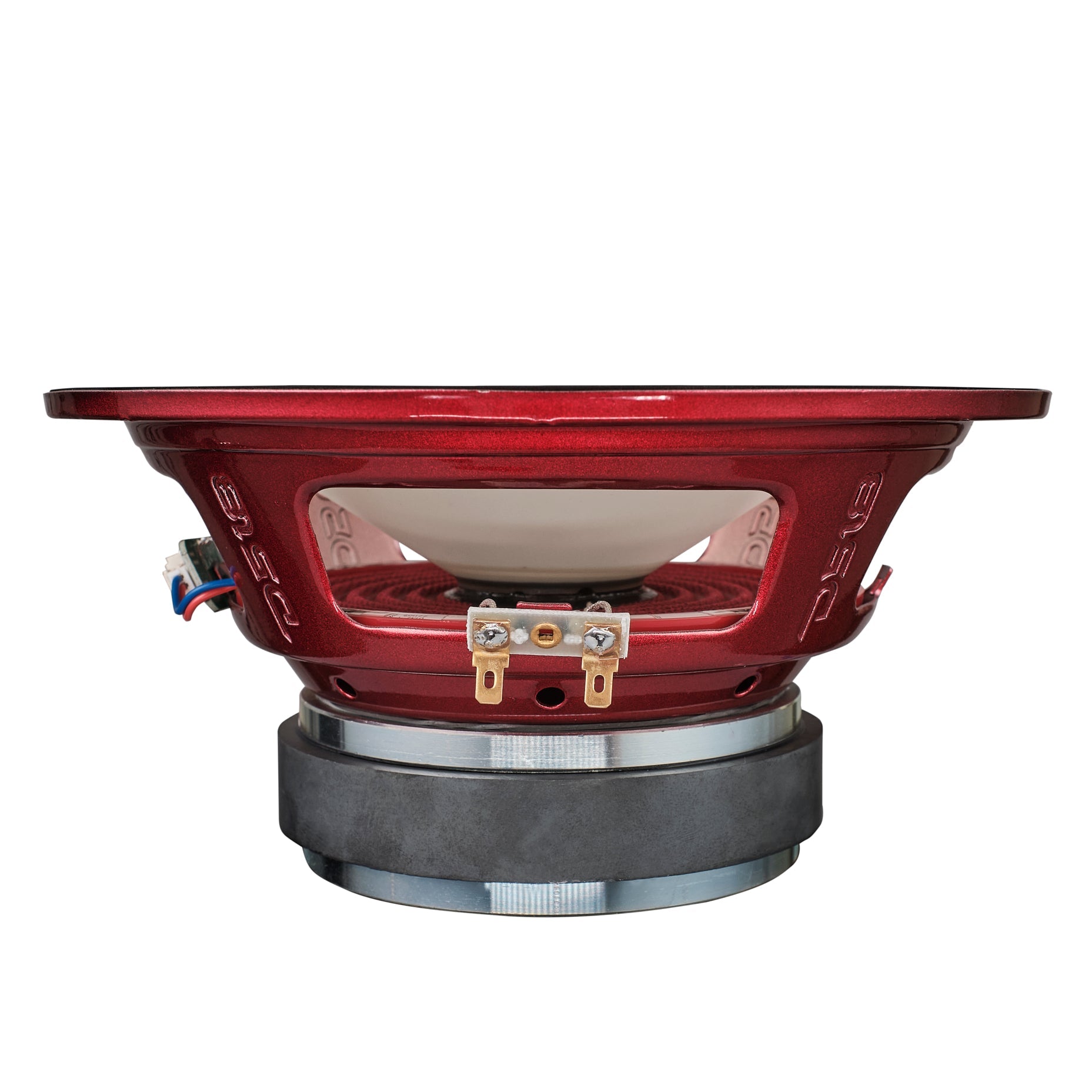

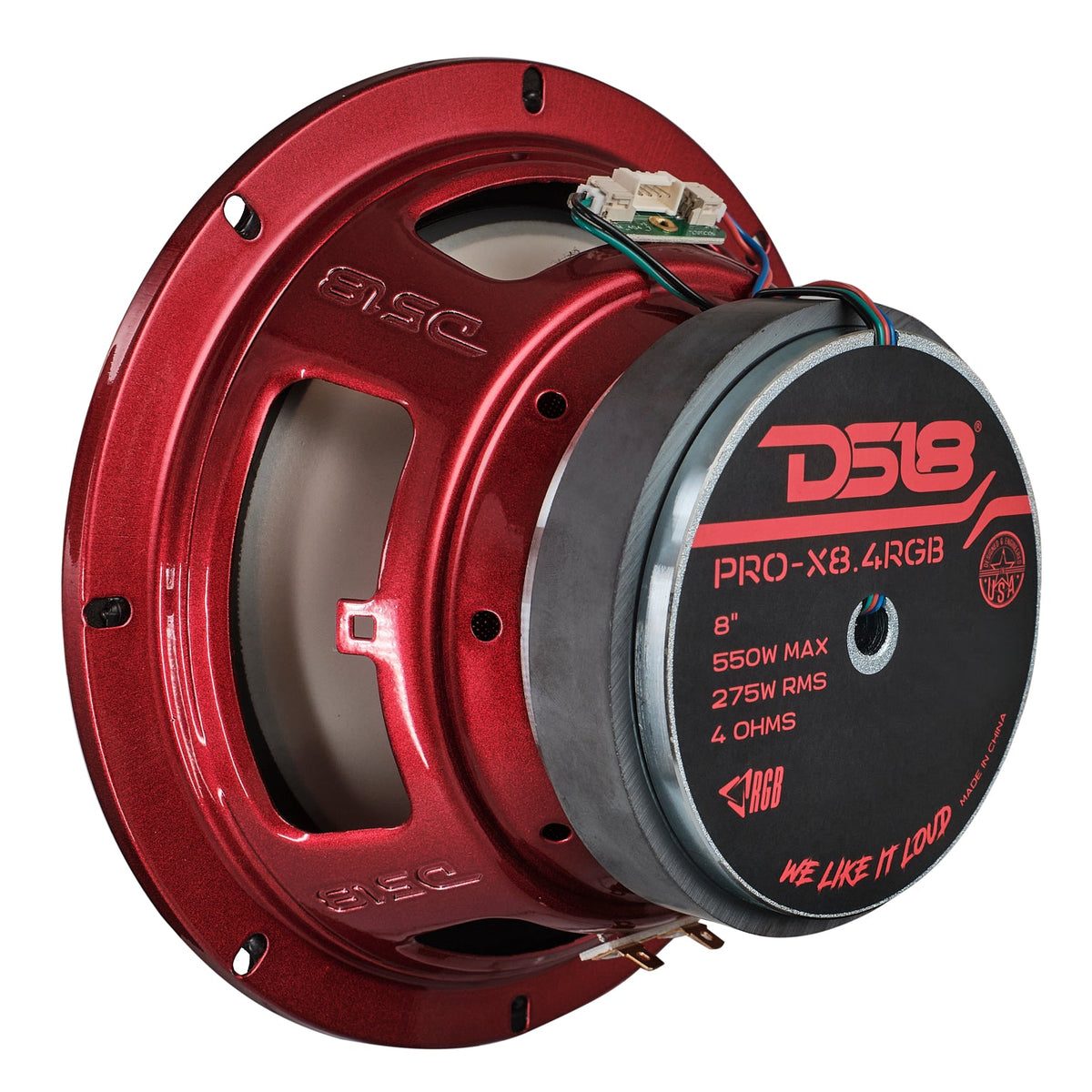

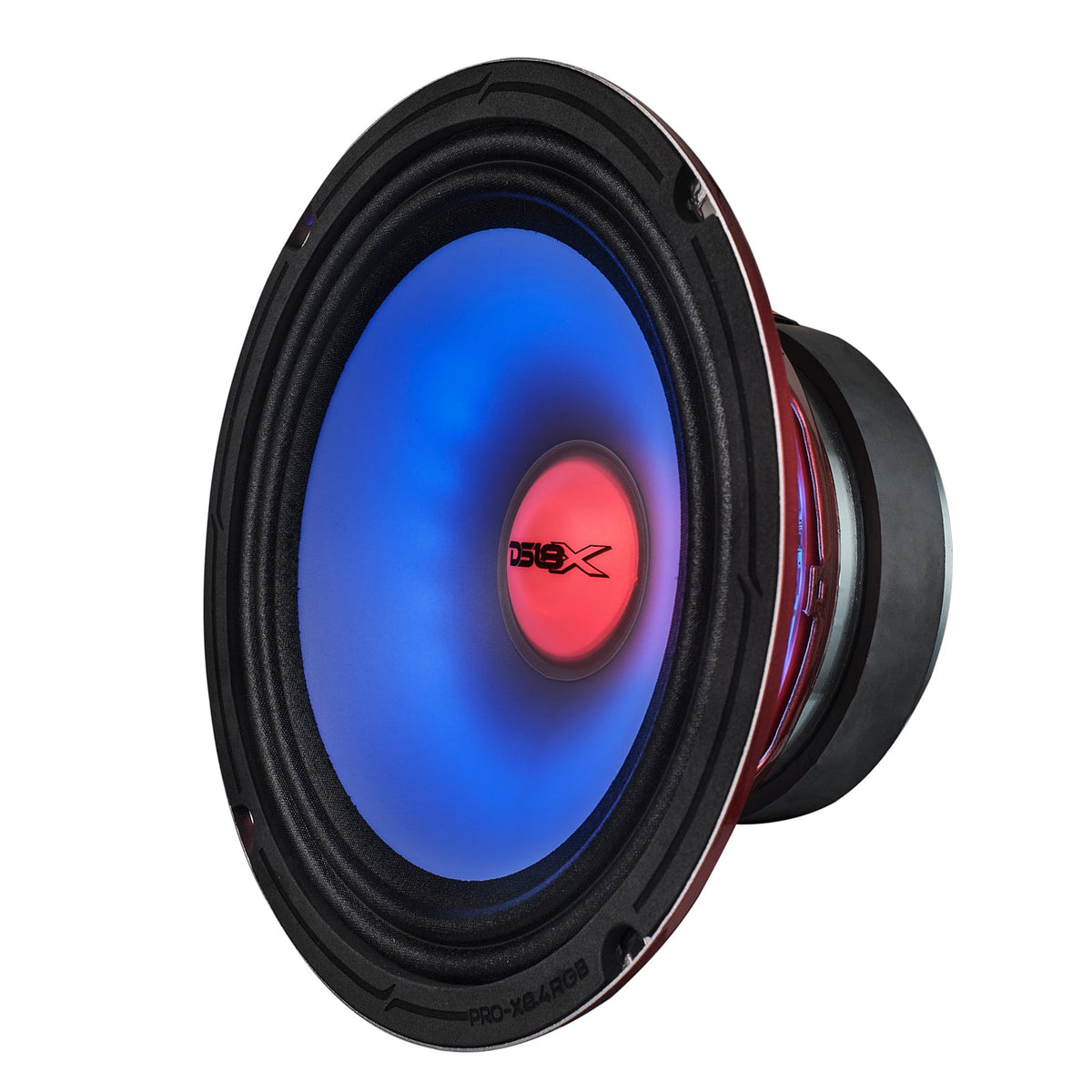

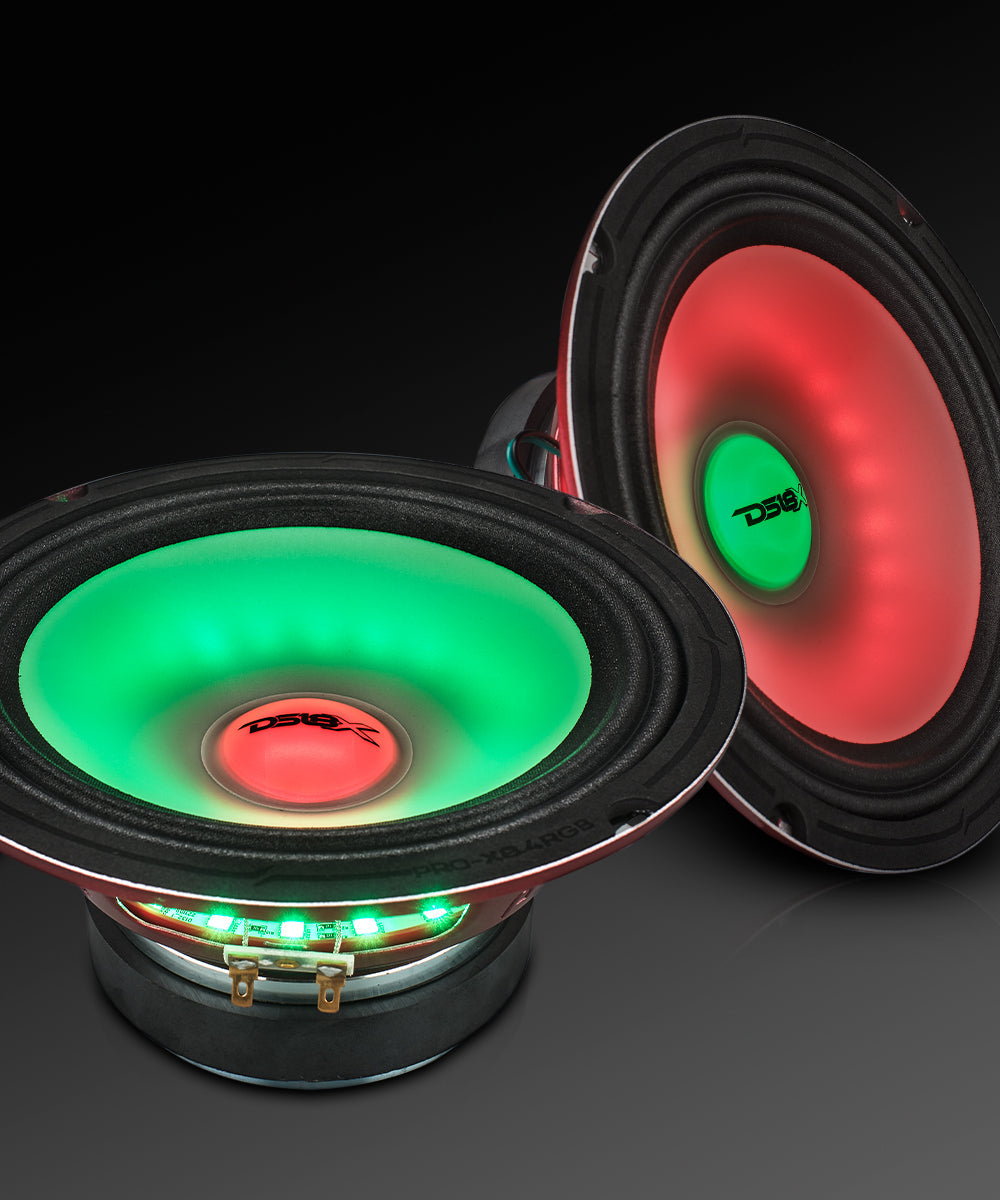

This mid-range speaker features a translucent polypropylene cone and dust cap integrated with RGB LEDs for dynamic lighting effects that can transform any show build from runner up to first place. The 1.5-inch voice coil with Kapton former and CCAW winding enhances durability and precision, while the glossy red steel basket ensures structural integrity. Its rugged ferrite magnet weighing 30 oz boosts reliability, making it perfect for any setup.
What sets the PRO-X8.4RGB apart is its customizable LED lighting system, offering both dual and single-color modes suitable for wet or dry environments. This feature allows you to tailor your setup's aesthetics to your liking.
This speaker is perfect for every enthusiast. Its compact design with a 4-ohm impedance and 3.75" mounting depth ensures effortless integration into various setups.
Choose the PRO-X8.4RGB for a speaker that stands out not just in sound but in style too.
Key Features
- 8" Mid-Range w/RGB LED Cone & Dust Cap
- RMS Power: 275 Watts
- MAX Power: 550 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 95dB
Specifications
| SKU | PRO-X8.4RGB |
|---|---|
| Nominal Diameter | 8" / 203.2mm |
| Nominal Impedance | 4 ohm |
| RMS Power Handing | 275w |
| MAX Power Handing | 550w |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response | 80Hz-5KHz |
| Recommended HI Pass Crossover | 100Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Water Resistant | IP65 rating |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Translucid PP with RGB LED |
| Bullet Material | N/A |
| Dust Cap Material | Translucid PP with RGB LED |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 30 Oz |
| Displacement Volume | 0.049L / 0.0017ft3 |
| Equivalent Volume Vas | 13.2L / 0.46ft3 |
| Excursion (one way) Xmax | 7mm |
| Free Air Resonance Fs | 80Hz |
| Mechanical Factor Qms | 9.31 |
| Electrical Factor Qes | 0.75 |
| Total Factor Qts | 0.7 |
| Mechanical Mass Mms | 22.3g |
| Mechanical Compliance Cms | 0.19mm/N |
| BL Factor BL | 6.96 |
| Voice Coil Inductance Le | 0.03mH |
| Cone Area Sd | 219.04cm2 |
| DC Resistance Re | 3.5 ohms |
| Mechanical Mass w/o air Mmd | 20.5g |

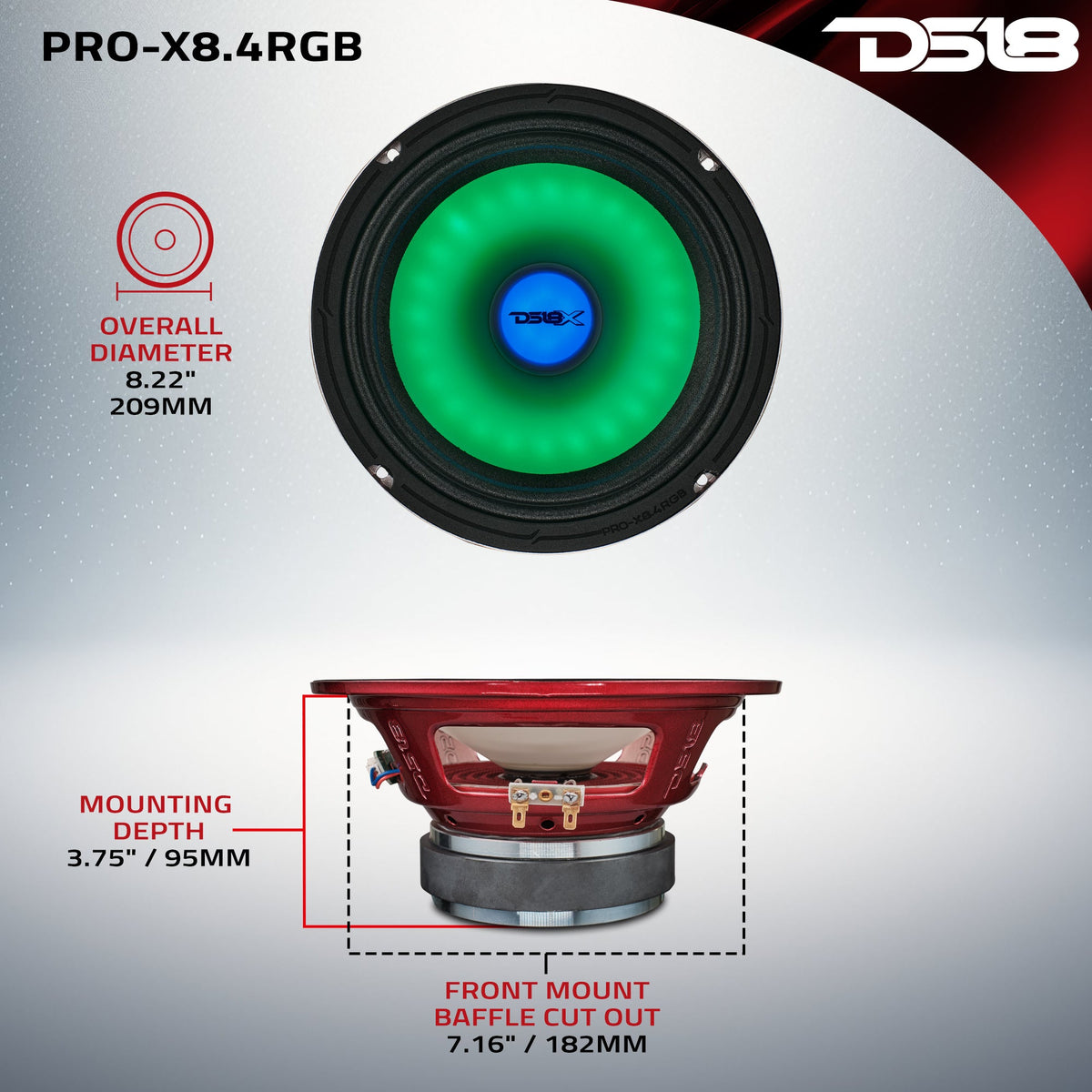

| Overall Diameter | 8.22" / 209mm |
| Overall Depth | 4" / 101.6mm |
| Front Mount Baffle Cutout | 7.16" / 182mm |
| Mounting Depth | 3.75" / 95mm |
