2” Throat Bolt-On Compression Driver 500 Watts With 4” Titanium Voice Coil And Neodymium Magnet
2” Throat Bolt-On Compression Driver 500 Watts With 4” Titanium Voice Coil And Neodymium Magnet
Product Overview

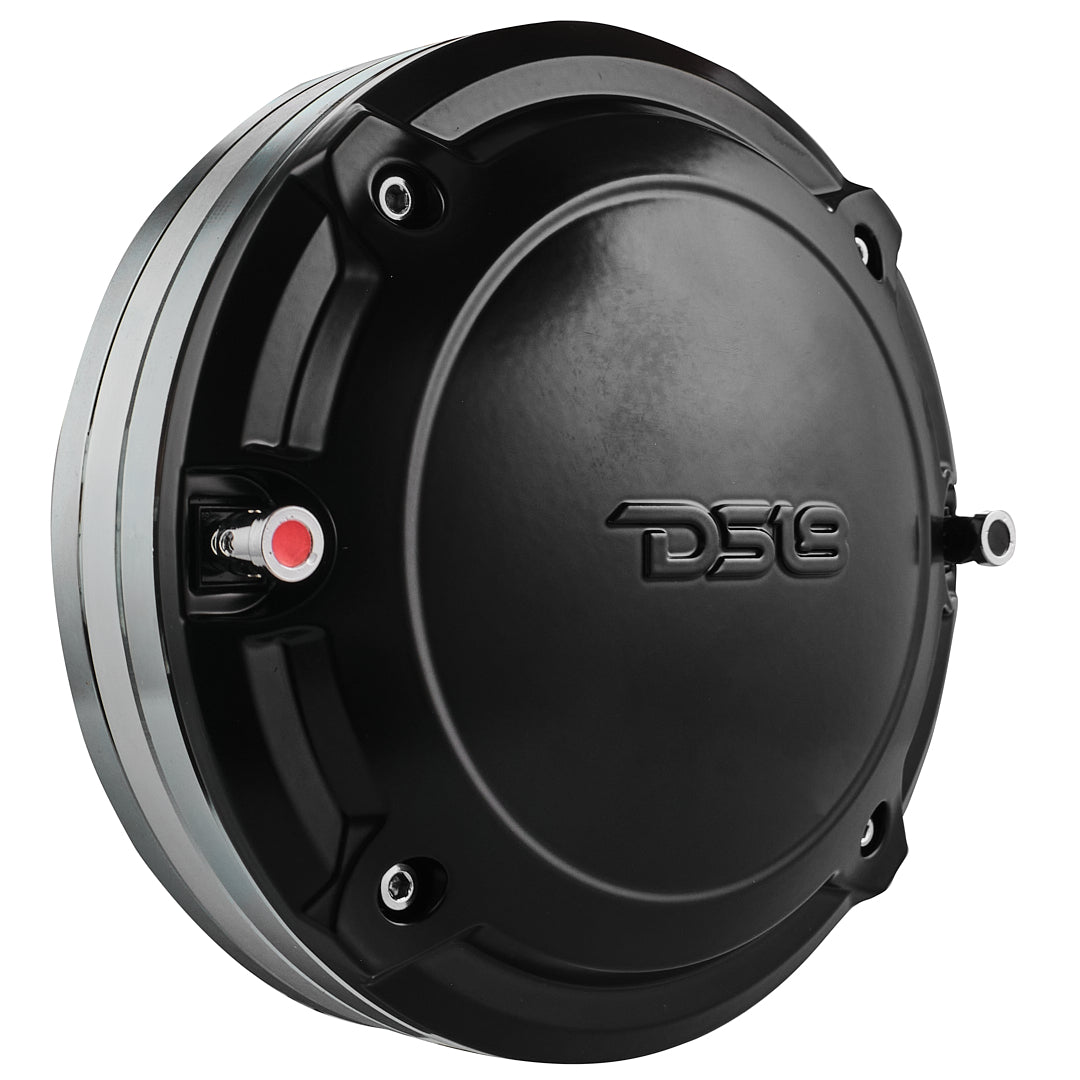

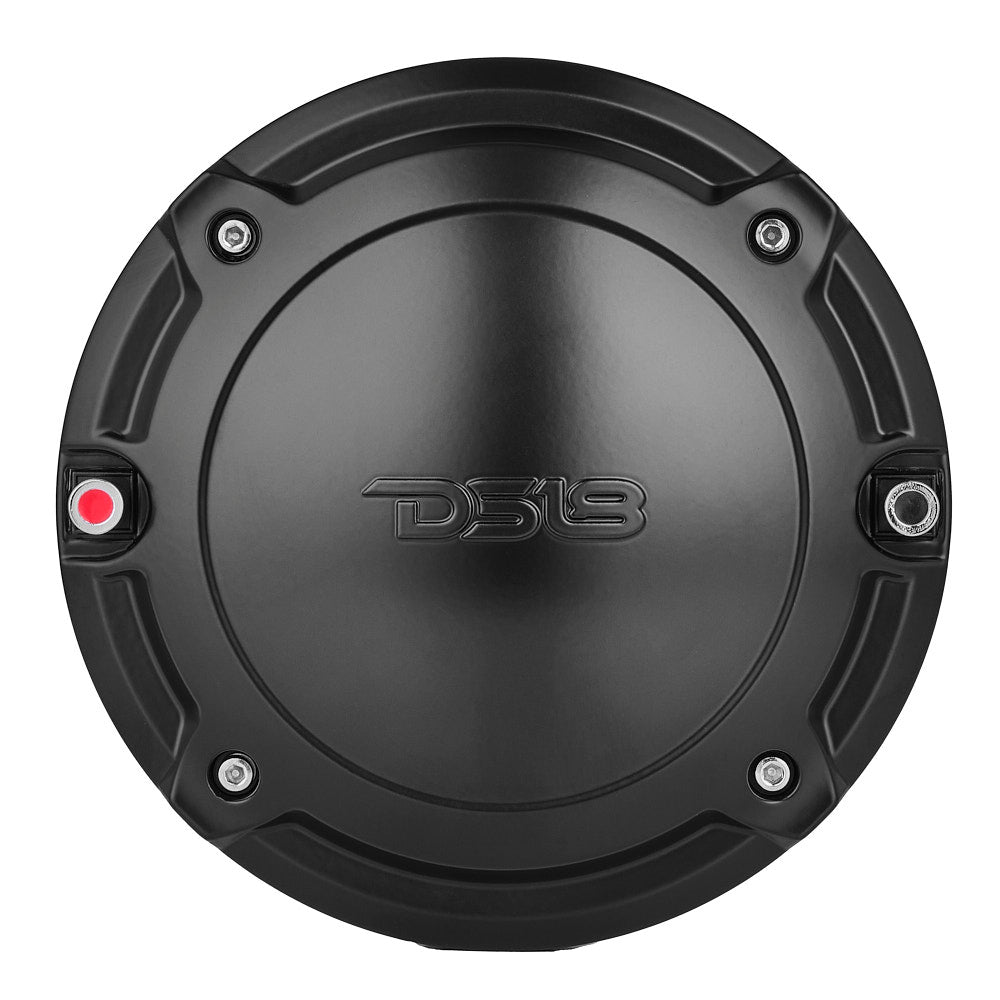

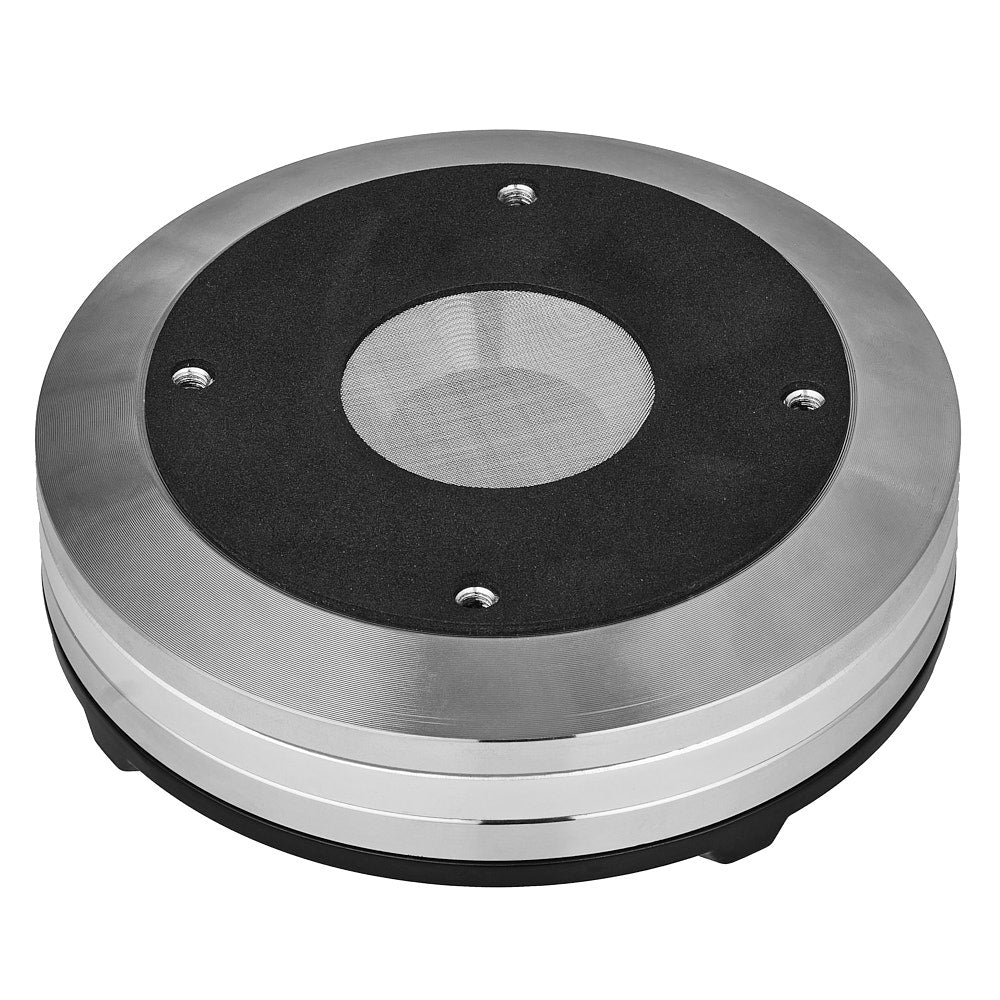

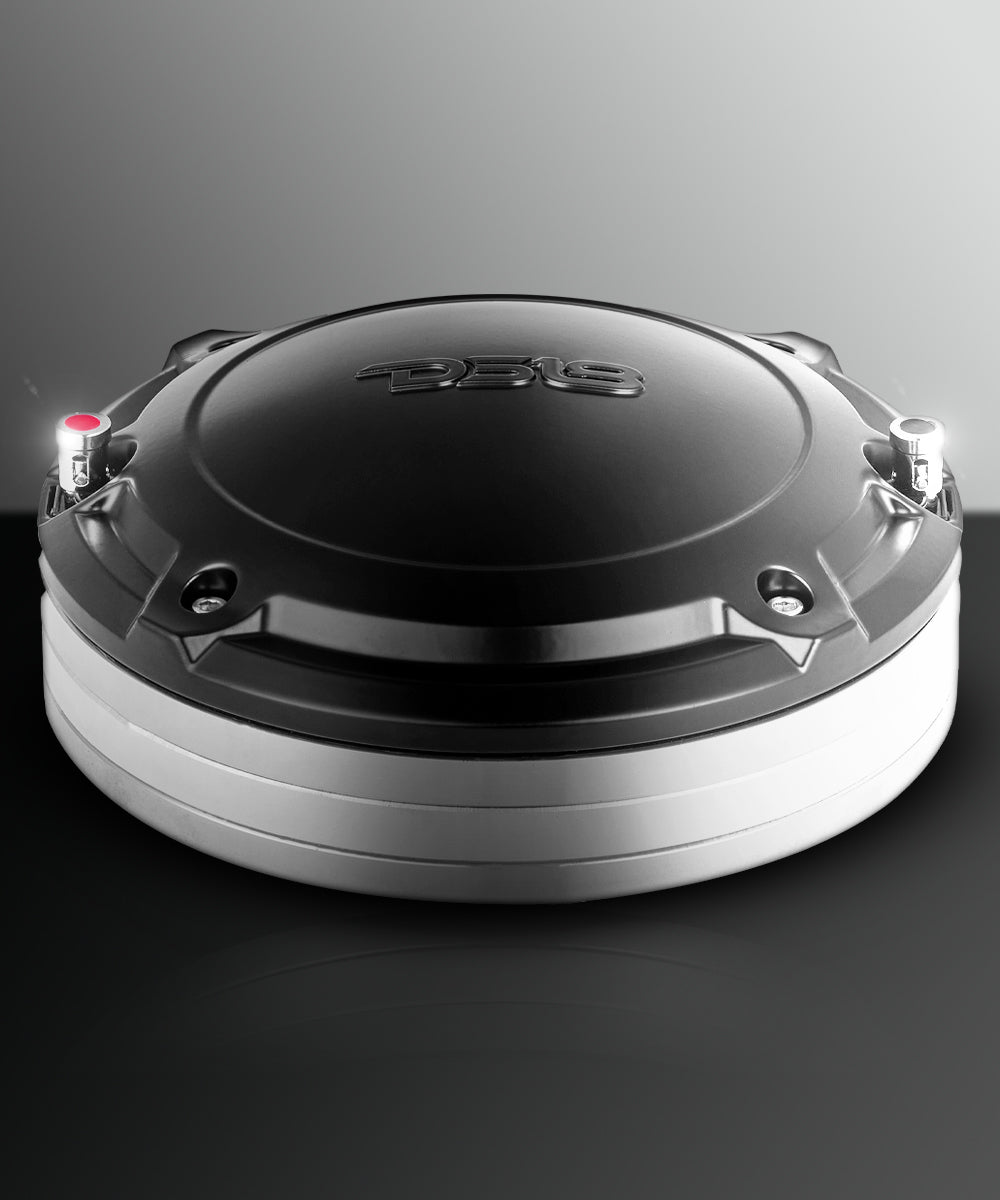

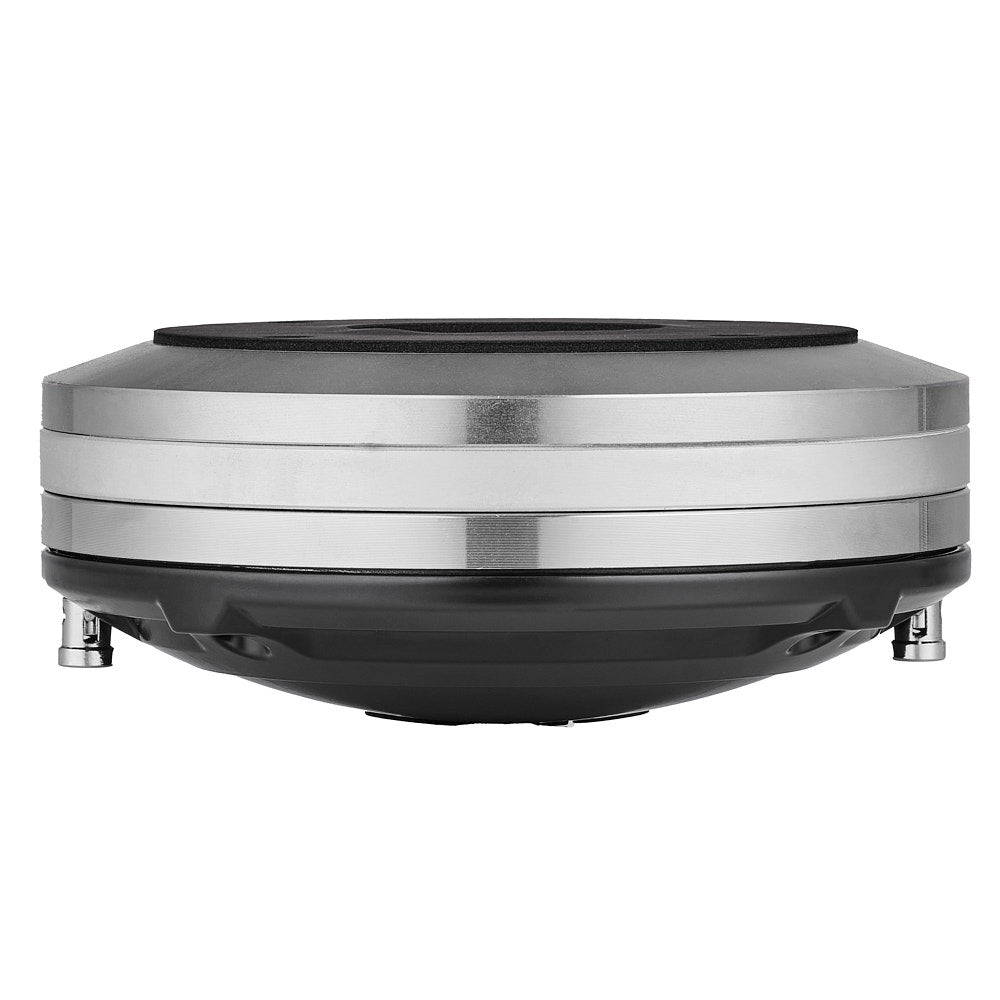

DS18 PRO-DN24Ti.8 2” Throat Bolt-On Compression Driver 500 Watts 4” Titanium Voice Coil And Neodymium Magnet
DS18’s PRO-DN24Ti.8 is a screaming powerhouse designed to deliver exceptional performance and high frequency clarity.
DS18’s PRO-DN24Ti.8 features a 2" throat diameter, allowing for seamless integration with any existing audio system. The bolt-on installation type ensures a secure fit, and its nominal impedance of 8 Ohms guarantees compatibility with a wide range of audio setups.
Featuring an AES Power Rating of 250W, a Program Power Rating of 500W, and a Peak Power Rating of 1000W, the PRO-DN24Ti.8 handles immense power with unparalleled accuracy. The PRO-DN24Ti.8’s sensitivity of 109dB (1w/1m), allows it to effortlessly fill any venue with rich, immersive sound: while it’s frequency response of 500Hz-20KHz ensures crystal-clear audio reproduction across the entire audible spectrum.
Crafted with meticulous attention to detail, this compression driver features a 4" voice coil diameter attached to a titanium diaphragm and neodymium magnet for exceptional durability and efficiency, guaranteeing reliable performance even under demanding conditions.
Experience the DS18 Difference with our PRO-DN24Ti.8 and unlock the true potential of your sound system.
Key Features
- 2" Compression Driver
- RMS Power: 250 Watts(1000 Watts Peak)
- Impedance: 8 Ohm ~ 109dB
- Neodymium Magnet
- Titanium Diaphragm
- Bolt On
Specifications
| SKU | PRO-DN24TI.8 |
|---|---|
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-On |
| Nominal Impedance | 8 Ohms |
| AES Power handling | 250W |
| Program Power Handling | 500W |
| Peak Power handling | 1000W |
| Sensitivity (1w/1m) | 109dB |
| Frequency Response | 500Hz-20KHz |
| Recommended Hi Pass Crossover | 600Hz |
| Sold in Pair or Single | Single |

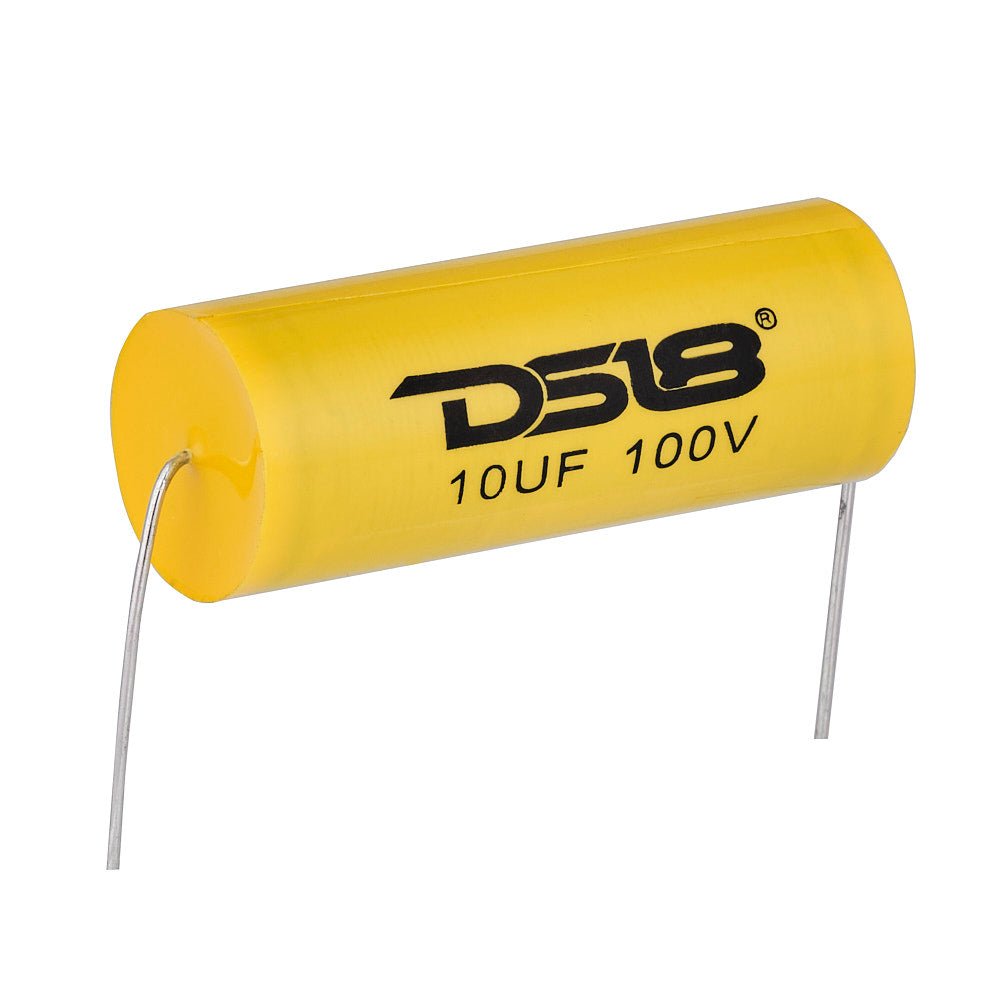

| Filter (Bass Blocker) | 10Uf/100V |
| Body Material | Aluminum |
| Body Color / Finish | Black / Machined |
| Voice Coil Diameter | 4" / 101.6mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Magnet Weight | 21.8oz |
| Overall Diameter | 6.06" / 154mm |
| Overall Depth | 2.56" / 65mm |
| Bolt Pattern/Type | 4xM6 - 4" /102mm |
