2” Throat Bolt-On Compression Driver 320 Watts With 2” Phenolic Voice Coil 8-Ohm
2” Throat Bolt-On Compression Driver 320 Watts With 2” Phenolic Voice Coil 8-Ohm
Product Overview

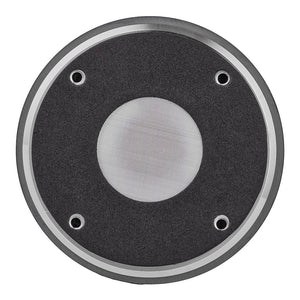

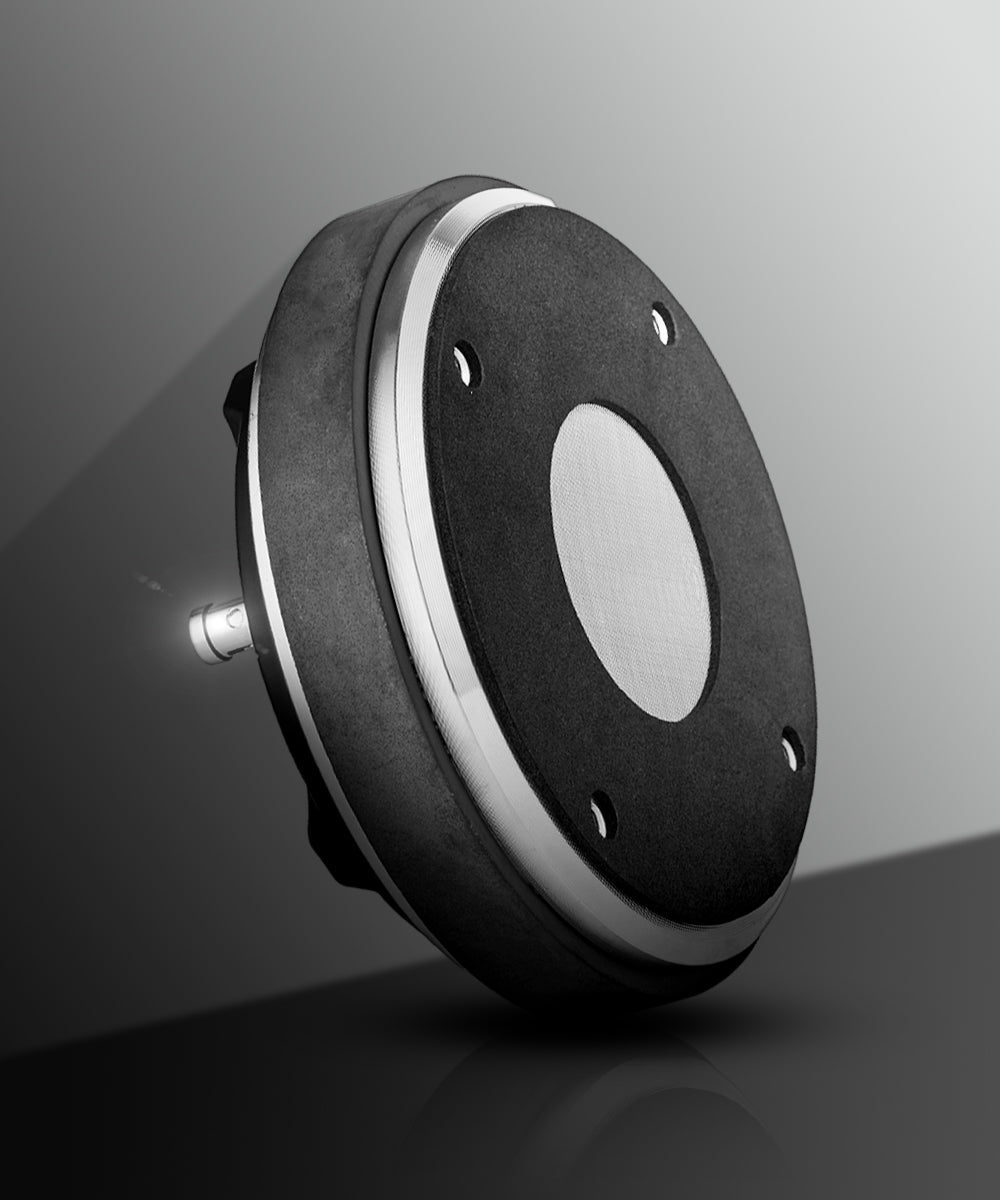

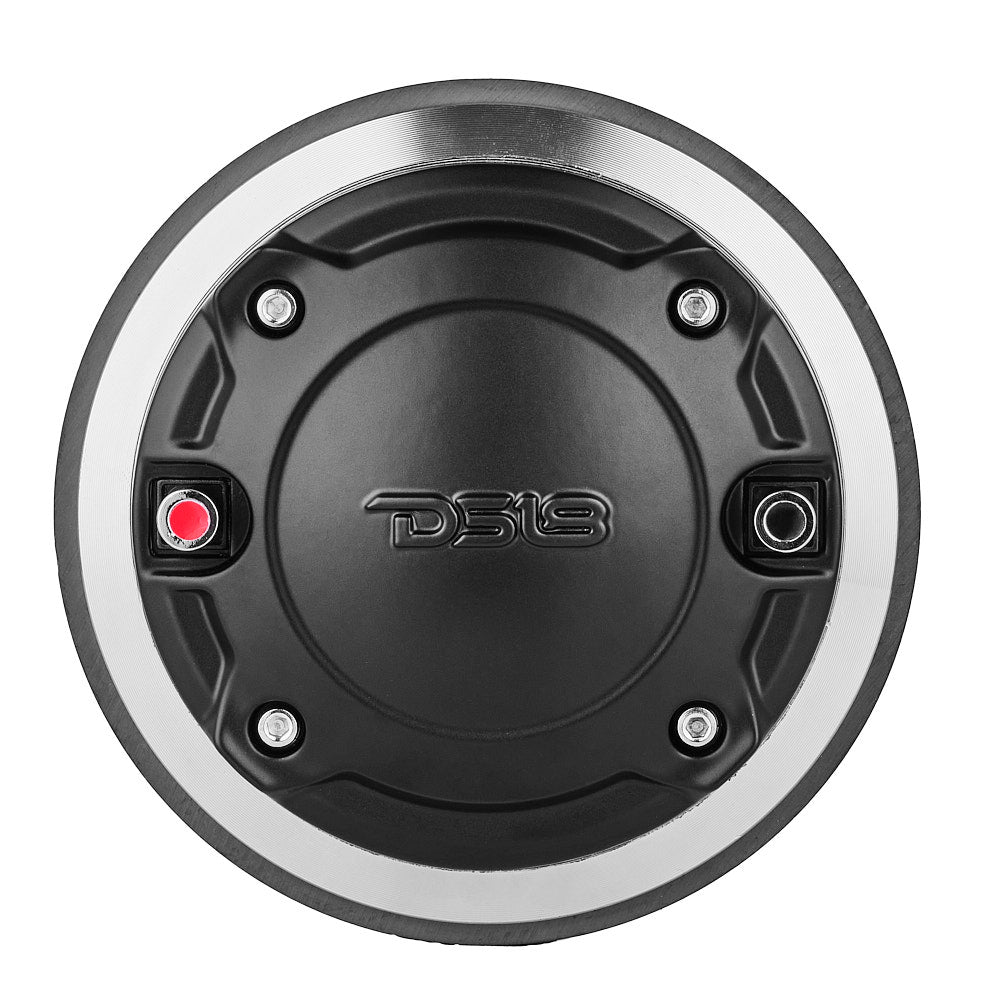

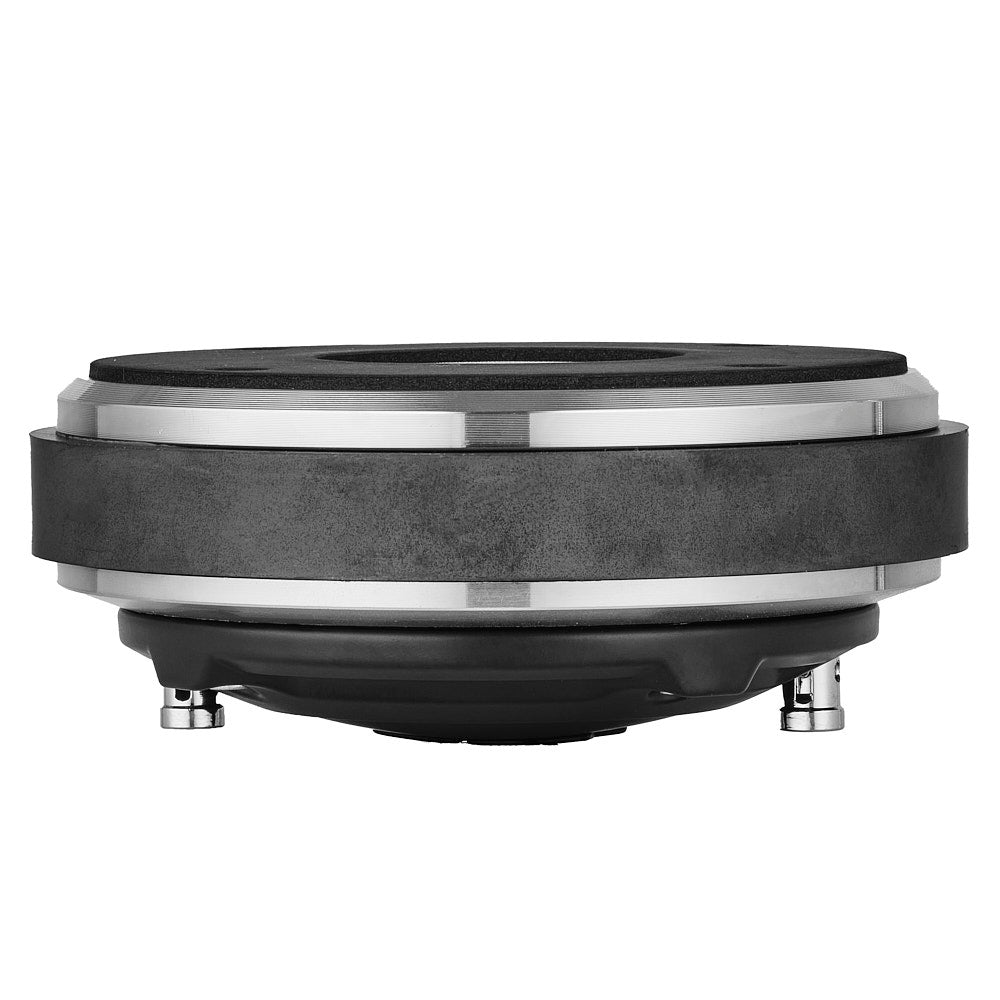

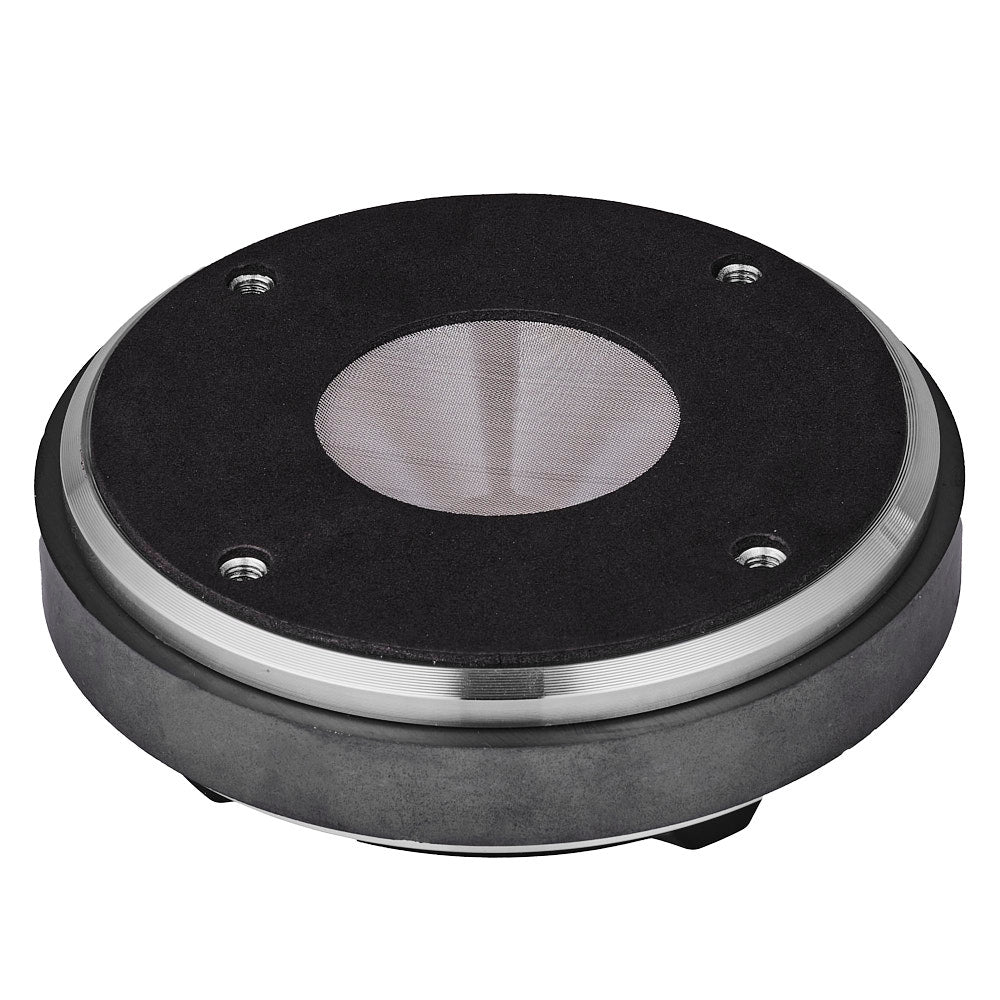

DS18 PRO-D22PH.8 2” Throat Bolt-On Compression Driver With 2” Phenolic Voice Coil
It’s easy to enhance your audio system with DS18’s PRO-D22PH.8!
DS18’s PRO-D22PH.8 is designed to impress even the most discerning audiophiles. This powerful driver features a 2" phenolic voice coil that delivers exceptional sound quality and clarity. Its 8-ohm nominal impedance ensures compatibility with a wide range of audio setups, while its impressive power handling capabilities (160W AES, 320W program, and 640W peak) guarantee a dynamic sound performance. Thanks to its sensitivity of 110dB (1w/1m), DS18’s PRO-D22PH.8 delivers clear and powerful sound even at high volumes.
The 2" voice coil diameter, made from high-quality Kapton material, ensures durability and optimal performance. The phenolic diaphragm material further enhances the driver's sound reproduction, providing crisp highs and smooth mid-range frequencies. The ferrite magnet contributes to the overall power and efficiency of this state of the art driver.
Crafted with precision, DS18’s PRO-D22PH.8 features an aluminum body in a sleek black finish. Its bolt pattern and type of 4xM6 - 4", ensure you can quickly integrate this compression driver into any existing audio setup.
So, what are you waiting for? Take your sound system to new heights with DS18’s PRO-D22PH.8.
Key Features
- 2" Compression Driver
- RMS Power: 320 Watts(640 Watts Peak)
- Impedance: 8 Ohm ~ 109dB
- Ferrite Magnet - Phenolic Diaphragm
- Bolt On
- Easily Repaired With The PRO-D22PH.8VC
Specifications
| SKU | PRO-D22PH.8 |
|---|---|
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-On |
| Nominal Impedance | 8 Ohms |
| AES Power handling | 160W |
| Program Power Handling | 320W |
| Peak Power handling | 640W |
| Sensitivity (1w/1m) | 110dB |
| Frequency Response | 630Hz-8KHz |
| Recommended Hi Pass Crossover | 800Hz |
| Sold in Pair or Single | Single |

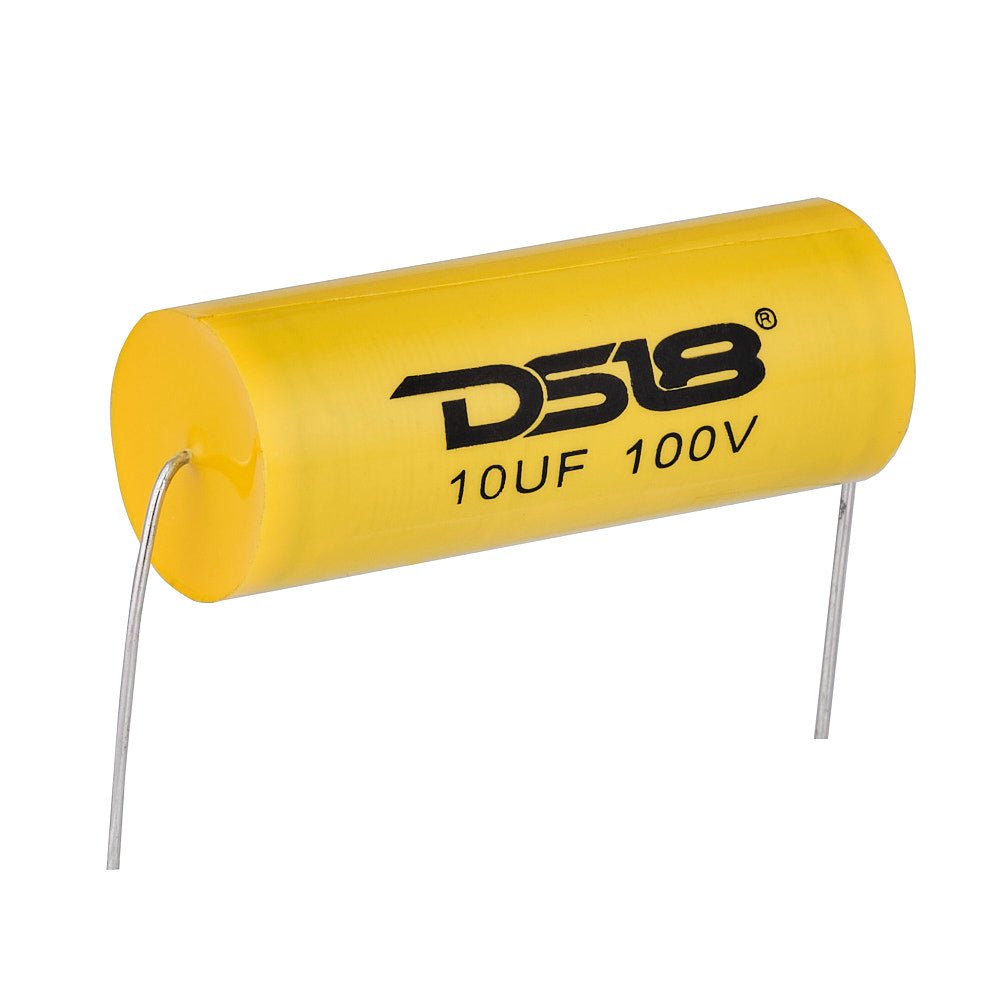

| Filter (Bass Blocker) | 10Uf/100V |
| Body Material | Aluminum |
| Body Color / Finish | Black / Machined |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Phenolic |
| Magnet Material | Ferrite |
| Magnet Weight | 35 oz |
| Overall Diameter | 5.31" / 135mm |
| Overall Depth | 2.08" / 53mm |
| Bolt Pattern/Type | 4xM6 - 4" /102mm |
