Product Overview

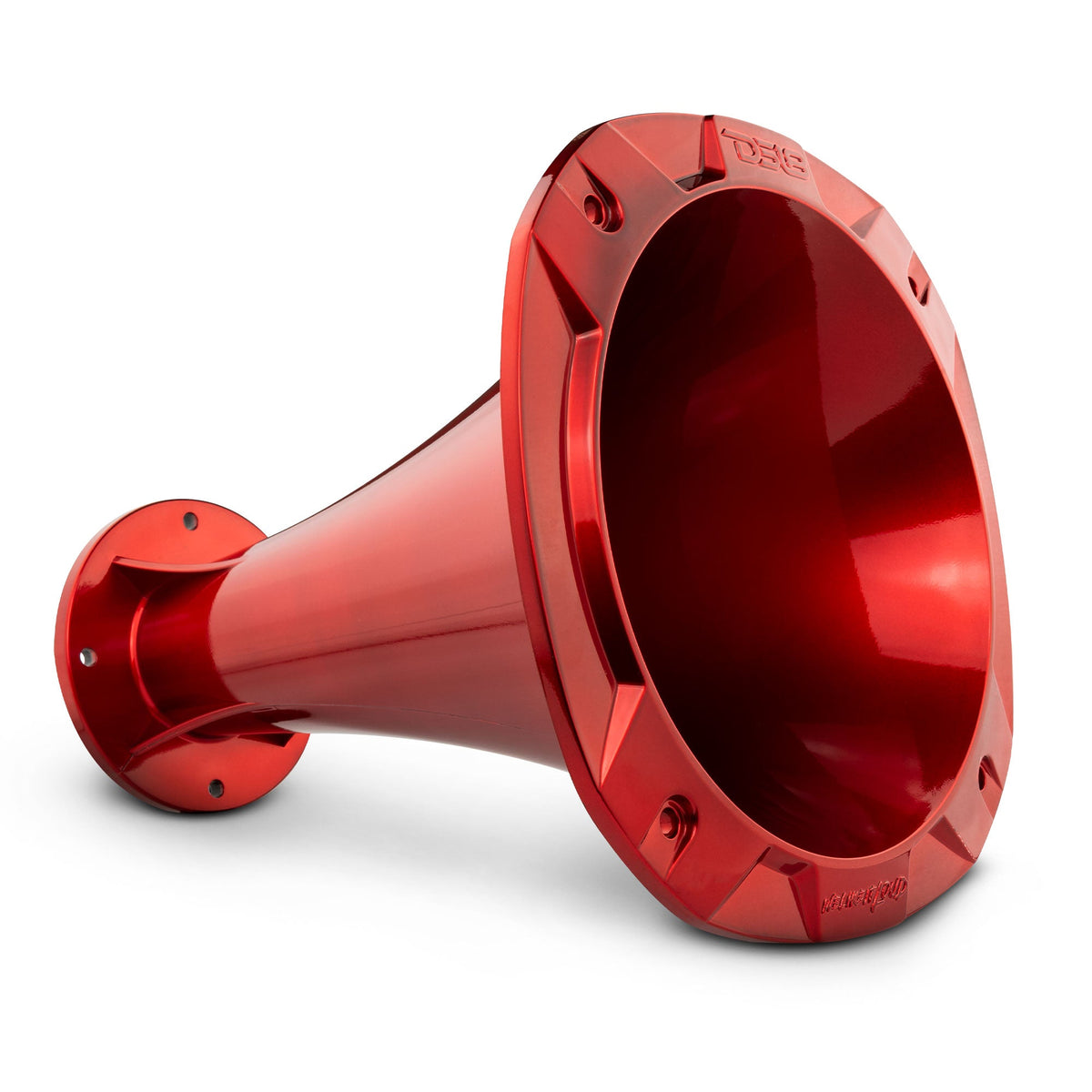

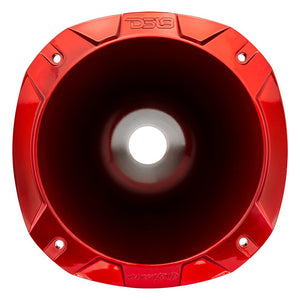

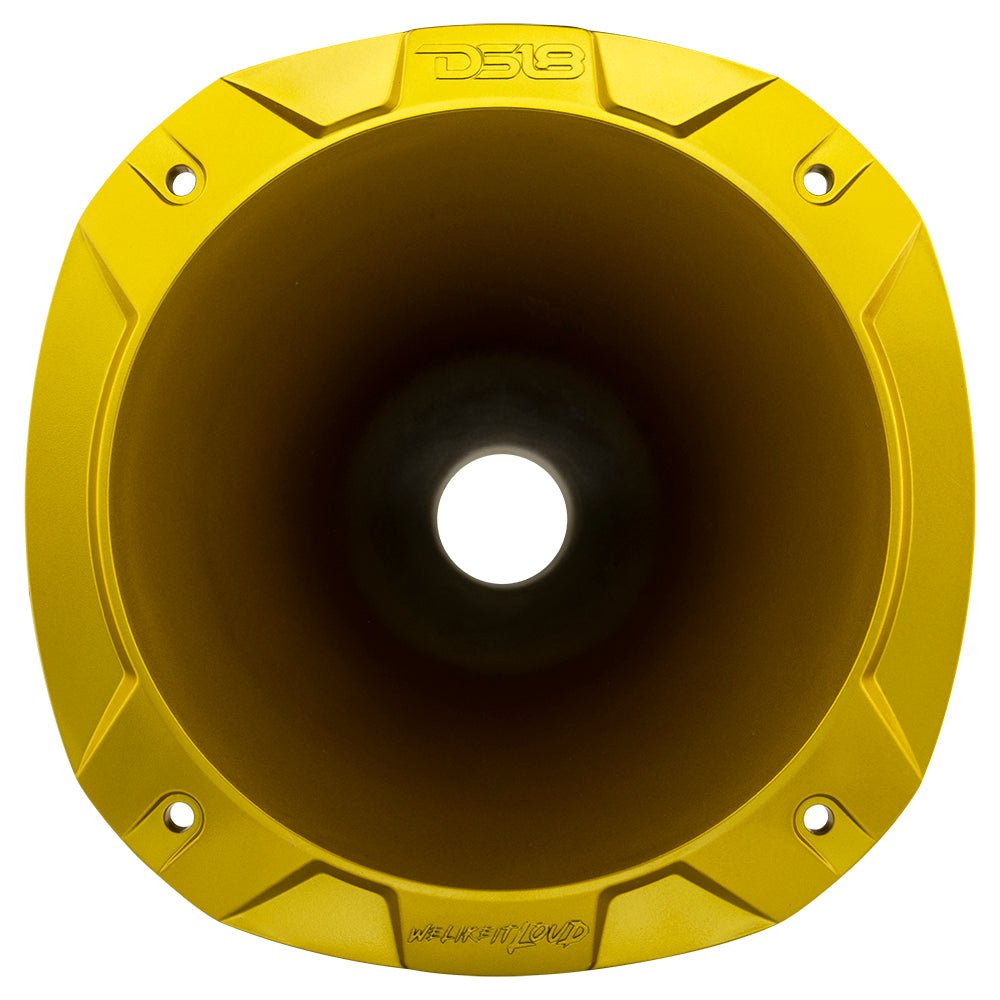

DS18 PRO-HP202 2" Throat Bolt On 27° 10.84" Depth Plastic Horn
DS18’s PRO-HP202 is our latest and greatest in throated horns!
This horn has a mounting depth of 10.84” and a throat diameter of 2” expanding your directional sound by almost ONE HUNDRED TIMES!

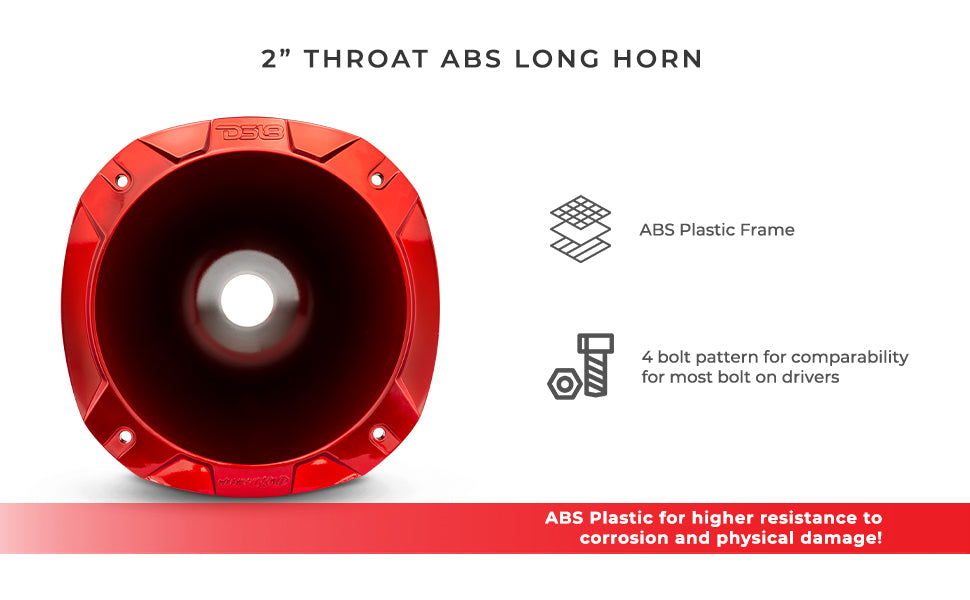

This horn is built for compression drivers and constructed from ABS Plastic for higher resistance to corrosion and physical damage!

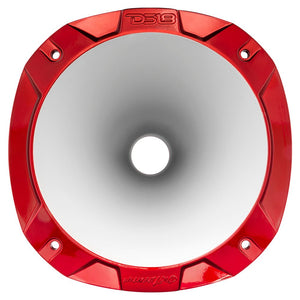

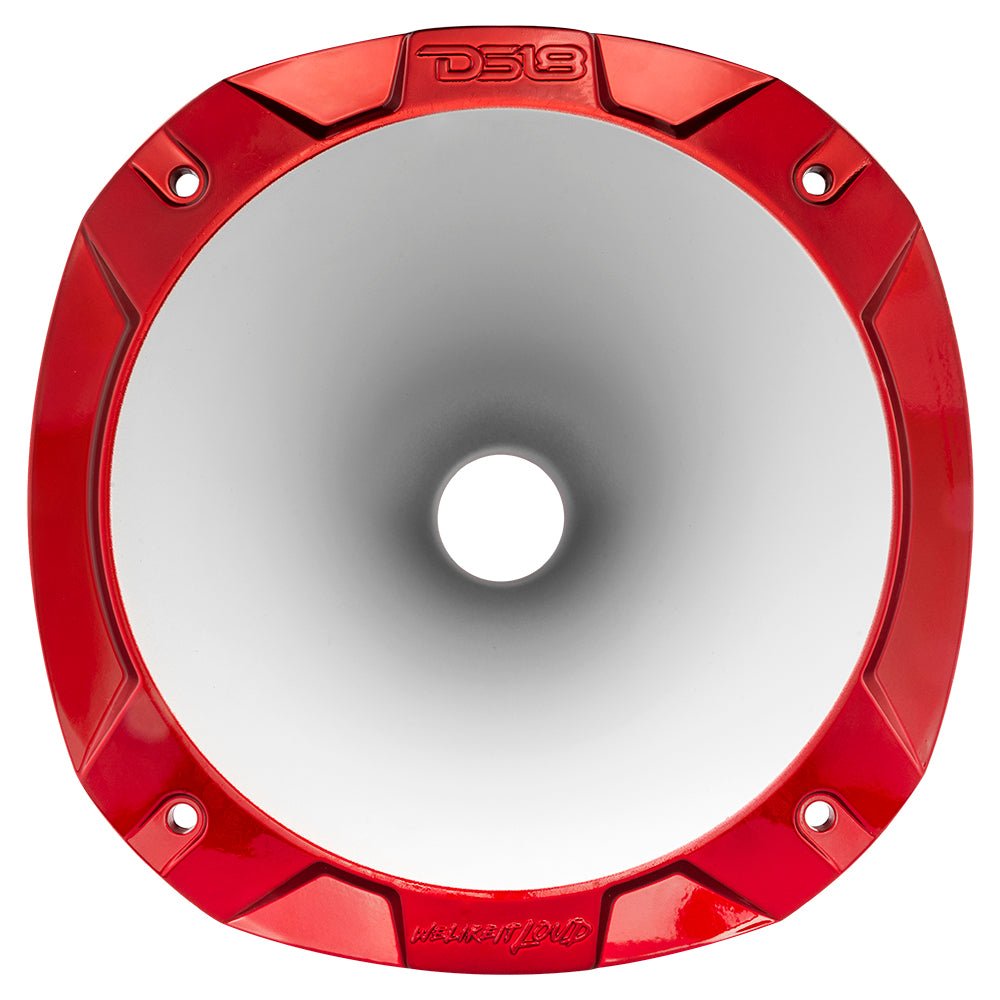

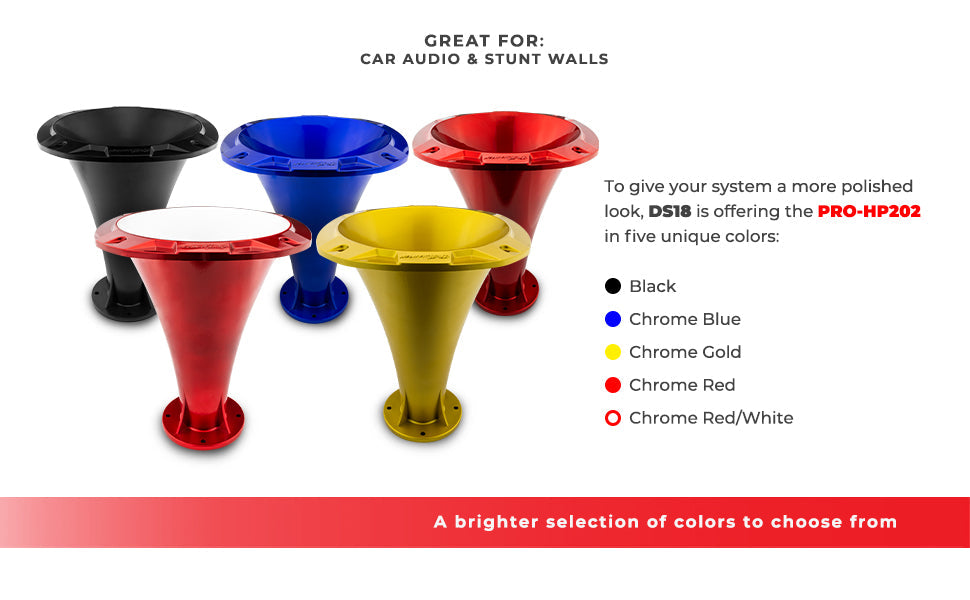

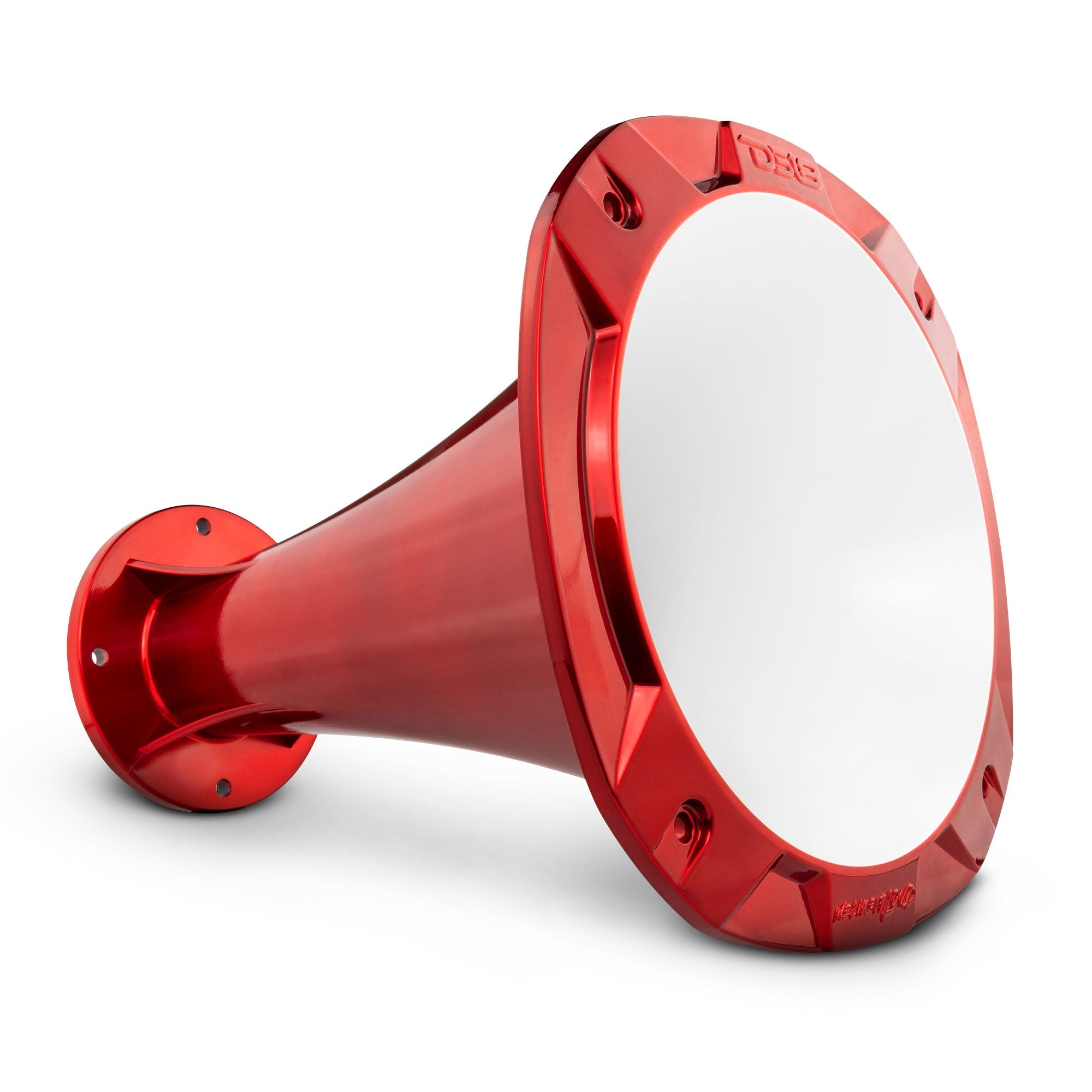

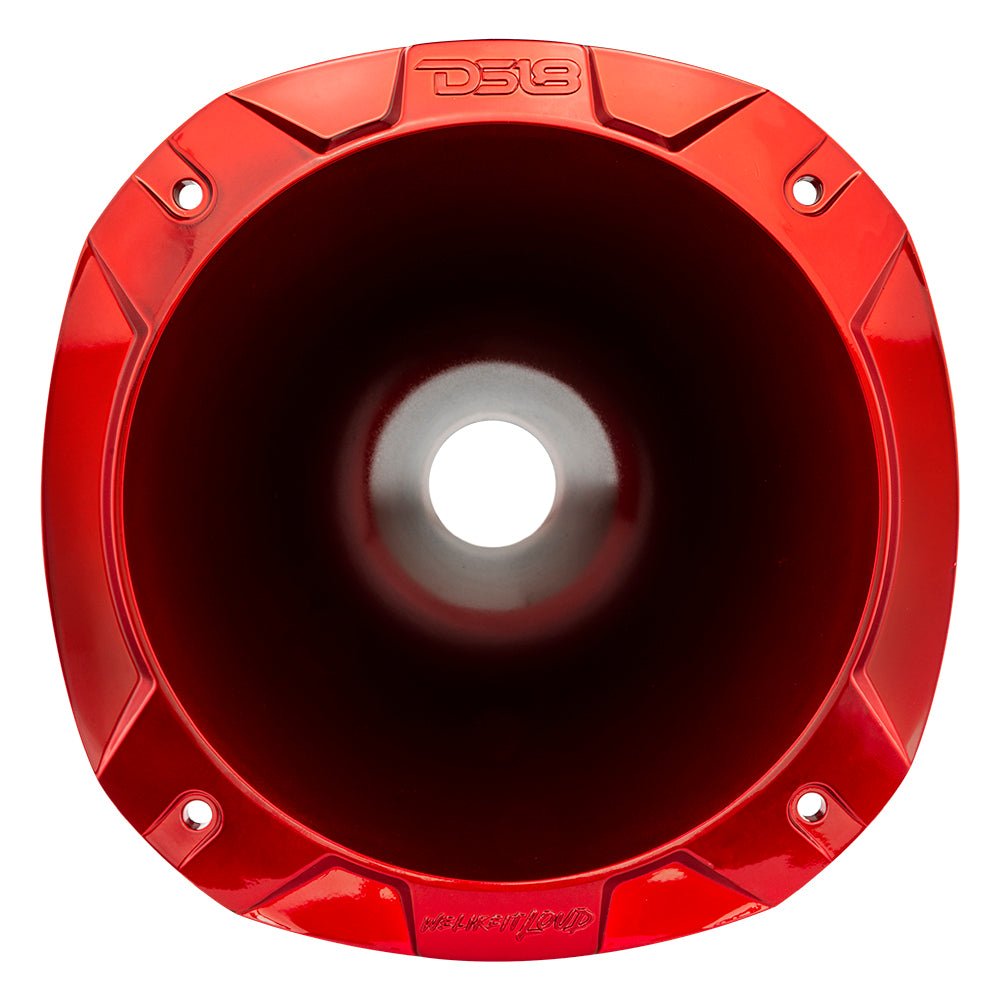

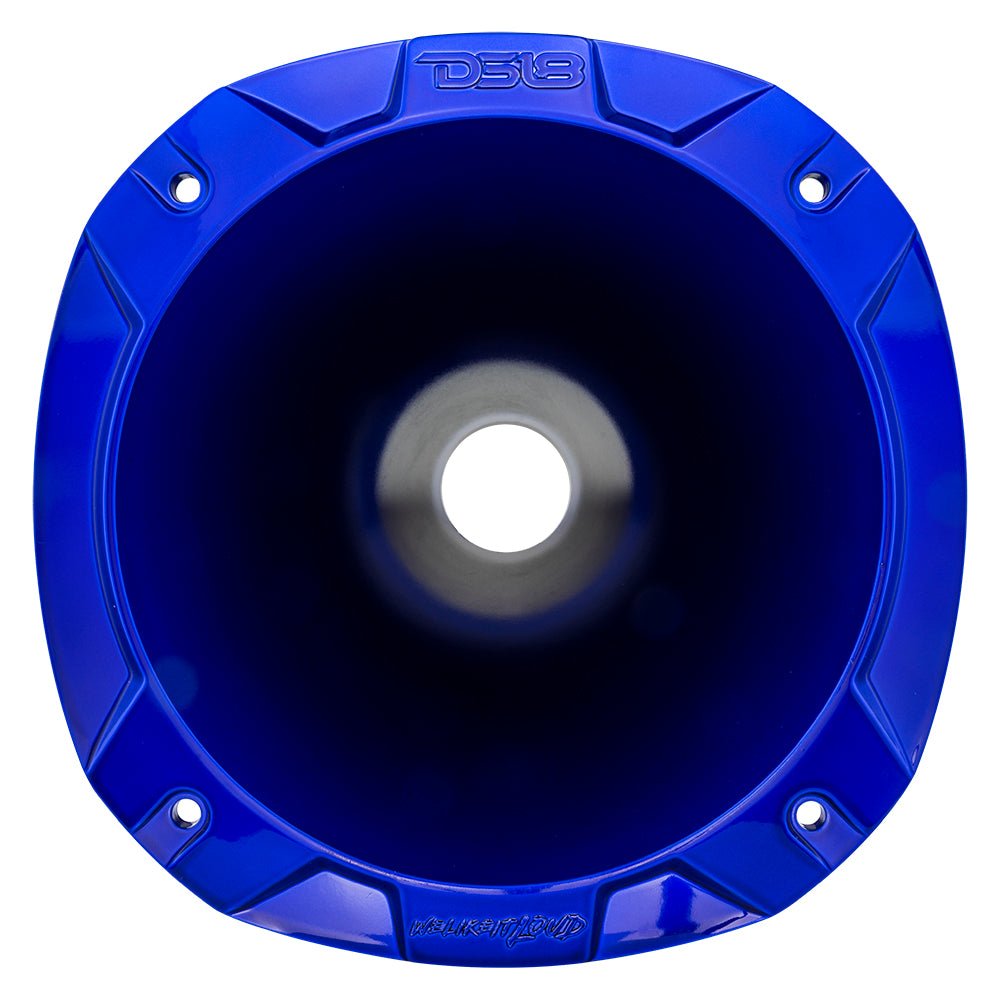

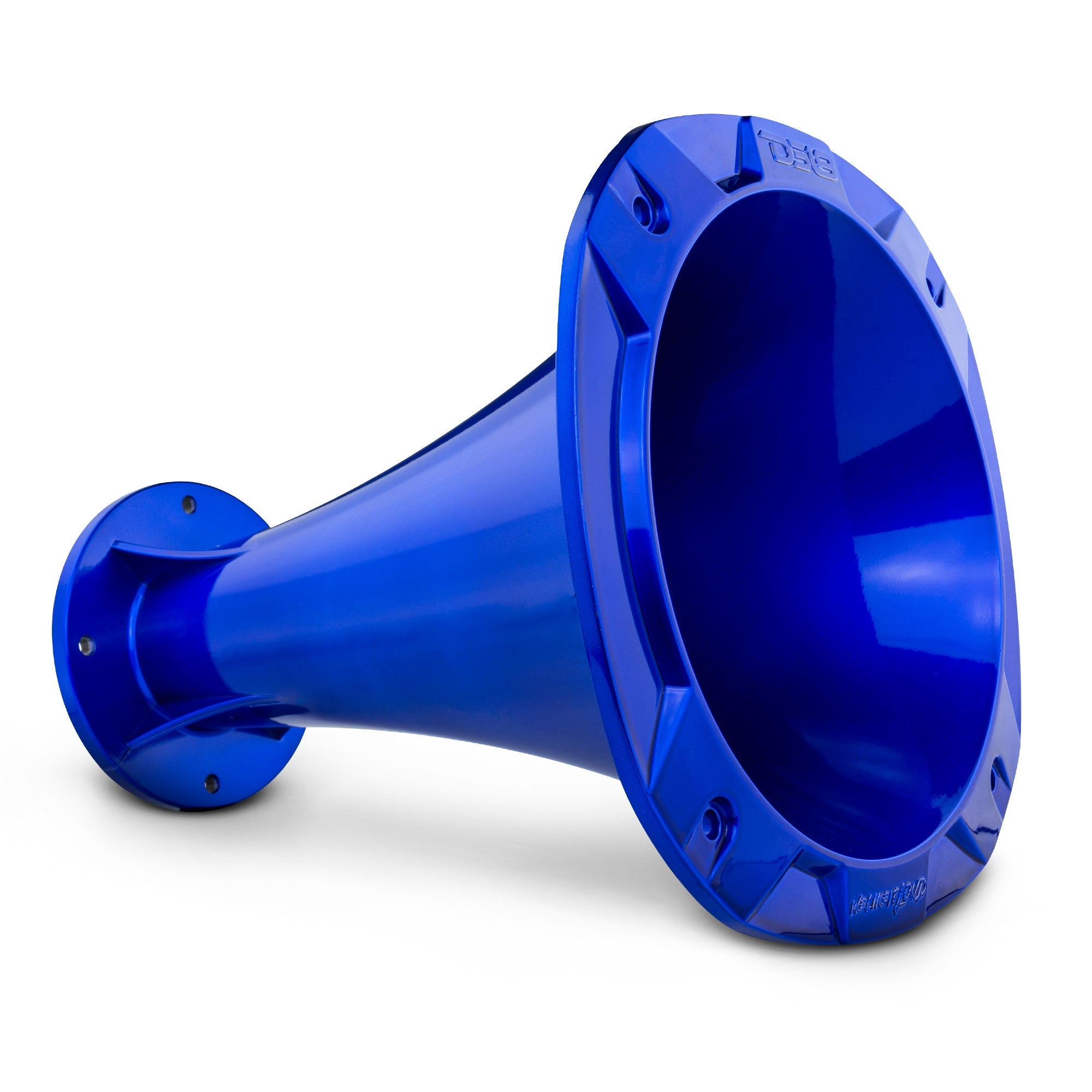

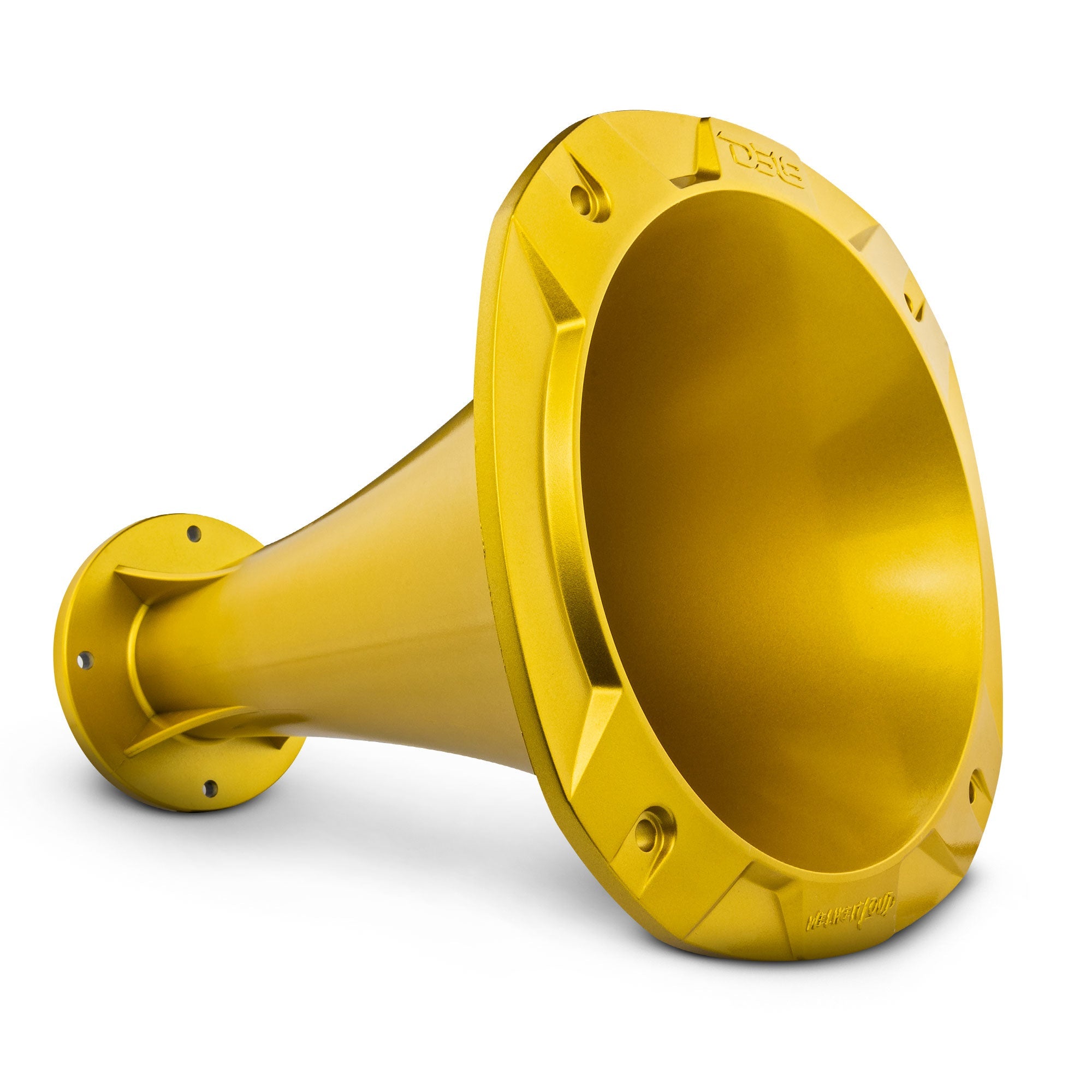

To give your system a more polished look, DS18 is offering the PRO-HP202 in four glossy finished colors: Blue, Gold, Red and Red with White Inside.

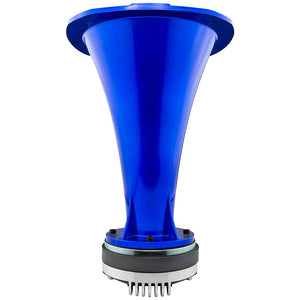

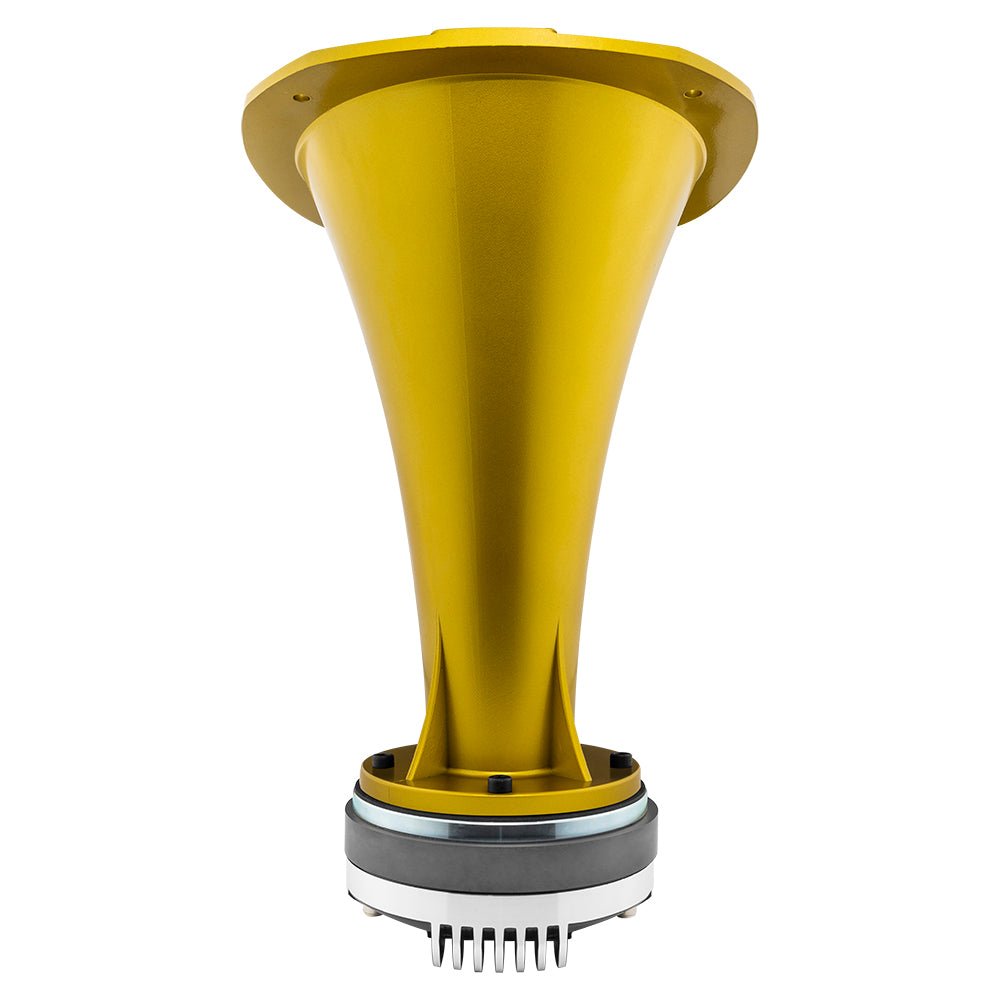

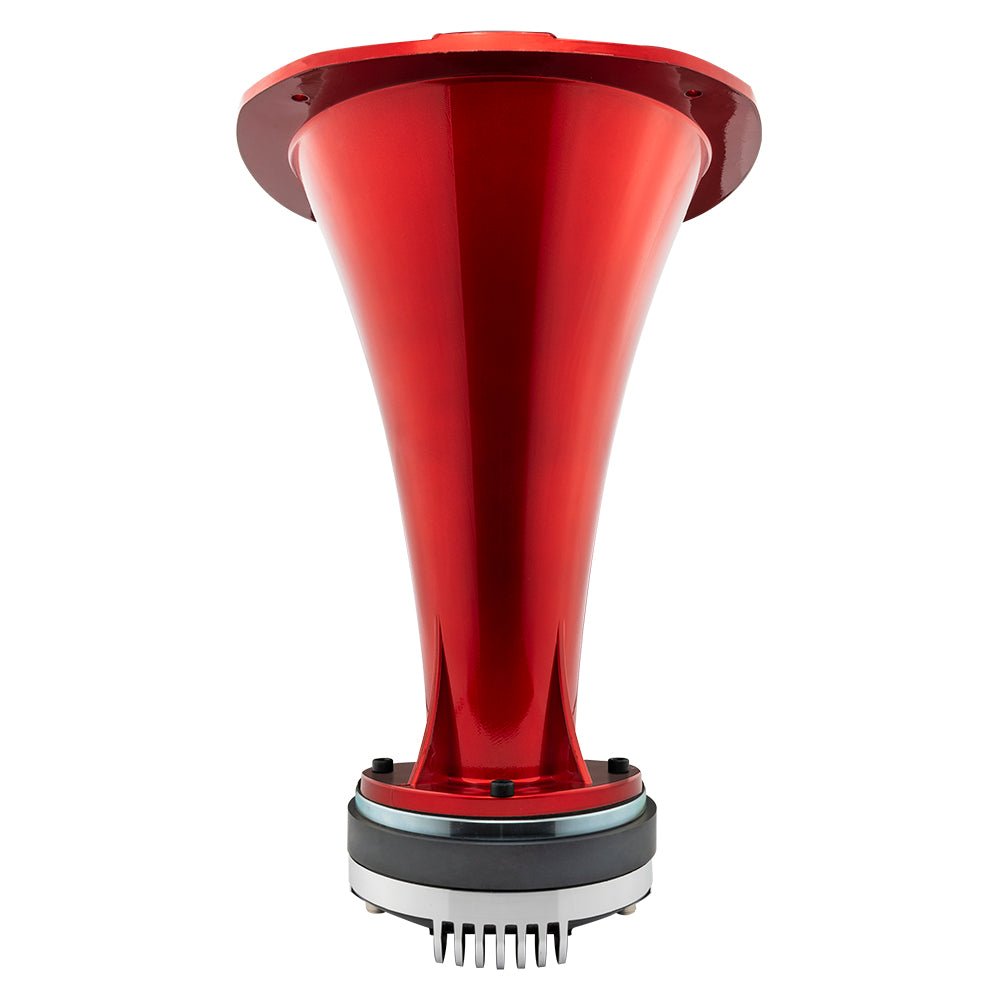

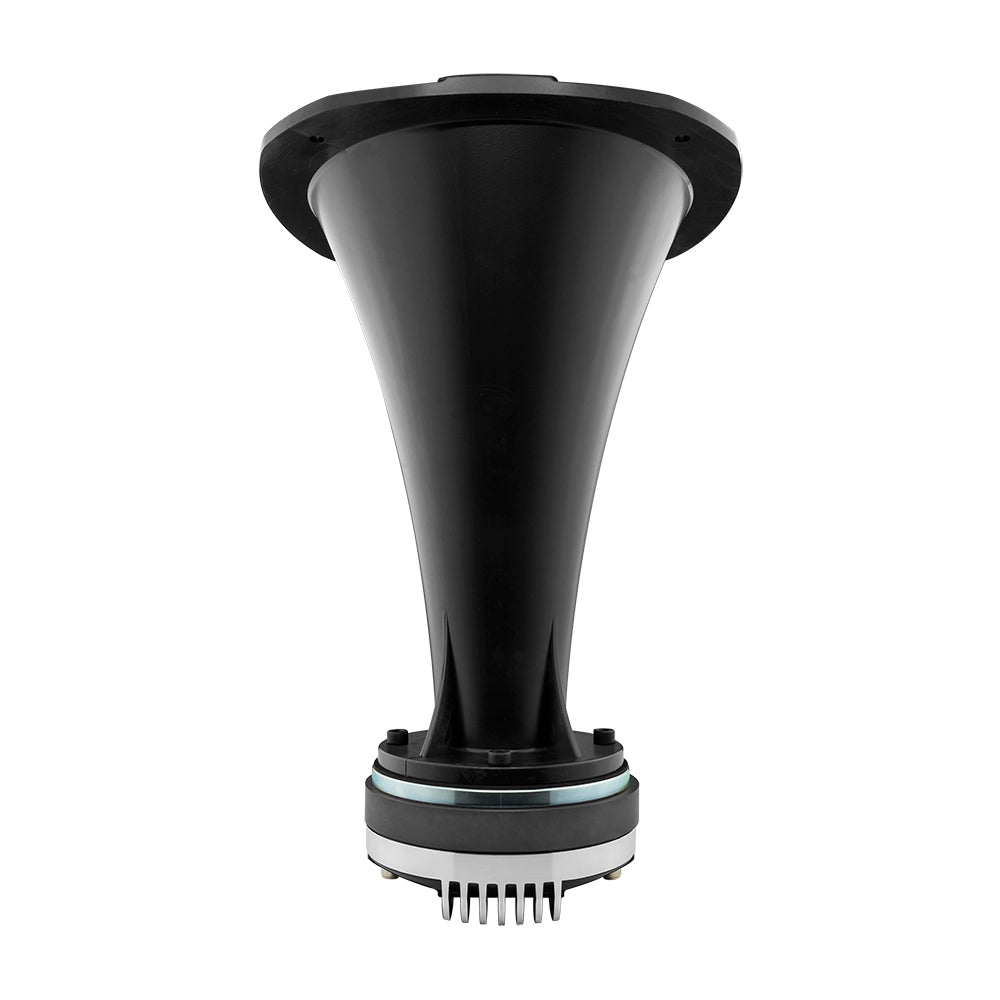

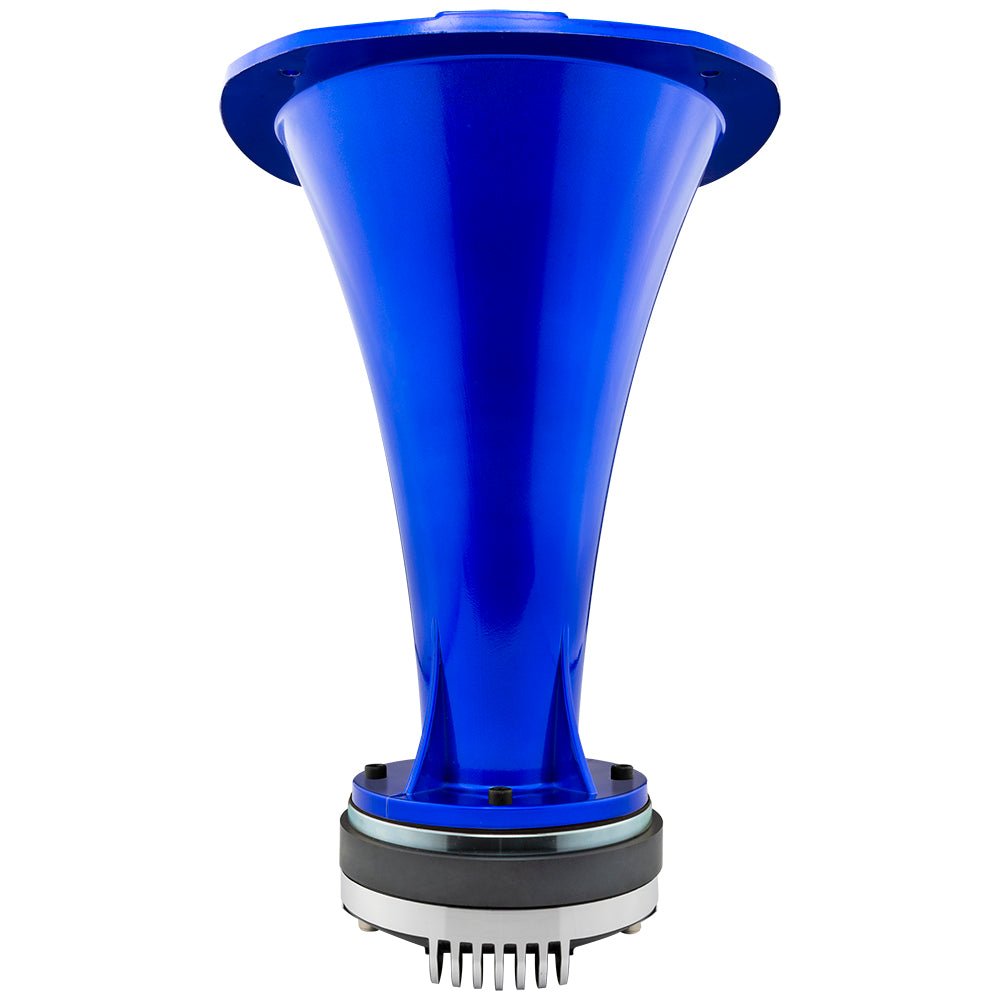

This bolt on throat horn requires a 4-bolt pattern on your driver to be installed correctly.
Get full sound coverage with the PRO-HP202!
Highlights

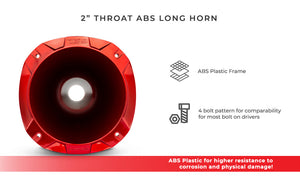

- ABS Plastic Frame

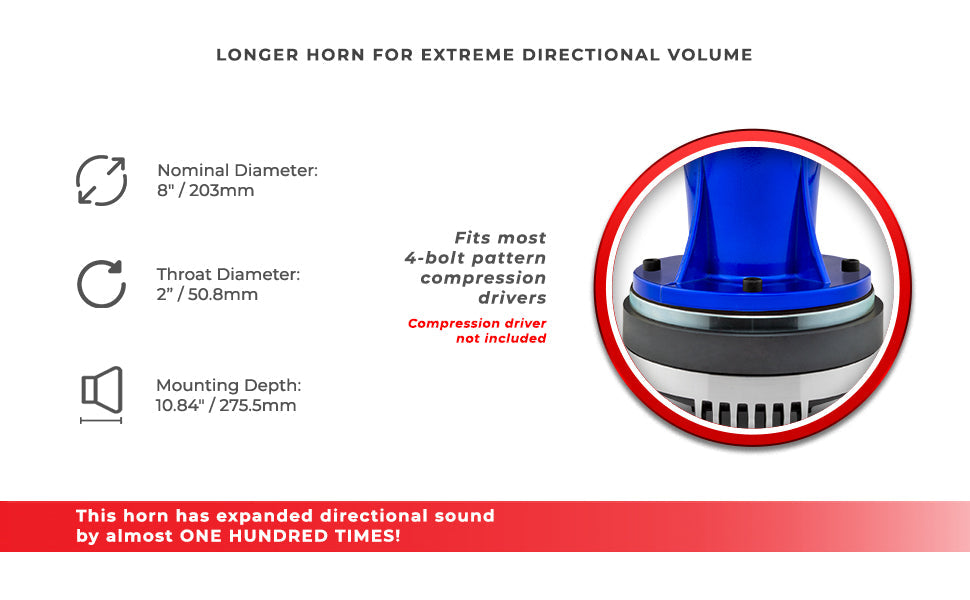

- Longer horn for EXTREME Directional Volume
- 4 bolt pattern for comparability for most bolt on drivers
Great For

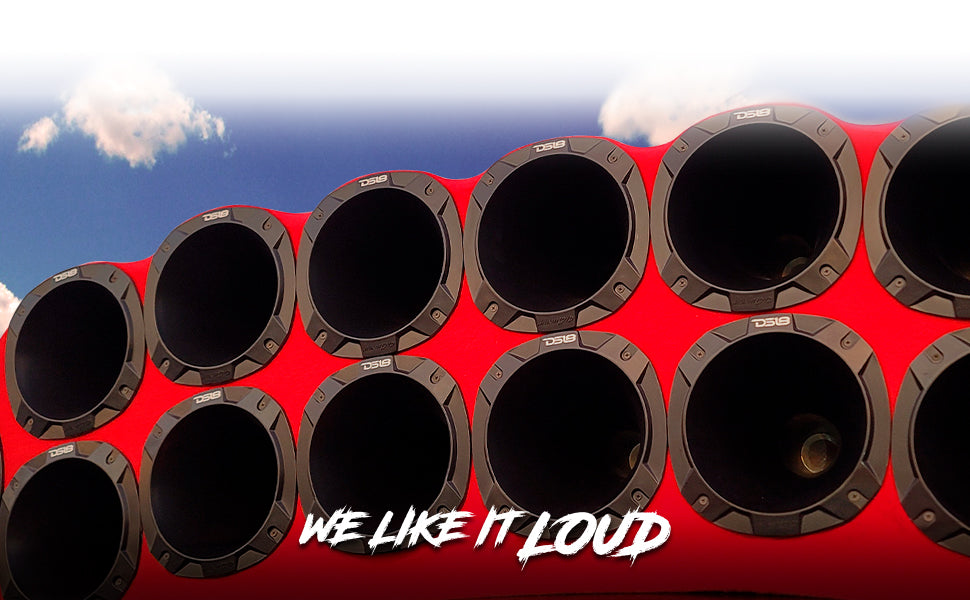

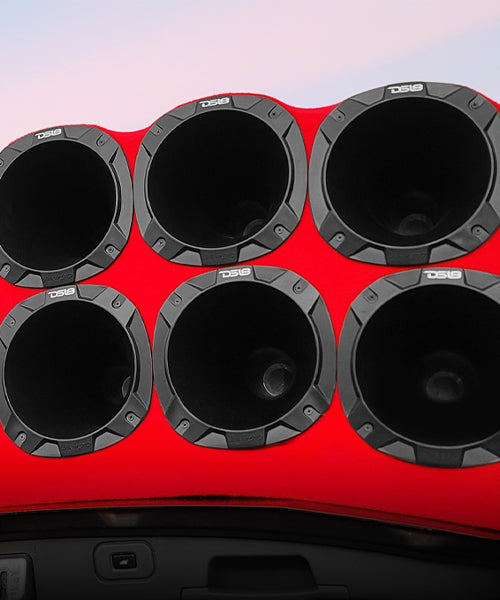

- Stunt Walls
- Car Audio
- Ferrite 4-bolt drivers
- Neodymium 4-bolt drivers
Technical Details
| Specifications | |
| Installation Type | Bolt-on |
| Throat Diameter: | 2" / 50.8mm |
| Nominal Horn Diameter: | 8" |
| Sound Coverage: | 27° Rounded |

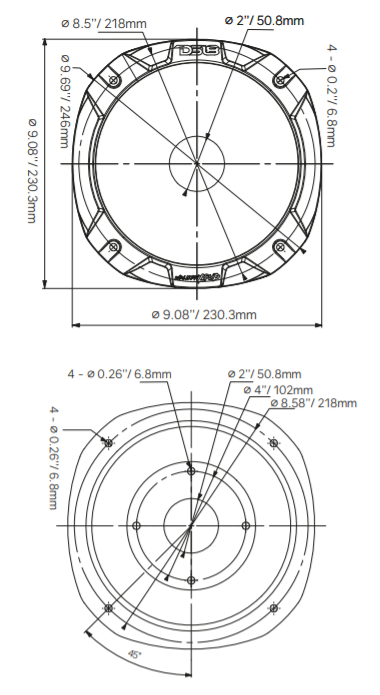

| Measurements: | |
| Overall Diameter: | 9.69" / 246mm |
| Overall Depth: | 11.25" / 286mm |
| Mounting Depth: | 10.84" / 275.336mm |
| Driver Bolt Pattern: | 4"/ 102mm x 4-0.26" / 6.8mm |
| Mounting Bolt Pattern: | 8.58" / 218mm x 4- 0.21" / 5.5mm |
| Mounting Hole Diameter: | 7.95" / 202mm |
Key Features
- 2" Bolt On Horn
- 27° Sound Coverage
- 10.84" Depth
- Plastic
- Multiple Colors
Specifications
| SKU | PRO-HP202 |
|---|---|
| Nominal Diameter | 8" / 203mm |
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-On |
| Sound Coverage | 27° Rounded |
| Body Material | Plastic ABS |
| Color | Black - Chrome Red - Chrome Blue - Chrome Gold - Chrome Red/White |
| Overall Diameter | 9" / 230mm |
| Overall Depth | 11.25" / 286mm |
| Mounting Depth | 10.84" / 275.5mm |
| Mounting Hole Diameter | 7.95" / 202mm |
| Bolt Pattern (Horn) | 8.58" / 218mm x 4-0.21" / 5.5mm |
| Bolt Pattern (Driver) | 4" / 102mm x 4-0.26" / 6.8mm |
| Gross Single Unit Weight (lb) | 2.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 9.25 x 9.25 x 11.5 |
| Quantity of Units in Master Carton | 12 |
| Gross Master Carton Weight (lb) | 31 |
| Master Carton Dimensions W x L x H (Inches) | 28.75 x 19.5 x 24.25 |
