2" Throat Bolt on Driver 320 Watts 2" Titanium Vc 8-Ohm
2" Throat Bolt on Driver 320 Watts 2" Titanium Vc 8-Ohm
2" Throat Bolt on Driver 320 Watts 2" Titanium Vc 8-Ohm
Product Overview
DS18 PRO-D1 2" Throat Bolt On Compression Driver 2" Throat Titanium VC 640 Watts 8 ohm
Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies. This ferrite driver is compatible with 4 bolt horns (throat) of all sizes. This will be an amazing addition to any system that needs super loud highs.
This driver comes with a massive 2 inch titanium voice coil that takes 160 AES and 640 Peak power for extreme decibel production backed with a high efficiency motor.
Highlights
- Ferrite motor structure that provides great motor force and loudness.
- High strength Titanium voice coil taking 160 AES watts and 640 Peak watts.
- Intense high frequency volume without sacrificing sound quality.
- Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths.
Technical Details
| Throat Diameter | 2" |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 ohms |
| Peak Power Handling | 640W |
| Program Power Handling | 320W |
| AES Power | 160W |
| Diaphragm Material | Titanium |
| Sensitivity (1w/1m) | 108dB |
| Frequency Response | 630Hz-20KHz |
| Recommended Hi Pass Crossover | 800Hz |
| MOTOR | |
| Voice Coil Diameter | 2.03" |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 35 oz |
| Measurements | |
| Overall Diameter | 5.27" |
| Overall Depth | 2.4" |
Key Features
- 2" Compression Driver
- RMS Power: 320 Watts(640 Watts Peak)
- Impedance: 8 Ohm ~ 108dB
- Ferrite Magnet - Titanium Diaphragm
- Bolt On
- Repaired With: PRO-D1VC - PRO-D1FVC - PRO-D1.4VC and the PRO-D1.4FVC
Specifications
| SKU | PRO-D1 |
|---|---|
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 ohm |
| AES Power Handling | 160W |
| Program Power Handling | 320W |
| Peak Power Handling | 640W |
| Sensitivity (1w/1m) | 108 dB |
| Frequency Response | 630Hz - 20KHz |
| Recommended Hi Pass Crossover | 900Hz |
| Voice Coil Diameter | Dual 2.03" / 51.5 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 35 oz |
| Body Material | Aluminum |

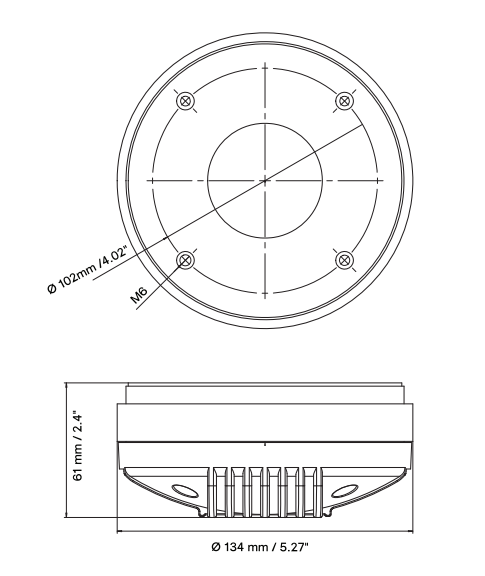

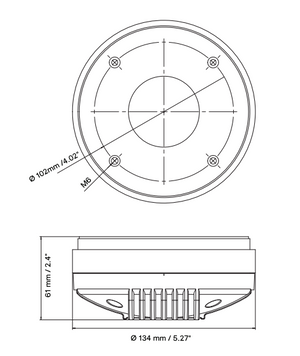

| Overall Diameter | 5.27" / 134mm |
| Overall Depth | 2.4" / 61mm |
| Bolt Pattern | 4" / 102mm x 4 -M6 |
| Product Weight | 6.5 lbs |
| Product Dimensions | 6.0 x 5.5 x 2.75 |
| M/C Weight | 39.5 lbs |
| M/C Dimensions | 17.25 x 12.5 x 4 |
| M/C QTY | 6 |
| Sold In | Piece |
