2" Throat Bolt on Driver 320 Watts 2" Phenolic Vc 8-Ohm
Product Overview

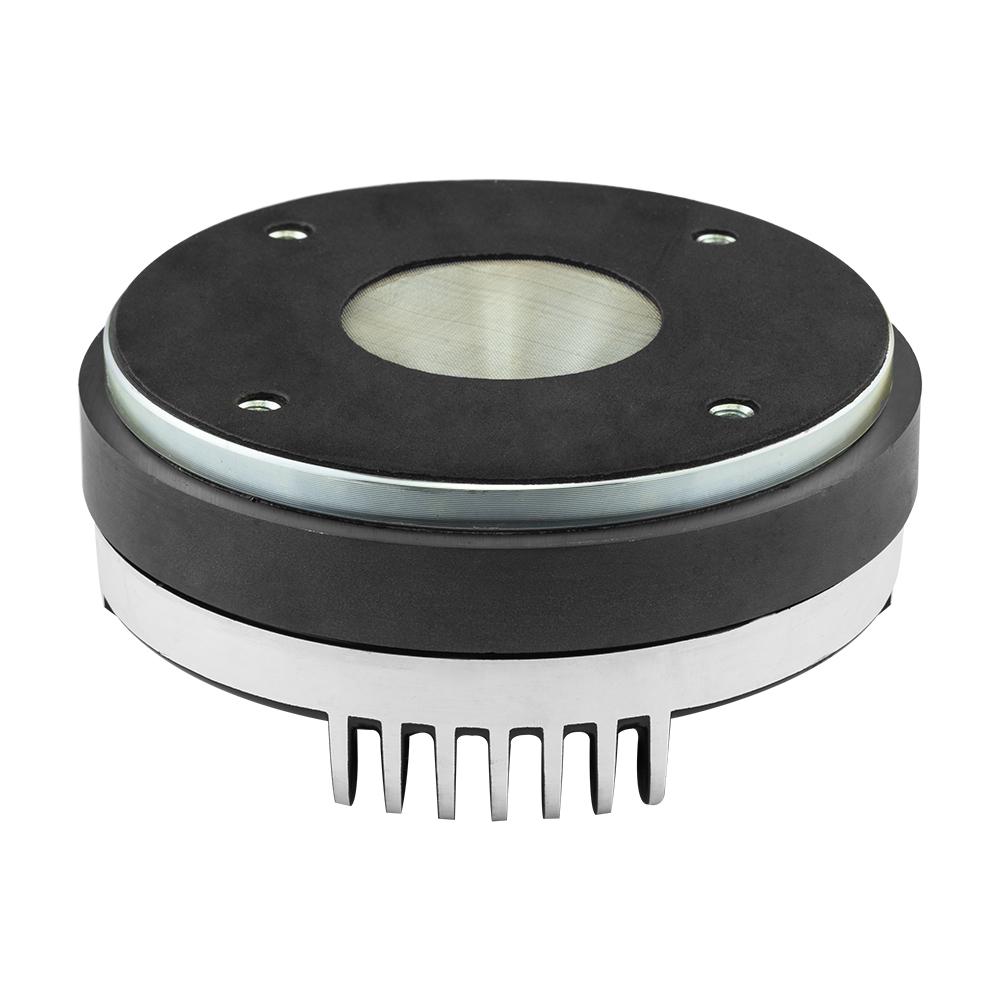

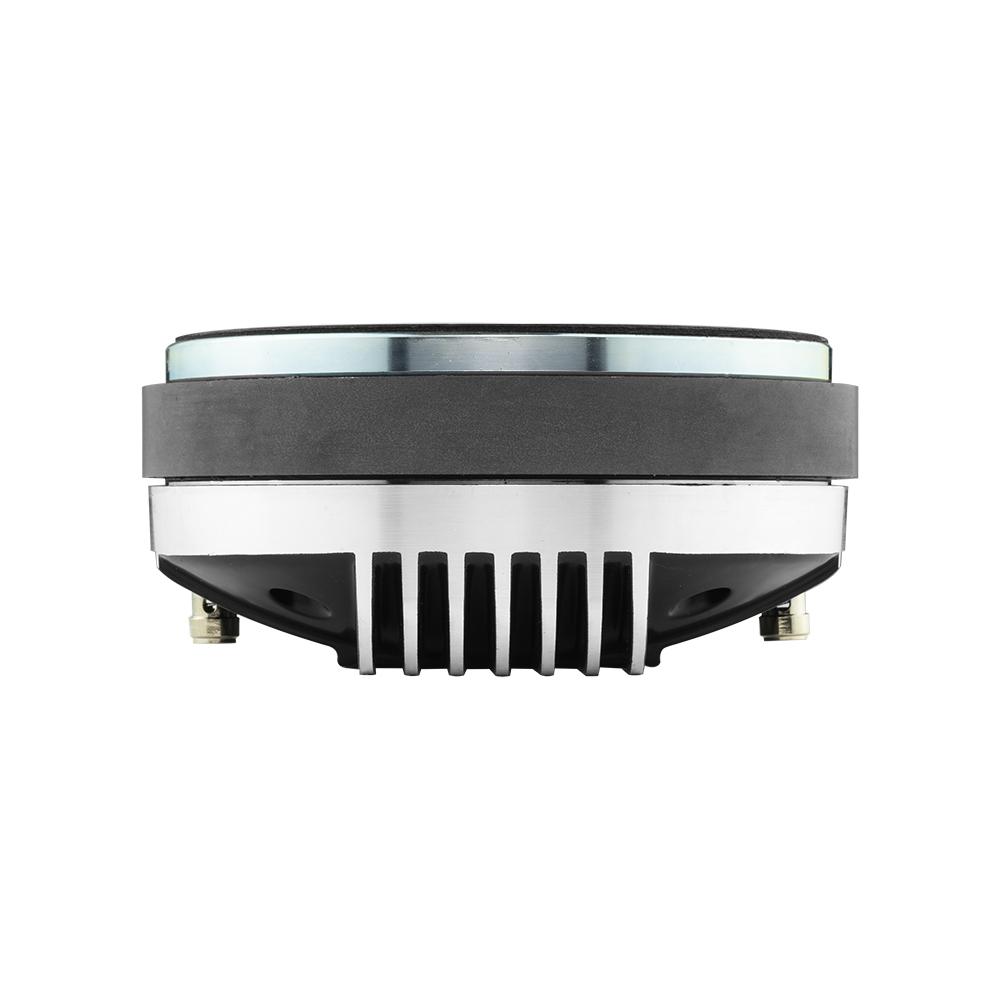

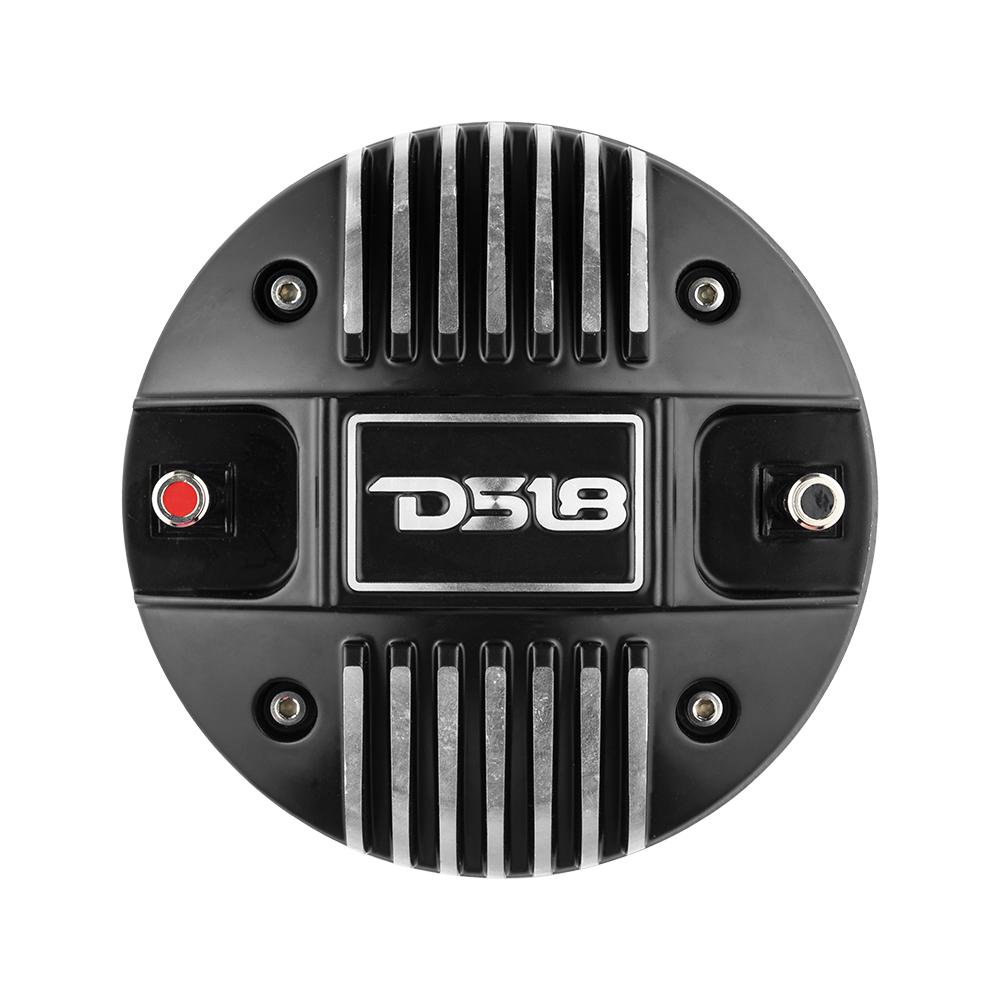

DS18 PRO-D1F 2" Throat Bolt On Compression Driver 2" Throat Phenolic VC 450 Watts 8 ohm
Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies. This ferrite driver is compatible with 4 bolt horns (throat) of all sizes. This will be an amazing addition to any system that needs super loud highs.
This driver comes with a massive 2 inch phenolic voice coil that takes 150 Watts RMS and 450 Watts Peak power for extreme decibel production backed with a high efficiency motor.
This driver comes with a massive 2 inch phenolic voice coil that takes 150 Watts RMS and 450 Watts Peak power for extreme decibel production backed with a high efficiency motor.
Highlights
- Ferrite motor structure that provides great motor force and loudness.
- High strength phenolic voice coil taking 150 Watts RMS and 450 Watts peak.
- Intense high frequency volume without sacrificing sound quality.
- Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths.
Technical Details
| Nominal Impedance | 8 Ohms |
| Throat Diameter | 2" |
| RMS Power Handling | 150 Watts |
| MAX Power handling | 450 Watts |
| Sensitivity (1w/1m) | 110dB |
| frequency response | 500Hz-18KHz |
| Recommended Hi Pass Crossover | 800Hz |
| Voice Coil Diameter | 2.03" |
| Diaphragm Material | Phenolic |
| Magnet Material | Ferrite |
| Magnet Wight | 35oz |
| Bolt Type | Bolt-on |
| Measurements | |
| Overall Diameter | 5.27" |
| Overall Depth | 2.4" |
Key Features
- 2" Compression Driver
- RMS Power:320 Watts(640 Watts Peak)
- Impedance: 8 Ohm ~ 108dB
- Ferrite Magnet - Phenolic Diaphragm
- Bolt On
- Repaired With: PRO-D1VC - PRO-D1FVC - PRO-D1.4VC and the PRO-D1.4FVC
Specifications
| SKU | PRO-D1F |
|---|---|
| Nominal Impedance | 8 ohms |
| Throat Diameter | 2" |
| RMS Power Handling | 150W |
| MAX Power Handling | 450W |
| Sensitivity (1w/1m) | 110dB |
| Frecuency Response | 500Hz-18KHz |
| Recommended Hi Pass Crossover | 800Hz |
| Voice Coil Diameter | 2.03" |
| Diaphragm | Phenolic |
| Magnet Material | Ferrite |
| Magnet Weight | 35oz |
| Bolt Type | Bolt-on |
| Overall Diameter | 5.27" / 134mm |
| Overall Depth | 2.4" / 61mm |
| Product Weight | 6.5 lbs |
| Product Dimensions | 6.0 x 5.5 x 2.75 |
| M/C Weight | 39.5 lbs |
| M/C Dimensions | 17.25 x 12.75 x 4 |
| M/C QTY | 6 |
| Sold In | Piece |
