Product Overview
DS18 PRO-DRNMD 2" Throat Bolt On Neodymium Compression Driver Dual Polyester 2 x 3.5" VC 880 Watts 123Db 8 Ohm
If you are needing a driver to slay your mid high frequencies the PRO-DRNMD is exactly what you are looking for!
This midrange neodymium driver plays insanely loud from 250Hz to 12.5KHz, picking up all mid high frequencies with amazing precision.
The neodymium driver is rated at 220w AES and 880w Peak power so you know this driver gets crazy loud with the correct power.
Highlights
- Neodymium motor structure for higher sensitivity and efficiency.
- Midrange high driver to give ear piercing mid high frequencies at your command.
- Strong 3.5' CCAW voice coil to ensure long life and peak performance.
Technical Details
| Specifications | |
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 Ohms |
| Peak Power Handling | 880W |
| Program Power Handling | 440W |
| AES Power Handling | 220W |
| Sensitivity (1w/1m) | 123dB |

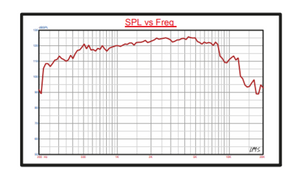

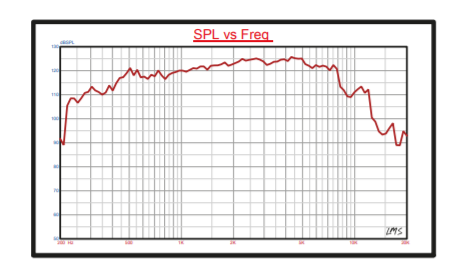

| Frequency Response | 250Hz - 12.5KHz |
| Recommended Crossover | 600Hz |
| Motor | |
| Voice Coil Diameter | Dual 3.5" / 90 mm |
| Voice Coil Former Materia | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Polyester |
| Magnet Material | Neodymium |

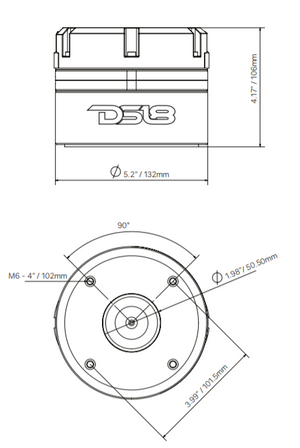

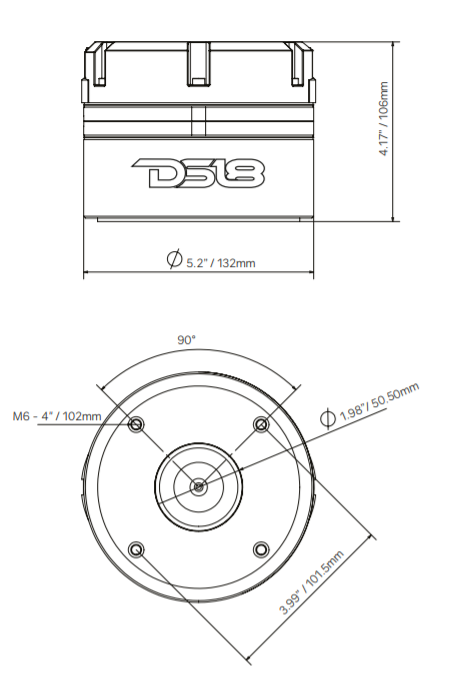

| Measurements | |
| Overall Diameter | 5.2" / 132mm |
| Overall Depth | 4.17" / 106mm |
| Bolt Pattern | M6 - 4" / 102mm |
Key Features
- 2" Compression Driver
- RMS Power: 440 Watts(880 Watts Peak)
- Impedance: 8 Ohm ~ 123dB
- Neodymium Magnet
- Dual Polyester Diaphragms - Bolt On
- Easily Repaired With The PRO-DRNMDVC
Specifications
| SKU | PRO-DRNMD |
|---|---|
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 ohm |
| Peak Power Handling | 880W |
| Program Power Handling | 440W |
| AES Power Handling | 220W |
| Sensitivity (1w/1m) | 123dB |
| Frequency Response | 250Hz - 12.5KHz |
| Recommended Hi Pass Crossover | 600Hz |
| Voice Coil Diameter | Dual 3.5" / 90 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Polyester |
| Magnet Material | Neodymium |
| Overall Diameter | 5.2" / 132mm |
| Overall Depth | 4.17" / 106mm |
| Bolt Pattern | M6 - 4" / 102mm |
| Product Weight | 7.5 lbs |
| Product Dimensions | 7 x 6.75 x 4.75 |
| M/C Weight | 30.5 lbs |
| M/C Dimensions | 14.5 x 14 x 5.5 |
| M/C QTY | 4 |
| Sold In | Piece |
