Marine Headunit TFT screen , 3 Zones, 4 volts Output, Bluetooth, RDS 4X50 Watts With DAB+ for Europe
Marine Headunit TFT screen , 3 Zones, 4 volts Output, Bluetooth, RDS 4X50 Watts With DAB+ for Europe
Product Overview

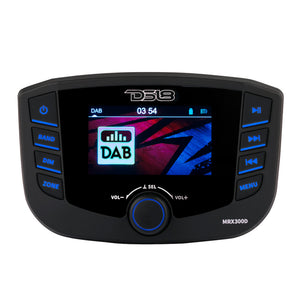

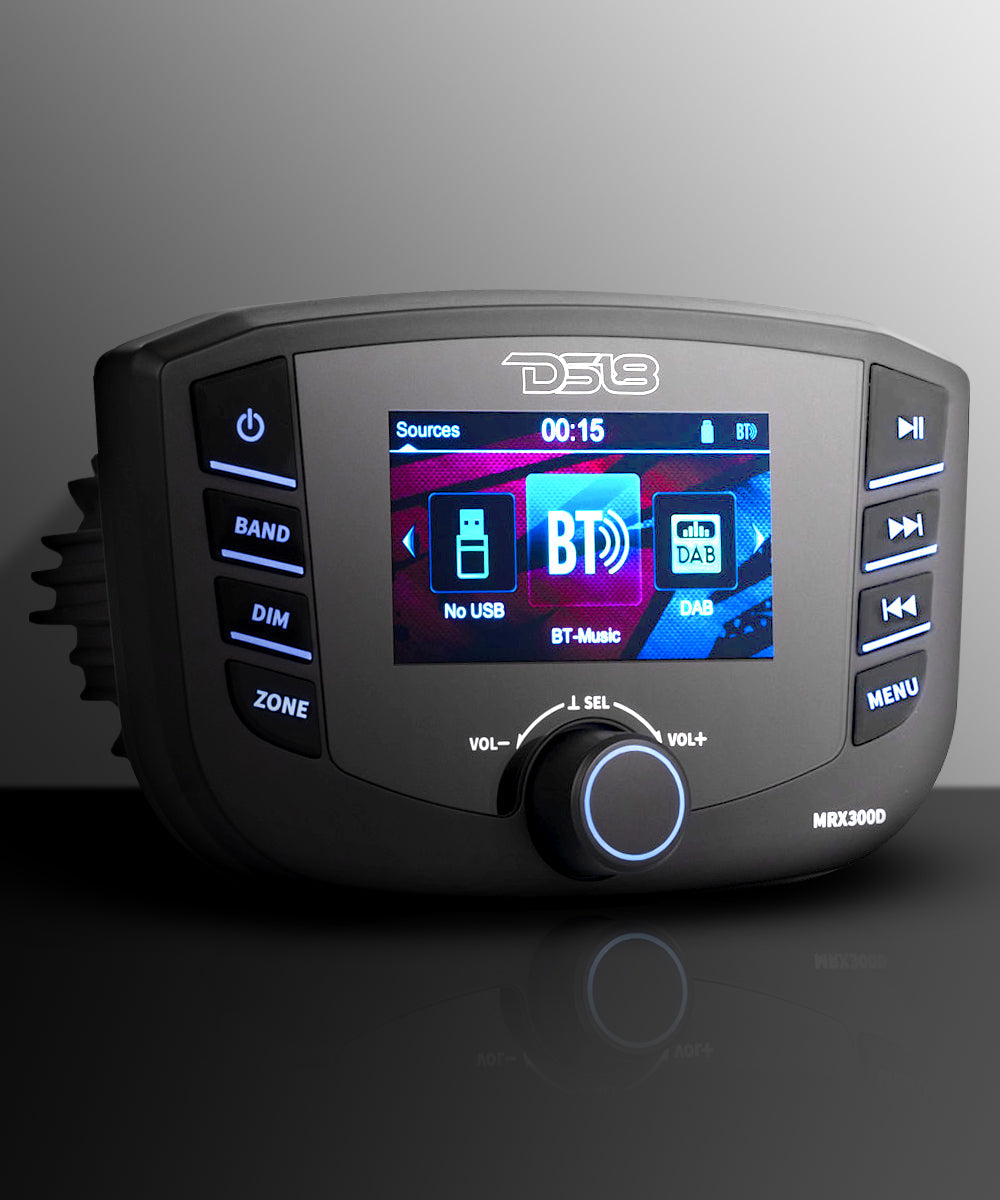

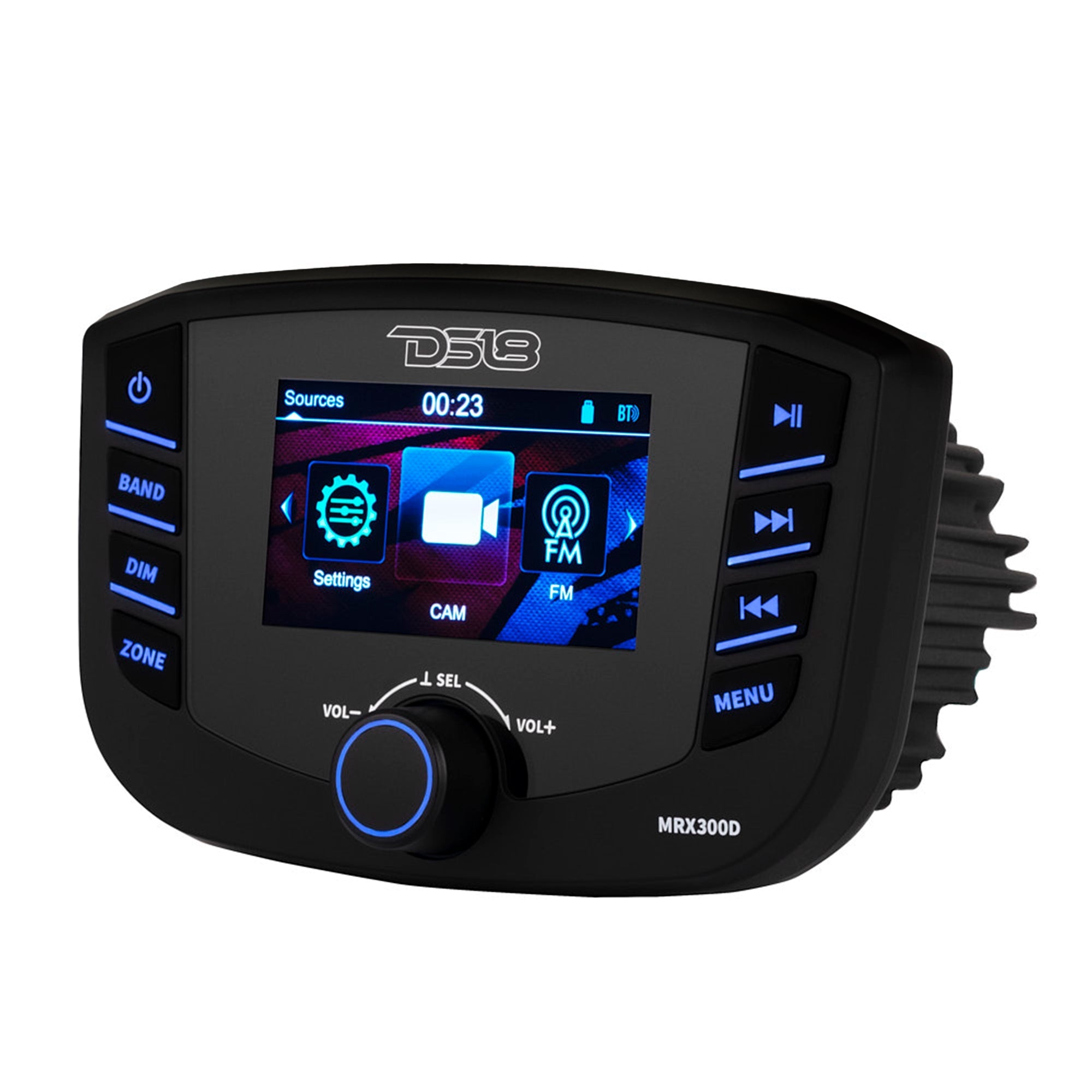

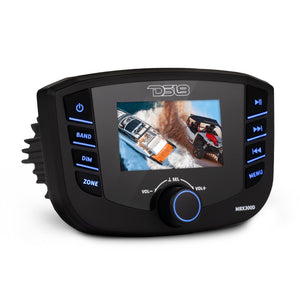

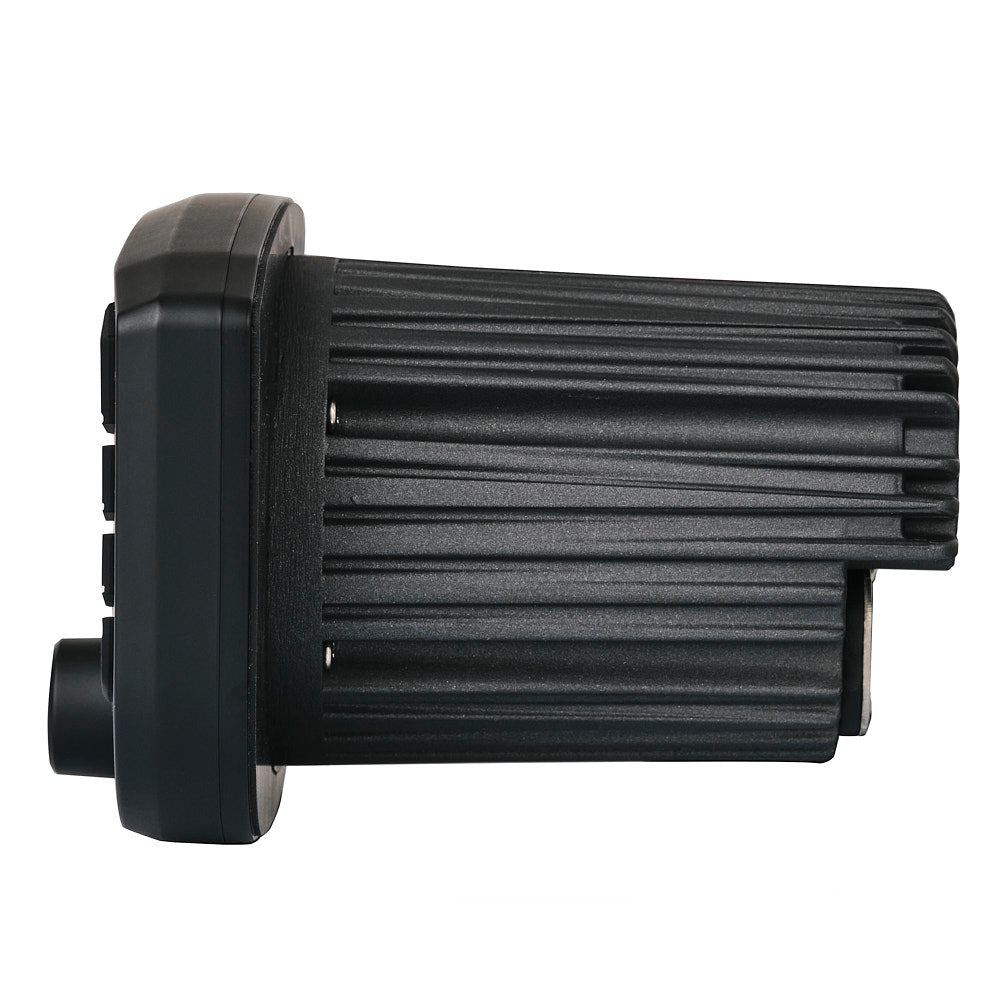

DS18 MRX300D Marine Headunit TFT screen , 3 Zones, 4 volts Output, Bluetooth, RDS 4X40 Watts With DAB+ for Europe
DS18’s MRX300D offers complete control over your boat's sound system!
Connecting is easy with Bluetooth v5.0 for seamless audio streaming from all your favorite devices. The USB port allows for music playback and charging, supporting up to 64GB of MP3 and WMA files. With an included AUX input, REMOTE input (MXRC Recommended), AND REARVIEW CAMERA input, your marine or powersports vehicle will be ready for anything!
Equipped with an AM/FM tuner and DAB+ compatibility, the MRX300D comes with 30 presets for easy access to your favorite stations. Its universal mounting hole ensures a seamless fit into any boat's dashboard, while its IPX6 rating and UV/salt resistance guarantee long-lasting durability against harsh marine conditions.
The 3-inch full-color TFT display of the MRX300D is protected by Gorilla Glass and bonded to be resistant to both water and impact. The adjustable backlit buttons, available in seven colors, provide a stunning interface that is easy to navigate even in low-light conditions.
But it's not just about looks – the MRX300D delivers exceptional audio performance as well. With three independent zones of control, you can customize the volume and tone settings for each area of your boat. The 2-band EQ allows precise adjustments of bass and treble on each zone, ensuring optimal sound reproduction tailored to your preferences. With a powerful 4.5-volt pre-amp output, this head unit delivers a staggering 50 W of MAX power per channel at 2 ohm.
Experience DS18’s MRX300D and elevate your marine audio to new heights.
Key Features
- Marine and Powersports Head Unit
- 3" LCD Display W/ Weather Channels and DAB

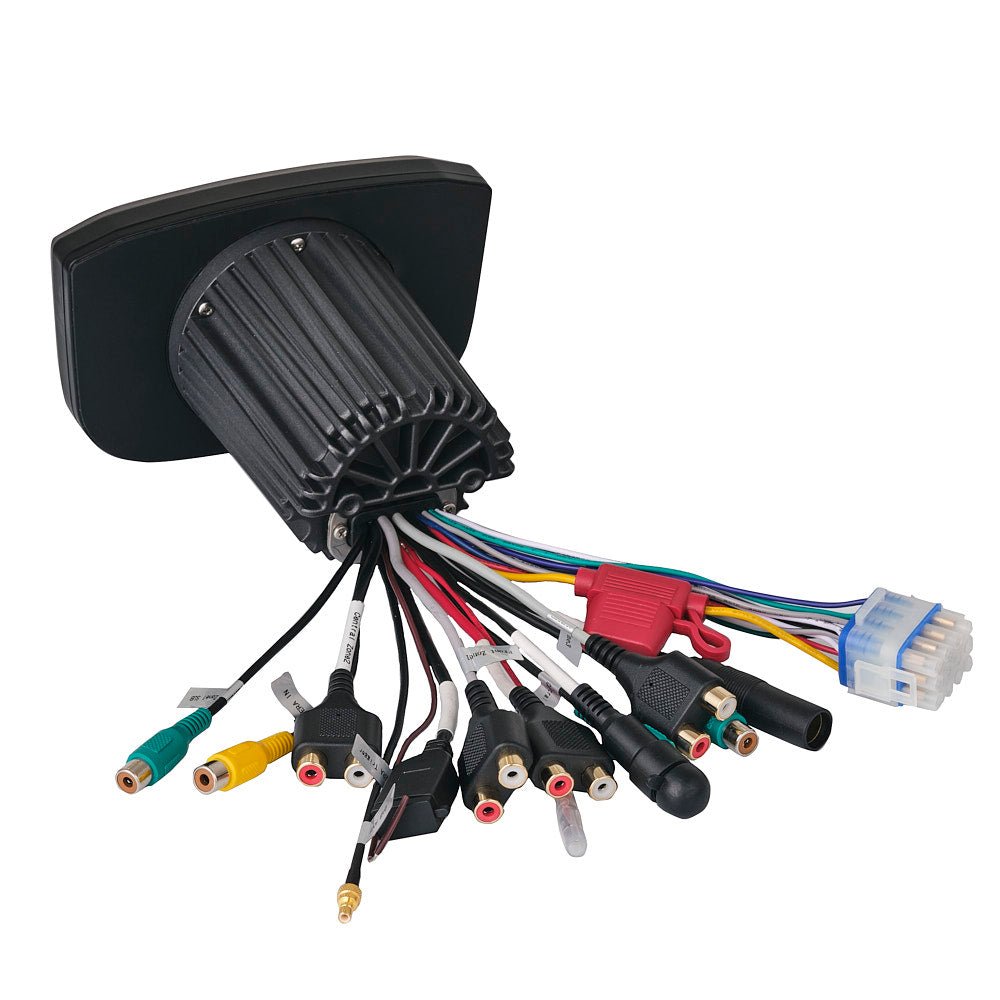

- USB ~ Bluetooth ~ AUX ~ RDS ~ Camera In
- 3 Zones ~ 3 X F/R/SUB RCA ~ Video Out
- 4 X 50 Watts
- Water Resistant IP65
Specifications
| SKU | MRX300D |
|---|---|
| Operating Voltage | 10.5 - 16 Volts |
| Low Voltage Warning Alert | YES (< 10.5V) |
| Waterproof Rating | IP65 |
| UV/Salt Protection | YES, B117 Salt Fog & D4329 UV Exposure Tested |
| Buttons | Rubber + RGB Backlit 7 Colors Selectable (Auto/White/Red/Blue/Green/Purple/Cyan/Yellow) |
| Screen Panel | Gorilla Glass with Wet Bonded Display |
| EEPROM | Yes (all settings are saved when power is disconnected) |
| Display Type | Thin Film Transistor (TFT) Display |
| Resolution | 640*360 pixel, IPS |
| DAB | Frequency Range: 174.928-239.200 MHz Sensitivity: 93dB Stereo separation: 50 dB at 1 kHz Signal/noise ratio(S/N): 65 dB |
| RMS | 4 x 18W @ 4ohm, 4 x 25W @ 2ohm |
| Max | 4 x 50W @ 2ohm |
| Min Load | 2 ohm Stable per Channel |
| Frequency Response | 20Hz to 20Khz |
| RCA Pre-Out Voltage | 4.5 Volts |
| Output Impedance | 500ohm |
| Equalizer | 2 Bands (Bass 80Hz, Treble 12Khz) |
| Presets | YES (S-Bass/Vocal/Powerful/clarity) |
| Subwoofer Control | Level (0 to 40) |
| Audio Zones | 3 Zones (Stereo + Subwoofer each) |
| Independent Zone Control | YES (Level/Tone) |
| Audio Input | L+R RCA (Aux Input) |
| FM Frequency Range | 87.5 - 108 MHz |
| AM Frequency Range | 522 - 1620 KHz |
| Tuner Presets | 18 FM / 12 AM |
| Radio Data System | YES (AF/TA/NEWS) Selectable |
| Frequency Range | 174.928-239.200 MHz |
| Sensitivity | 93 dB |
| Stereo separation | 50 dB at 1 kHz |
| Signal/noise ratio(S/N) | 65 dB |
| Bluetooth Version | 5.0 + EDR |
| Audio Streaming | A2DP |
| USB Compatibility | v2.0 |
| USB Capacity | 64 Gb Max |
| USB Charge Capacity | 2.1Amp |
| Audio Files Compatibility | MP3, WMA |
| Remote Control | Wired 3.5mm Jack Input, (Compatible with MXRC) |
