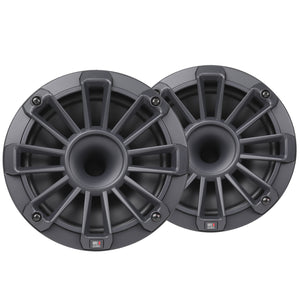

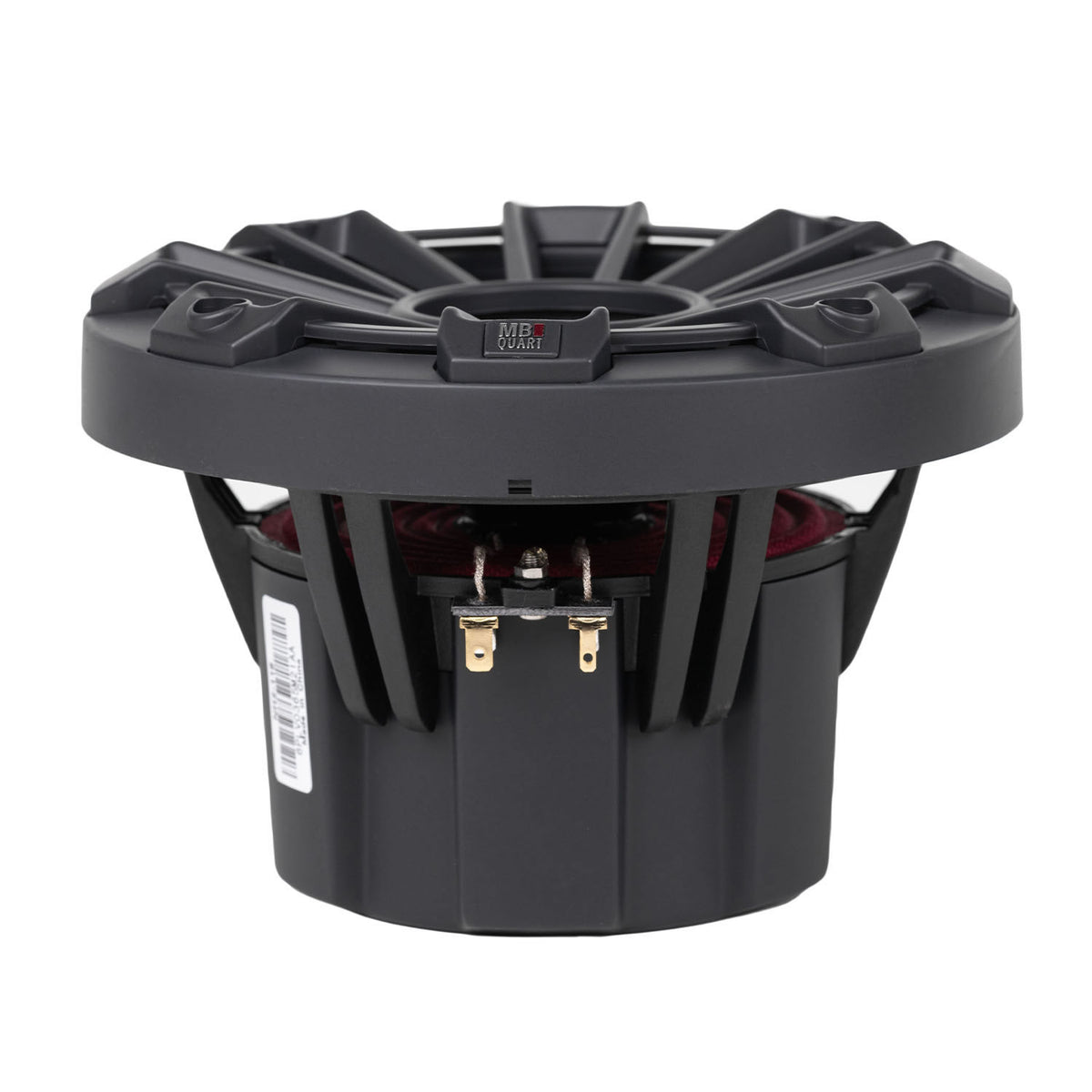

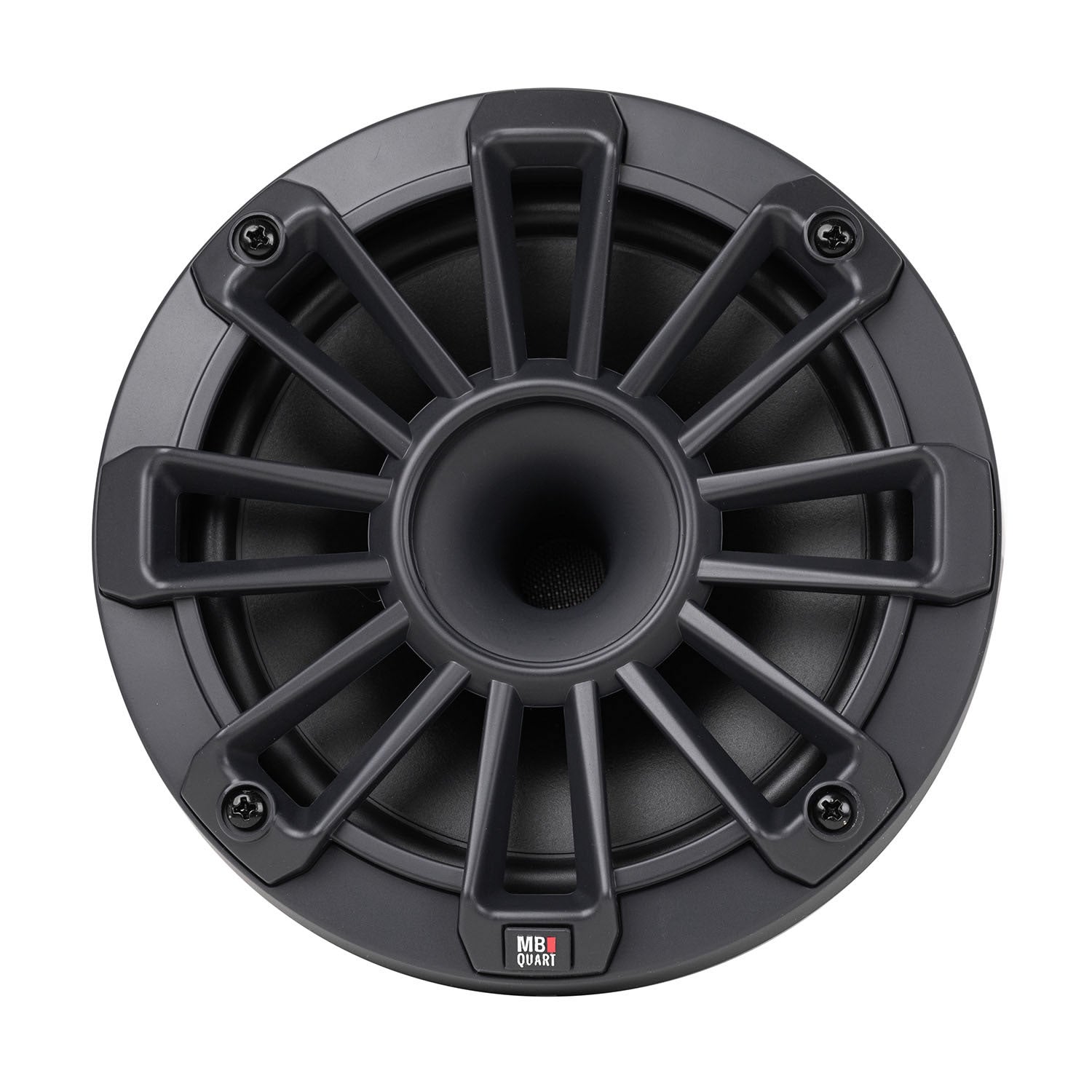

NH2-116 Nautic 6.5 Inch Compression Horn Speakers
Description
MB Quart NH2-116 Nautic 2-Way 6.5-Inch Compression Horn Speakers Pair with Poly Cones.
Features
- Type: Speaker
- Series: Nautic NH2
- IPX Rating: IPX67
- Marine Grade Protection / IPX Rating: LIFE SHIELD: Tested to the highest marine and motorsports standards for protection against sun fade, fresh/salt water spray as well as dust and sand.
The Kaos Run Down
| Manufacturer | MB Quart |
|---|---|
| Manufacturer SKU | NH2-116 |
| Application | Marine & Powersports |
| Weight | 8.95 lbs |
| Dimensions | 20 × 9.5 × 7 in |
| Type | Speaker |
| Brand | MB Quart |
| Series | Nautic NH2 |
| Category | Marine, Powersports |
| Condition | New |
| Color | Black |
| Model Replaced | NH1-116 |
| Warranty | 1 Year |
| IPX Rating | IPX67 |
| Compatible Vehicles | Universal |
| Speaker RMS Power Handling (watts) | 75 |
| Speaker Peak Power Handling (watts) | 150 |
| Speaker Impedance (ohms) | 4 |
| Speaker Frequency Response | 30Hz-24kHz |
| Speaker Sensitivity | 92dB |
| Speaker Crossover Slope | 12dB |
| Speaker Height (in) | 4.0 |
| Speaker Mounting Diameter / Cut Out (in) | 5.59 |
| Speaker Outside Diameter (in) | 6.8 |

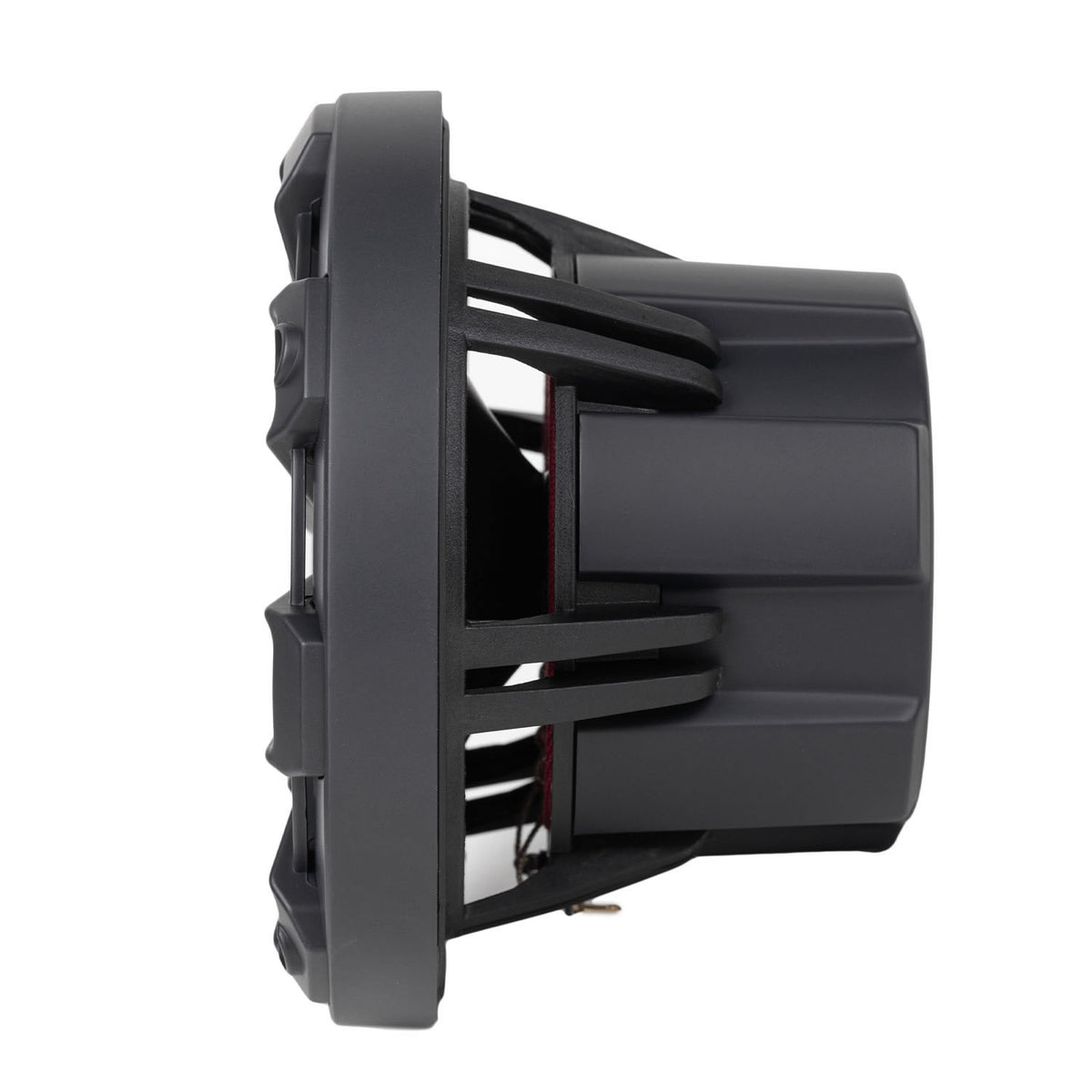

| Speaker Mounting Depth / Chassis Depth (in) | 3.44 |
| Speaker Size (in) | 6.5 |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Marine Grade Protection / IPX Rating | LIFE SHIELD: Tested to the highest marine and motorsports standards for protection against sun fade, fresh/salt water spray as well as dust and sand. |
| Tweeters | 1 inch pure Titanium dome tweeter for very smooth musical response, high output with minimal required amplifier power. |

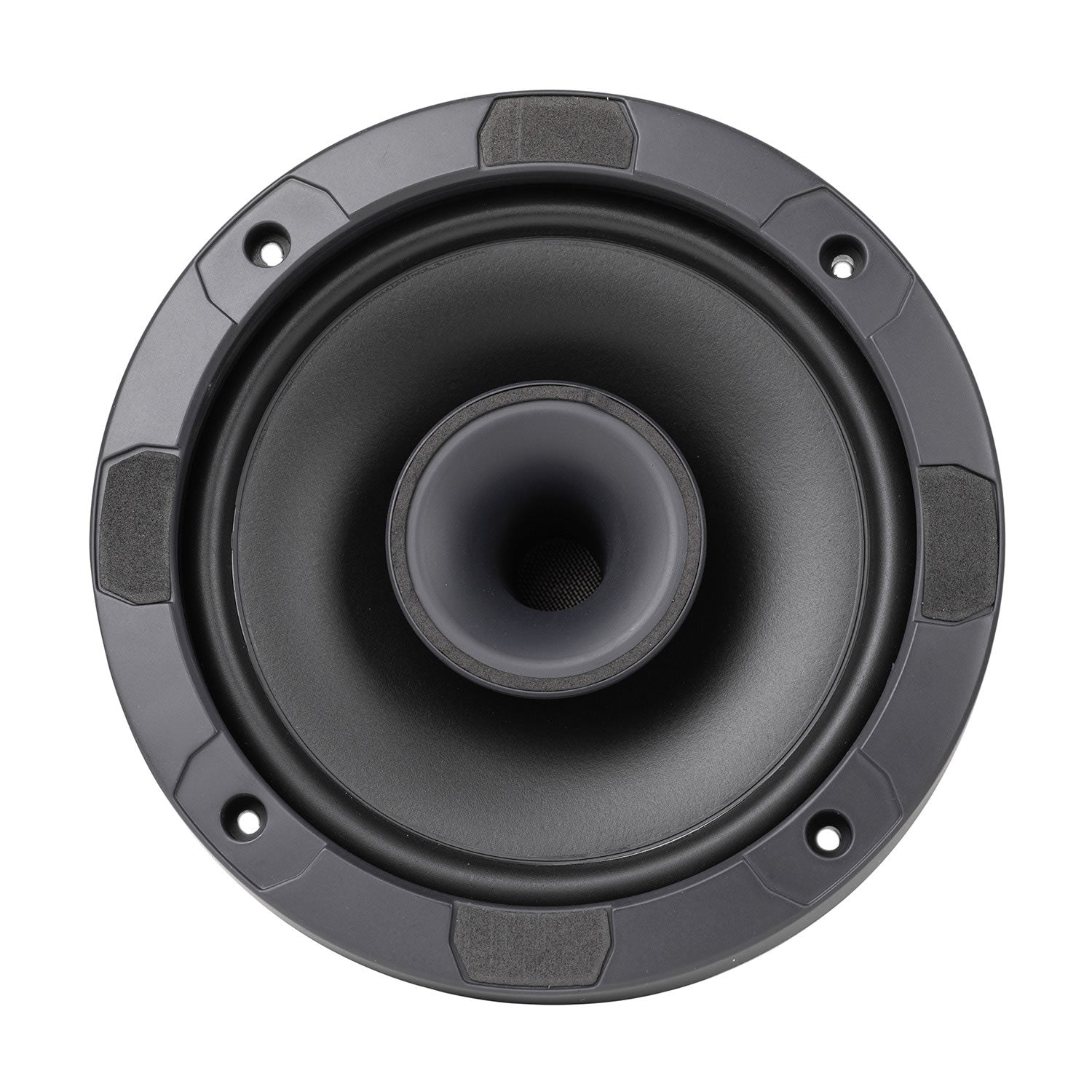

| Cone Material | 6.5 inch Composite Poly Midrange: Water resistant composite polypropylene cone with temperature stable Butyl rubber surround mounted on a lightweight composite frame. |
| Surround / Cone Coupling | Natural Butyl Rubber Surround remains musical in all weather. Does not stiffen in cold. |
| Voice Coil / Former Assembly | High temperature copper voice coil. Voice coil is high temperature copper, wound on a Kapton former which allows the voice coil to handle more power while remaining light in weight. |
| Spider | Water resistant, woven fiber composite spider to stabilize the cone and voice coil in all musical situations. |
| Cooling System | Front and rear venting allows air passage through the spider and back plate to exchange air over the voice coil. |
| Crossover | Marine Certified Crossover: Conformal Coated, Butterworth 12dB per octave crossover with PTC (Positive Thermal Coefficient) tweeter protection. Smooth transition from high to lower frequencies remain musicial and not harsh or distorted. |
| Frame | Composite ABS and glass fiber add strenth to the frame without adding distortions or harmonics that can affect the tonal quality of the speaker. |

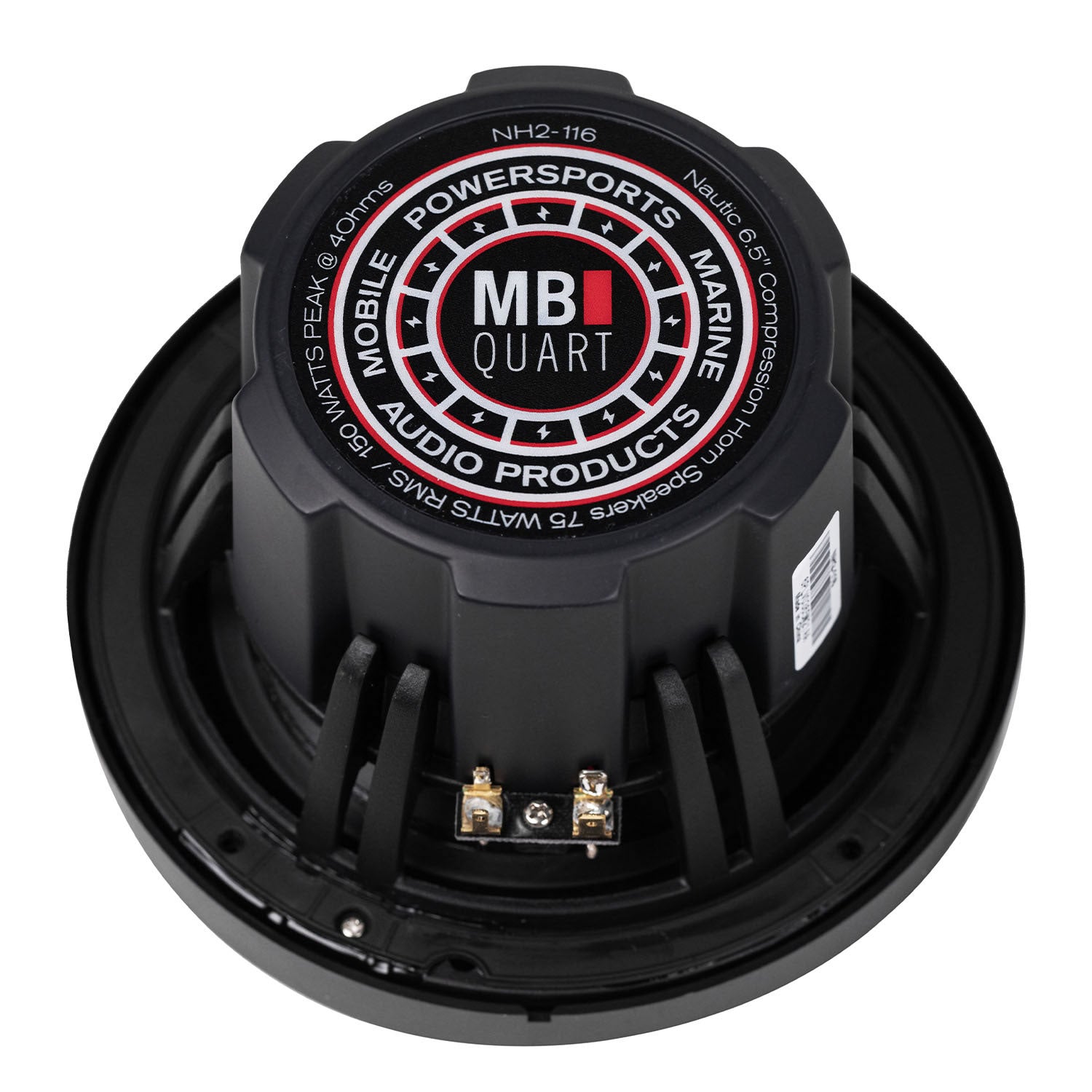

| Motor | High energy Y30 strontium ferrite magnet for higher output with minimal amplifier power. |

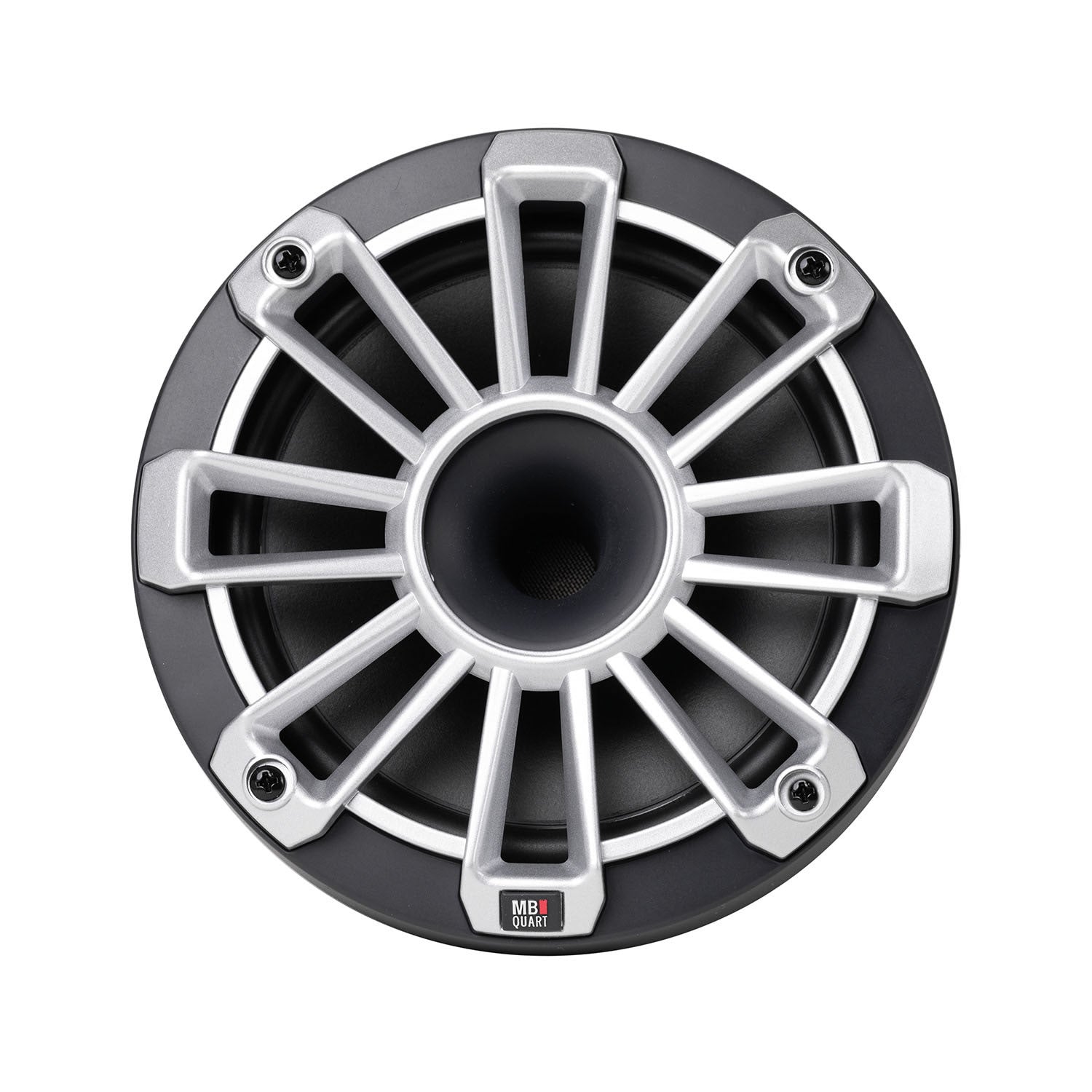

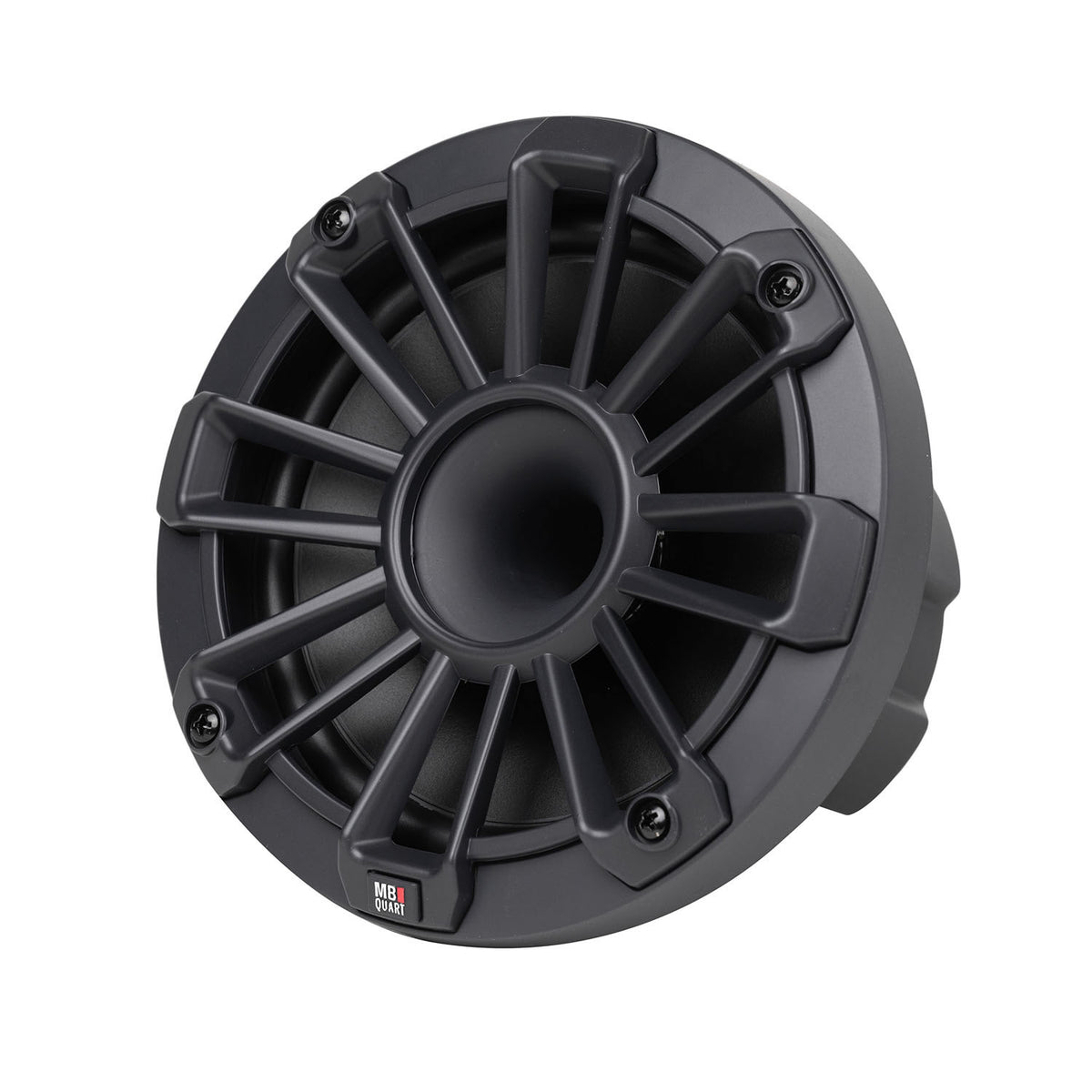

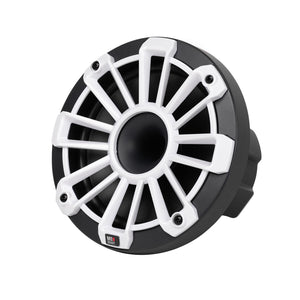

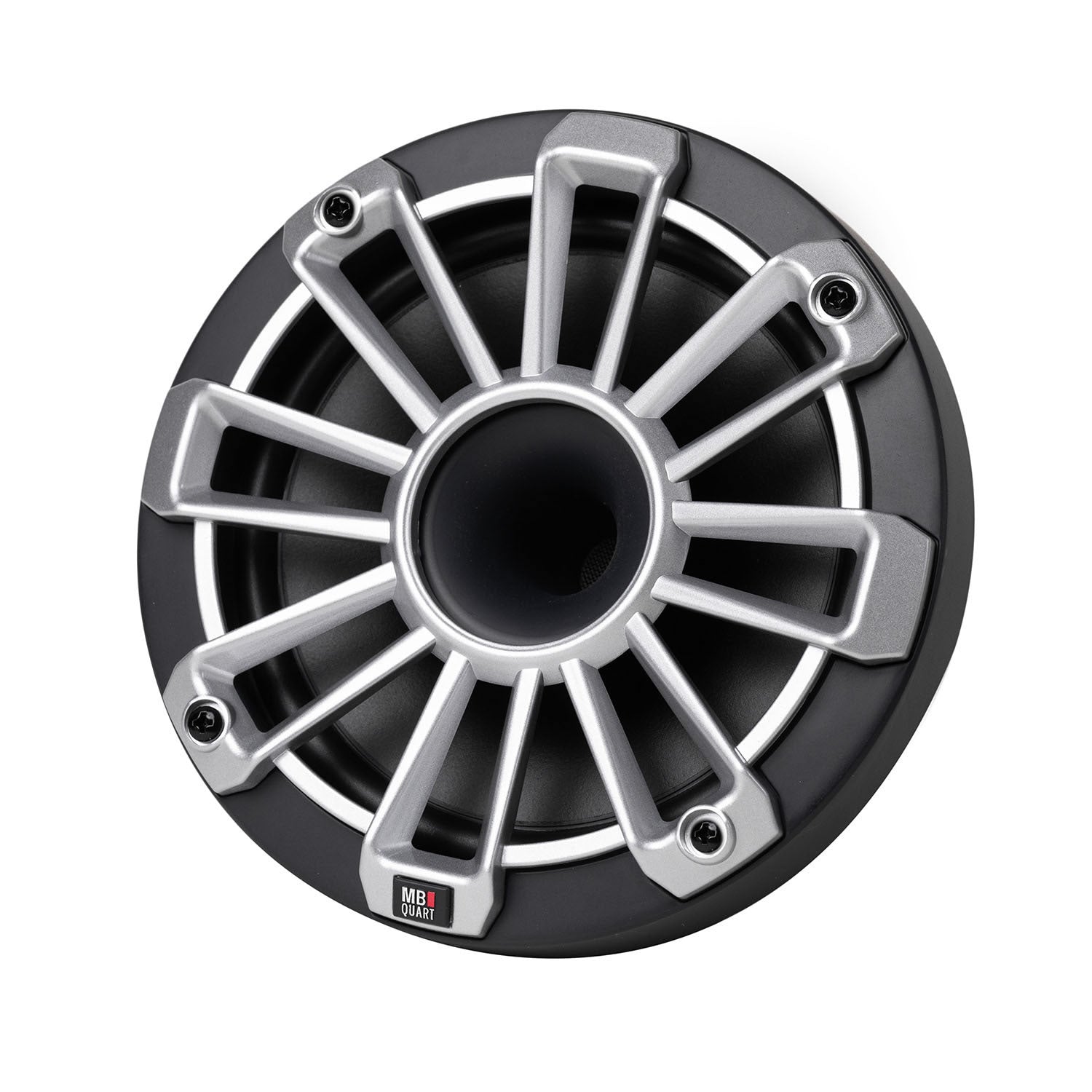

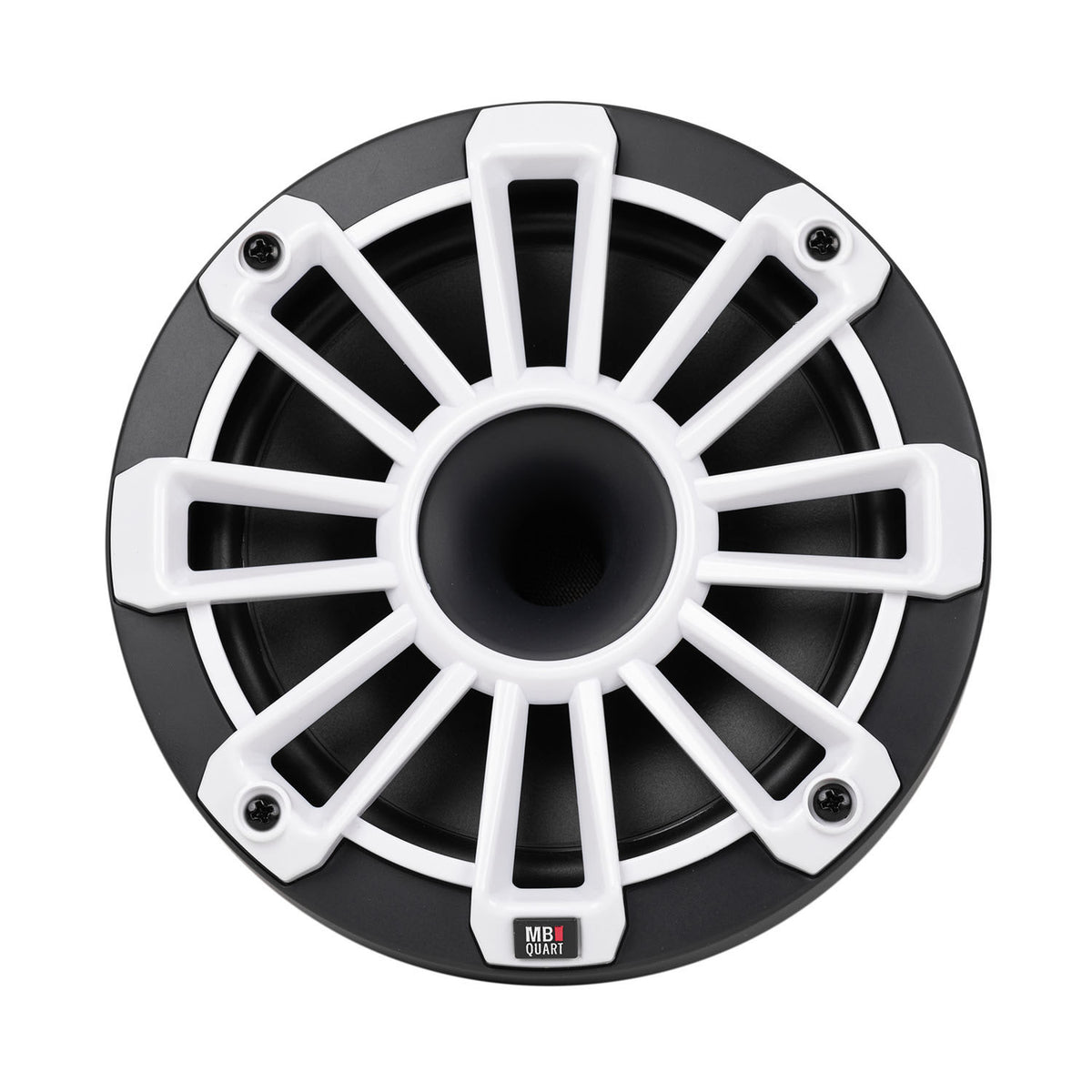

| Grills | PERSONALIZED FINISH: The Nautic compression horn speakers are finished in a hardened composite. Each speaker includes three different grills. Black, Silver and White. Many enthusiasts use the white insert to lightly sand and paint to match their personal style and vehicle. |
| Additional Features | Coincident Mounted Compression Horn: Overall volume is improved as much as +5dB over conventional speakers, Wavelength Transparent Acoustic Lens improves midrange frequencies through the cone. |
| View/Download (1.5 MB) | MBQuart Nautic Speakers (NH2) Quick Start Guide (Rev01) |
