Description

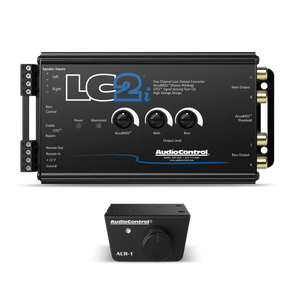

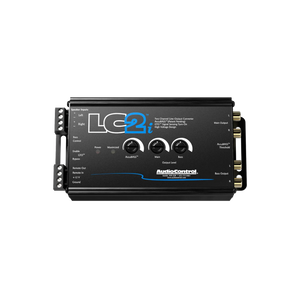

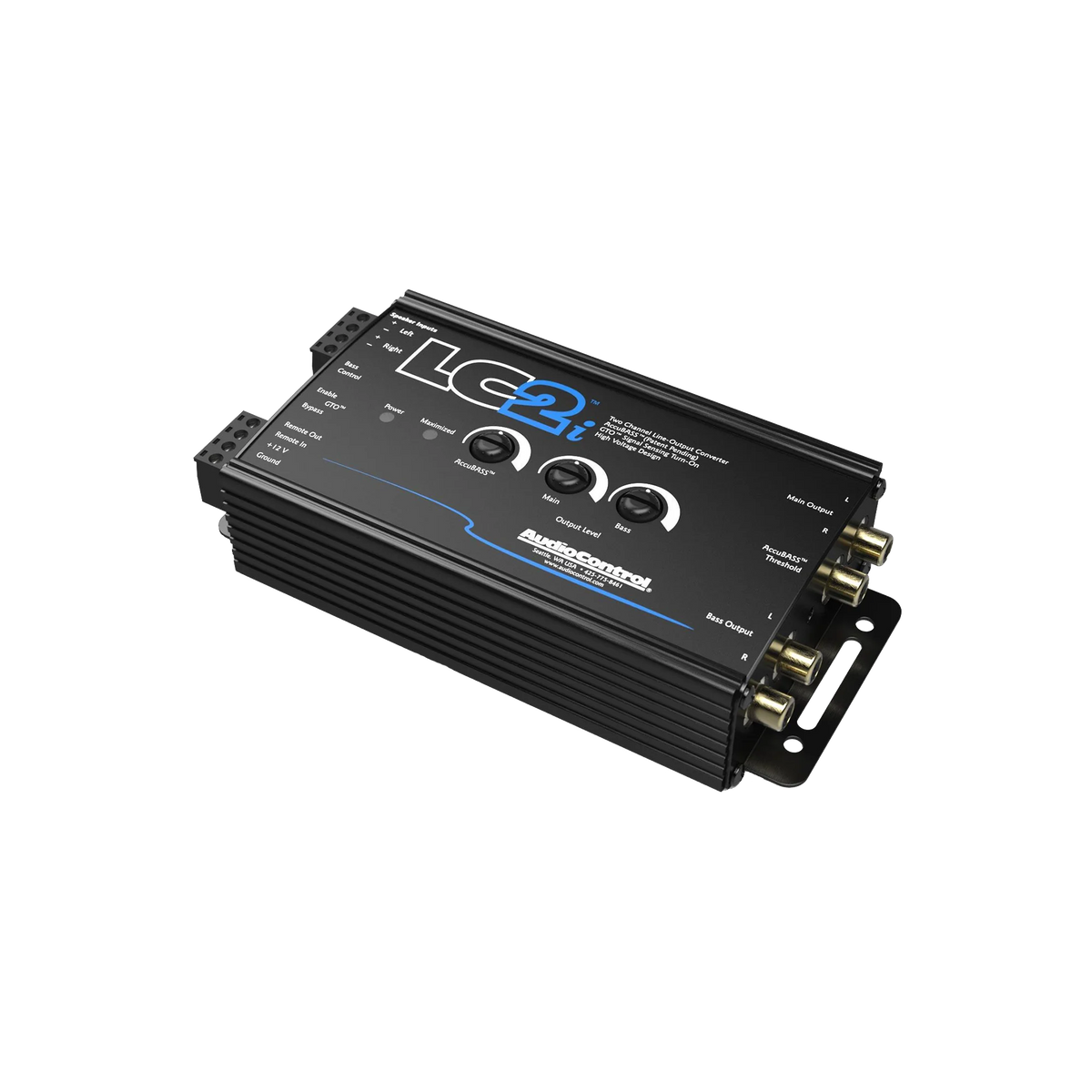

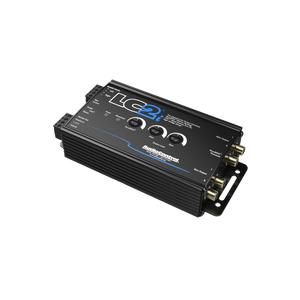

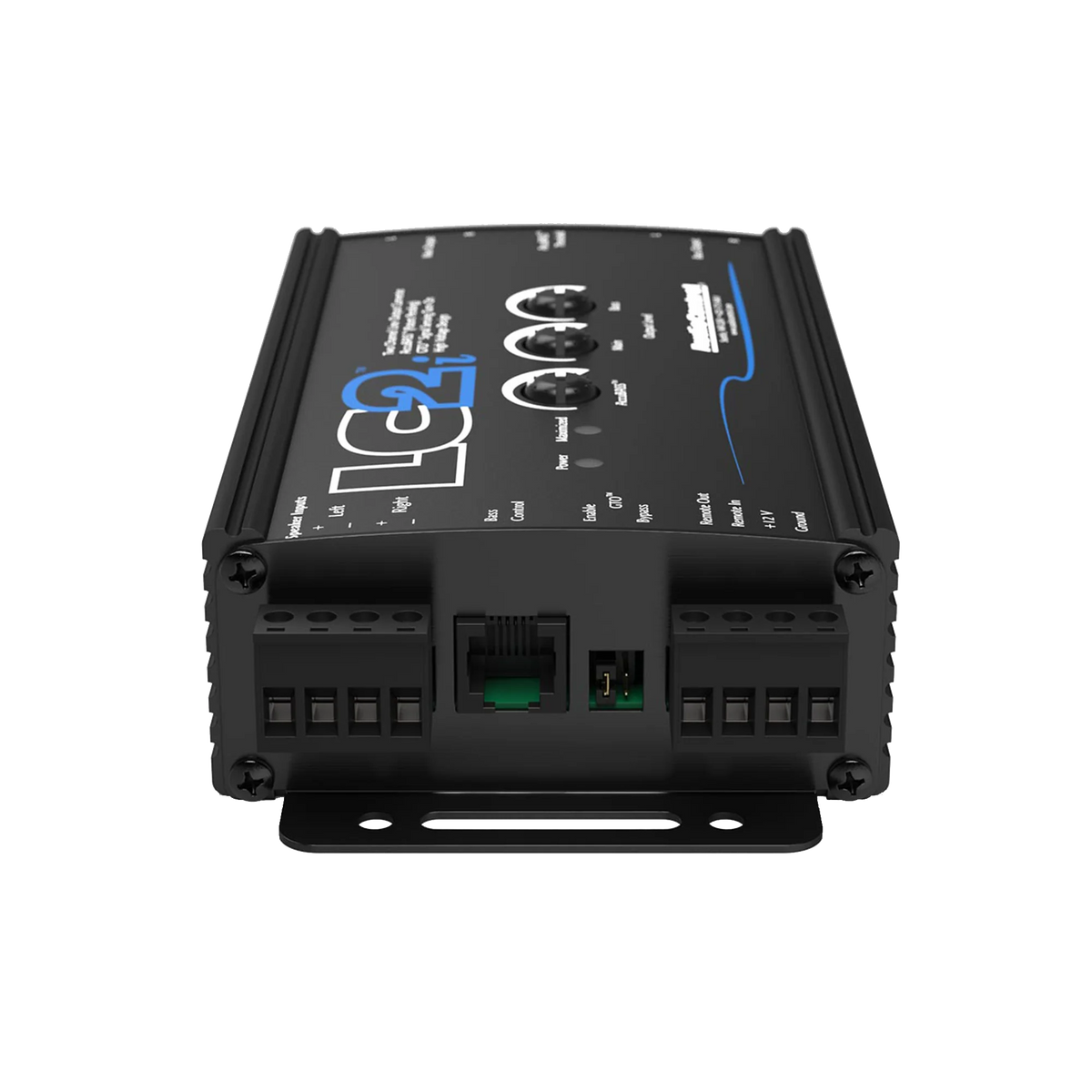

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.
Features
- Two channels of Active speaker level inputs – Accepts 400 watt signals per channel
- Fixed and variable outputs with discrete level controls
- AccuBASS® processing for correction of bass roll-off
- GTOTM Signal Sensing
- Input For Optional Remote Level Control
- Compact design

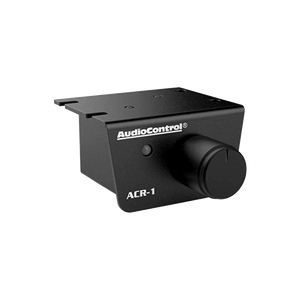

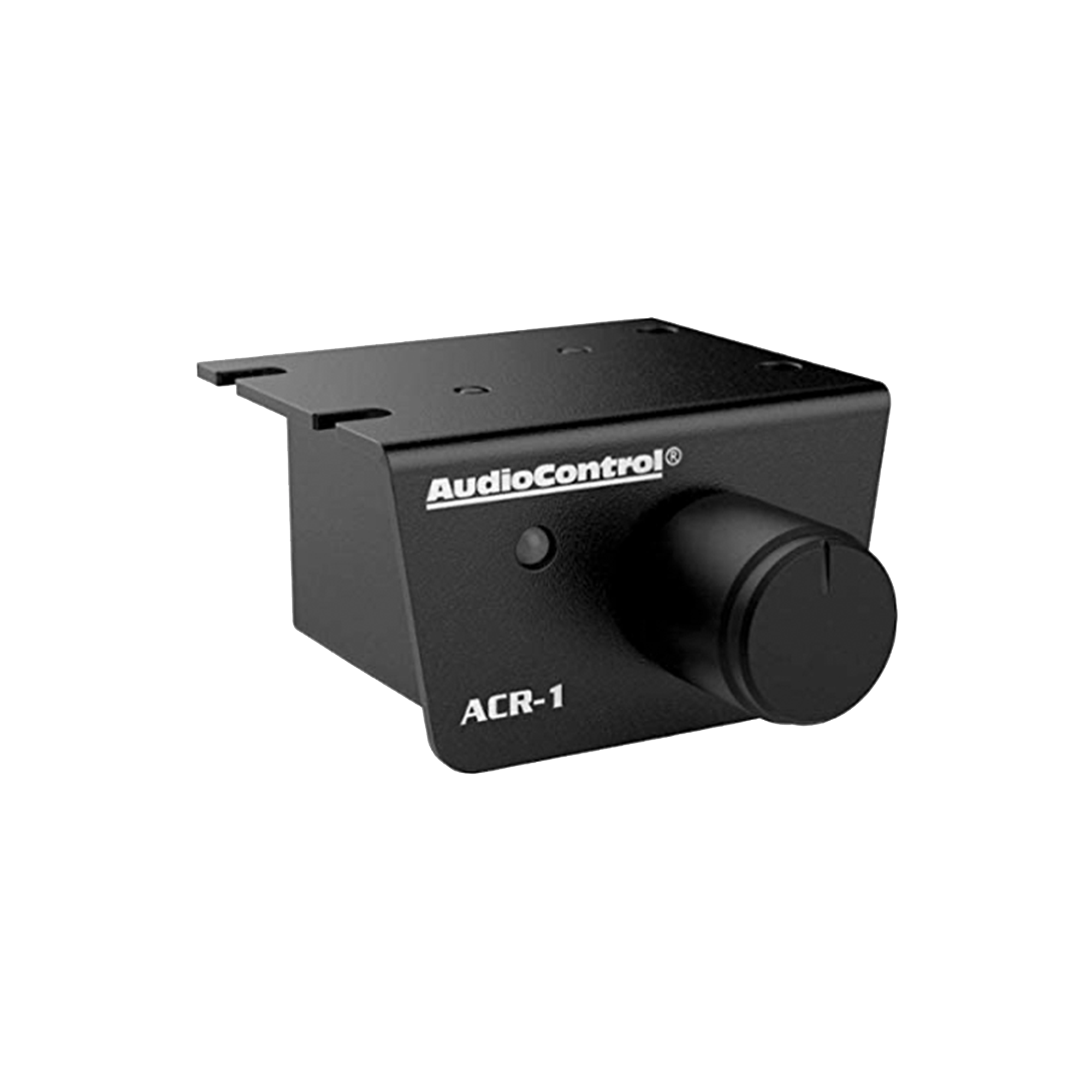

- ACR-1 remote included
The Kaos Run Down
| Part Number | LC2iRC |
|---|---|
| UPC | 810194210556 |
| Specification | INPUTS |
| Speaker Level Input | 1 (2 channels) |
| Maximum Speaker Level Input | 400W per channel at 4Ω |
| Input Impedance | 20kΩ |
| Specification | OUTPUTS |

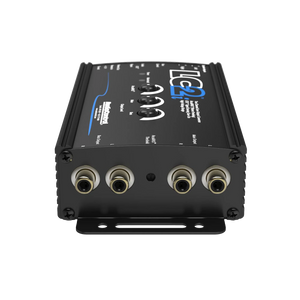

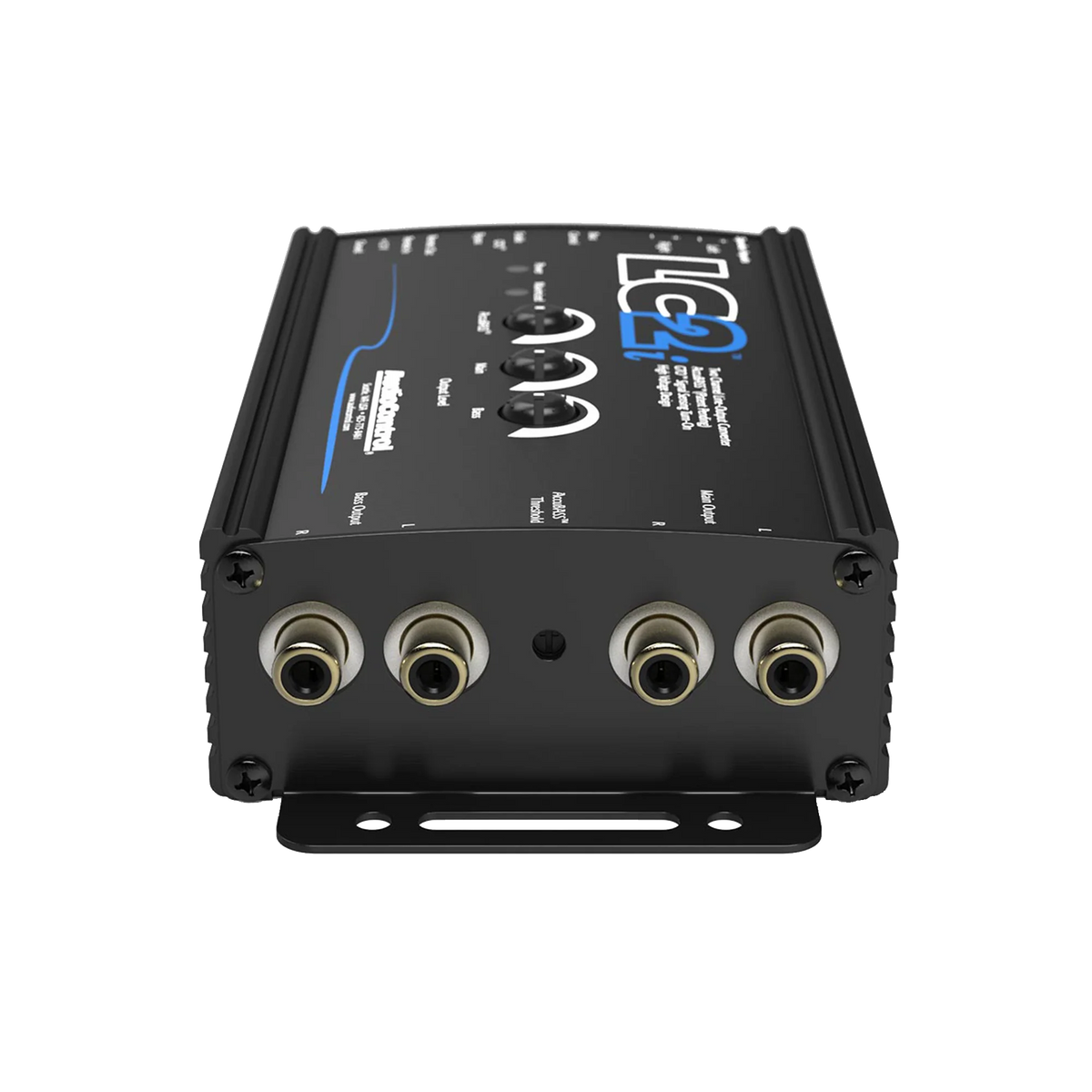

| Preamp Outputs | 2 (2 channels main, 2 channels bass) |
| Maximum Output Level | 9.5Vrms/13V peak |
| Output Impedance | 150Ω |
| Specification | PERFORMANCE |
| Total Harmonic Distortion | 0.01% |
| Signal to Noise | >110 dB |
| Frequency Response | 33 Hz – 100 kHz ±1 dB |
| Specification | CONTROL |
| Specification | Remote In |
| Specification | 12VDC Remote Out (always active when unit is on) |
| Specification | ACR-1 Wired Remote Control Included |
| Specification | GENERAL |
| Current Draw | 150mA |
| Recommended Fuse Rating | 1A |
| Dimensions | 5.4″L x 3.25″D x 1.5″H (6.5″L including mounting brackets) |
| Weight | 1.0lbs (0.5kg) |
| IN THE BOX | LC2i, Speaker and Power connectors, Manual, Warranty |
