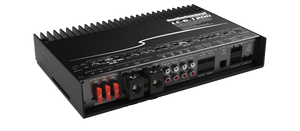

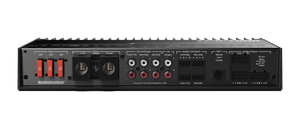

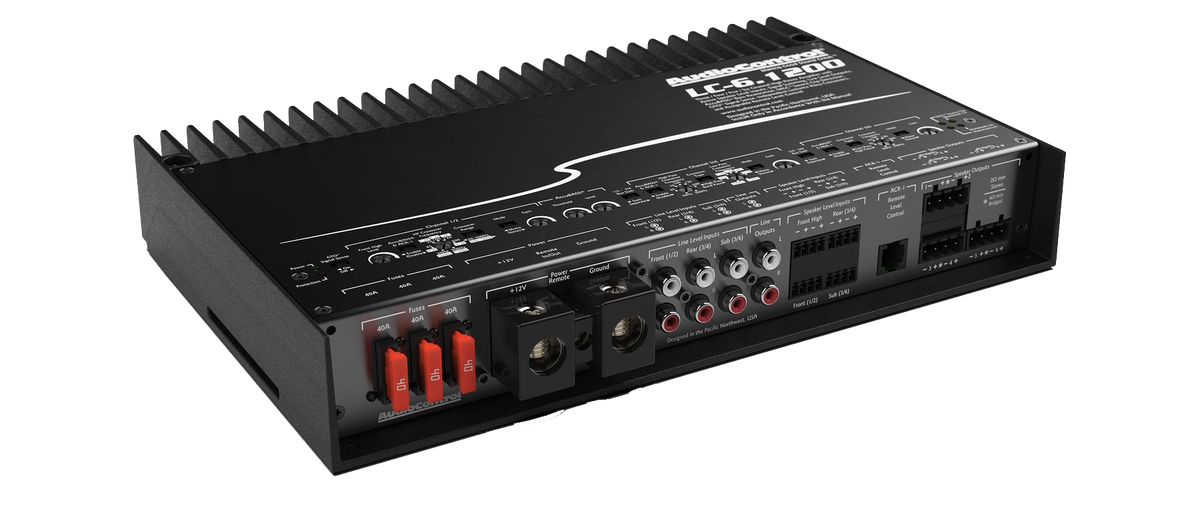

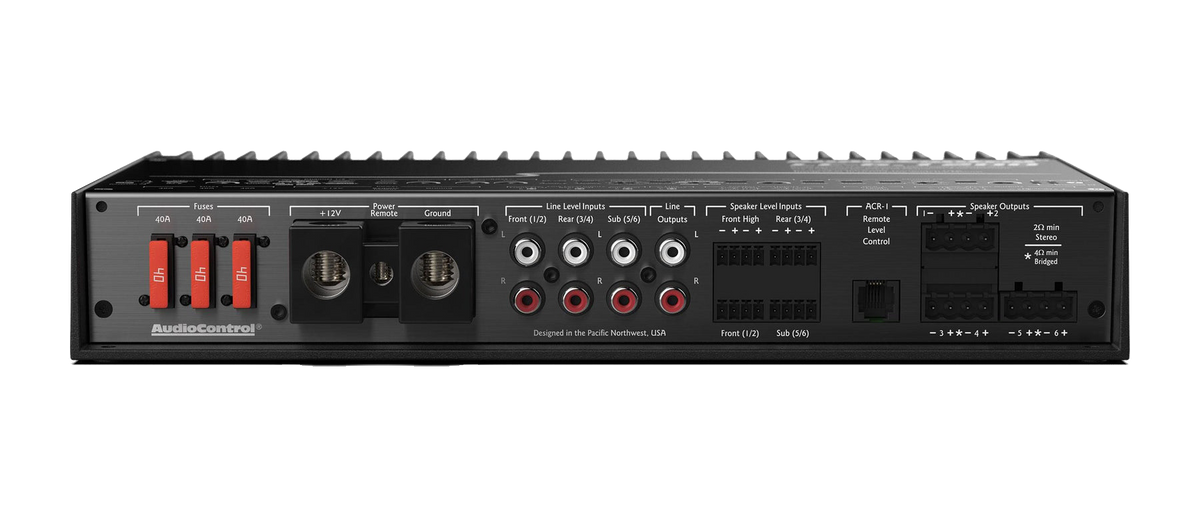

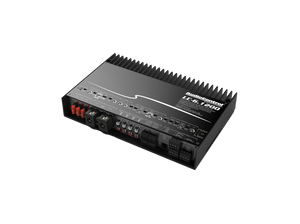

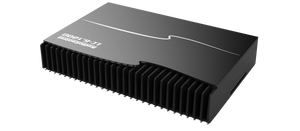

LC-6.1200 High-Power 6-Channel Amplifier w/AccuBASS
Description
Building from the hugely successful LC-4.800 multi-channel amplifier, the LC-6.1200 is surely the most flexible 6-channel amplifier on the market. Featuring eight active speaker level inputs with summing, coupled with an intuitive three-way Linkwitz-Riley crossover network, the LC-6.1200 can be easily integrated with most factory-installed source units. The patented AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.
More control and features include our GTO Signal Sense, MILC Source Clip Detection, and assignable Remote Level Control. The LC-6.1200 builds on the legacy of audio passion and a focus on user-friendly features, making this a perfect solution-based amplifier.
Features
- Configurable as 6/5/4/3/2 channel amplifier
- 6 x 200 watts @ 2 ohms
- 6 x 125 watts @ 4 ohms
- 400 watts @ 4 ohms bridged
- AccuBASS® Processing
- MILCTM Maximum Input Level Control (Patent Pending)
- GTOTM Signal Sense
- 3-way Independent Linkwitz-Riley Alignment crossovers
- Summable active speaker-level inputs (8 channels) for OEM integration
- 6 preamp inputs
- 2 assignable preamp outputs
- PFM Subsonic Filter
- Optional ACR-1 assignable remote control
- Solid One-Piece Aluminum Chassis
The Kaos Run Down
| Part Number | LC-6.1200 |
|---|---|
| UPC | 851523007201 |
| Specification | INPUTS |
| Preamp Inputs | 6 balanced |
| Preamp Input Voltage Range | 250 mV – 8 Vrms |
| Speaker Level Inputs | 8 |
| Speaker Level Input Voltage Range | 3 V – 40 Vrms |
| Specification | OUTPUTS |
| Rated Continuous (RMS) Power at 14.4V | |
| Specification | 4 Ω – 125 W x 6 RMS |
| Specification | 2 Ω – 200 W x 6 RMS |
| Specification | Bridged 4 Ω – 400 W RMS |
| Preamp Outputs | 2 |
| Maximum Preamp Output | 8.5 V RMS |
| Specification | PERFORMANCE |
| Frequency Response | 10 Hz – 30 kHz |
| Signal to Noise | 102 dBa, Ref 200 W @ 2 Ohm |
| THD+N | < 0.1% |
| Minimum Power / Ground Wire Gauge | 3 AWG wire |
| Fuse Rating | 3 x 40 A |
| Crossover | 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz |
| Dimensions | 12″W x 8.0″D x 2.1″H |
| Weight | 7.2lbs. (3.3kg) |
| IN THE BOX | LC-6.1200, Speaker Connectors, Fuses, Manual, Warranty |
