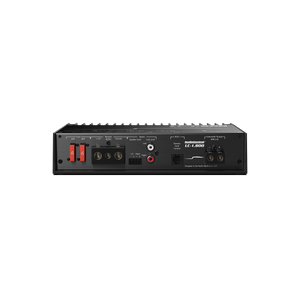

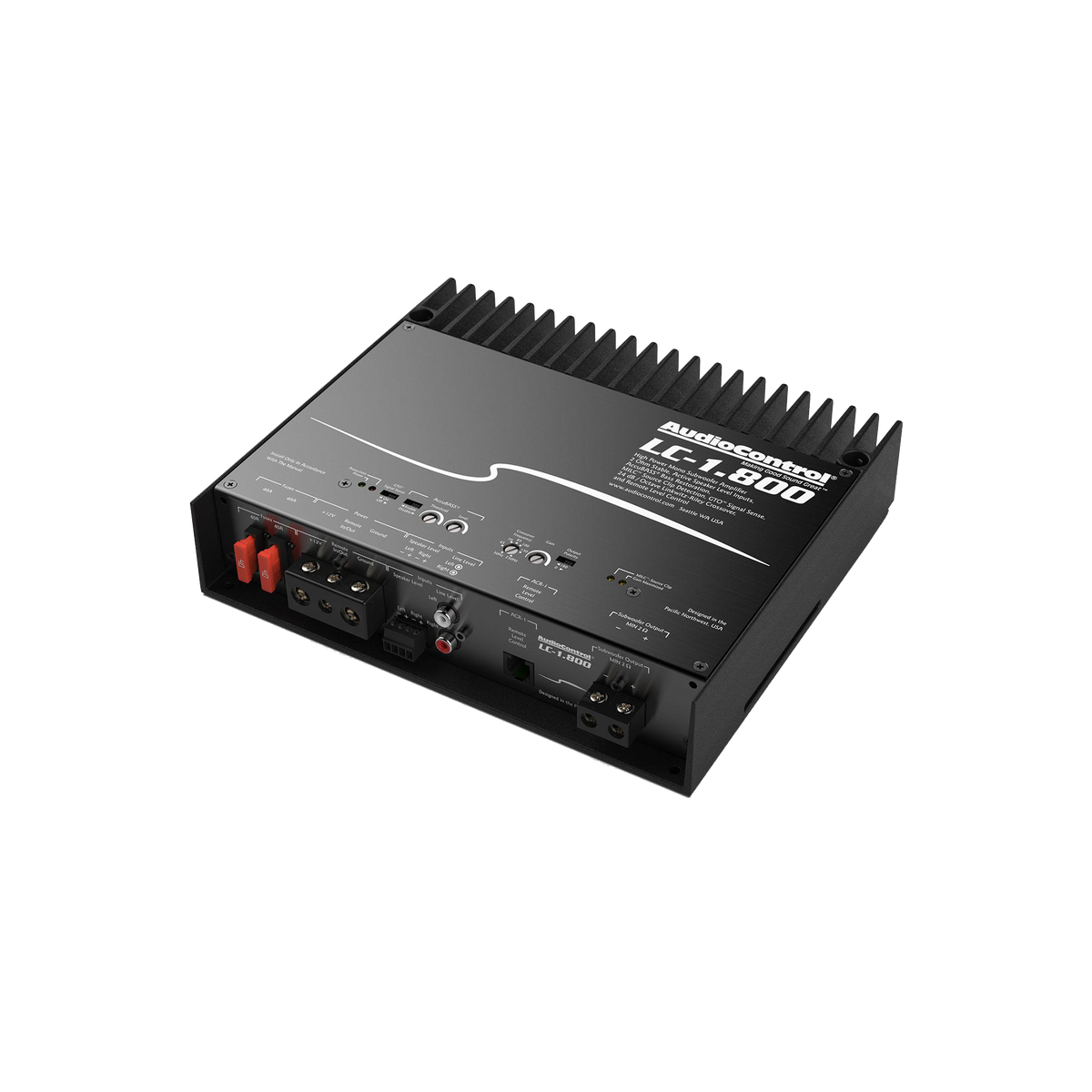

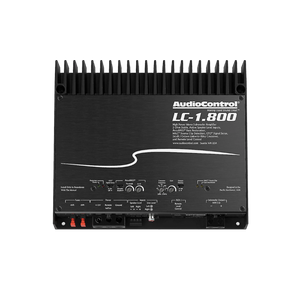

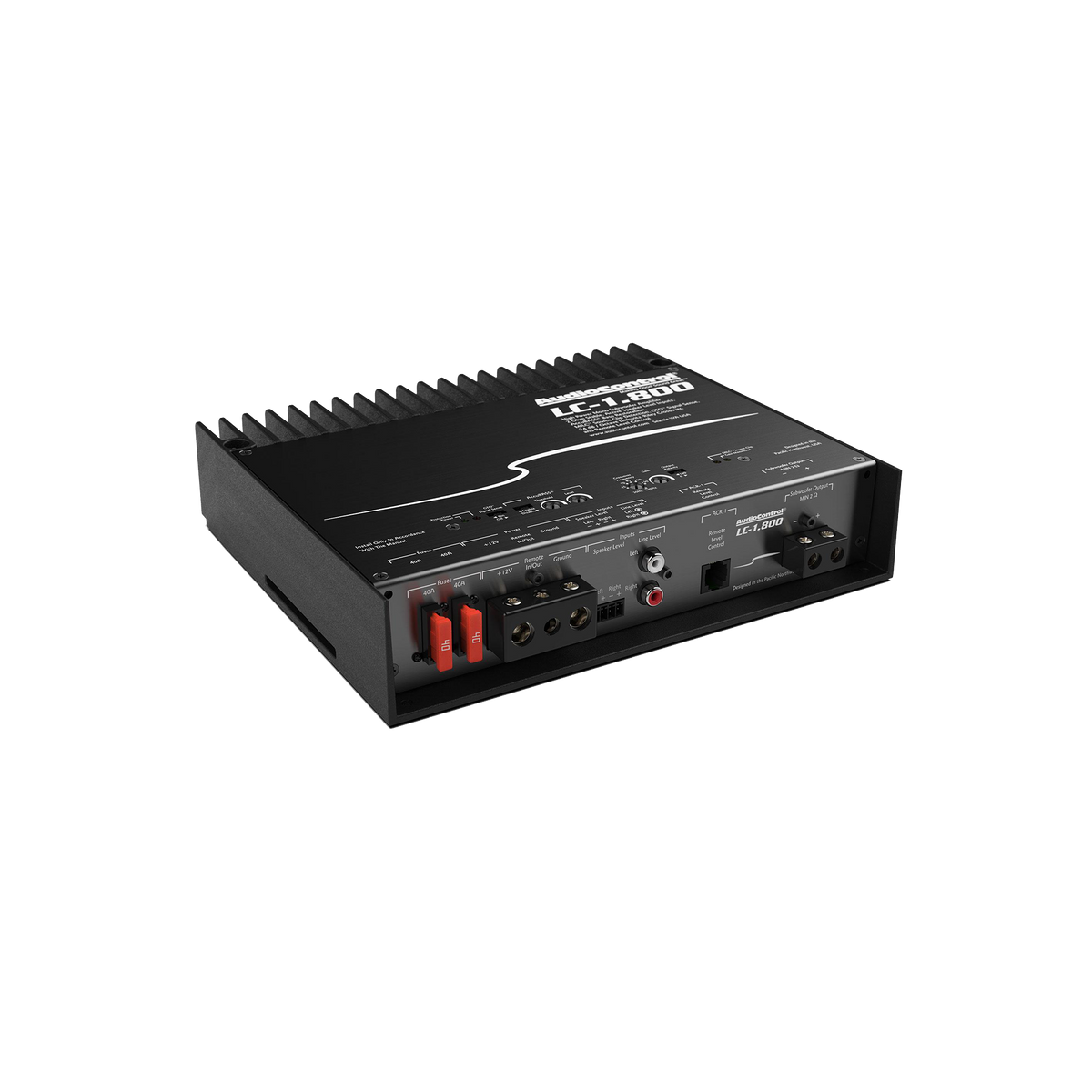

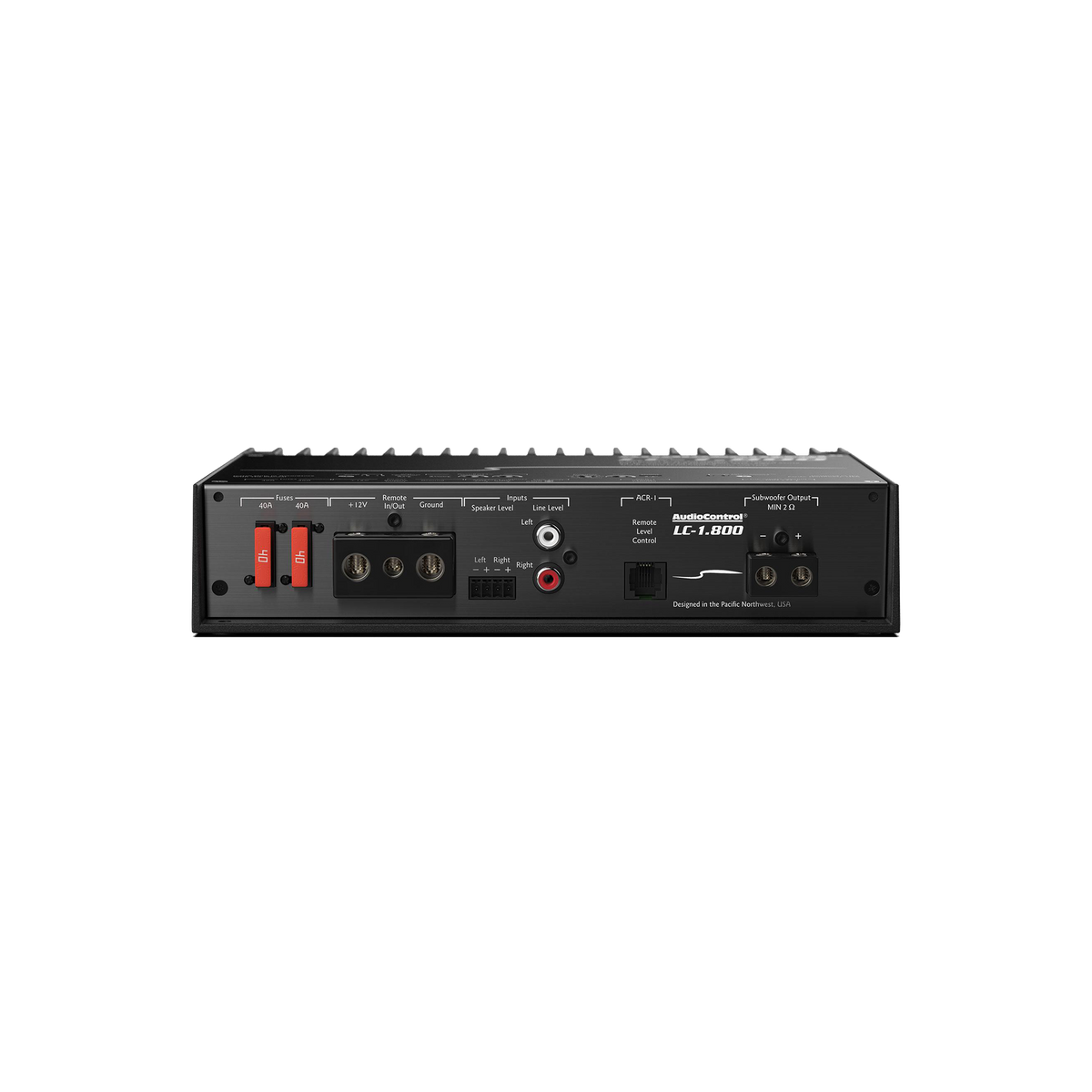

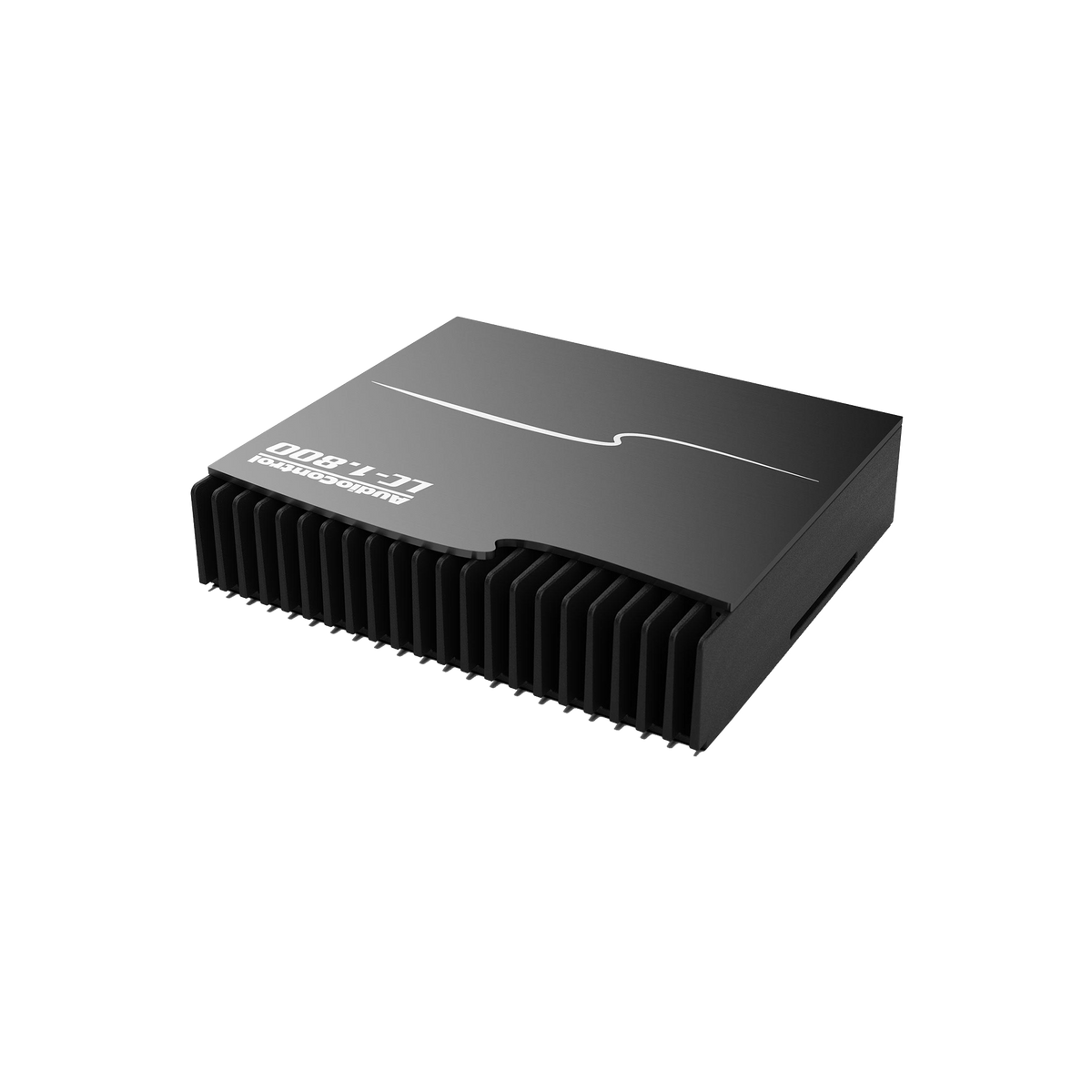

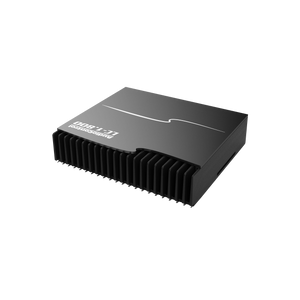

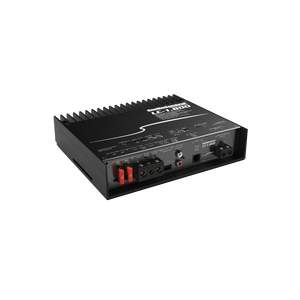

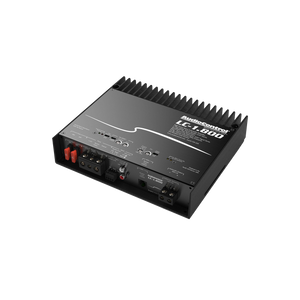

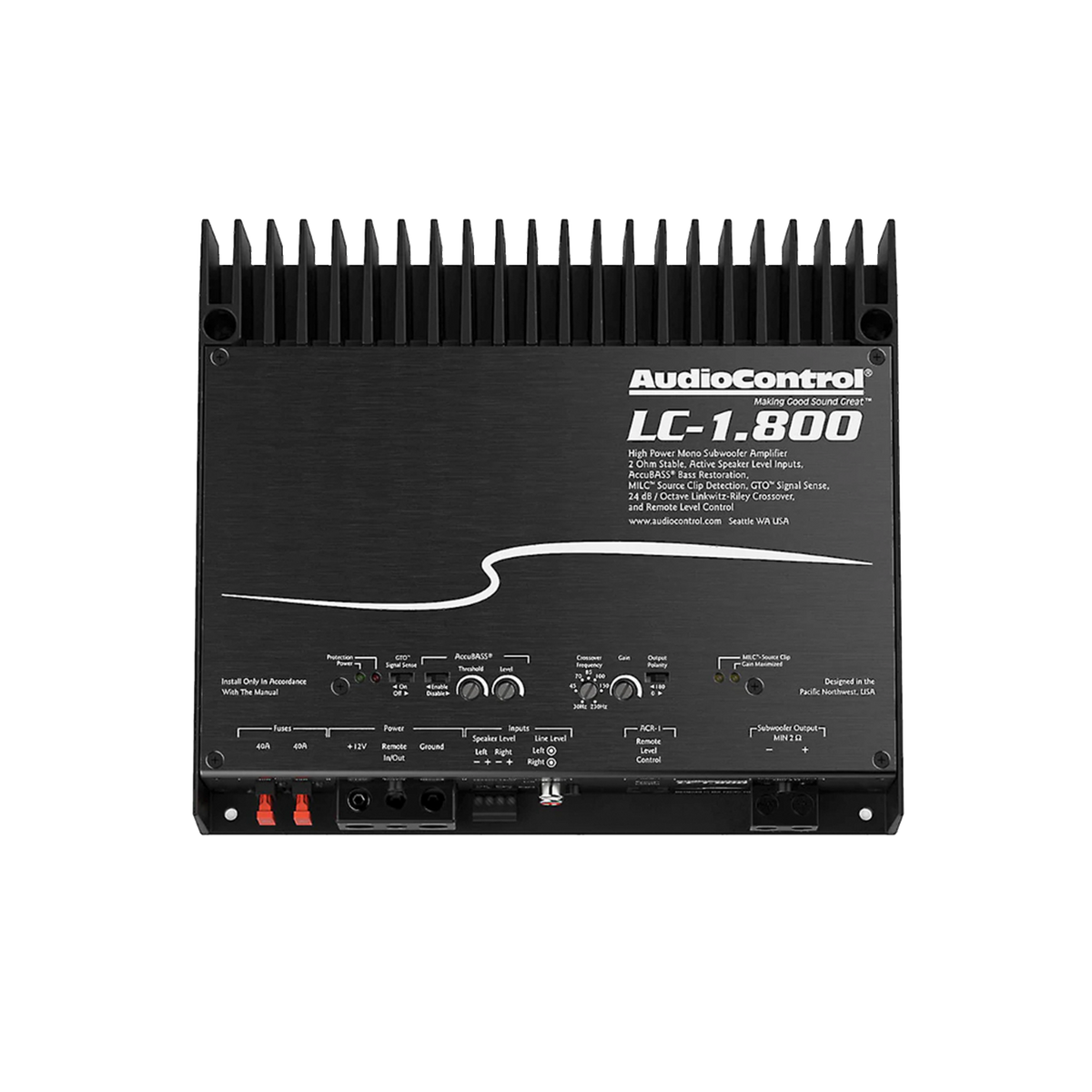

LC-1.800 High-Power Monoblock Amplifier w/AccuBASS
Description
When you demand the perfect blend of power and performance, AudioControl provides answers and the LC-1.800 is no exception.
No matter the installation, you can be assured power will meet and exceed expectations with 800 watts at 2 ohms. The mix of high level and low level inputs mean you have the widest input voltage range in the industry. AudioControl’s patented AccuBASS® circuit is the only way to properly overcome factory bass roll-off and heavily equalized factory bass settings.
Enjoy loud, clean, and articulate bass combined with the best warranty available with the LC-1.800 amplifier.
Features
- Subwoofer amplifier with patented AccuBASS®
- 800 watts @ 2 ohms
- 500 watts @ 4 ohms
- AccuBASS® Processing
- MILC™ Maximum Input Level Control (Patent Pending)
- GTO™ Signal Sense
- 24 dB/octave Linkwitz-Riley Alignment crossover
- Speaker level and preamp inputs
- Optional ACR-1 assignable remote control
- Solid One-Piece Aluminum Chassis
The Kaos Run Down
| Part Number | LC-1.800 |
|---|---|
| UPC | 851523007386 |
| Specification | INPUTS |
| Preamp Inputs | 2 balanced |
| Input Voltage Range | 500 mV – 6 Vrms |
| Speaker Level Inputs | 2 |
| Speaker Level Input Voltage Range | 3 V – 40 Vrms |
| Specification | OUTPUTS |
| Rated Continuous (RMS) Power at 14.4V | |
| Specification | 4 Ω – 500 W RMS |
| Specification | 2 Ω – 800 W RMS |
| Specification | PERFORMANCE |
| Signal to Noise | 102 dBa, Ref 500 W @ 4 Ohm |
| Damping Factor | 670 at 10 V, 4 Ohm Output, 100 Hz |
| THD+N | < 0.01% |
| Minimum Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 2 x 40 A |
| Crossover | 24 dB/octave Linkwitz-Riley, Adjustable From 30 Hz – 230 Hz |
| PFM Subsonic Filter | 24 Hz |
| Dimensions | 9″W x 7.95″D x 2.1″H |
| Weight | 5.0lbs (2.0kg) |
| IN THE BOX | LC-1.800, Speaker connectors, Fuses, Manual, Warranty |
