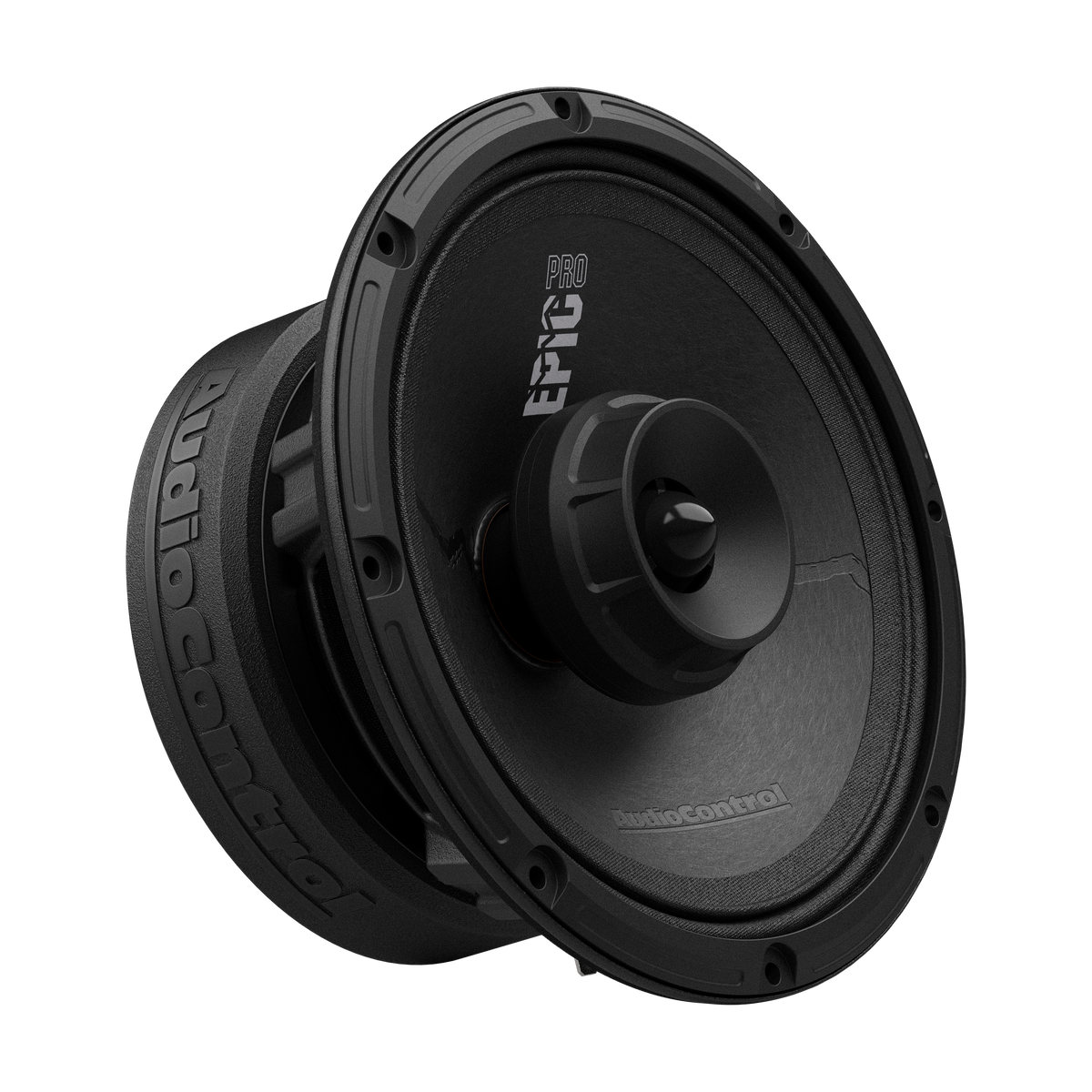

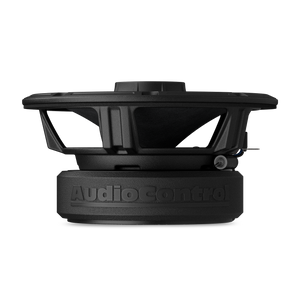

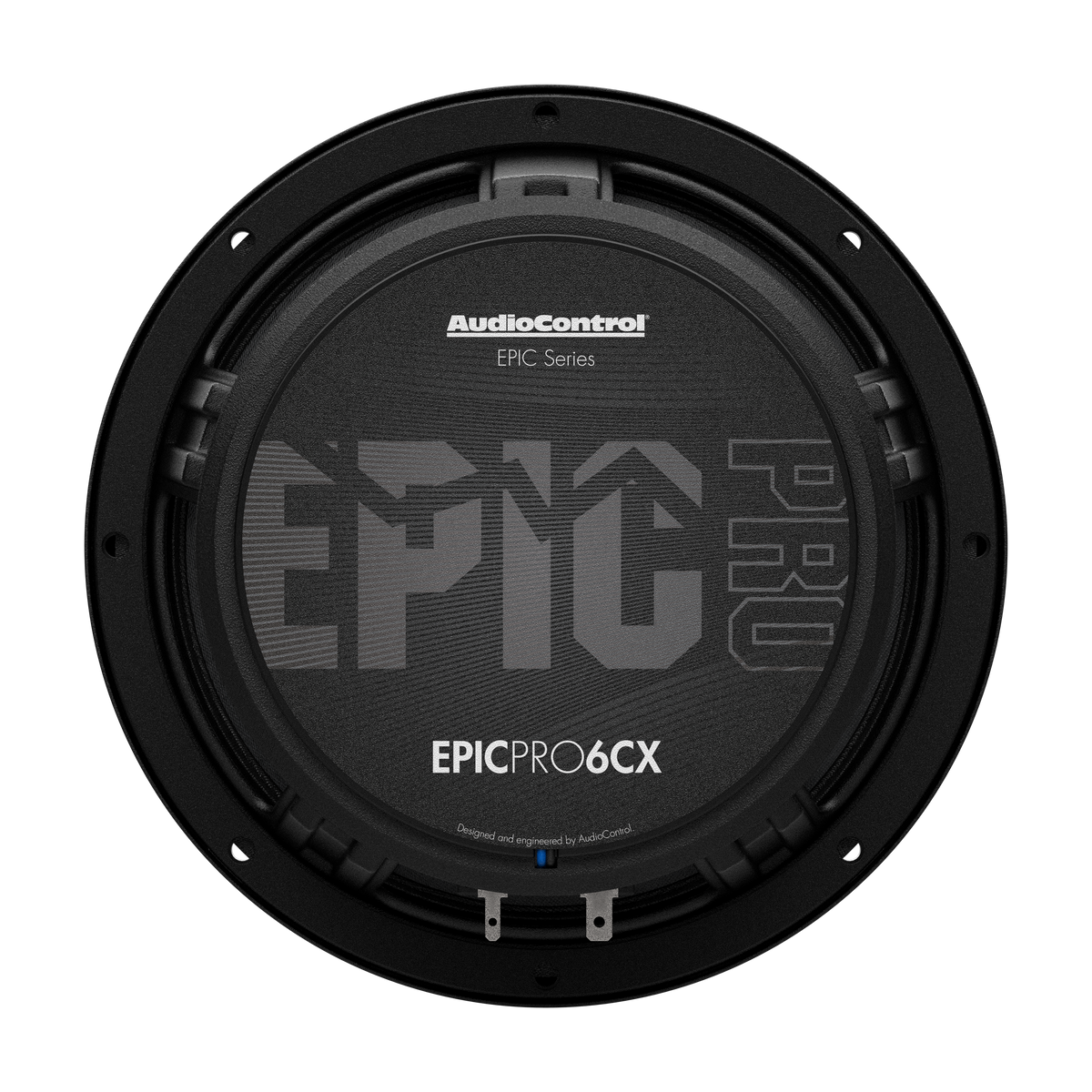

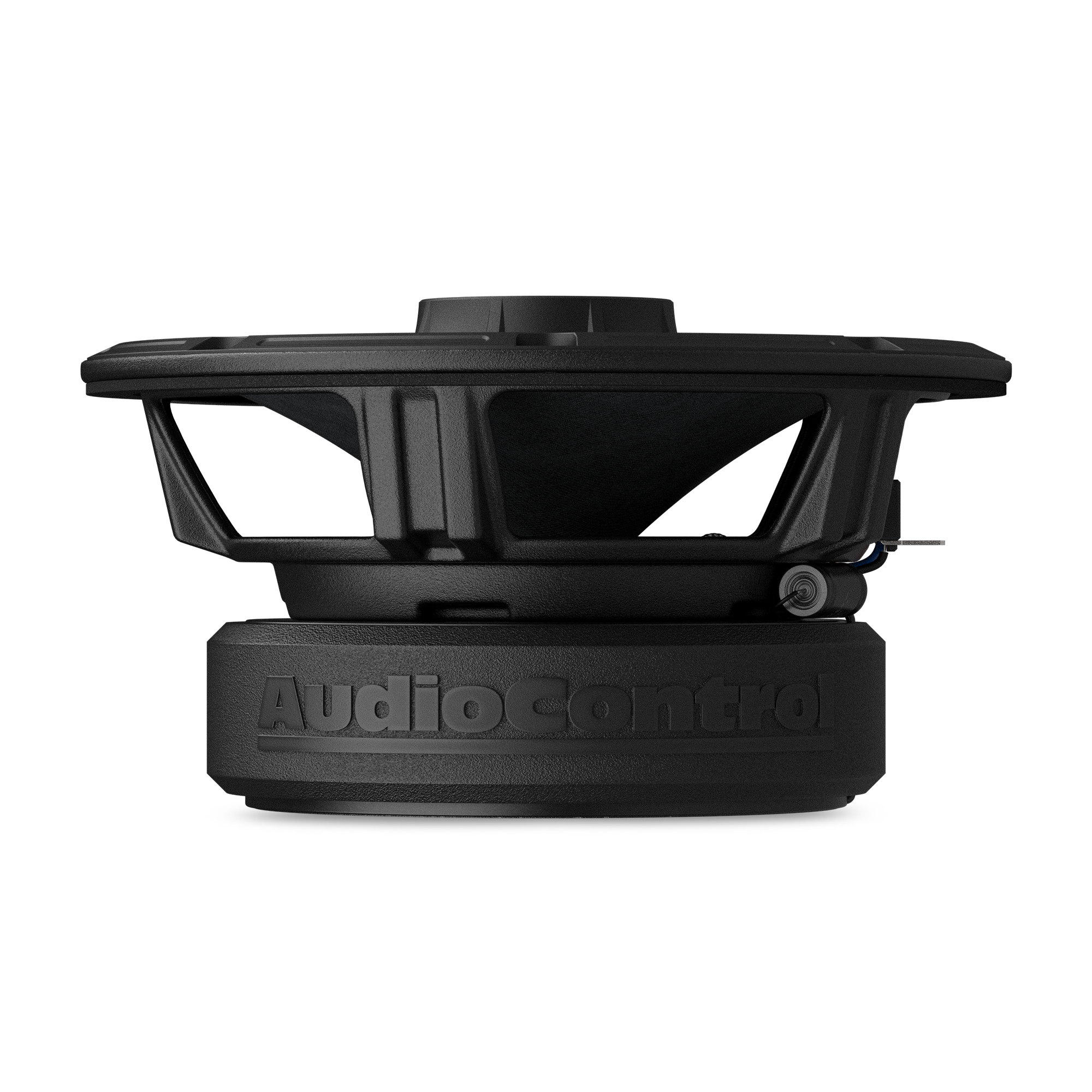

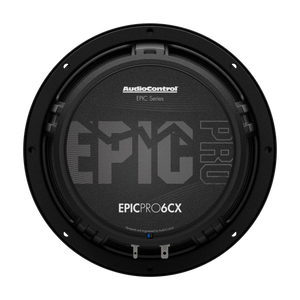

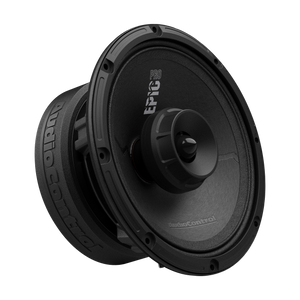

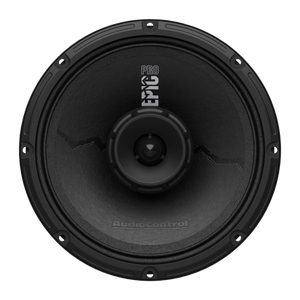

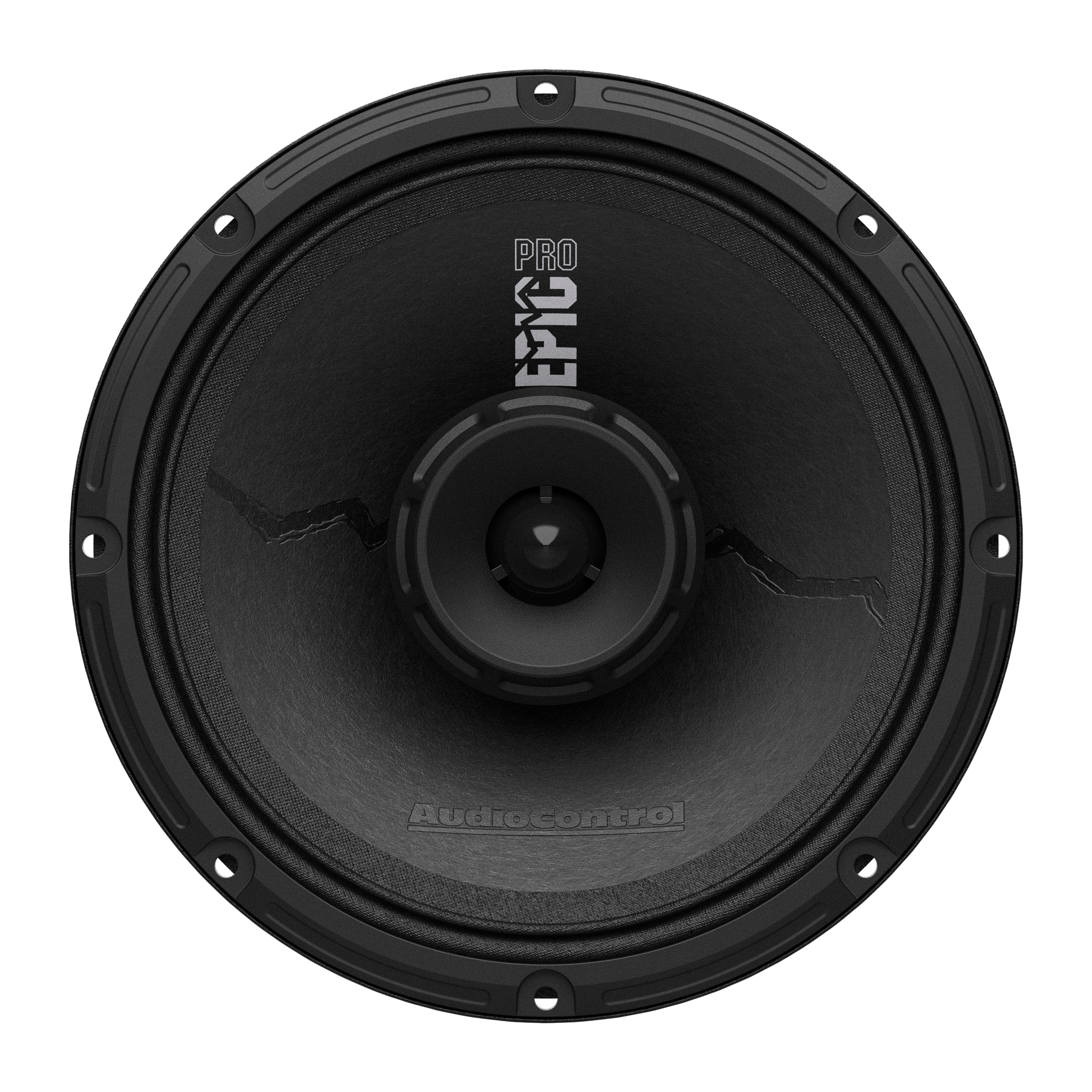

EPICPRO6CX 6.5" Coaxial Speakers, 200W RMS, 4 Ohms (Pair)
EPICPRO6CX 6.5" Coaxial Speakers, 200W RMS, 4 Ohms (Pair)
Description
The EPIC PROAXIAL series is a far cry from traditional car audio. These speakers were designed to be street loud and studio clear!
The technology and engineering are focused on efficiency and “SPL”, which requires different components compared to “normal” car audio, such as lightweight composite cones and dual-roll cloth surrounds. But it’s not just about getting loud—these speakers also deliver clear accurate sound, even when you’re pushing them to the limit.
This coaxial variant combines a high-efficiency midrange driver with a compact bullet tweeter to deliver an incredibly loud, full-range response from a single point source. By integrating both components into one unit, it eliminates the need for separate mid and high-frequency drivers, simplifying installation without sacrificing performance.
FEATURES
- Proaxial: Coaxial design with midrange driver & bullet tweeter to deliver an incredibly loud, full-range response.
- Lightweight Voice Coil: Experience massive high SPL output with low distortion.
-
Precision-Designed Tweeter Horn: Enables smooth high-frequency
response for immersive audio. -
Titanium Tweeter Diaphragm: Delivers high-volume, accurate
sound. - Double-Roll Cloth Surround: Ensures accurate sound reproduction and consistent performance over a long lifespan.
- High-Tensile, Stamped-Steel Basket: Improved damping maintains precise cone movement for clean, low-distortion sound.
-
Stiff Paper Cone: Delivers warm, smooth sound with enhanced damping.
- Copper Shorting Ring: Widens bandwidth and reduces distortion for a seamless transition between woofer and tweeter.
- High-Quality Mounting Hardware: Included

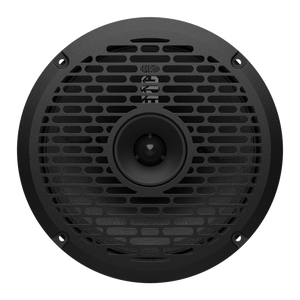

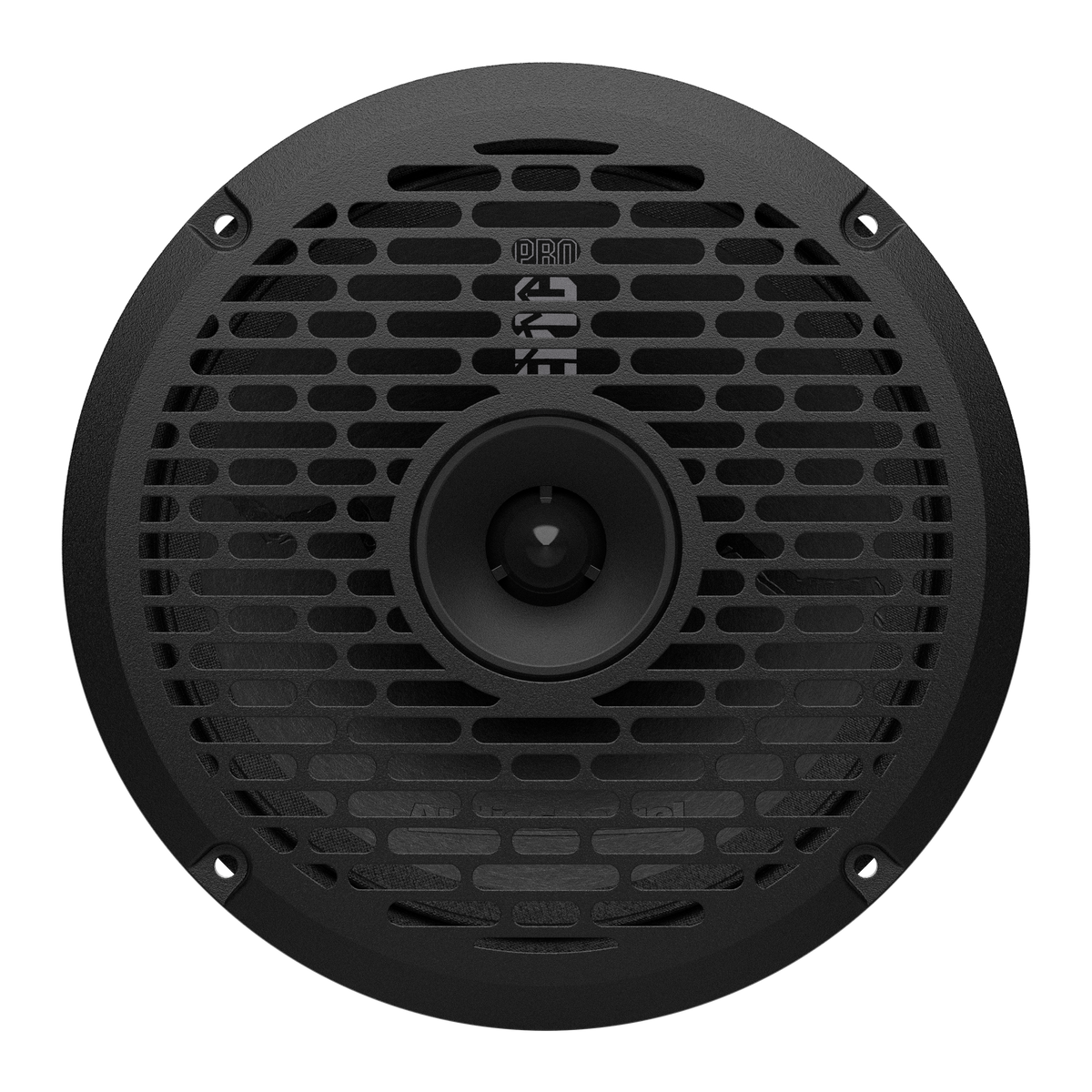

- Removable Speaker Grilles: Included
- AudioControl Engineered: Designed from the ground up by renowned AudioControl engineers, ensuring a holistic, performance-driven masterpiece born from unparalleled expertise.
- Perfect Pair with EPIC Amplifiers: Specifically voiced to integrate seamlessly with EPIC Series amplifiers, creating an optimized ecosystem for an unparalleled audio experience.

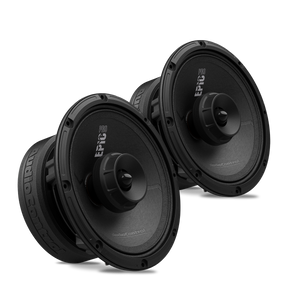

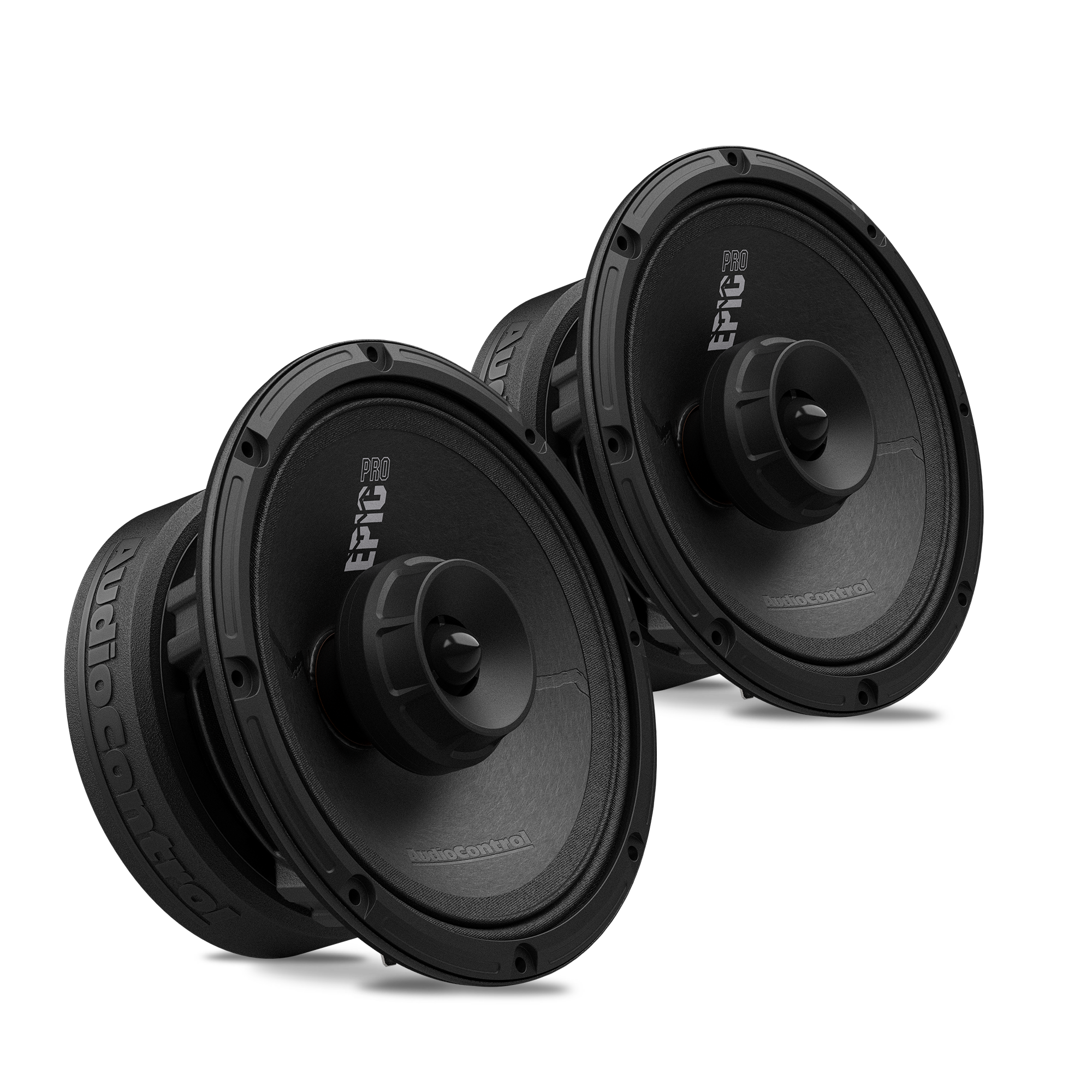

- Set of 2 Speakers: Includes 2 EPICPRO6CX 6.5" Coaxial Speakers.
The Kaos Run Down
| Part Number | EPICPRO6CX |
|---|---|
| UPC | 810194210129 |
| Specification | Speaker Model EPICPRO6CX |
| Specification | Power 200W RMS / 300W Max |
| Specification | Speaker Size 6.5 in / 165 mm |
| Specification | Impedance 4 ohms |
| Specification | Voice Coil (Tw / Mid) 0.78 in / 1.2 in |
| Specification | System Freq Response 120 – 20,000 Hz |
| Specification | SPL (Efficiency 2.83V/1M) 98.3 dB |
| Specification | Magnet Weight 30 oz / 850 g |
| Specification | Magnet Dimensions 4.72 x 1.77 x 0.79 in / 120 x 45 x 20 mm |
| IN THE BOX | (2) EPICPRO6CX Speakers, Mounting Hardware, Speaker Grilles, User Manual |
| Specification | Overall Diameter + Grille (A)...................................................................6.81 in / 173 mm |
| Specification | Overall Diameter w/o Grille (B). ................................................................ 6.7 in / 170 mm |
| Specification | Cut Out Diameter (C). .................................................................................5.78 in / 147 mm |
| Specification | Mounting Depth (D)........................................................................ 2.96 in / 75.3 mm |
| Specification | Total Depth (E). ................................................................................. 3.71 in / 94.4 mm |
