DS18 PRO-GM8SE 8" Sealed Back Mid-Range Loudspeaker 580 Watts 8-Ohm

Availability: In stock SKU: PRO-GM8SE
Sale price $41.95

DS18 PRO-GM8SE 8" Sealed Back Mid-Range Loudspeaker 580 Watts 8-Ohm - DS18

DS18 PRO-GM8SE 8" Sealed Back Mid-Range Loudspeaker 580 Watts 8-Ohm

$41.95

Product Overview

DS18 PRO-GM8SE 8" Sealed Back Mid-Range Loudspeaker 580 Watts 8-Ohm

A midrange driver is called upon to handle the most significant part of the audible sound spectrum, the region where the most fundamentals emitted by musical instruments and, most importantly, the human voice, lie. This region contains sounds which are the most familiar to the human ear, and where discrepancies from faithful reproduction are most easily observed. It is therefore paramount that a midrange driver of good quality be capable of low-distortion reproduction.

The PRO-GM series midranges whereas designed after the GEN Series and tweaked to perfection, these speakers embody the beginning of DS18. The clarity and depth of the acoustics these midranges produce is only comparable to that of "the big bang." The PRO-GM midranges feature black color steel baskets, Cloth edges, paper cones, and the option to choose between classic, bullet, or sealed back configuration. The PRO-GM line is one of the most sought out midrange in the industry for deal seeking audiophiles.

Highlights

  • Sealed back design which allows you to put these in boxes that have high turbulence or pressure so you don't damage cones.
  • Perfect for walls or cuchero boxes that have mid-bass or bass speakers in the enclosure.
  • High sensitivity and power ratings to make sure your midrange frequencies pierce through the bass and midrange for an amazing full sound.

Technical Details
                                                     PRO-GM8SE Product Manual

Model: PRO-GM8SE
Type: Midrange Loudspeaker with Sealed Back
Size: 8"
RMS Power: 190w
MAX Power: 580w
Frequency Response: 250Hz-10KHz
Impedance: 8 Ohms
Sensitivity: 96dB
Materials
Surround: Cloth Edge
Frame: Black Stamp Steel Basket
Cone: Paper Cone
Magnet: Ferrite
Voice Coil Wire: Kapton
Diameters
Voice Coil Size: 1.5"
Magnet Size: 30 oz.
Mounting Depth: 3.22"
Cut-Out Dimension: 7.2" (183mm)

Key Features

  • 8" Mid-Range
  • MAX Power: 580 Watts
  • RMS Power: 190 Watts
  • Impedance: 8-Ohm
  • Ferrite Magnet
  • Sealed Back

Specifications

SKU PRO-GM8SE
Nominal Diameter 8" / 203.2mm
Nominal Impedance 8 Ohm
RMS Power Handling 190W
MAX Power Handling 580W
Sensitivity (1w/1m) 96dB

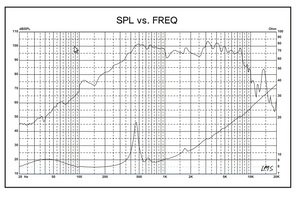

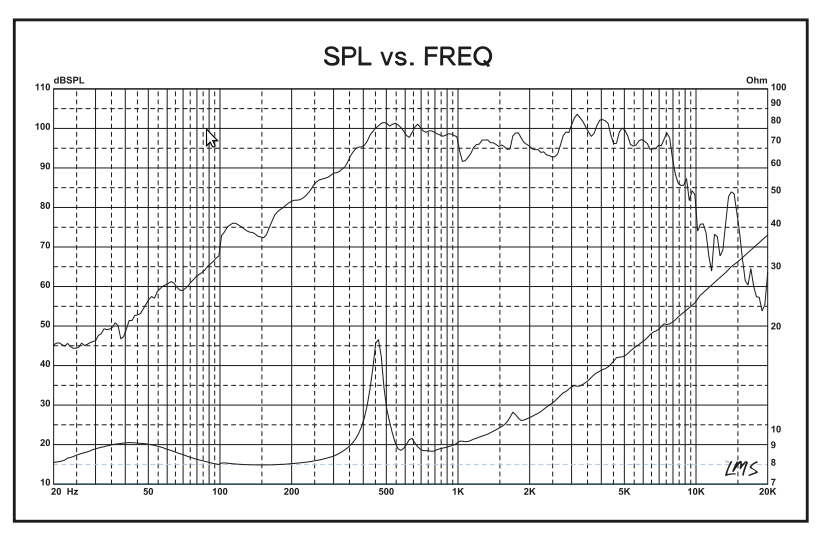

Frequency Response 250Hz-10KHz
Recommended HI Pass Crossover 350 Hz
Pair or Single Single
Grill Included No
Voice Coil Diameter 1.5" / 38.1mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Paper
Dust Cap Material Paper
Bullet Material / Color N/A
Surround Material Cloth
Basket Material Steel
Basket Color/Finish Matte Black
Magnet Material Ferrite
Magnet Weight 30 oz
Equivalent Volume (Vas) 1.25L / 0.44ft3
Excursion (one way) (Xmax) N/A
Free Air Resonance (Fs) 448Hz
Mechanical Factor (Qms) 8.336
Electrical Factor (Qes) 4.402
Total Factor (Qts) 2.88
Mechanical Mass (Mms) 6.922g
Mechanical Compliance (Cms) 0.018mm/N
BL Factor (BL) 5.29
Voice Coil Inductance (Le) 0.736mH
Cone Area (Sd) 221.67cm2
DC Resistance (Re) 6.3 ohm

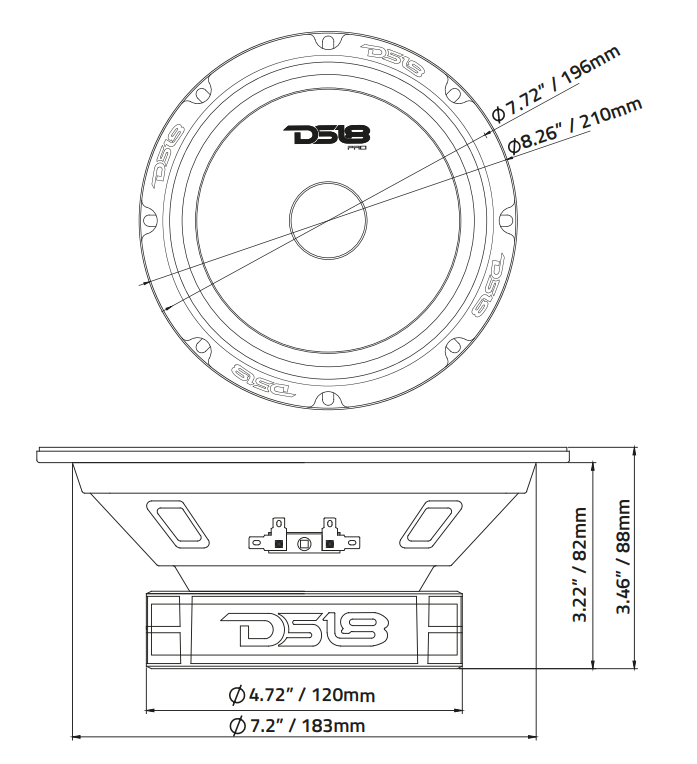

Overall Diameter 8.26" / 210 mm
Overall Depth 3.46" / 88 mm
Front Mount Baffle Cutout 7.2" / 183 mm
Mounting Depth 3.22" / 82mm
Motor Diameter 4.72" / 120mm
Gross Single Unit Weight (lb) 5
Single Unit Box Dimensions W x L x H (Inches) 9 x 9 x 4
Quantity of Units in Master Carton 8
Gross Master Carton Weight (lb) 40
Master Carton Dimensions W x L x H (Inches) 18.5 x 18.5 x 8.8
