PRO-X 8" Sealed Back Mid-Range Loudspeaker 275 Watts Rms 8-Ohm
PRO-X 8" Sealed Back Mid-Range Loudspeaker 275 Watts Rms 8-Ohm
Product Overview
8” Sealed Back Mid-Range Loudspeaker
DS18’s PRO-X8MSE is your go-to 8" mid-range speaker when you need serious sound! With a sealed back design, this speaker thrives in high-pressure enclosures like door panels or chucheros, delivering consistent performance in tough environments.
Built to Handle the Heat
This 8-ohm loudspeaker pushes 275W RMS and 550W MAX power, supported by a 1.5" Kapton voice coil and ferrite magnet for efficient heat dissipation. With a 97dB sensitivity and wide 250Hz–8KHz frequency response, the PRO-X8MSE offers crisp, distortion-free mids that cut through any mix.
Designed for Tight Installs
Perfect for wall builds, doors, or high-intensity chuchero setups—this speaker’s sealed back means you don't need a custom enclosure to get insane performance. With a compact 3.54" mounting depth, installation is easy and versatile.
DS18’s PRO-X8MSE is a must-have for serious system builders who want elite performance!
Key Features
- 8" Sealed Back Mid-Range
- MAX Power: 550 Watts
- RMS Power: 275 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 97dB
Specifications
| SKU | PRO-X8MSE |
|---|---|
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance | 8 ohm |
| RMS Power Handing | 275W |
| Maximum Power Handing | 550W |
| Sensitivity (1w/1m) | 97dB |
| Frequency Response | 250Hz-8KHz |
| Recommended Hi Pass Crossover | 300Hz |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | KAPTON |
| Winding Material | CCA |
| Basket Material | Steel |
| Magnet Weight | 33oz |
| Vas | 0.727L / 0.025ft3 |
| Xmax | 6mm |
| Fs | 450Hz |
| Qms | 2.498 |
| Qes | 2.292 |
| Qts | 1.195 |
| Re | 5.46 ohms |

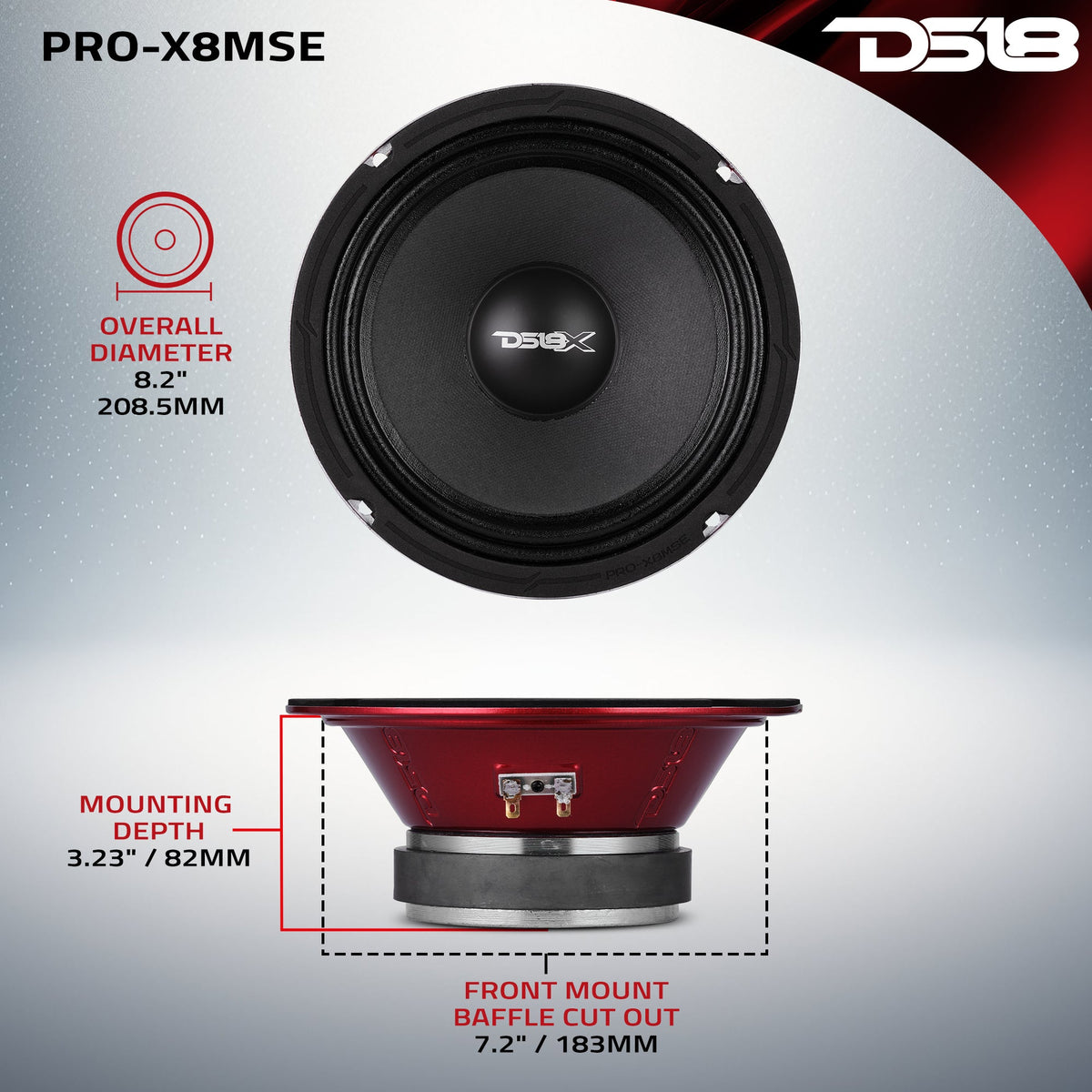

| Overall Diameter | 8.2" / 208.5mm |
| Front Mount Baffle Cutout | 7.2" / 183mm |
| Mounting Depth | 3.23" / 82mm |
| Overall Depth | 3.54" / 90mm |
| Product Weight | 6.5 lbs |
| Product Dimensions | 9 x 9 x 3.75 |
| M/C Weight | 25.5 |
| M/C Dimensions | 18.25 x 9.5 x 8.75 |
| M/C QTY | 4 |
| Sold In | Single |
