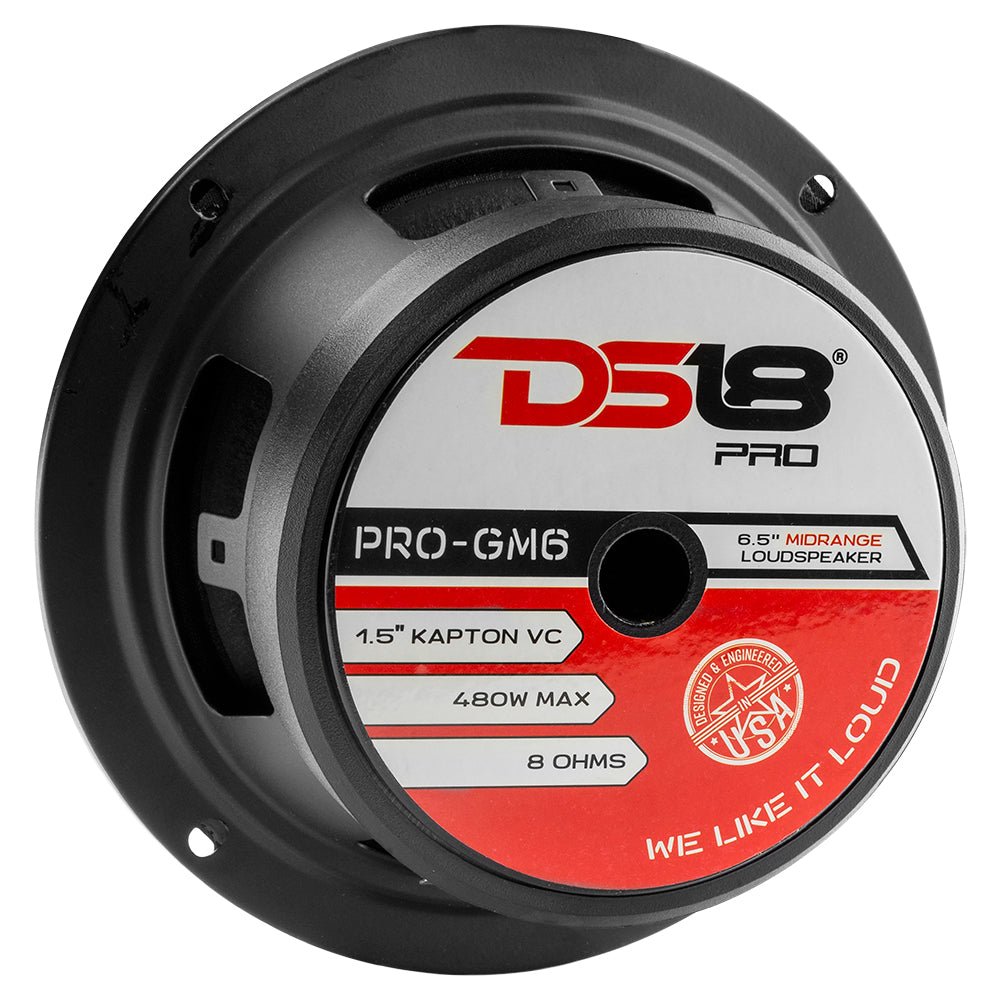

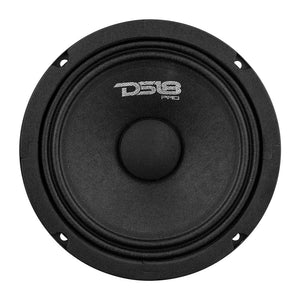

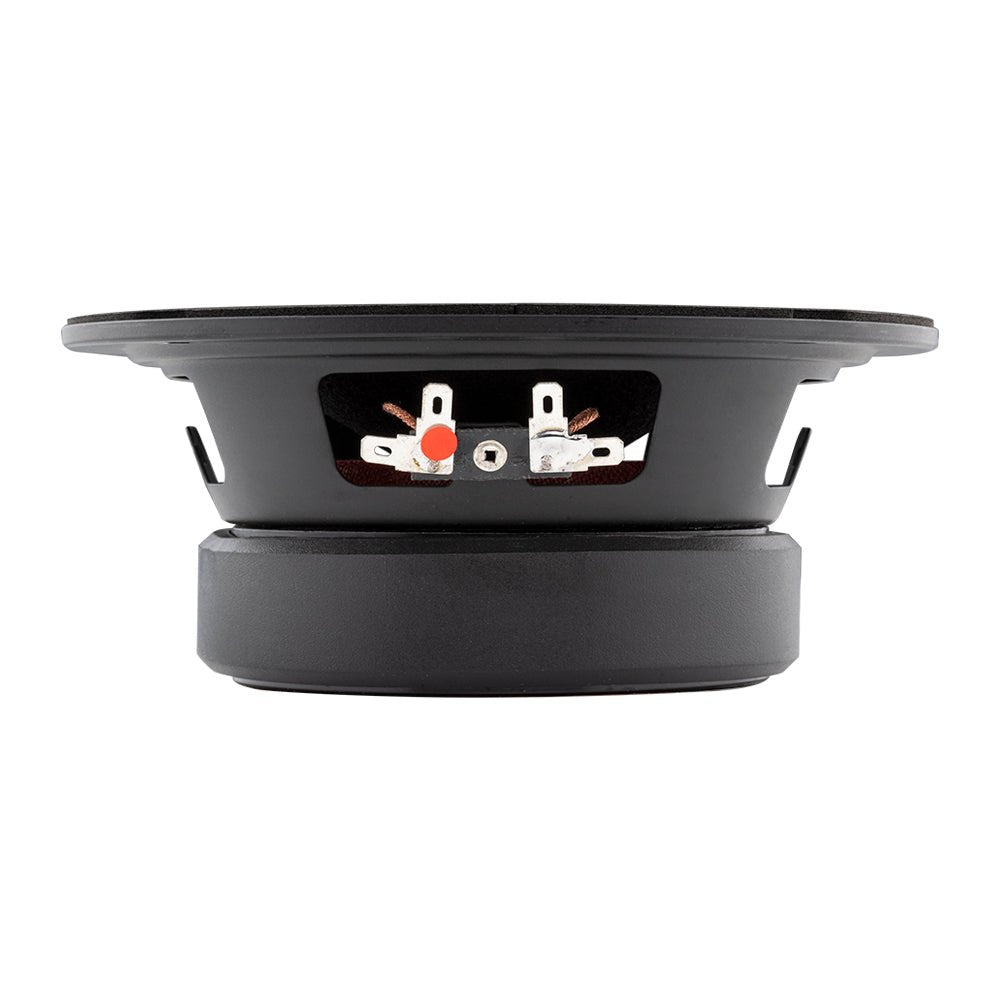

DS18 PRO-GM6 6.5" Mid-Range Loudspeaker 480 Watts 8-Ohm

Availability: In stock SKU: PRO-GM6
Sale price $33.95

DS18 PRO-GM6 6.5" Mid-Range Loudspeaker 480 Watts 8-Ohm - DS18

DS18 PRO-GM6 6.5" Mid-Range Loudspeaker 480 Watts 8-Ohm

$33.95

Product Overview

DS18 PRO-GM6 6.5" Mid-Range Loudspeaker 480 Watts 8-Ohm

During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/"voceteo" audiophiles. Therefore, DS18 created the PRO-GM audio line, which features a wide variety of midranges the produce concert-like sounds that will knock the wind out of you.

A midrange driver is called upon to handle the most significant part of the audible sound spectrum, the region where the most fundamentals emitted by musical instruments and, most importantly, the human voice, lie. This region contains sounds which are the most familiar to the human ear, and where discrepancies from faithful reproduction are most easily observed. It is therefore paramount that a mid-range driver of good quality be capable of low-distortion reproduction.

Highlights

  • DS18's highly popular series of High Powered pro audio.
  • Great DS18 design of high durability parts including strong ferrite magnet, pressed paper cone, and CCA voice coils to get you maximum loudness with great sound quality.
  • These mids come with a solid cone design and are pure midrange speakers and will be greatly complemented with a not included tweeter.

Technical Details
                  PRO-GM6 Product Manual


Model: PRO-GM6
Type: Midrange Loudspeaker
Size: 6.5"
RMS Power: 140W
MAX Power: 480W
Frequency Response: 100Hz - 8KHz
Impedance: 8 Ohms
Sensitivity: 92dB
Materials
Surround: Cloth Surround

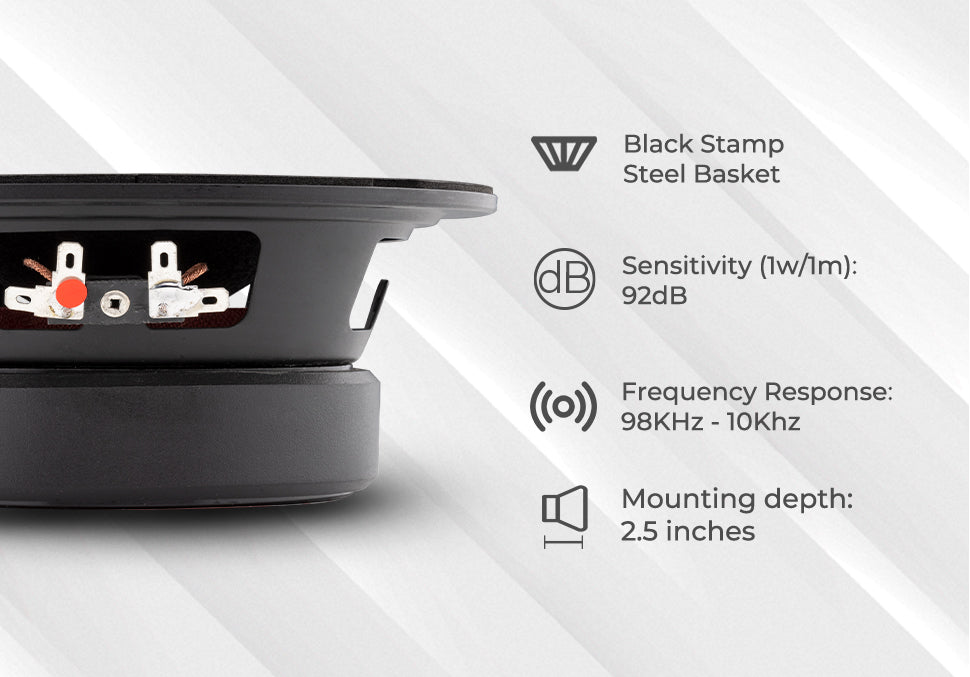

Frame: Black Stamp Steel Basket
Cone: Black Paper Woofer Cone
Magnet: Ferrite
Voice Coil Wire: Kapton
Measurements

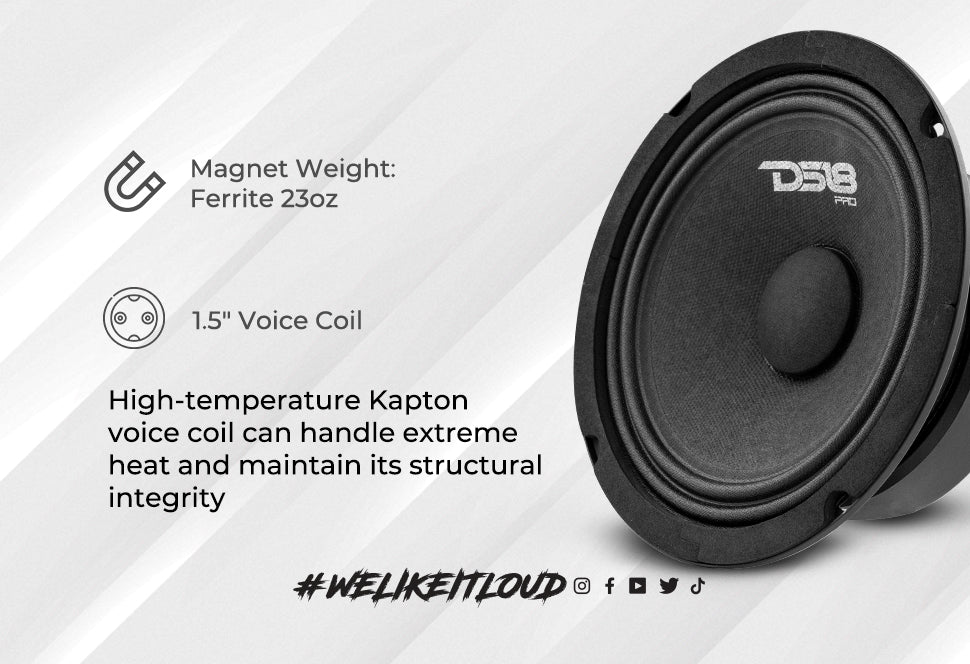

Voice Coil Size: 1.5"
Magnet Weight: 23 oz.
Mounting Depth: 2.5" (69mm)
Cut-Out Dimensions: 5.70" (145mm)

Key Features

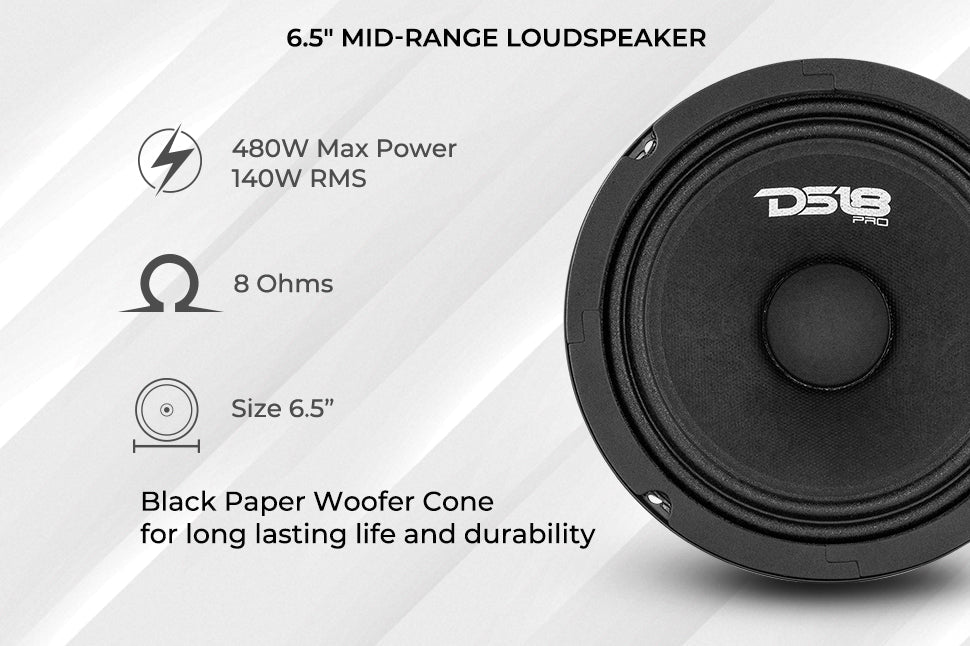

  • 6.5" Mid-Range
  • MAX Power: 480 Watts
  • RMS Power: 140 Watts
  • Impedance: 8-Ohm
  • Ferrite Magnet


Specifications

SKU PRO-GM6
Nominal Diameter 6.5" / 165.1mm
Nominal Impedance 8 Ohm
RMS Power Handling 140W
MAX Power Handling 480W
Sensitivity (1w/1m) 92dB

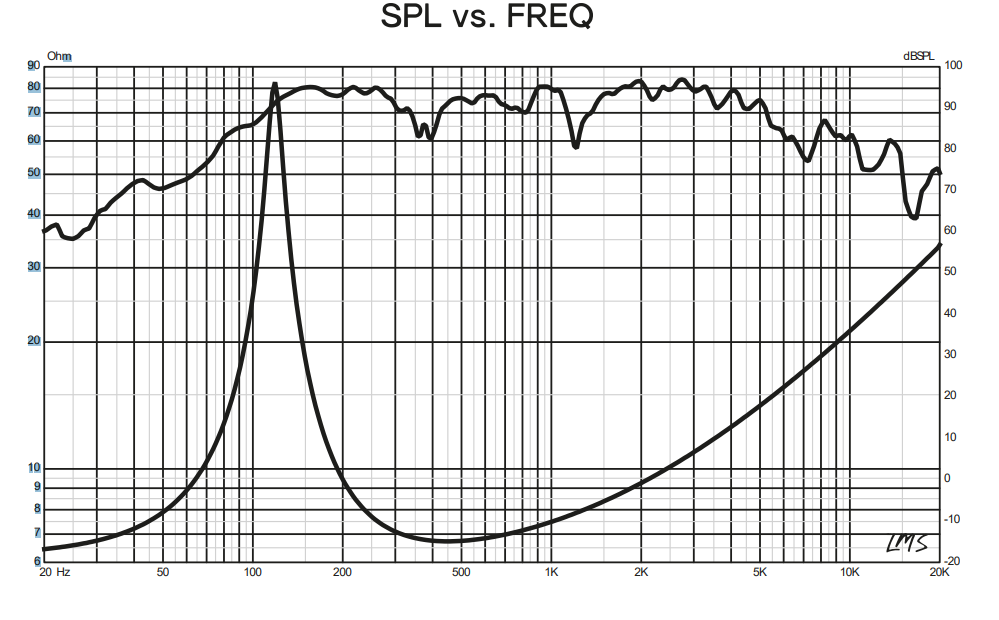

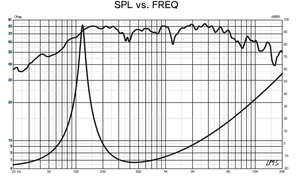

Frequency Response 100Hz-10KHz
Recommended HI Pass Crossover 120Hz
Pair or Single Single
Grill Included No
Voice Coil Diameter 1.5" / 38.1mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Paper
Dust Cap Material Paper
Bullet Material / Color N/A
Surround Material Cloth
Basket Material Steel
Basket Color/Finish Matte Black
Magnet Material Ferrite
Magnet Weight 23 oz
Equivalent Volume (Vas) 5.58L / 0.197ft3
Excursion (one way) (Xmax) N/A
Free Air Resonance (Fs) 113Hz
Mechanical Factor (Qms) 13.28
Electrical Factor (Qes) 1.068
Total Factor (Qts) 0.988
Mechanical Mass (Mms) 8.836g
Mechanical Compliance (Cms) 0.226mm/N
BL Factor 6.14
Voice Coil Inductance (Le) 0.726mH
Cone Area (Sd) 132.73cm2
DC Resistance (Re) 6.4 ohm

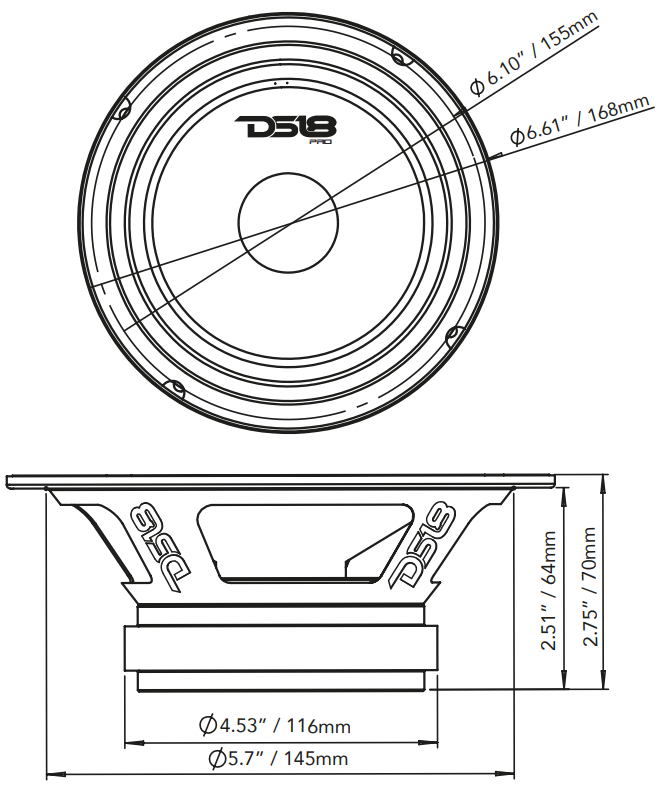

Overall Diameter 6.57" / 167mm
Overall Depth 2.7" / 69mm
Front Mount Baffle Cutout 5.7" / 145 mm
Mounting Depth 2.5" / 64mm
Motor Diameter 4.33" / 110mm
Gross Single Unit Weight (lb) 4
Single Unit Box Dimensions W x L x H (Inches) 7.3 x 7.3 x 3.25
Quantity of Units in Master Carton 8
Gross Master Carton Weight (lb) 32
Master Carton Dimensions W x L x H (Inches) 15.25 x 15.25 x 7.5
