Product Overview

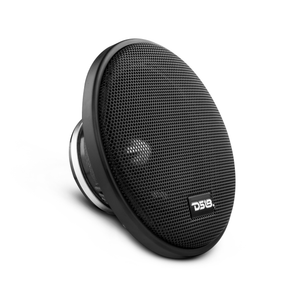

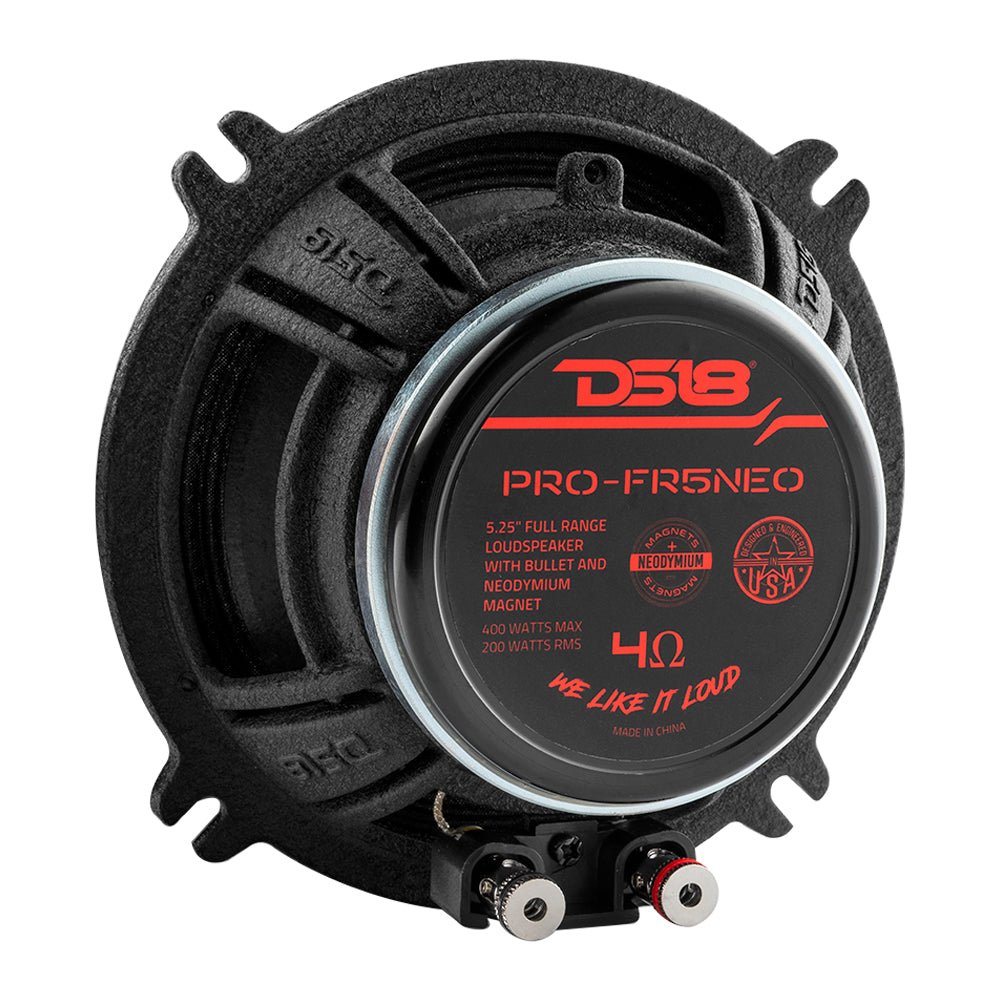

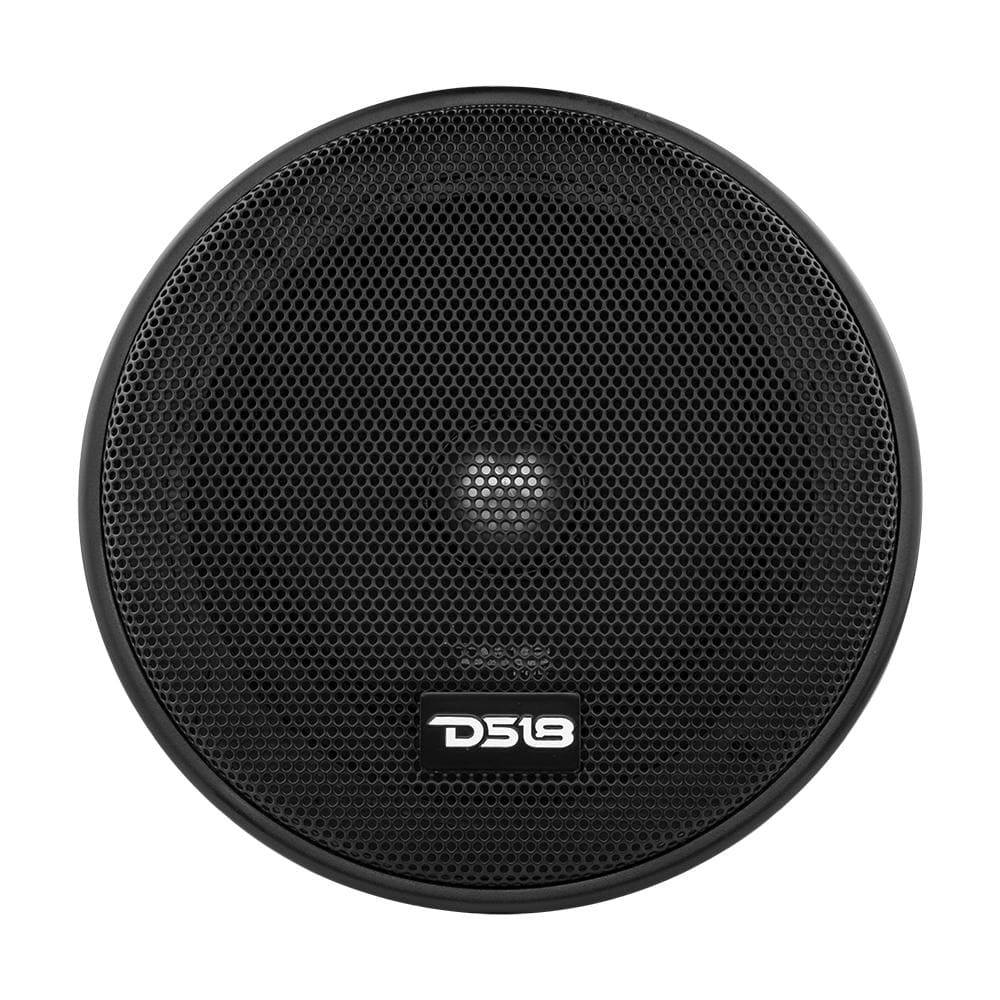

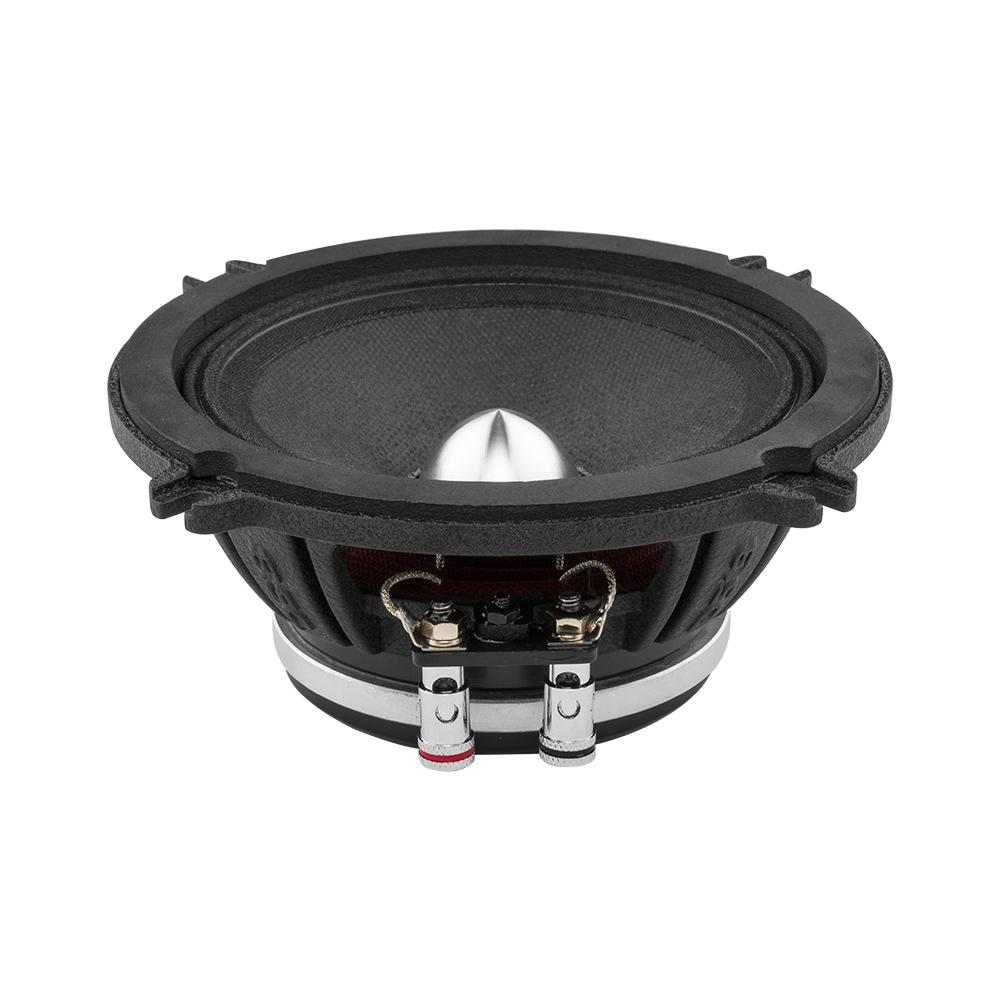

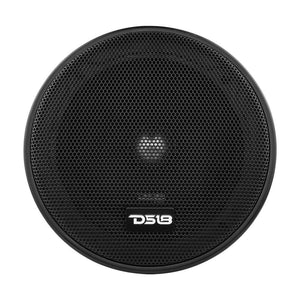

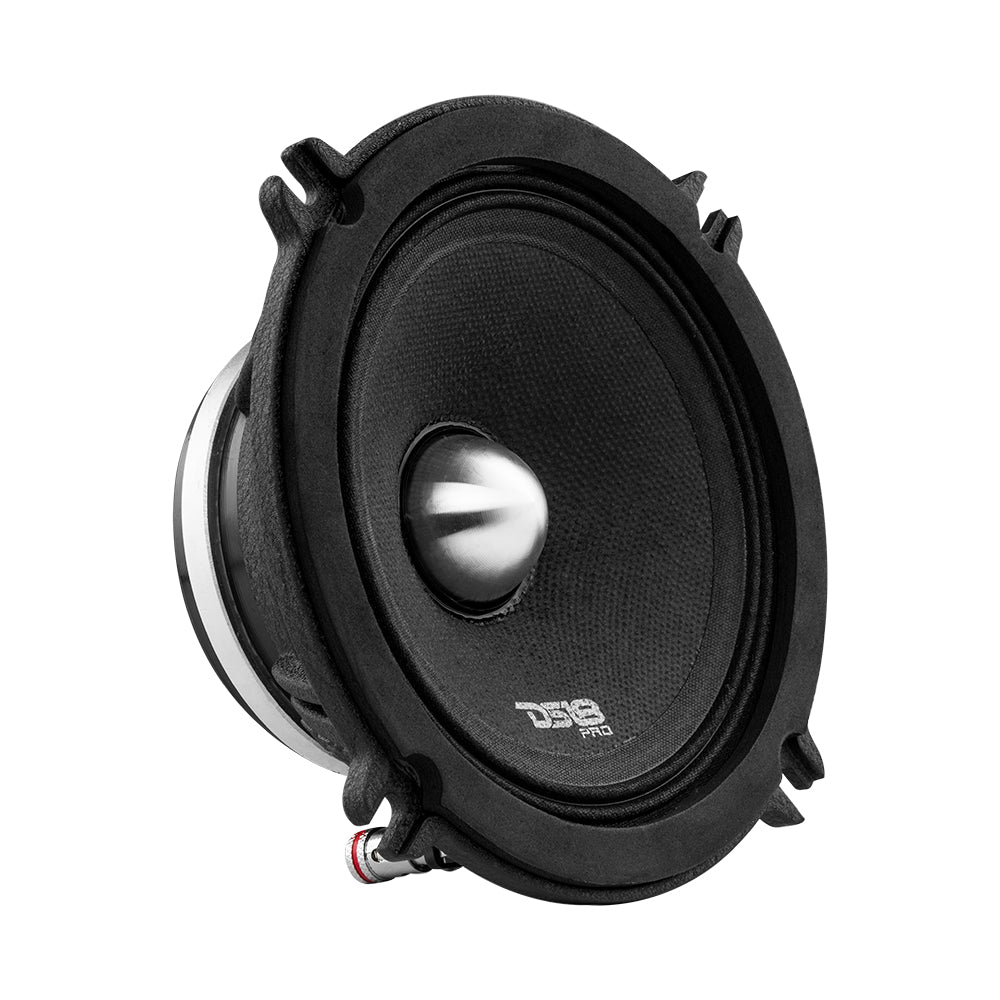

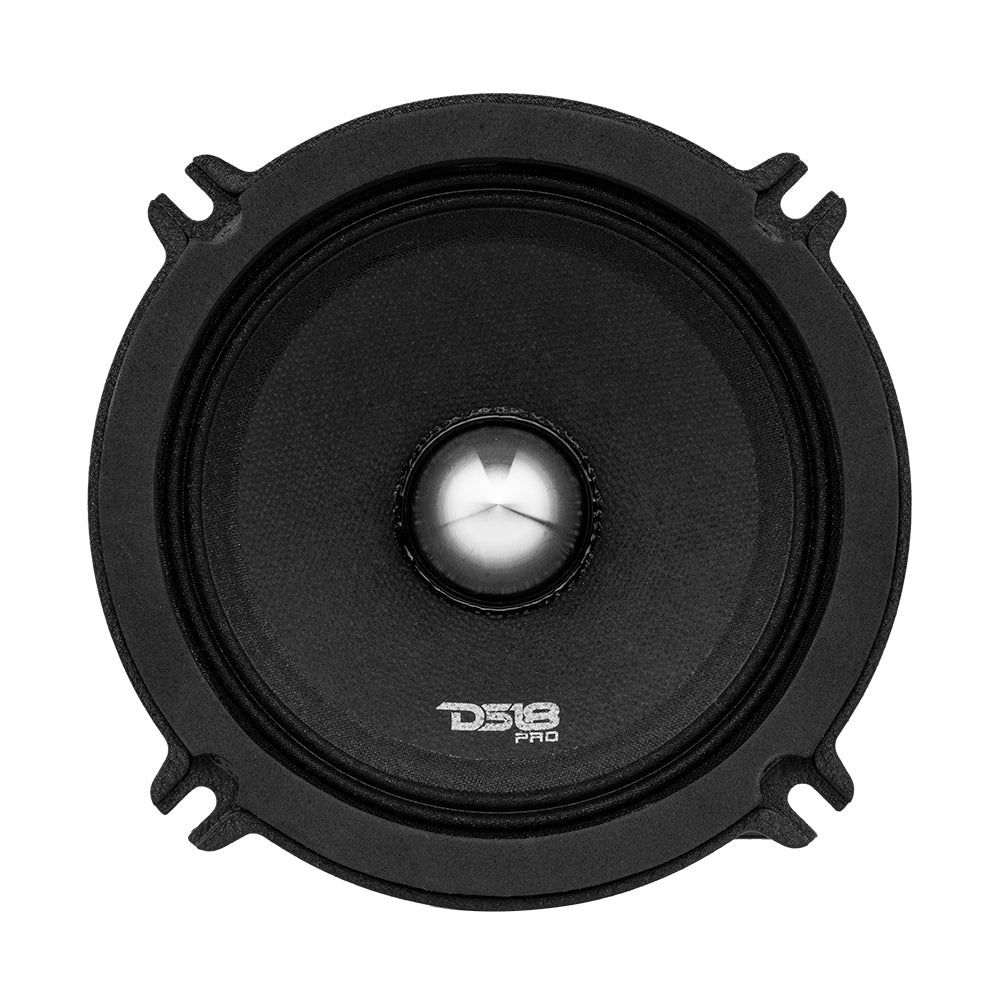

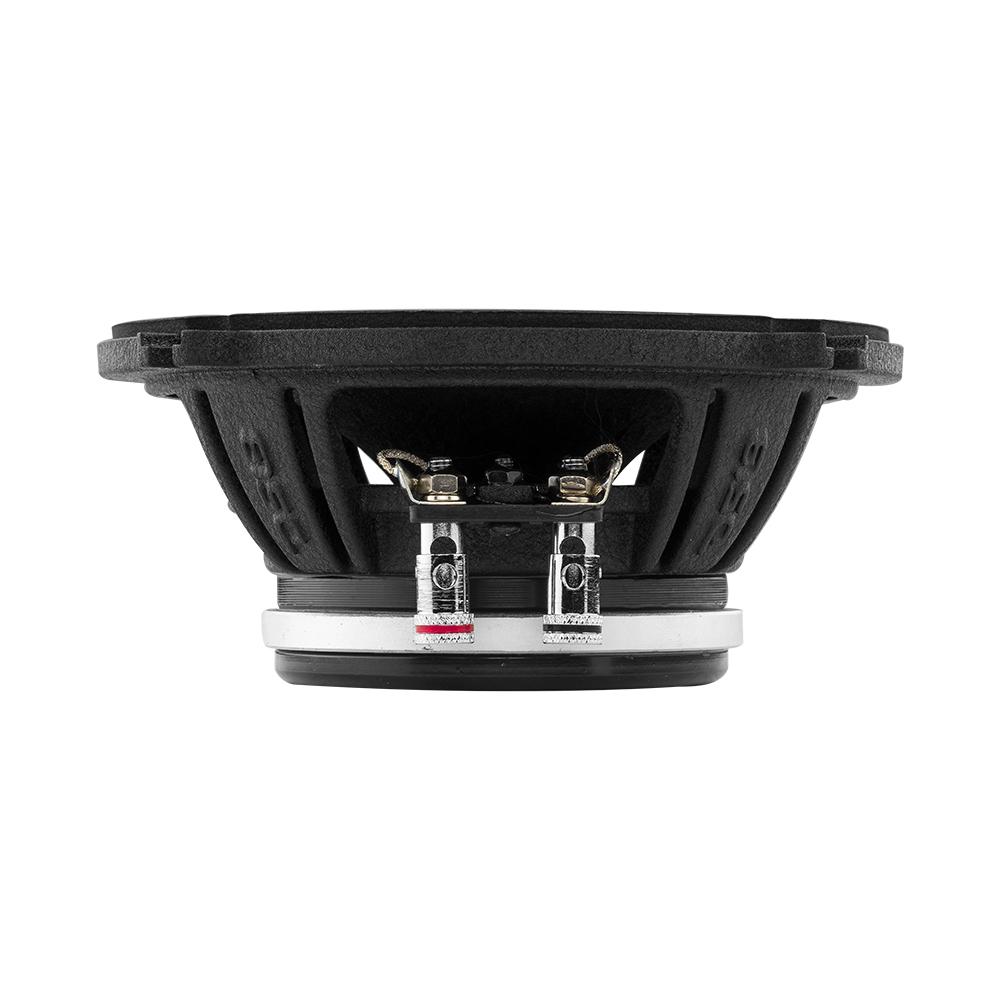

DS18 PRO-FR5NEO 5.25" Neodymium Full-Range Loudspeaker with Bullet 400 Watts 4-Ohm with Grill
|
DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo full range to accommodate any build. Highlights
|
Technical Details
| Model: | PRO-FR5NEO |
| Type: | Full Range Loudspeaker with Bullet |
| Size: | 5.25" |
| RMS Power: | 200W |
| MAX Power: | 400W |
| Frequency Response: | 250Hz - 16KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 94 dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Aluminum |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Neodymium |
| Voice Coil Wire: | KCCAW |
| Measurements | |
| Voice Coil Size: | 1.2" |
| Magnet Size: | NEO |
| Mounting Depth: | 1.96" (50mm) |
| Cut-Out Dimension: | 4.65" (118mm) |
Key Features
- 5.25" Full-Range w/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 94dB ~ w/Grill
Specifications
| SKU | PRO-FR5NEO |
|---|---|
| Nominal Diameter | 5.25" |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 200 Watts |
| Maximum Power Handing | 400 Watts |
| Sensitivity (1w/1m) | 94 dB |
| Frequency Response | 250Hz- 16KHz |
| Recommended Hi Pass Crossover | 260 Hz |
| Voice Coil Diameter | 1.2" (30.5 mm) |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 5.52Oz |
| Vas | 0.722L / 0.025ft3 |
| Xmax | 6.7 mm |
| Fs | 237Hz |
| Qms | 7.158 |
| Qes | 0.619 |
| Qts | 0.569 |
| Re | 3.15 ohms |

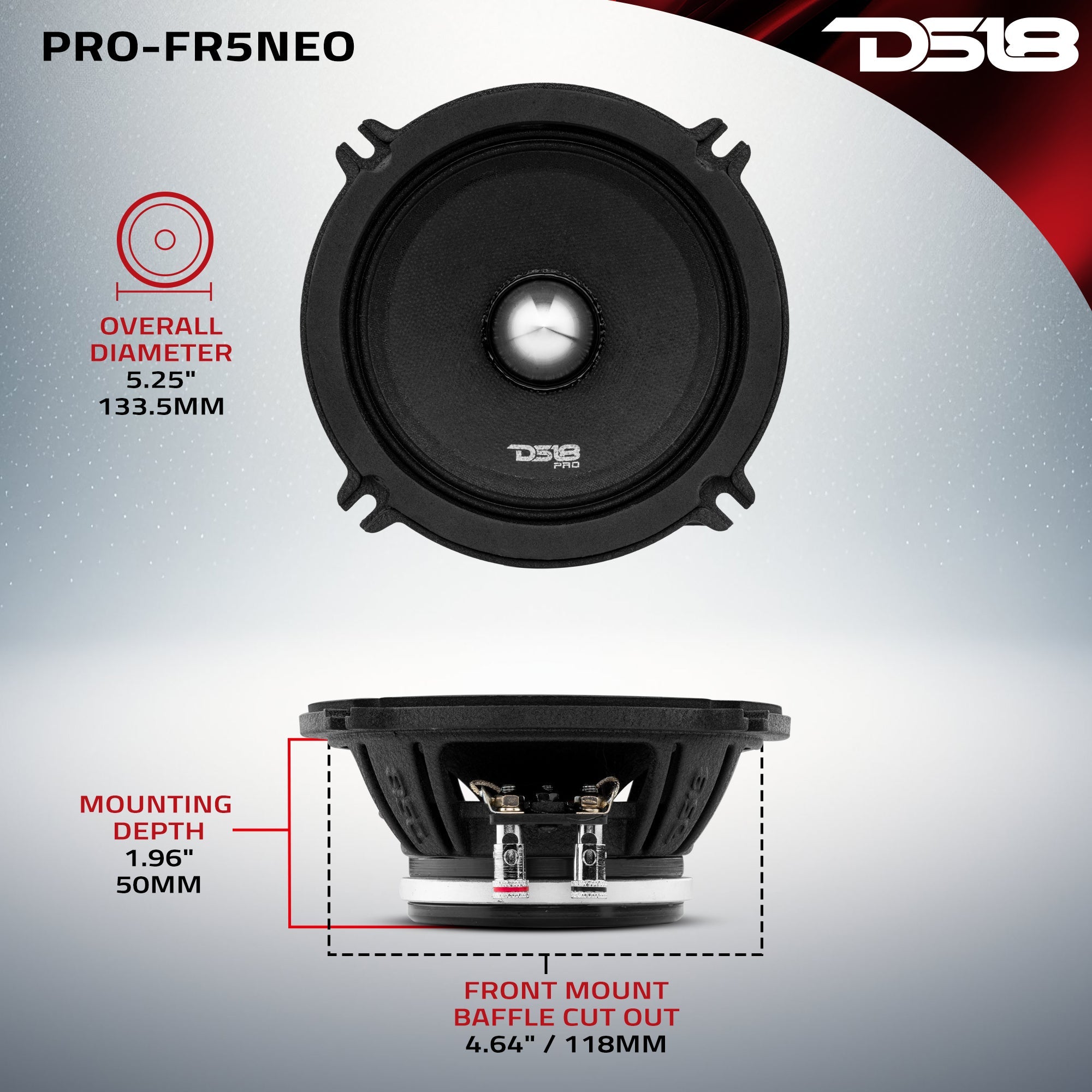

| Overall Diameter | 5.25" / 133.5 mm |
| Front Mount Baffle Cutout | 4.64" / 118 mm |
| Mounting Depth | 1.96" / 50 mm |
| Overall Depth | 2.24" / 57 mm |
| Product Weight | 2.14 lbs |
| Product Dimensions | 7.25 x 7.25 x 2.75 |
| M/C Weight | 46 lbs |
| M/C Dimensions | 22 x 15.5 x 12 |
| M/C QTY | 24 |
| Sold In | Piece |
